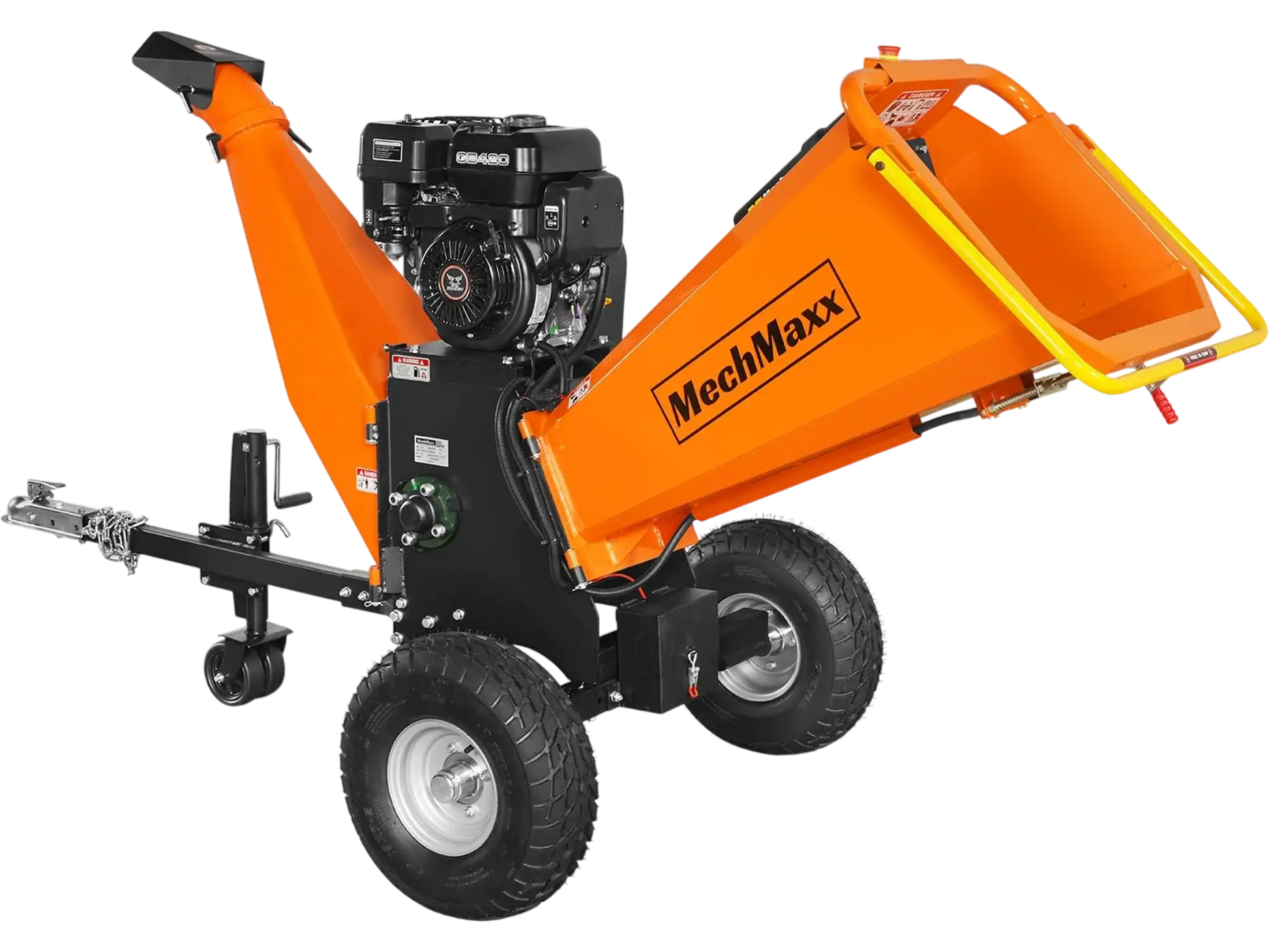

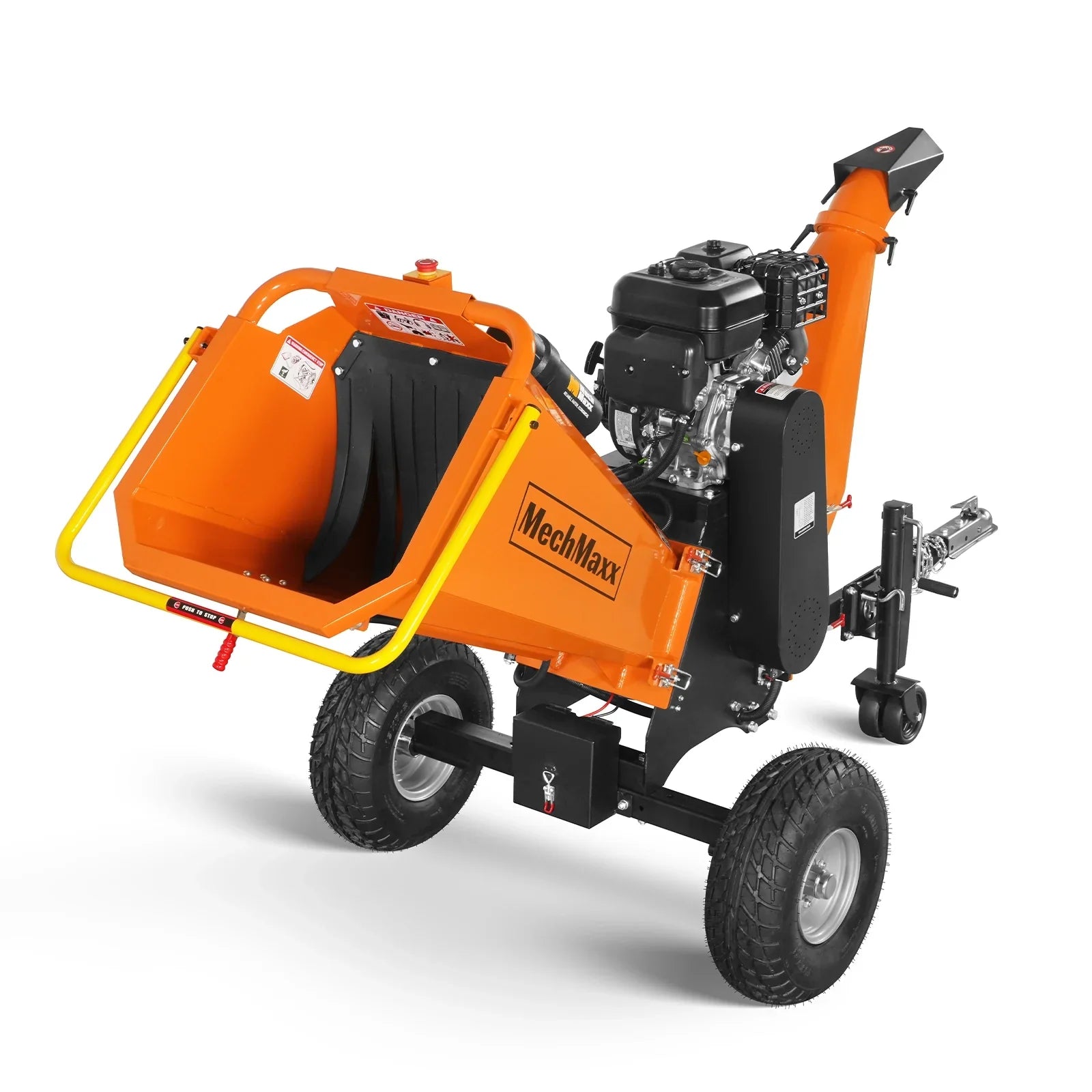

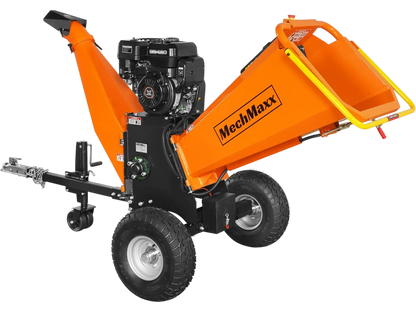

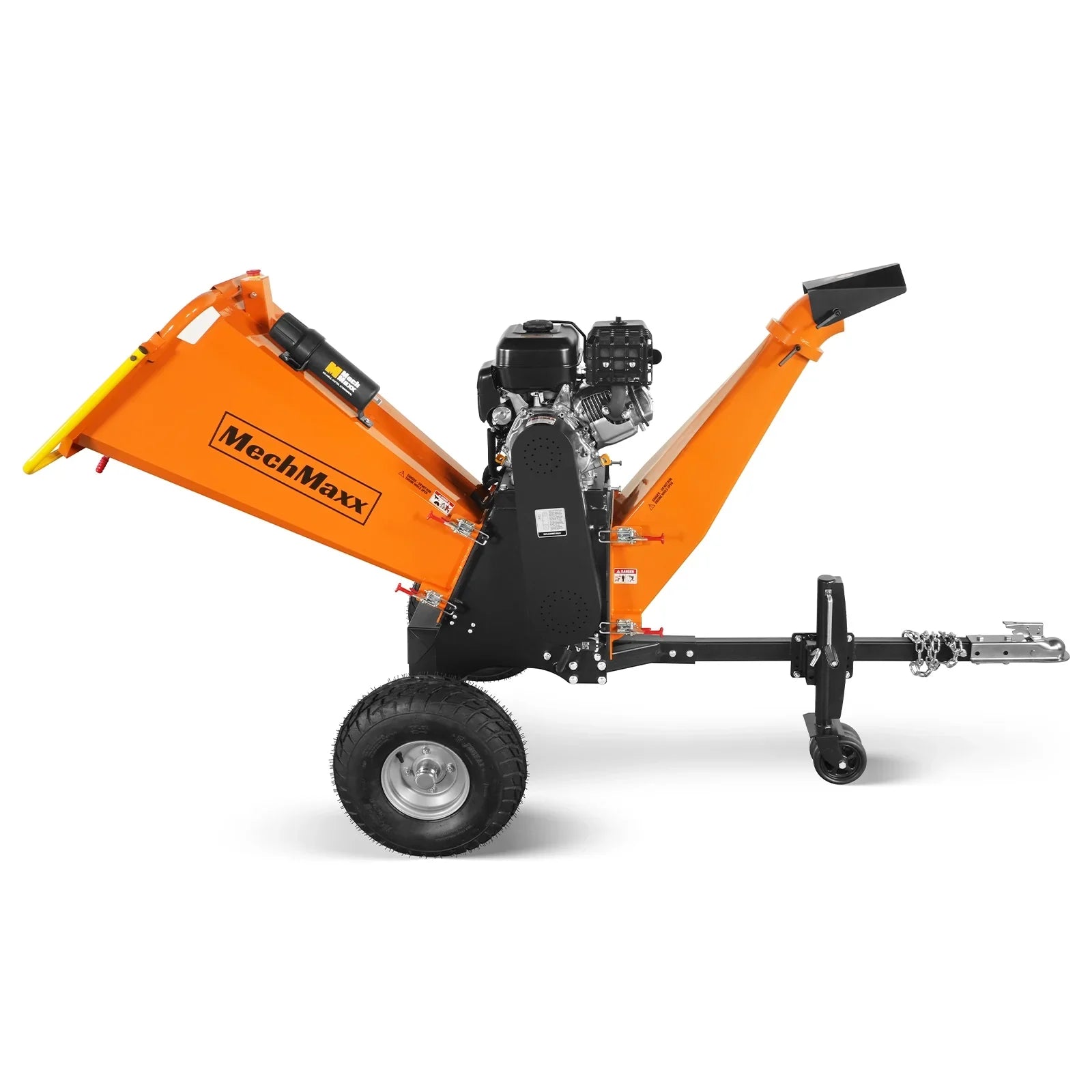

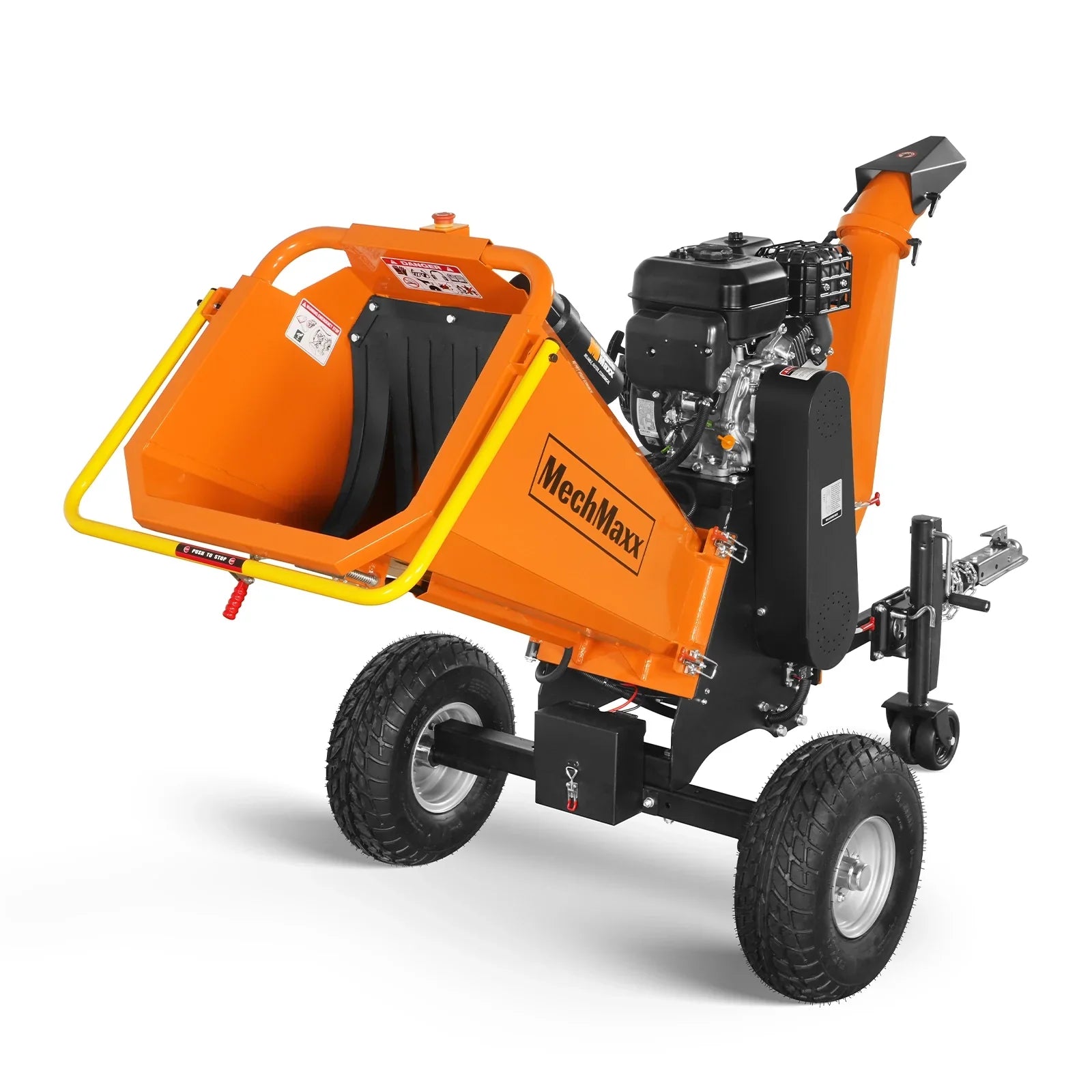

MechMaxx P4206 Wood Chipper 6" Electric Start ZONSEN 420cc 13.4 HP Gasoline Engine Powered Drum New

MechMaxx

$2,399.00
$2,399.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • MechMaxx 6 in. 13.4HP gasoline engine wood chipper, electric start, attach to two 12in. blades, DOT road legal tires, wheelbase 48 in., 56in. discharge chute
  • This wood chipper has extremely powerful roller with the diameter of 14in., which can shred branches up to 6 inches.
  • Double-edge cut reversible blades greatly increase the service life.
  • Both the feeding chute and the discharge chute can be opened quickly and easily for the maintenance and repair.
  • By adopting whole shaped technology, the discharge chute is both attractive and practical with the ability to rotate 360 degrees.
  • You can stop the engine quickly in a crisis to improve operator safety with a safety button above the feeding chute and the emergency stop press bar on lower side of the feeding chute.
  • With 19x7.00-8 Tubeless tires and 48in. super-wide wheelbase, this wood chipper has the ability of driving on steep ground with the high stability.
  • This is a high-performance wood chipper fit for professionals and leasing companies.
  • Gasoline/Petrol: Clean, fresh, unleaded gasoline
  • Oil: 10W-30
2 year factory warranty

2 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Electric Start and Battery: Wood Chipper P4206 is powered by a 13.4hp 420cc electric start gasoline engine, and equipped with a 12V20Ah lead-acid battery.

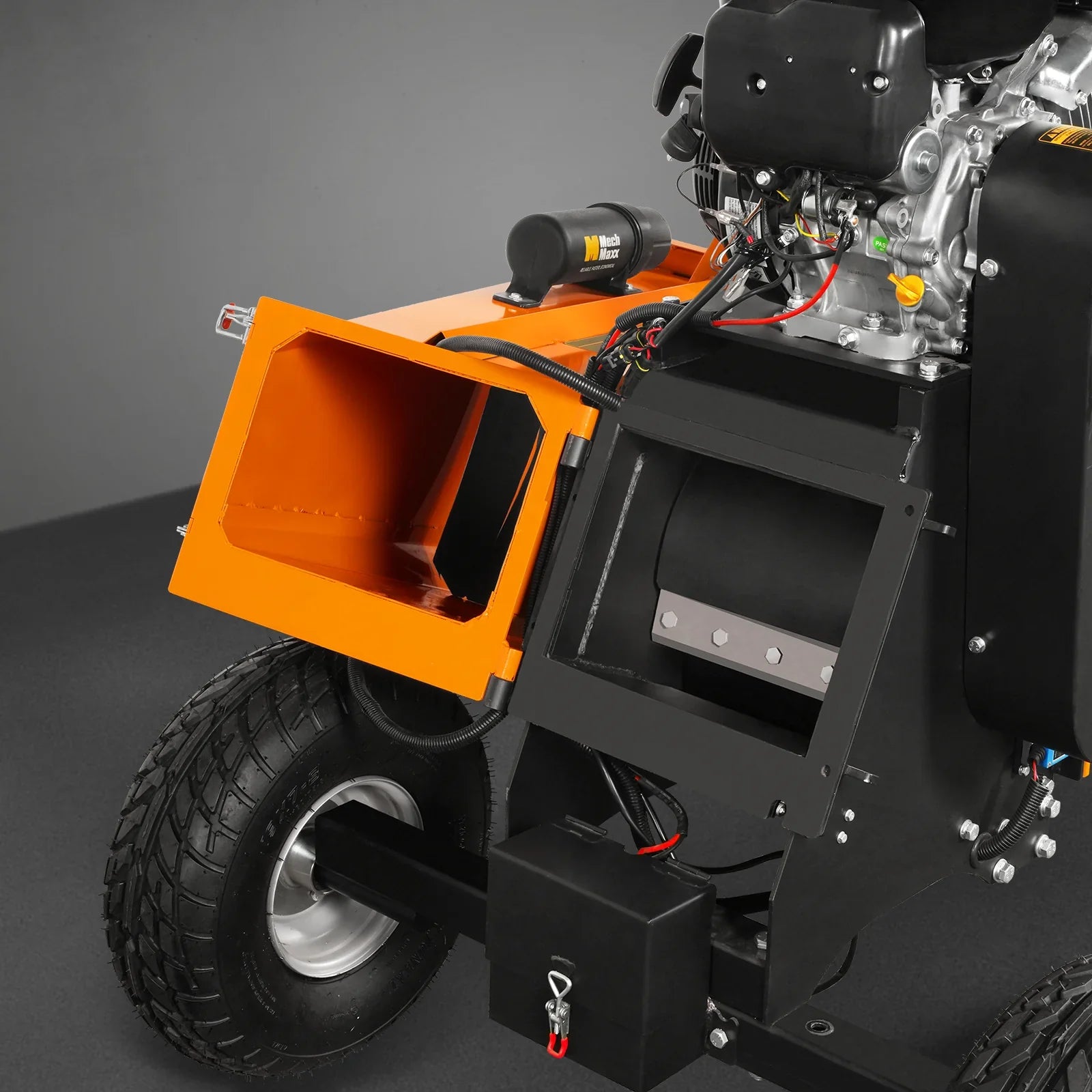

  • Feeding Chute: There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

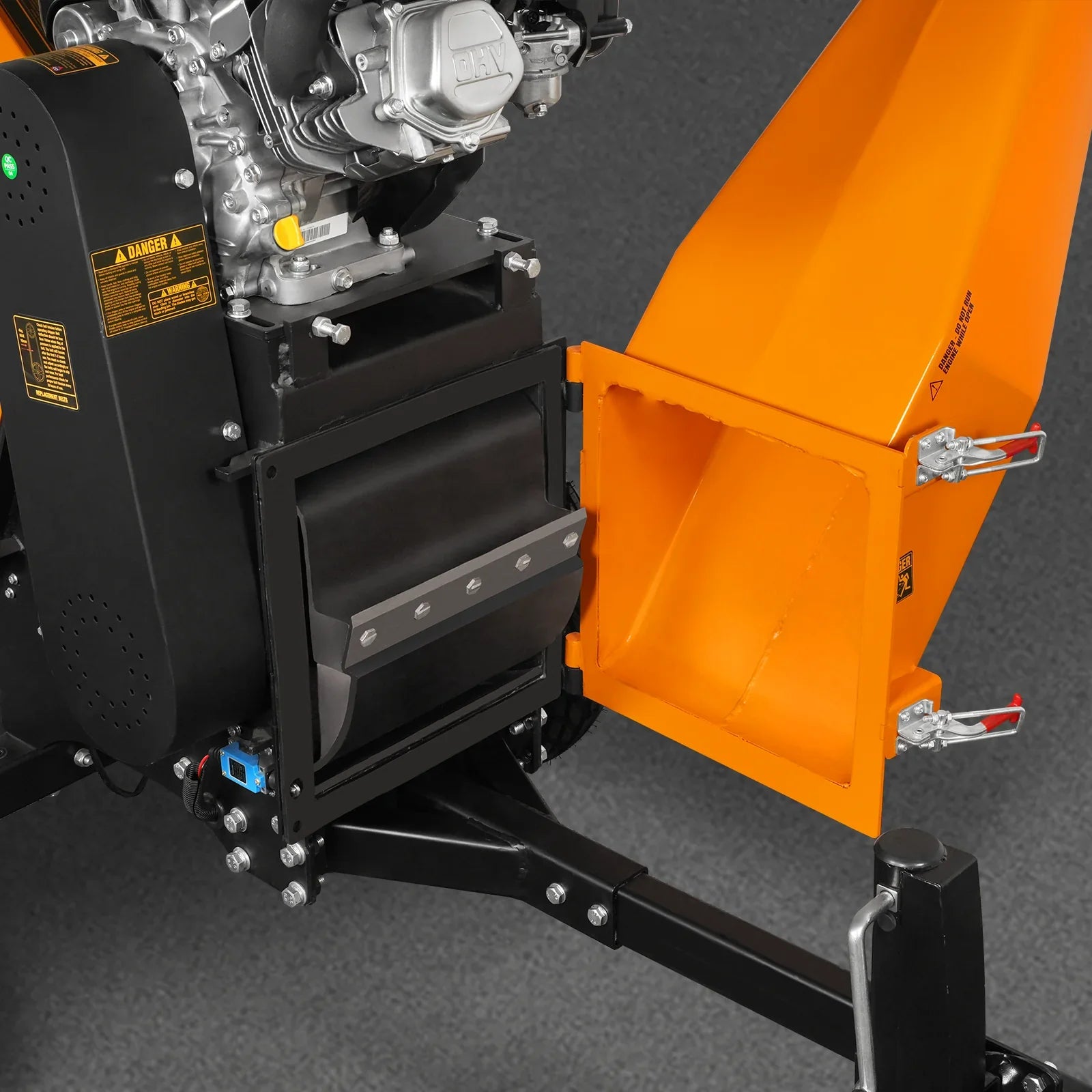

  • Discharge Chute: Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

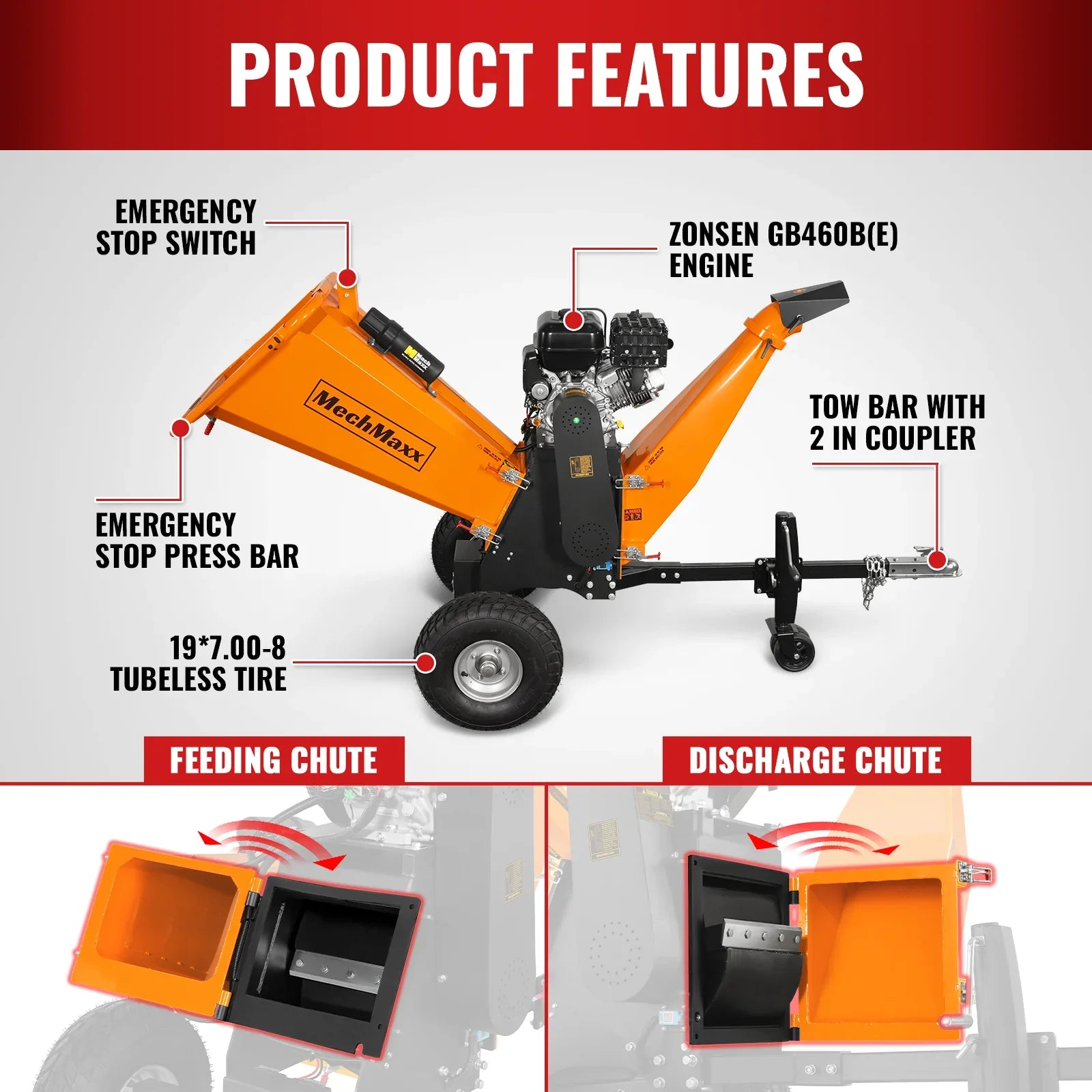

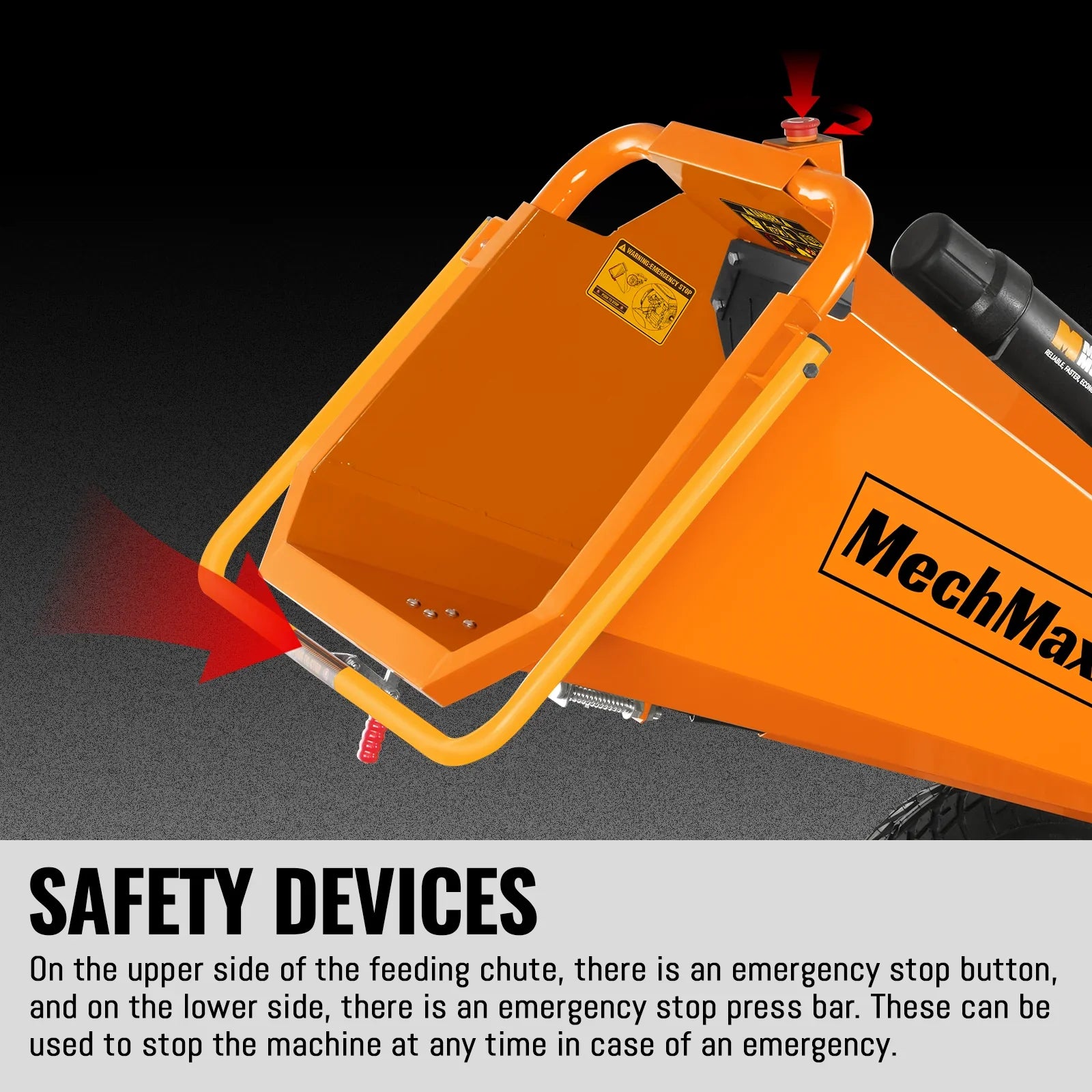

  • Safety Devices: On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

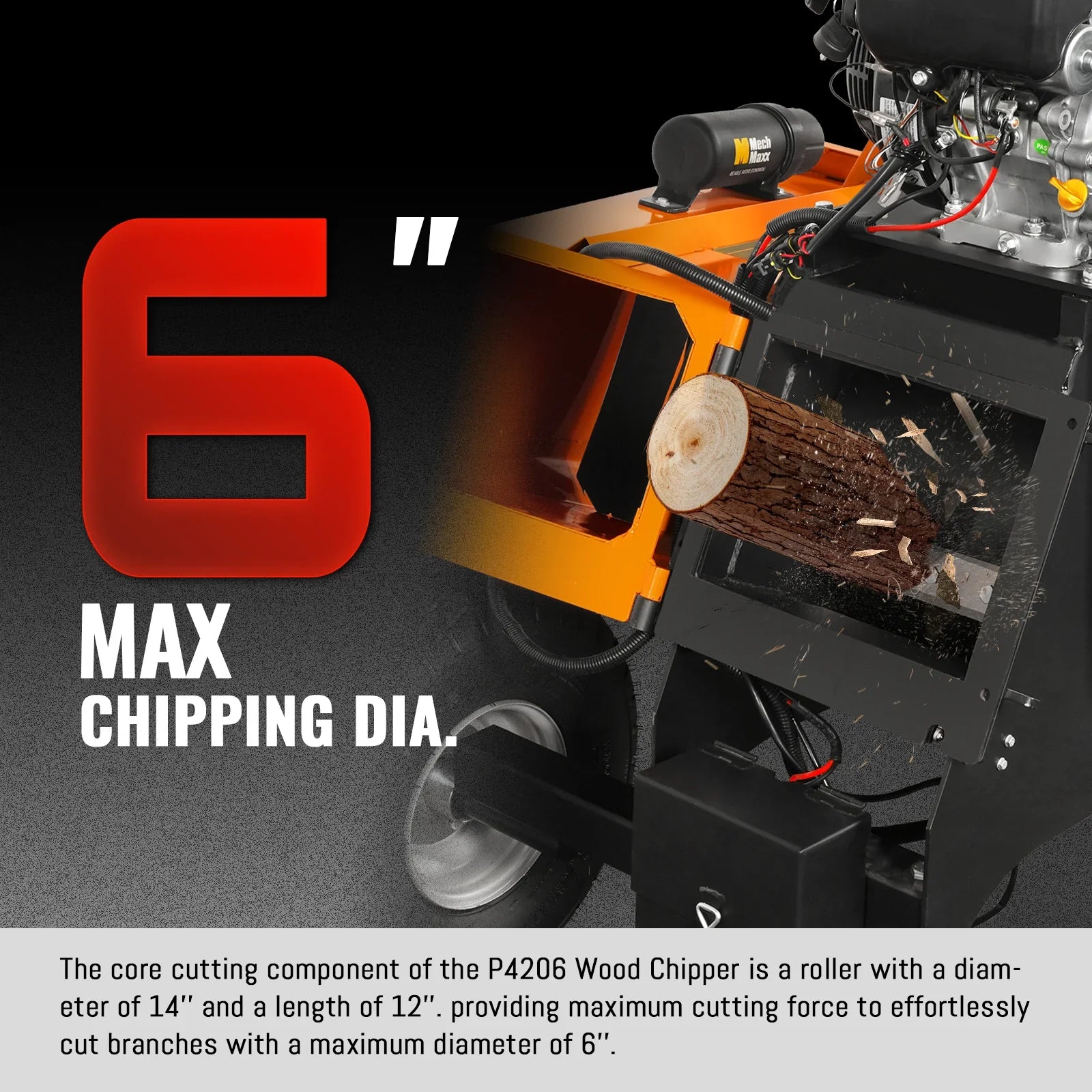

  • Maximum Wood Chip Diameter 6’’: The core cutting component of the P4206 Wood Chipper is a roller with a diameter of 14’’ and a length of 12’’. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 6’’.

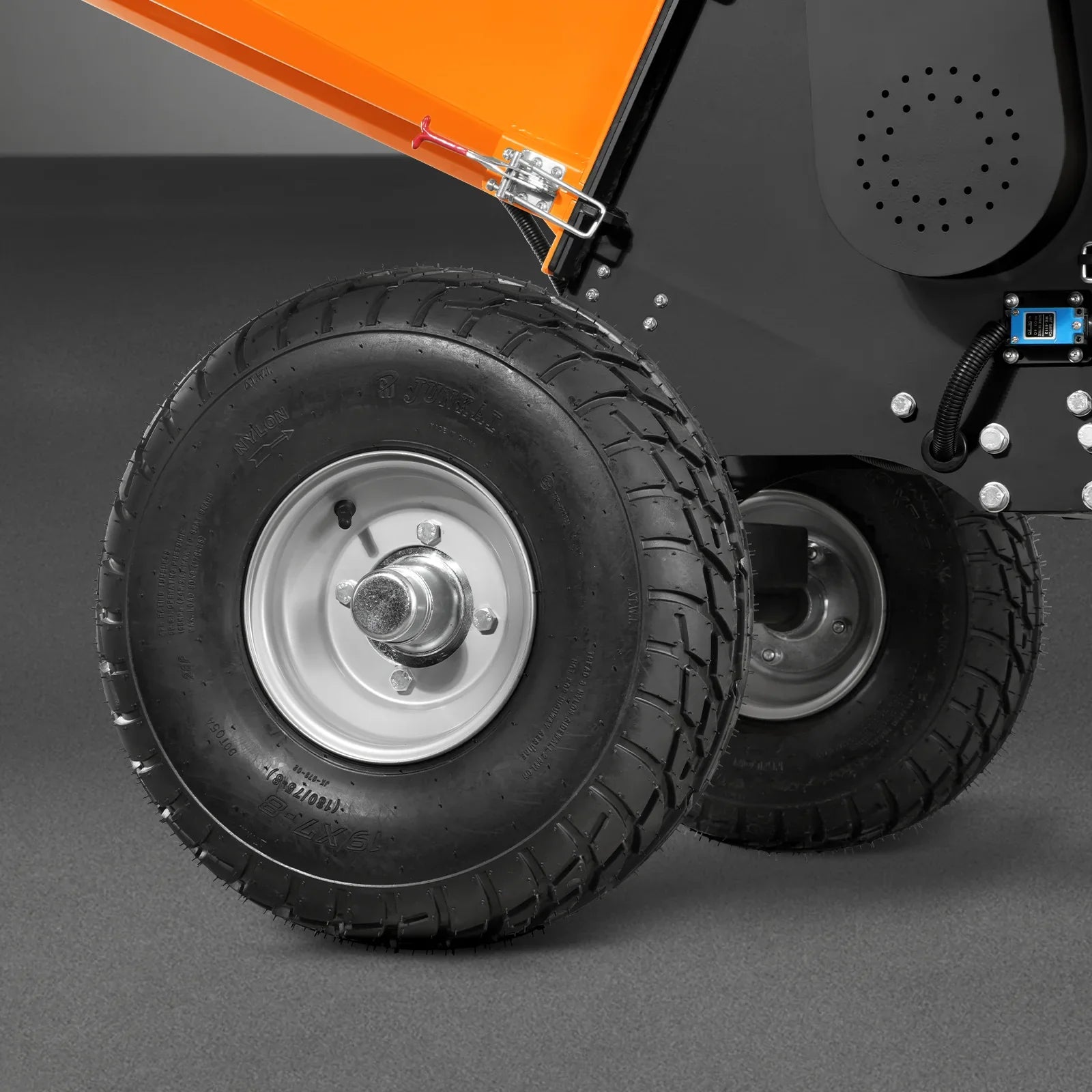

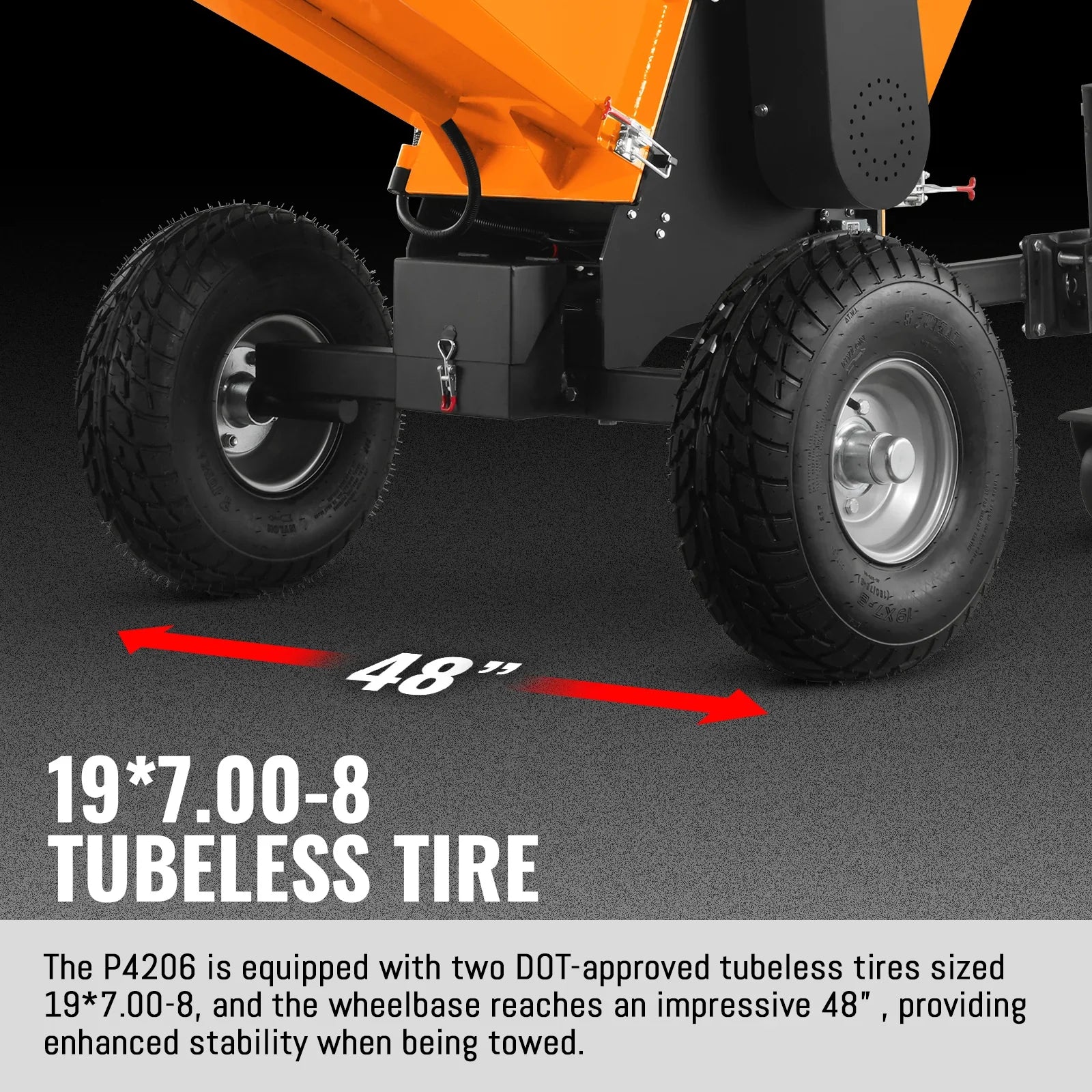

  • 19*7.00-8 tubeless tire: The P4206 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48” , providing enhanced stability when being towed.

Engine: ZONSEN GB420

Blades Type: Double Edge Blade

Engine Type: Single Cylinder, 4 Stroke, Air-Cooled, OHV

Discharge Chute: 360 Degree Rotating

Displacement: 420 cc; 13.4 HP

Emergency Stop: Stop Bar + Button

Start: E-Start

Feed Chute Opening Method: Hinge

Battery: 12V 20Ah Lead-Acid

Discharge Chute Opening Method: Hinge

Belt: 2 x V-Belts

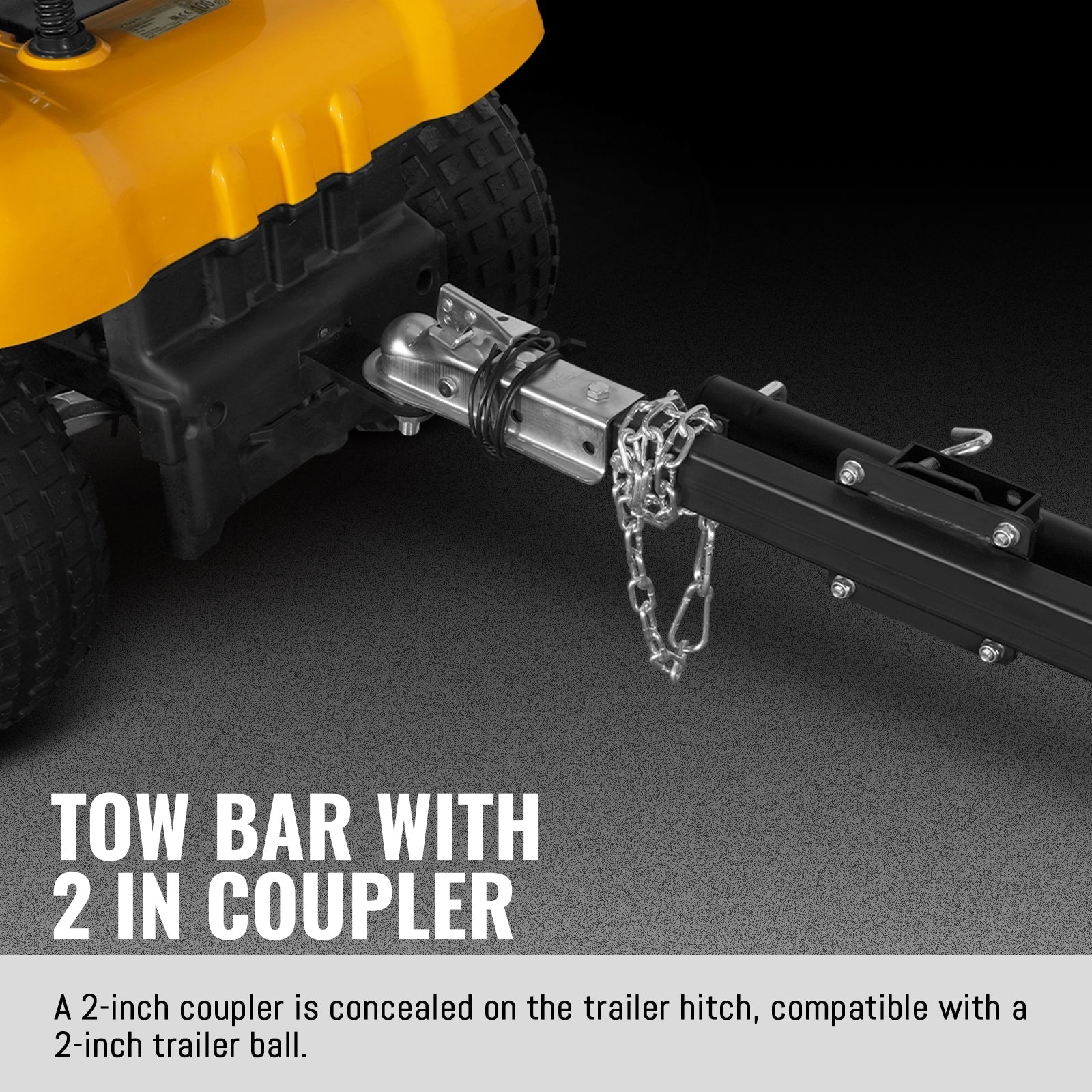

Towing: Tow Bar With 2 in Coupler

Belts Material: Kevlar

Tire: 19 x 7.00-8 Tubeless

Clutch: Centrifugal Clutch

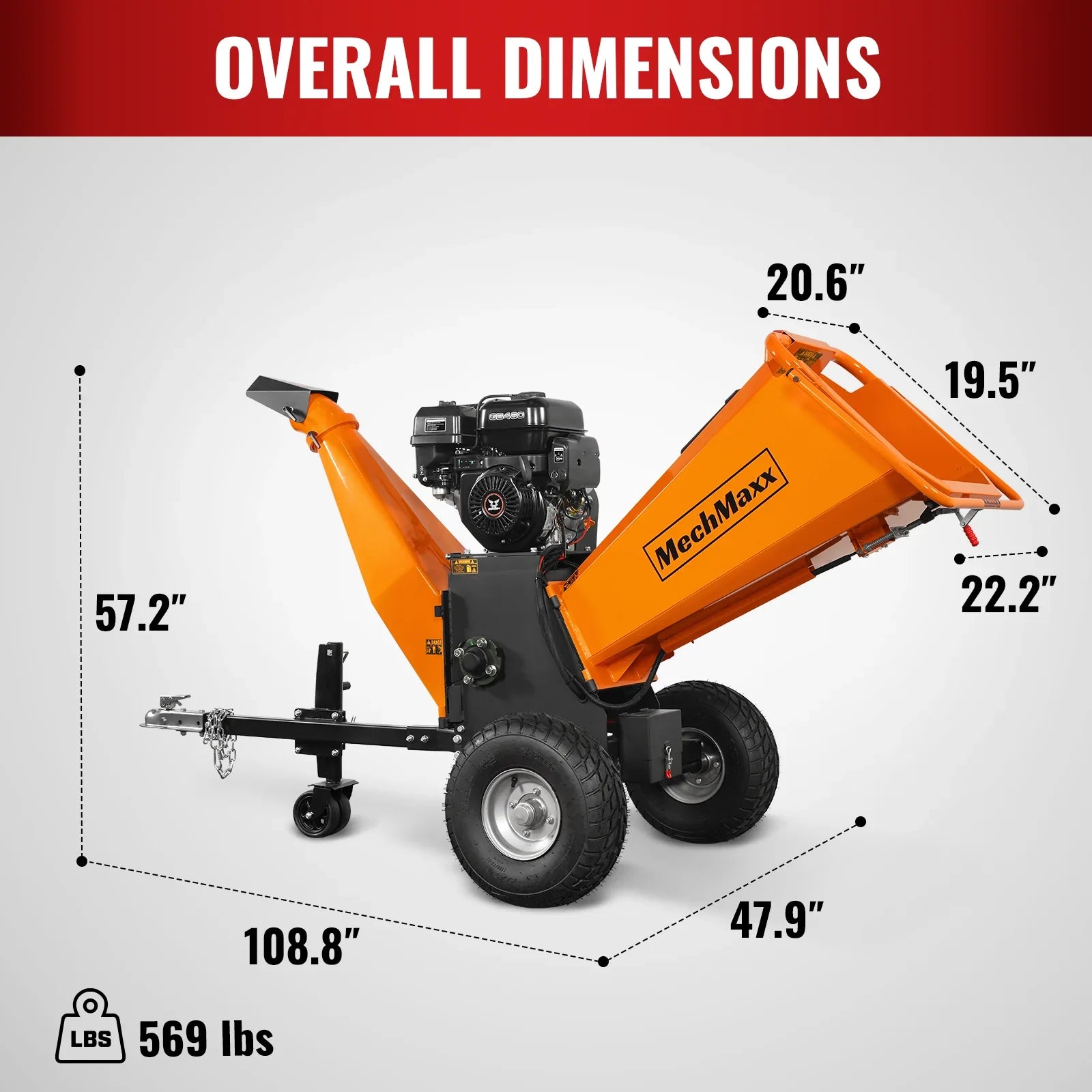

Wheelbase: 48 in

Cutting Method: Drum

Package Method: Plywood Case

Chipping Dia.: 6 in

Weight (N.W./G.W.): 569 / 610 lbs

Roller: 13.8 in

Packing Size (L*W*H): 43 x 31 x 50 in

Reduction Ratio: 20:1

Blades Nos.: 2 x Blade; 1 x Anvil

Blades Material: A8 （5Cr8MoVSi）

This item comes with a 2 year factory warranty.
PDF P4206 Product manual 1.0 PDF ZONSEN Engine Manual PDF Wood Chipper Quick Installation Guide
