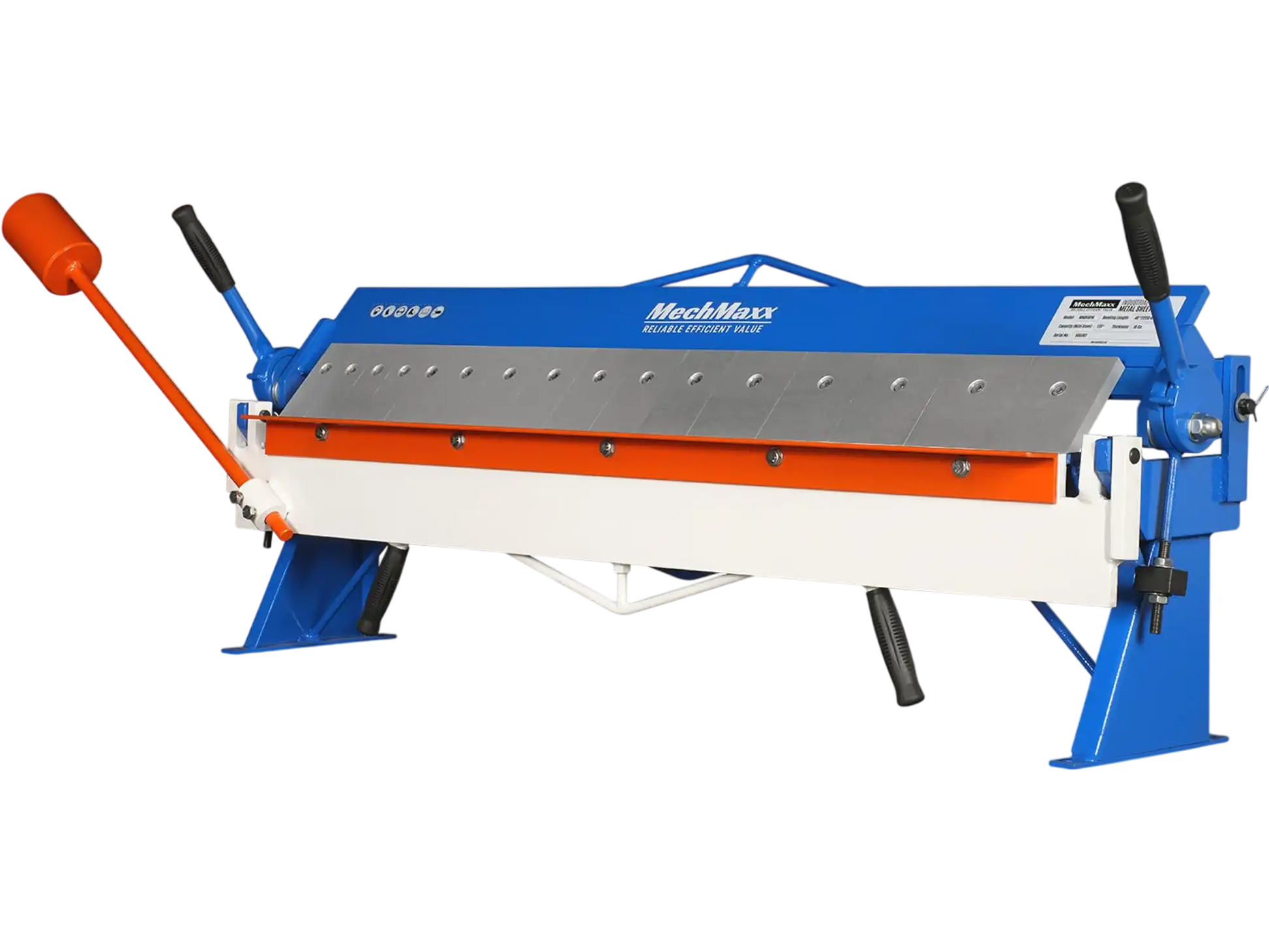

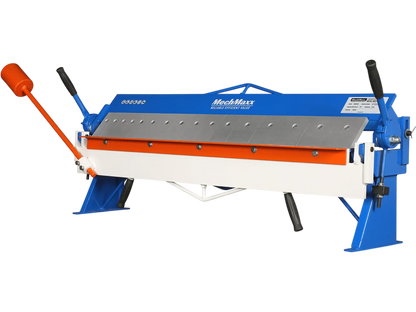

MechMaxx PB4816 Pan and Box Brake 48" Manual 16 Gauge Mild Steel Capacity 135° Bending Angle 16 Precision Fingers New

MechMaxx

$1,469.00
$1,469.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • True Working Capacity – Built to handle its rated capacity with ease, ensuring reliable performance for both professional and workshop use.

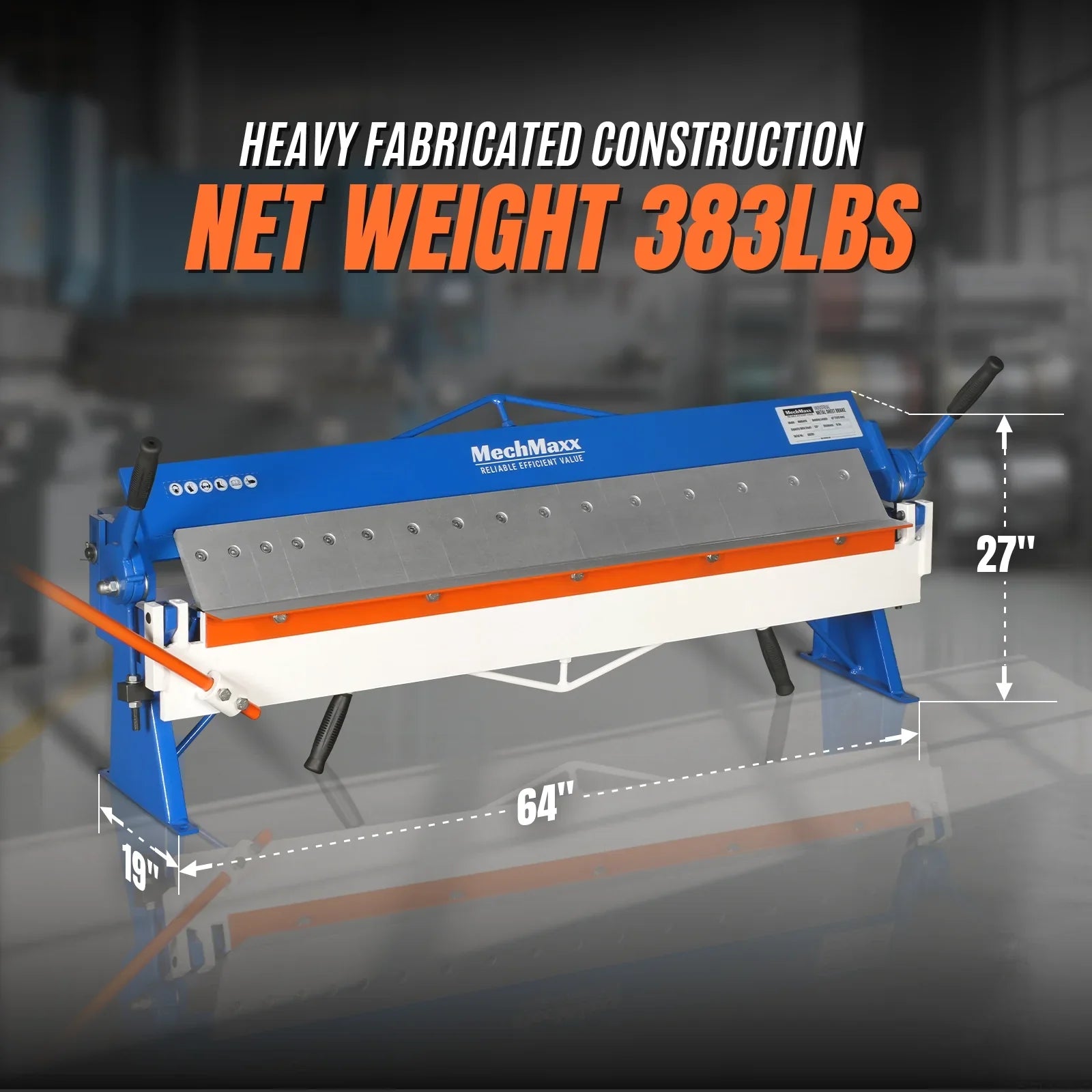

  • Heavy-Duty Steel Fabricated Frame – All-steel welded construction provides maximum strength, durability, and resistance to flexing during operation.
  • Lubrication Points on Bearing Areas – Strategically placed oiling points ensure smooth, long-lasting operation with reduced wear on moving components.

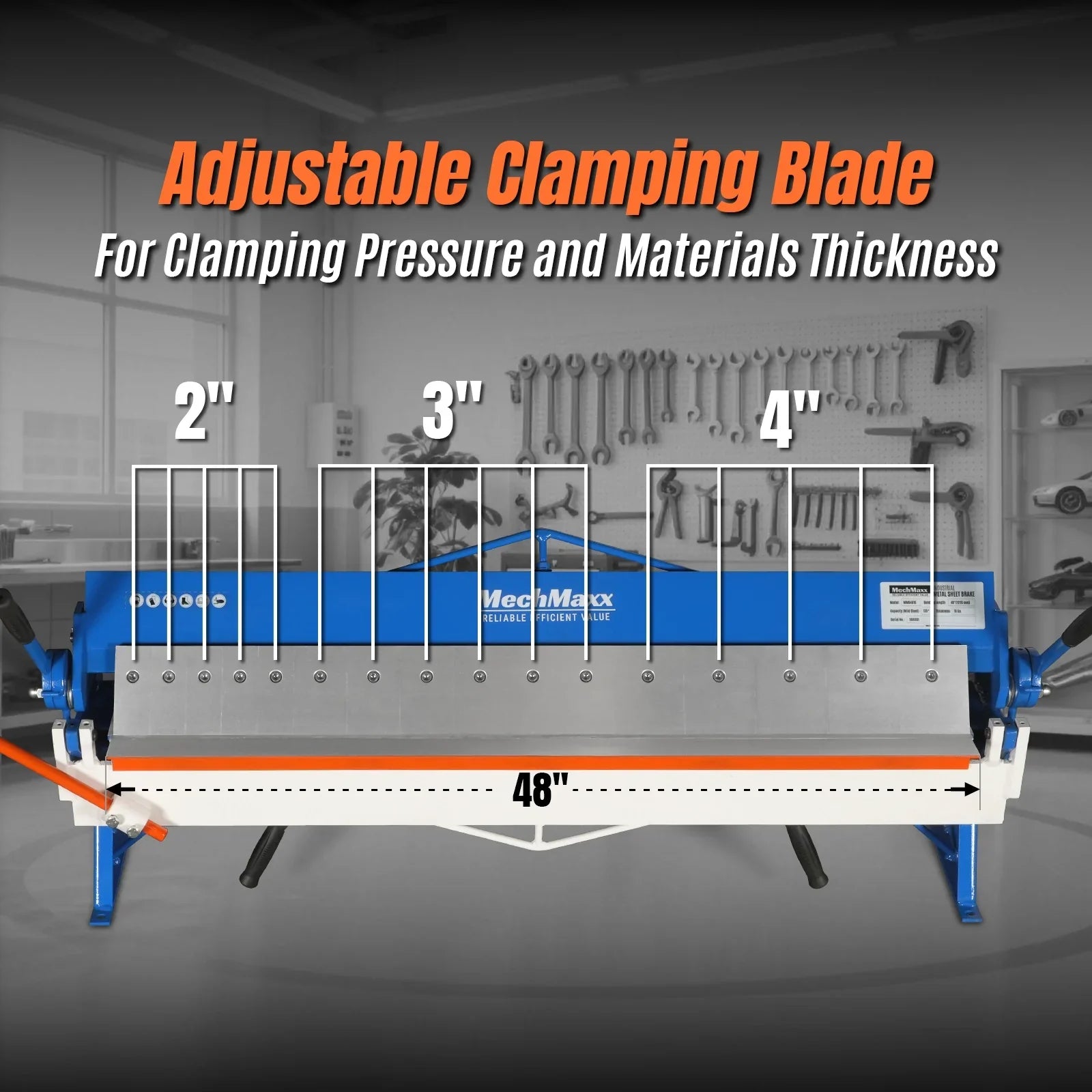

  • Adjustable Clamping Blade – Easily set the clamping pressure and accommodate different material thicknesses for consistent, accurate bends.
  • Precision Pressure Beam Adjustment – Fine-tune the pressure beam to prevent material distortion during bending, ensuring clean, precise results.

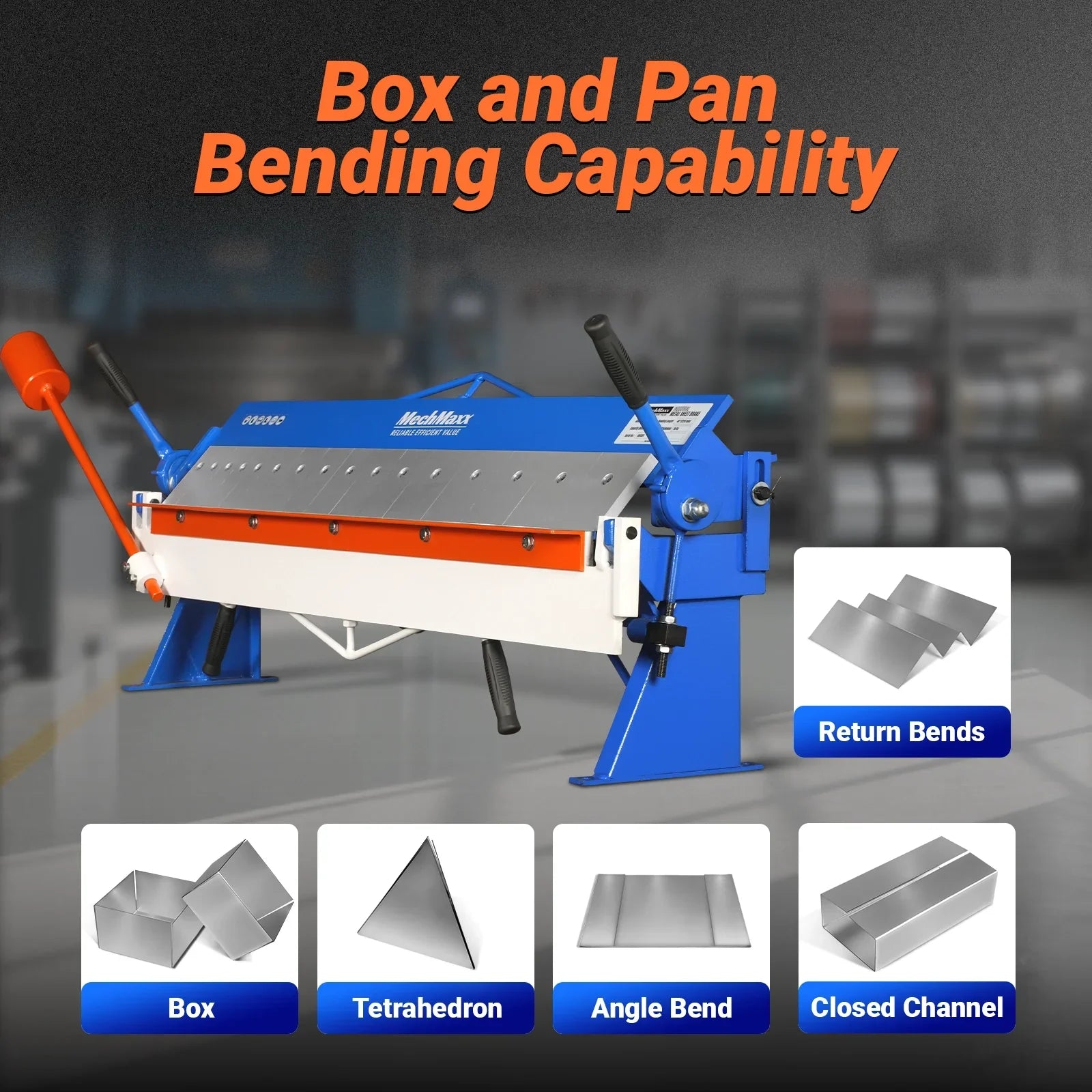

  • Removable & Interchangeable Bending Fingers – Create a variety of boxes, pans, and custom shapes with individually removable finger sections.

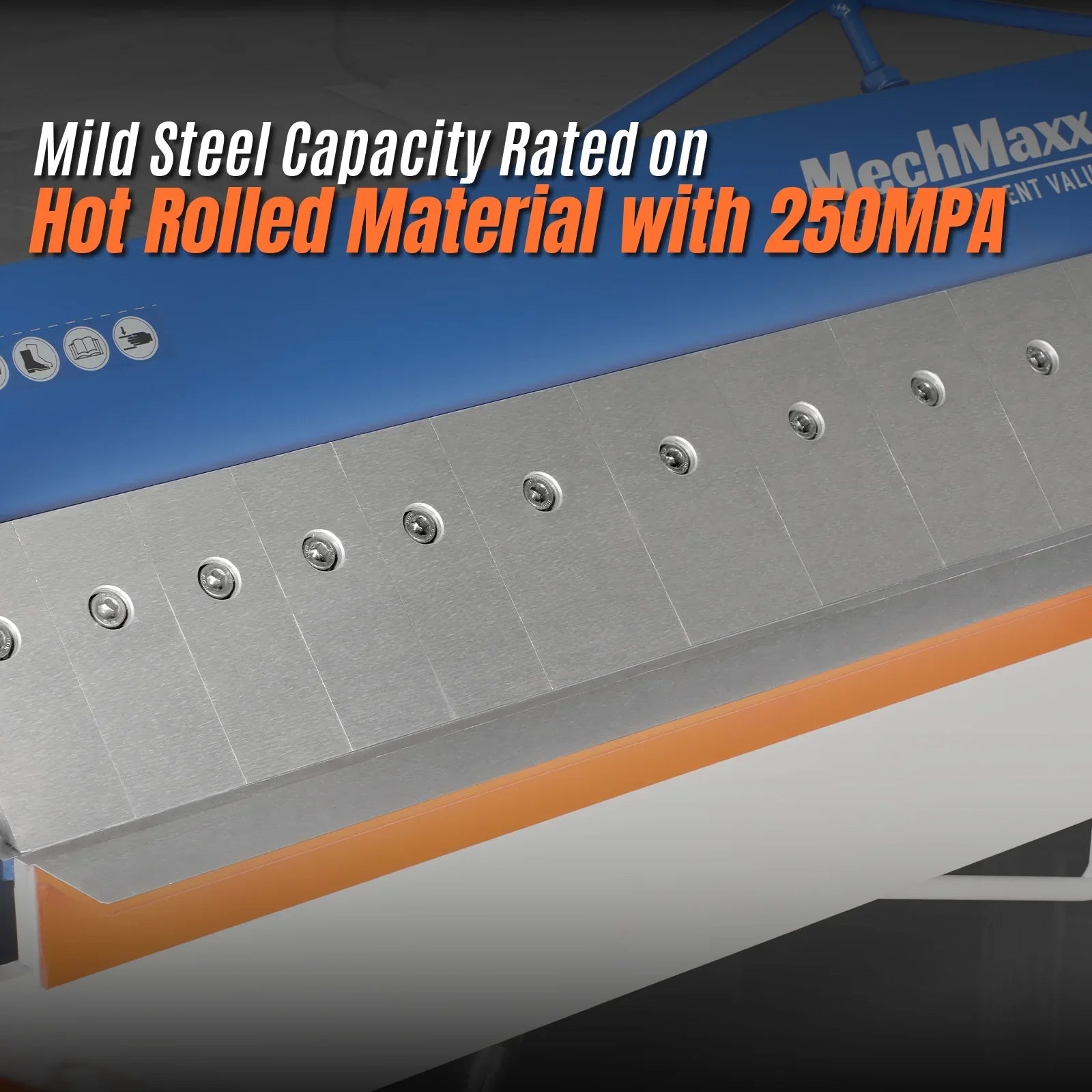

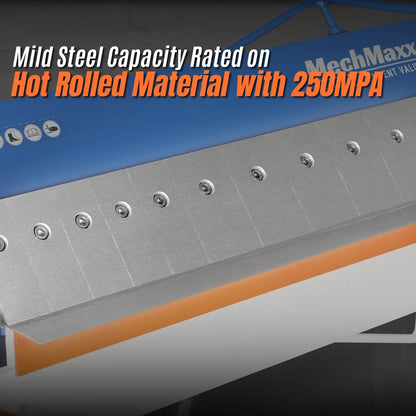

  • Rated for Industrial-Grade Mild Steel – Capacity based on hot-rolled mild steel with 250 MPa tensile strength, guaranteeing dependable performance in demanding tasks.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

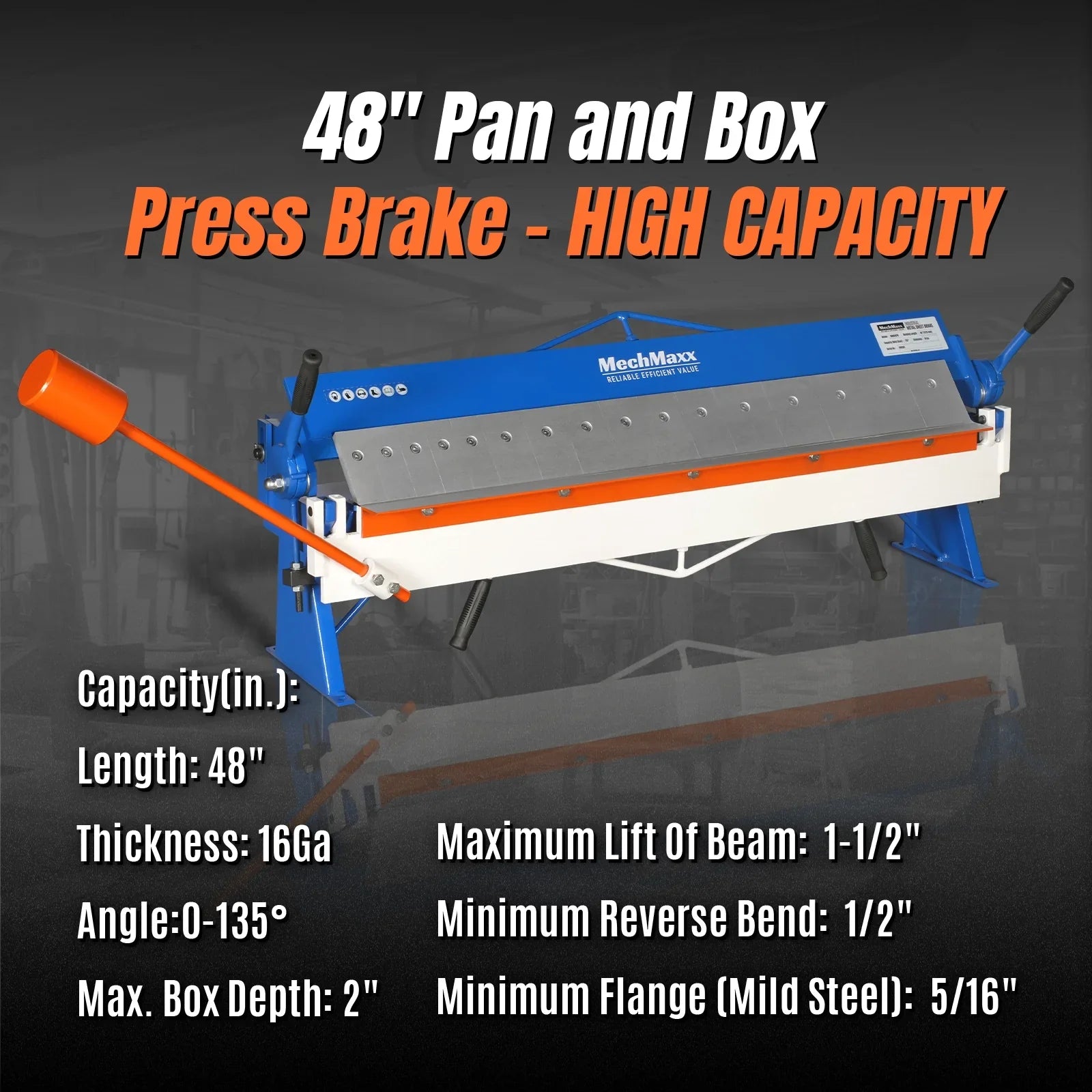

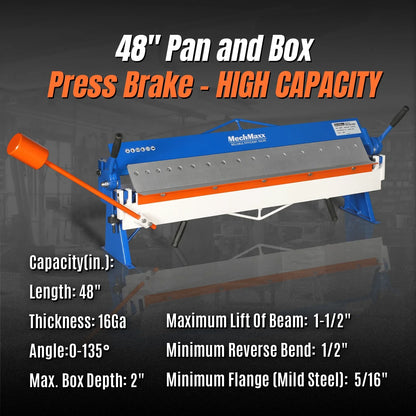

Maximum Working Length: 48"

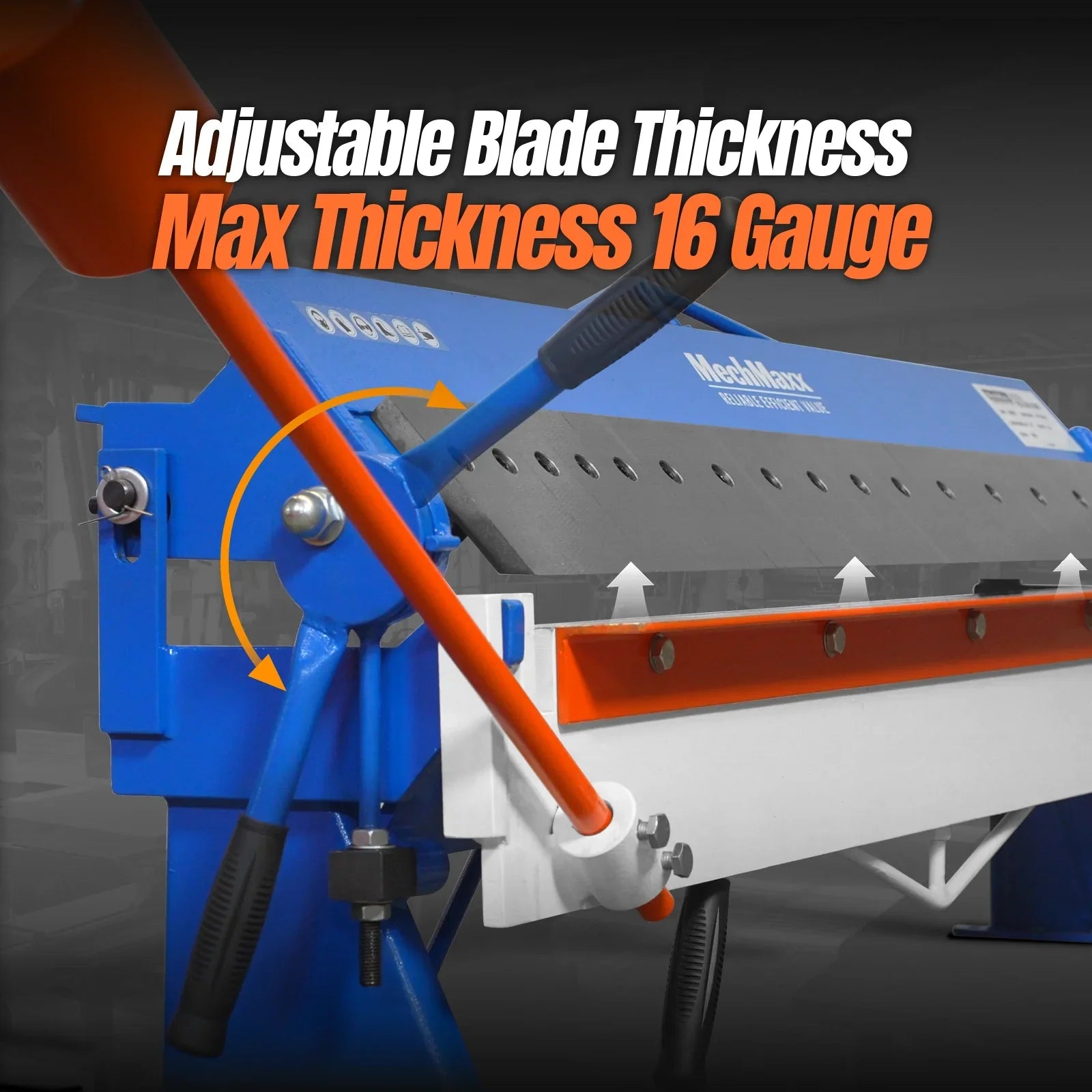

Maximum Thickness (Full Width): 16 gauge (Mild Steel)

Bending Angle Range: 0°–135°

Finger Sizes & Quantity: 2" × 5, 3" × 6, 4" × 5 (16 fingers total)

Maximum Box Depth: 2-1/2"

Maximum Lift of Beam: 1-1/2"

Minimum Reverse Bend: 1/2"

Minimum Flange (Mild Steel): 5/16"

Footprint: 12-1/2" × 52"

Packing Size (LxWxH): 61.42"(1560mm) × 16.14"(410mm) × 24.80"(630mm)

Net Weight/Gross Weight: 299.83 / 350.53 lbs (136 / 159 kg)

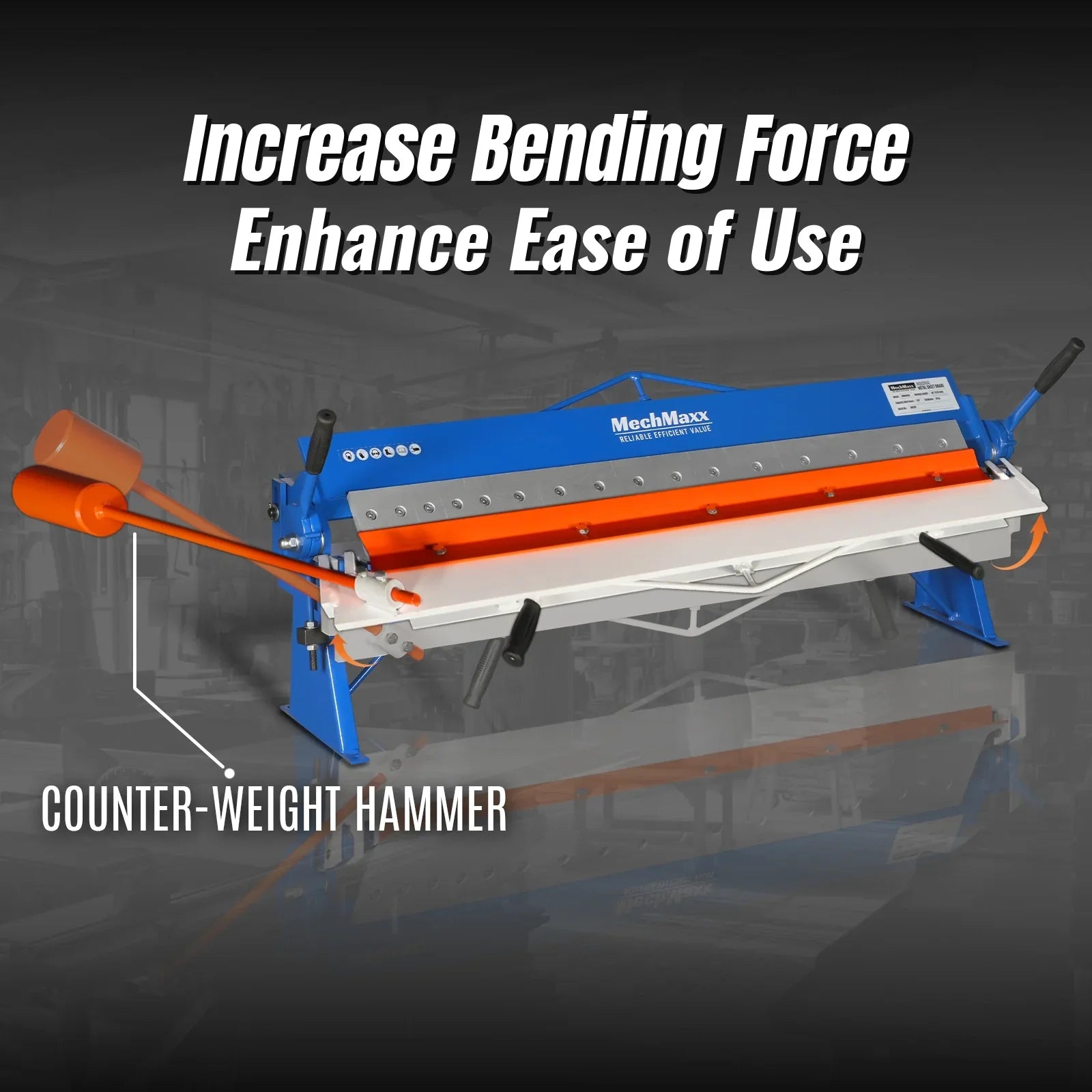

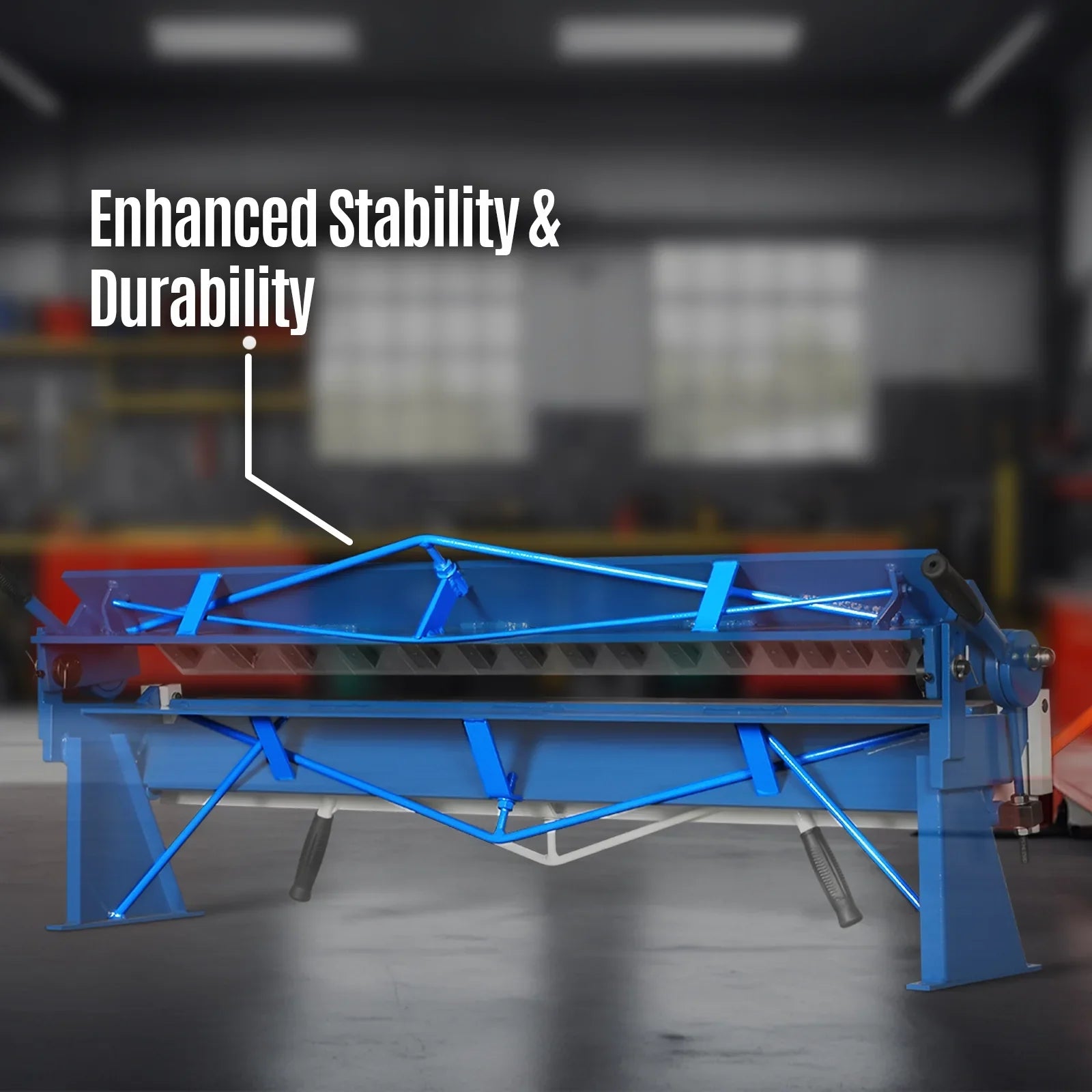

Construction Features: Precision-ground hardened steel fingers, counter-balanced handle, fully trussed frame with reinforced triangular bracing for strength & accuracy.

This item comes with a 1 year factory warranty.
PDF 48inch Metal Sheet Brake
