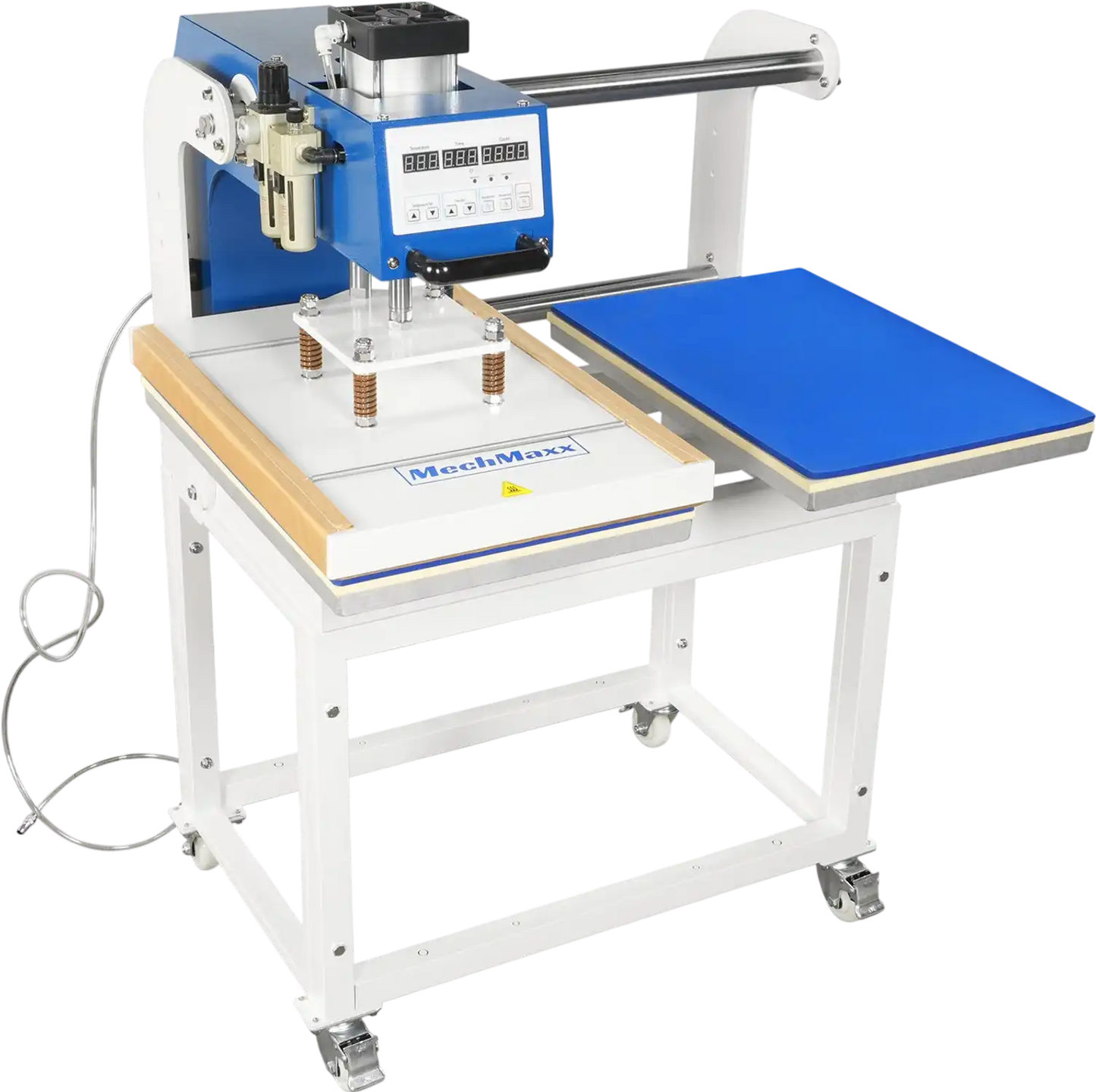

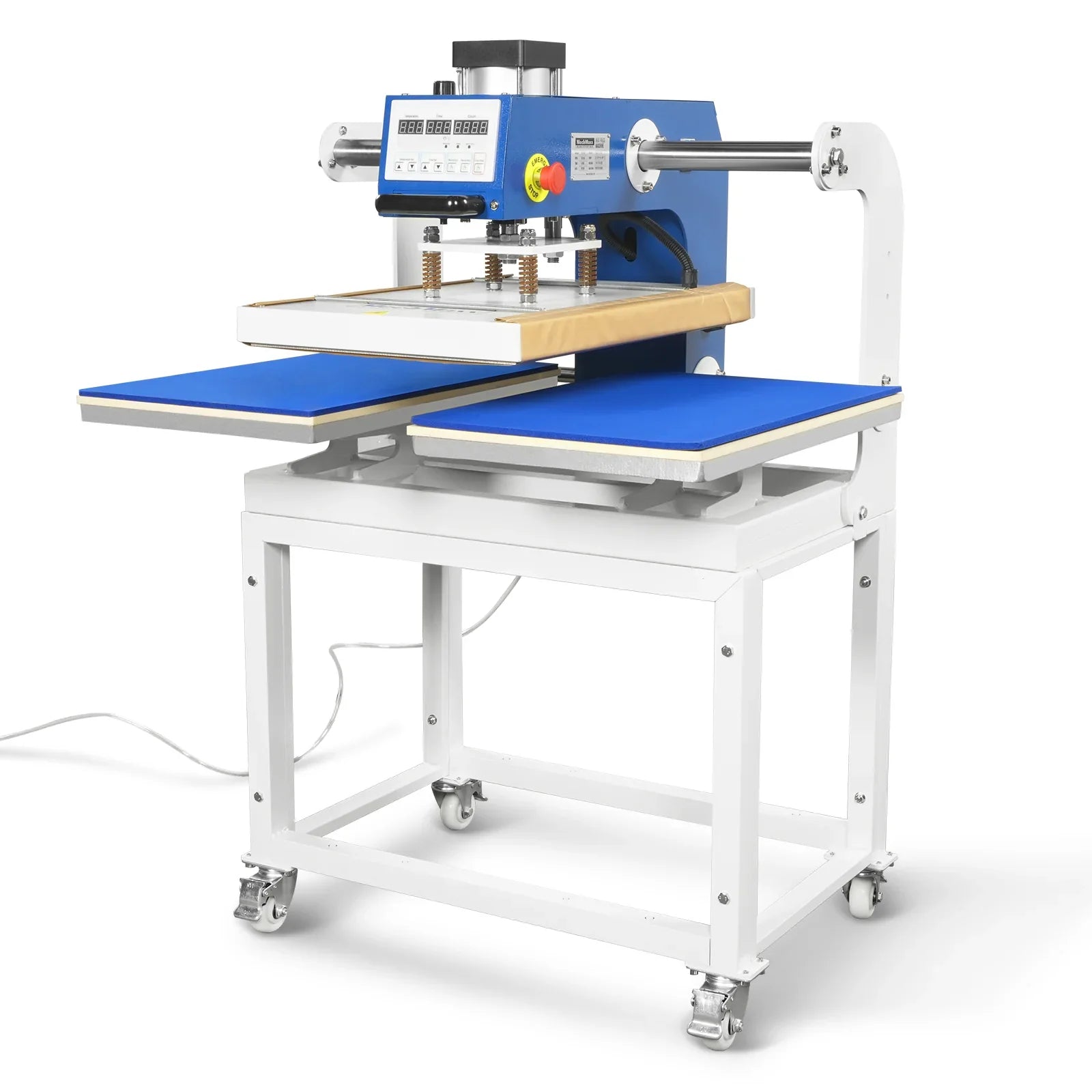

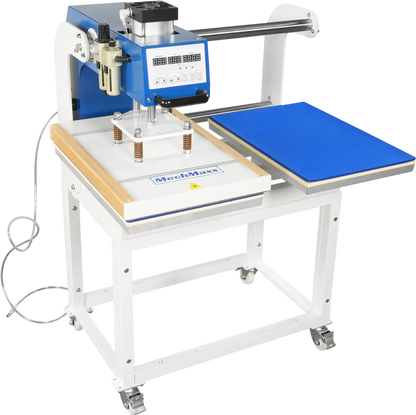

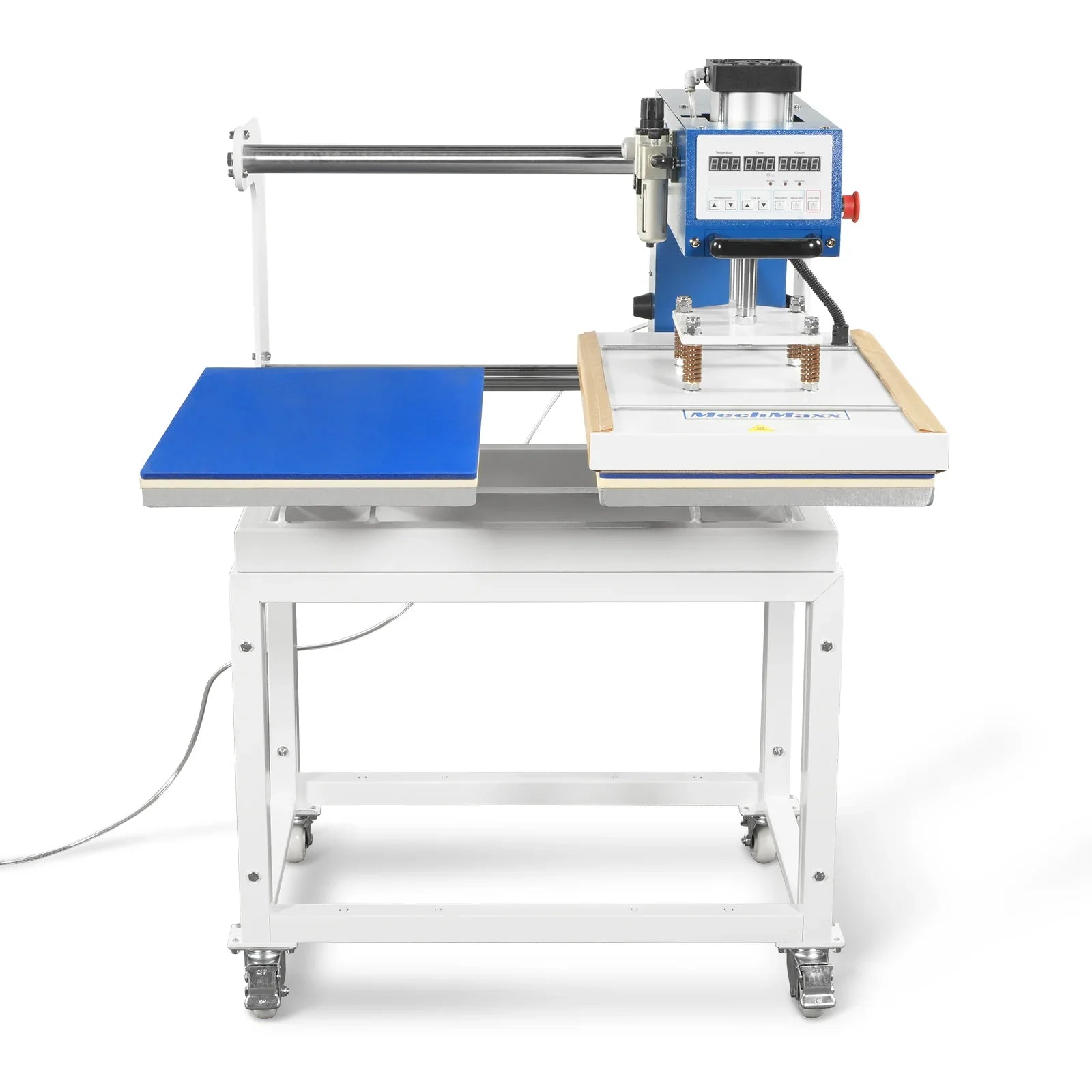

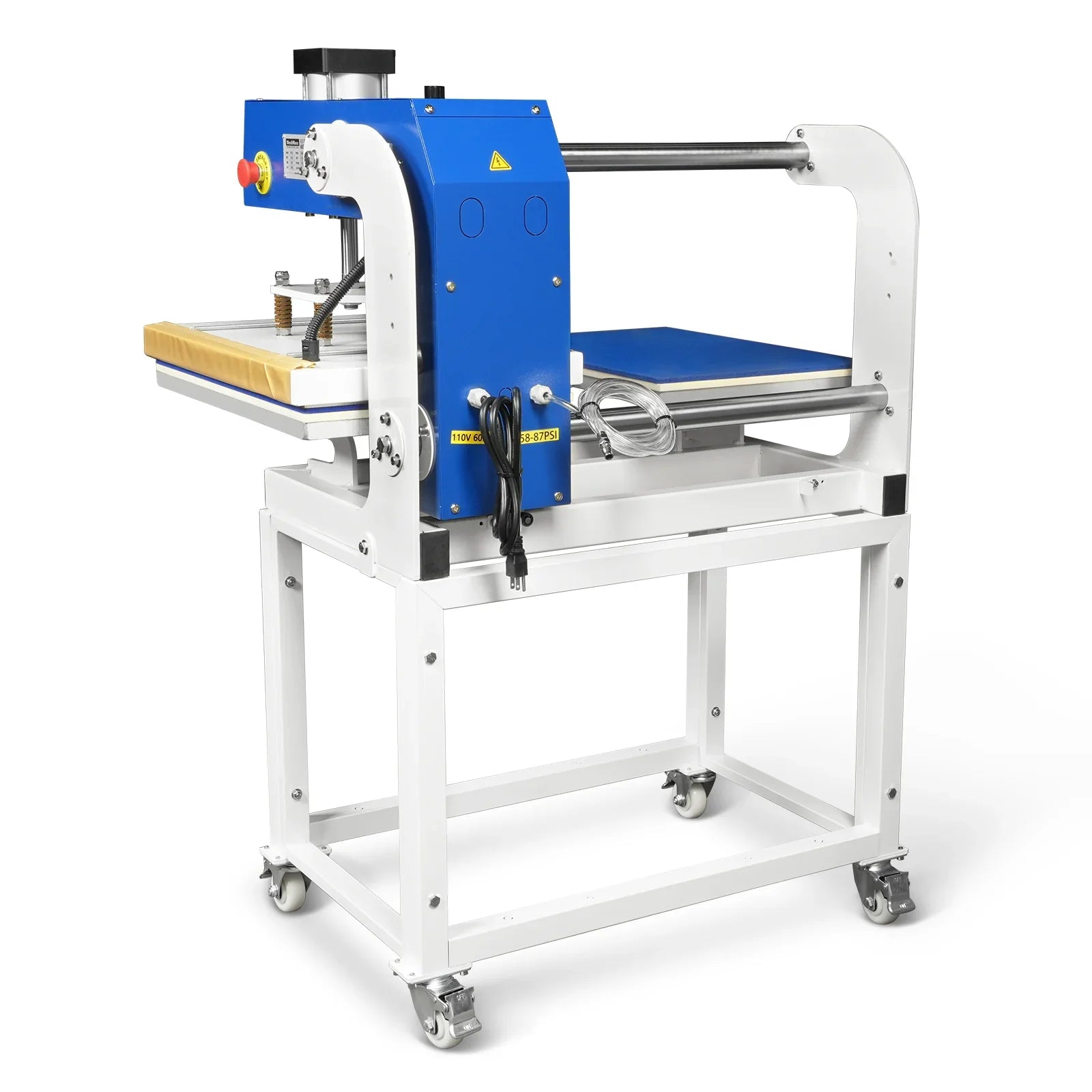

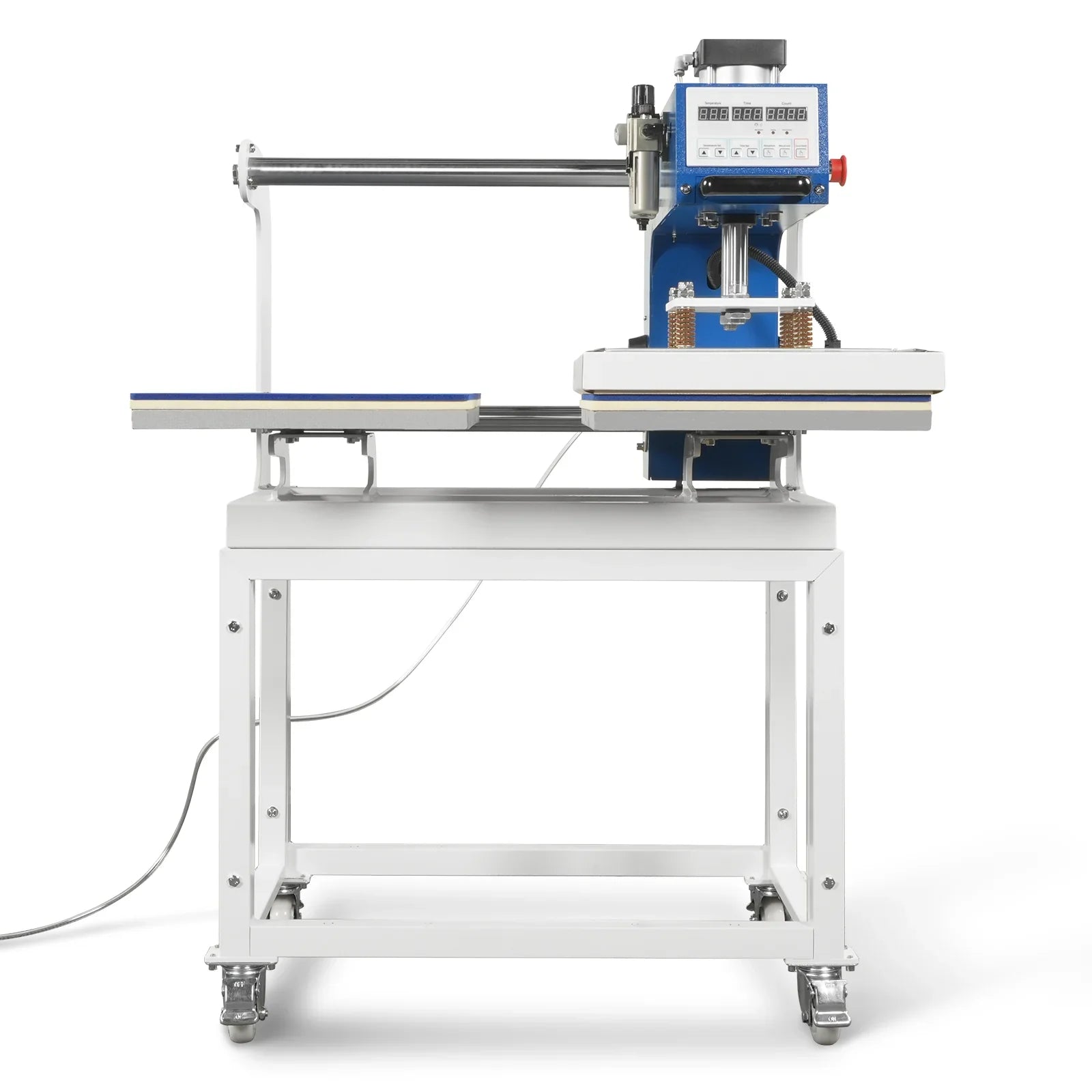

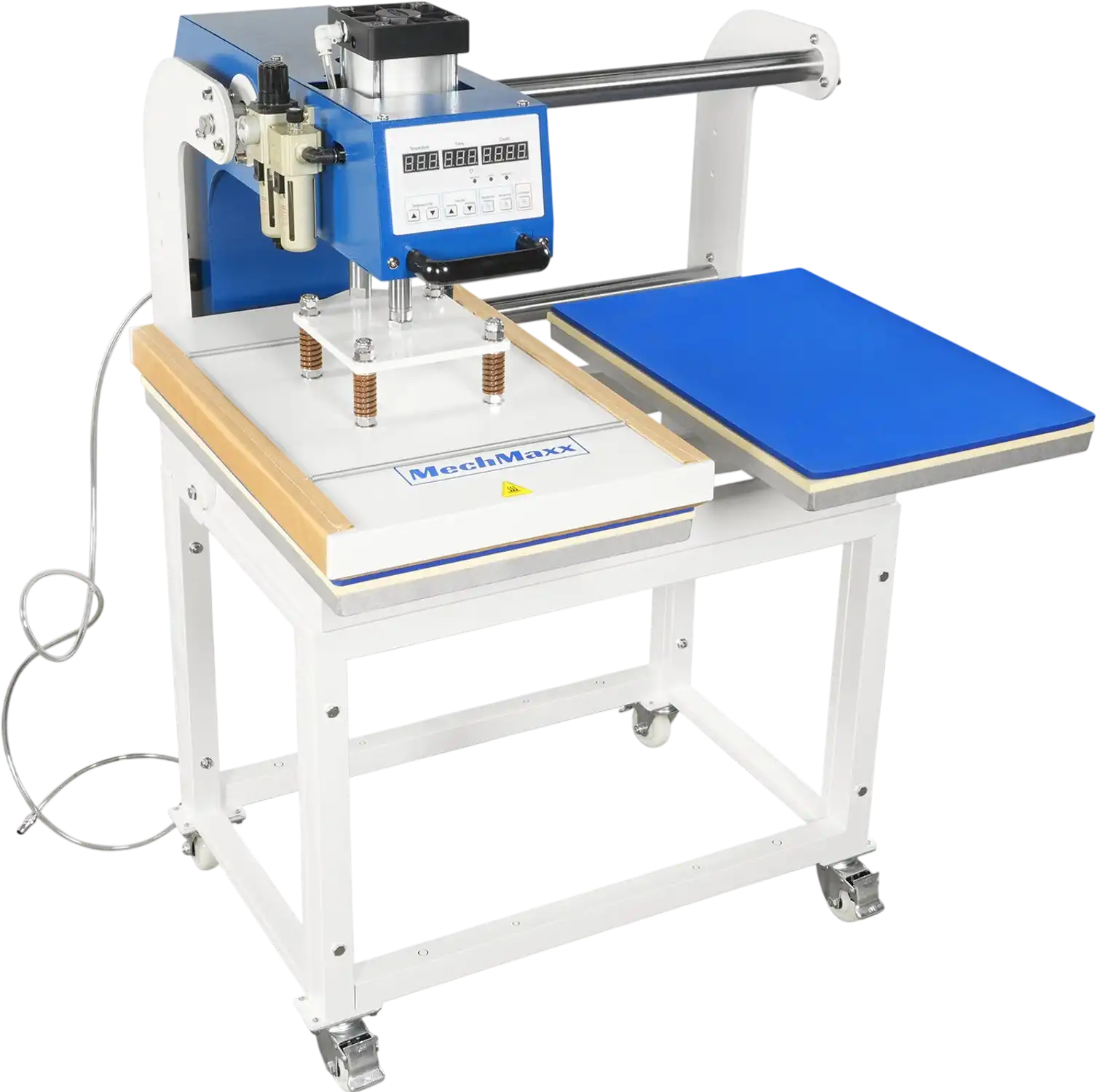

MechMaxx PUD1624 Heat Press 16x24" Commercial Pneumatic Dual Platen Auto Lift Digital Sublimation Transfer Machine 110V 2.2HP New

MechMaxx

$1,689.00
$1,689.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • 16x24 Inch Dual Platen Up-Sliding Efficiency: Large format heat press with dual stations and slide-out design, enabling simultaneous processing for high-volume sublimation printing—cuts downtime for small businesses and industrial operations.
  • Digital LCD Control & Auto Count: Auto lift heat press with large LCD display, supporting precise temperature (32-750°F/0-399°C) and time (1-999s) adjustment; auto-count function reduces labor costs, ensuring consistent heat transfer results.
  • AIRTAC Pneumatic Components: Features AIRTAC air cylinder, air valve, and solenoid valve for reliable pressure control; compatible with standard pneumatic components, simplifying future maintenance and upgrades.
  • Adjustable Pressure for Versatile Materials: Heavy-duty commercial heat transfer machine with adjustable pressure (58-87 PSI) and integrated oil-water separator—works with cotton, polyester, nylon, ceramics, metals, and materials up to 2.36 inches thick.
  • CE/RoHS Certified Safety & Durability: Heat-retardant materials and thickened cast aluminum platens resist deformation; emergency stop button and two-hand operation meet commercial safety standards—built for heavy use.
  • Mobile & Easy to Maintain: Stable base frame with brake casters for easy repositioning; detachable pulley design simplifies maintenance; complete kit includes silicone pad, spong pad, air compressor hose, and user manual.
  • Versatile Sublimation Compatibility: Ideal sublimation heat press for custom apparel, promotional items, home decor, and high-volume orders—delivers consistent results on fabrics, ceramics, metal boards, and mouse pads.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

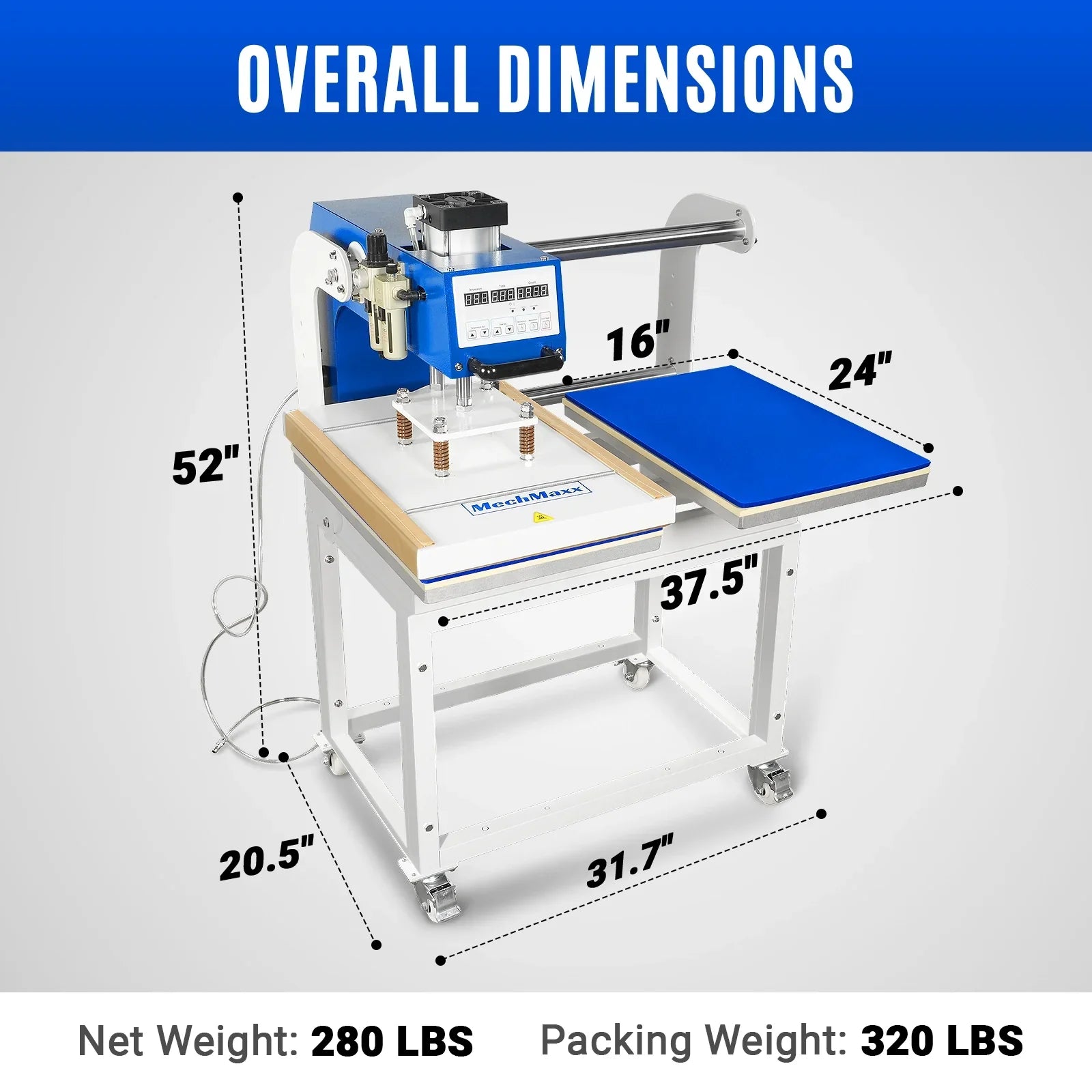

  • Overall Dimensions: Stands at 52 inch (132.08 cm) tall, 37.5 inch (95.25 cm) deep, and 20.5 inch (52.07 cm) wide—designed to fit into compact U.S. workshop spaces while leaving room for workflow. Weighs 280 lbs (127.01 kg) net (320 lbs (145.15 kg) packed), with a wheeled base for easy repositioning within busy production areas; compatible with standard U.S. freight shipping dimensions.
  • Core Specifications (Model PUD1624): Configured for 110V/60Hz (U.S. household/commercial standard power), drawing 1650W (2.21HP) to reach a 32–750°F (0–398.89°C) temperature range in 10–15 minutes. Its 16 in * 24 in (40.64 cm*60.96 cm) work surface accommodates large sublimation blanks (e.g., oversized apparel, signage), while 1–999 second timing flexibility suits diverse material needs (fabrics, metals, plastics) common in U.S. custom goods markets.

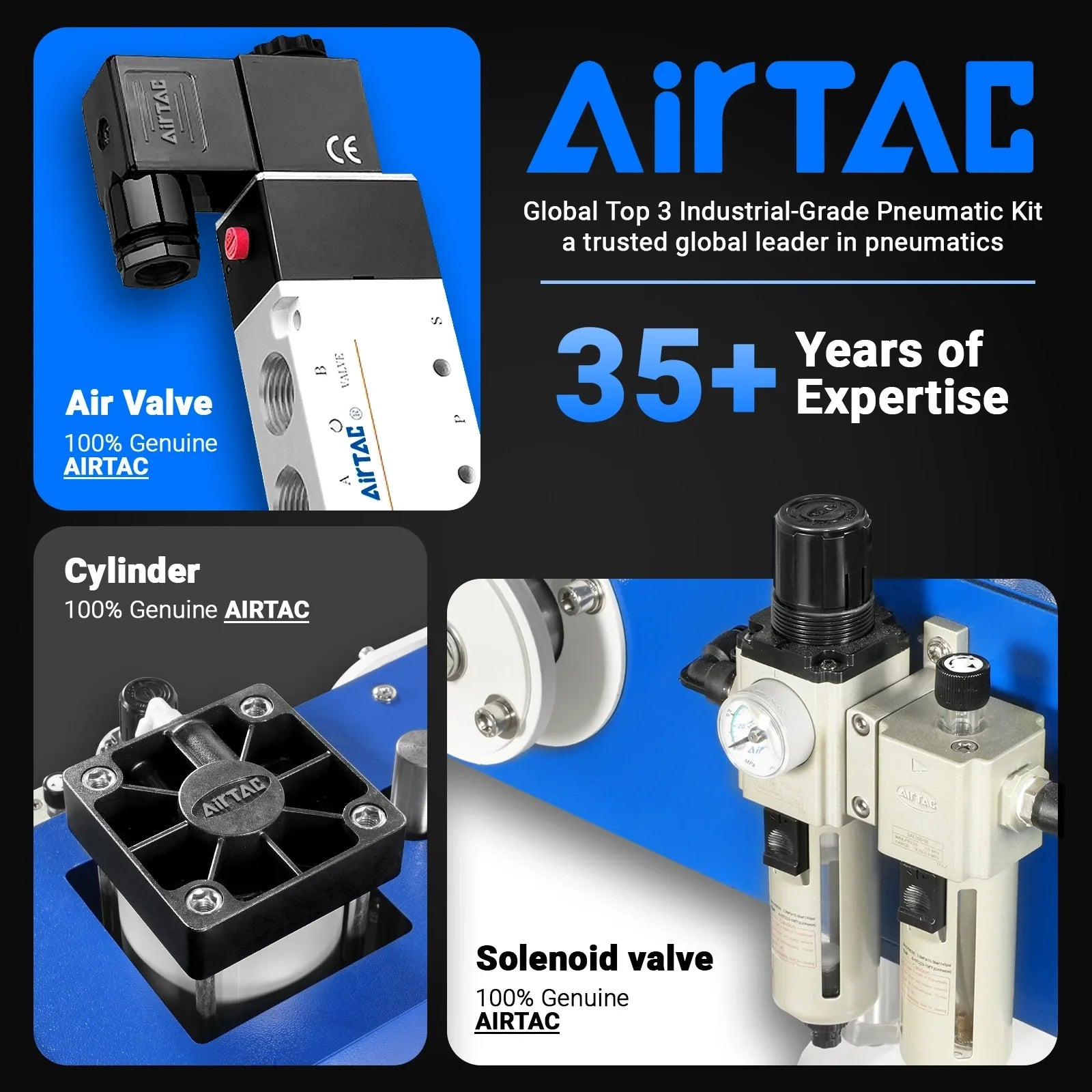

  • Airtac Pneumatic System: Equipped with 100% genuine Airtac pneumatic components (valves, cylinders, solenoids)—a brand widely stocked and serviced in the U.S. The system delivers a minimum 85 PSI (6kg/cm²) output pressure, ensuring uniform, consistent pressing force across the entire platen; critical for high-quality transfers on thick or uneven substrates.

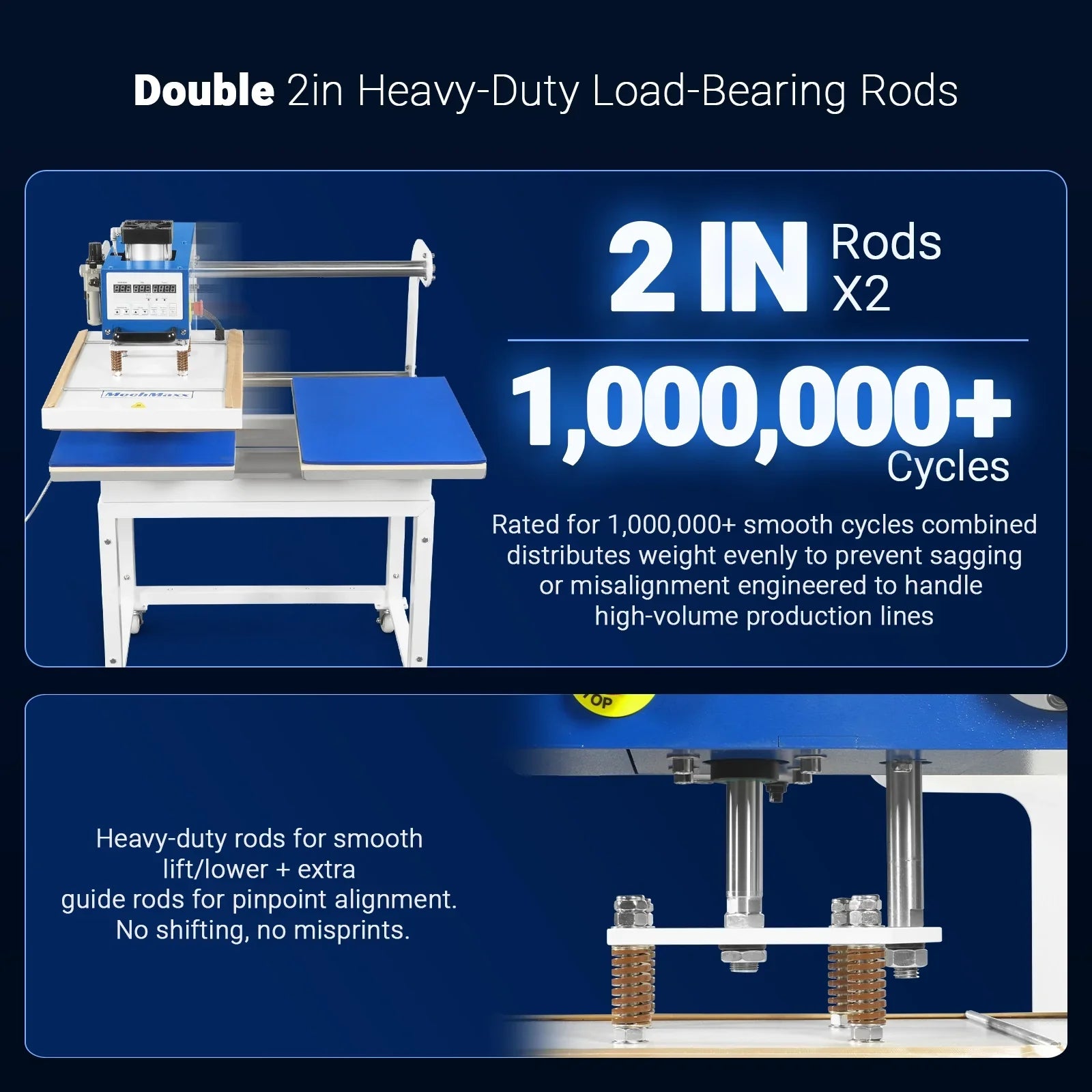

  • Heavy-Duty Load-Bearing Rods: Features dual 2-inch (5.08 cm) diameter steel load-bearing rods, engineered to handle 1,000,000+ press cycles without sagging or misalignment. Extra guide rods enhance platen precision, eliminating ghosting or misprints—ideal for U.S. businesses focused on bulk order consistency (e.g., apparel decorators, promotional product makers).

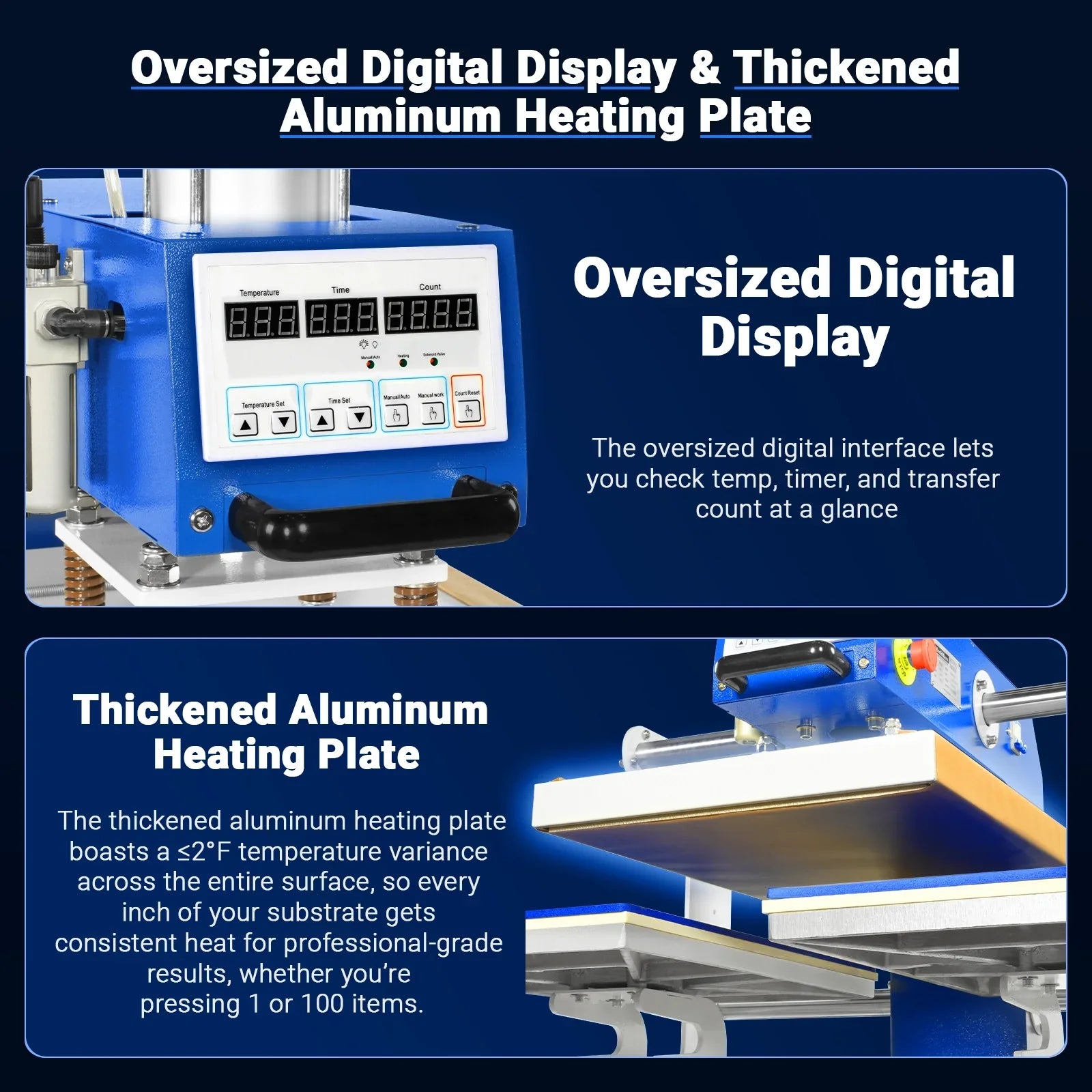

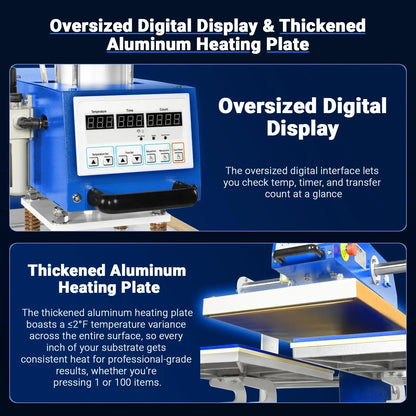

  • Digital Control & Heating Plate: Oversized LED digital display (with large, high-contrast digits) lets operators monitor temperature, timer, and press count at a glance—even in dim workshop lighting. The thickened aluminum heating plate maintains ≤2°F (1.11°C) temperature variance across its surface, ensuring every inch of a substrate (from small patches to full-size sheets) receives identical heat for professional-grade results.

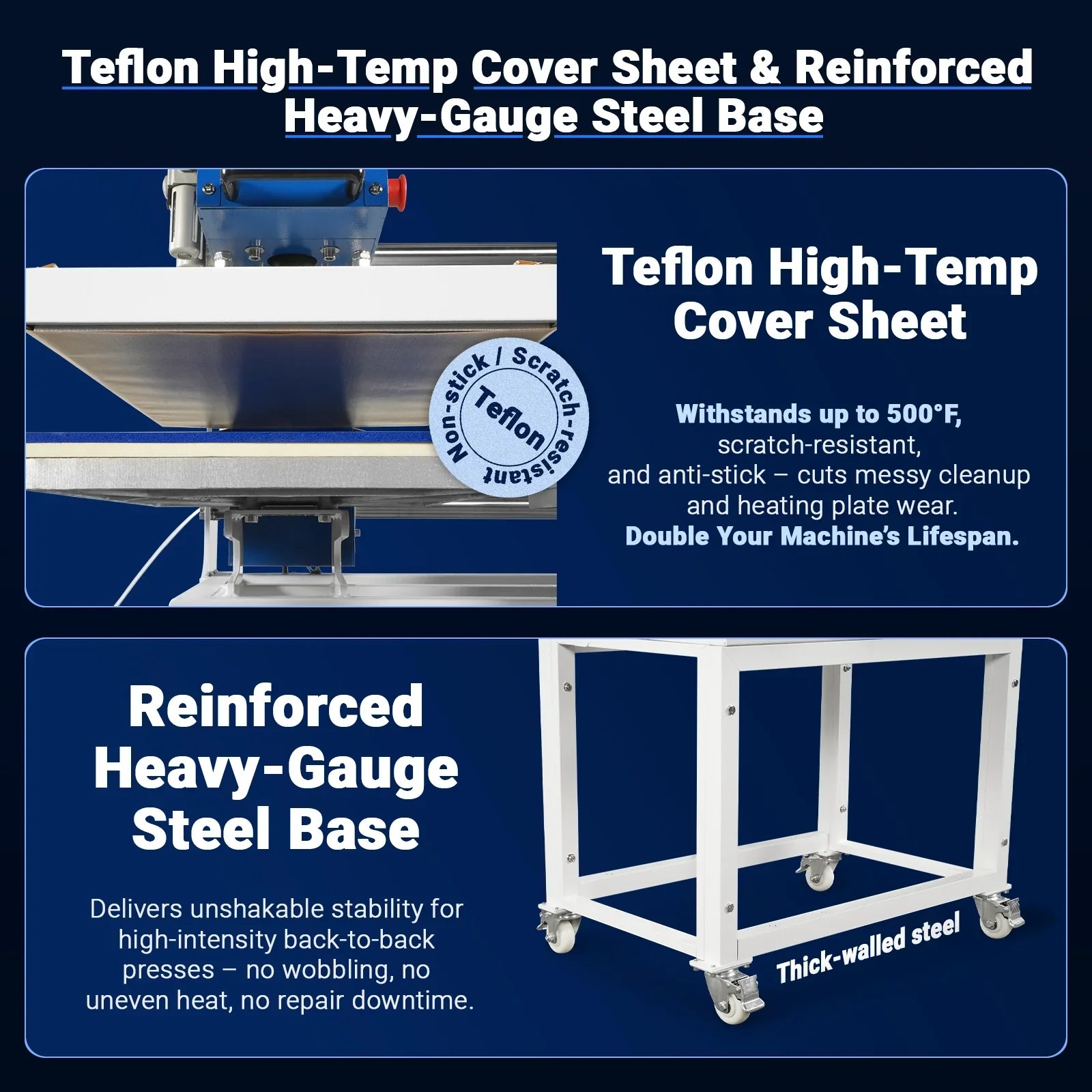

  • Durable Surface & Base: The platen is covered with a 500°F (260°C)-resistant Teflon sheet: non-stick, scratch-proof, and easy to wipe clean, reducing downtime between presses. The reinforced heavy-gauge steel base (with thick-walled framing) stays stable during rapid, back-to-back cycles—no wobbling, no uneven pressure—built to endure the fast-paced demands of U.S. small-batch or high-volume production.

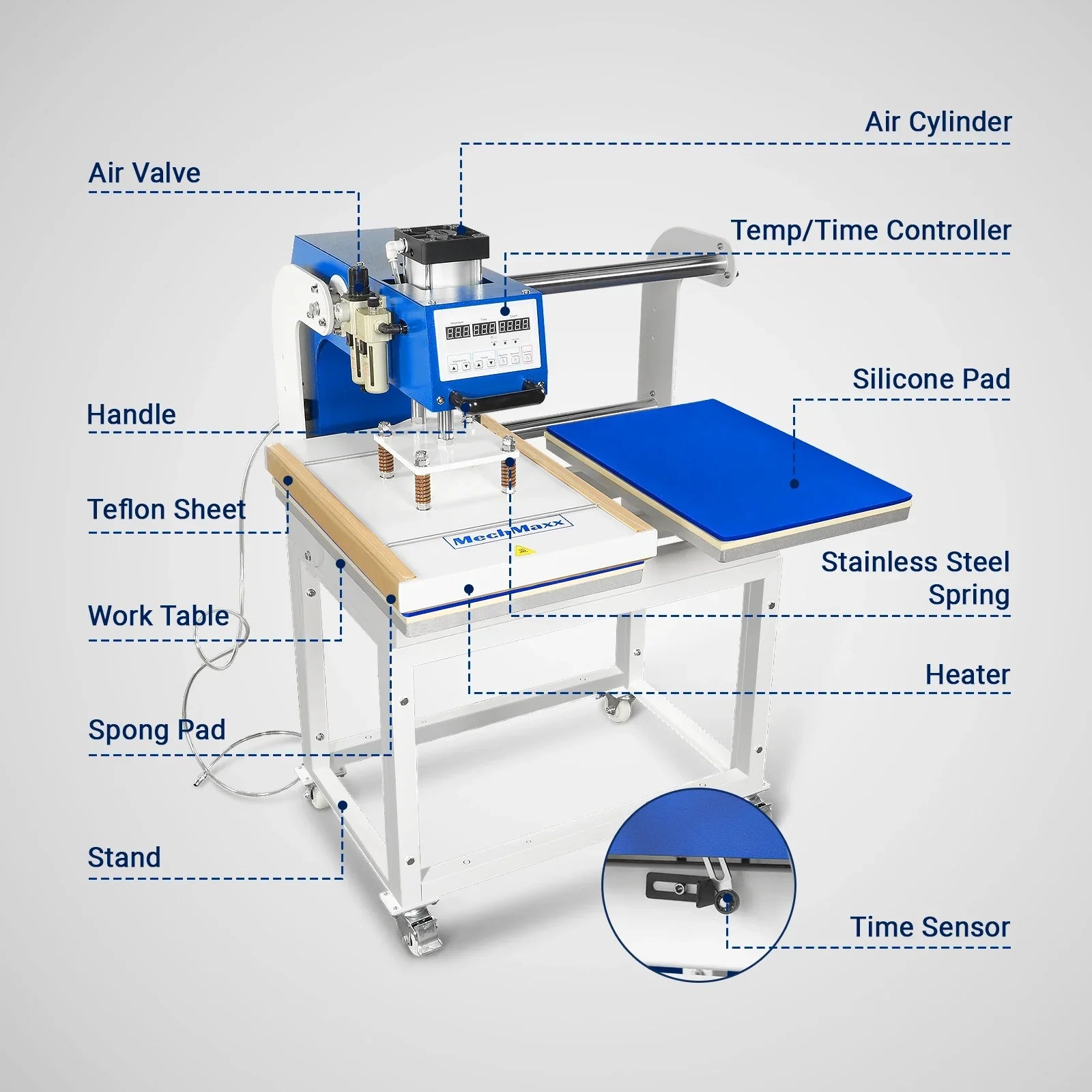

  • Key Component Labeling: Clear, English-language labeling identifies every critical part: air valve (for pressure regulation), silicone pad (shock-absorbent, heat-resistant), time sensor (triggers auto-lift), heating plate, and control panel. This simplifies onboarding for new staff and makes troubleshooting straightforward for U.S. operators without specialized technical training.

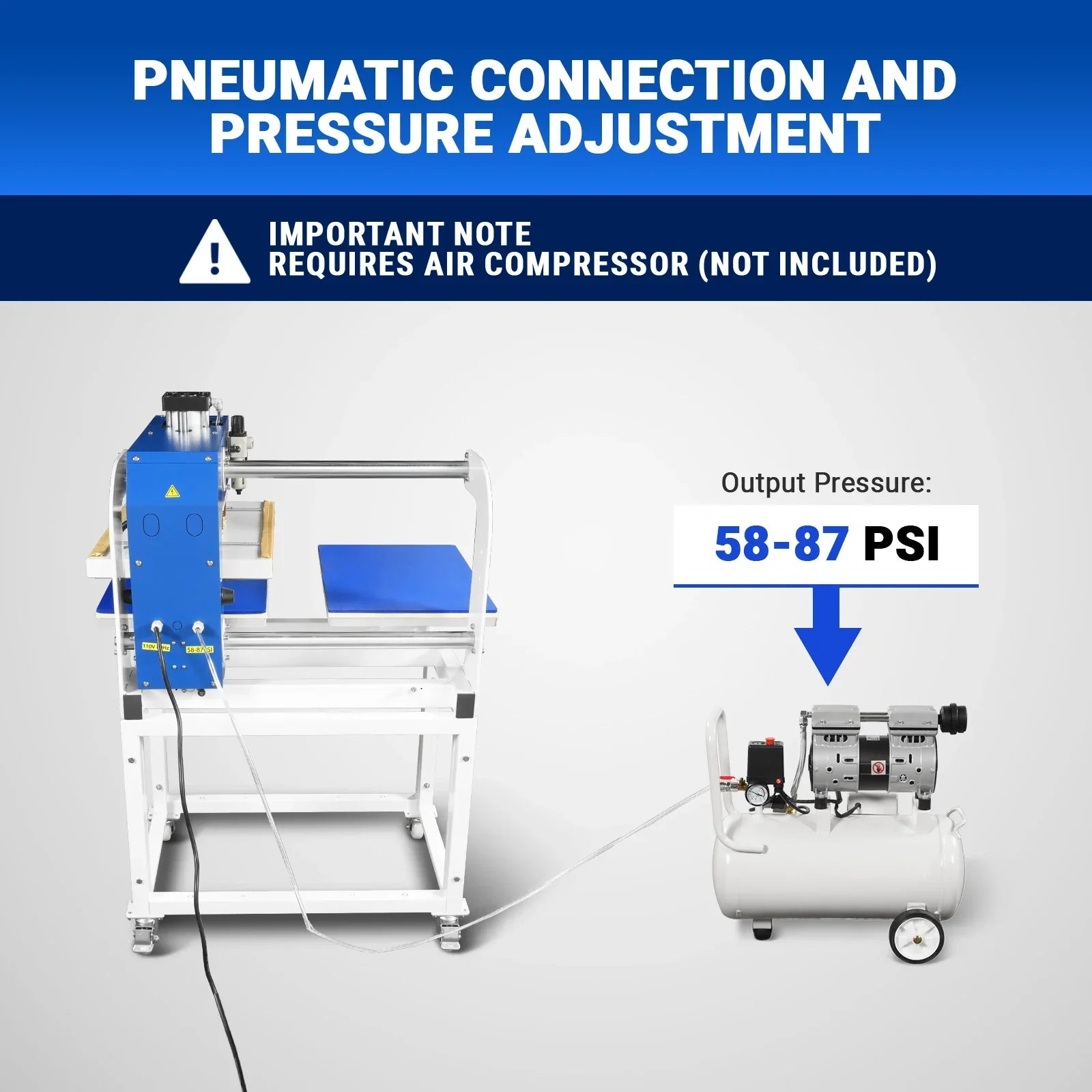

  • Pneumatic Setup Requirement: Requires an external air compressor (not included) with 58–87 PSI input capacity—compatible with the small, portable compressors commonly used in U.S. home studios and small workshops. A quick-connect air fitting (standard in U.S. industrial setups) ensures fast, secure connection..

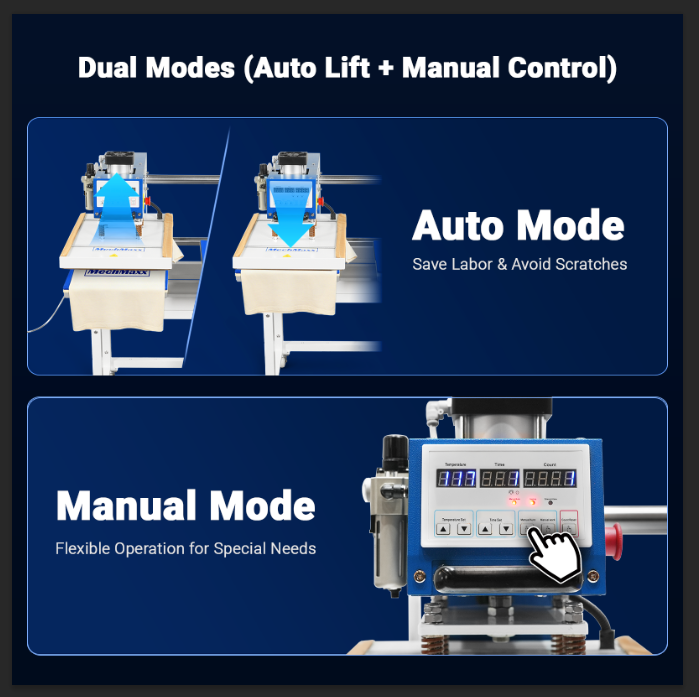

  • Dual Operation Modes: Auto-lift mode: After the timer elapses, the platen raises automatically—saving labor (no manual lifting) and preventing accidental scratches on delicate substrates (e.g., custom phone cases). Manual control mode: Lets operators adjust press speed/force for unique projects (e.g., thick foam materials)—flexible enough for both mass production and one-off custom jobs popular in U.S. retail markets.

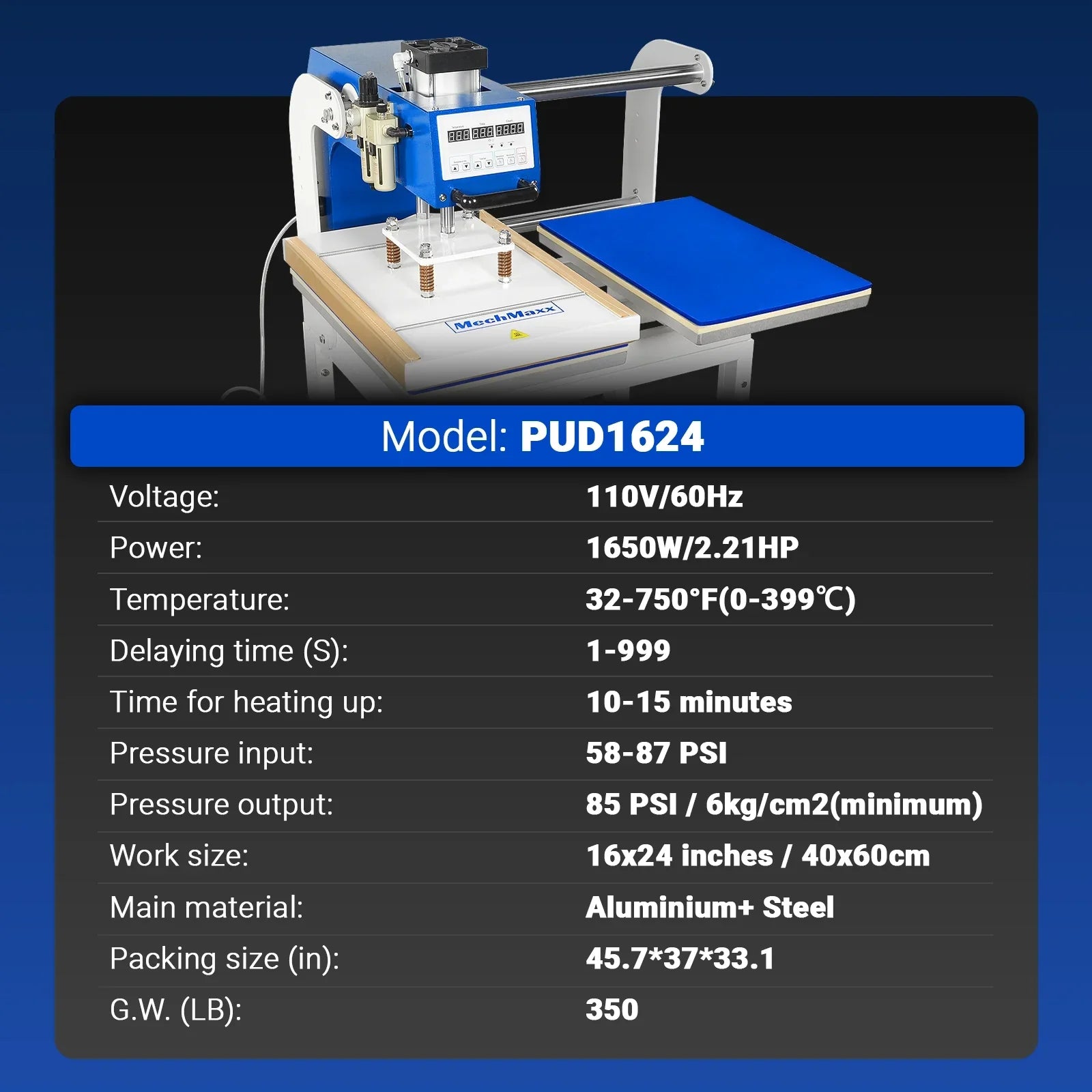

Model: PUD1624

Voltage: 110V/60Hz

Power: 1650W/2.21HP

Temperature: 32-750℉(0-399℃)

Delaying time(S): :1-999

Time for heating up: 10-15 minutes

Pressure input: 58-87 PSI

Pressure output: 85 PSI / 6kg/cm²(minimum)

Work Size: 16x24 inches / 40x60cm

Main Material: Aluminium+ Steel

Packing Size(in): :45.7*37*33.1

G.W.(LB): :350

This item comes with a 1 year factory warranty.
PDF PUD1624 Product manual
