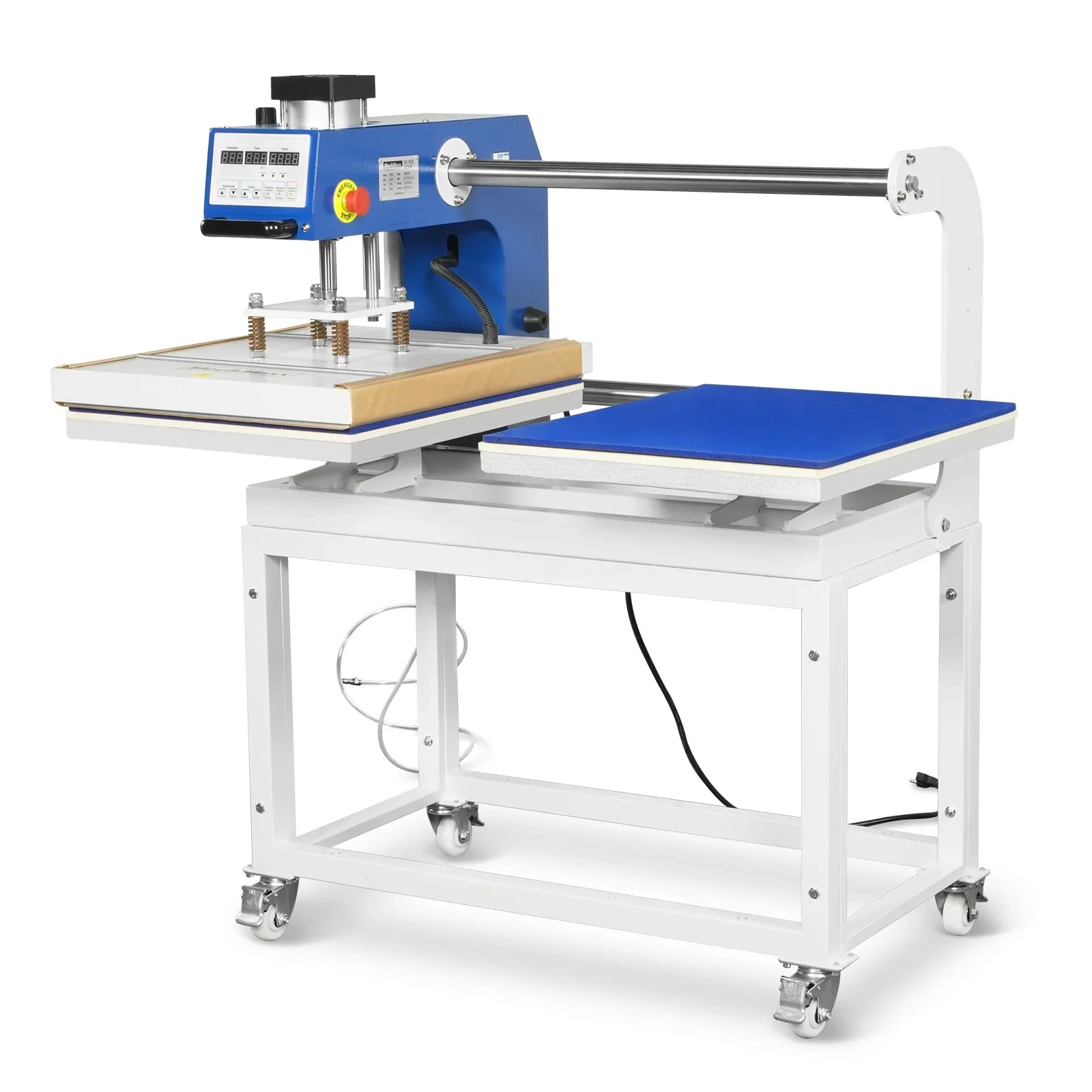

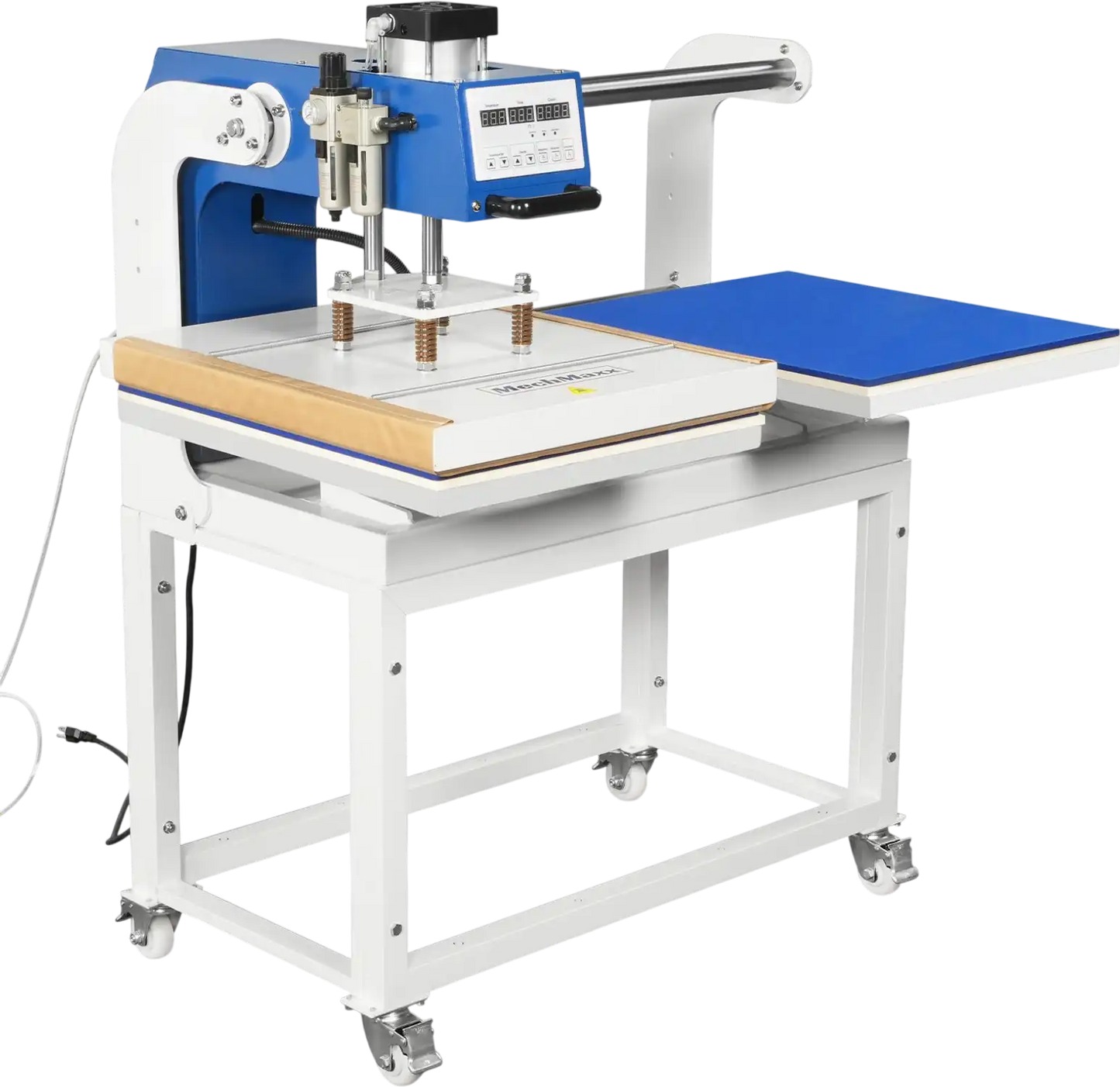

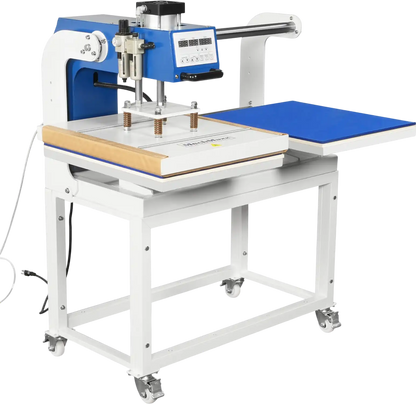

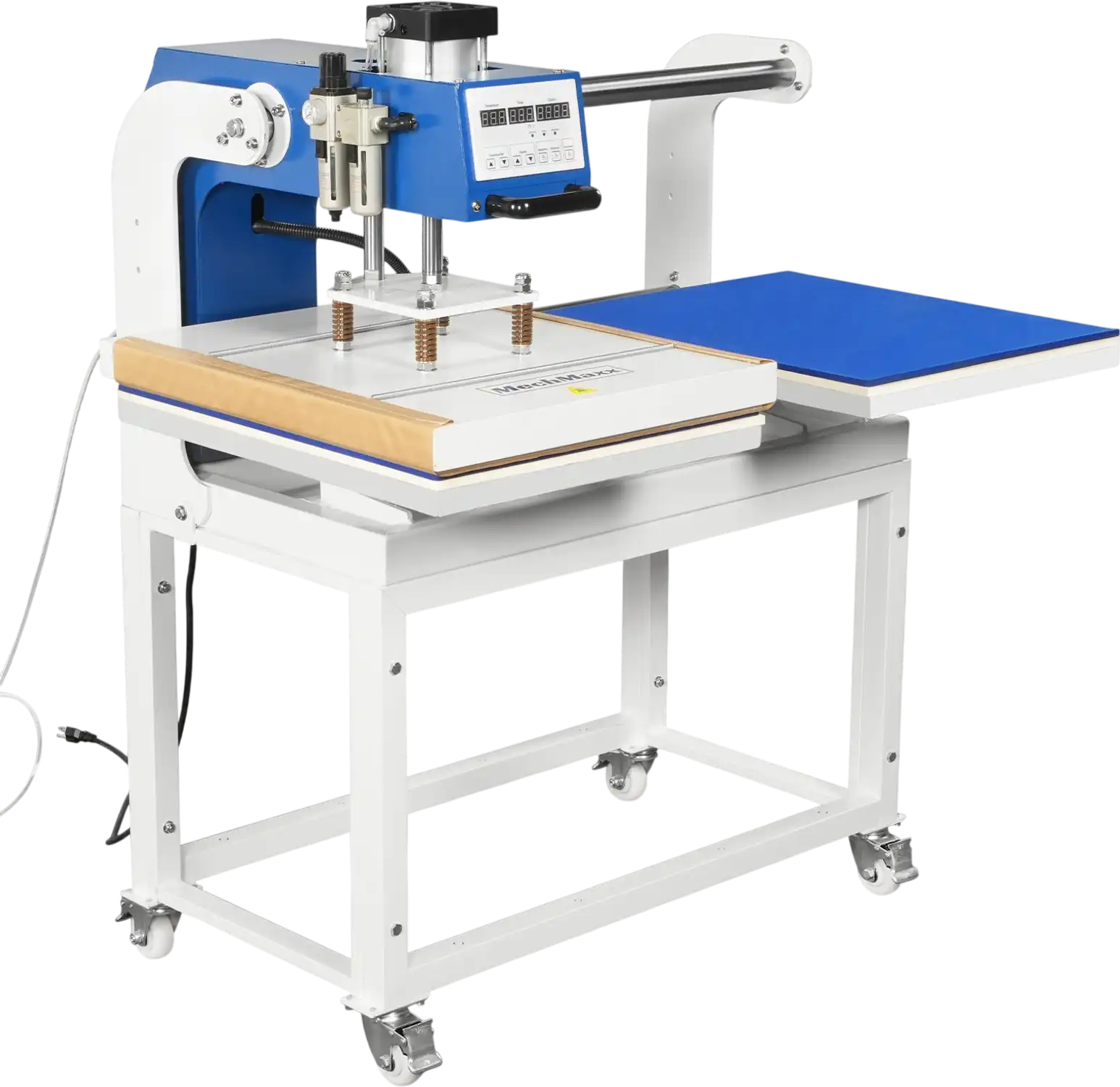

MechMaxx PUD2024 Heat Press 20x24" Commercial Pneumatic Dual Platen Auto Lift Sublimation Transfer Machine AIRTAC 110V 4HP New

MechMaxx

$2,399.00
$2,399.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

20x24 Inch (50x60cm) Large Working Area: Extra-large format sublimation heat press with dual stations, ideal for big-size items (oversized t-shirts, large mouse pads, bulk textiles) and high-volume production in commercial workshops.

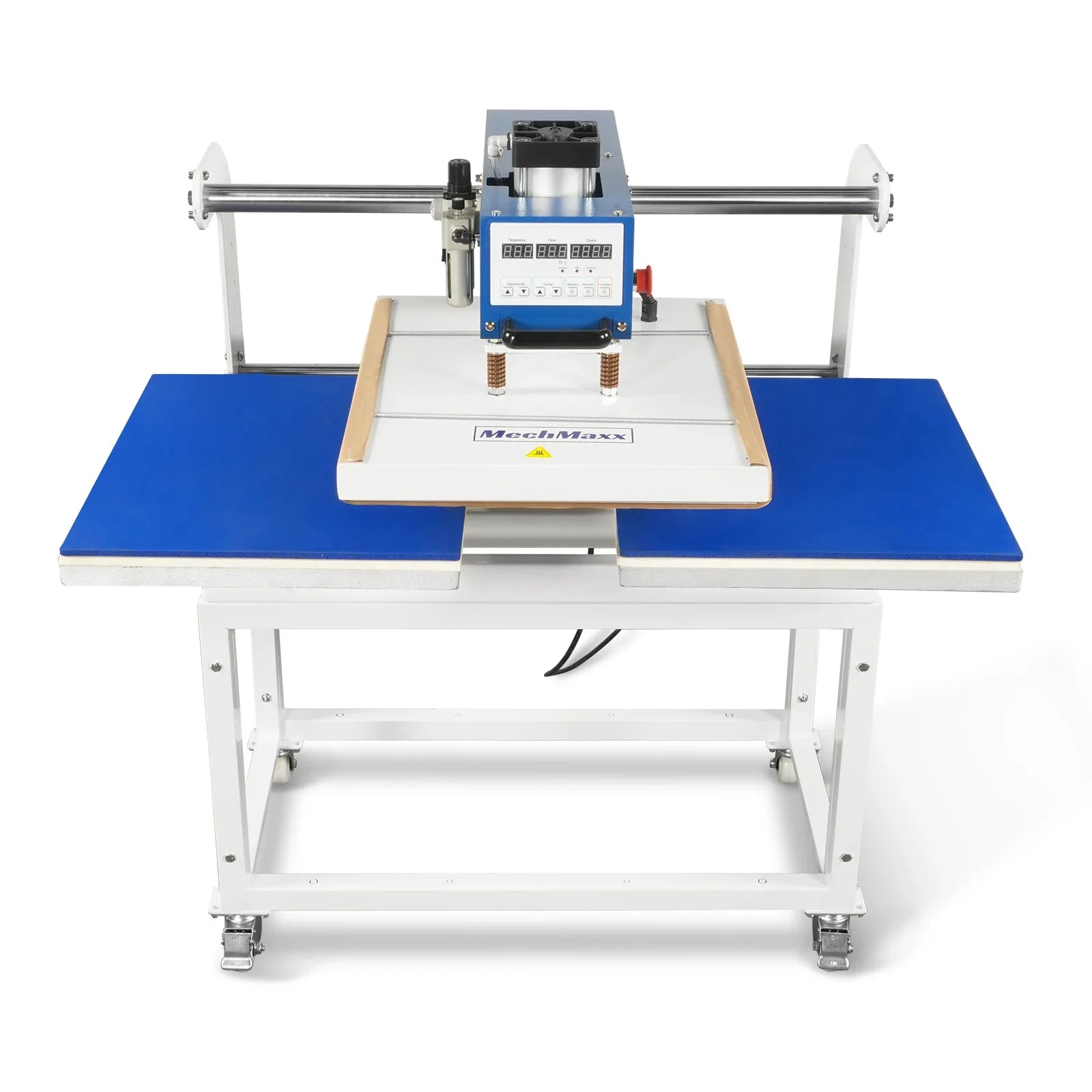

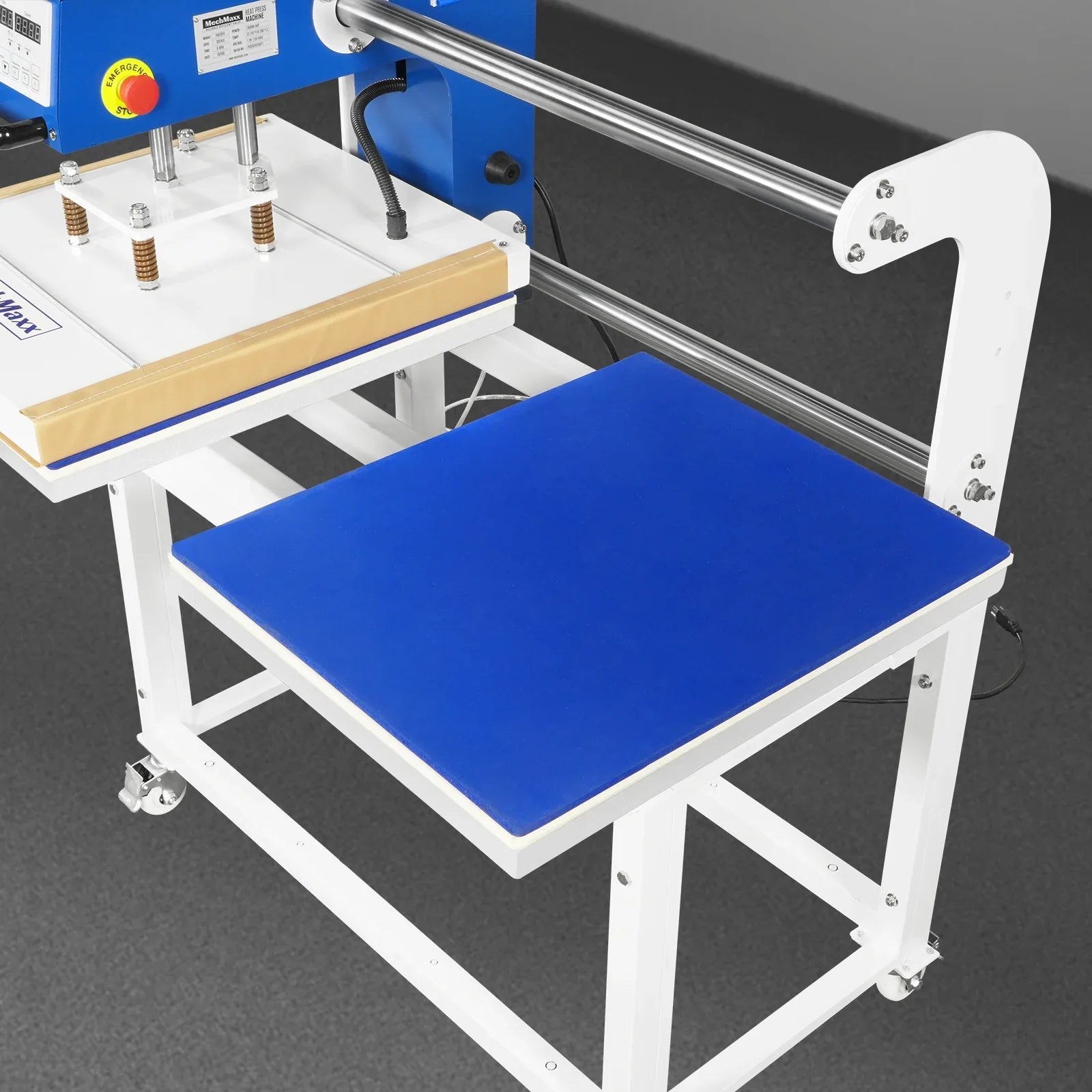

Dual Platen Auto-Work Design: Simultaneous loading/unloading capability cuts downtime by 50%; auto-mode triggers heating platen to press down when worktable is in place, auto-lifts after printing—streamlines workflow for medium to high-volume orders.

AIRTAC Pneumatic Components: Equipped with AIRTAC air cylinder, air valve, and solenoid valve for stable pressure control; compatible with standard pneumatic parts, plus adjustable pressure (58-87 PSI, min 85 PSI) and oil-water separator for optimal performance.

3000W Fast Heating & Digital Control: 10-15 minute quick heating (32-750°F/0-399°C); intuitive panel with temperature/time adjustment, auto-count function, and real-time monitoring for consistent sublimation results.

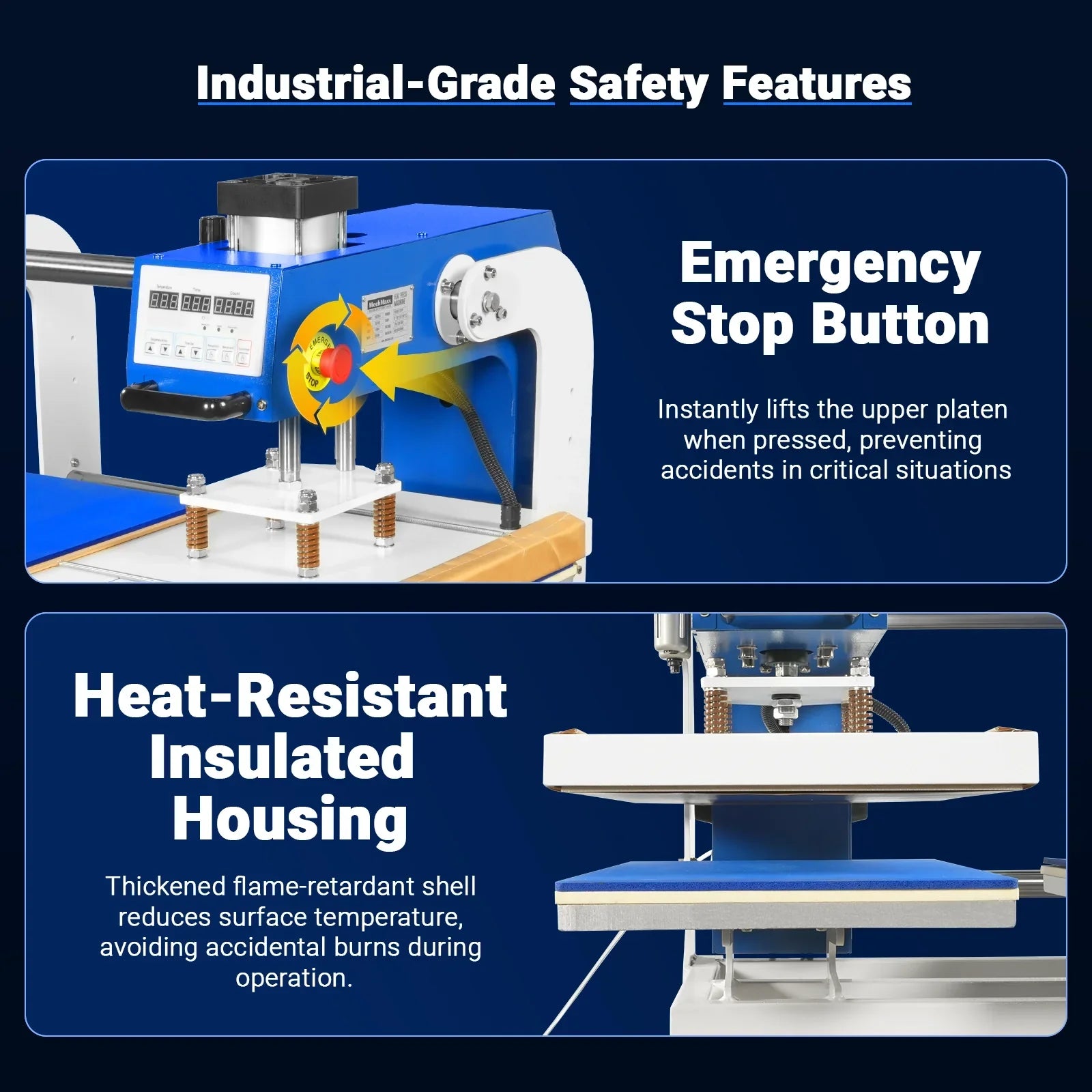

CE/RoHS Certified Safety: Two-hand operation, emergency stop button, and enlarged thickened cast aluminum heating board—meets German safety standards for secure industrial use.

All-In-One Complete Kit: Includes heat press machine, stand, silicone pad, Teflon sheet, spong pad, and user manual; ready to use out of the box for custom apparel, promotional items, and bulk textile processing.

1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Overall Dimensions: Stands at 52 inch (132.08 cm) tall, 37.5 inch (95.25 cm) deep, and 20.5 inch (52.07 cm) wide—designed to fit into compact U.S. workshop spaces while leaving room for workflow. Weighs 280 lbs (127.01 kg) net (320 lbs (145.15 kg) packed), with a wheeled base for easy repositioning within busy production areas; compatible with standard U.S. freight shipping dimensions.
  • Core Specifications (Model PUD1624): Configured for 110V/60Hz (U.S. household/commercial standard power), drawing 1650W (2.21HP) to reach a 32–750°F (0–398.89°C) temperature range in 10–15 minutes. Its 16 in * 24 in (40.64 cm*60.96 cm) work surface accommodates large sublimation blanks (e.g., oversized apparel, signage), while 1–999 second timing flexibility suits diverse material needs (fabrics, metals, plastics) common in U.S. custom goods markets.

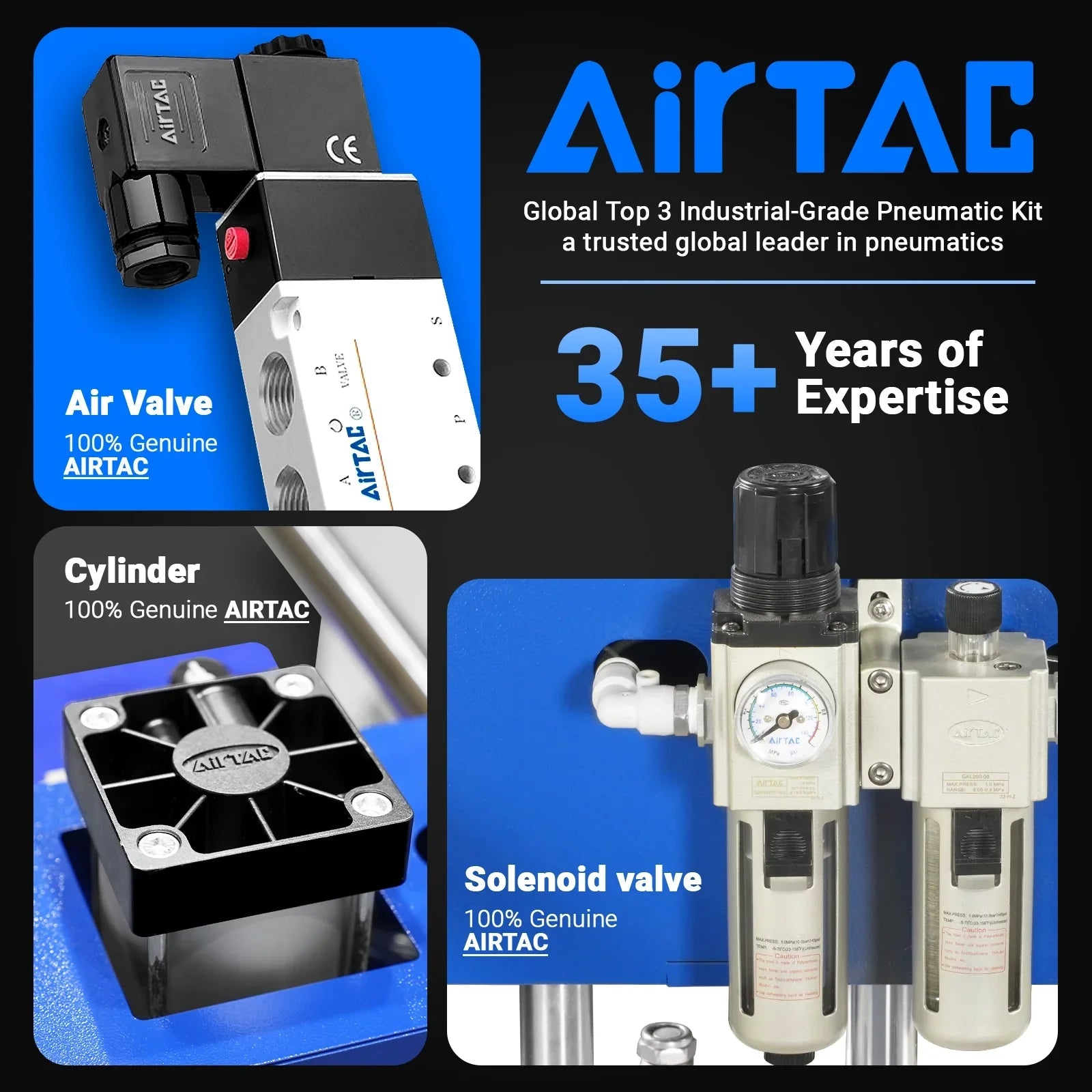

  • Airtac Pneumatic System: Equipped with 100% genuine Airtac pneumatic components (valves, cylinders, solenoids)—a brand widely stocked and serviced in the U.S. The system delivers a minimum 85 PSI (6kg/cm²) output pressure, ensuring uniform, consistent pressing force across the entire platen; critical for high-quality transfers on thick or uneven substrates.

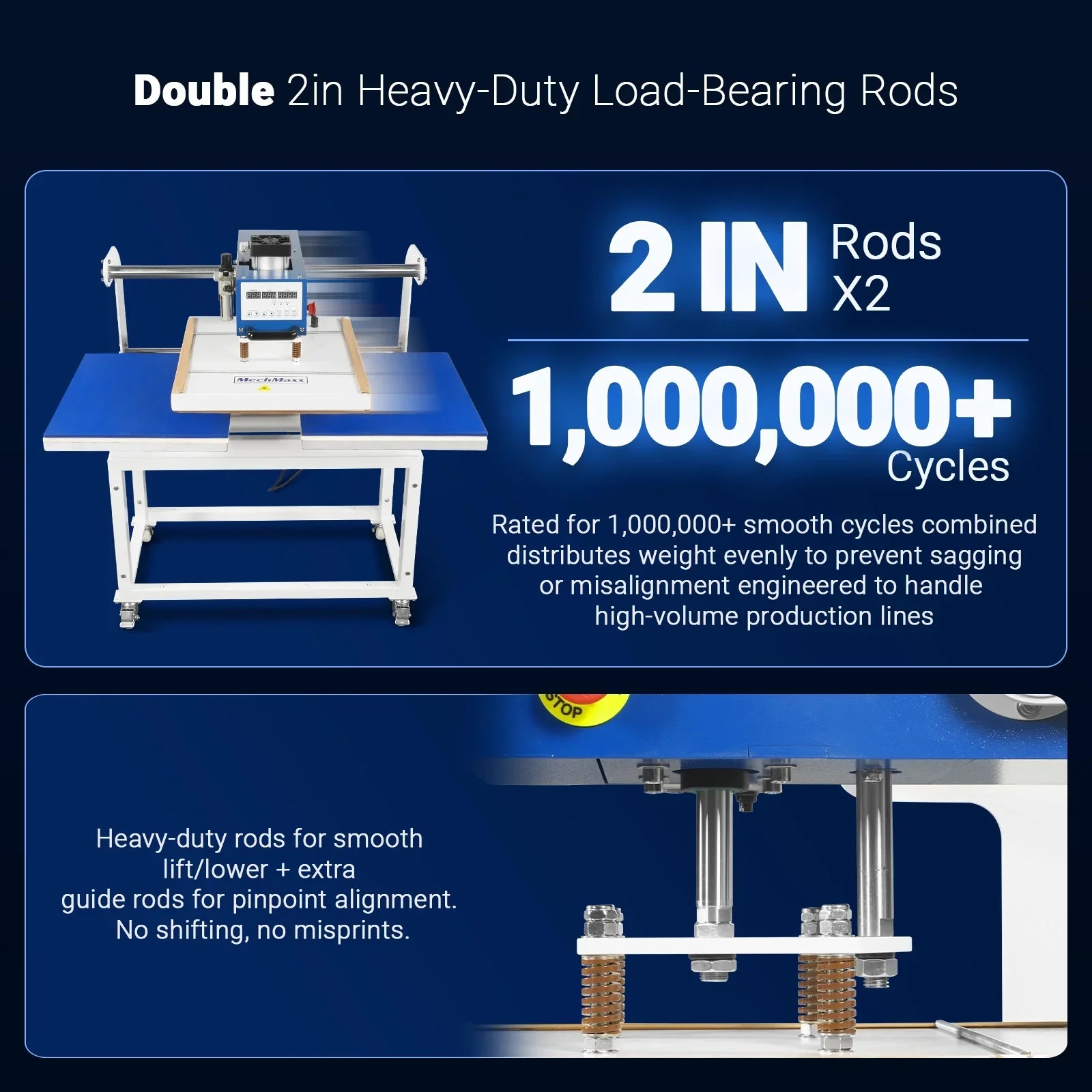

  • Heavy-Duty Load-Bearing Rods: Features dual 2-inch (5.08 cm) diameter steel load-bearing rods, engineered to handle 1,000,000+ press cycles without sagging or misalignment. Extra guide rods enhance platen precision, eliminating ghosting or misprints—ideal for U.S. businesses focused on bulk order consistency (e.g., apparel decorators, promotional product makers).

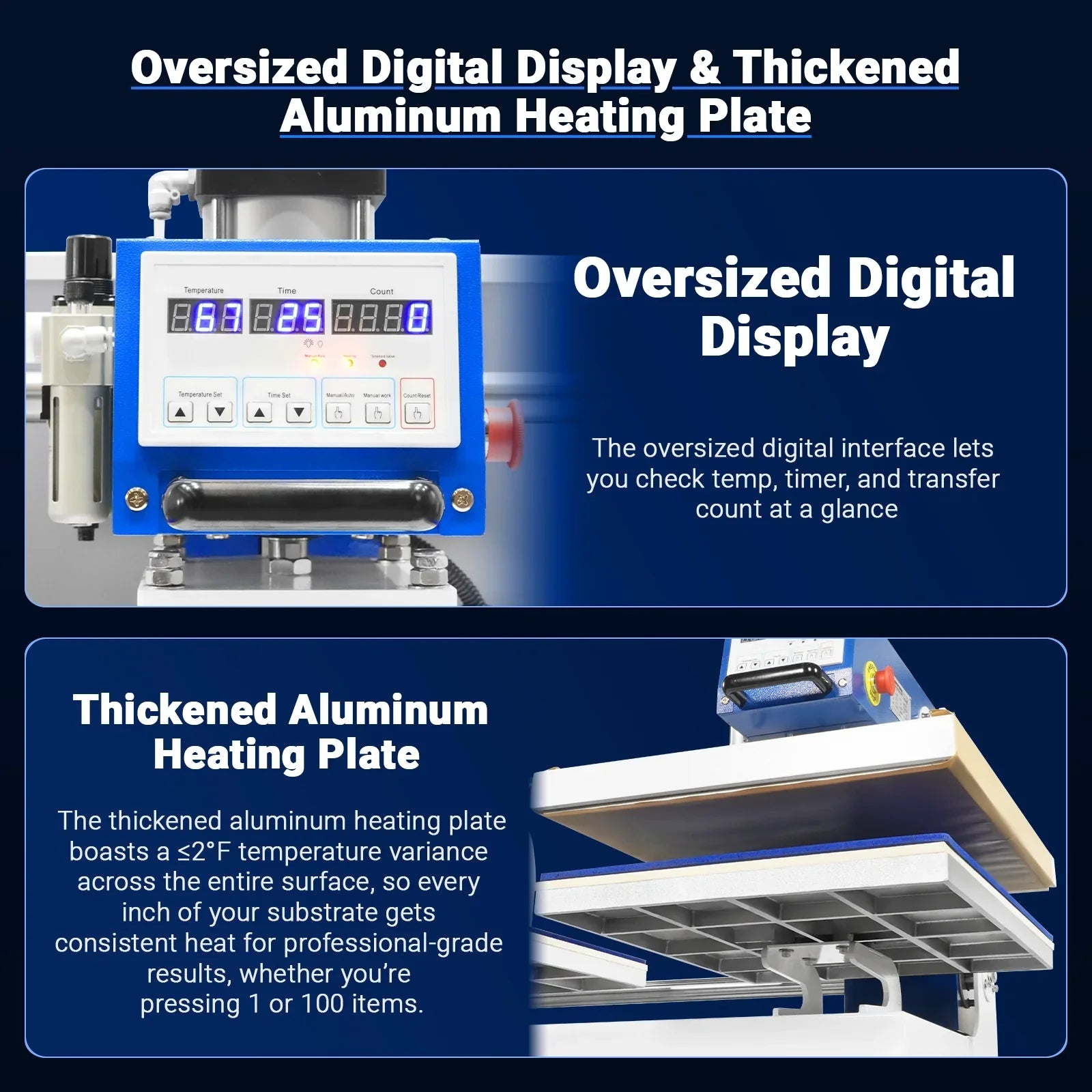

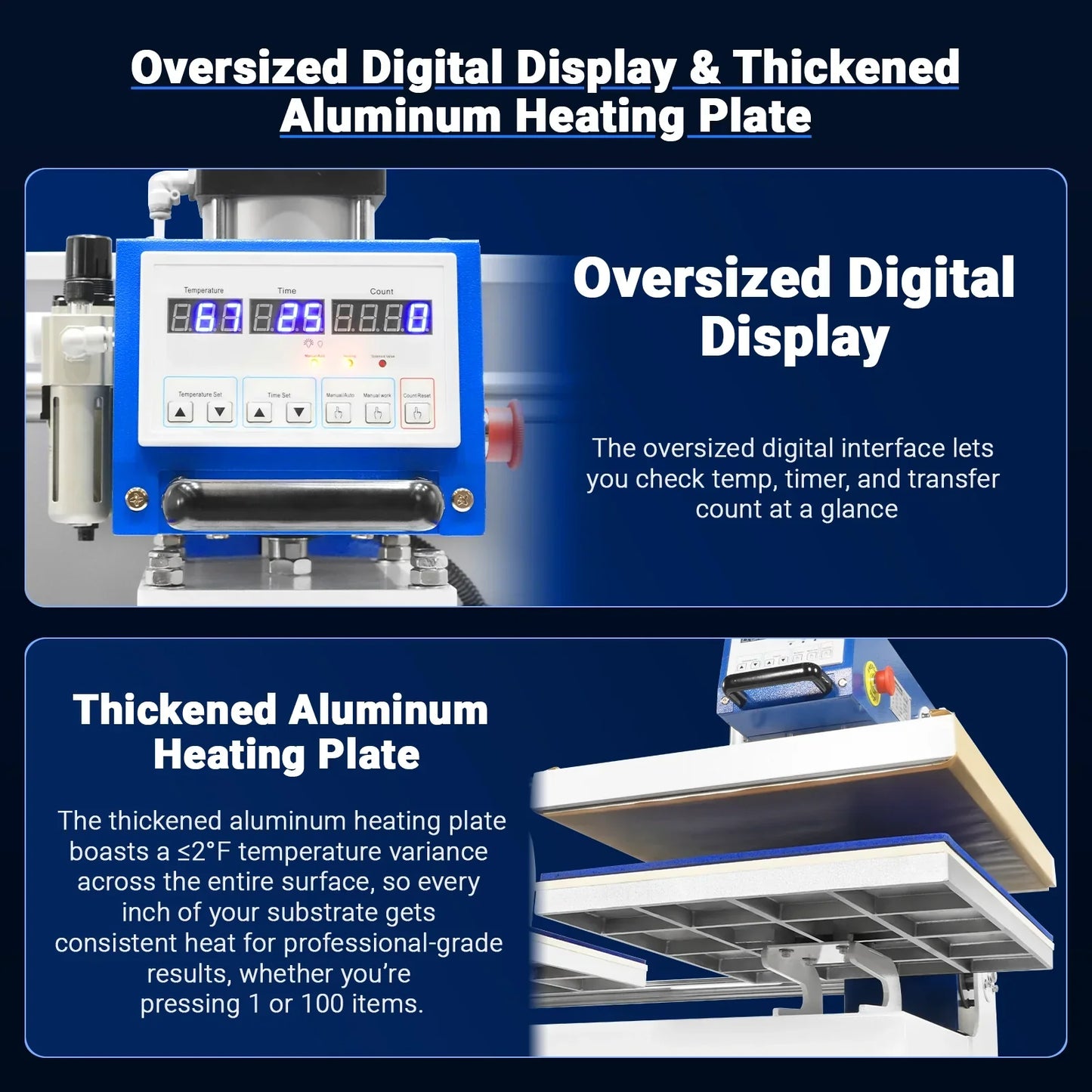

  • Digital Control & Heating Plate: Oversized LED digital display (with large, high-contrast digits) lets operators monitor temperature, timer, and press count at a glance—even in dim workshop lighting. The thickened aluminum heating plate maintains ≤2°F (1.11°C) temperature variance across its surface, ensuring every inch of a substrate (from small patches to full-size sheets) receives identical heat for professional-grade results.

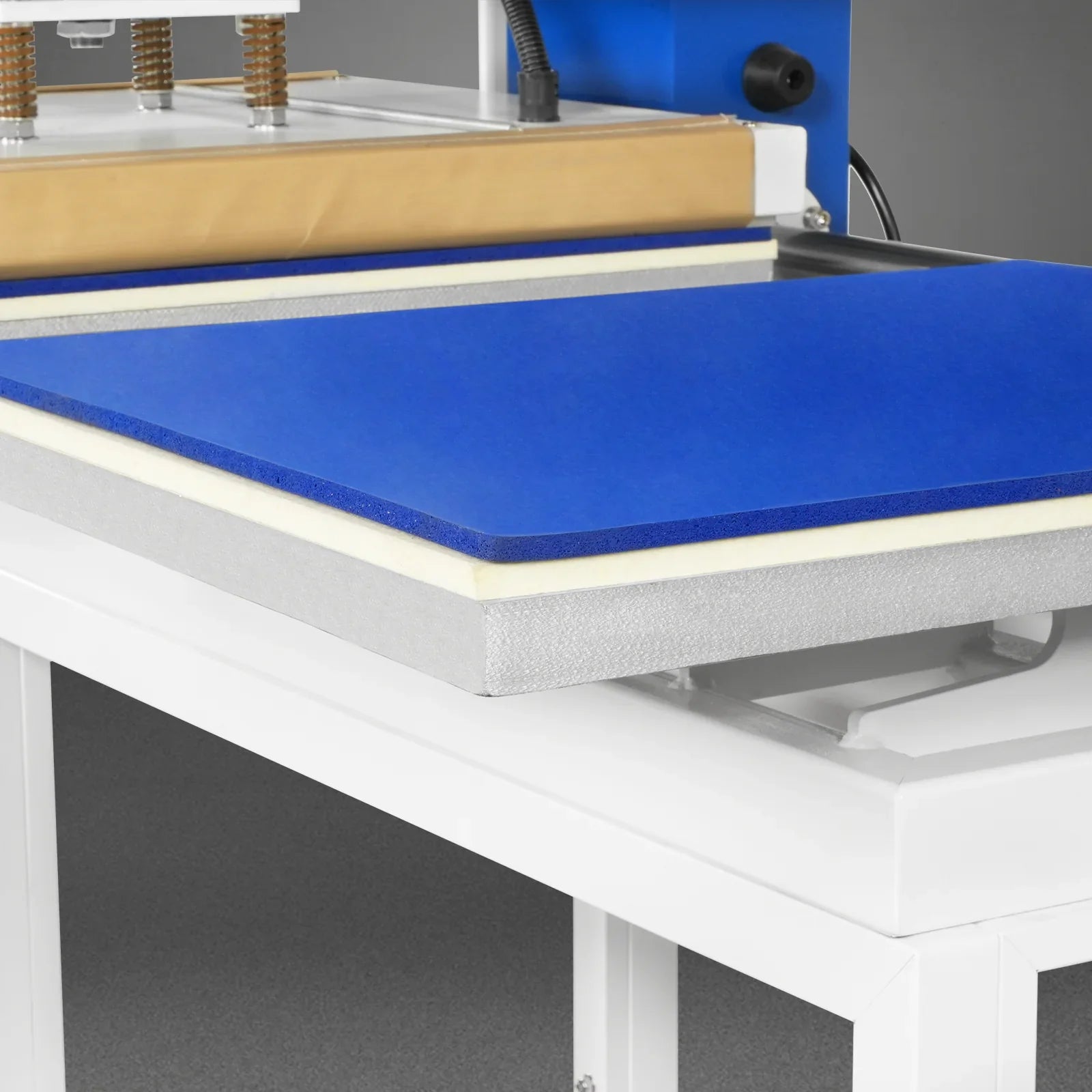

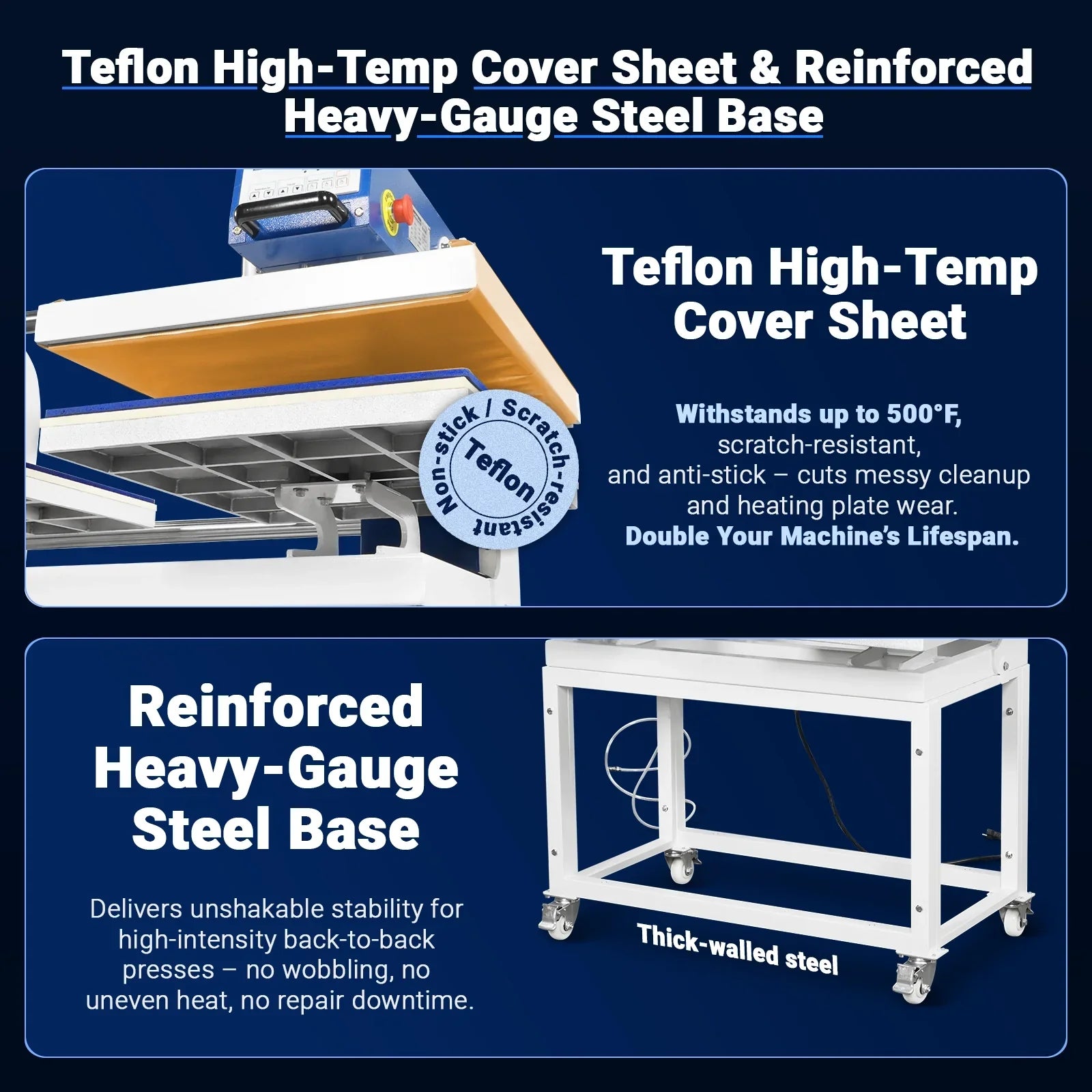

  • Durable Surface & Base: The platen is covered with a 500°F (260°C)-resistant Teflon sheet: non-stick, scratch-proof, and easy to wipe clean, reducing downtime between presses. The reinforced heavy-gauge steel base (with thick-walled framing) stays stable during rapid, back-to-back cycles—no wobbling, no uneven pressure—built to endure the fast-paced demands of U.S. small-batch or high-volume production.

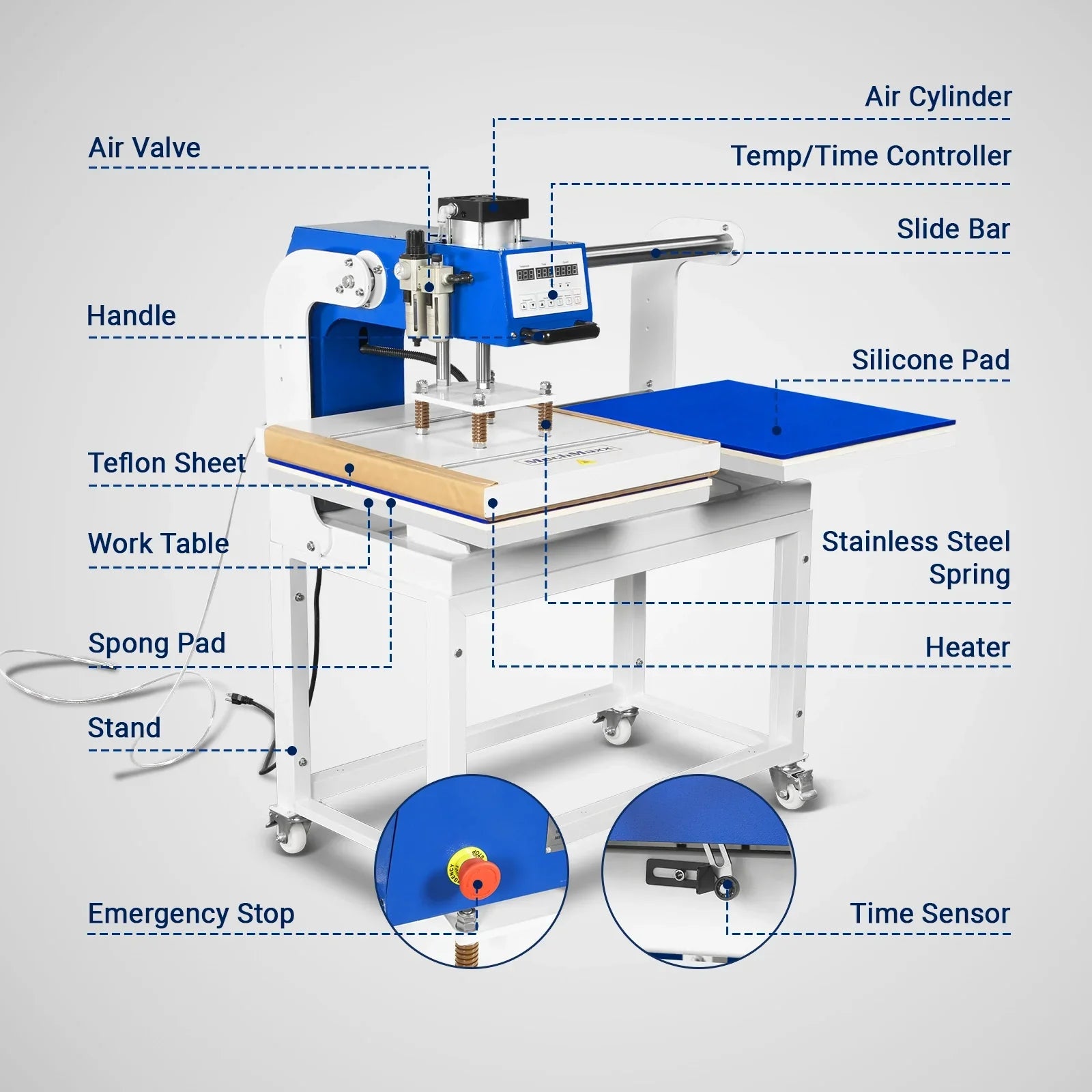

  • Key Component Labeling: Clear, English-language labeling identifies every critical part: air valve (for pressure regulation), silicone pad (shock-absorbent, heat-resistant), time sensor (triggers auto-lift), heating plate, and control panel. This simplifies onboarding for new staff and makes troubleshooting straightforward for U.S. operators without specialized technical training.

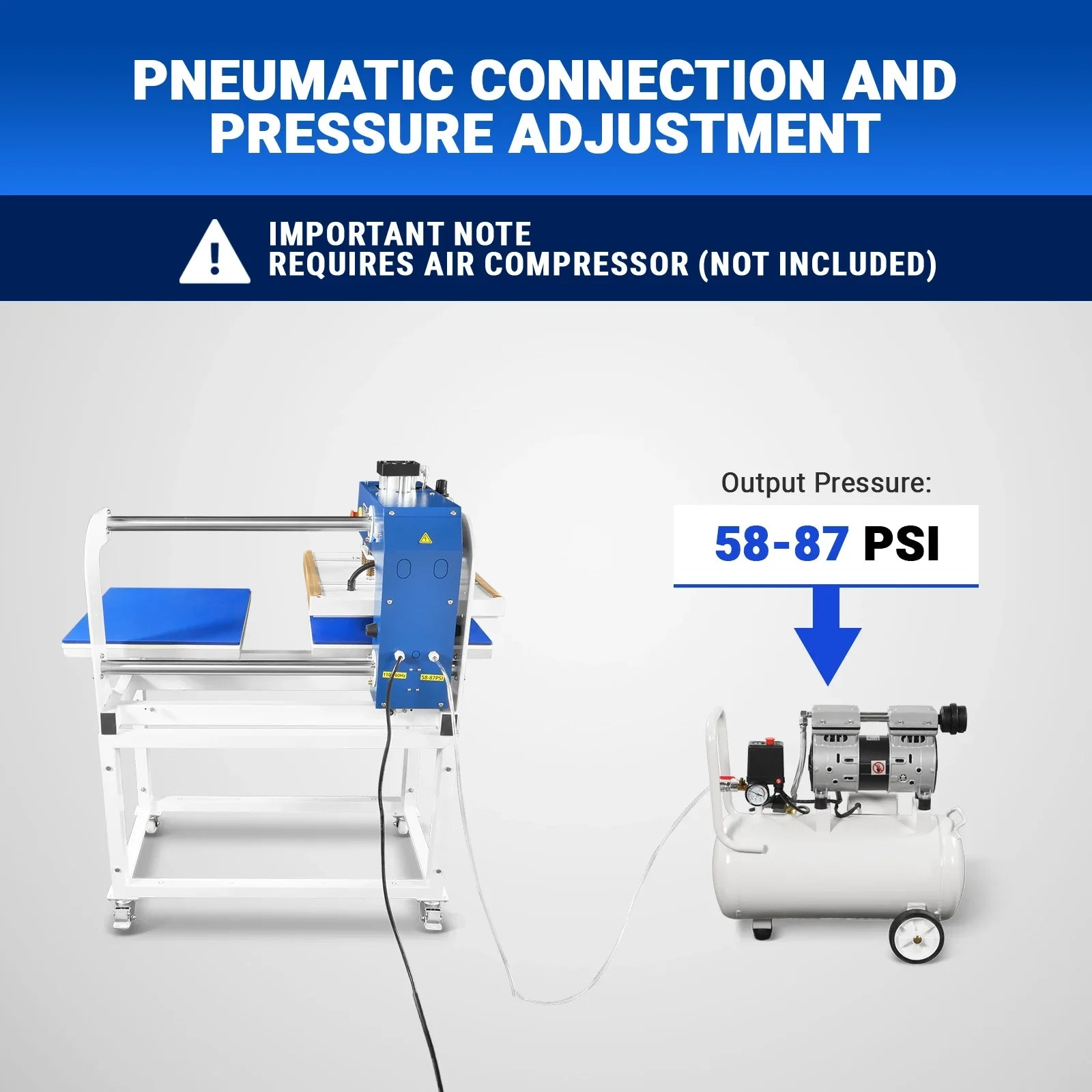

  • Pneumatic Setup Requirement: Requires an external air compressor (not included) with 58–87 PSI input capacity—compatible with the small, portable compressors commonly used in U.S. home studios and small workshops. A quick-connect air fitting (standard in U.S. industrial setups) ensures fast, secure connection..

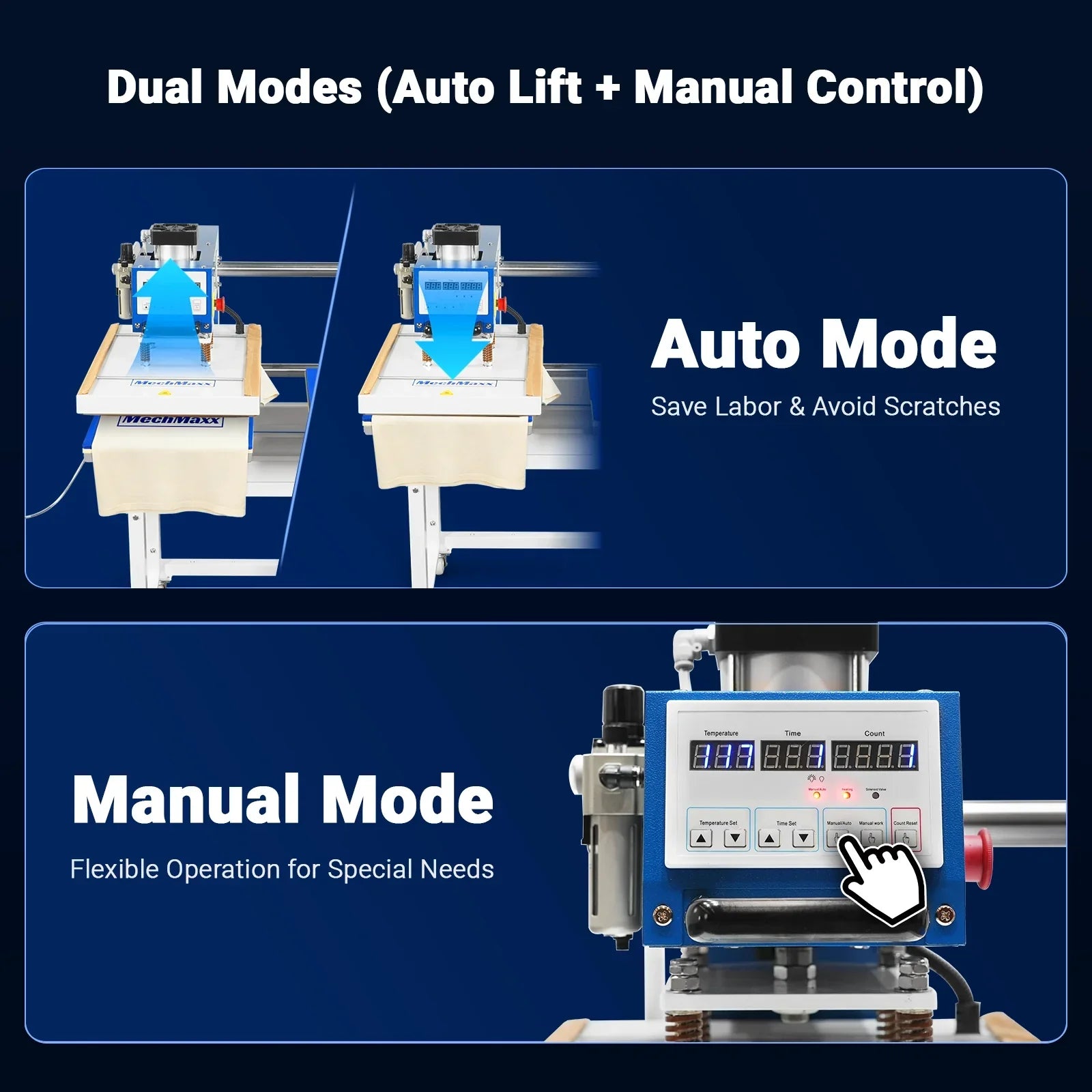

  • Dual Operation Modes: Auto-lift mode: After the timer elapses, the platen raises automatically—saving labor (no manual lifting) and preventing accidental scratches on delicate substrates (e.g., custom phone cases). Manual control mode: Lets operators adjust press speed/force for unique projects (e.g., thick foam materials)—flexible enough for both mass production and one-off custom jobs popular in U.S. retail markets.

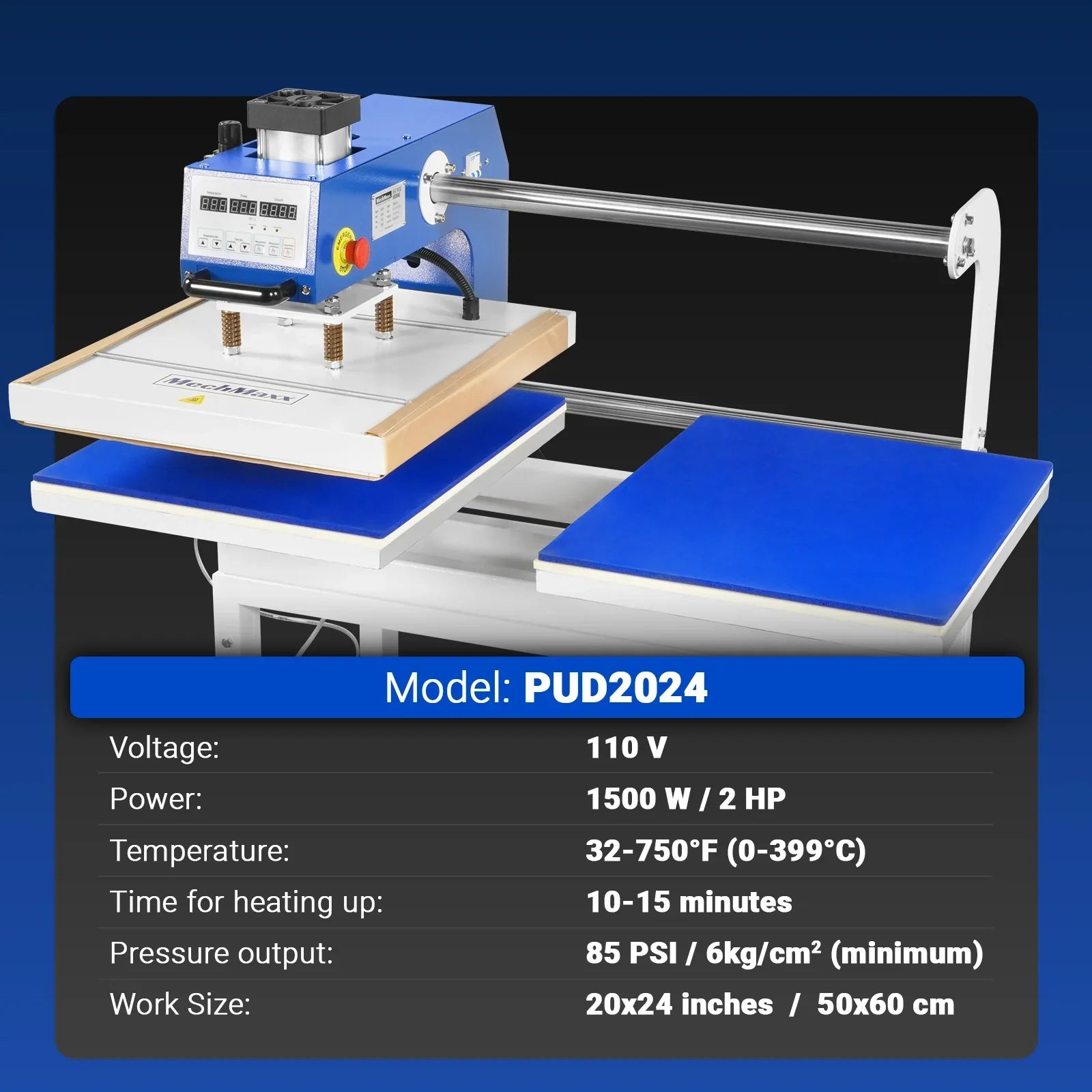

Model: PUD2024

Voltage: 110V

Power: 1500W/2HP

Temperature: 32-750℉(0-399℃)

Time for heating up: 10-15 minutes

Pressure output: 85 PSI / 6kg/cm²(minimum)

Work Size: 20x24 inches / 50x60cm

This item comes with a 1 year factory warranty.
PDF PUD2024 Product manual
