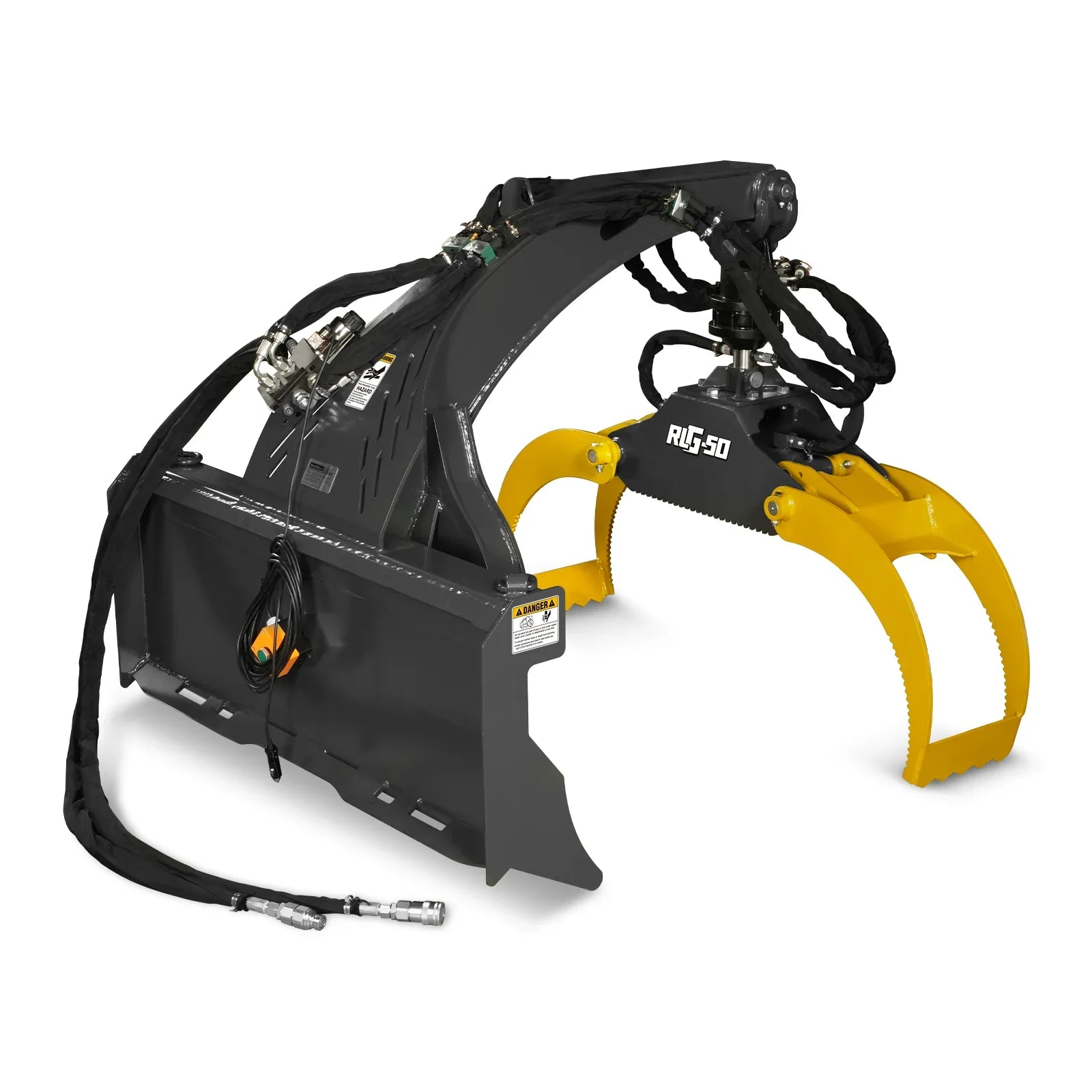

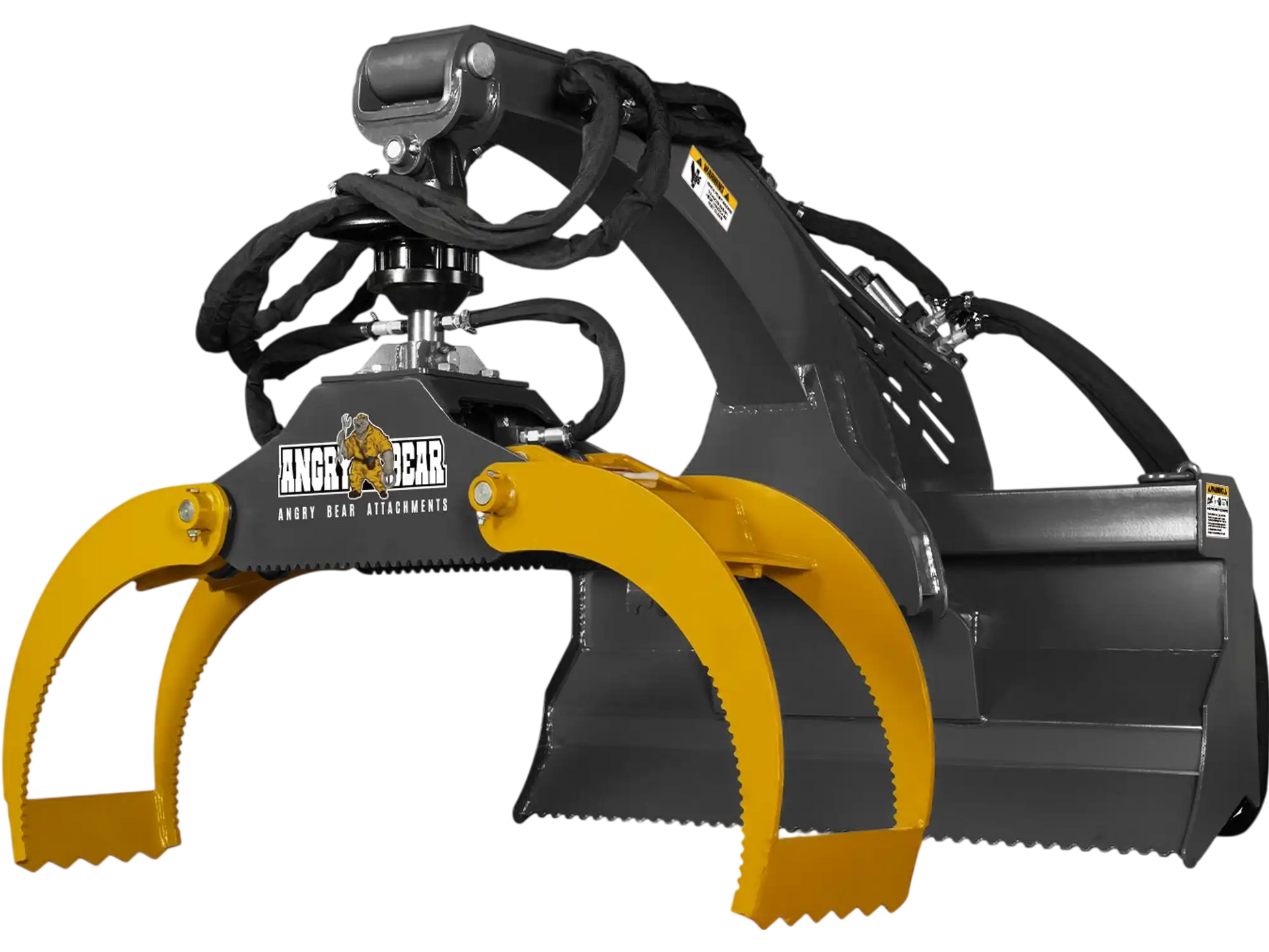

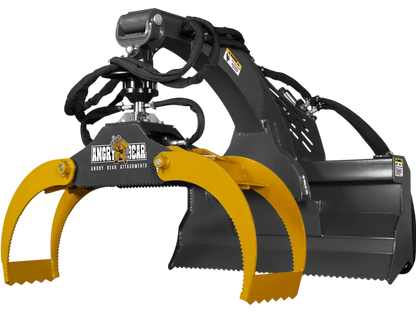

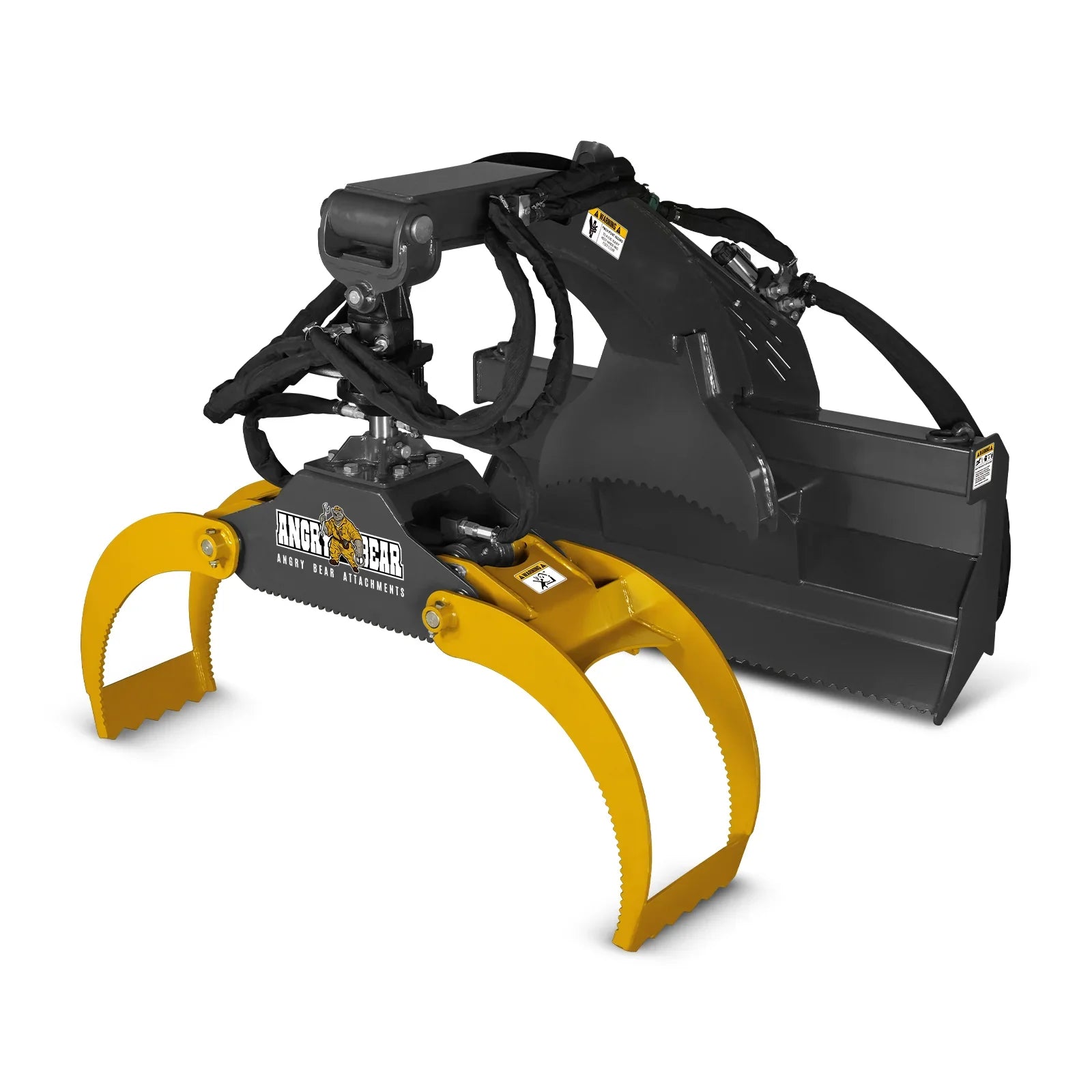

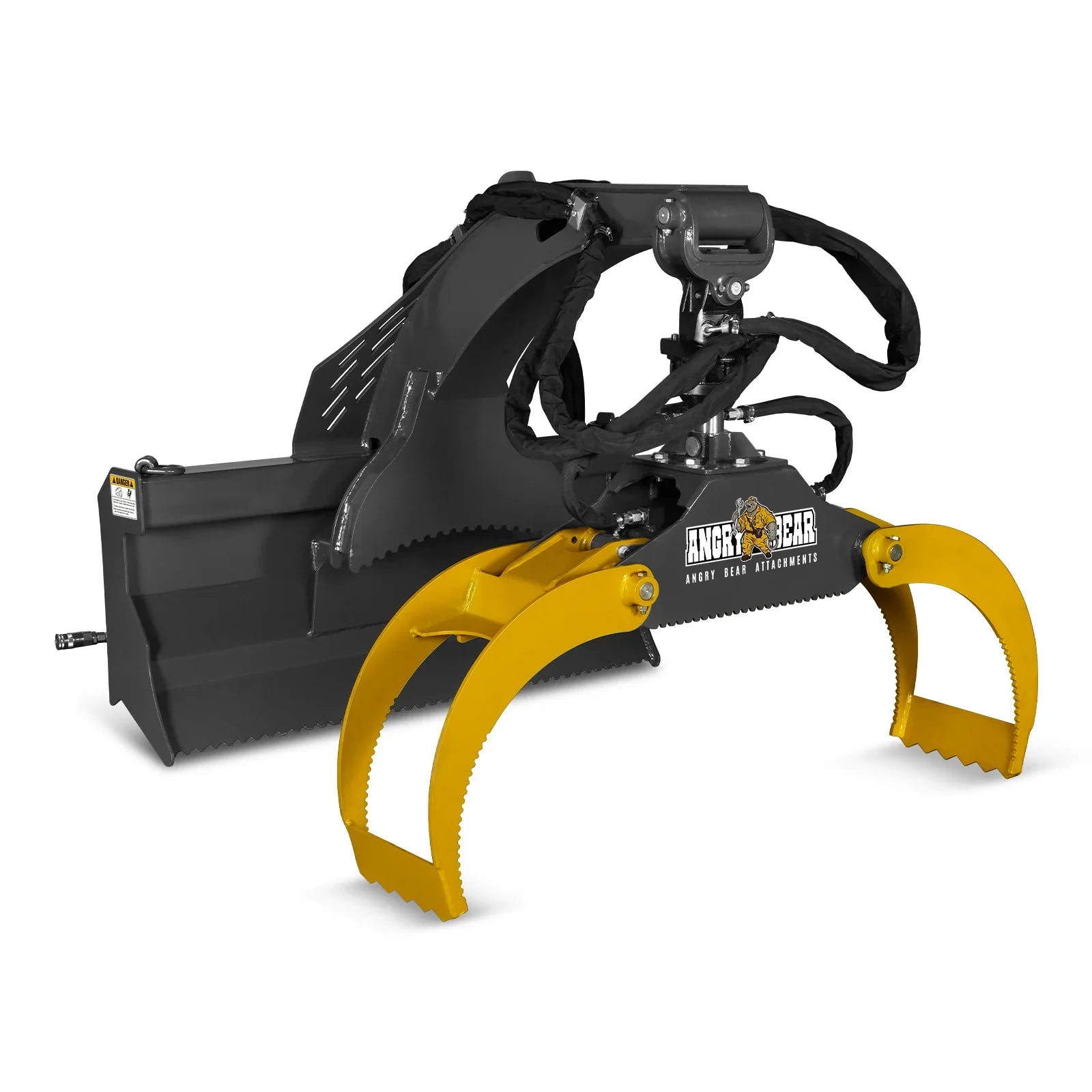

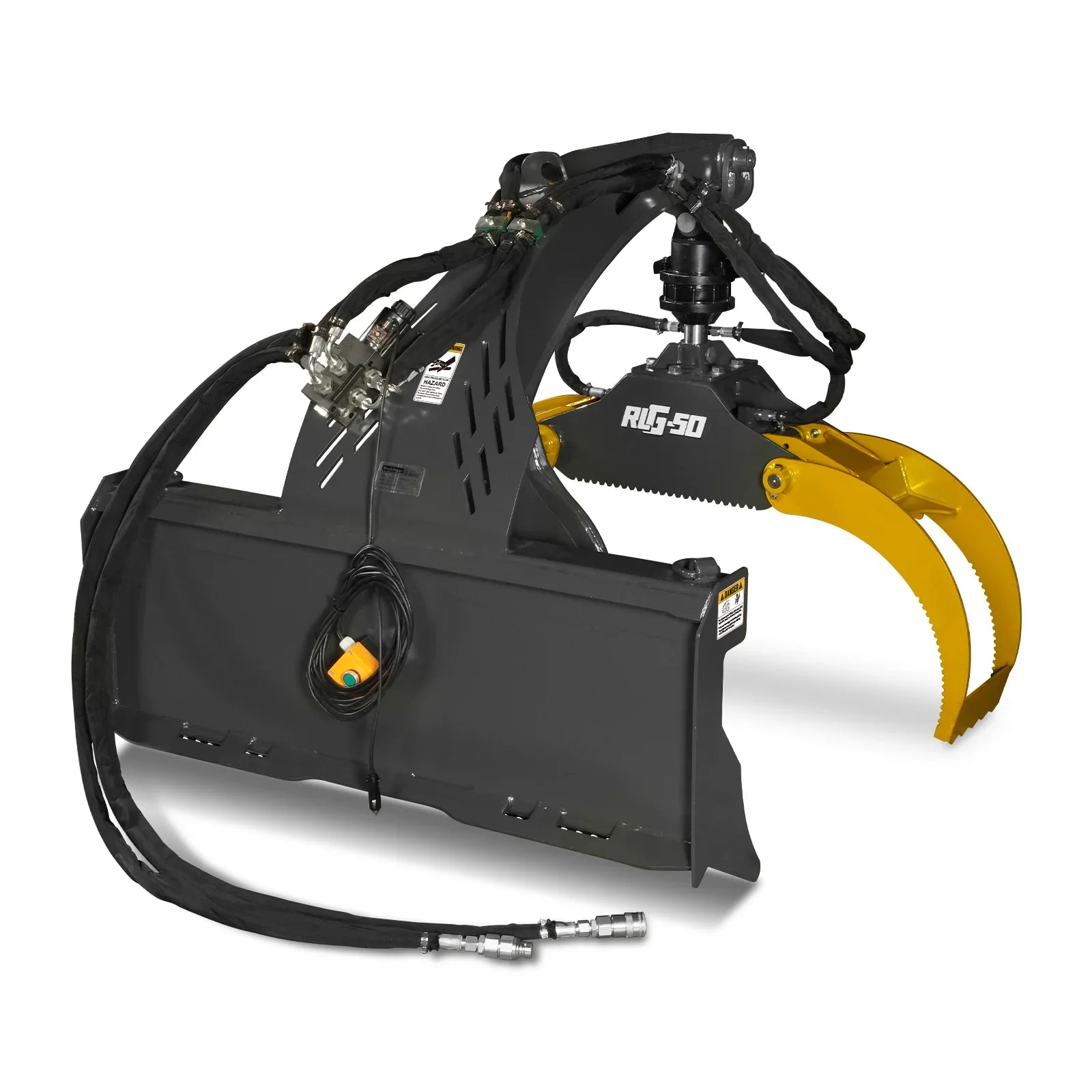

MechMaxx RLG-50 Log Grapple 50" Skid Steer Rotary 360° Rotation 3000 lbs Capacity New

MechMaxx

$3,899.00
$3,899.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Skid steer log grapples are used for smooth and fast loading, transporting and stacking of logs at sawmills. You can easily move larger quantities of logs per trip,  saving you time.

Whether you're working in a log yard or clearing land, this tool can handle the load. Serrated braces help stabilize the log while moving. Impressive clamping force holds large logs very securely.

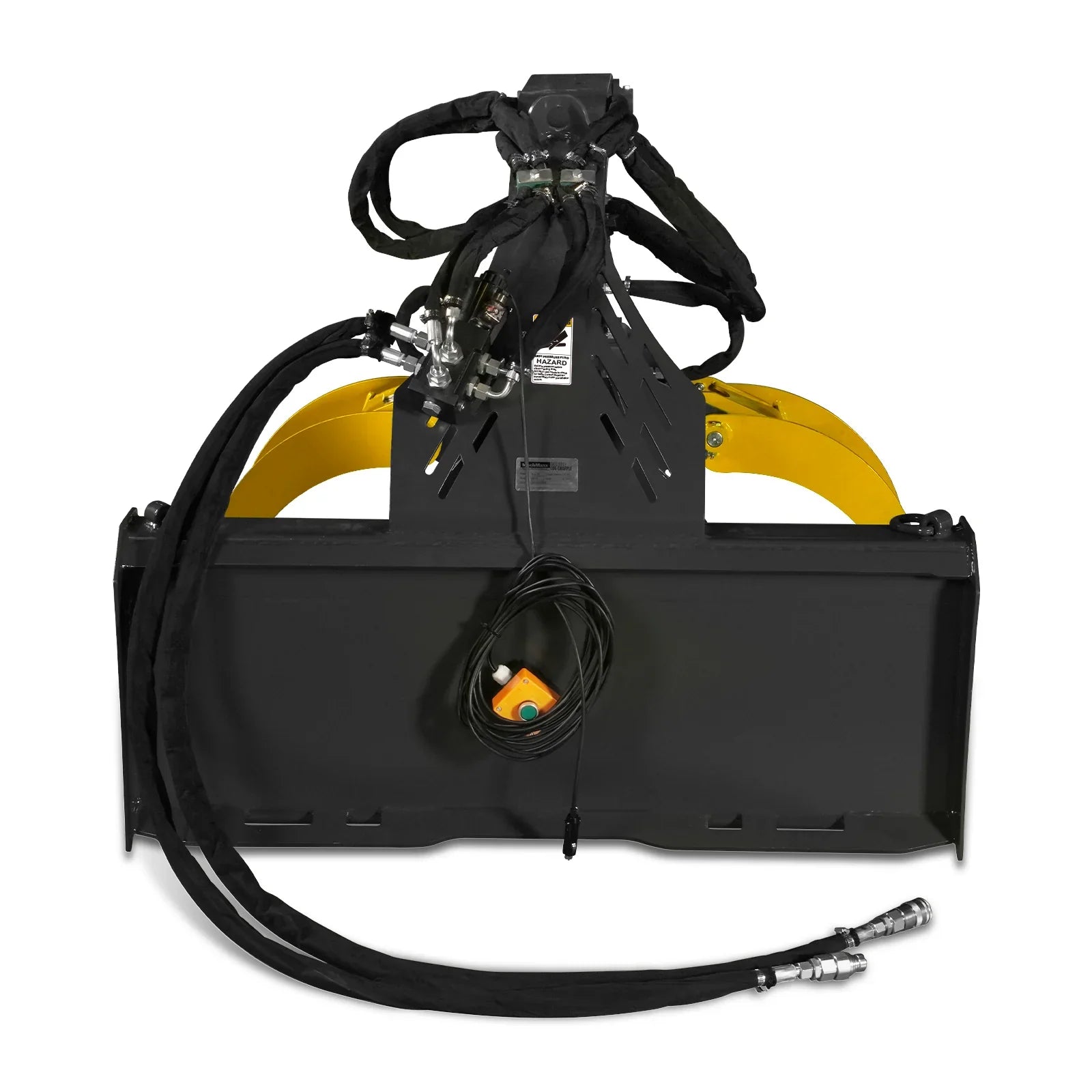

  • This skid steer log grapple is designed to fit the Skid Steer Universal Attachment Plate, which mounts directly to your skid steer, giving you full control from inside the cab to pick up and move logs with high efficiency.
  • It provides heavy equipment to get the job done.
  • The grapple teeth are tightly connected to each other to 3 inches, ensuring easy handling of smaller logs and branches.
  • The grapple rotates when turning, but stays straight when grabbing logs.
  • Features landscape and inline locking positions.

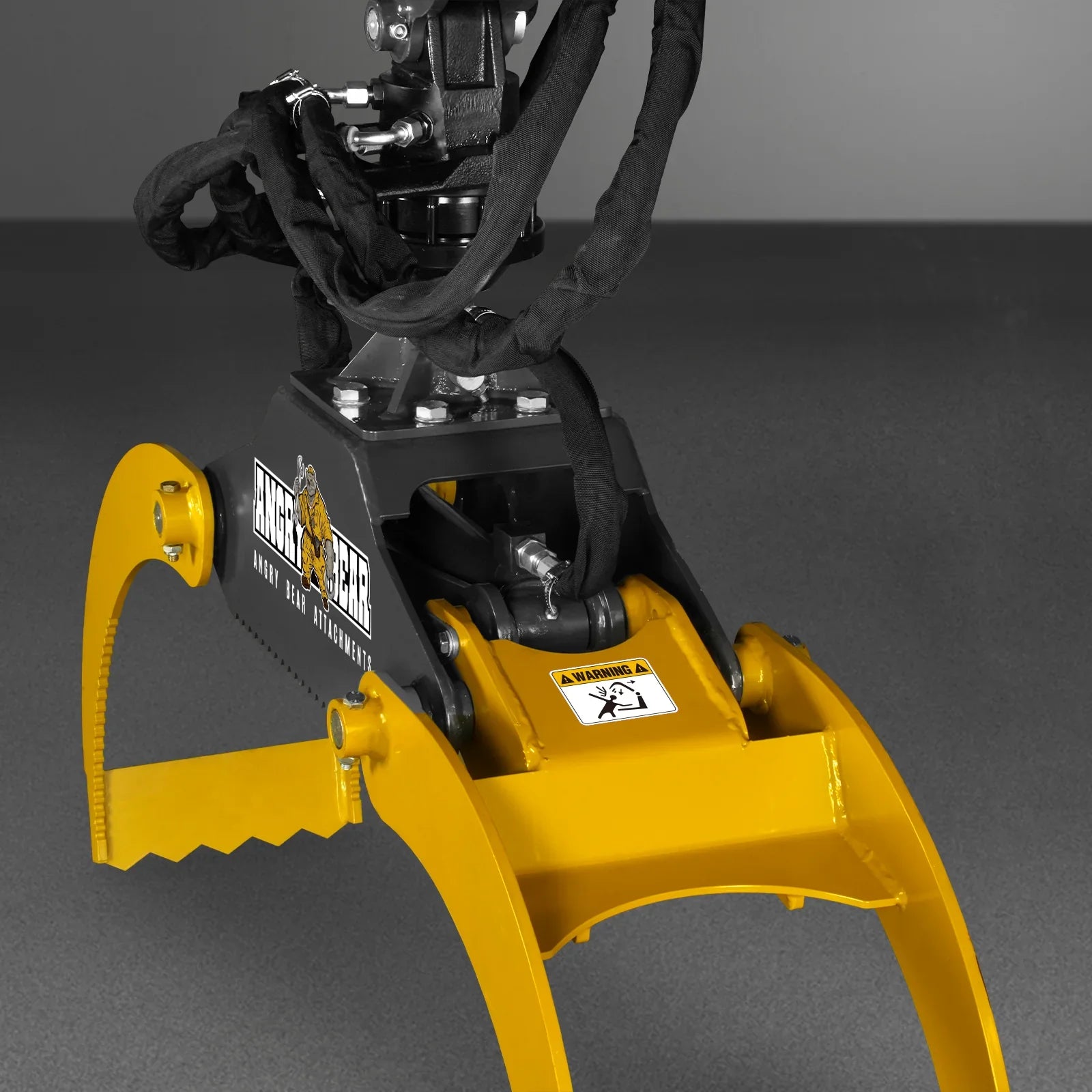

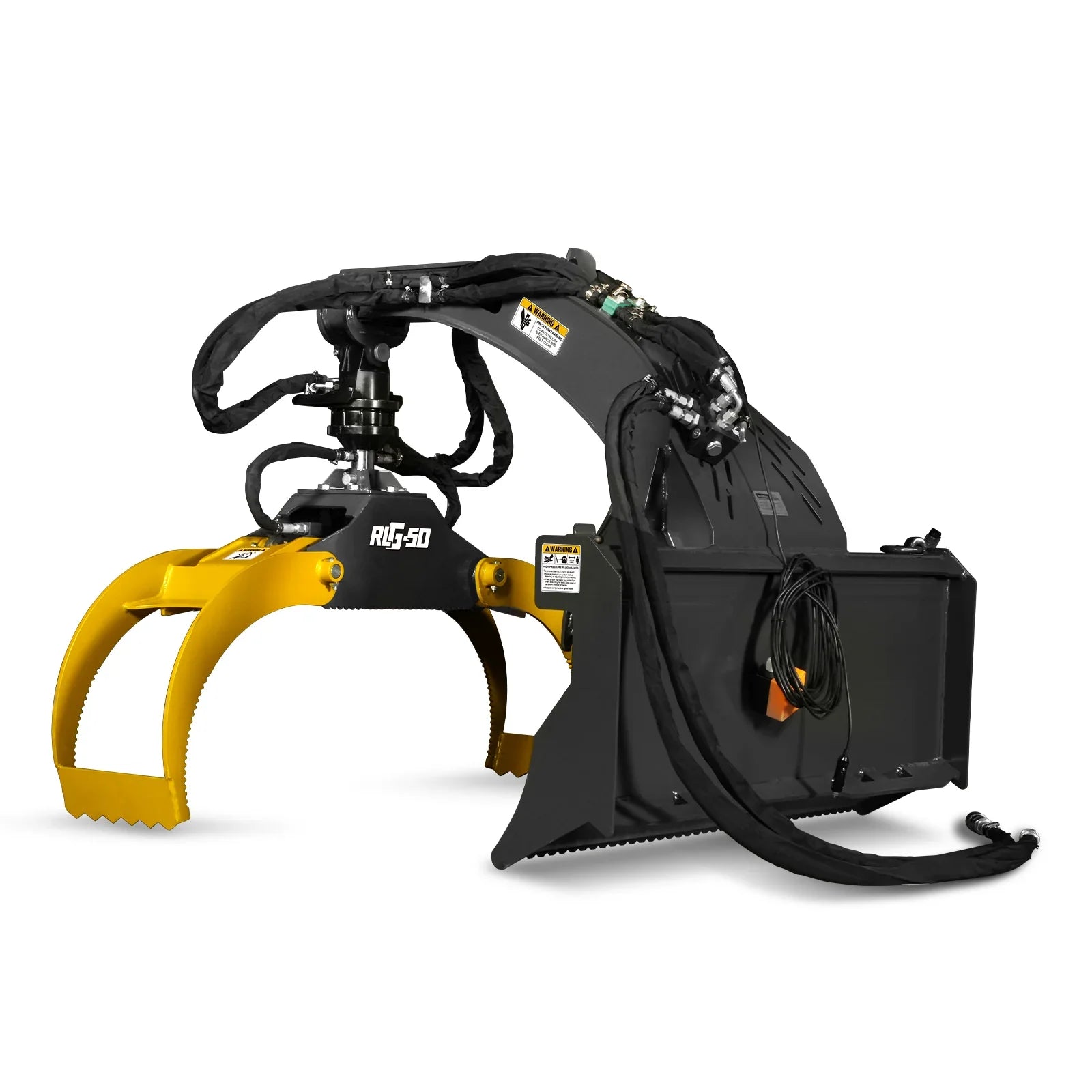

  • It features a cantilevered cradle that uses serrated brackets to harness and secure your load while lifting logs.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

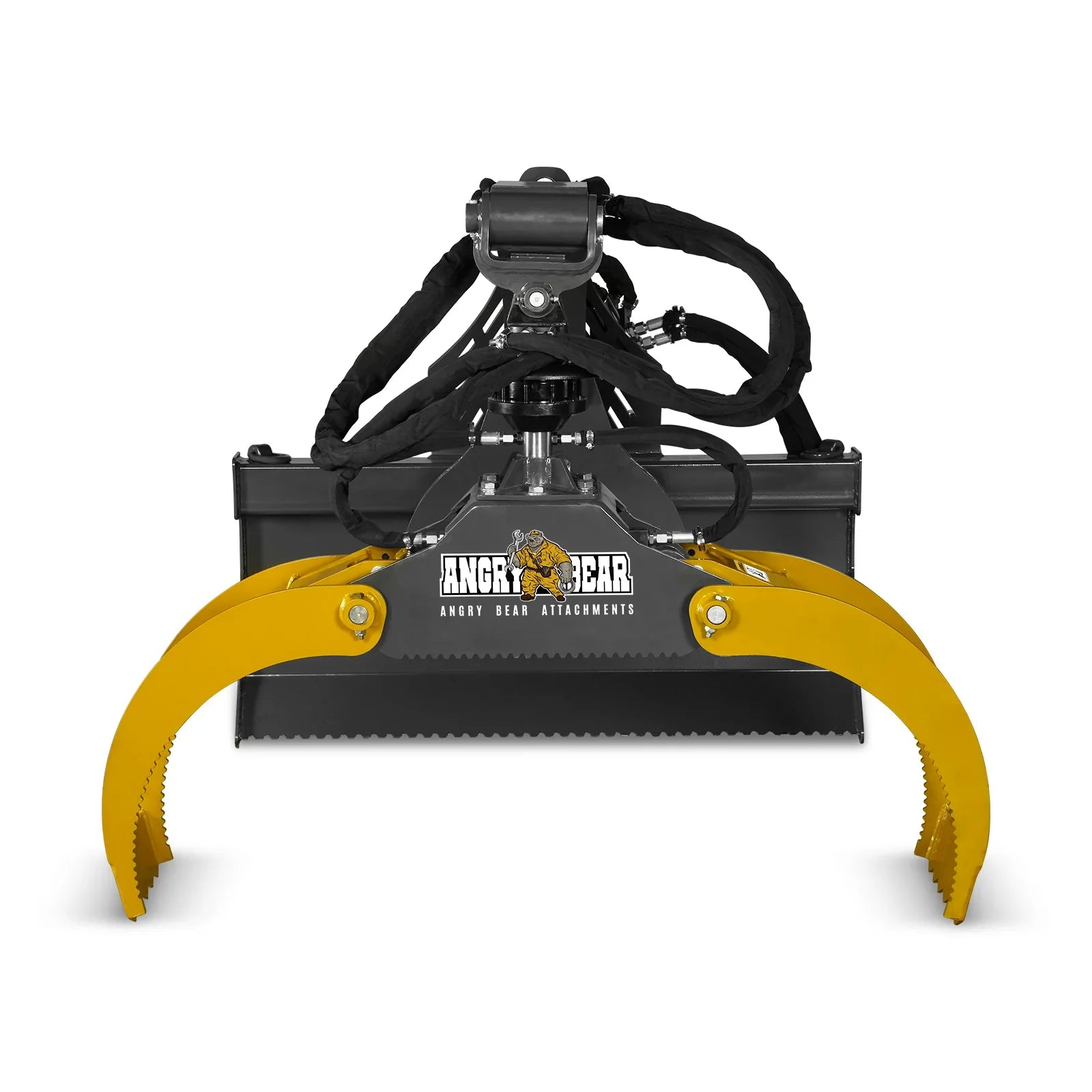

  • 3in-50in Grapple Opening: Grapple tines interlink and has 3’’ to 50’’ opening ability, ensuring easy handling of smaller or big logs and branches.

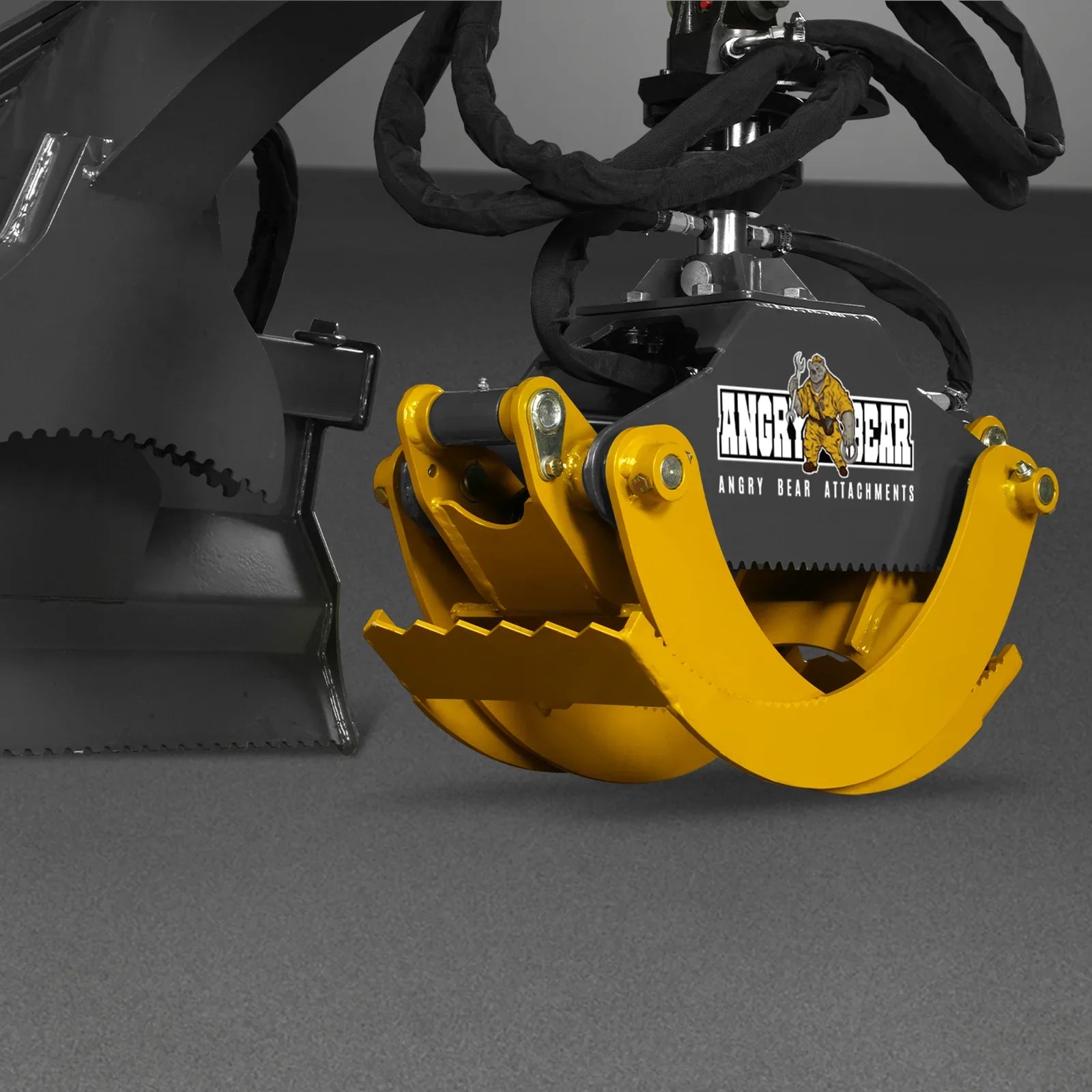

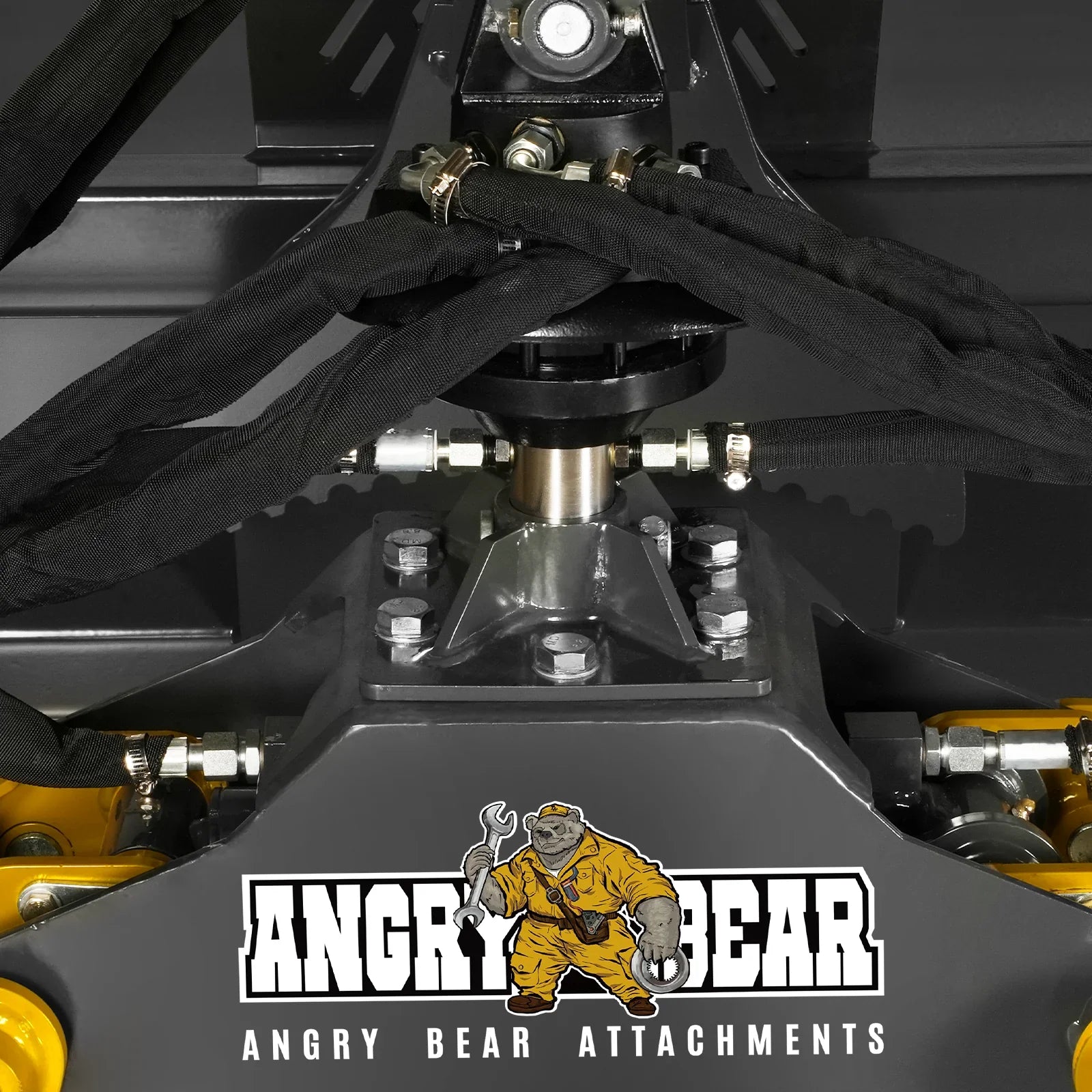

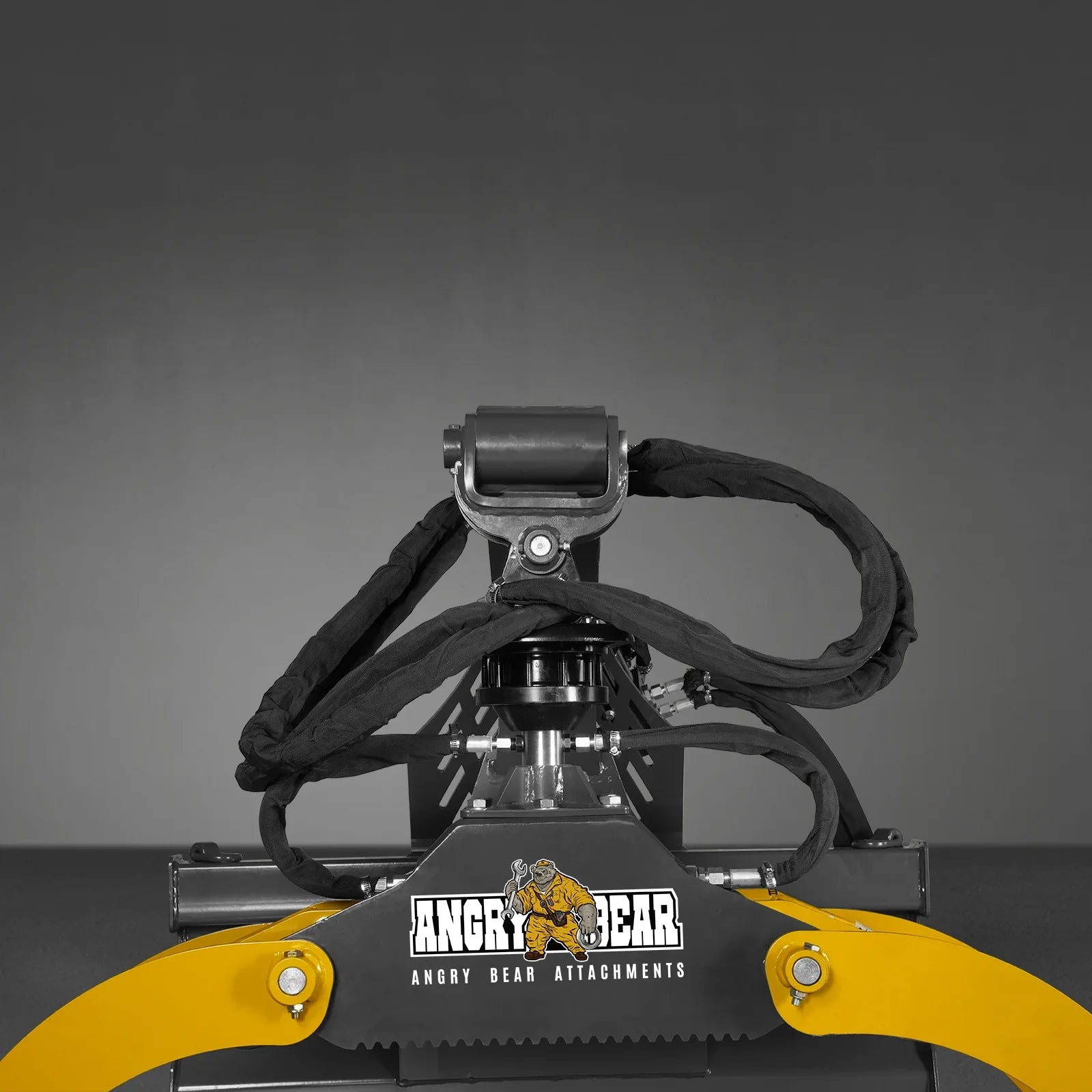

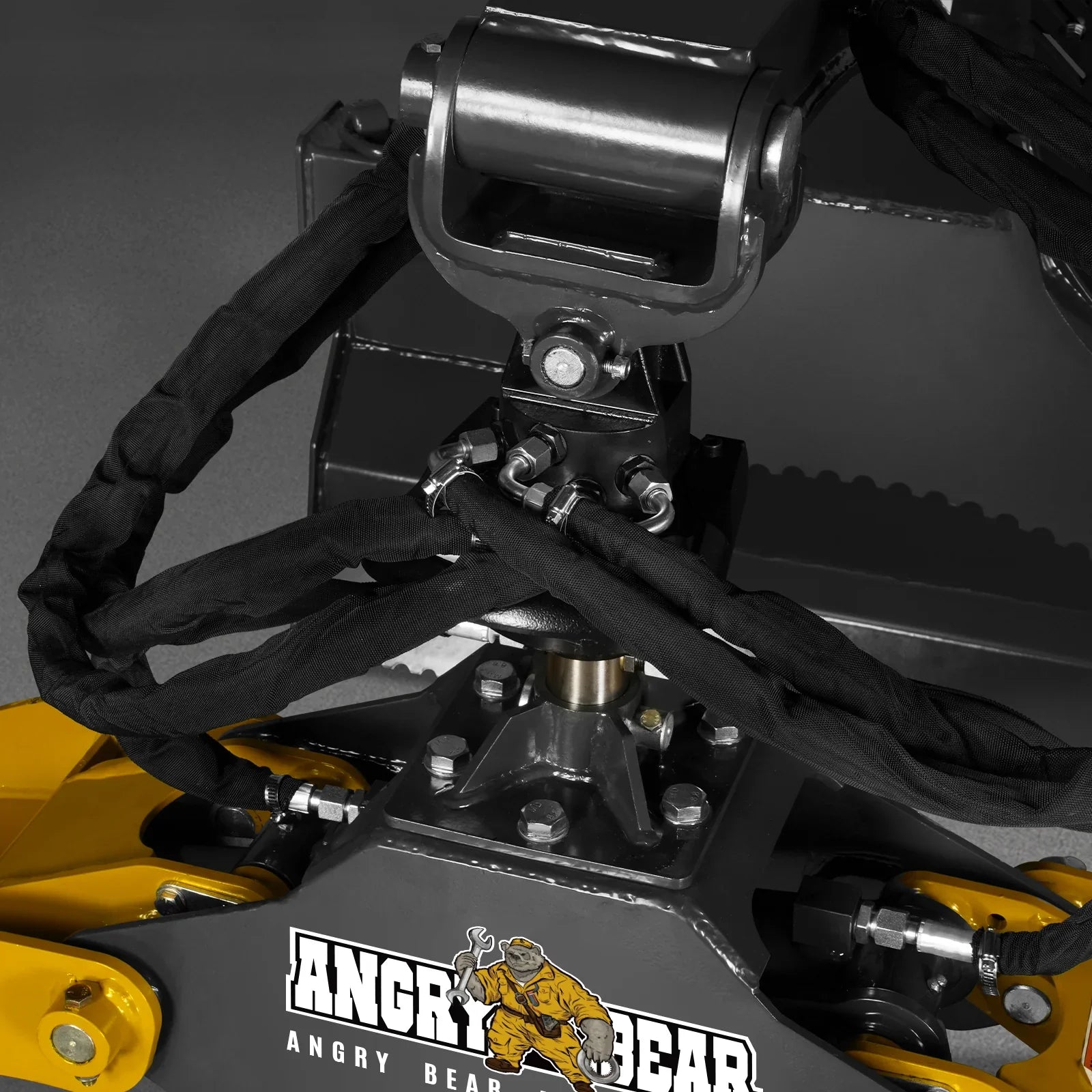

  • 360° Grapple Rotation: The hydraulically controlled grab can rotate 360°, allowing you to grab logs at any position.
  • Cantilever Cradle: Leverage and secure your load with the serrated cradle when lifting logs in-line.

Lfting Capacity: 3000 lbs

Flow Range Low: 10.6 gal/min

Flow Range High: 19.8 gal/min

Operate Pressure: 2900 psi

Grapple Opening: 3 in - 50 in

Clamp Force: 9400 lbs

Grapple Rotation: 360°

Rotator/Pivot Rating: 6750 lbs

Finish: Durable Powder Coated Finish

Product Size: 48.5 x 53 x 43.8 in

Package Method: Iron Frame with Film

Packing Size: 72 x 52 x 27 in

Weight (N.W./G.W.): 636/729 lbs

This item comes with a 1 year factory warranty.
