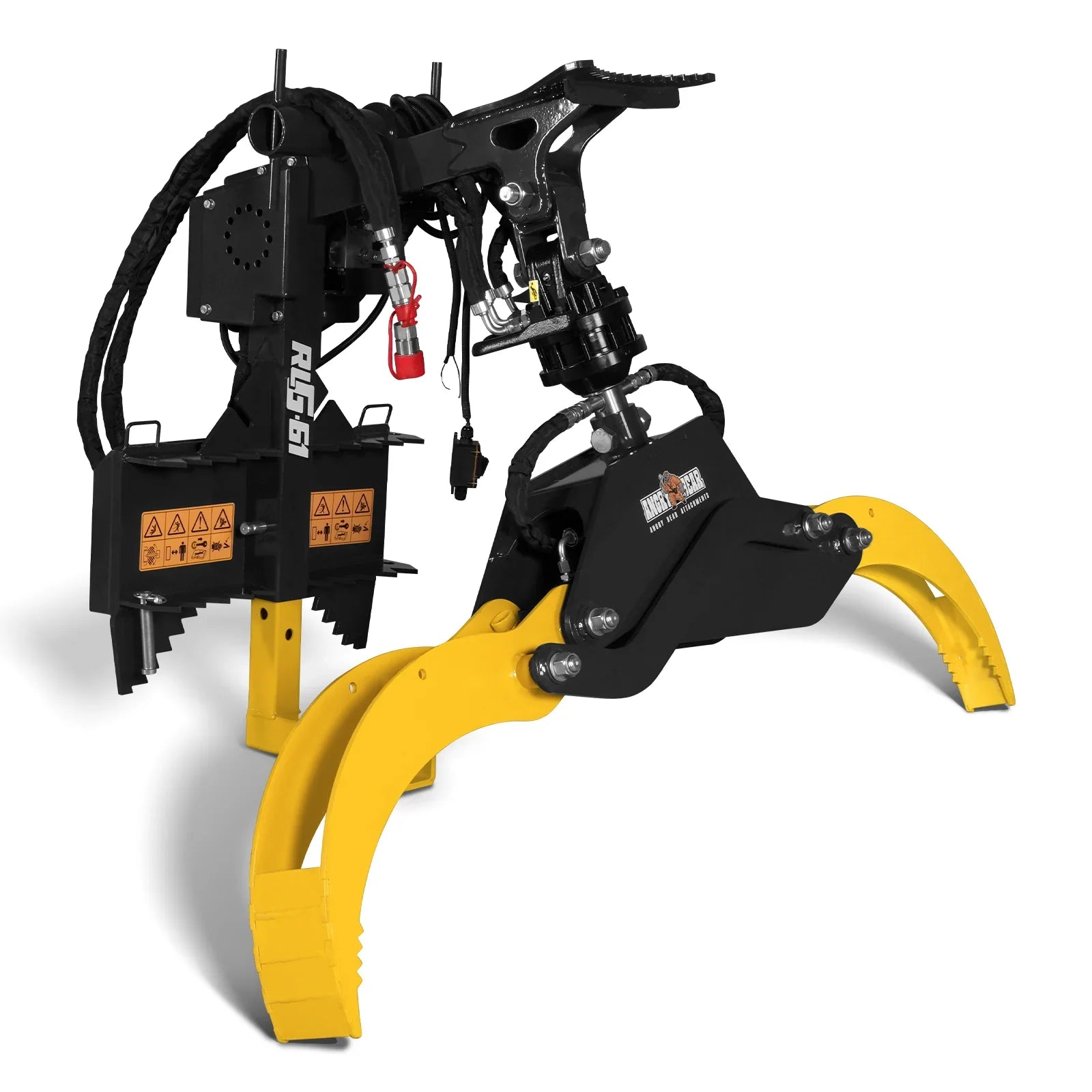

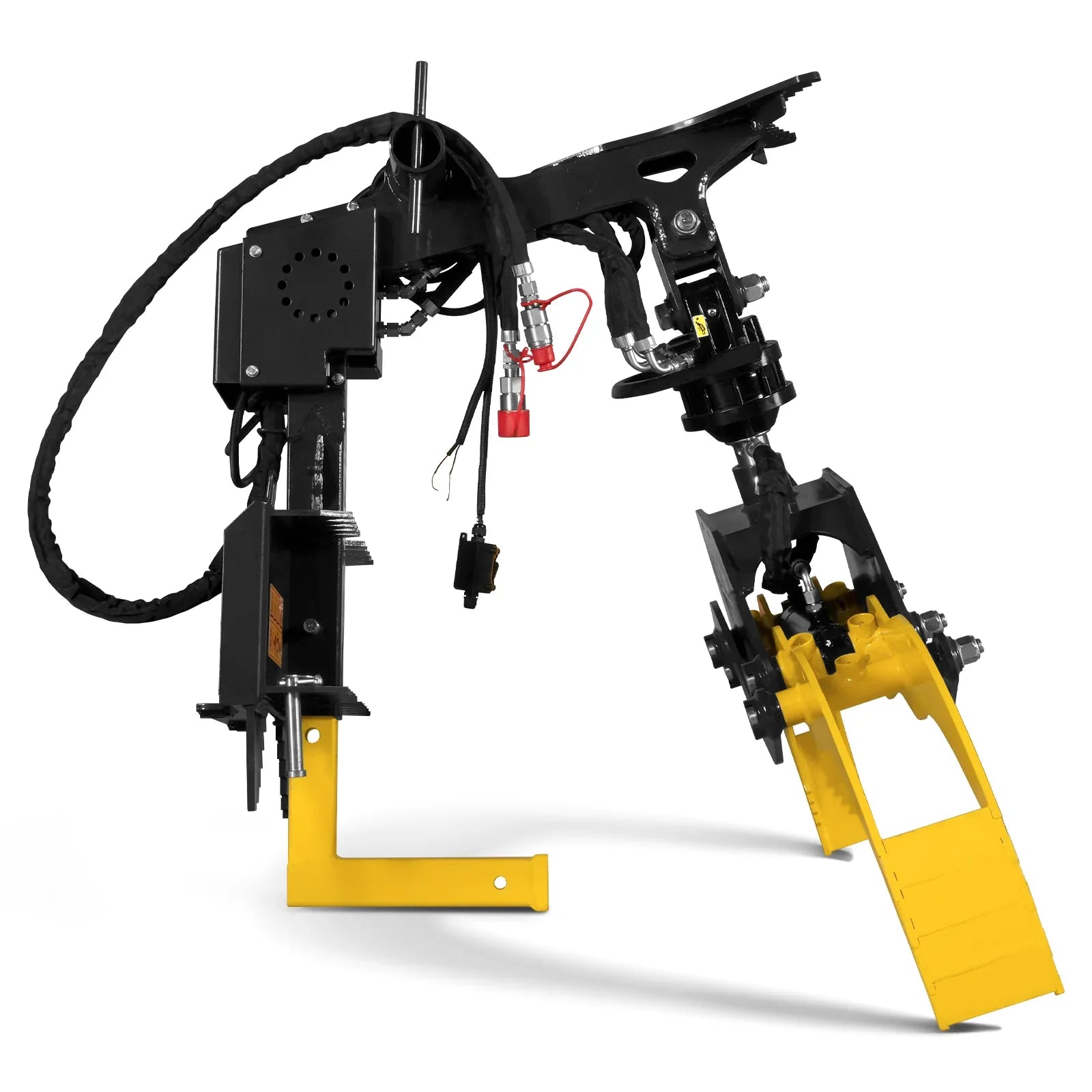

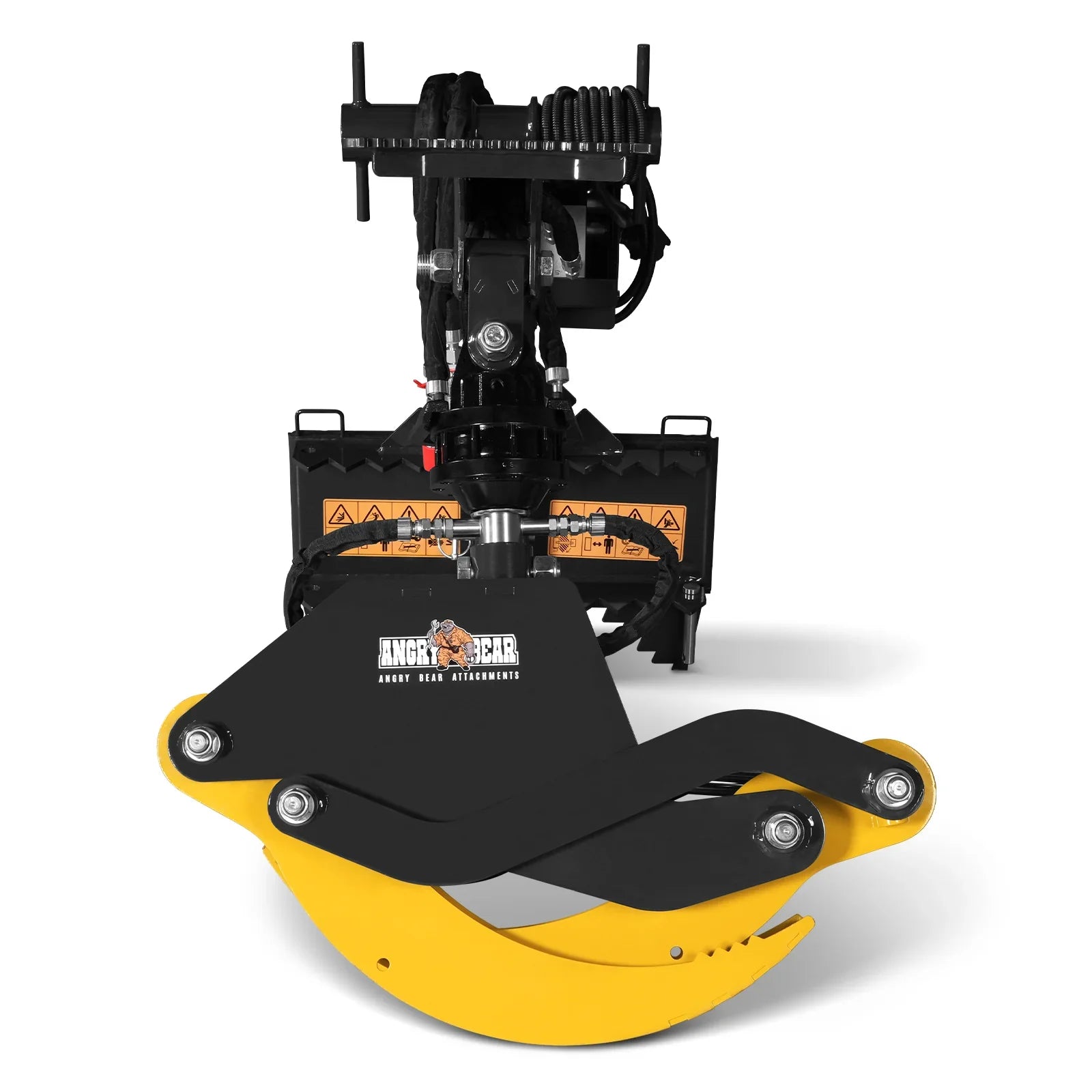

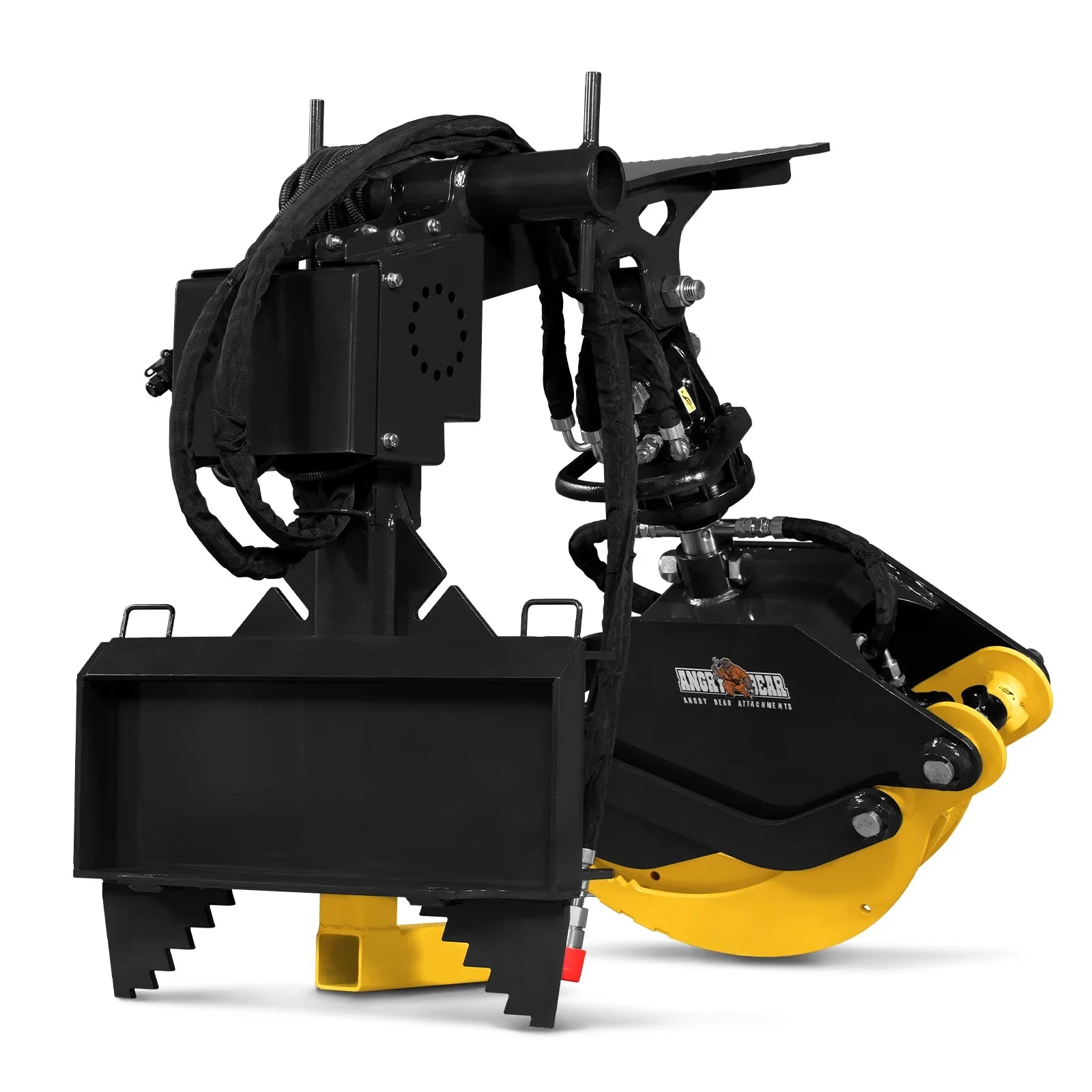

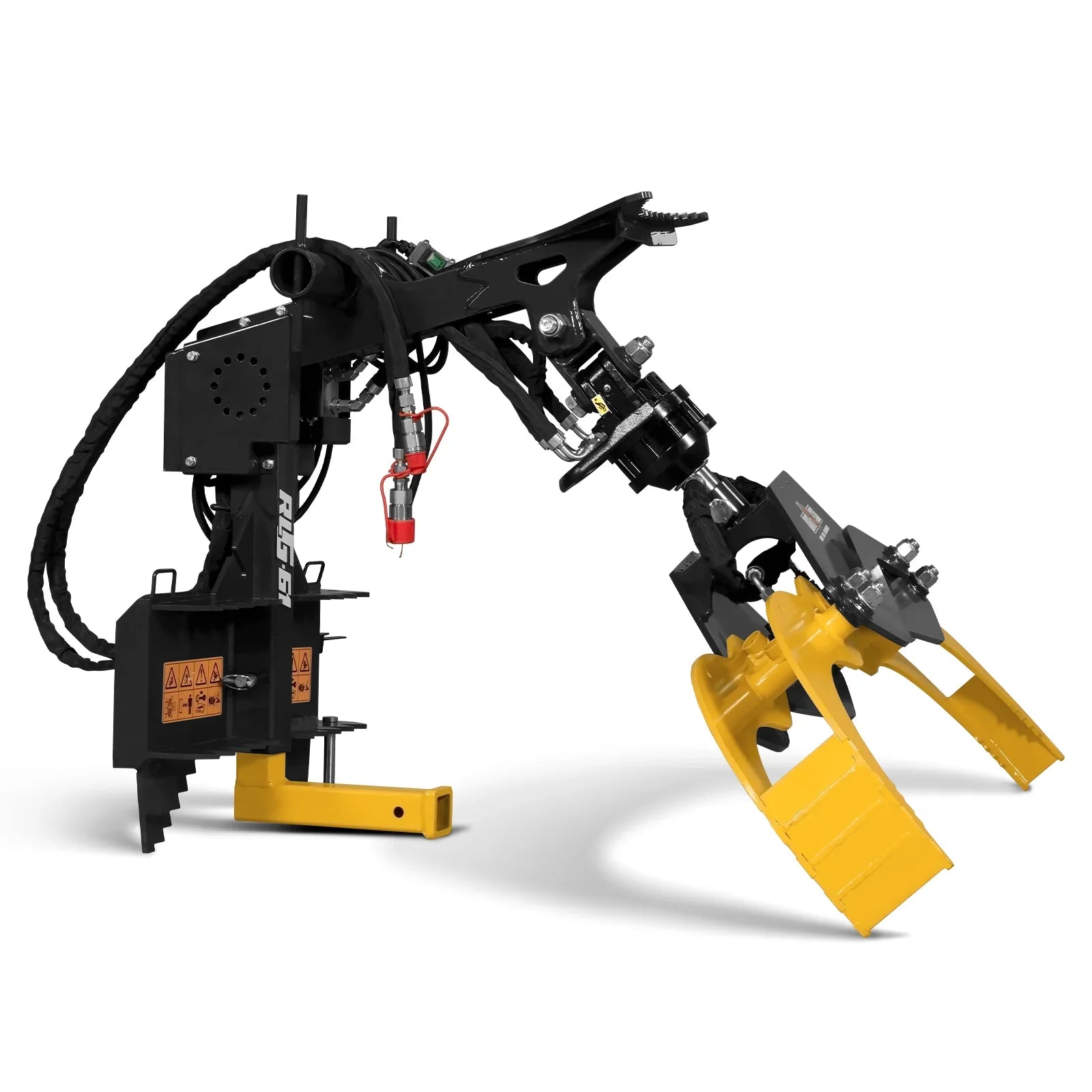

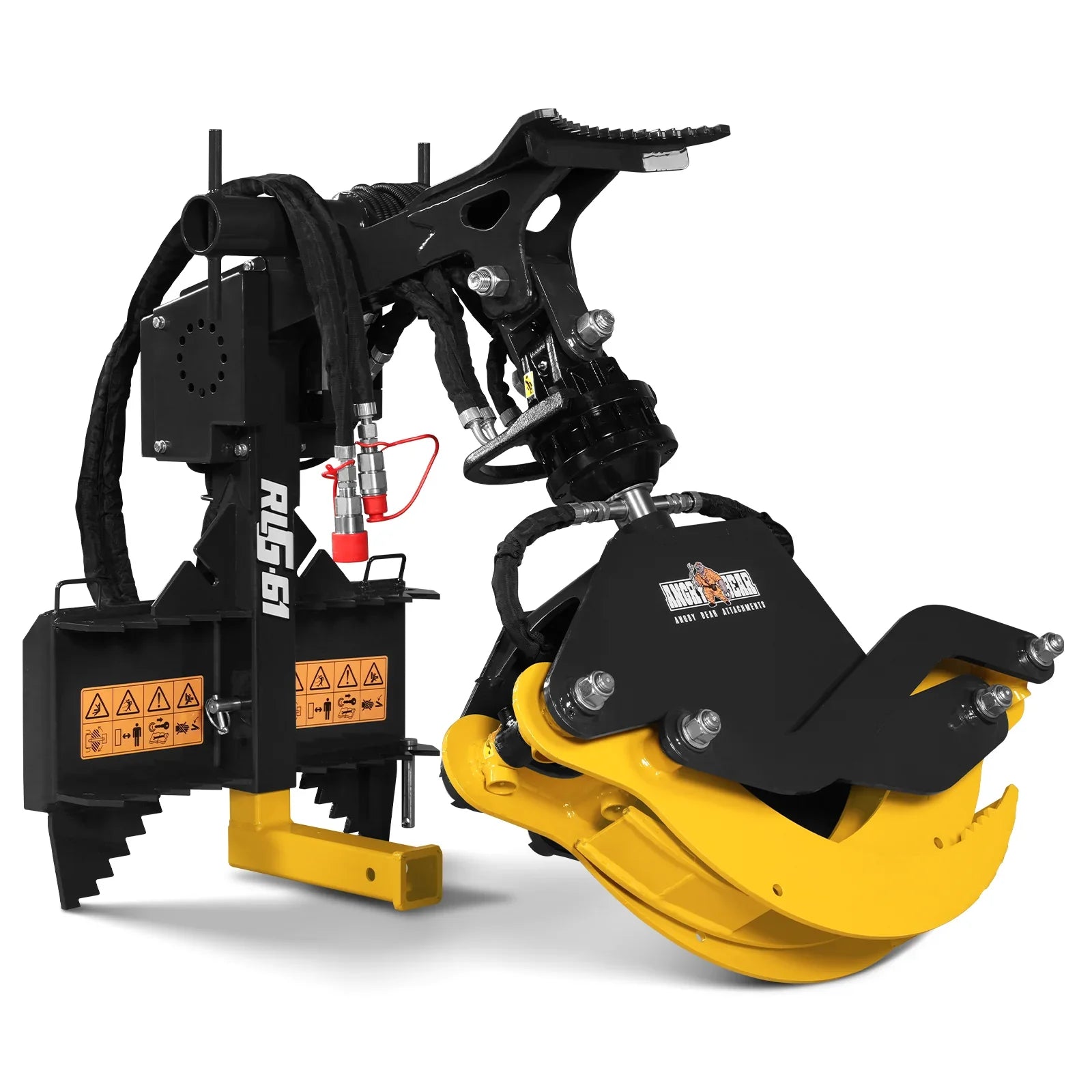

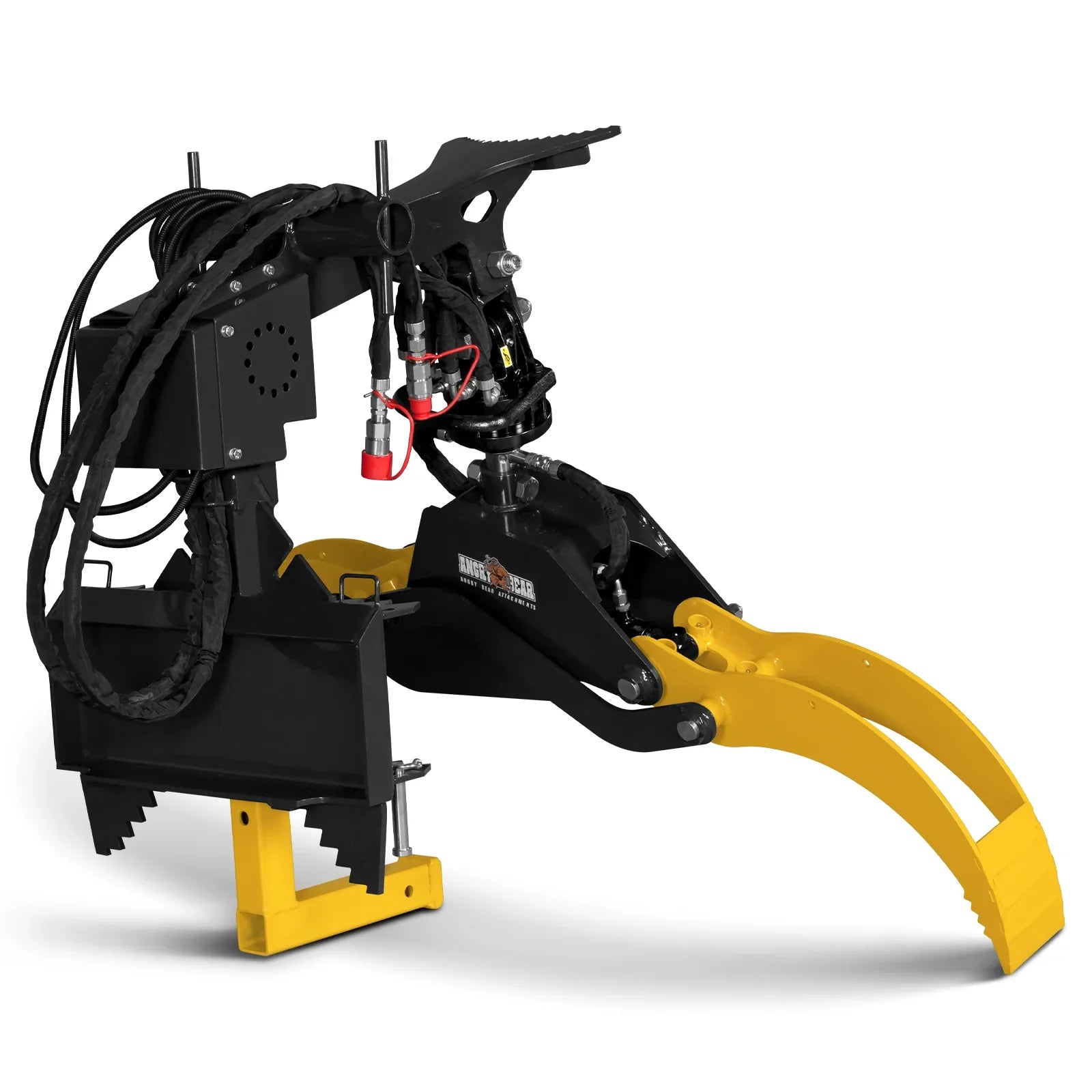

MechMaxx RLG61 Skid Steer Grapple Attachment 59" Hydraulic Rotating Log Grapple 1500 lbs Lift Capacity 360 Degree Rotation New

MechMaxx

$2,699.00
$2,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Designed for heavy-duty material handling and forestry work. The RLG61 is a powerful, versatile attachment. With a 1.5-ton power swivel and 59-inch grapple opening, it can lift up to 1500 pounds with ease.
  • Its hydraulic flow of 8-12 GPM and 2900 PSI ensures consistent performance across a wide range of tasks and jobs. Perfect for skid steer operators who demand strength, precision and versatility.
  • The high-strength steel body and Q690 grapple arm provide durability and resilience for tough tasks. Features include 360° swivel, internal hose routing and an integrated whaletail tree pusher.

  • Please note: Before purchasing, ensure that this product is compatible with your skid steer to avoid any issues with mismatched dimensions upon receipt.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

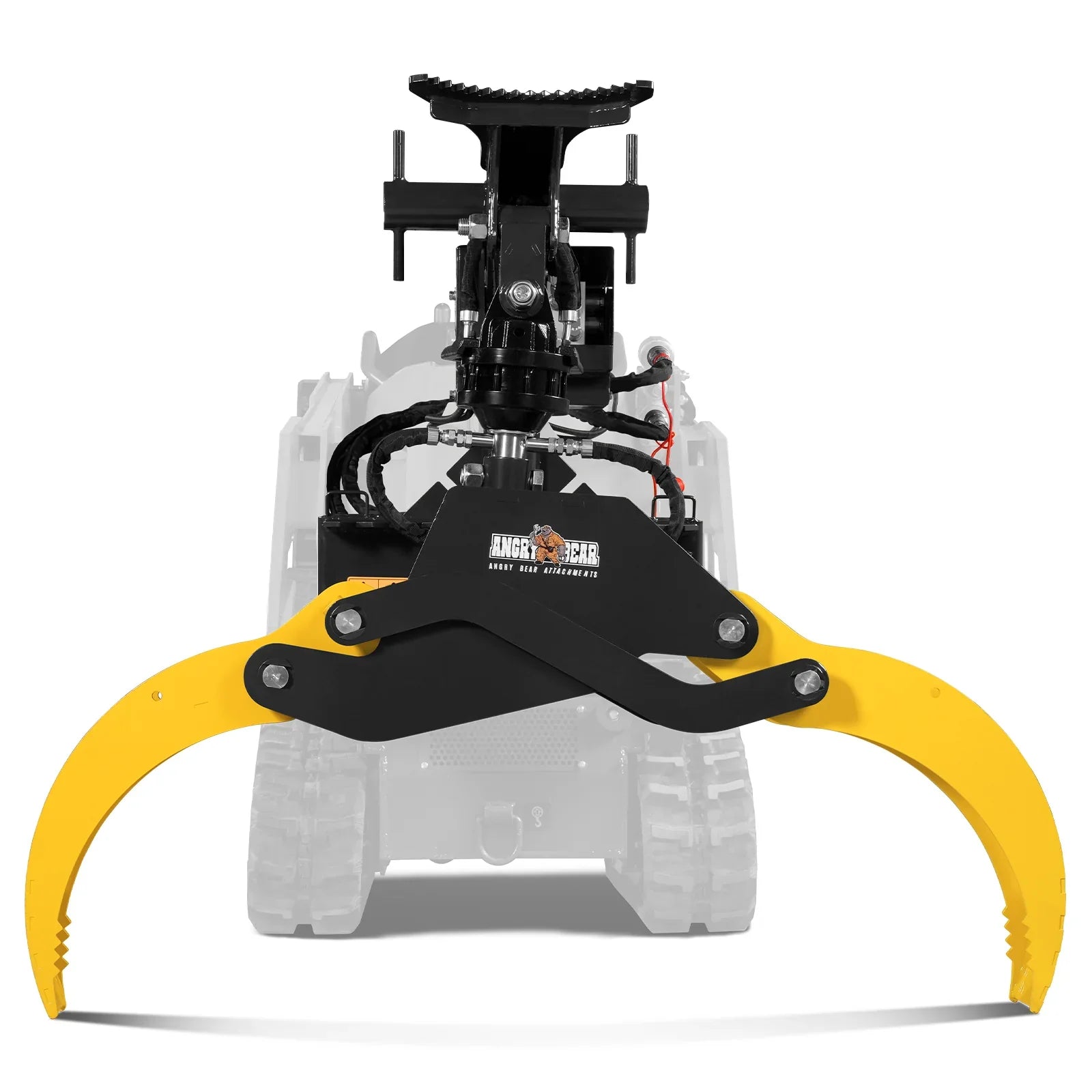

  • Open Max Size: With a 1.5-ton power swivel and 59-inch grapple opening, it can lift with ease.

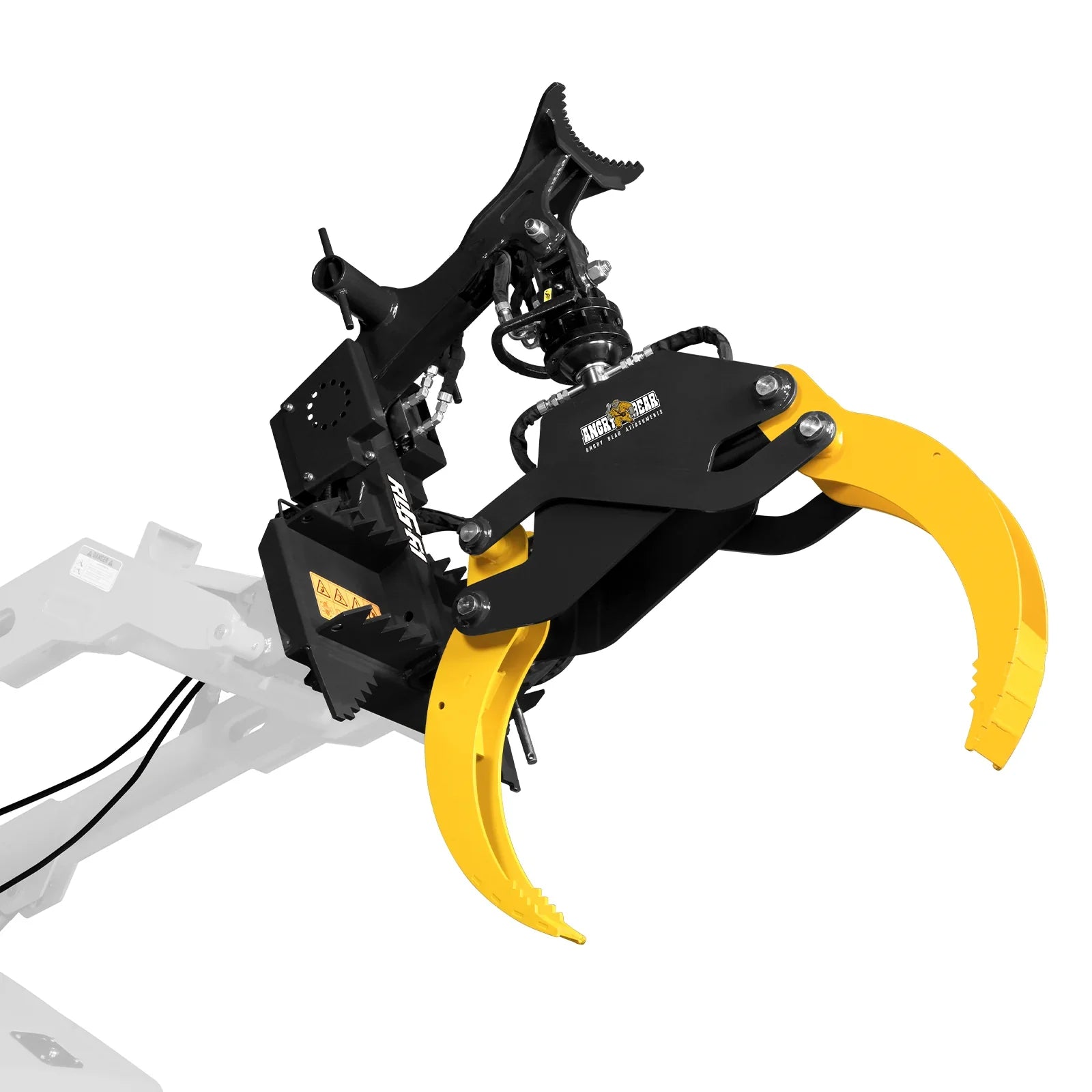

  • 360° Grapple Rotation: The hydraulically controlled grab can rotate 360°, allowing you to grab logs at any position.

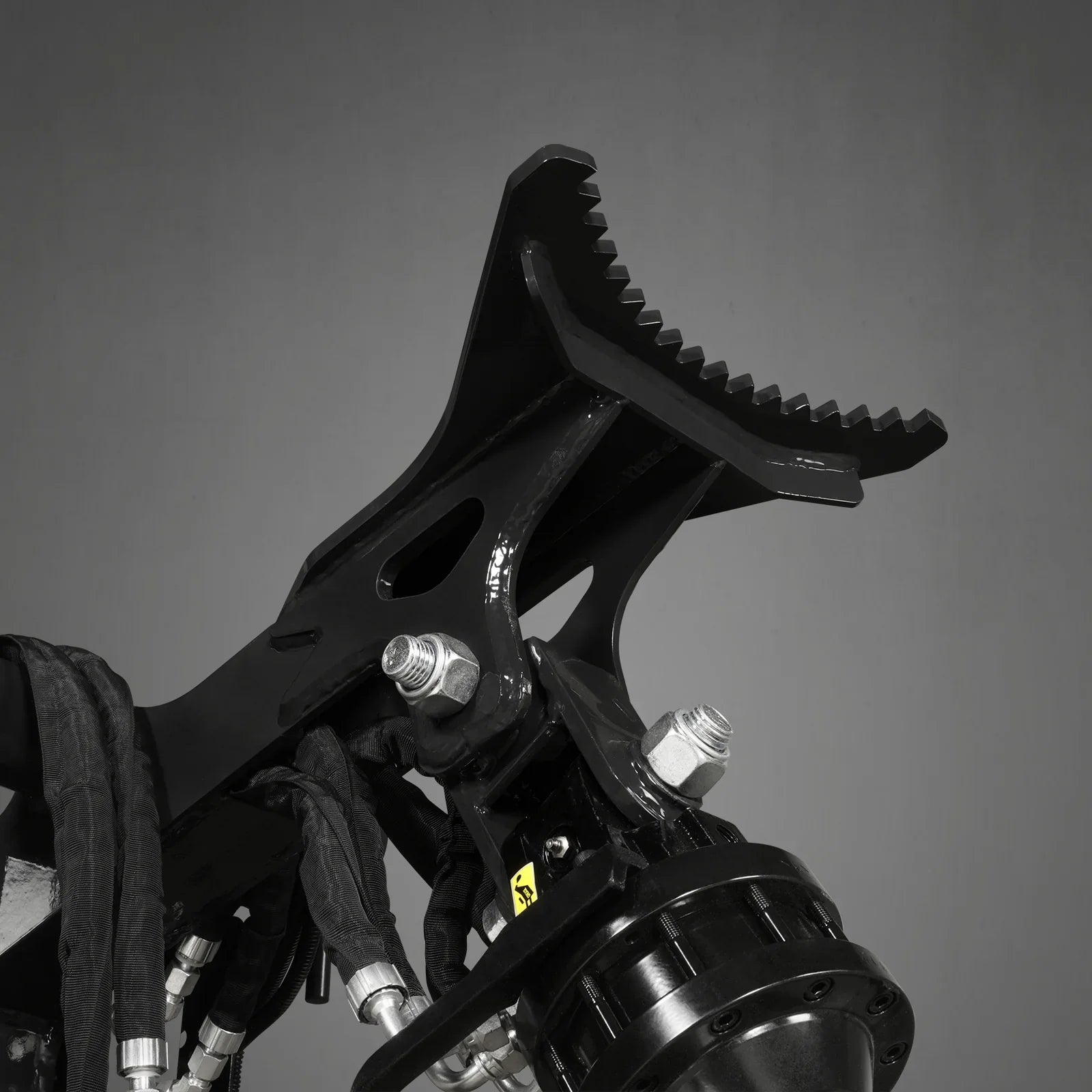

  • Integrated Whale Tail Tree Pusher: Leverage and secure your load with the integrated whale tail tree pusher when lifting logs in-line.

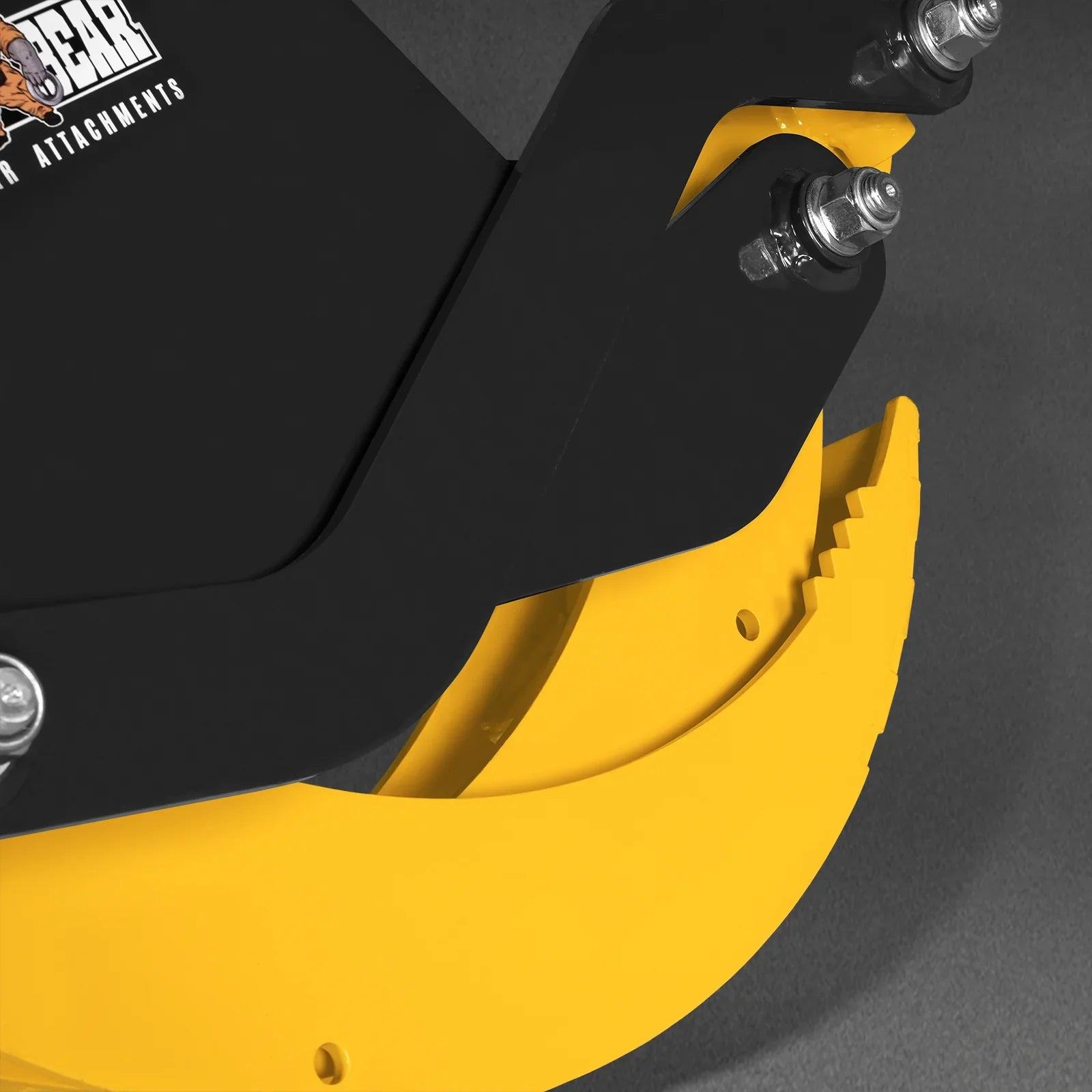

  • High-strength Q690 Steel Arm: The high-strength steel body and Q690 grapple arm provide durability and resilience for tough tasks. It can lift up to 1500 pounds
  • Hydraulic Flow and Internal Hose Routing: Its hydraulic flow of 8-12 GPM and 2900 PSI ensures consistent performance across a wide range of tasks and jobs. Features include 360° swivel, internal hose routing and an integrated whaletail tree pusher.

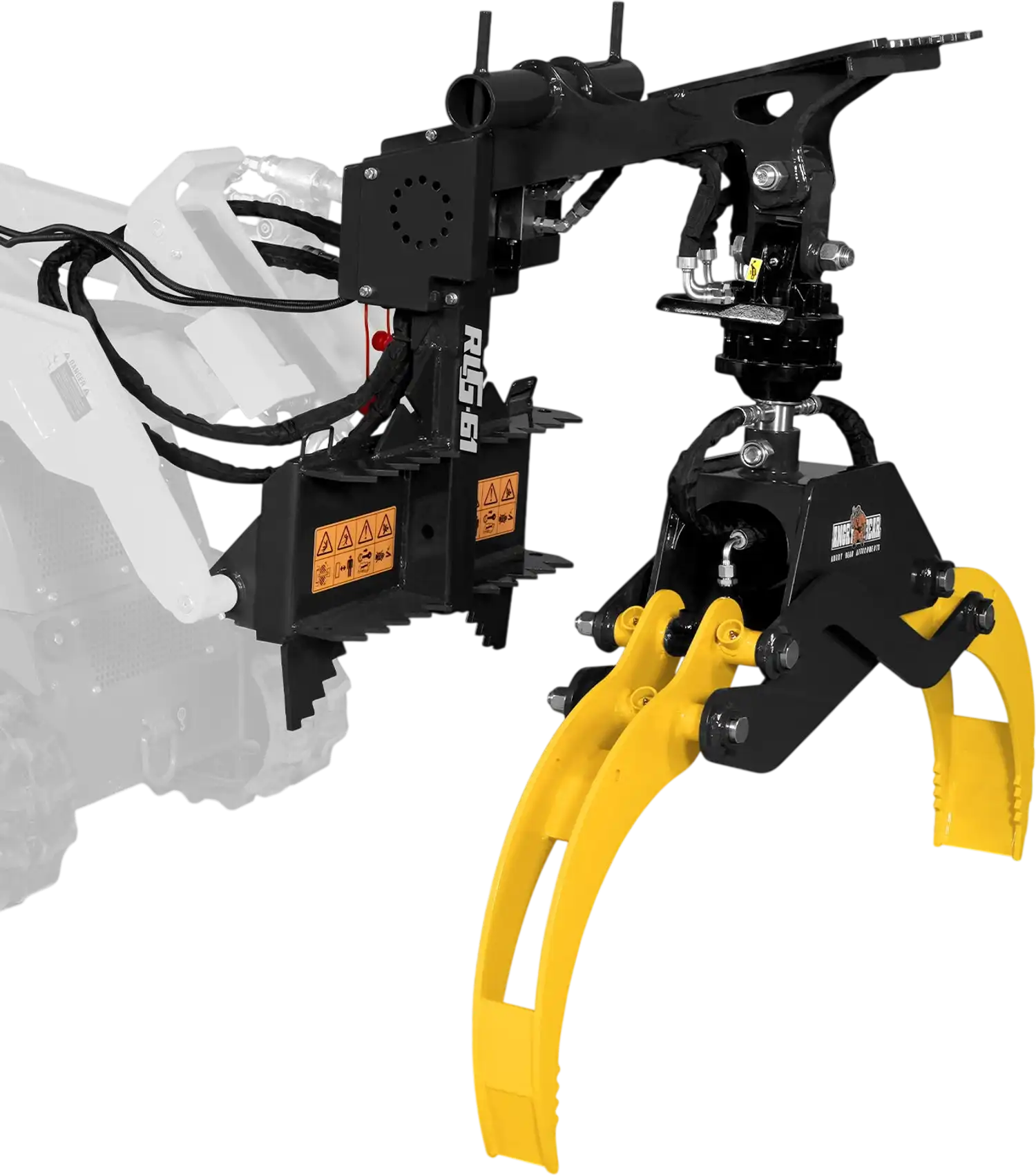

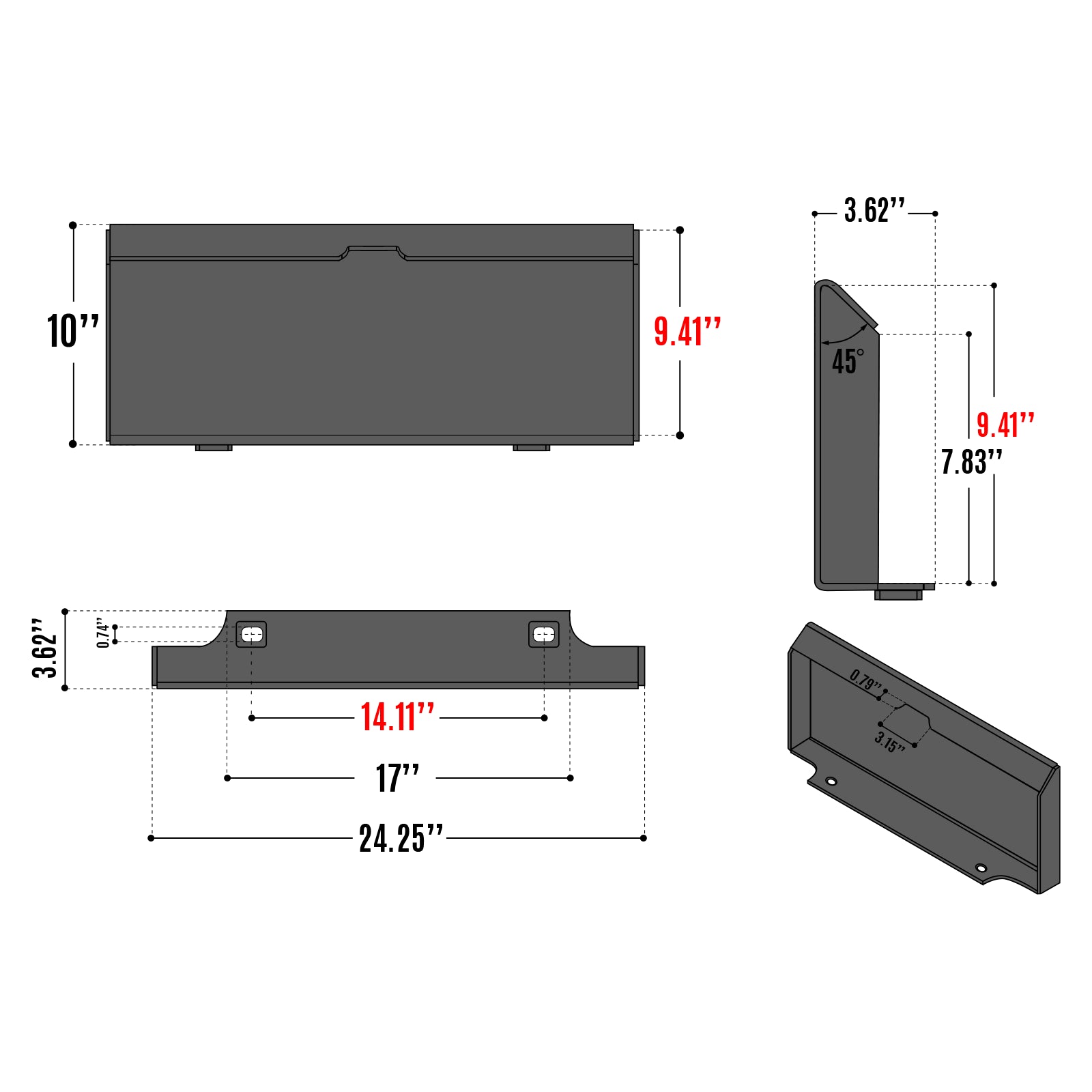

  • Quick Tach System: Attaches with a Universal Mini skid Steer Quick Tach system and is compatible with many ofthe most popular mini skid steers, including TorcDingo, Ditch Witch, Multi One, Ram Rod, Vermeer, finn Eagle, Boxer,and Thomas (NOTE: does NOT fit Bobcat,Kanga kid, or Prodigy.)

Lift Capacity: 1500 lbs

Grapple Opening: 59 in

Hydraulic Cylinder: 2 in

Rotator Power Capacity: 1.5 tons

Rotational Ability: 360° One Direction Rotation

Flow Range Low: 8 gal/min

Flow Range High: 12 gal/min

Hydraulic Pressure: 2900 psi

Maximum Static Axial Load: 30 kN

Package Method: Iron Fram with film

Finish: Durable Powder Coated finish

Packing Size: 43x35x35 in

Weight (N.W./G.W.): 266/456 lbs

This item comes with a 1 year factory warranty.
PDF RLG61 Product manual 1.0
