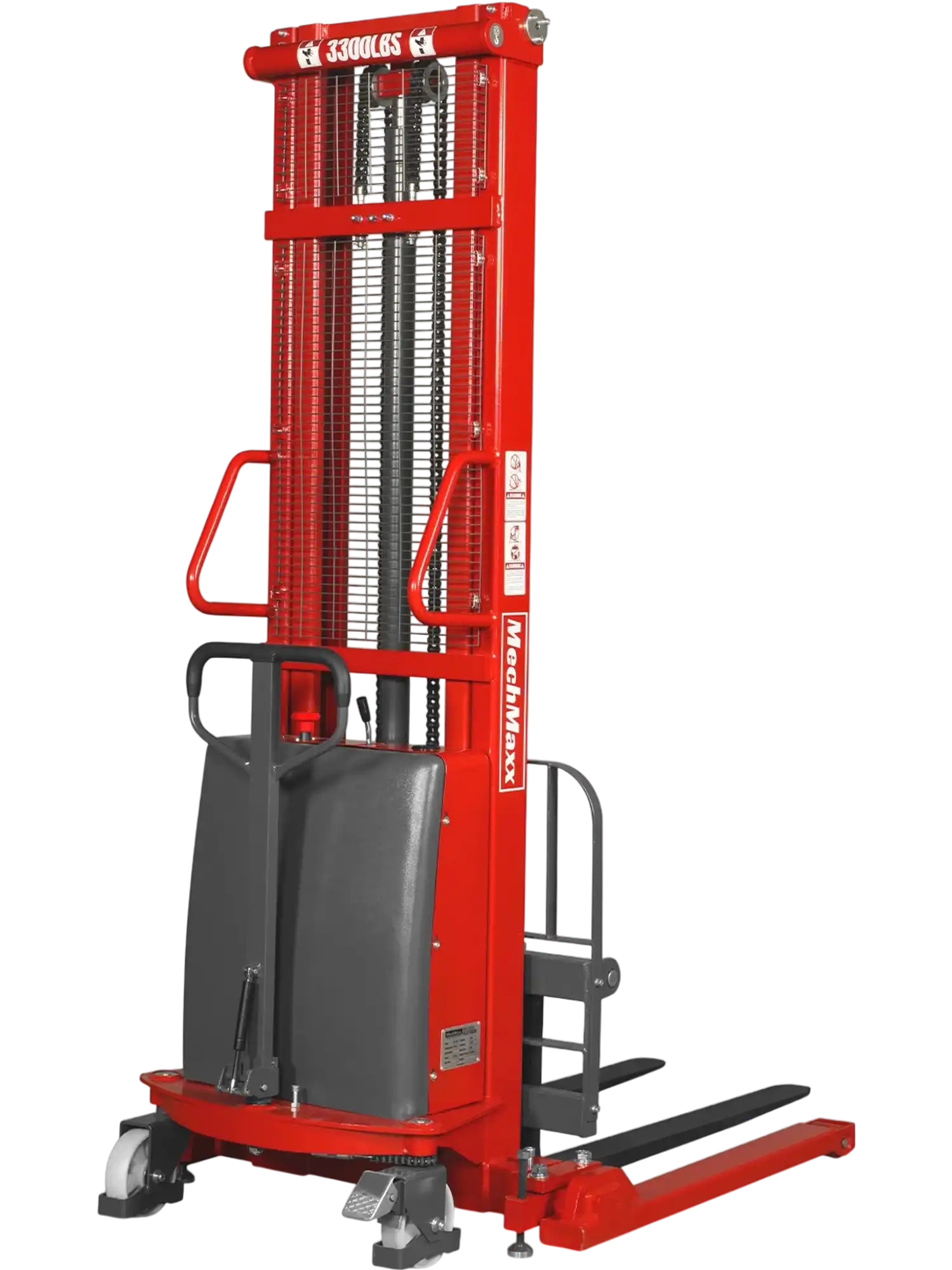

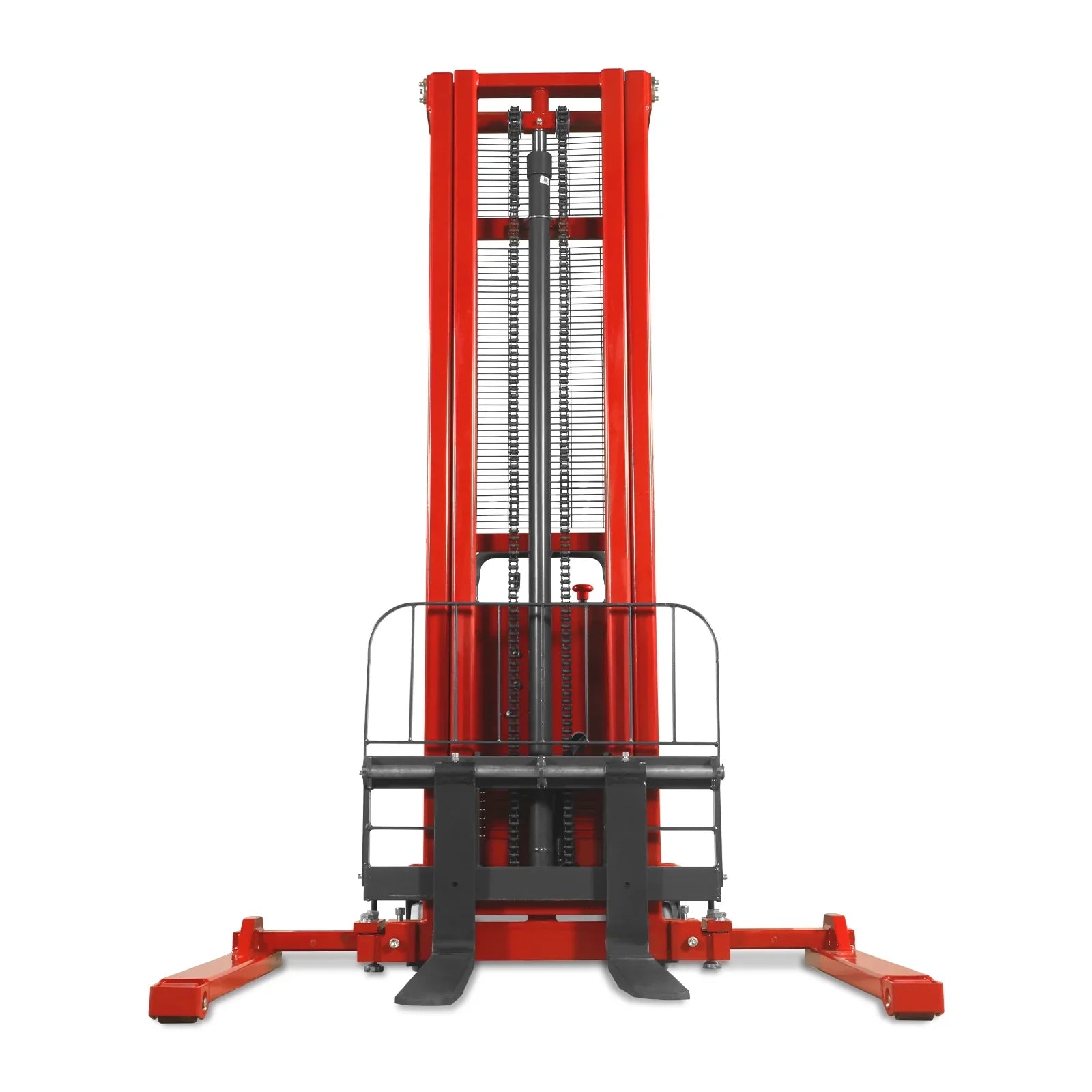

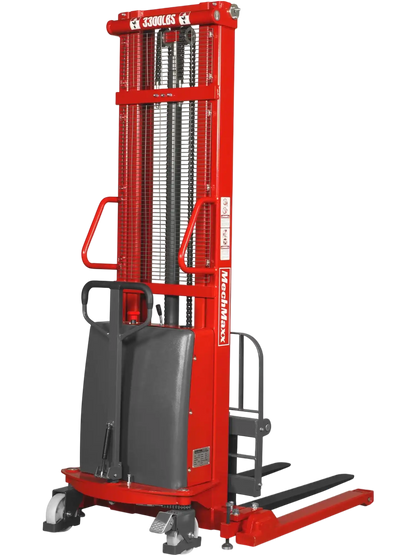

MechMaxx S33-138S Stacker 3300 lbs Semi-Electric Straddle 138" Lift Adjustable Legs Forks New

MechMaxx

$3,499.00
$3,499.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

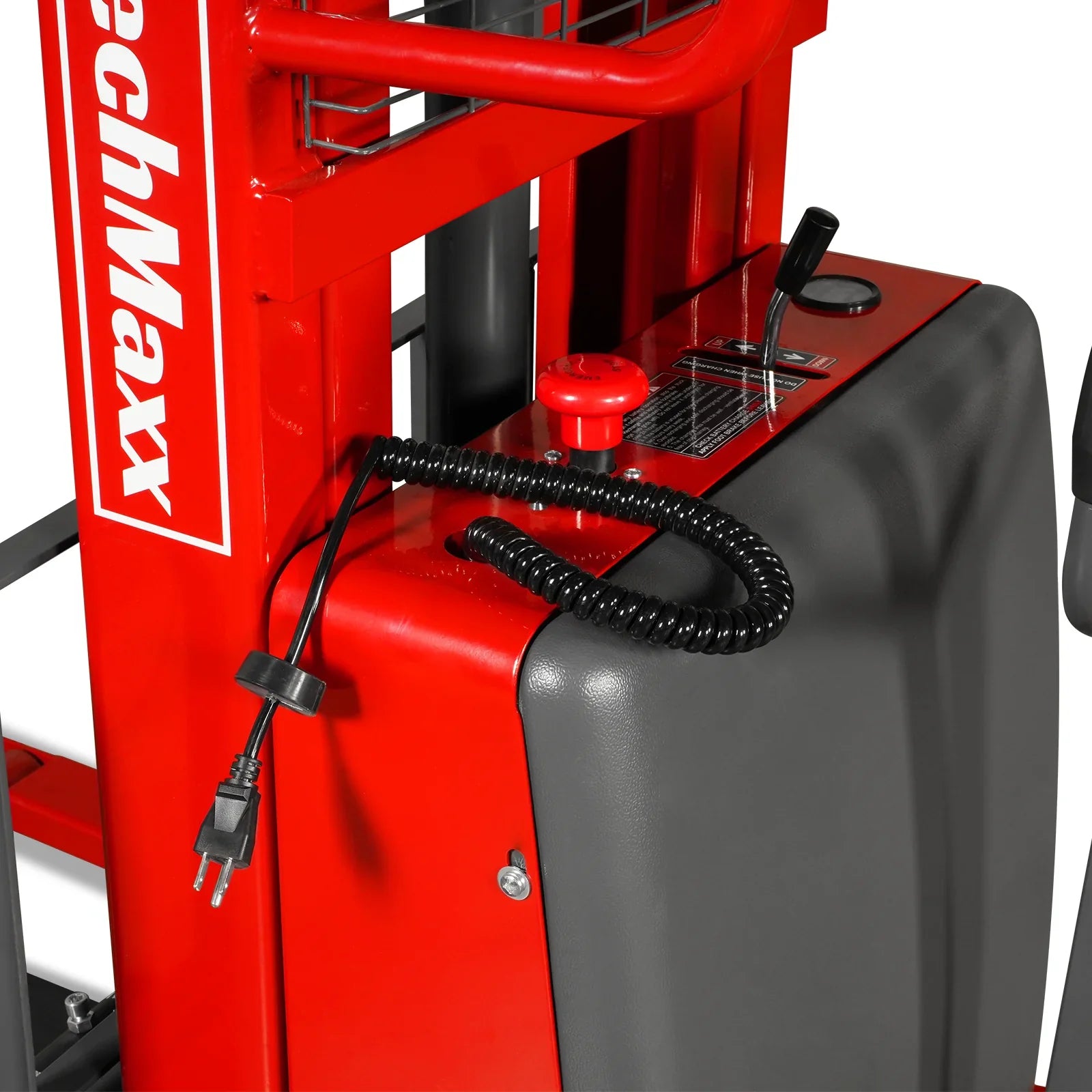

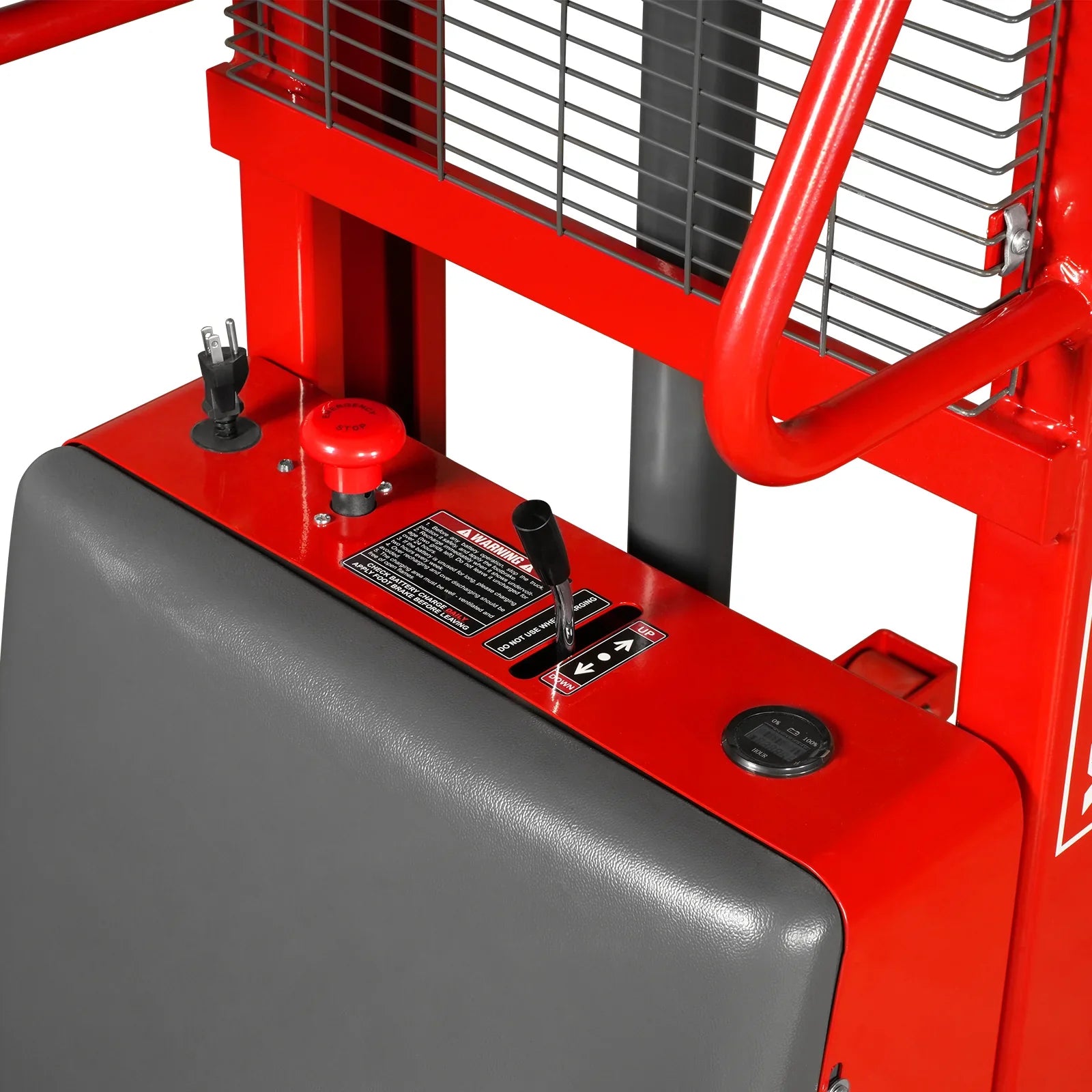

The MechMaxx S33 Series semi-electric straddle stacker features a rugged steel frame with electric lifting via dash-mounted controls. Adjustable forks and straddle legs accommodate a variety of pallet widths. Powered by a 12V/120Ah maintenance-free AGM battery with 12V/15A built-in charger, gauge, and on/off switch, it delivers long-lasting performance and effortless recharging. Ideal for loading docks, trucks, stockrooms, manufacturing floors, and warehouses, the S33 Series provides a reliable, efficient solution for light- to medium-duty lifting tasks.

  • 12V/120Ah maintenance-free AGM battery for extended runtime.
  • Built-in 12V/15A charger for on-board convenience.
  • 3300 lbs load capacity with 138" maximum lift height.

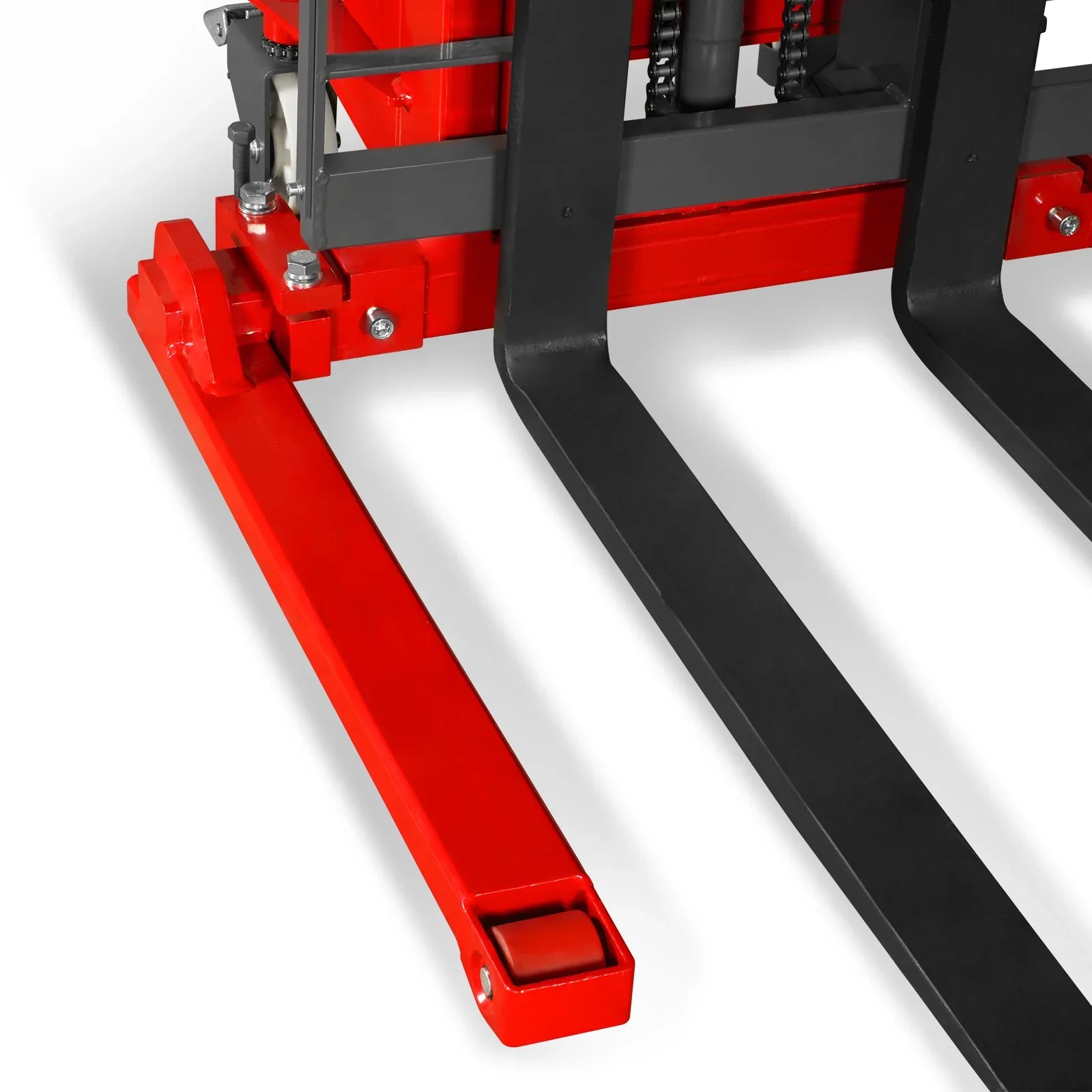

  • Adjustable forks (8.3" – 33.5") allow flexible handling of various load sizes.

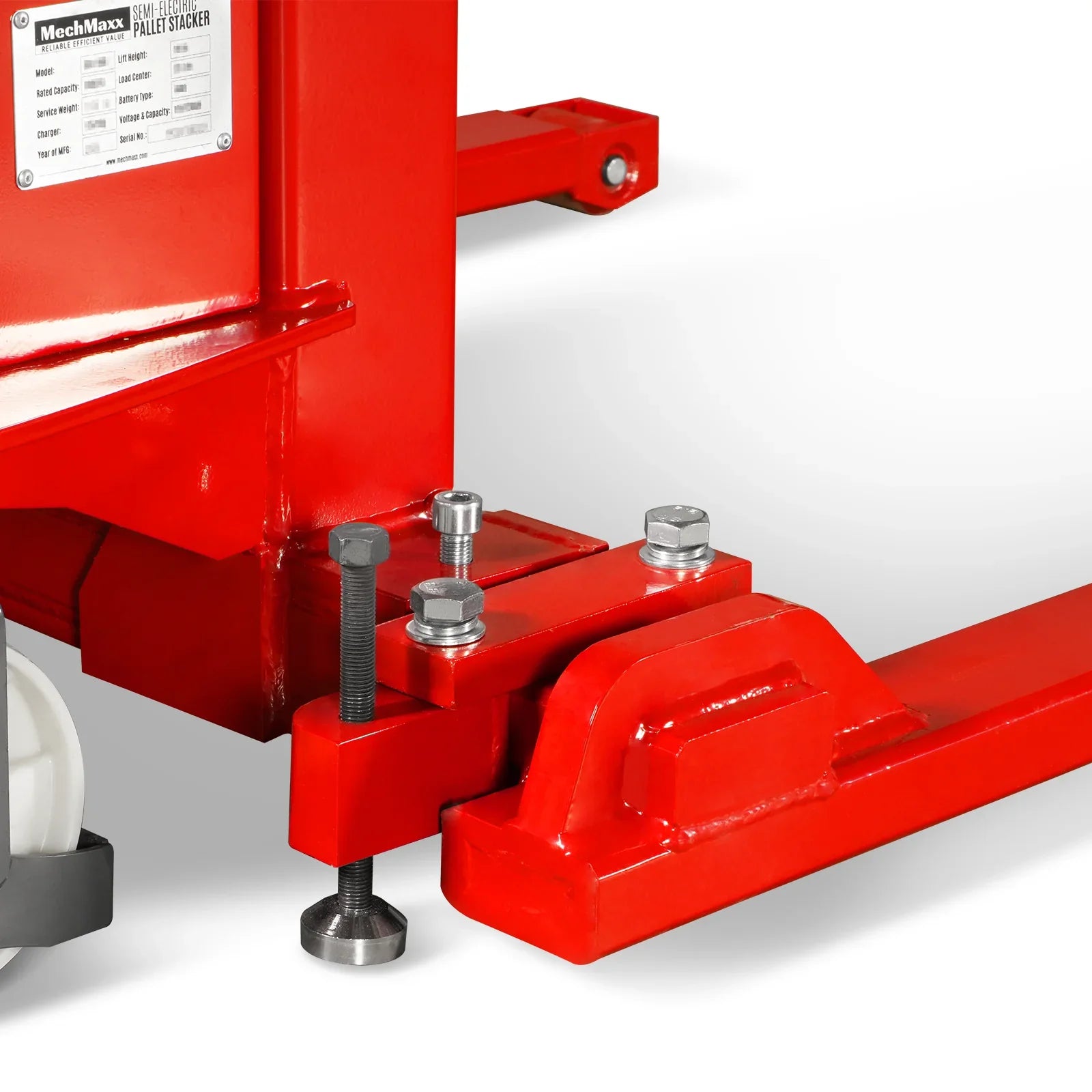

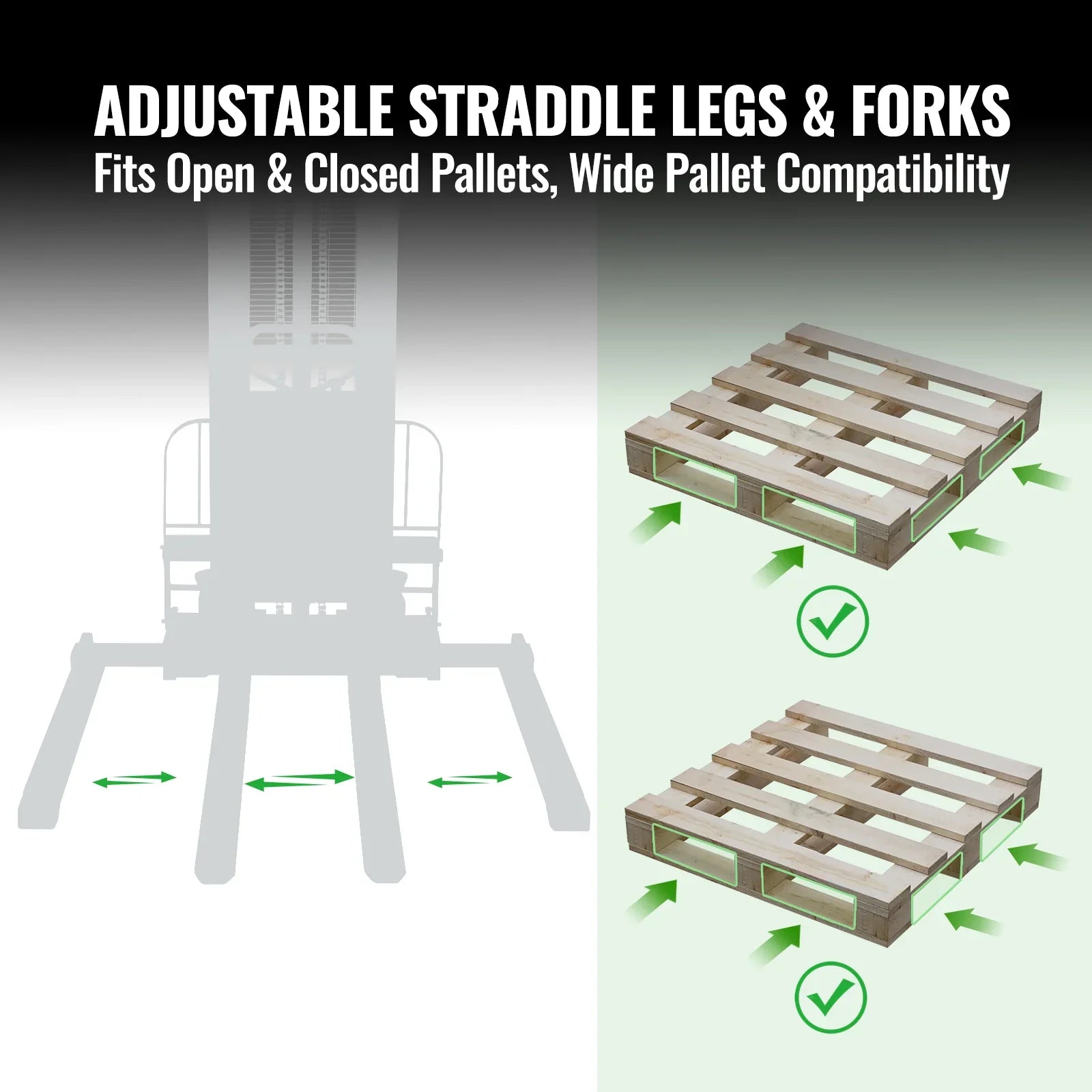

  • Adjustable straddle legs (35.4" – 51.2" I.D.) for different pallet widths.
  • 53.2" turning radius ideal for narrow aisles.
  • Manually propelled, with a powerful 1.6 kW lift motor for efficient operation.
  • Ergonomic handle designed for operating with either hand. Gas spring support absorbs shock.

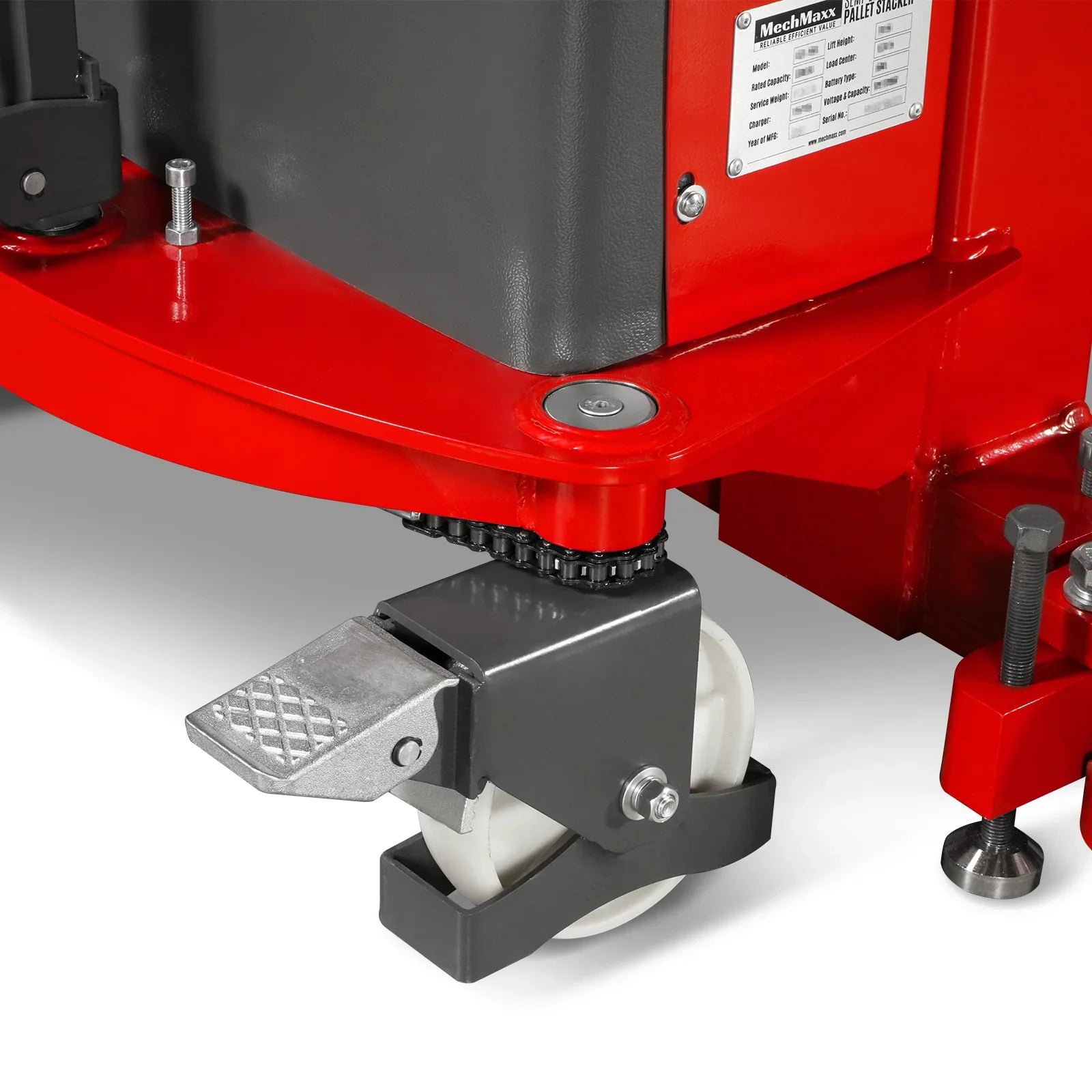

  • Foot-pedal parking brake for instant stops.
  • Load backrest prevents goods from falling backward for improved safety.

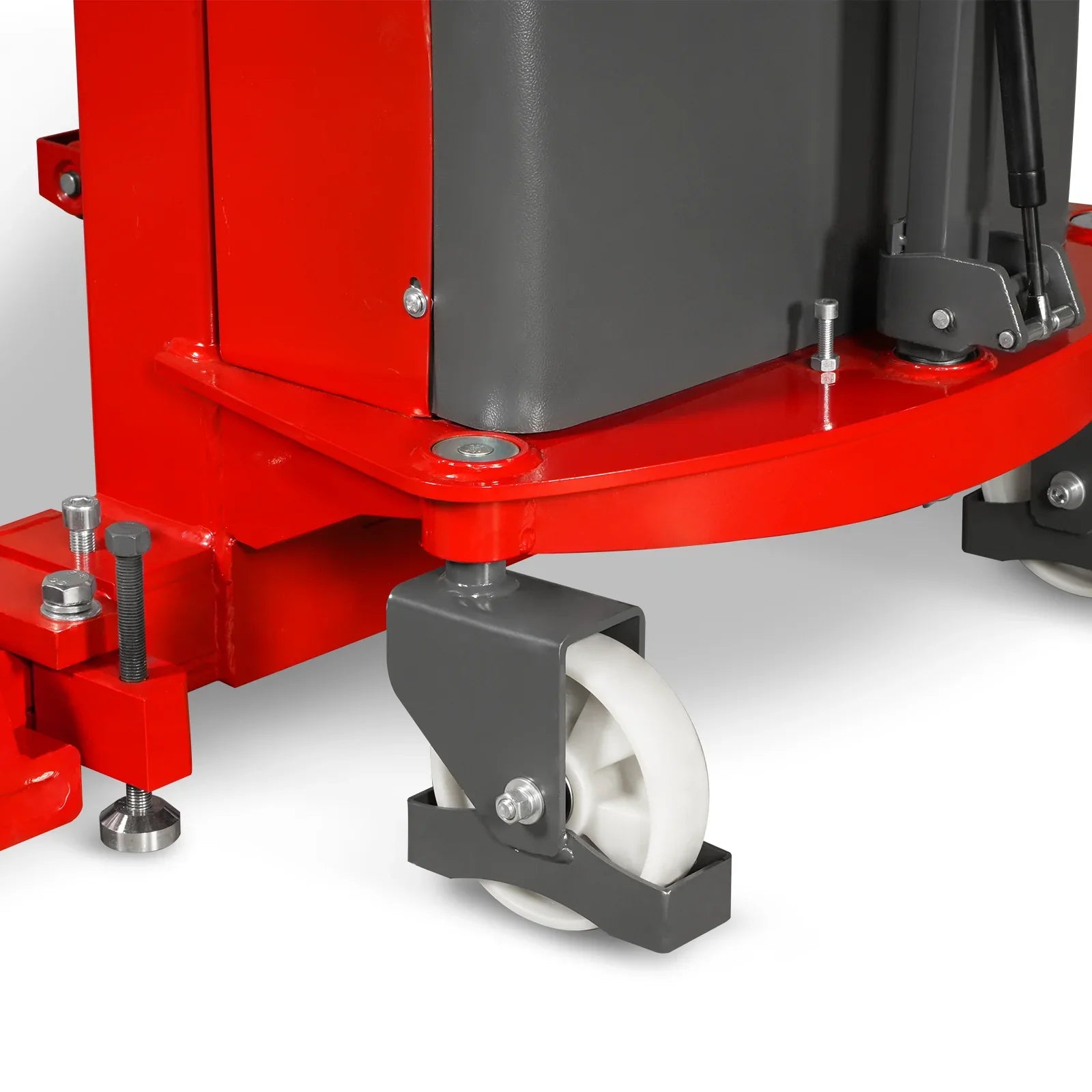

  • Equipped with polyurethane drive and load wheels, leave no scratches on the floor.
  • Explosion-proof valve prevents accidental load descent for enhanced safety.

    IMPORTANT – Battery Charging & Maintenance
  • Always read the product manual and review all safety labels before operation.
  • Fully charge the battery promptly after each use.
  • Never overcharge or deeply discharge the battery.
  • Charge the battery at least once a month, even when the truck is not in use.
  • Store in a cool, dry place away from direct heat sources.
    Proper battery maintenance extends battery life and ensures safe operation.

    Note!
  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

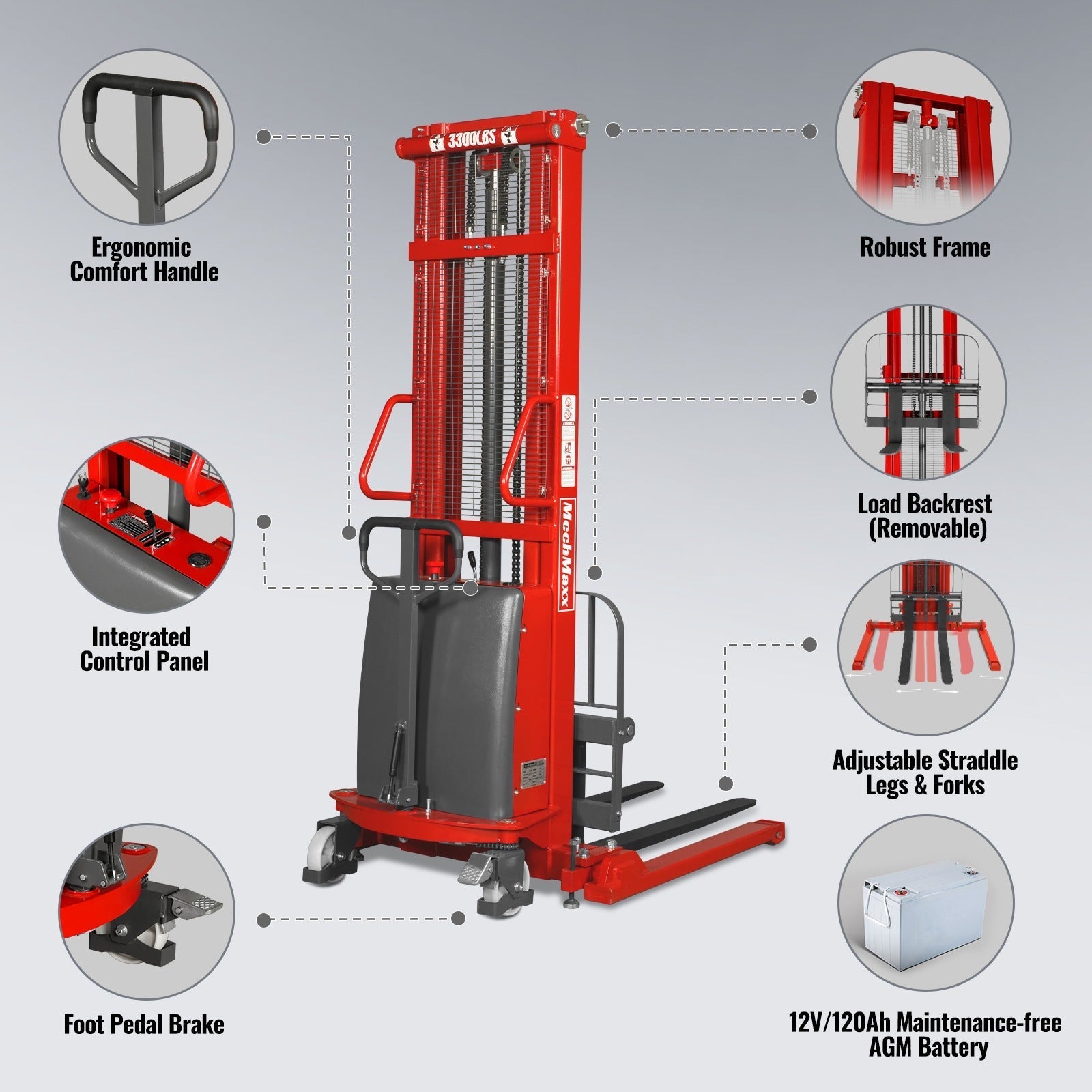

  • Maintenance-free AGM Battery: Equipped with a built-in 12V/120Ah sealed AGM battery that delivers consistent, maintenance-free power for frequent and demanding lifting operations.

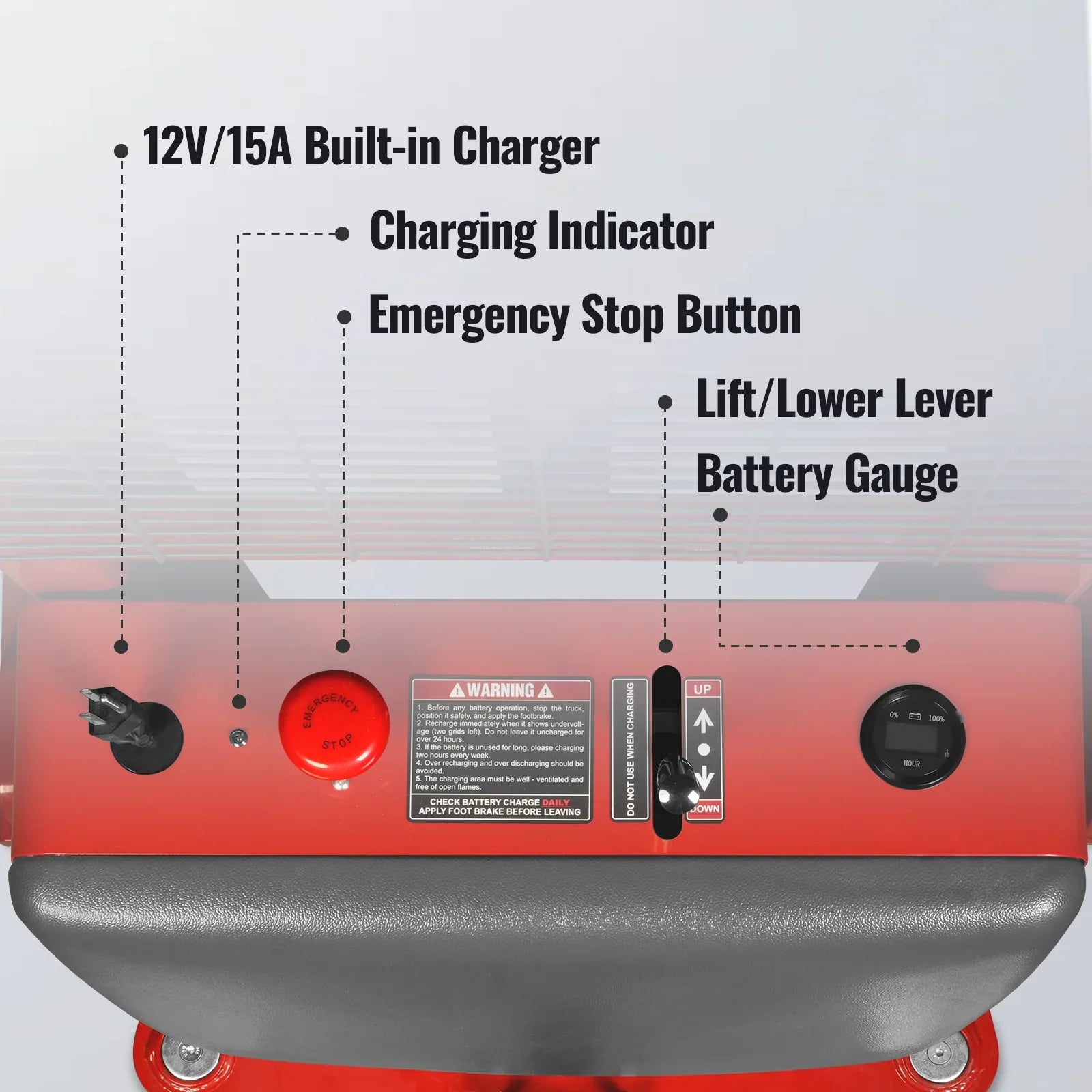

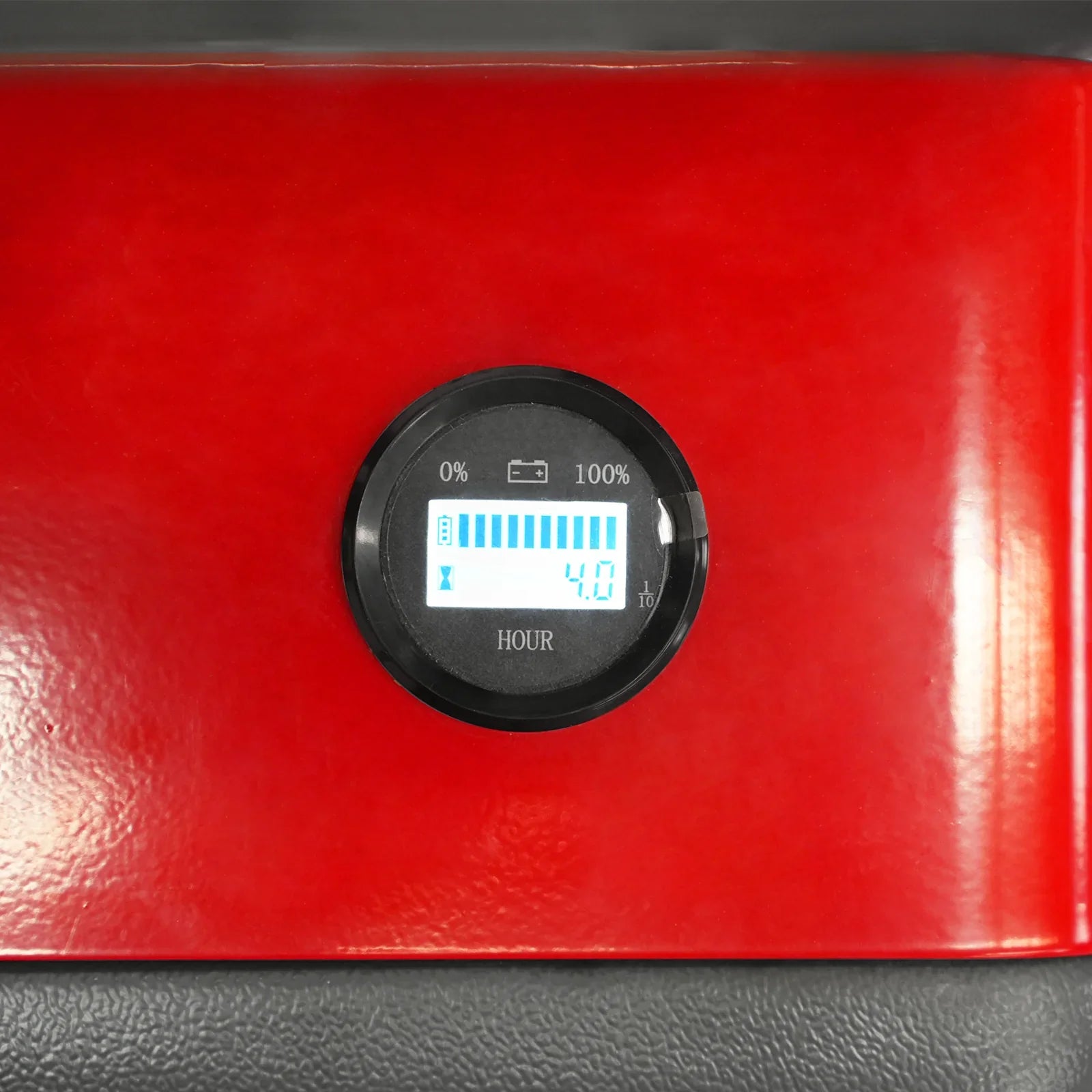

  • Built-in Charger & Battery Guage: Built-in 12V/15A charger enables stable and convenient on-board charging. Equipped with a battery gauge and hour meter to clearly display remaining power and usage time for efficient operation planning.

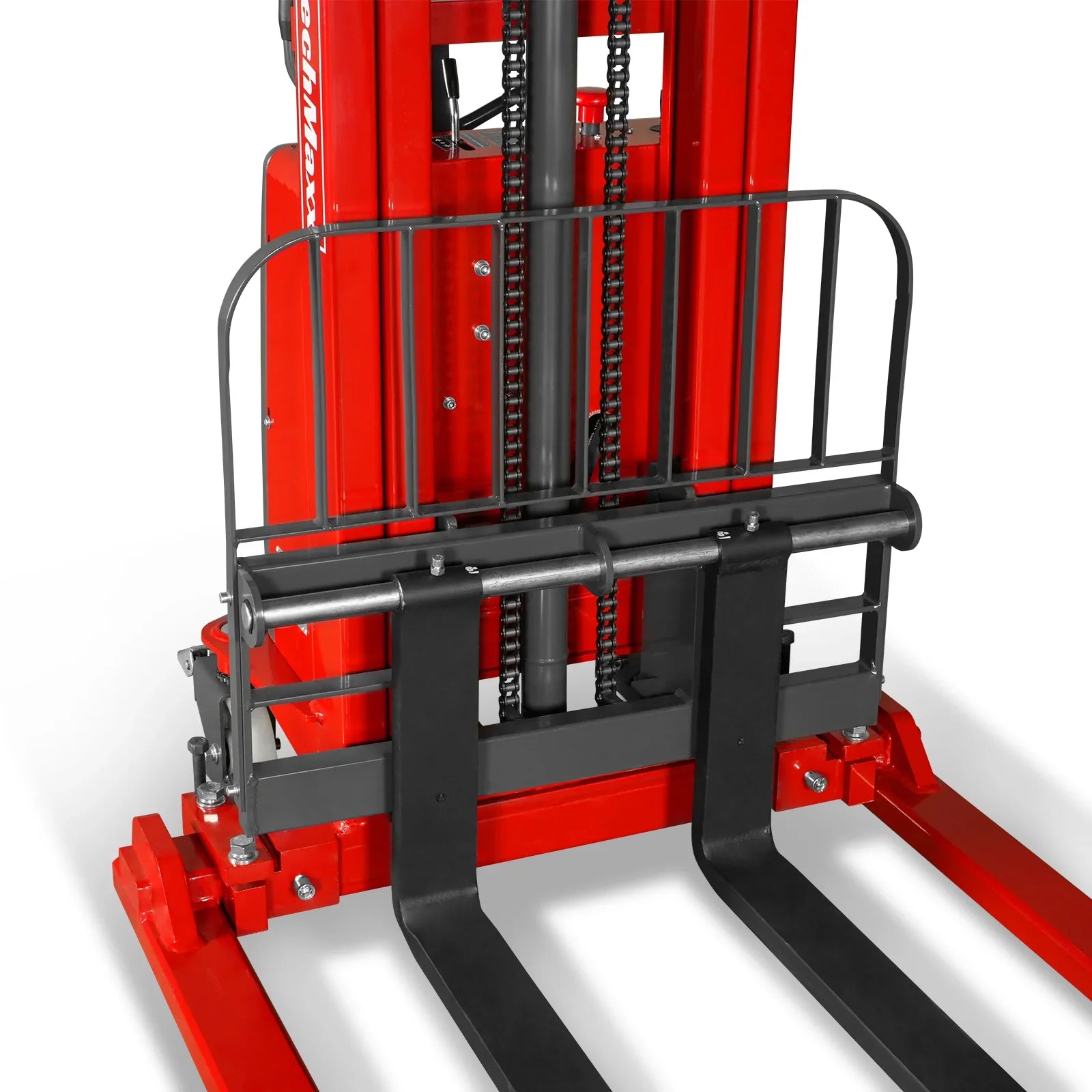

  • Removable Load Backrest: Load backrest prevents goods from falling backward for improved safety. Removable backrest offers added flexibility—enhancing visibility and maneuverability when not needed.
  • Ergonomic Handle & Gas Spring Support: Ergonomic handle allows comfortable one-hand operation from either side. Integrated gas spring support absorbs shocks smoothly, reducing operator fatigue and enhancing control during lifting and maneuvering tasks.
  • Robust Frame Design: Double-frame design with reinforced stiffening bars enhances structural integrity. Constructed from premium steel, ensuring stable lifting performance, improved load balance, and extended service life under heavy-duty operation.

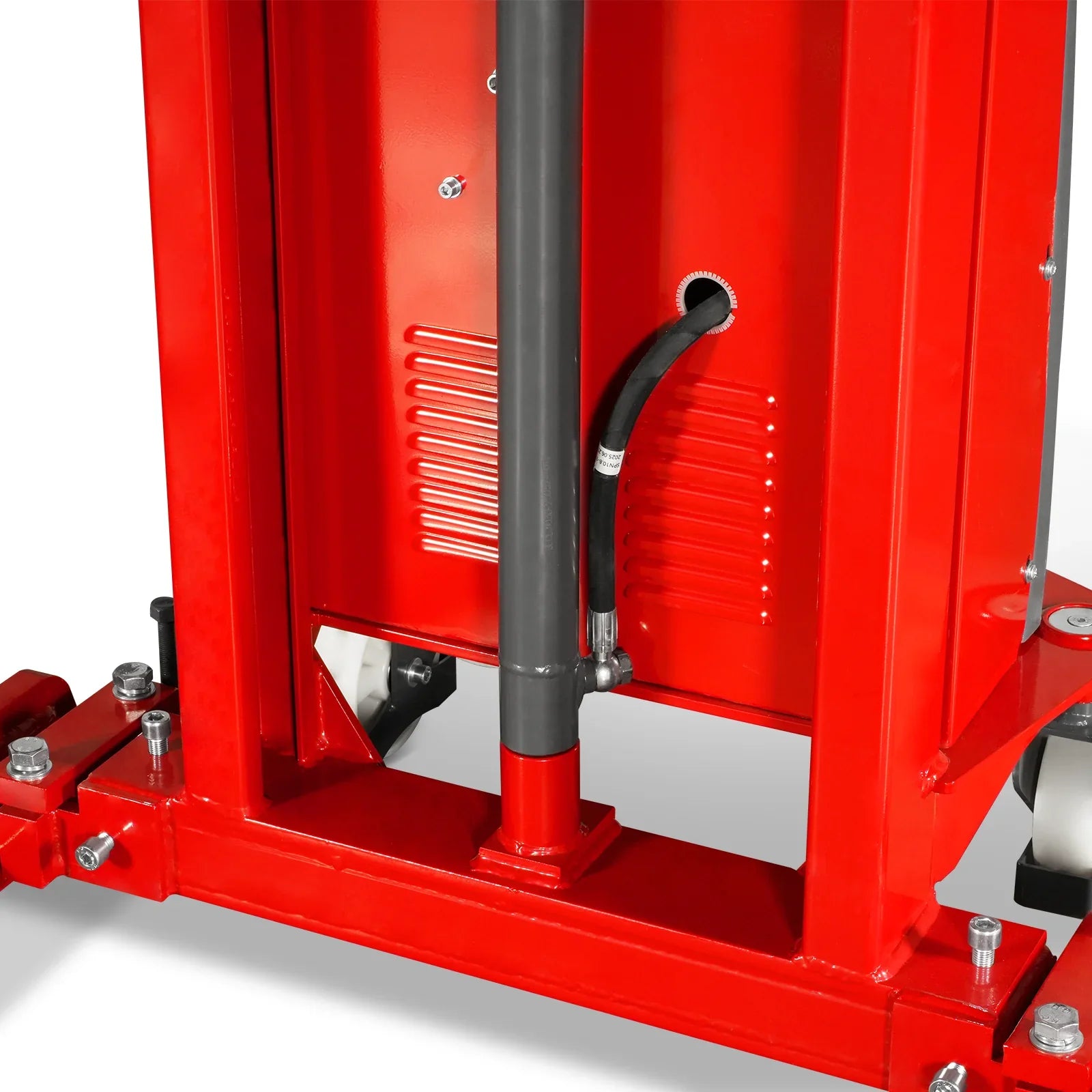

  • Explosion-proof Valve: Equipped with an explosion-proof valve to prevent sudden lowering of the forks in case of hydraulic failure, ensuring operator and load safety.

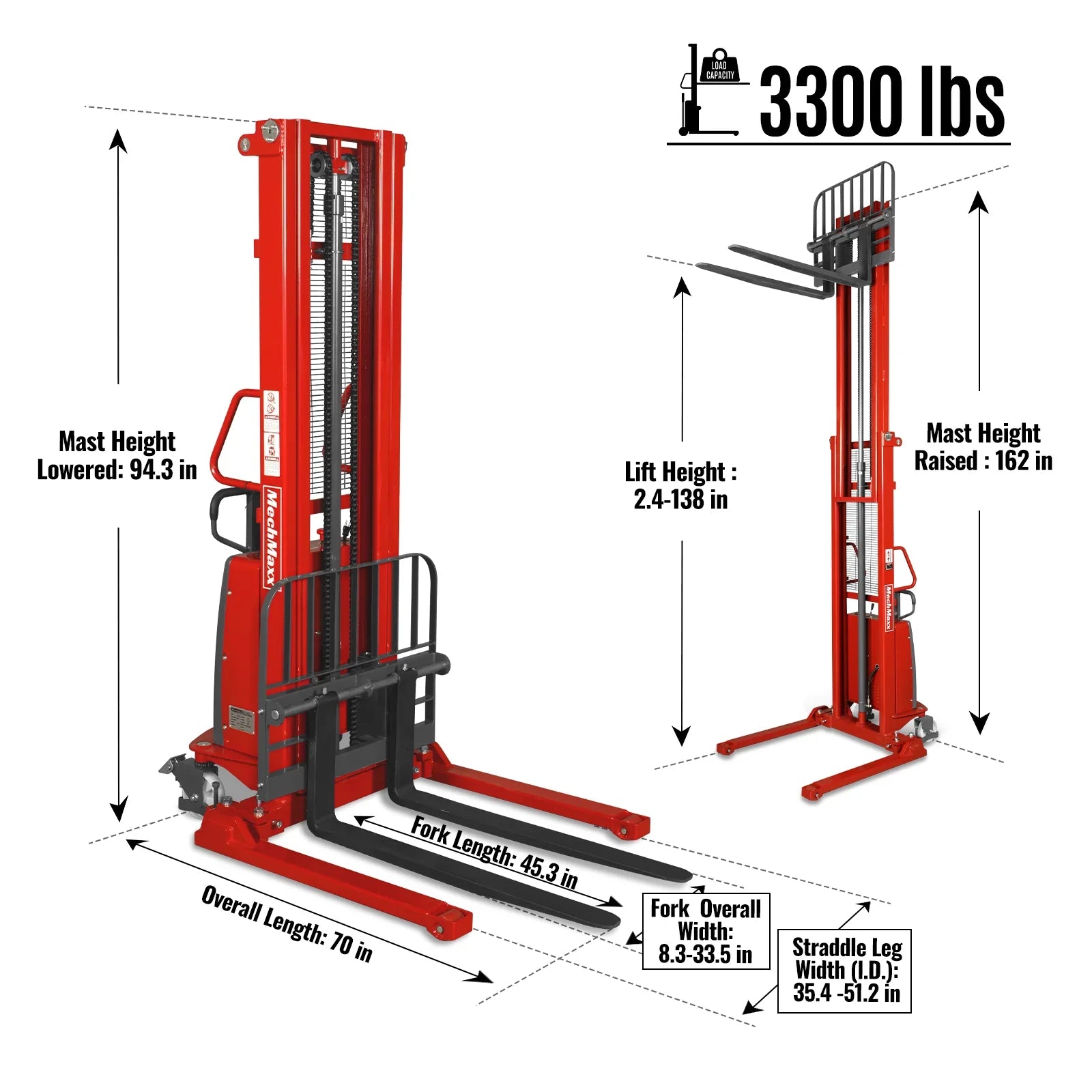

Load Capacity: 3300 lbs

Fork Overall Width: 8.3 - 33.5 in

Operator Position: Walkie

Fork Size (TxWxL): 1.4 x 4 x 45.3 in

Tire Type: Polyurethane

Turing Radius: 53.2 in

Overall Length: 70 in

Lifting Speed (laden/unladen): 15/28.2 fpm

Max Lift Height: 138 in

Lowering Speed (laden/unladen): 21.3/19.1 fpm

Min Lift Height: 2.4 in

Service Brake: Foot Pedal

Mast Height (raised): 162 in

Battery: 12V/120Ah Maintenance-free AGM Battery

Mast Height (lowered): 94.3 in

Charger: 12V/15A Built-in

Straddle Leg Width (I.D.): 35.4 - 51.2 in

Lift Motor: 1.6 kW

Straddle Leg Width (O.D.): 43.3 - 59 in

Packing Size (LxWxH): 39 x 37 x 97 in

Load Center: 23.6 in

Weight (N.W/G.W.): 1180/1334 lbs

This item comes with a 1 year factory warranty.
PDF S33 Series Semi-Electric Stacker Product Manual
