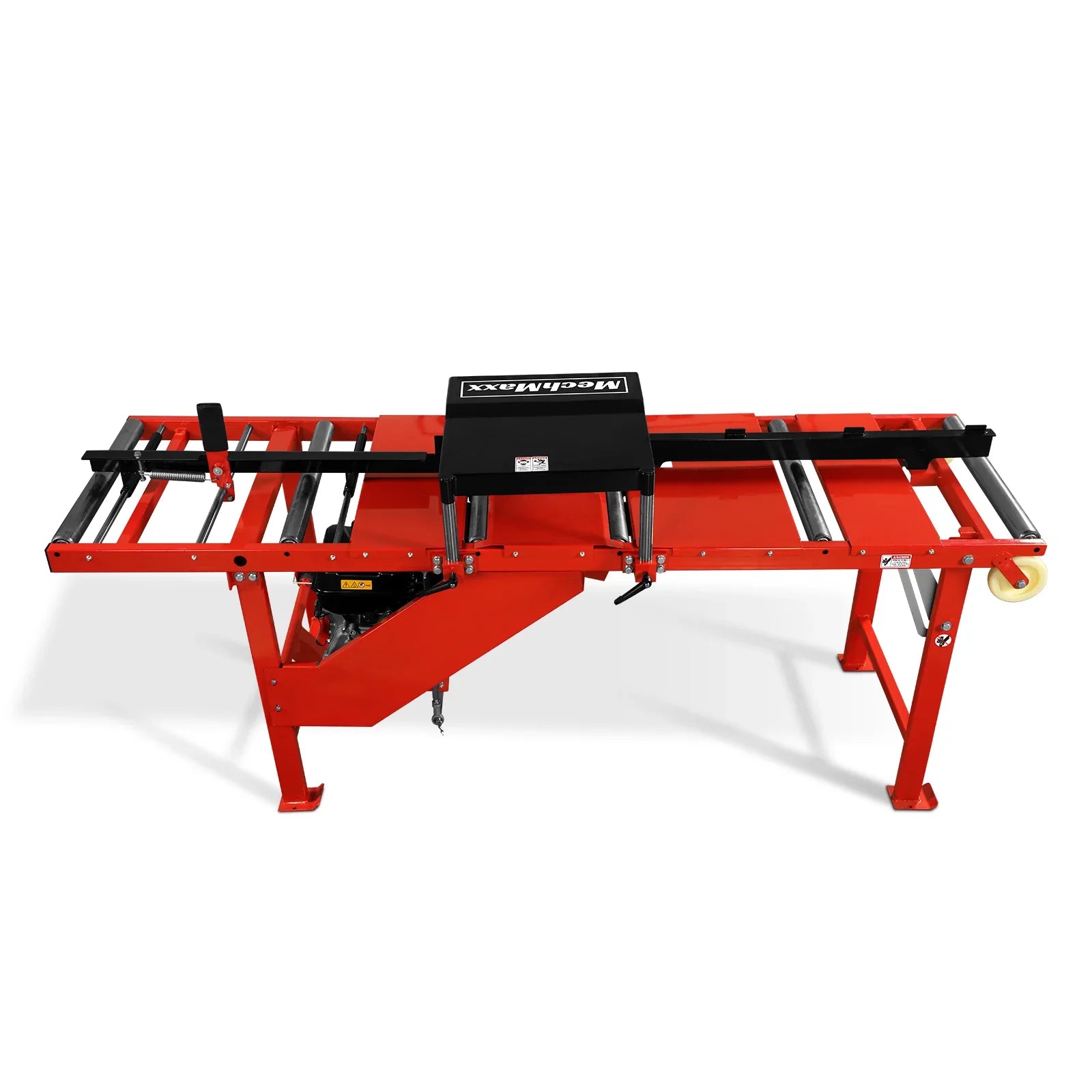

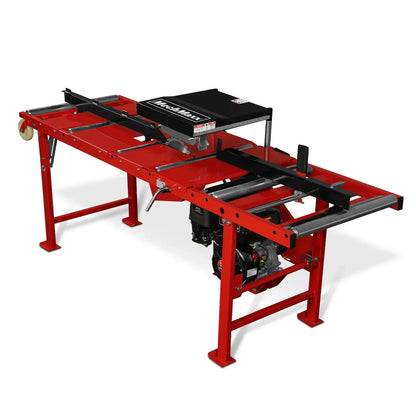

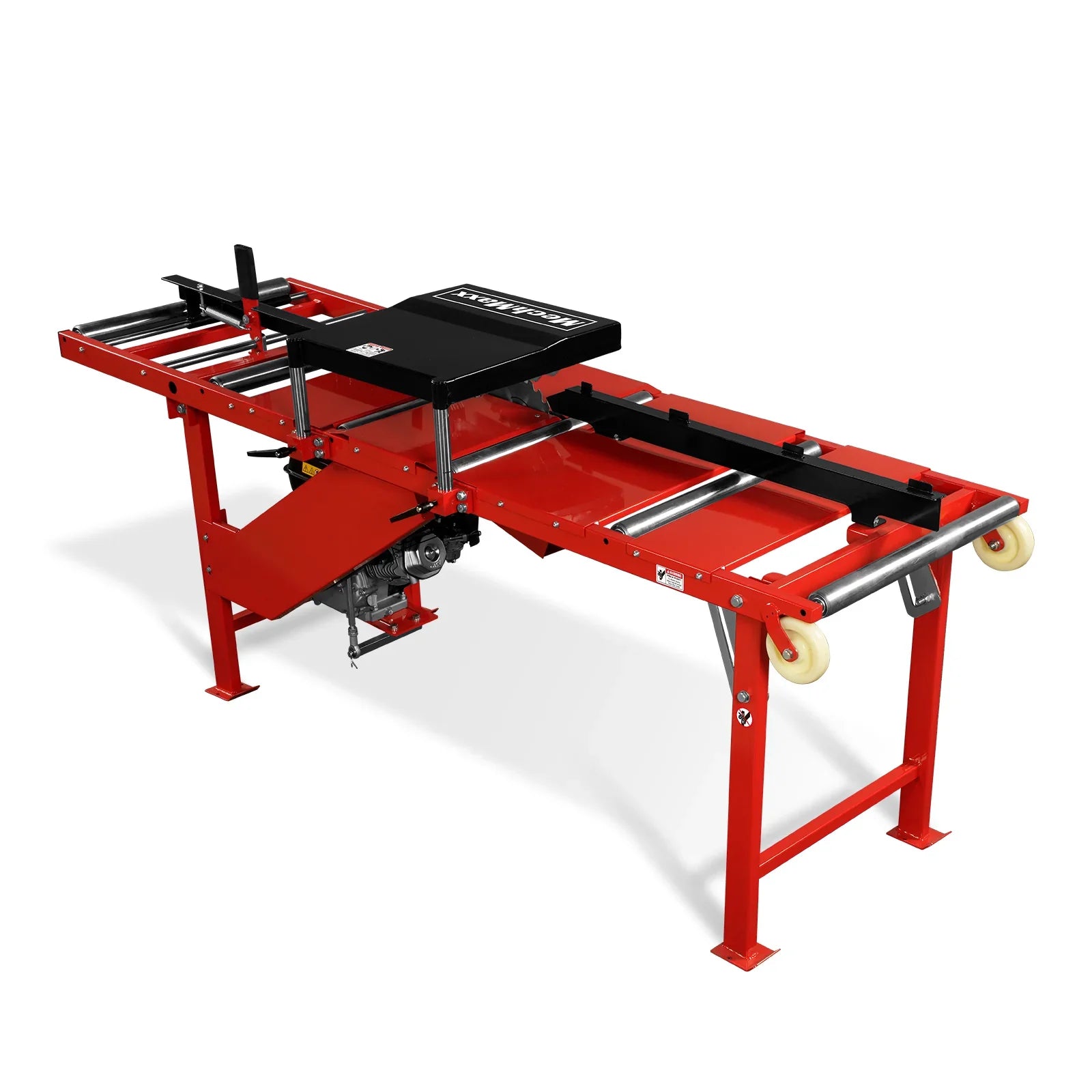

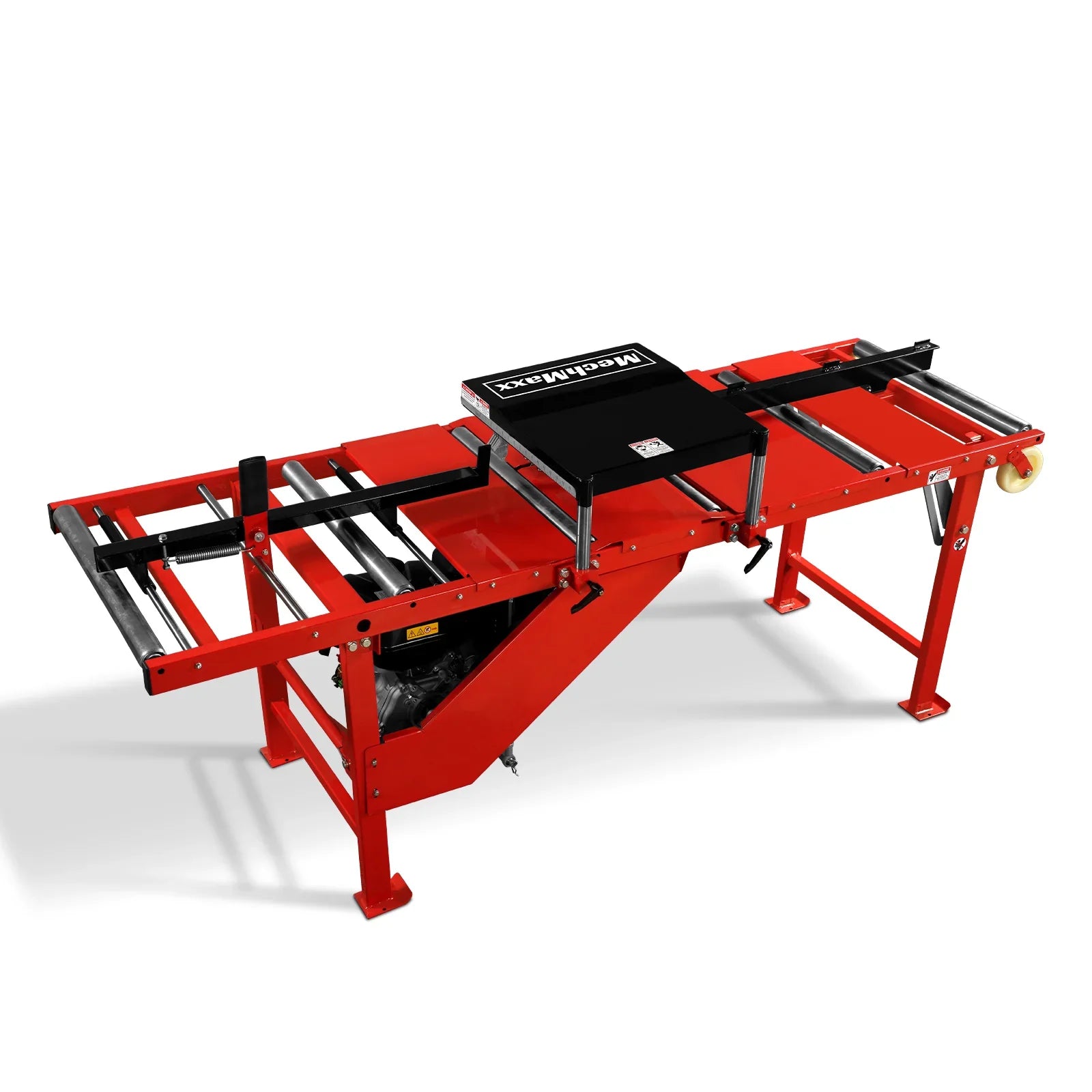

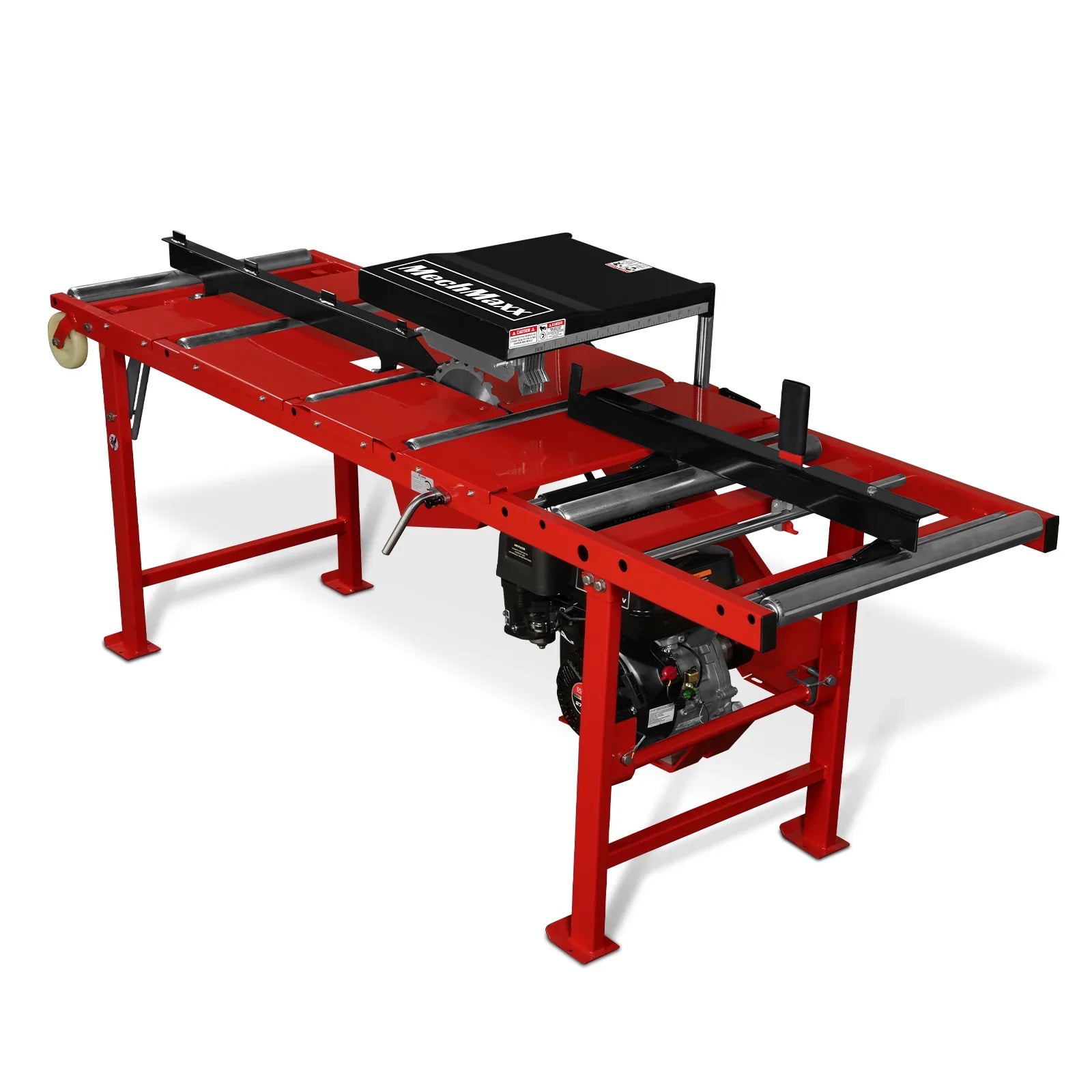

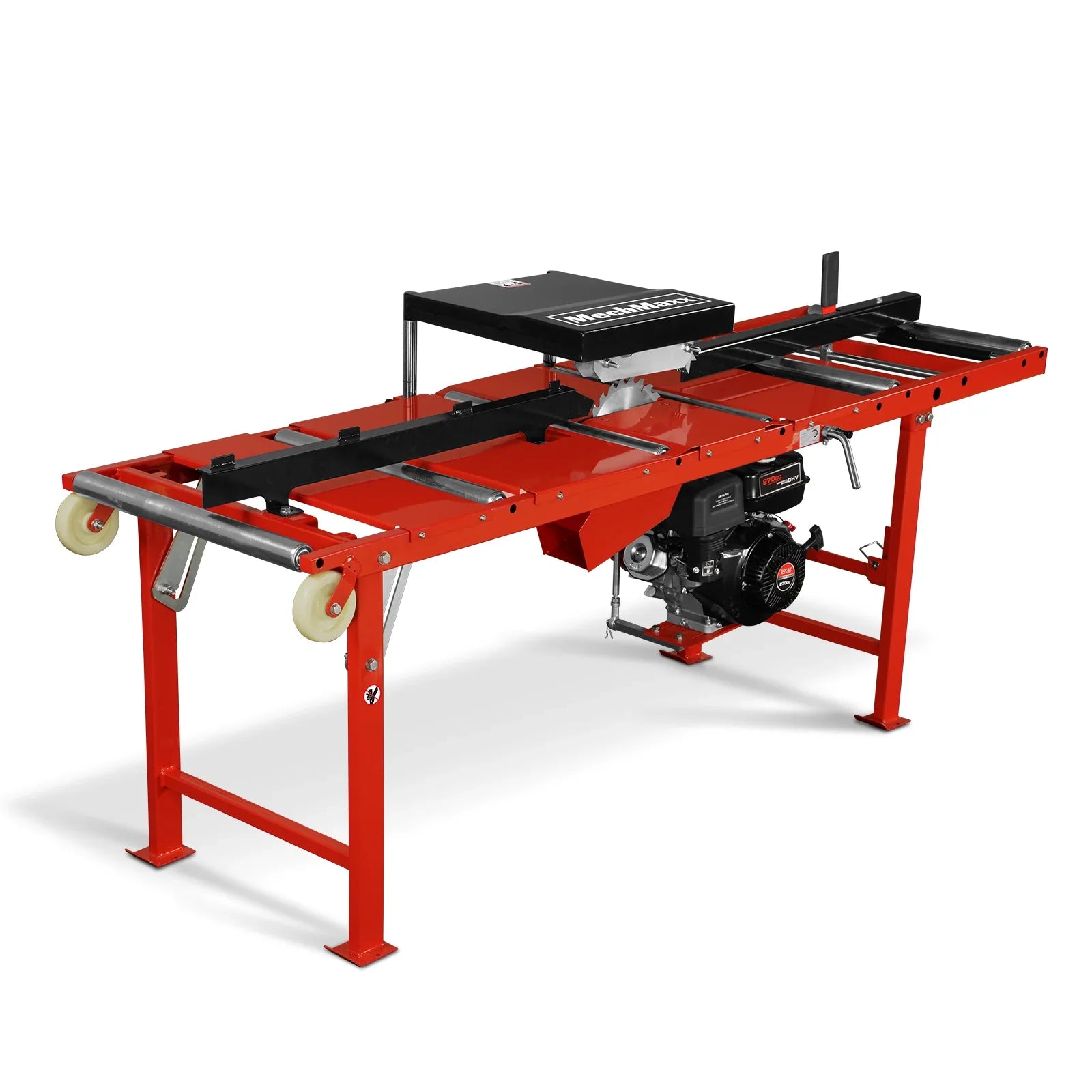

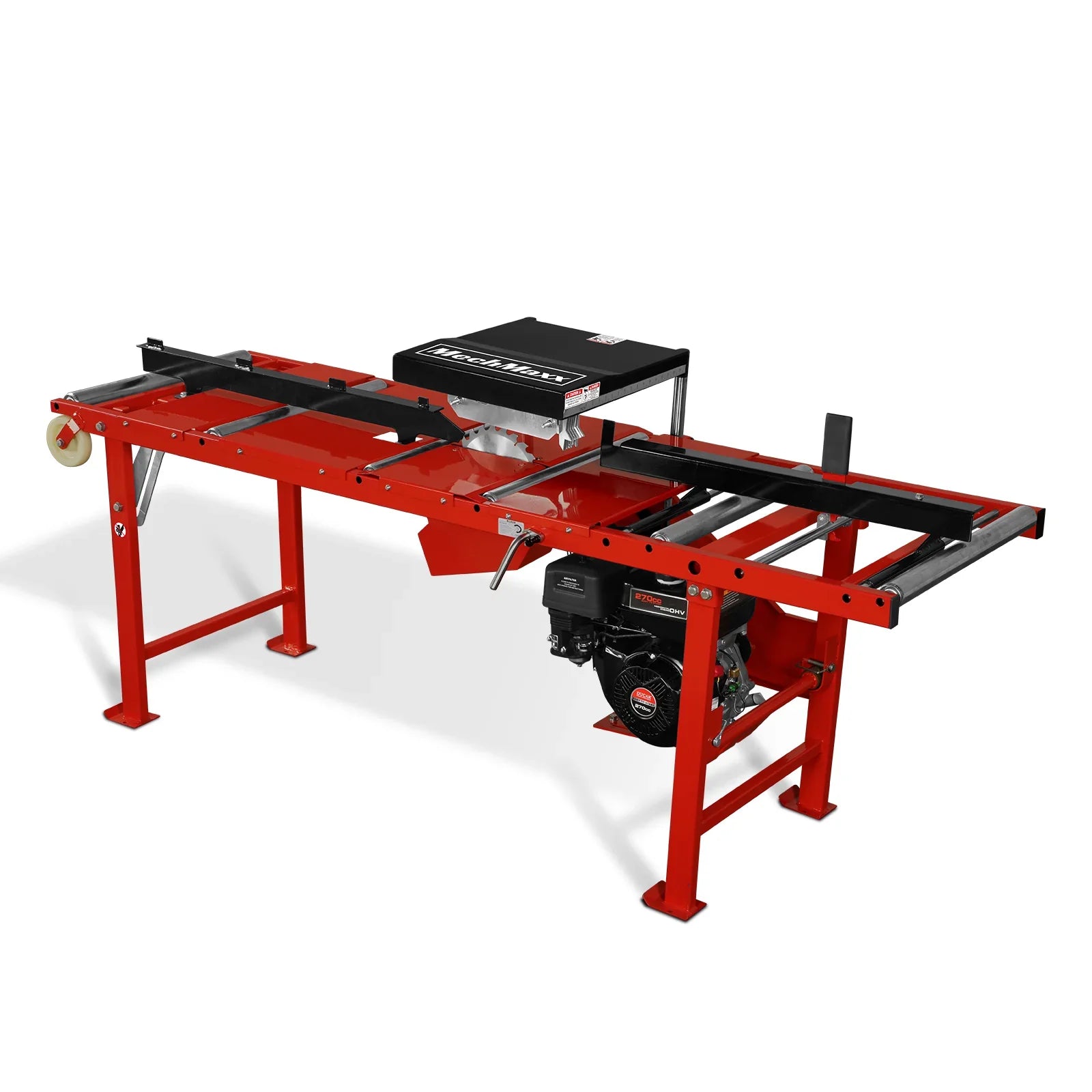

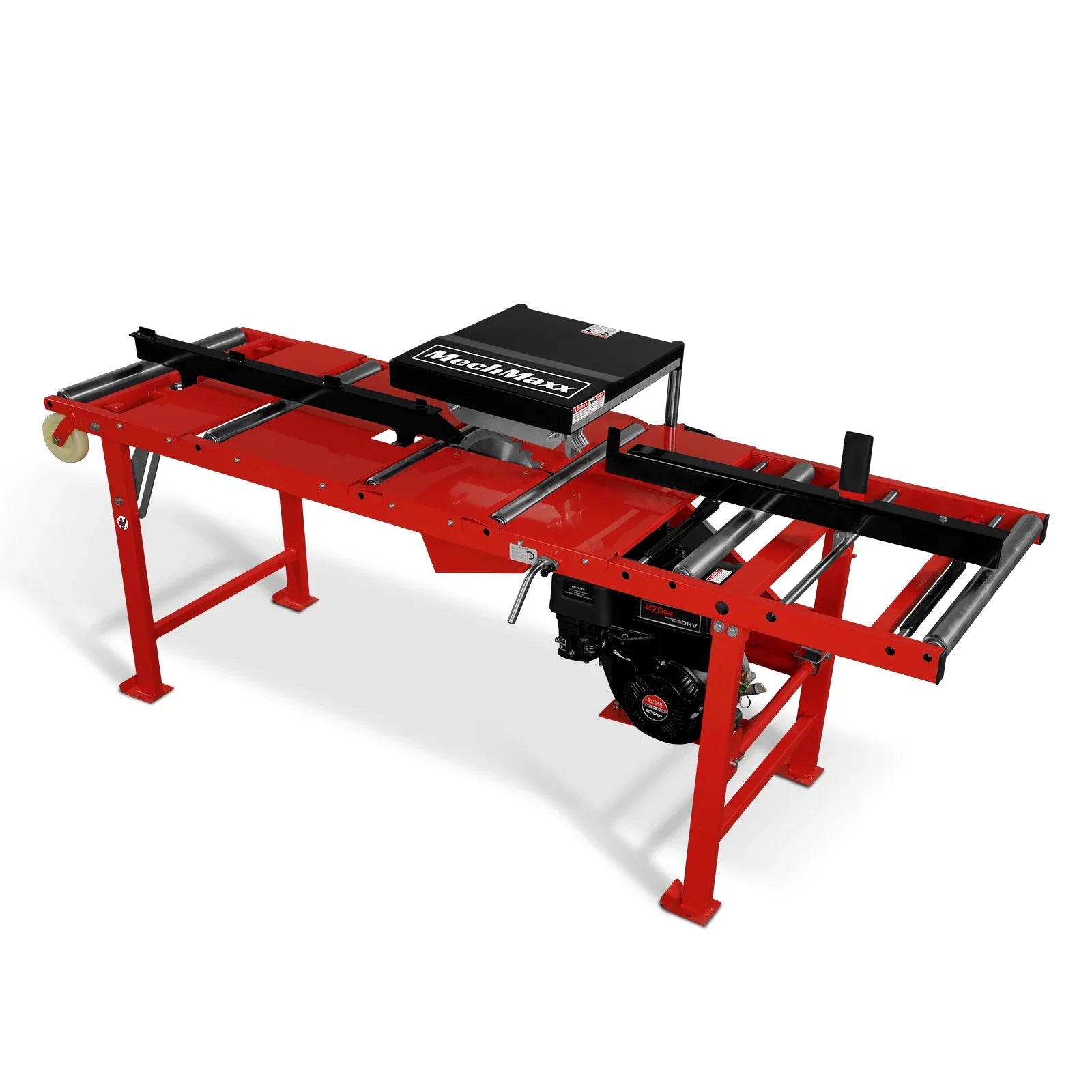

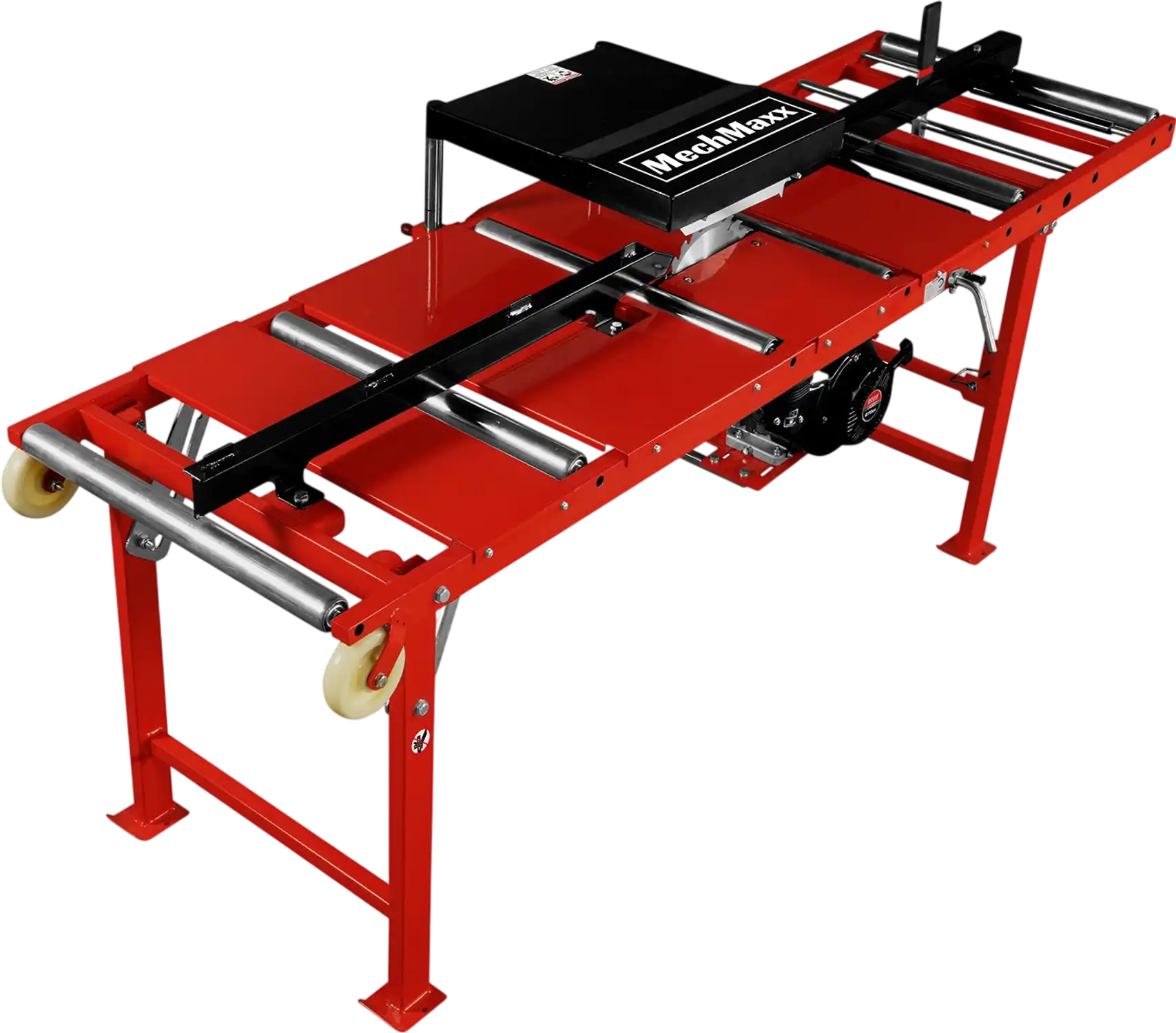

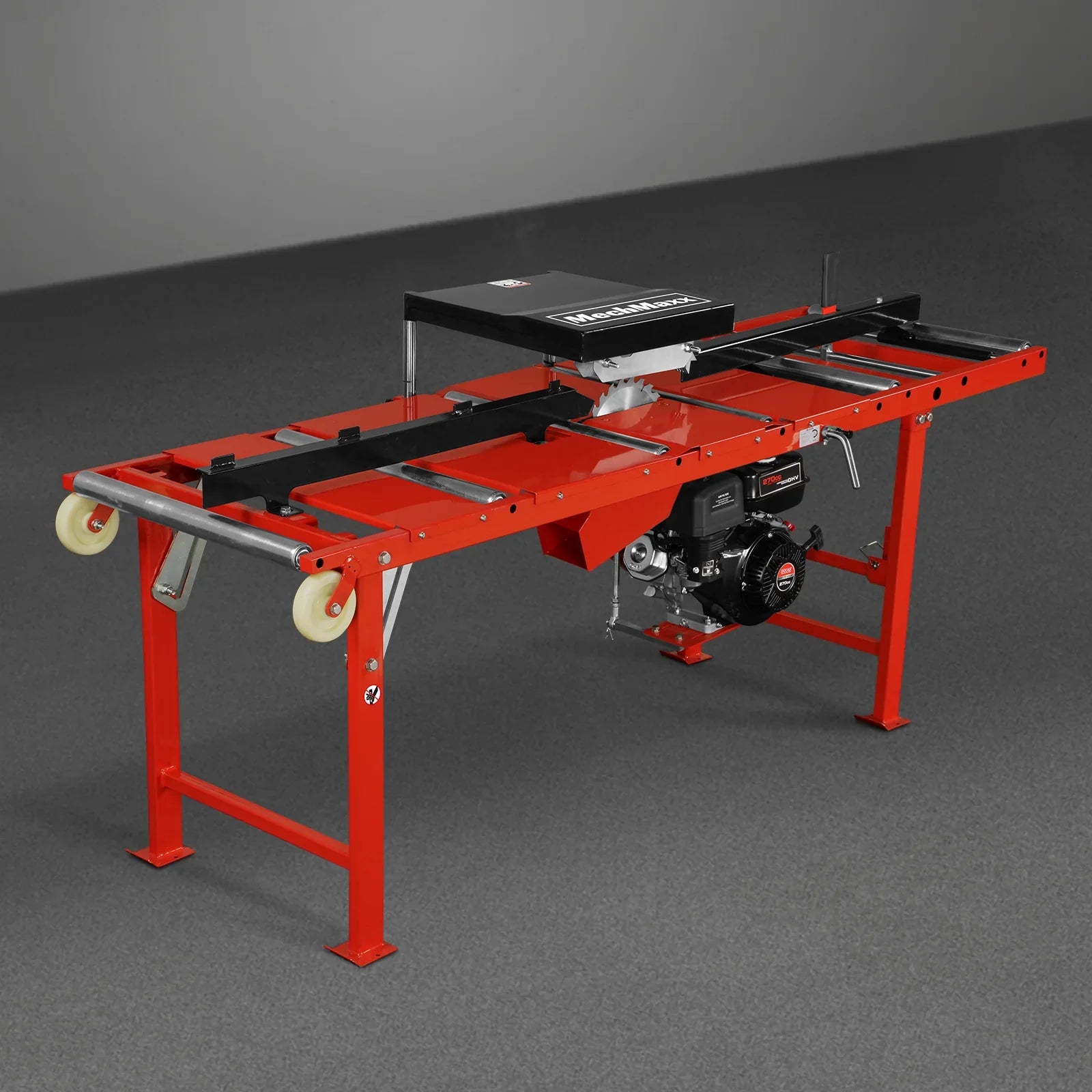

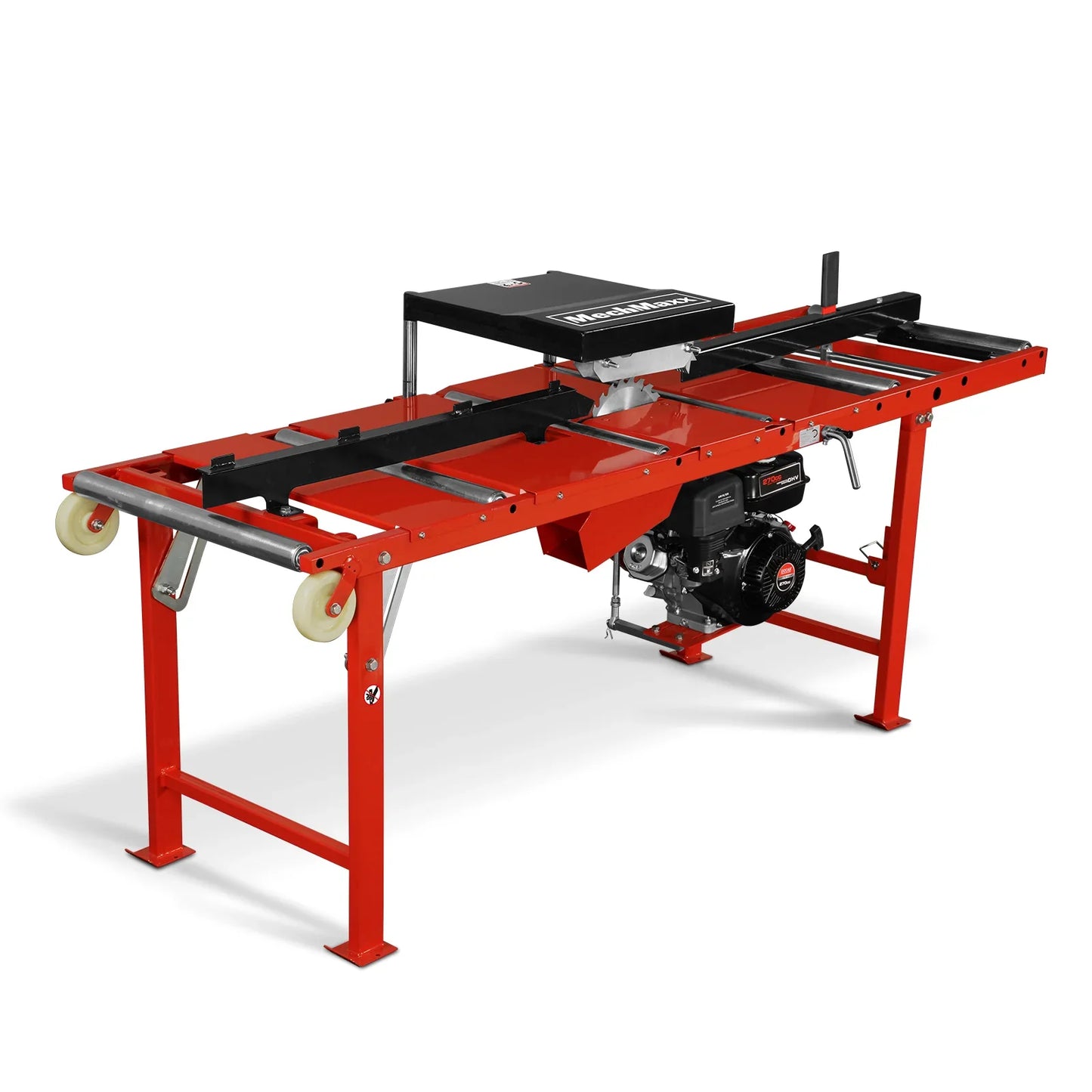

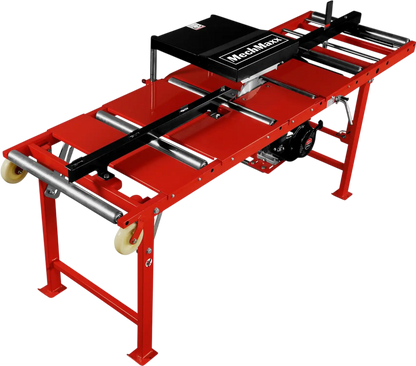

MechMaxx SBE50 Edger 10" Blade 12" Max Cutting Width Gasoline Engine Powered Single Blade New

MechMaxx

$1,499.00
$1,499.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • 12” max board width and 2” max board thickness
  • 9HP engine can be easily removed for storage and transportation
  • Edger outfeed table legs fold flat for storage and transportation
  • Edge flitches, sideboards, and slabs or resize square edged boards
  • Easy shipping and assembly
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

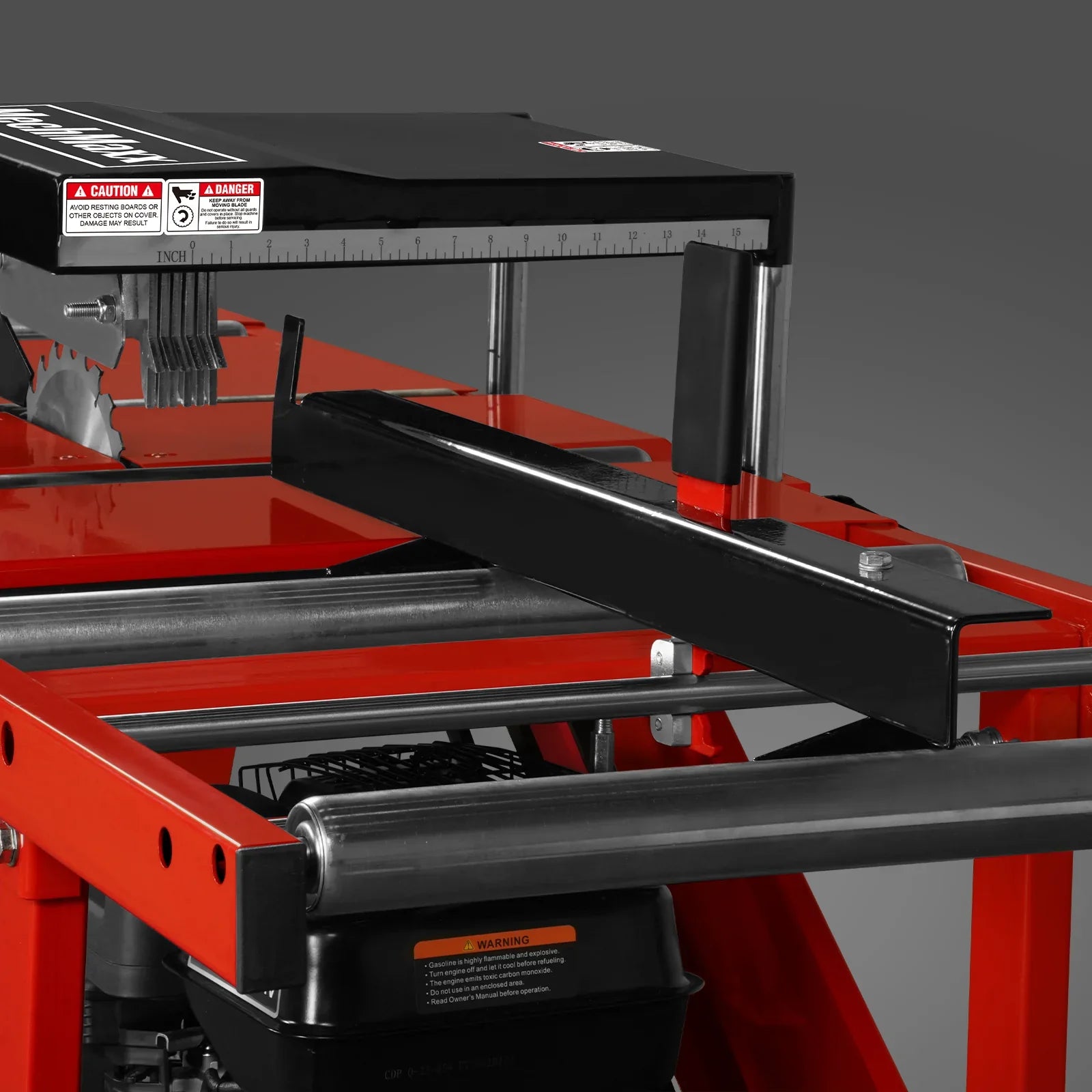

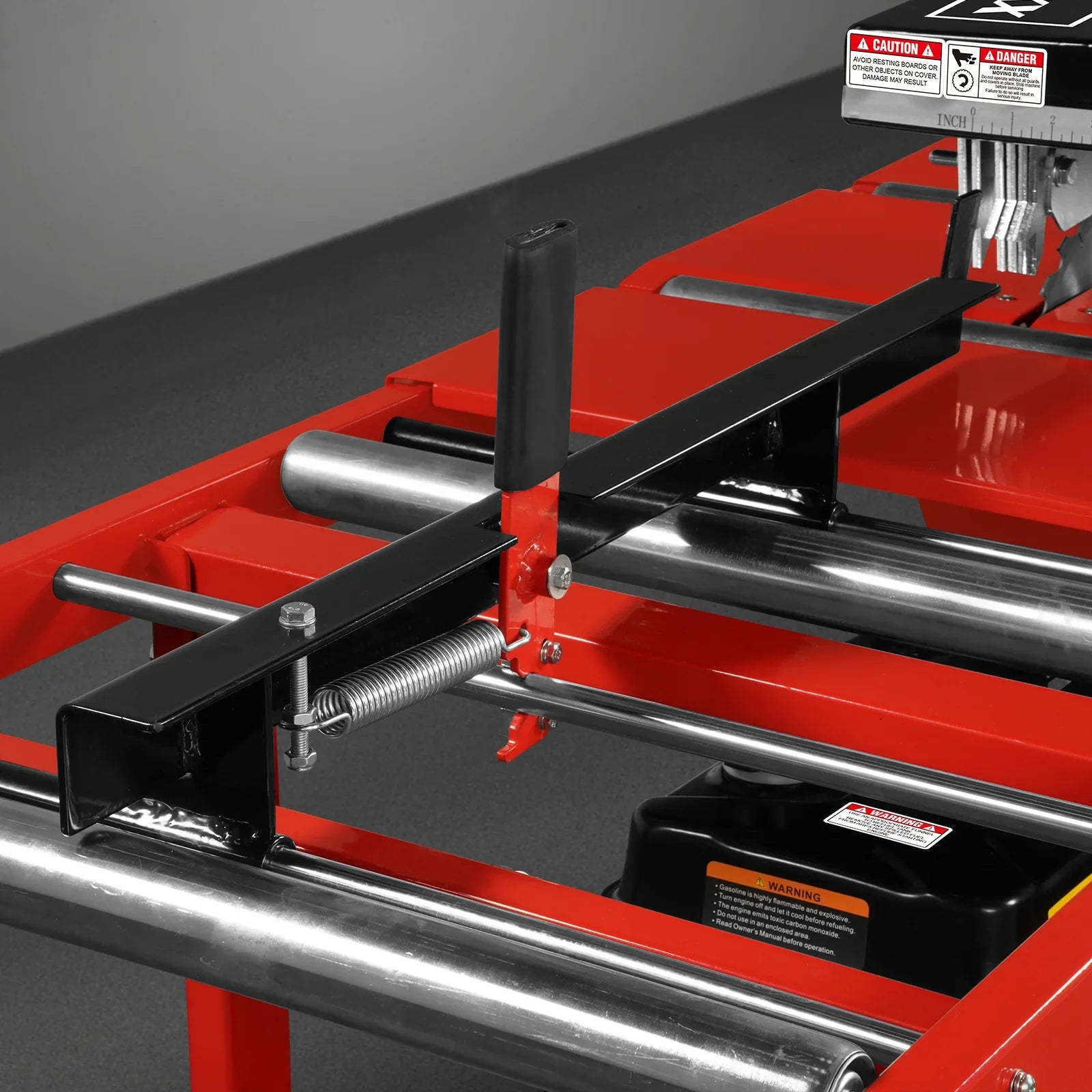

  • Pull Handle: This single blade edger easily adjusts to any board width in 2” increments up to 12” wide

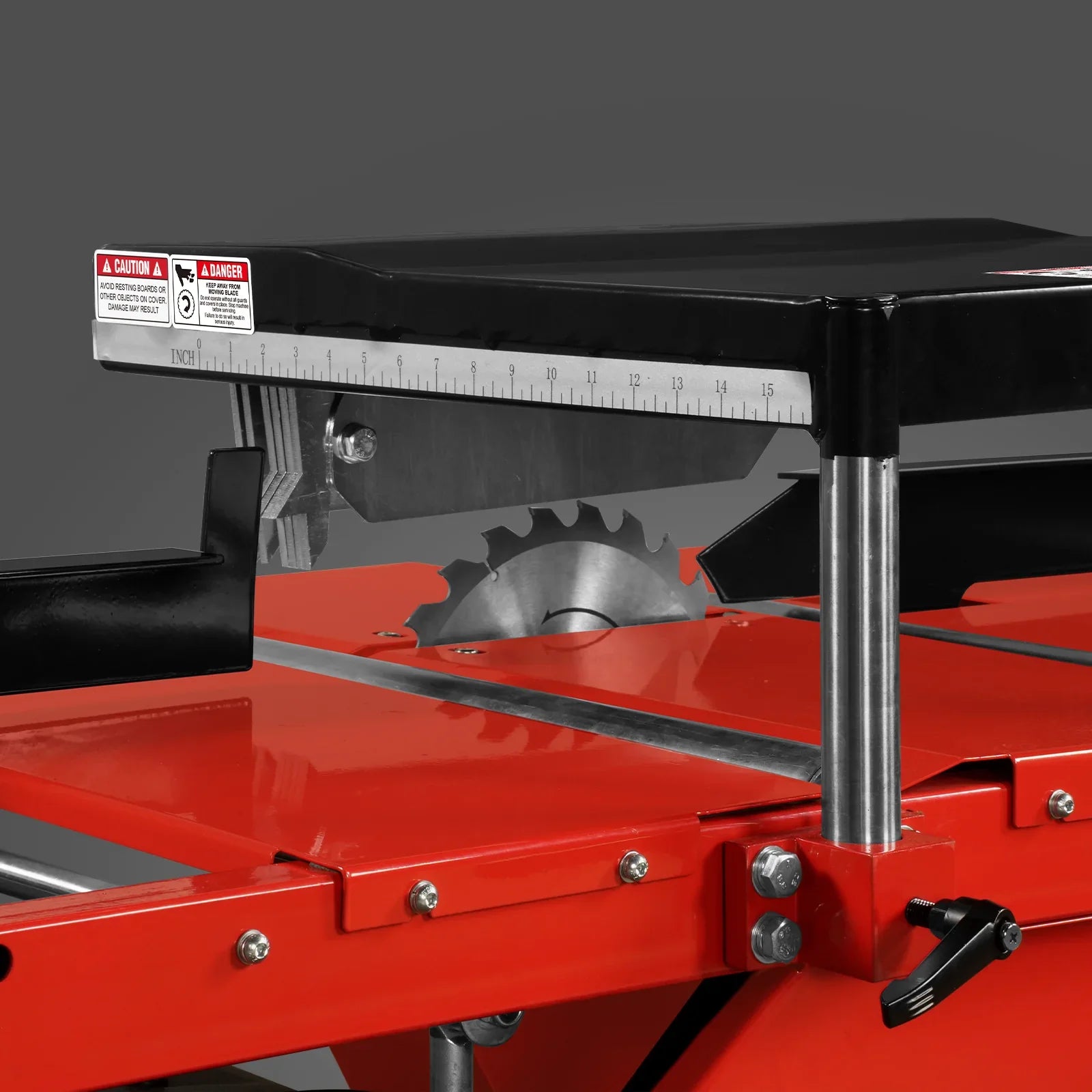

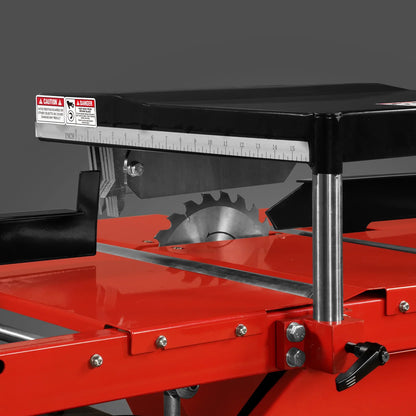

  • In-Feed Scale: Scale on the in-feed allows operator to measure and edge boards accurately.

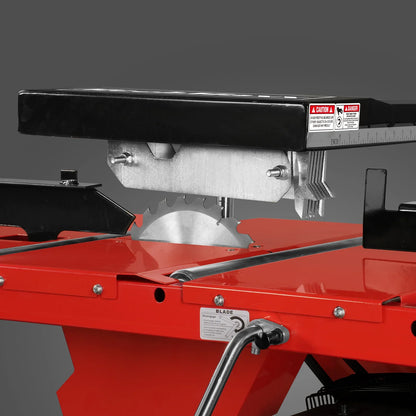

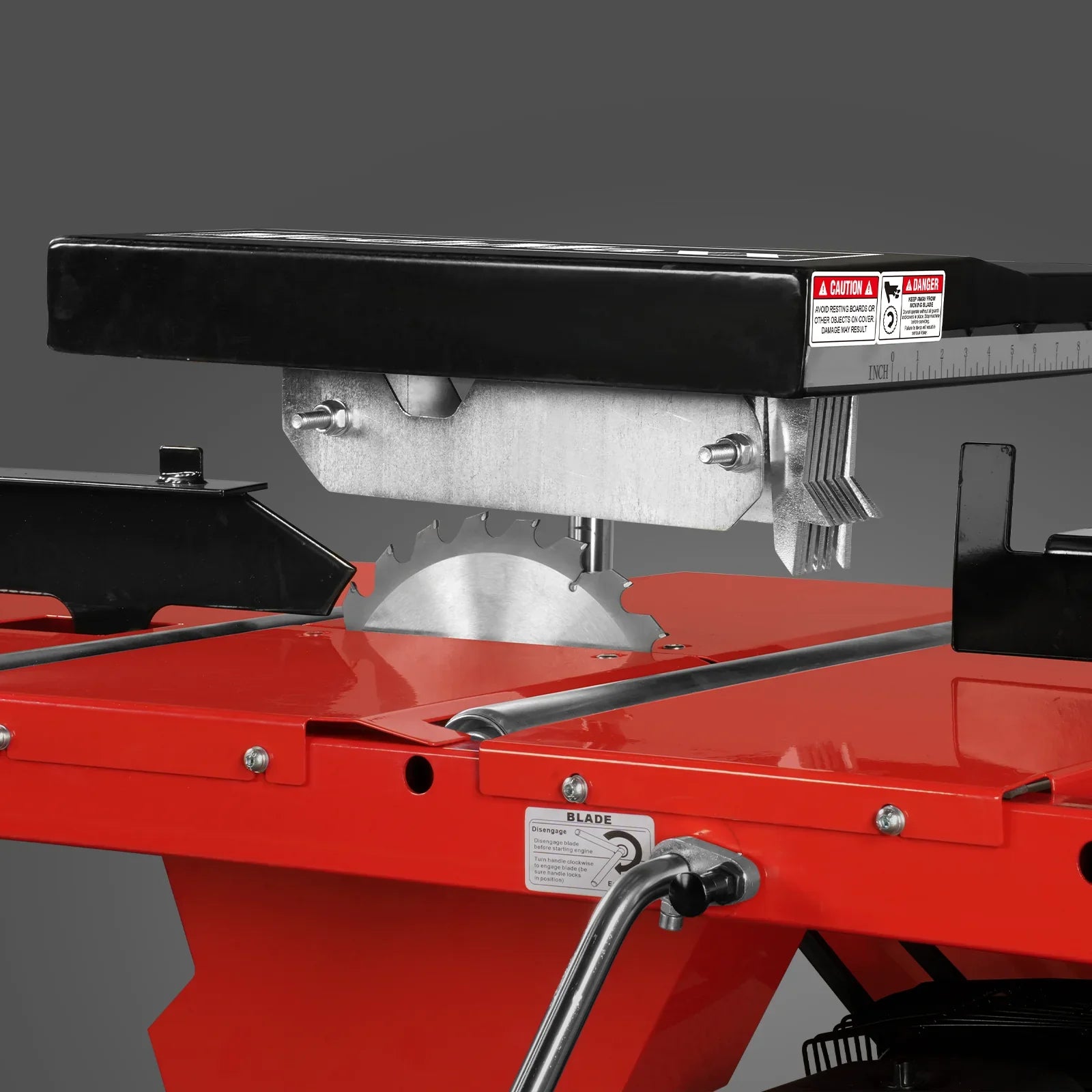

  • Carbide-Tipped Blade: The 10” carbide alloy saw blade removes one side of the board with each pass.

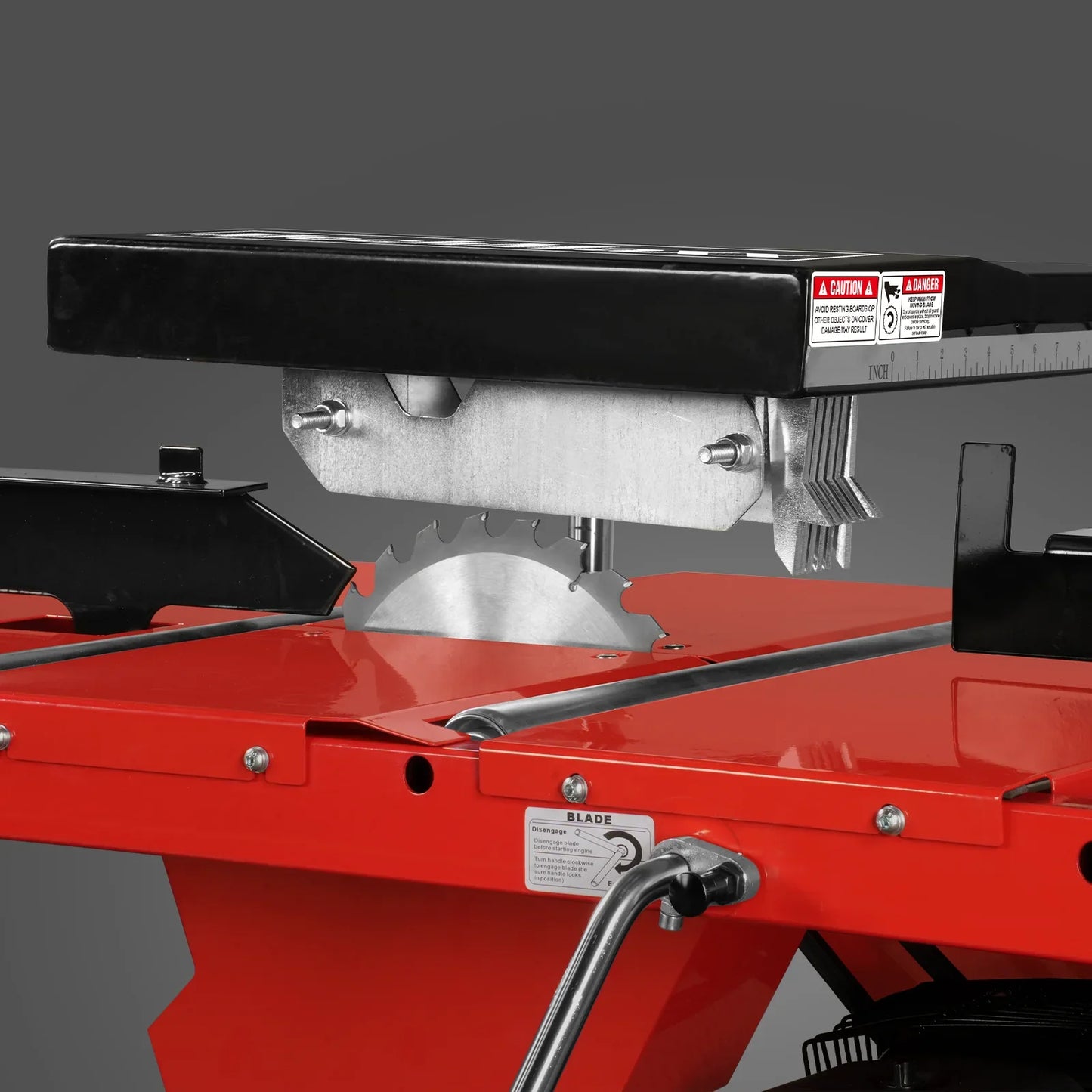

  • Anti-Kickback Fingers: The anti-kickback fingers protect the operator by preventing boards from being kicked out of the edger.

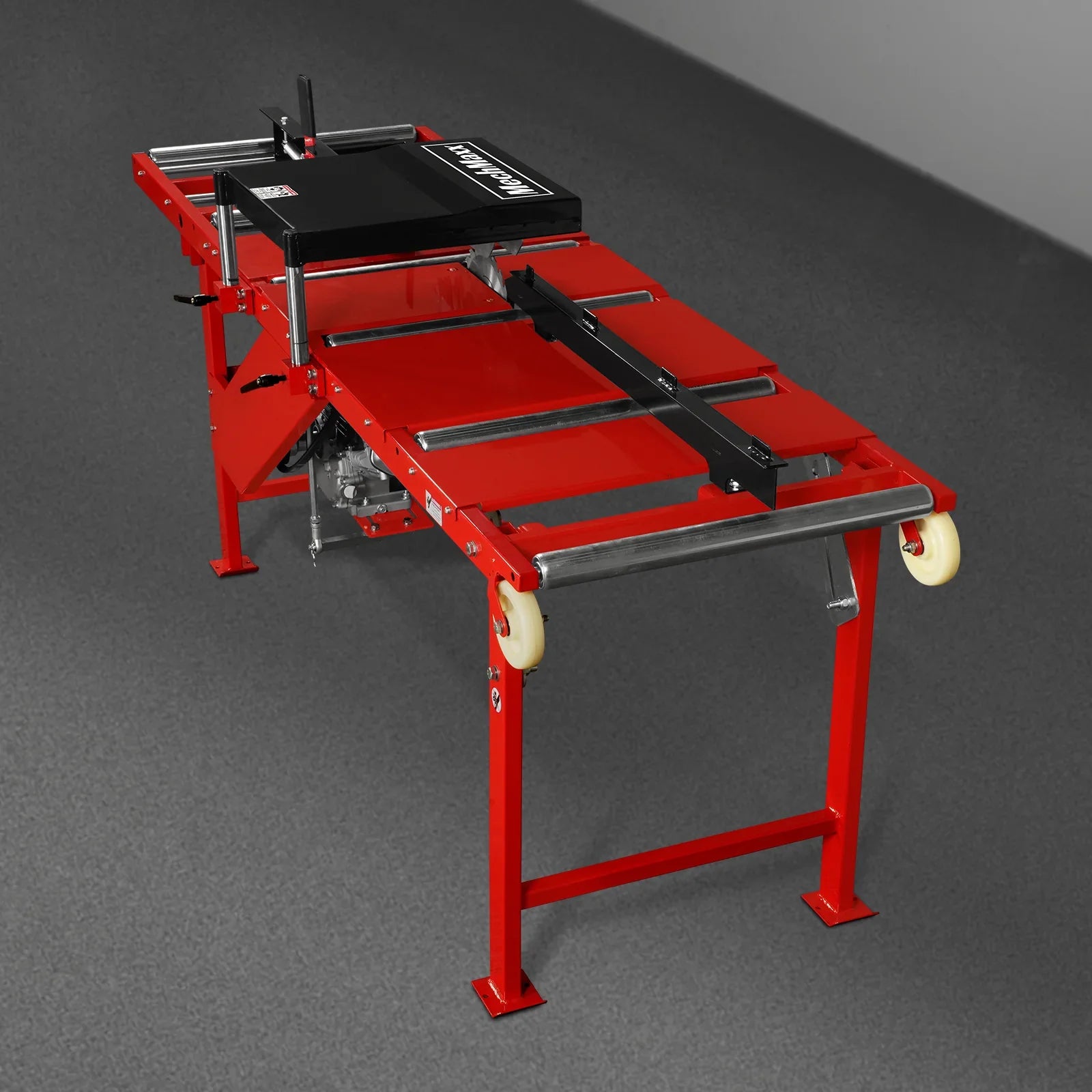

  • Heavy-Duty Rollers: Multiple table rollers help move material through the lumber edger.
  • Easy to Store/Transport: The engine is removable. The legs of the discharge table can be folded flat for easy storage and transportation

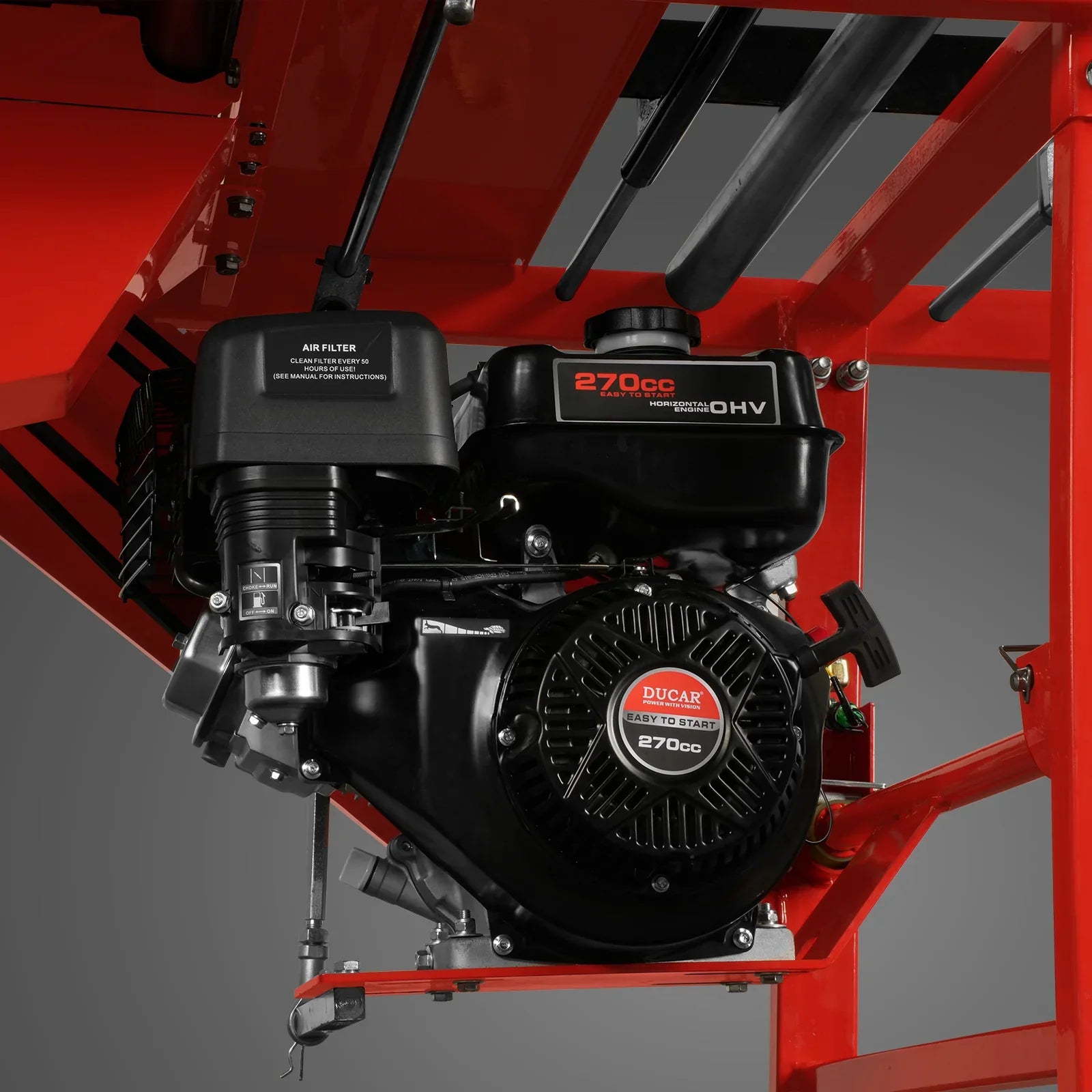

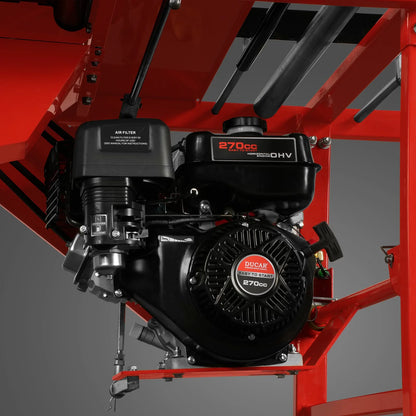

Engine: DUCAR

Displacement: 270cc ; 9HP

Blade: 10" Carbide Alloy Saw Blades ( Diameter 10 in x Thickness 0.063 in; 24 Teeth )

Feed System: Manual Push Feed Rate - Variable

Thickness: 0.25 in - 2.25 in

Width: 2 in - 12 in

Edger Length: 87.72 in

Edger Width: 26 in（34.6 in Overall）

Edger Height: 40 in

Finish: Powder Coat Paint; Galvanized Steel

Machine Warranty (Except the Engine): 2-Year

Package Method: Plywood Package

Packing Size: 90 x 32 x 22 in

Weight (N.W./G.W.): 265 lbs / 397 lbs

This item comes with a 1 year factory warranty.
PDF Product manual 1.0 PDF Ducar DH270 Manual
