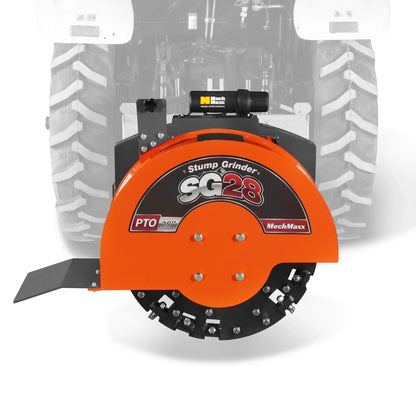

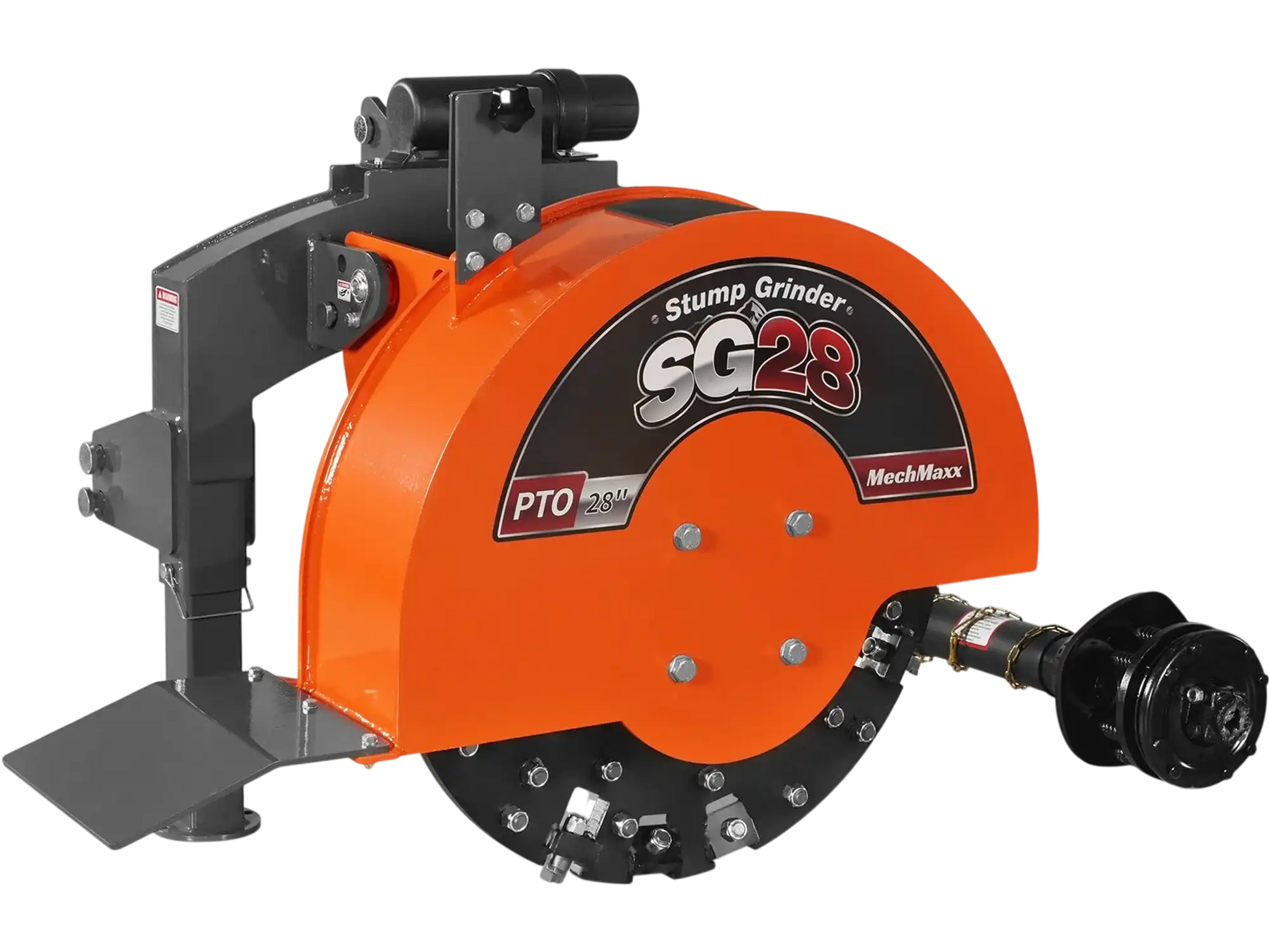

MechMaxx SG28 Stump Grinder 3-Point PTO 44 Carbide Teeth for 35-80HP Tractor New

MechMaxx

$2,199.00
$2,199.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

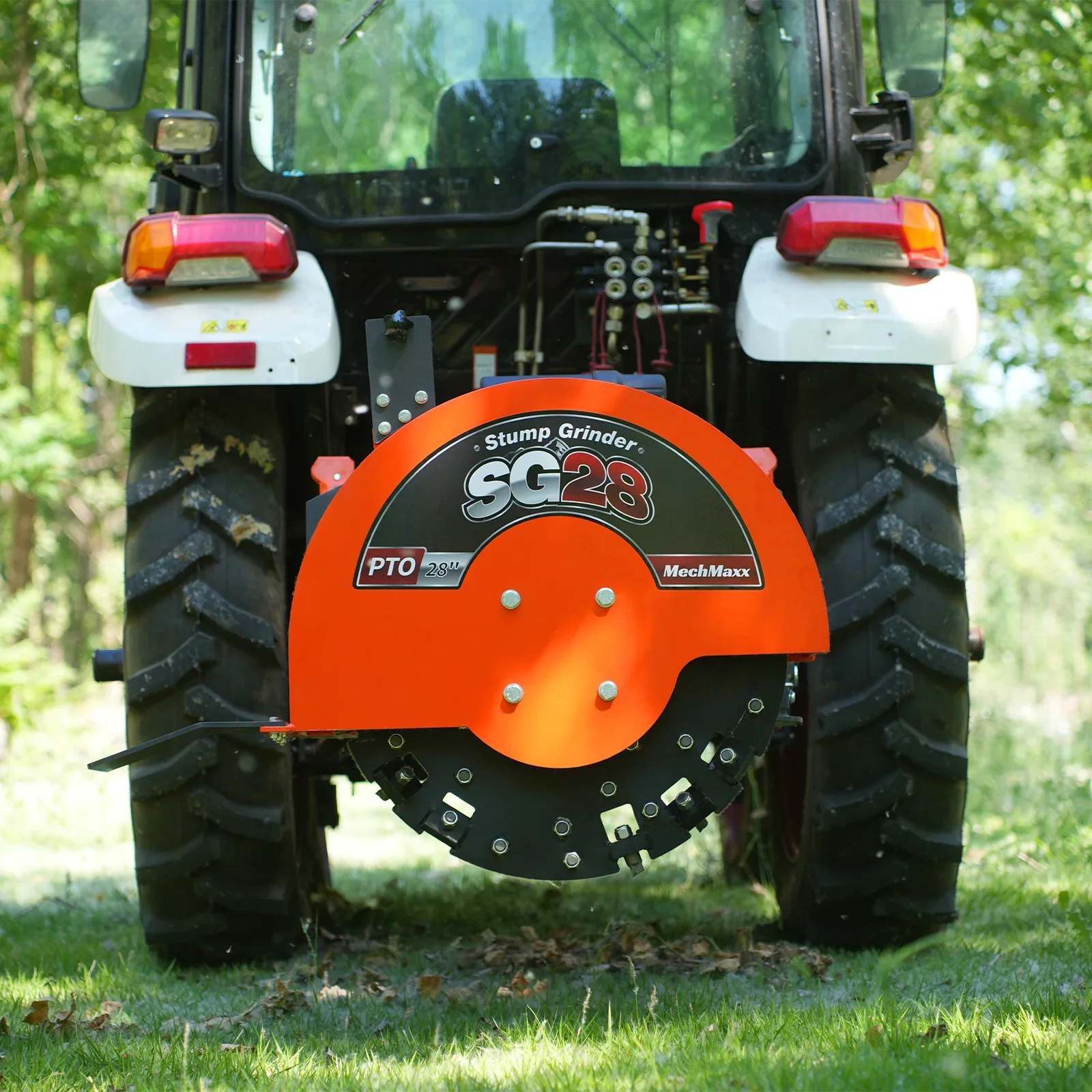

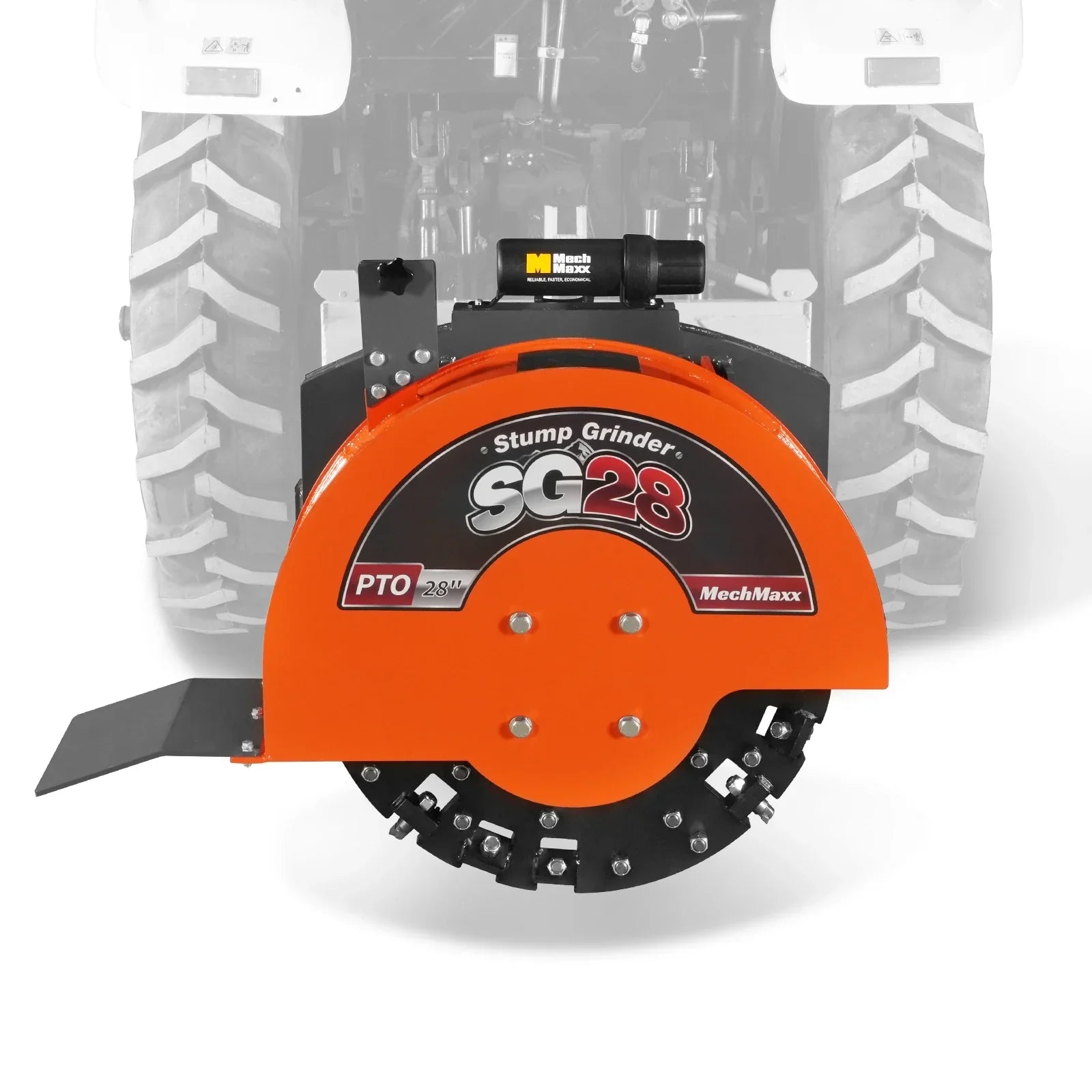

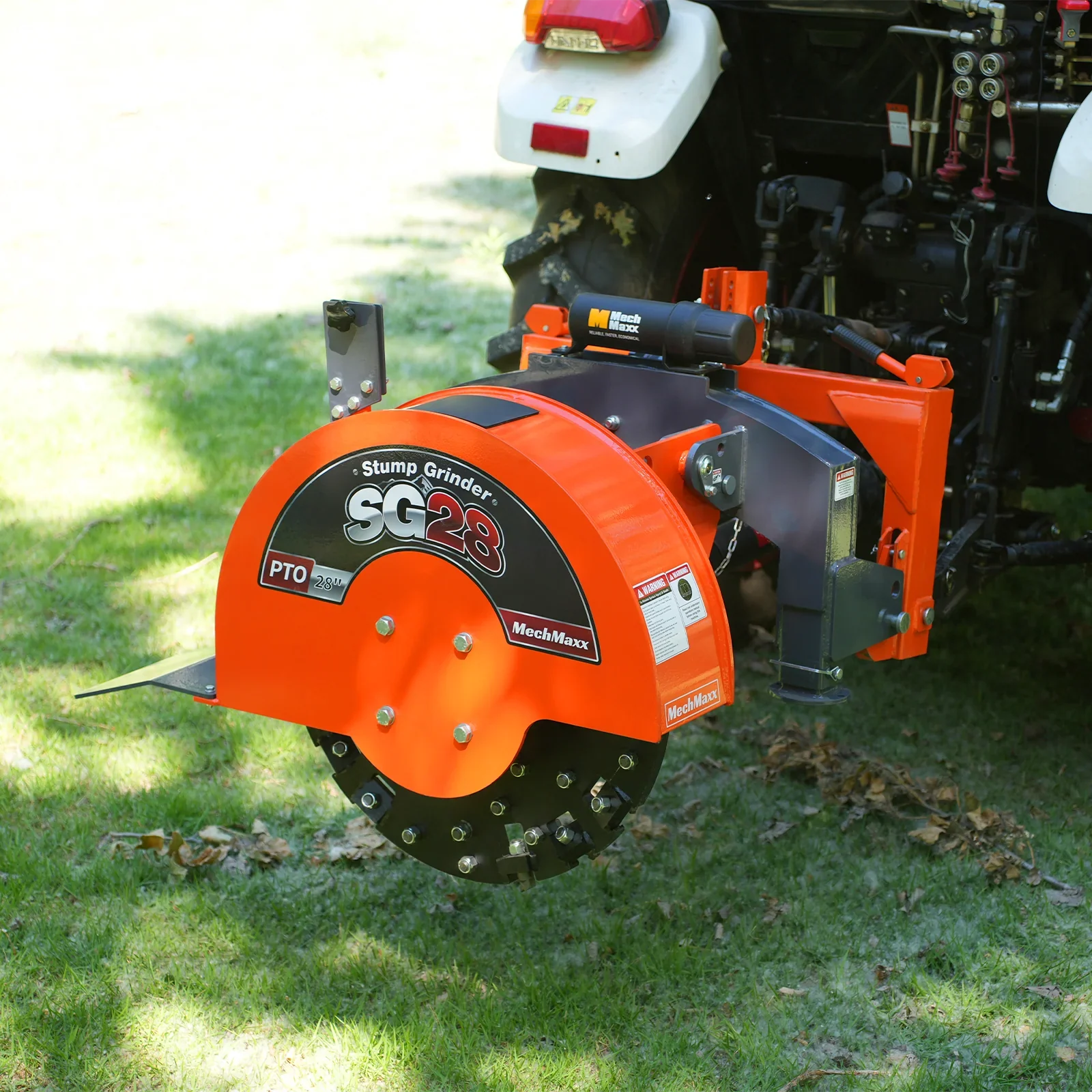

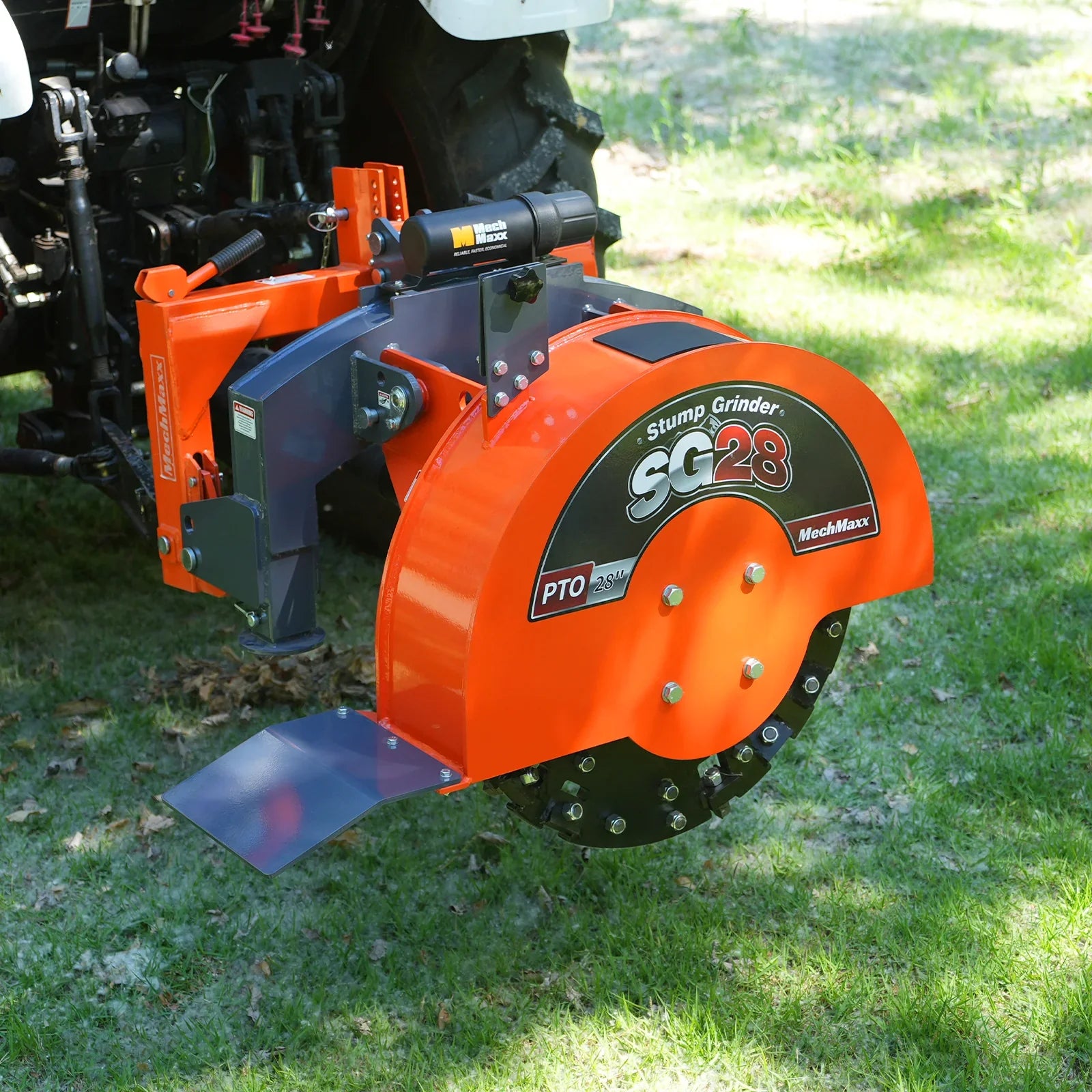

  • Connects directly to your tractors 3 point hitch system and is equipped with a large 28’’ diameter solid steel grinding flywheel and 44 tungsten carbide cutting teeth to make the removal of tree stumps a breeze!
  • These extremely rugged stump grinders are engineered to deliver optimal performance when paired with tractors containing 35-80HP at the PTO and will easily grind up to 8.5’’ below the ground to remove roots and prepare the ground for grading or grass.
  • Designed to work on tractors with a PTO shaft. The stump grinder works best on tractors featuring PTO shafts that are independent of the tractors transmission drive system. This allows the operator to control the speed of the tractor independently and separately to the PTO speed.
  • Since the tractor pulls the grinder through the stump, the rate at which the tractor moves is important and should be independent of the PTO shaft.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

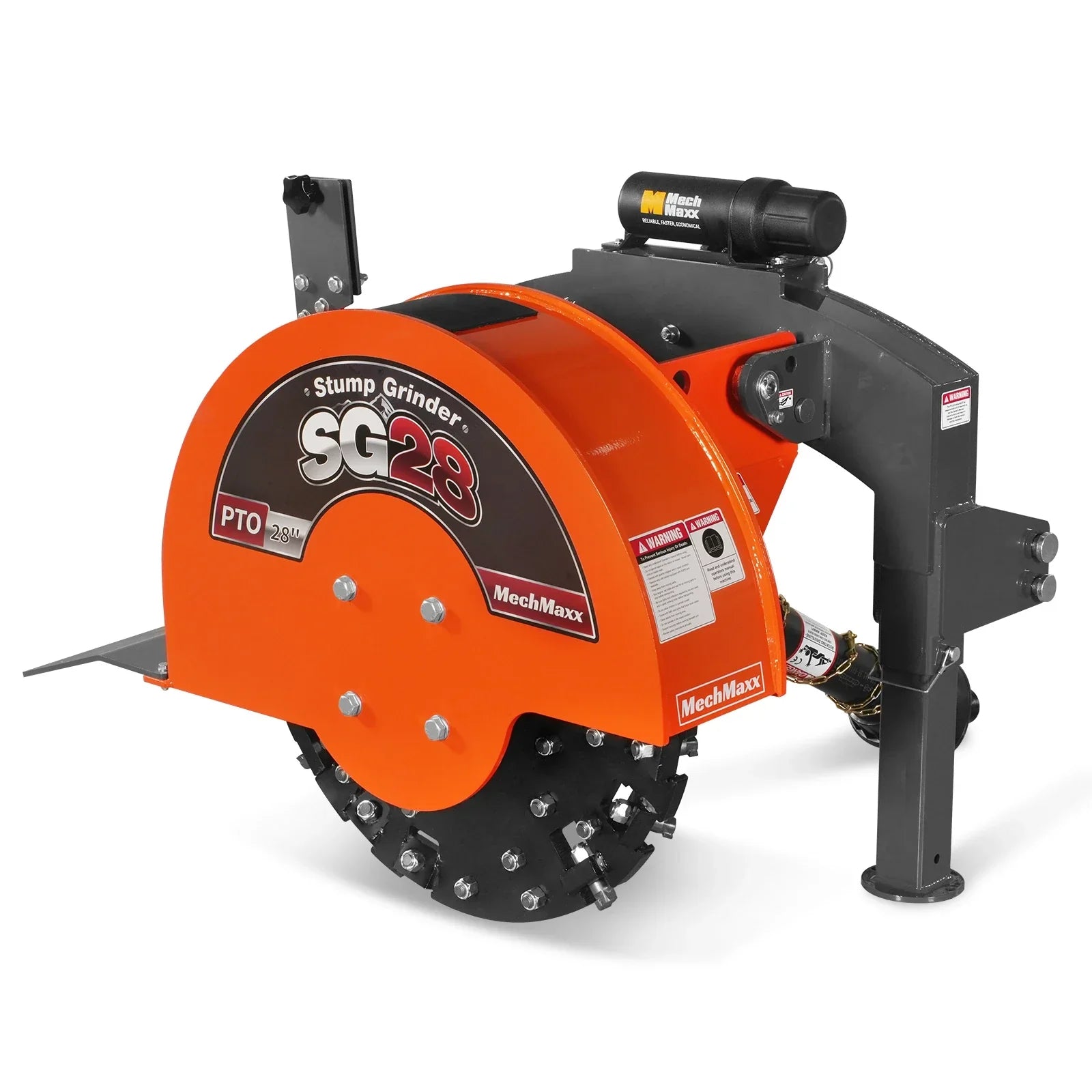

  • 28 '' Flywheel Diameter: a large 28’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 28-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.

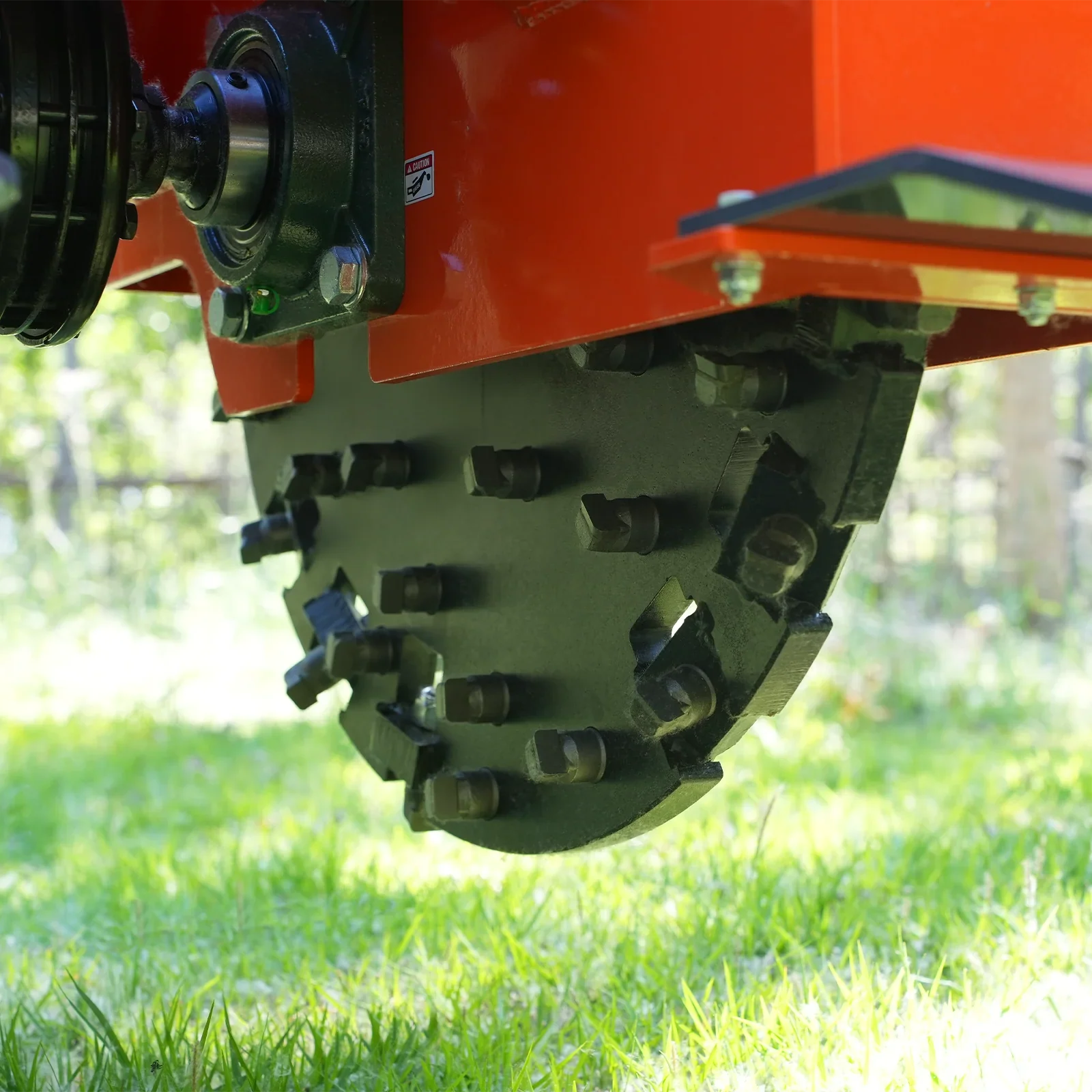

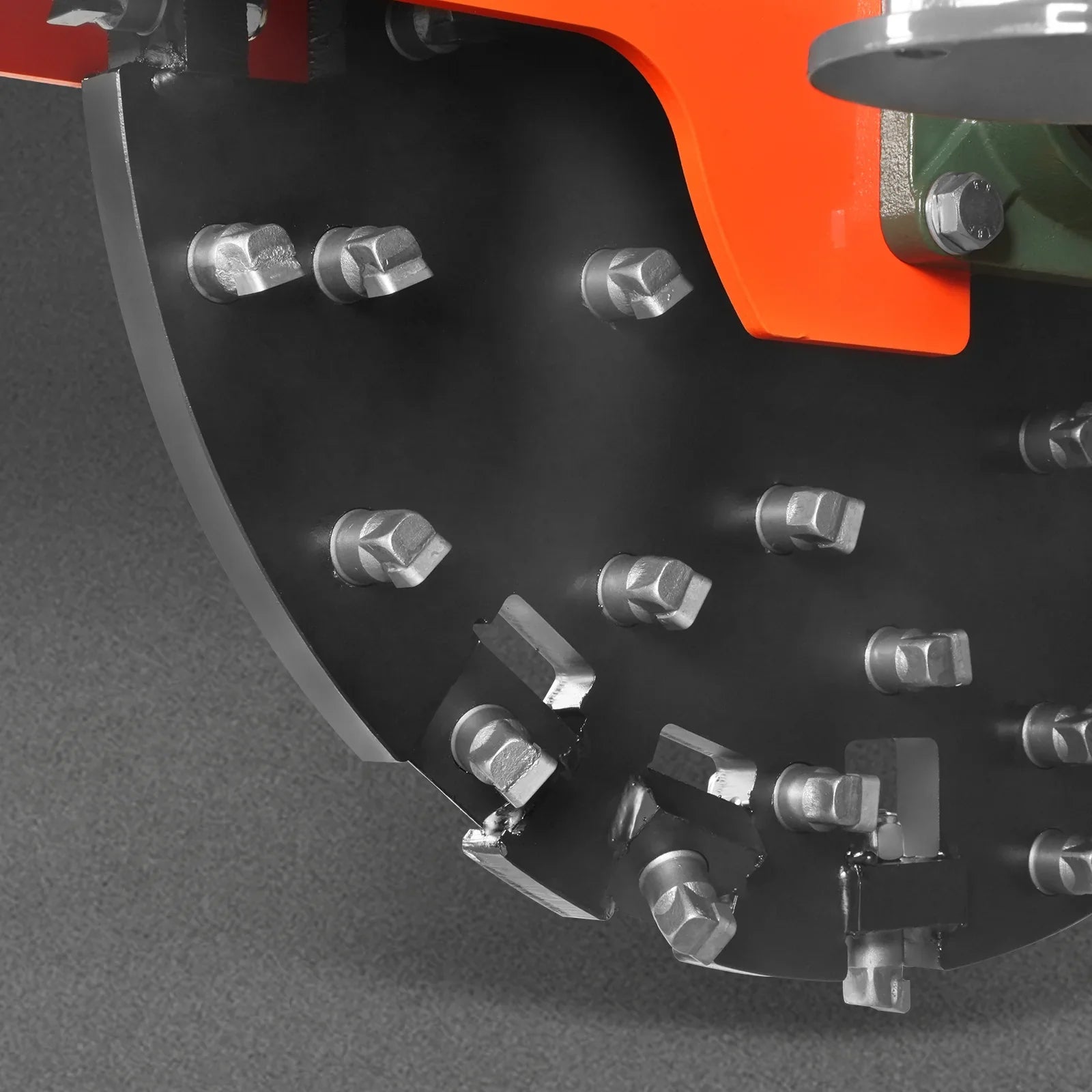

  • 44 Tungsten Carbide Cutting Teeth: Equipped with 44 tungsten carbide cutting teeth that sharpen stumps quickly, speeding up work and making stump removal a breeze.

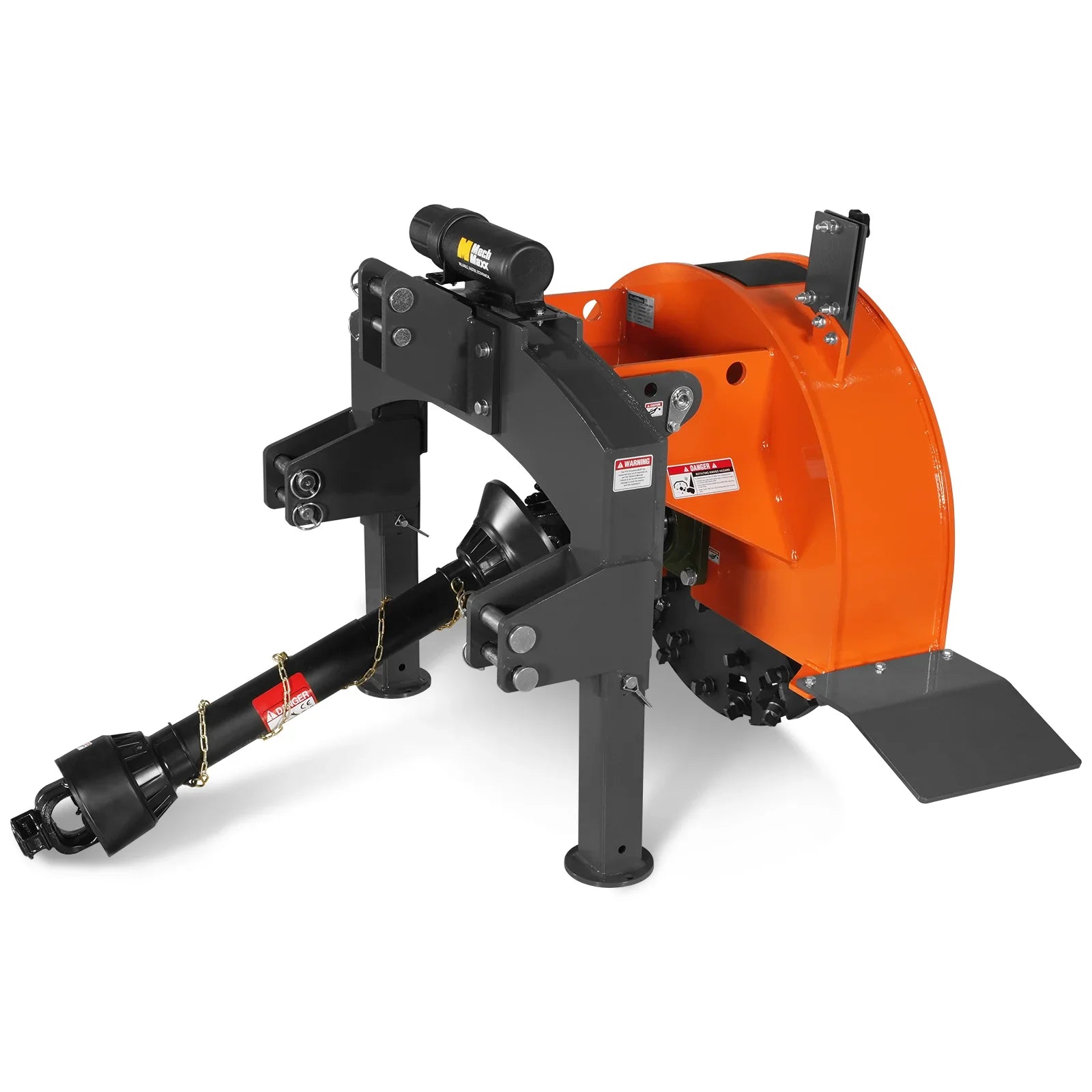

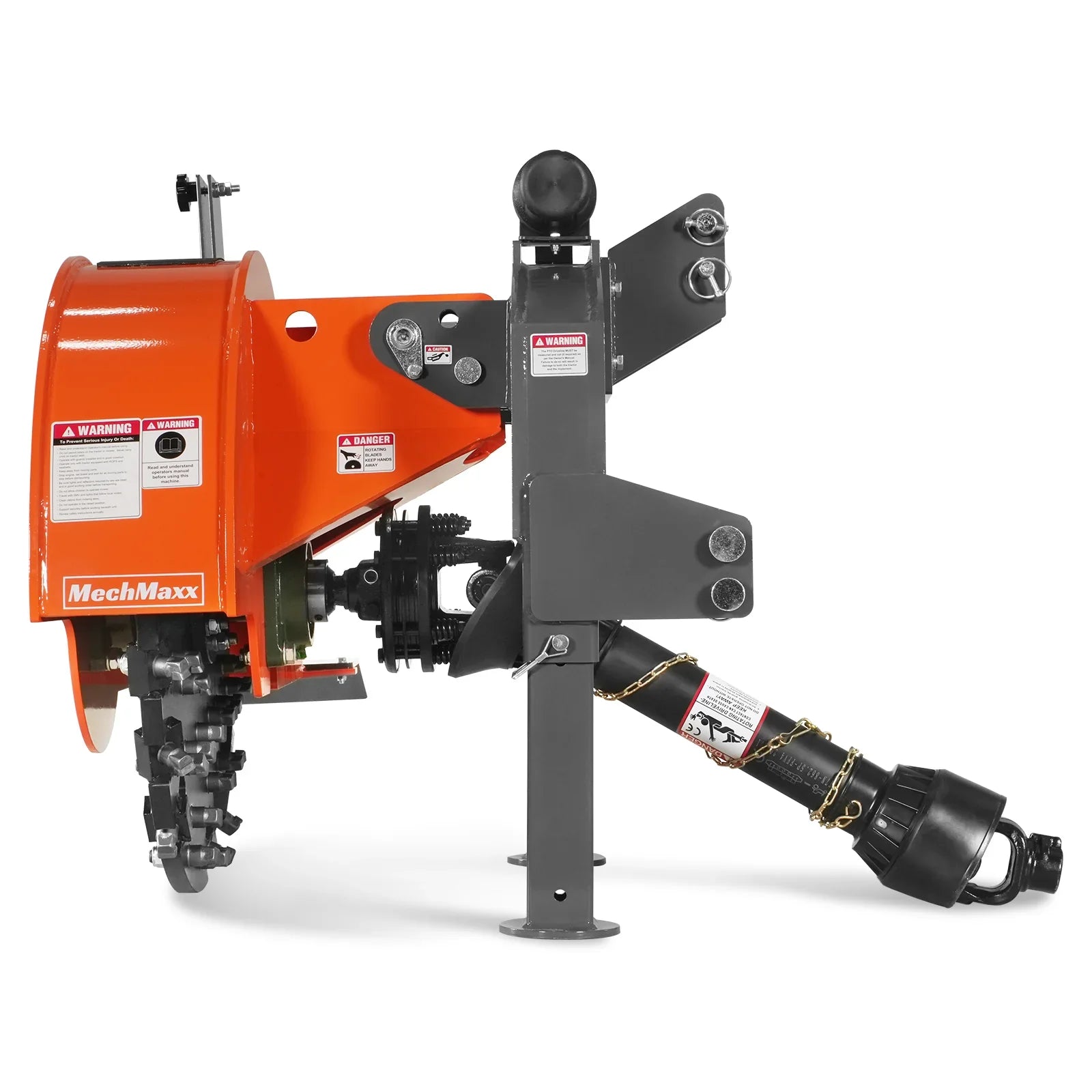

  • PTO Shaft: 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch. Compatible with reliable 540 rpm dedicated PTO drive power supply, ensuring efficiency and stable performance.
  • PTO Required: Extremely sturdy stump grinder engineered to provide optimal performance when used with tractors with PTO power of 35-80HP.

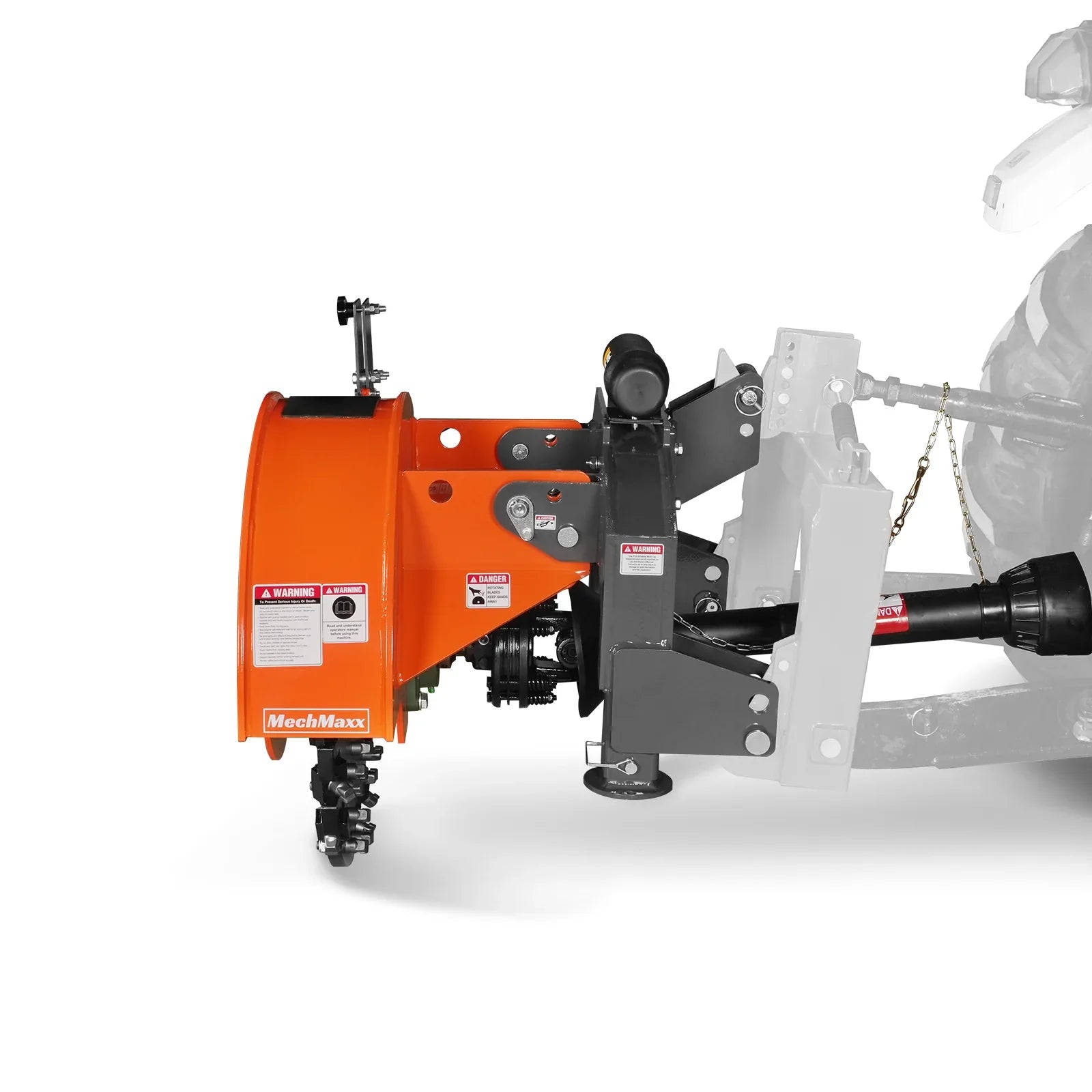

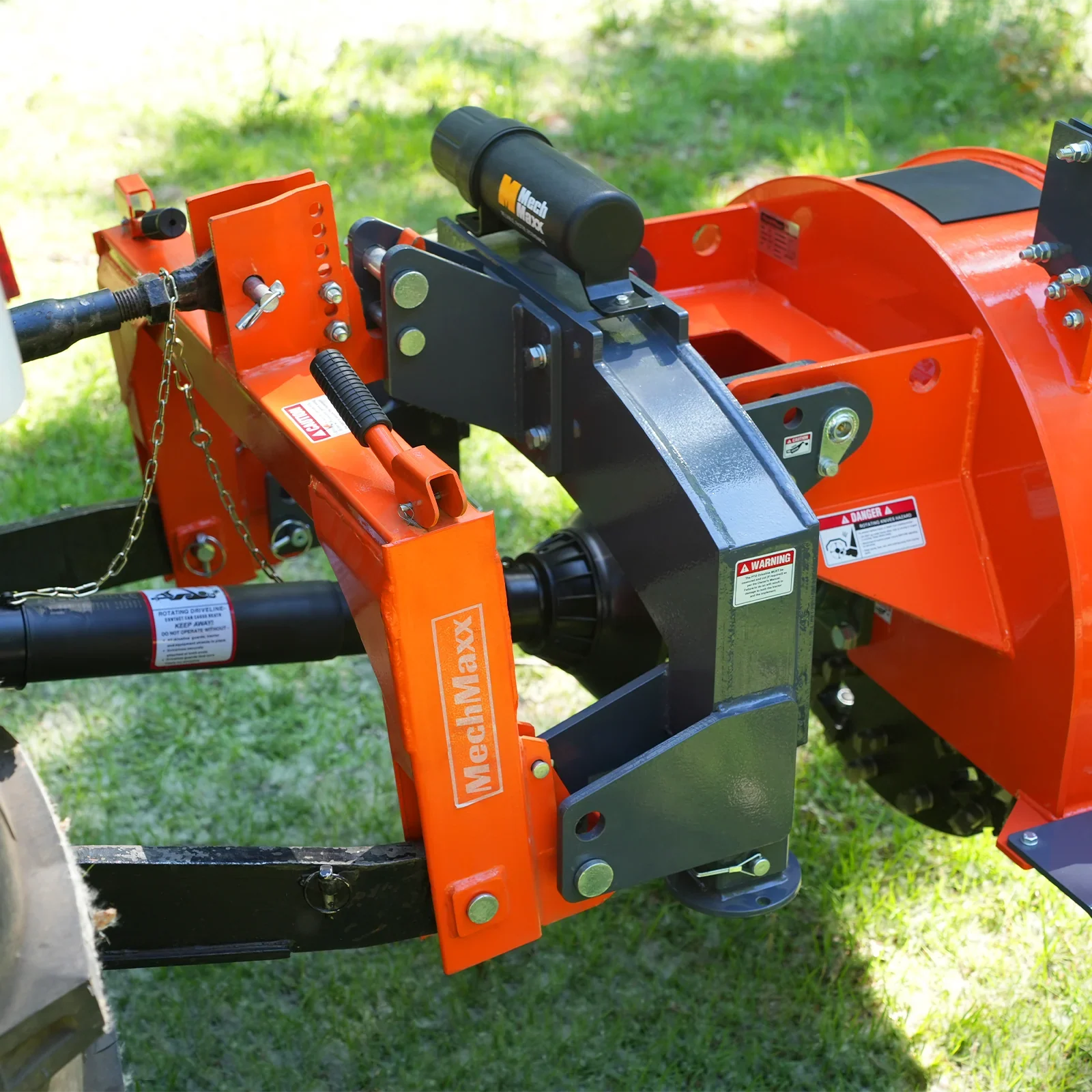

  • 3 point hitch Cat. 1: The three-point connection ensures the stability of the root grinder connected to the tractor and remains stable when the machine is running, improving grinding efficiency and reducing working time.
  • Cutting Depth: Easily grinds underground to a depth of 8.5 inches to remove tree roots and prepare for grading or lawn.

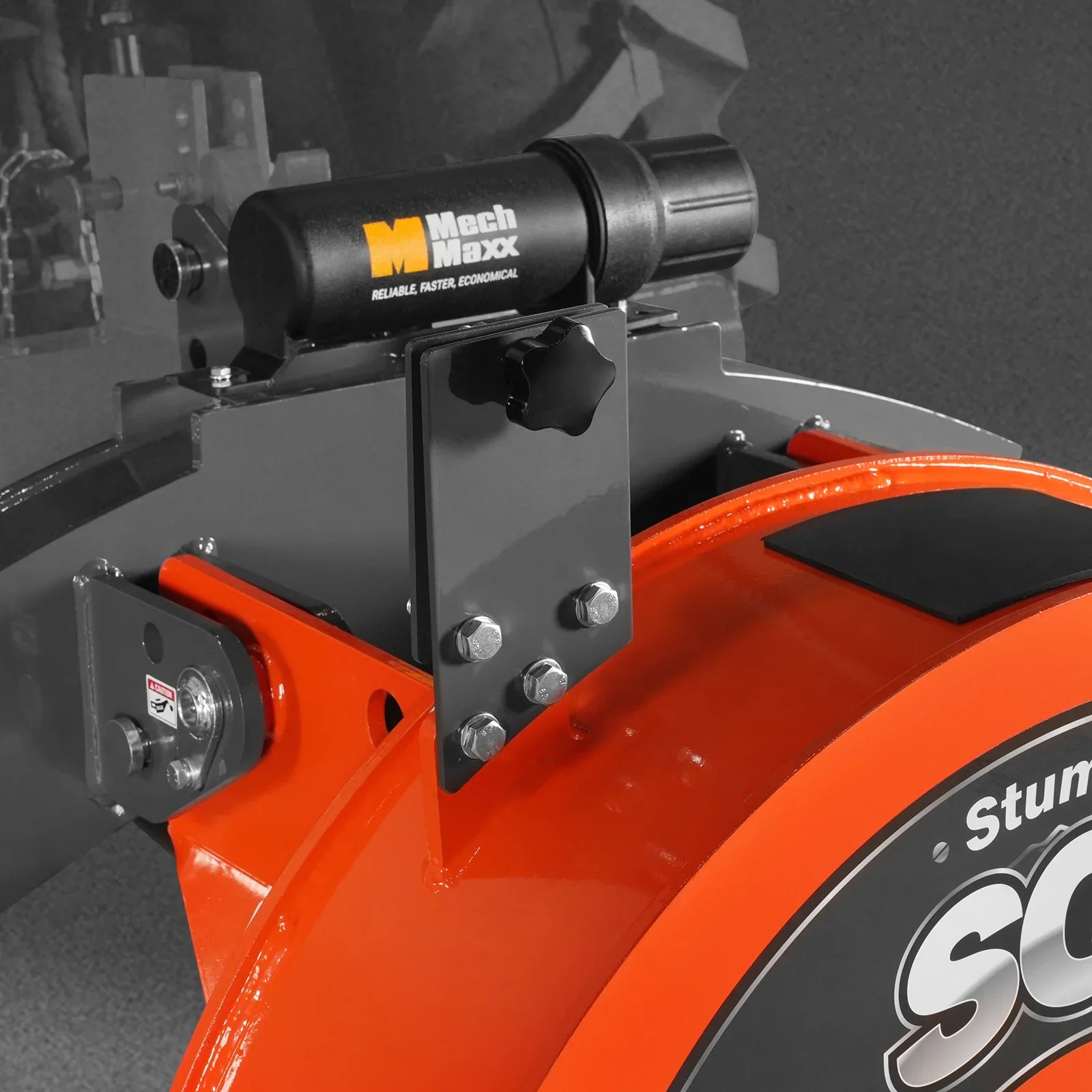

  • On-Unit Chainsaw Holder: Equipped with a standard chainsaw holder, it provides a reliable spot to transport your chainsaw around your property and keep it protected between jobs.
  • File Bucket: The included file bucket contains the instruction manual and the tools needed to install the machine.

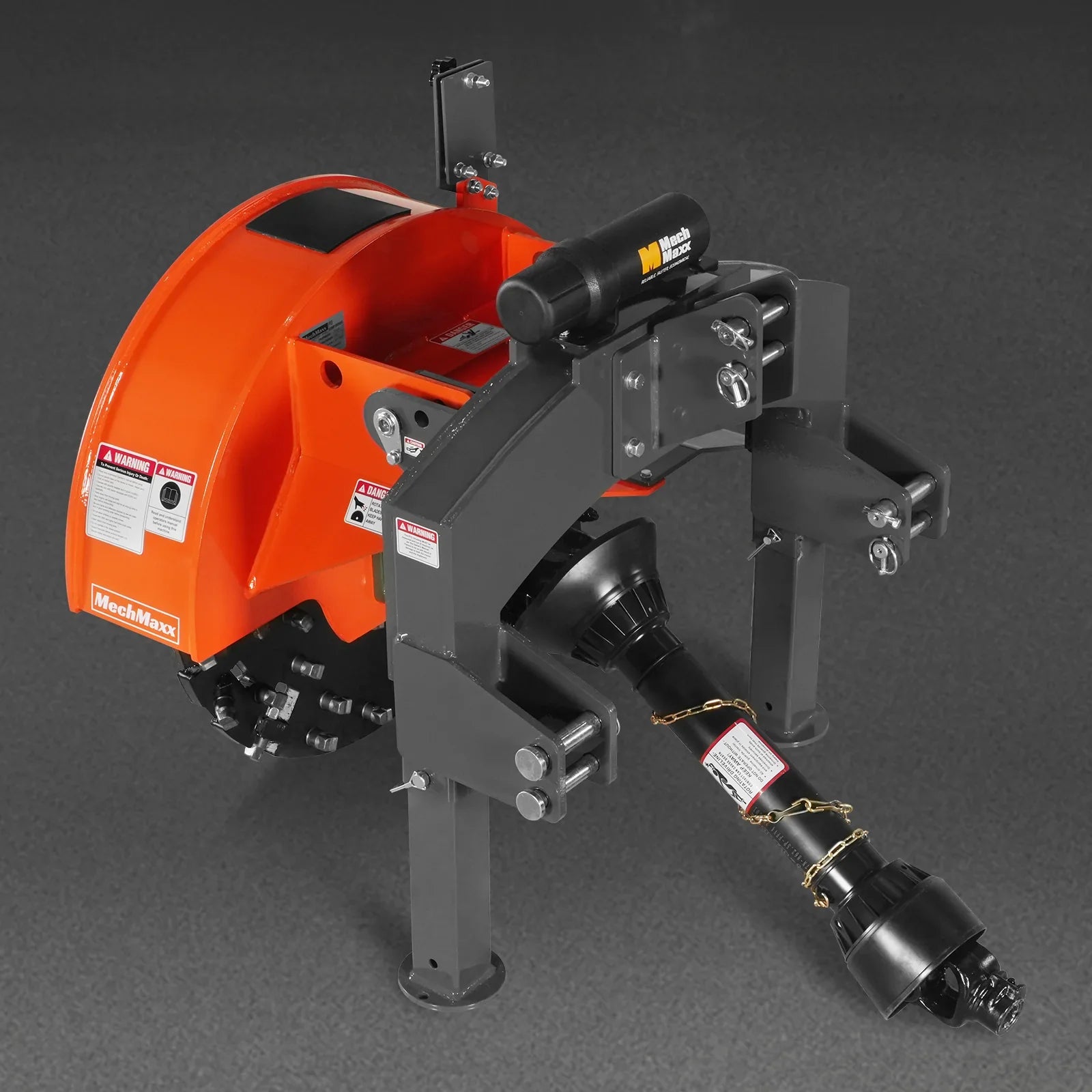

  • Integrated Stabilizing Legs: Mounted at the base of the back frame, the integrated support legs keep the stump grinder stable for storage and aligned for quick tractor hookup. They reposition for operation, allowing below-grade grinding without getting in the way.

Flywheel Diameter: 28 in

Mounting: 3 Point Hitch Cat. 1 (Quick Attach Compatible)

Flywheel Thickness: 3/4 in

PTO Input: 540 RPM

Carbid Tip: 44 PCS

Max. Torque: 1200 N·m

Carbid Tip Material: YG11C

PTO Shaft Weight: 44 LBS

Tip Holder Material: 42CrMo

Dimensions: 37.4 × 33.7 × 35.4 in

PTO HP Required: 35–80 HP

Packing: Iron Frame + Carton

PTO Shaft (Included Shipping): 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch

Weight (N.W/G.W.): 659/719LBS

Friction Torque Limiter (Slip Clutch): Included

This item comes with a 1 year factory warranty.
PDF SG28 Product manual 1.0
