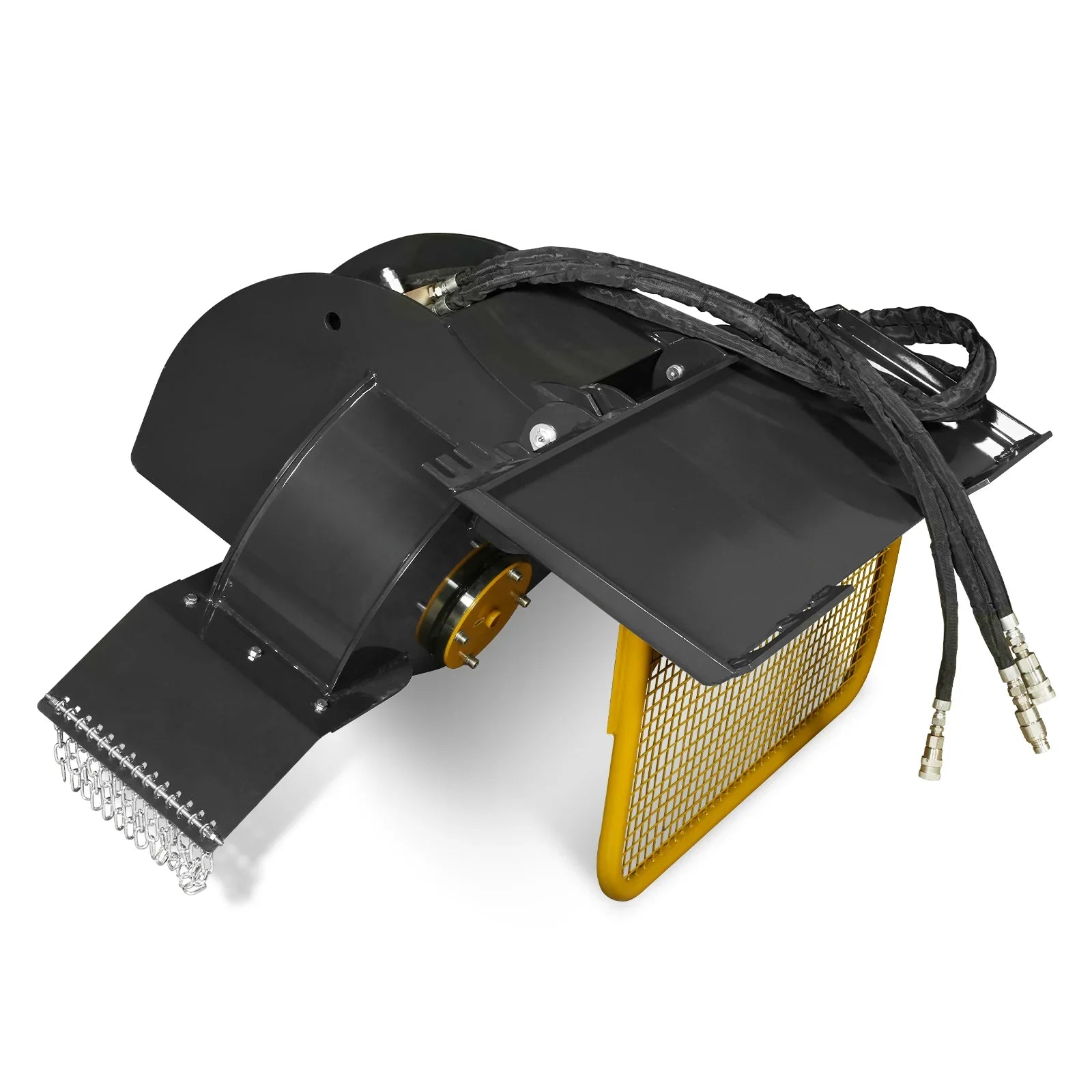

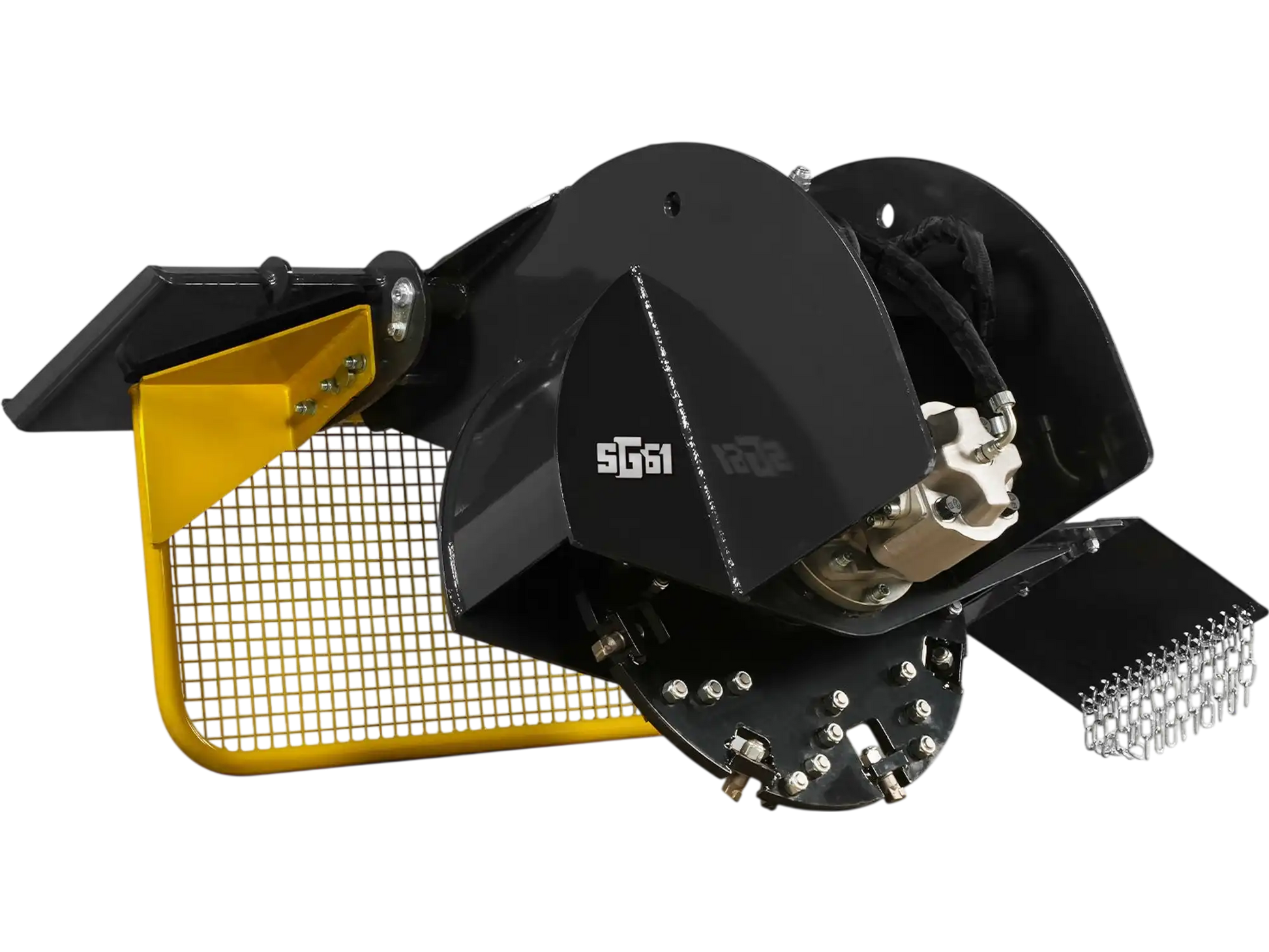

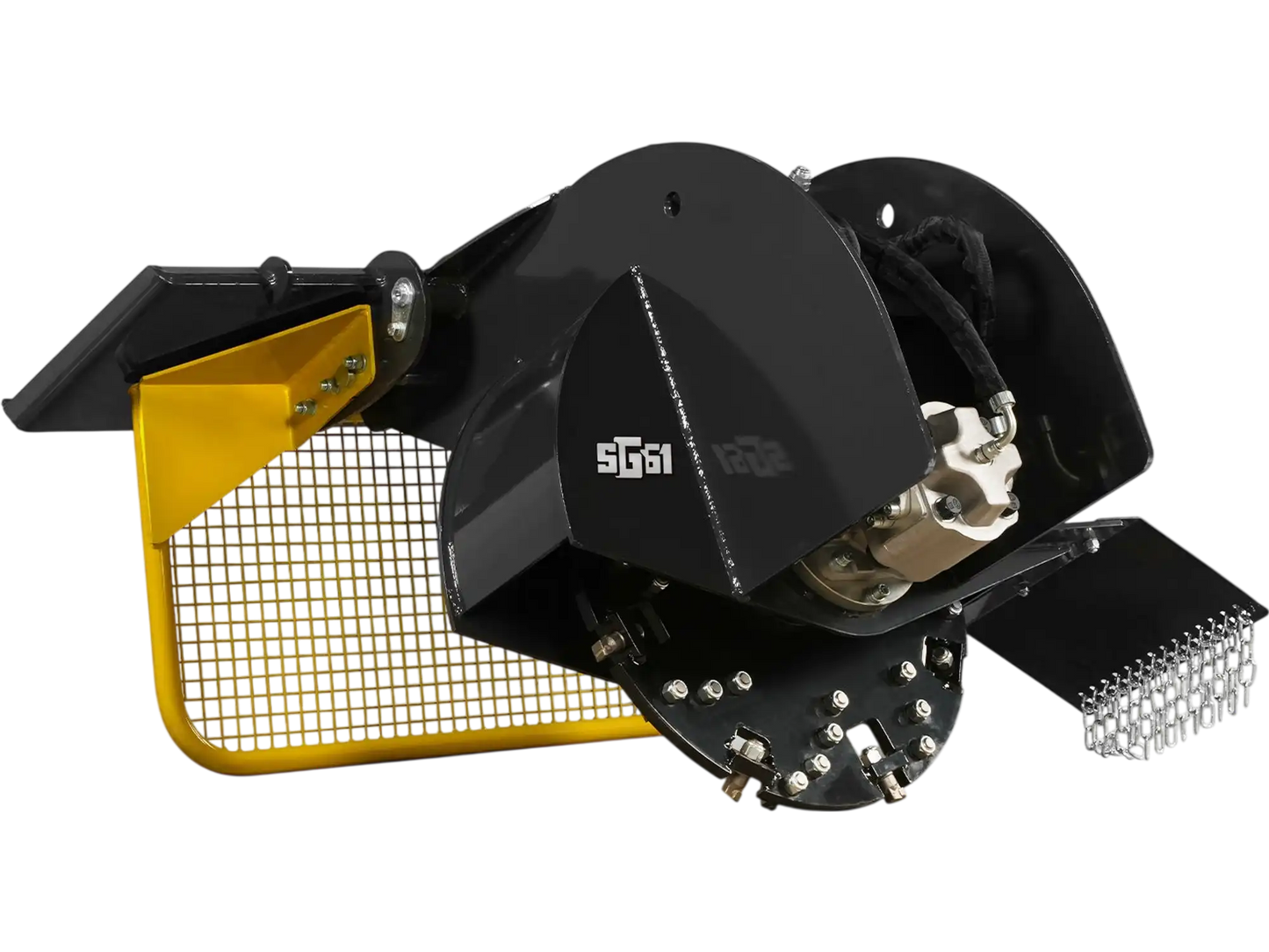

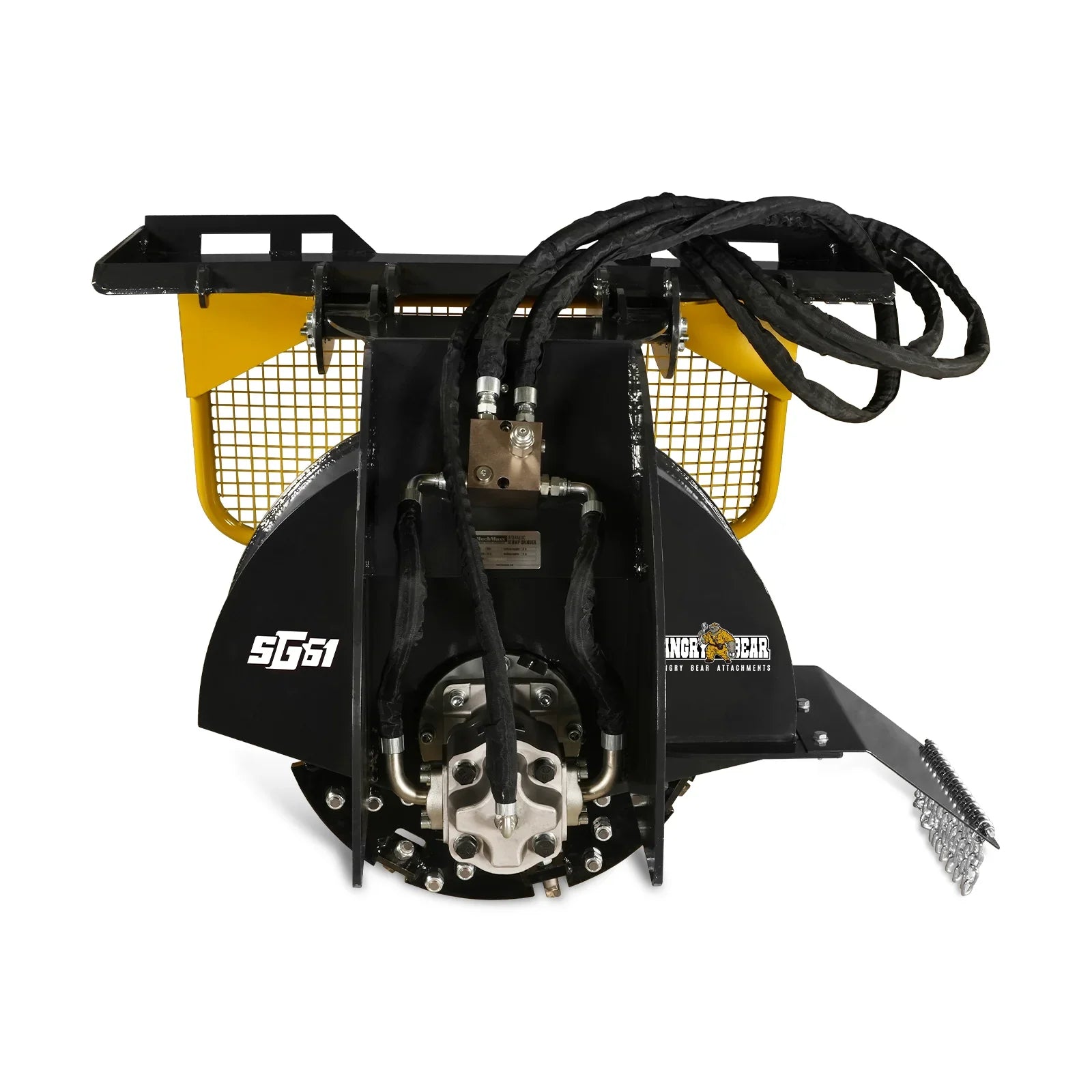

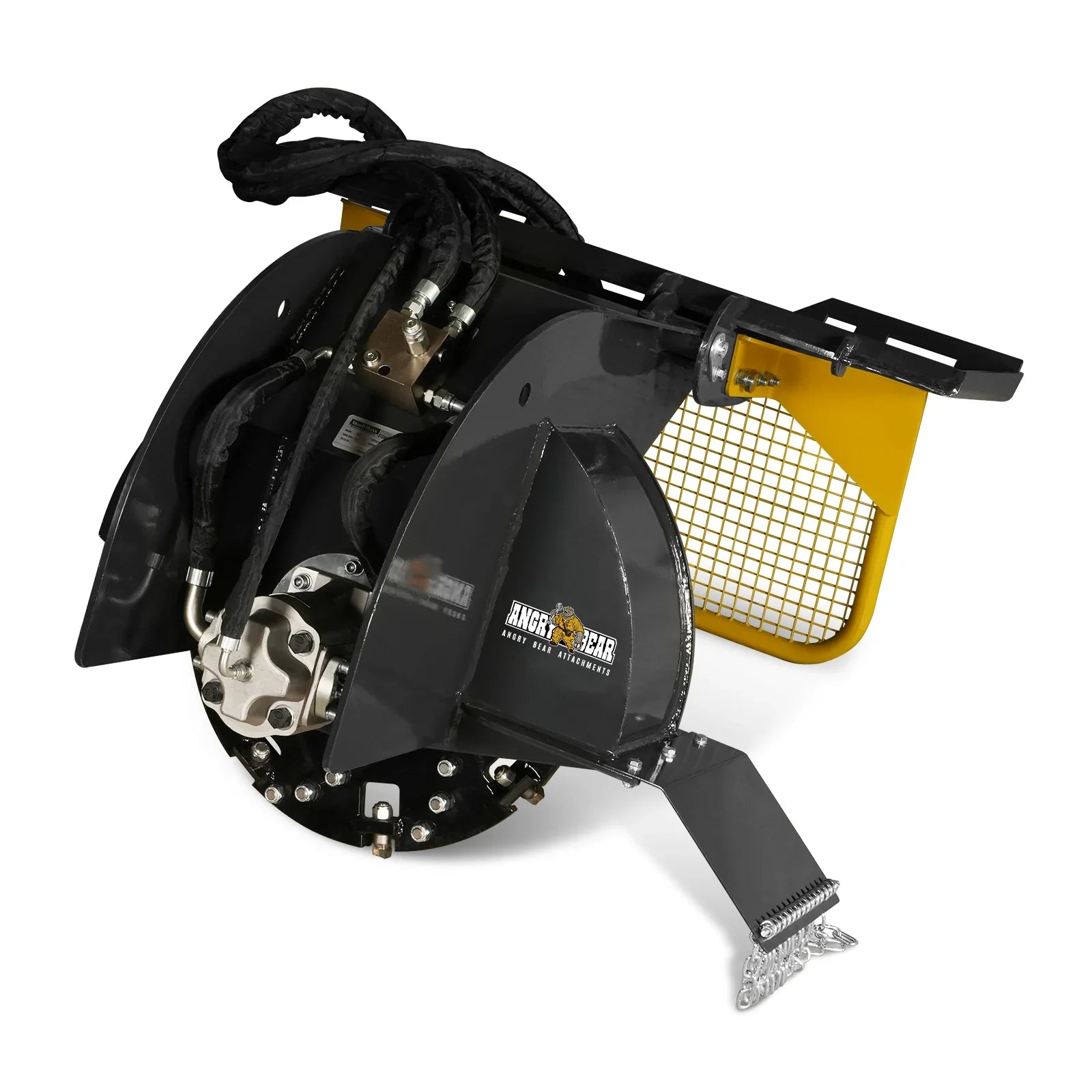

MechMaxx SG61 Stump Grinder Skid Steer Loader Attachment 34 Carbide Teeth 18-23 GPM New

MechMaxx

$2,999.00
$2,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • For those looking for an affordable grinder with the same performance, the SG61’s simplified hydraulic design eliminates expensive and unnecessary components for user convenience.

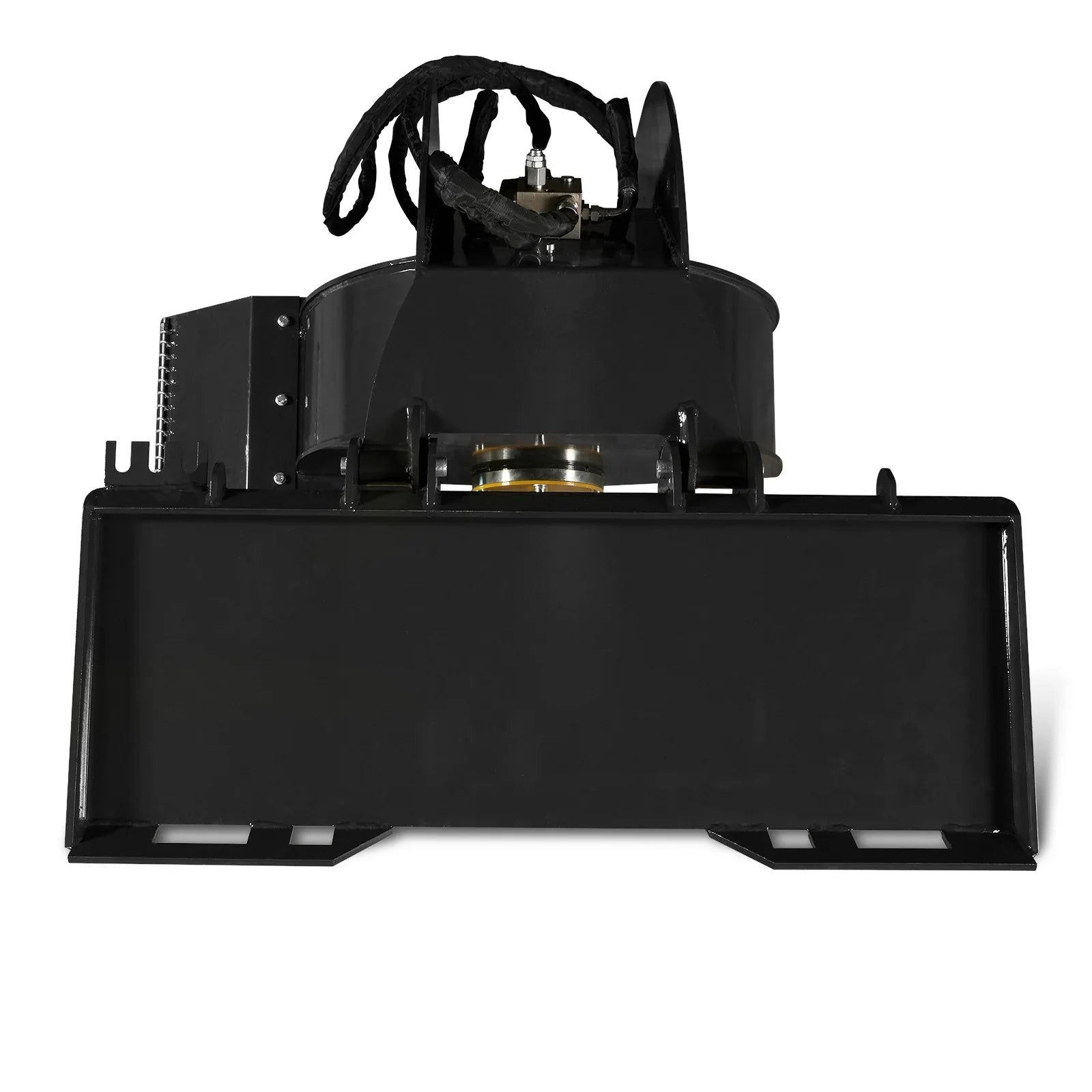

  • The SG61 connects to the skid steer via a skid steer quick coupler with a recommended flow of 18-23 GPM. It is also designed with a hinge pin that provides a degree of freedom to help prevent the cutting wheel from stalling.
  • The SG61 also features a built-in pressure relief valve to protect your machine. Simply drive the skid steer in reverse to operate the grinder. 100% of the hydraulic output is used for the cutting wheel for maximum efficiency.

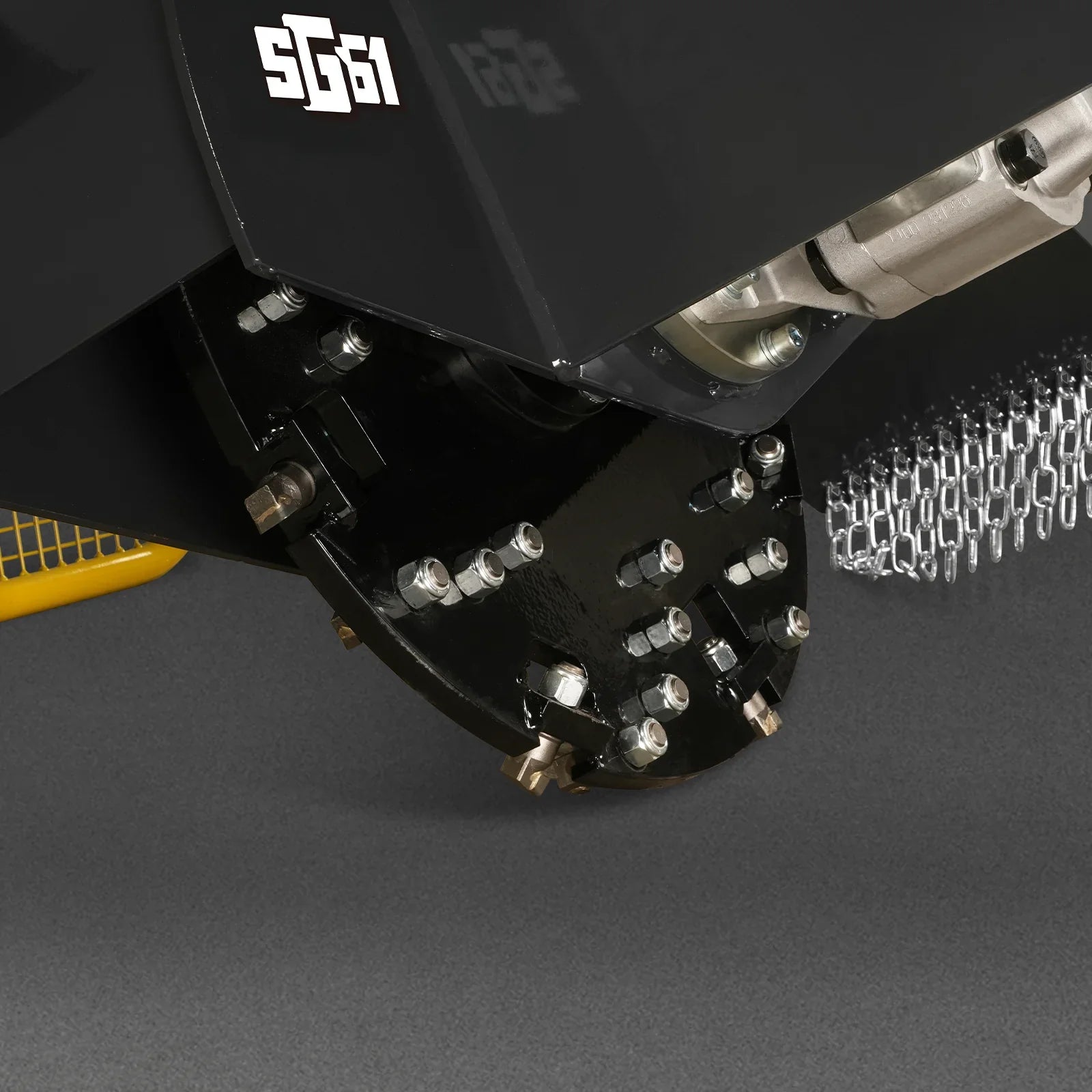

  • The SG61 features 34 carbide steel bolt-on and replaceable teeth, a cutting speed of 830-1060 RPM, and a 6.7-inch underground cutting depth to prevent unwanted tree regrowth.
  • The grinding wheel features a low-profile design that is always visible in the cab for safe and accurate use every time, and is equipped with a bolt-on mesh safety deflector to protect your skid steer from flying debris. The mesh shield also doubles as a stand when not in use.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

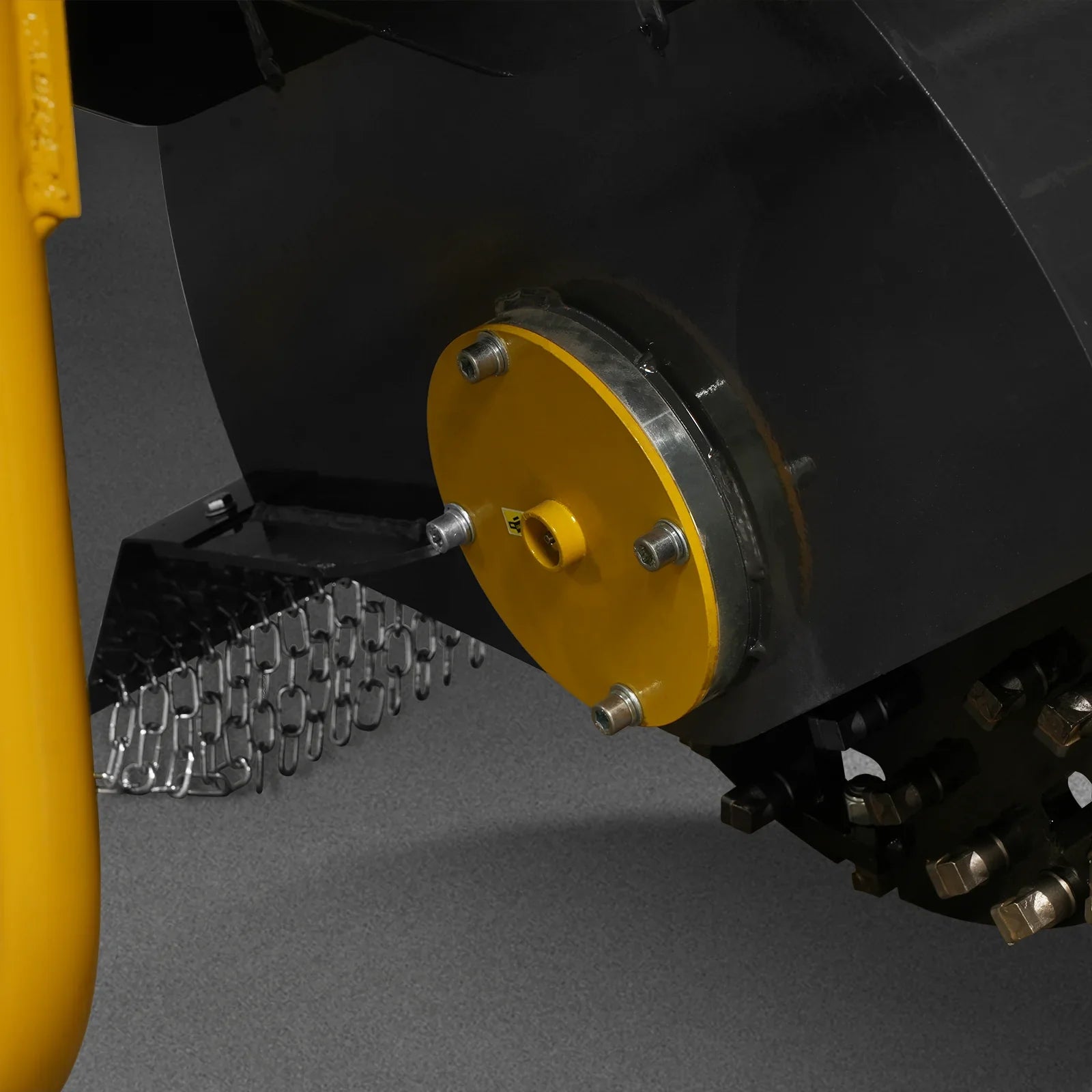

  • 24’’ Flywheel Diameter: A large 24’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 24-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.
  • Cutting Depth: Easily grinds underground to a depth of 6.7 inches to remove tree roots and prepare for grading or lawn.

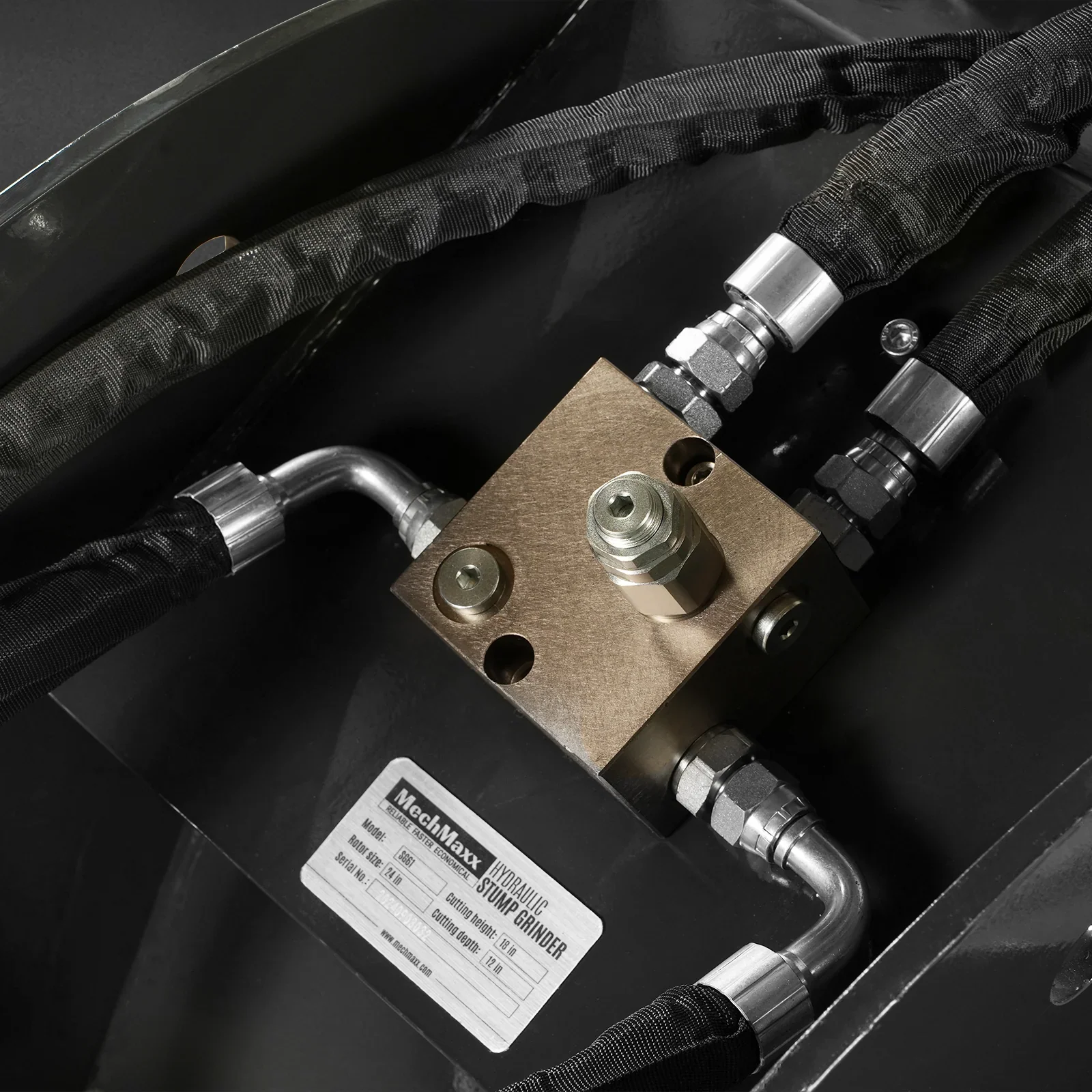

  • Built-in Pressure Relief: The SG61 features a built-in pressure relief valve to protect your machine. Simply drive the skid steer in reverse to operate the grinder. 100% of the hydraulic output is used for the cutting wheel for maximum efficiency.

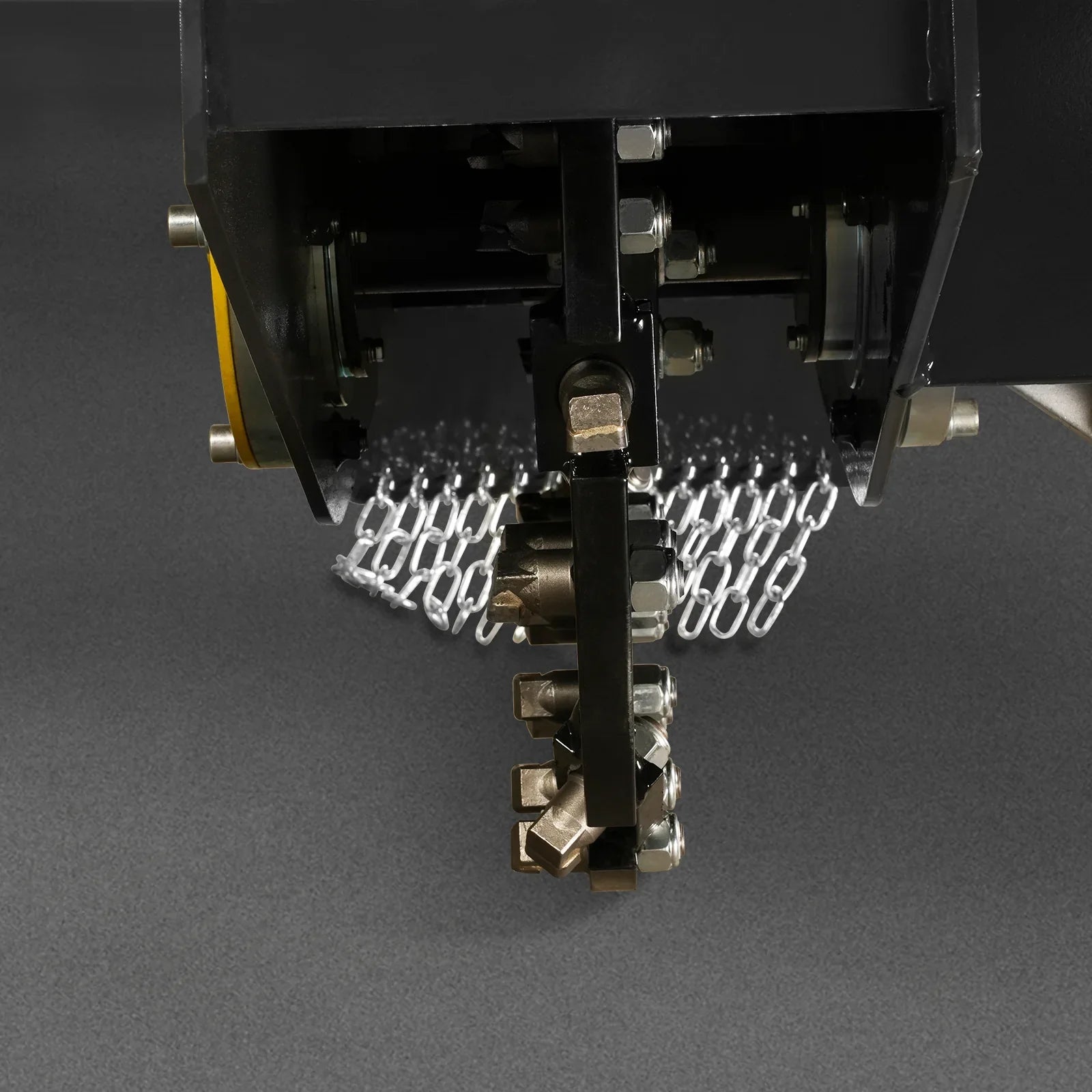

  • 34 Tungsten Carbide Cutting Teeth: Equipped with 34 tungsten carbide cutting teeth that sharpen stumps quickly, speeding up work and making stump removal a breeze. Easy to replace the blade.
  • Hydraulic Flow Rate: The SG61 connects to the skid steer via a skid steer quick coupler with a recommended flow of 18-23 gal/min.

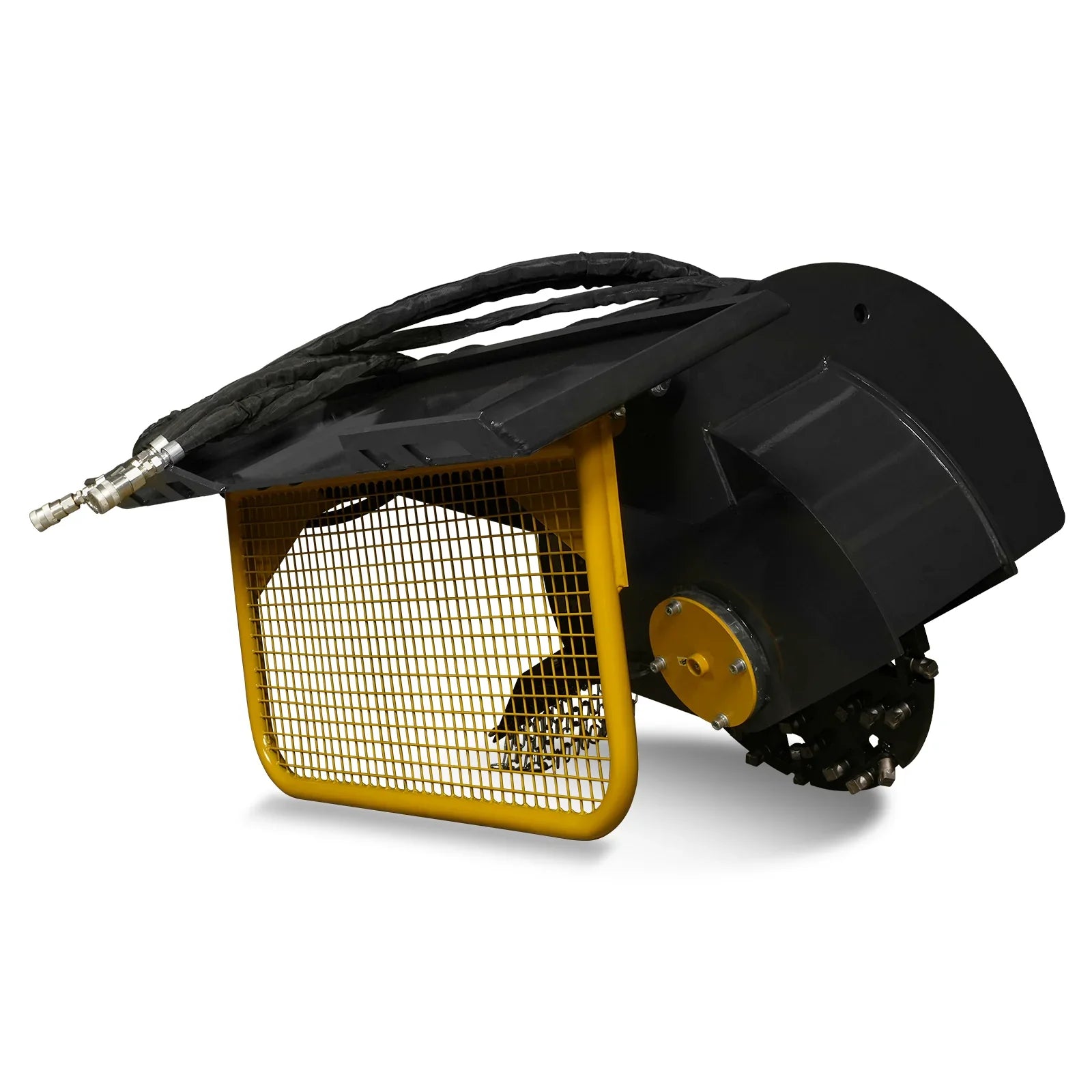

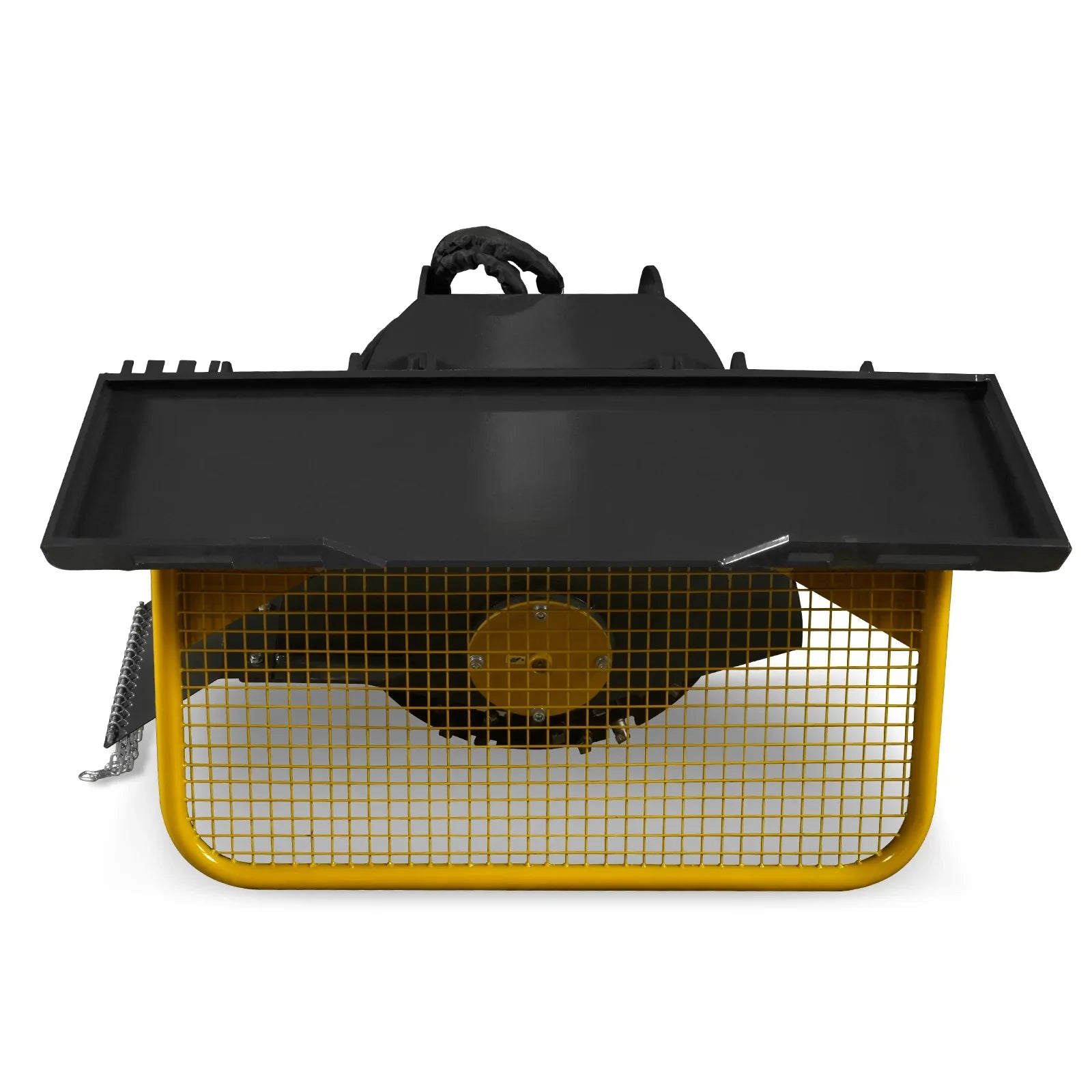

  • Bolt-on Mesh Safety Deflector: The SG61 equipped with a bolt-on mesh safety deflector to protect your skid steer from flying debris. The mesh shield also doubles as a stand when not in use.

Flow Range Low: 18 gal/min

Flow Range High: 23 gal/min

Auxiliary Pressure: 3,000 psi

Cutting Height Below Ground: 6.7 in

Rotor Size: 24 in

Cutting Wheel Speed: 830 – 1060 RPM

No. of Teeth: 34

Carbid Tip Material: YG11C

Overall Size: 49 in x 51 in x 37 in

Package Method: Iron Fram with film

Finish: Durable Powder Coated finish

Packing Size: 47x35x33 in

Weight (N.W./G.W.): 644/728 lbs

This item comes with a 1 year factory warranty.
PDF SG61 Product manual 1.0
