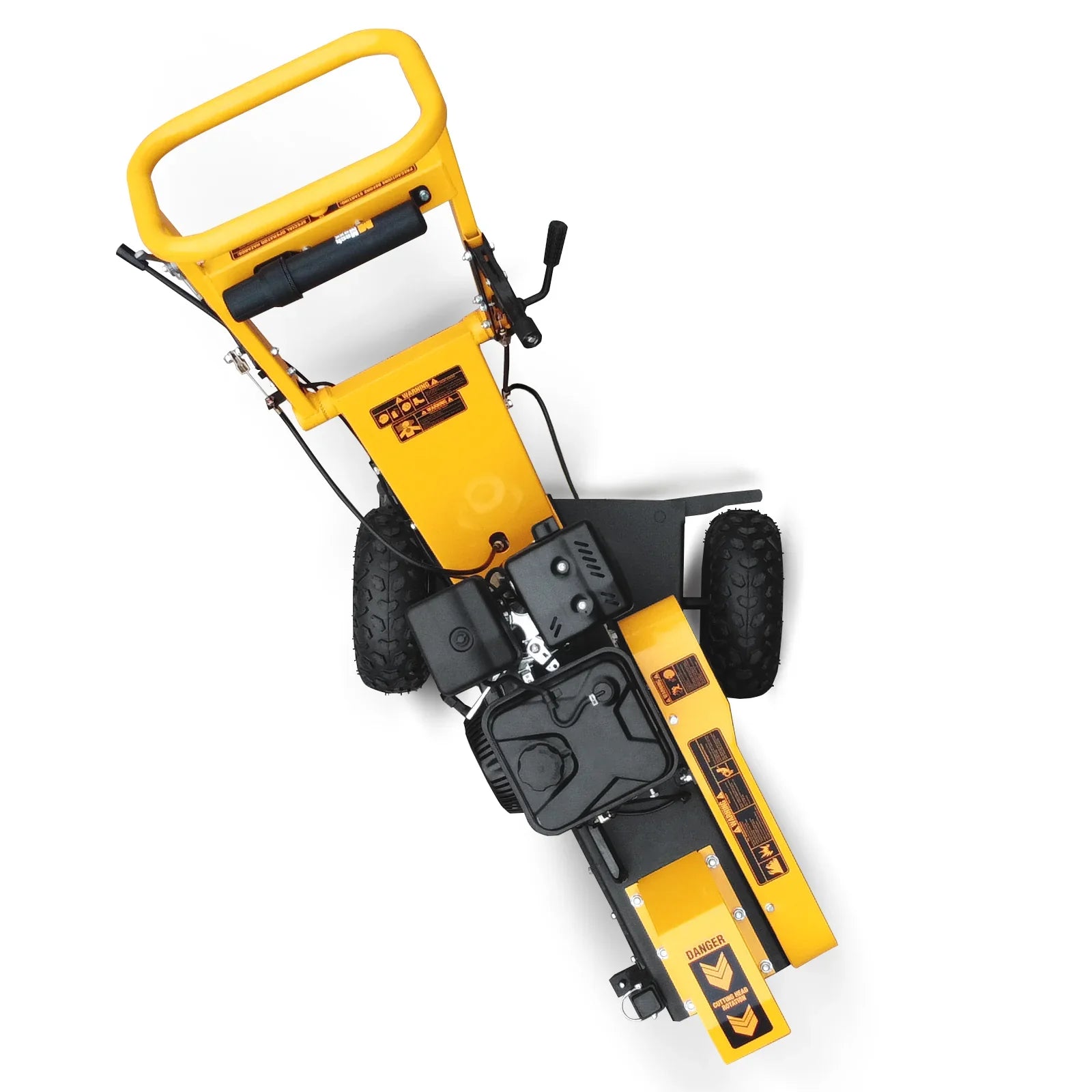

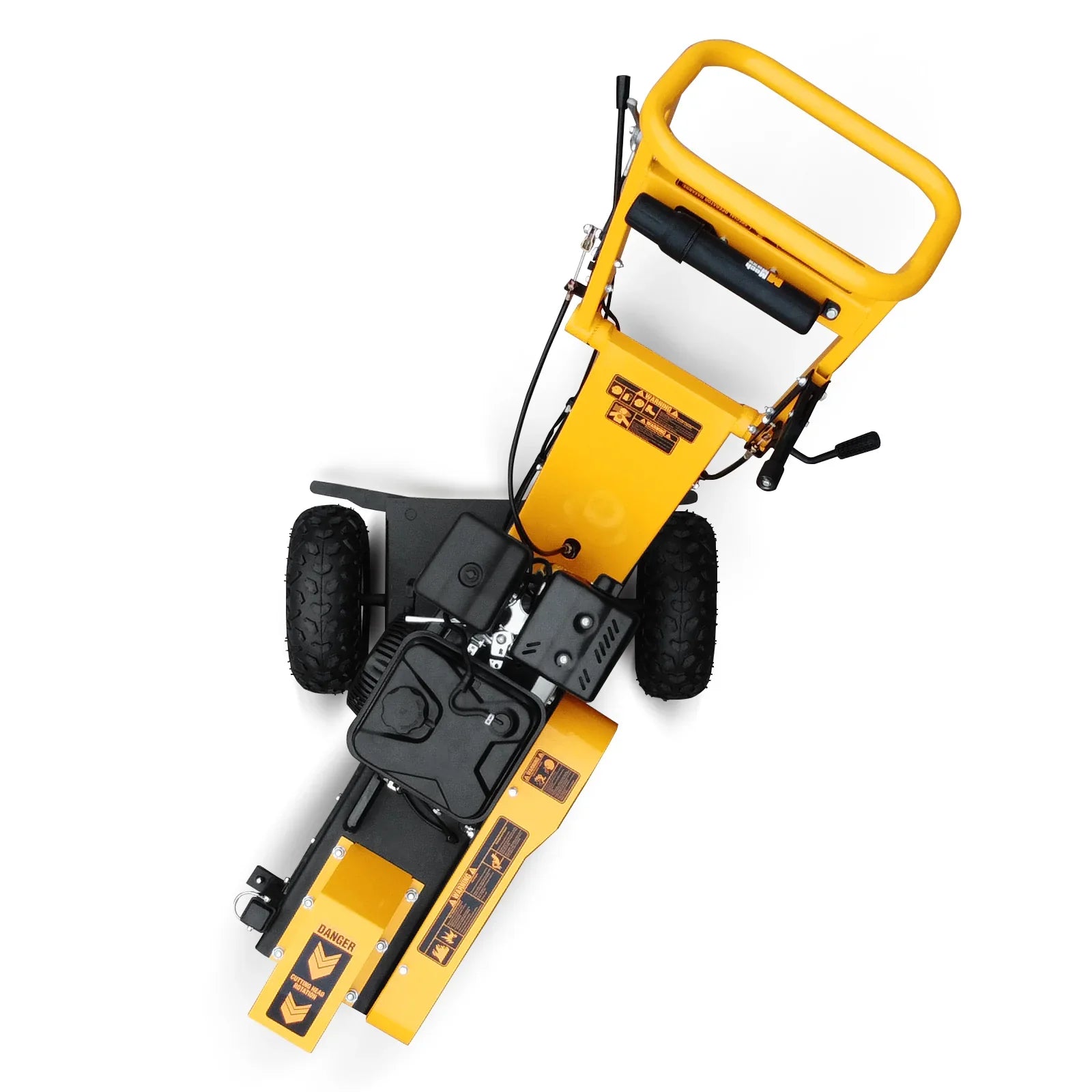

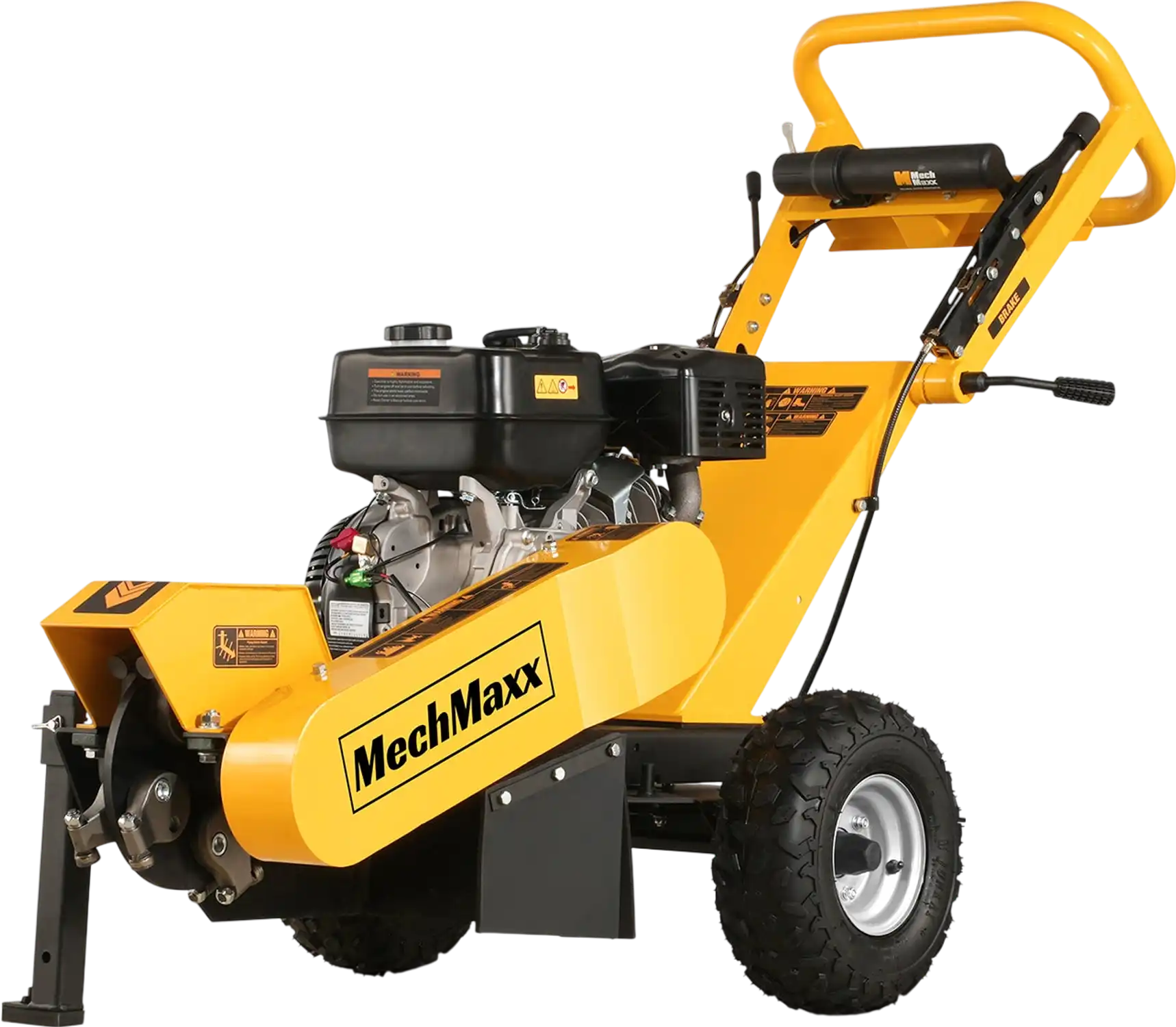

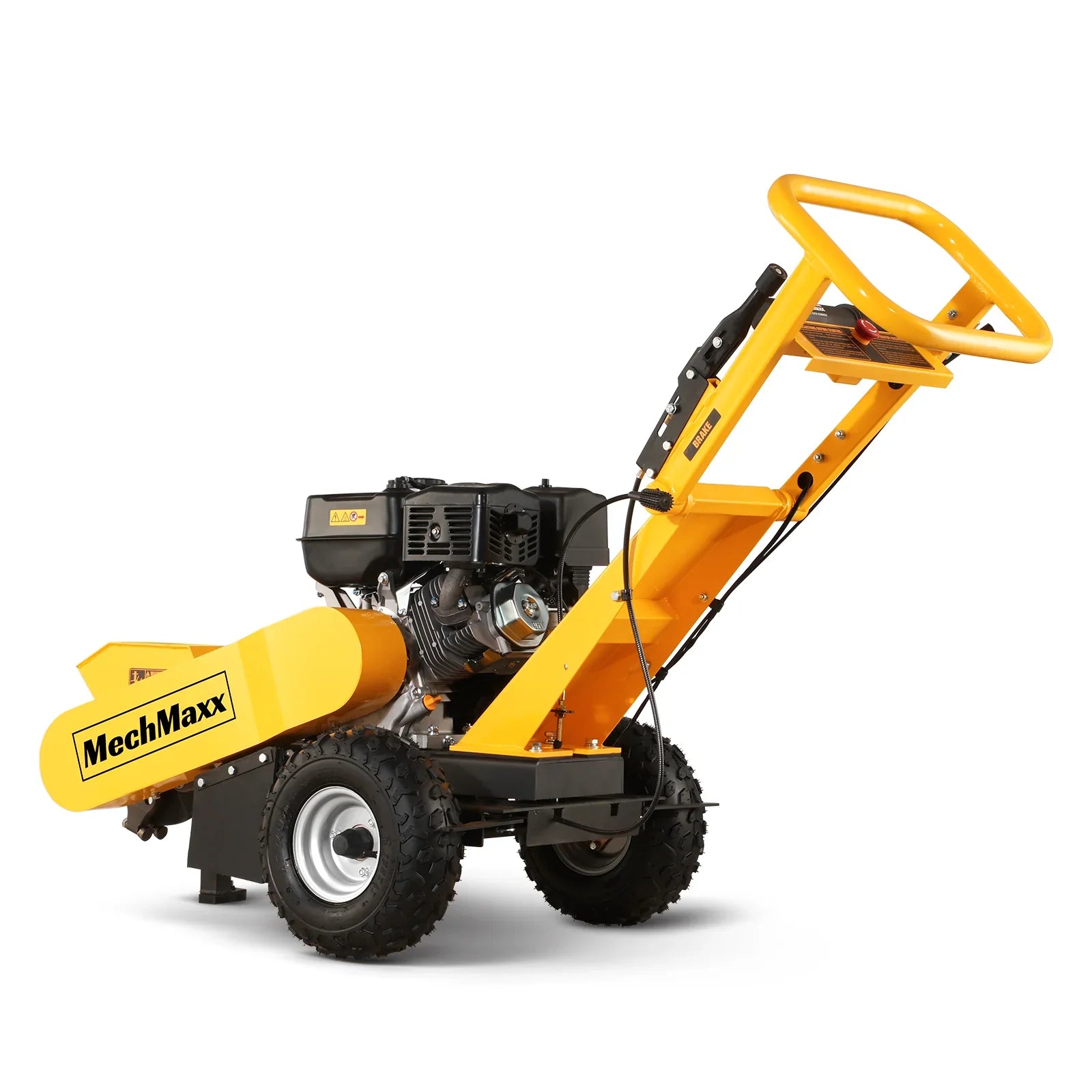

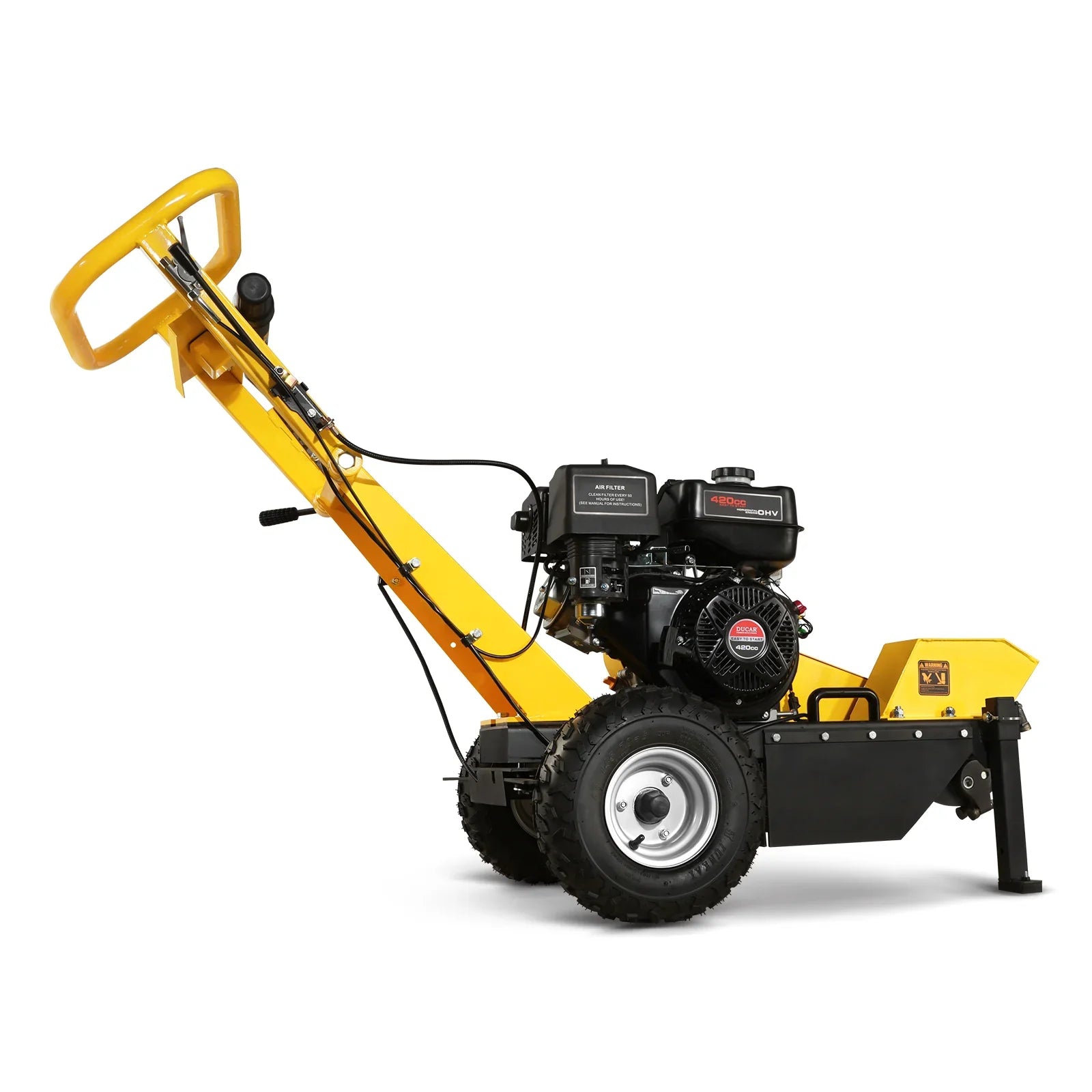

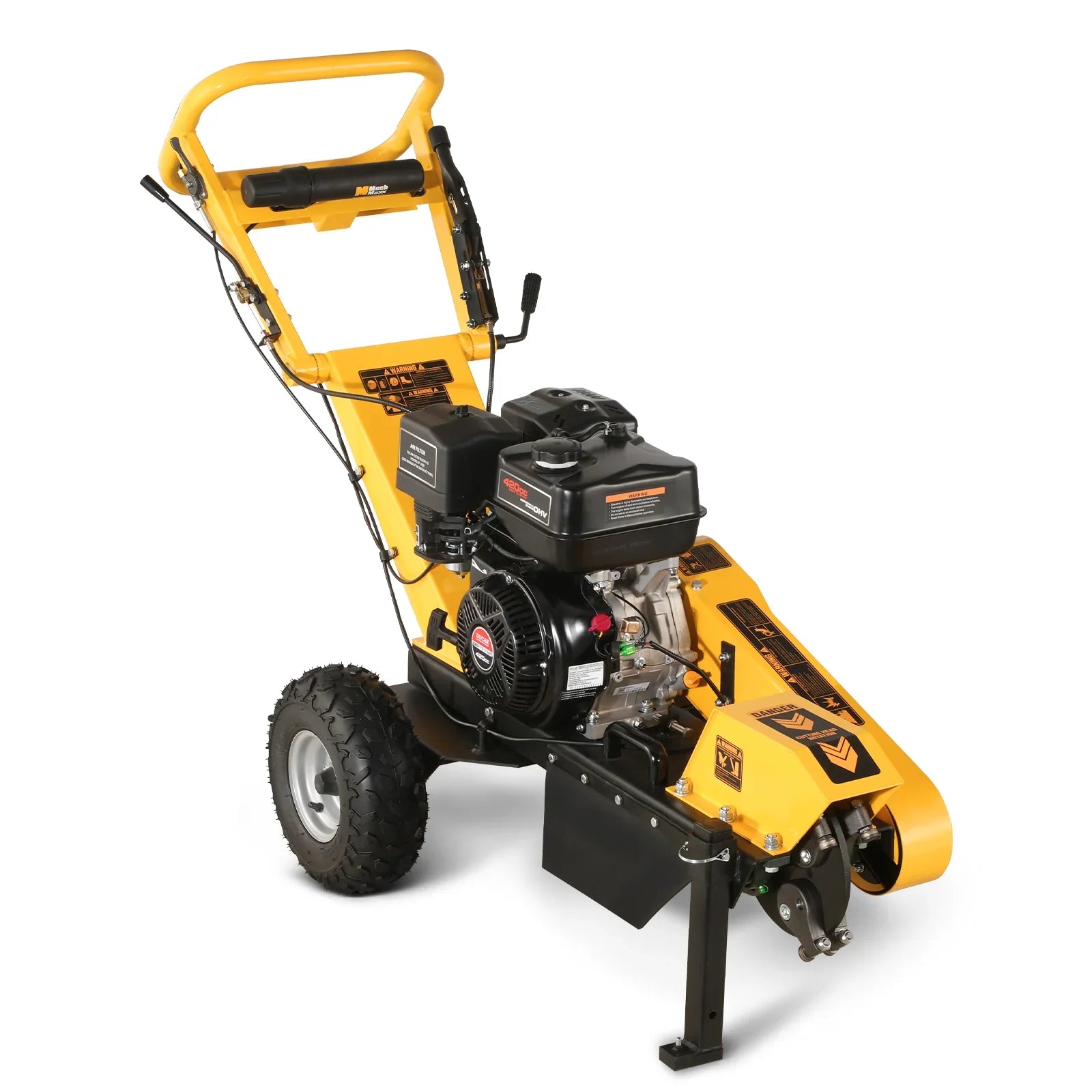

MechMaxx SGR1500 Stump Grinder 15HP 420cc Gasoline Engine Tree Root New

MechMaxx

$1,799.00
$1,799.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • It is an extremely powerful machine with 8pcs replaceable carbide teeth.
  • The power is delivered to the stump cutting wheel via a centrifugal clutch and 2pcs driving belts.
  • The belts are easily adjusted by loosening the engine bolts and rotating the belt adjuster.
  • The grinder is capable of removing the toughest and most awkward tree stumps with minimal effort.
  • Gasoline/Petrol: Clean, fresh, unleaded gasoline
  • Oil: 10W-30
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

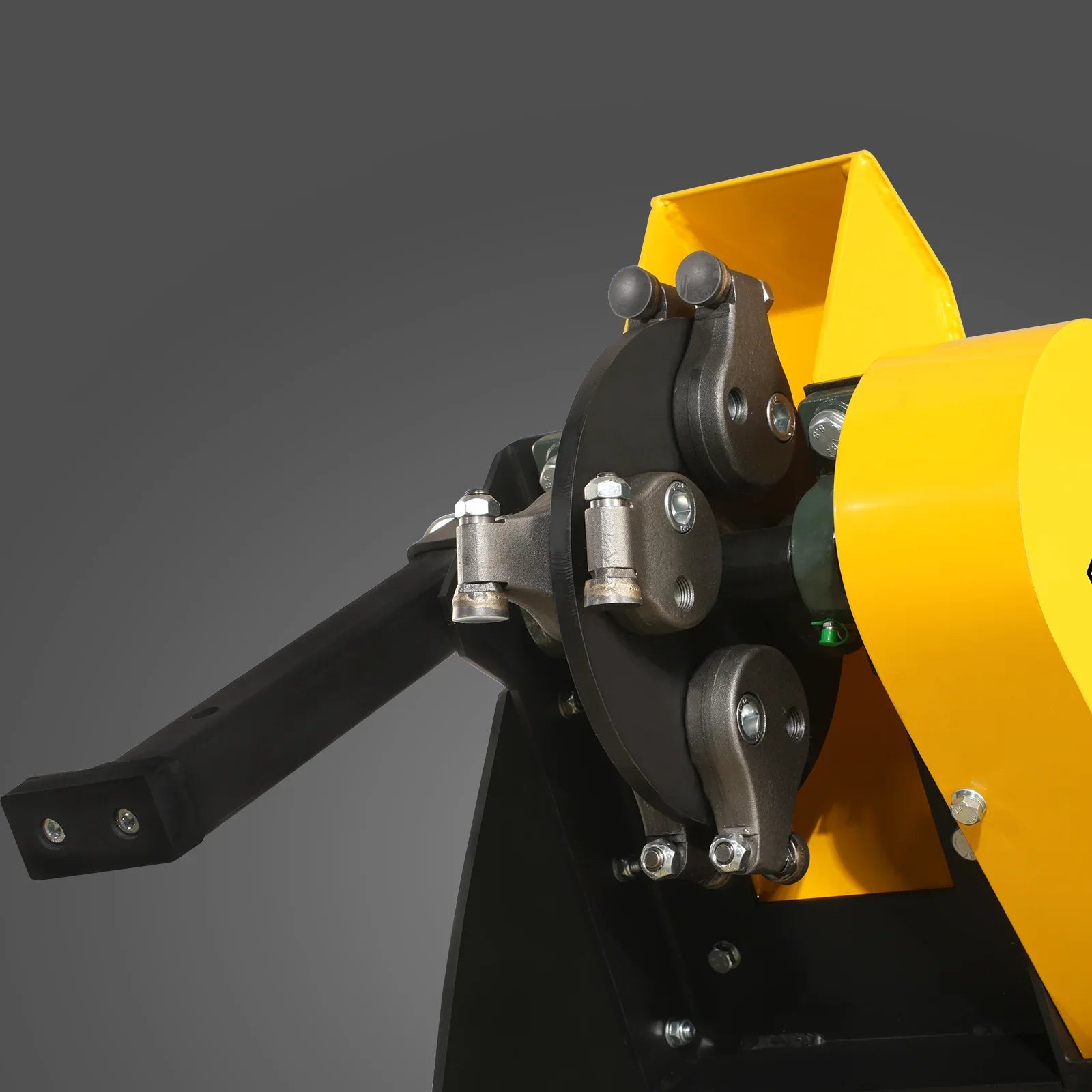

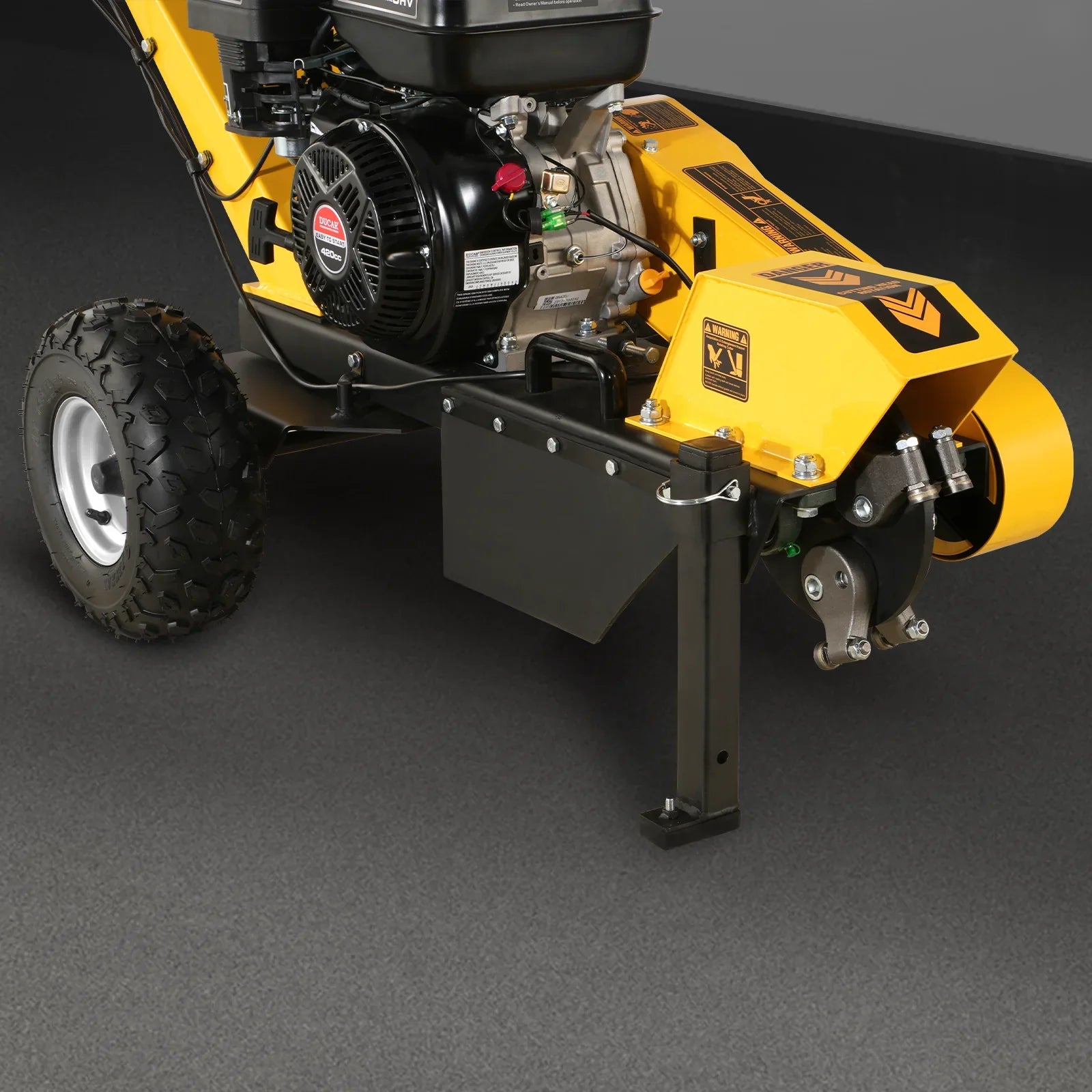

  • Cutter Wheel and Teeth: Mounted on the 10-inch diameter cutter wheel are 8 sets of professional-grade teeth, enabling a cutting diameter of an impressive 12 inches . This allows for cutting stumps at a higher elevation from the ground. The pocket is forged from 42CrMo, and teeth are made of YG11C alloy, with a diameter of 1 inch. This design ensures more efficient stump cutting, improving work efficiency by approximately 35% compared to other types of teeth.

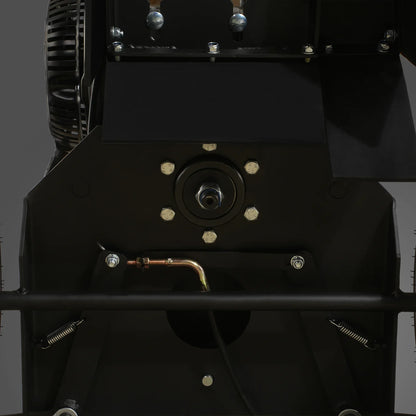

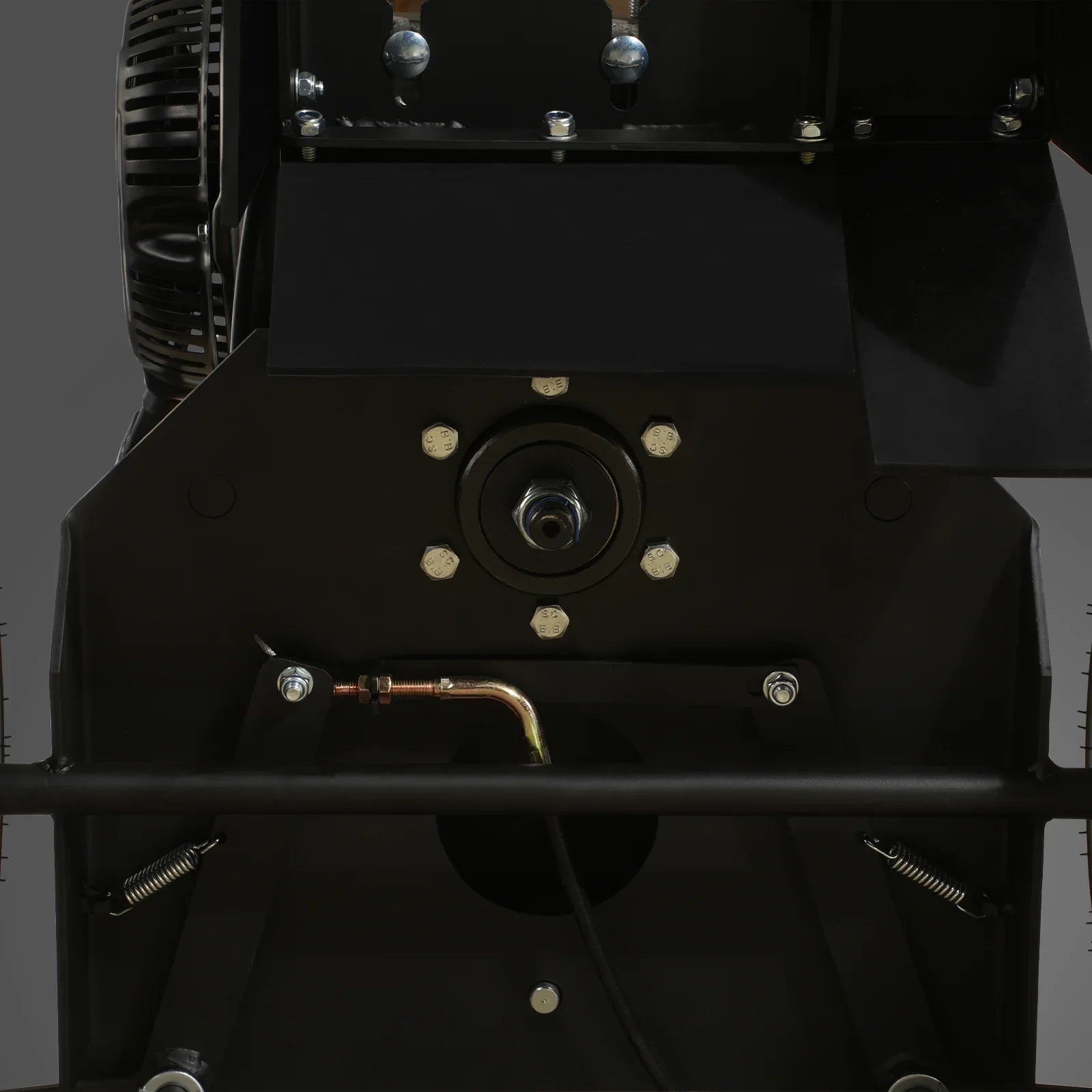

  • Chassis Rotation: The design concept is to integrate the engine, cutter wheel, and handle into a single welded structure as a working unit. There is a set of rotating mechanisms between the working unit and the chassis. The lever on the right side of the handle can lock and release the chassis.
  • Left and Right Swing Rotation Angle: The chassis's left and right swing angle can reach 65 degrees, with a linear distance of up to 31.5 inches. This allows for easy cutting of stumps with a diameter of up to 31.5 inches, relying solely on the simple swinging of the chassis.

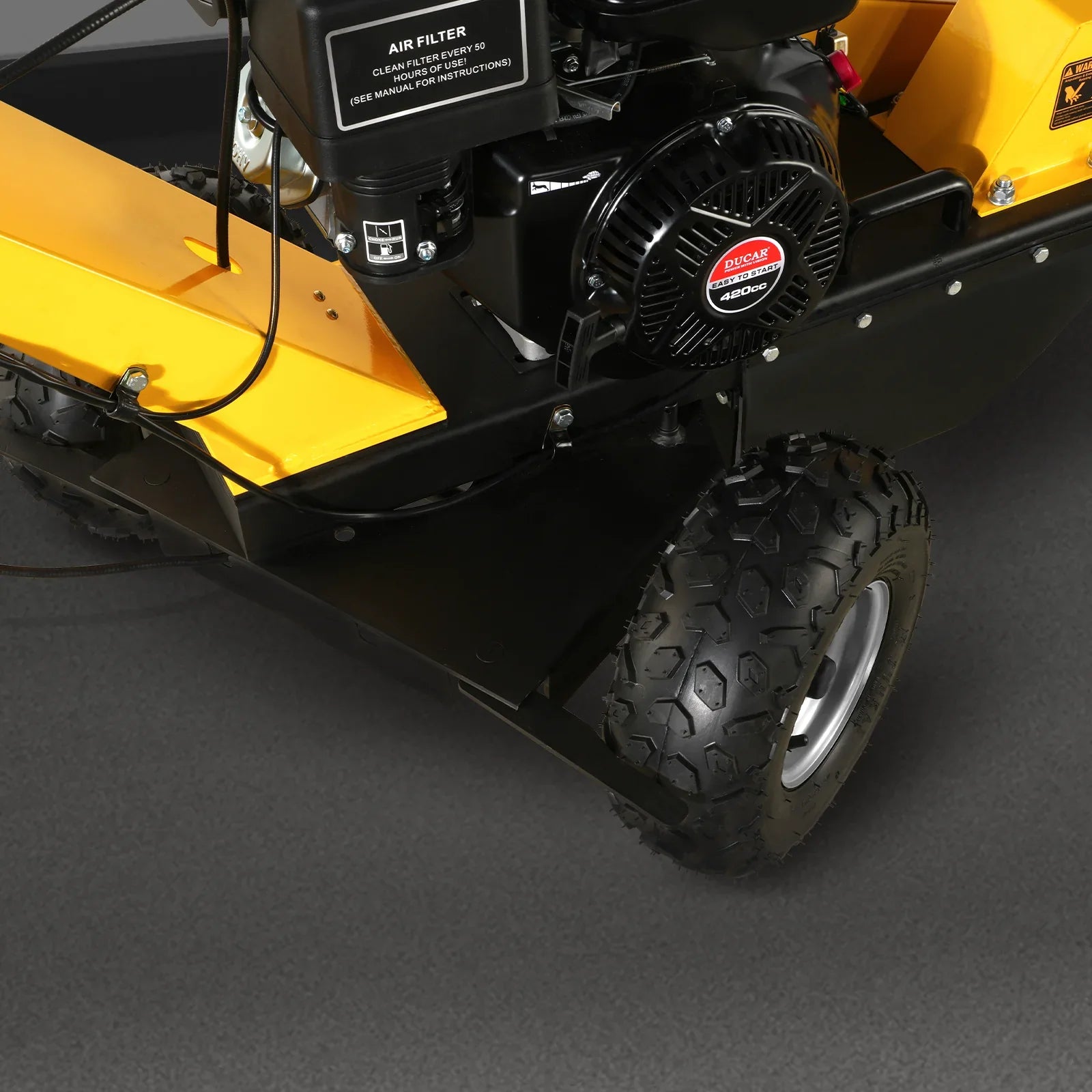

  • Tyre Fixation: In our latest design, both tyres are fixed simultaneously, and the chassis swings left and right to perform tasks. The major advantage of this design is the ability to work more easily and continuously. Fixing both tyres at the same time ensures protection against collision injuries caused by operator errors, greatly improving operational safety.
  • Cutting Height and Depth: With a maximum cutter wheel rotation diameter of 12 inches and a dual-wheel locking design, the handle can easily be pressed down, achieving a cutting height of 12 inches above the ground and a depth of 10 inches..

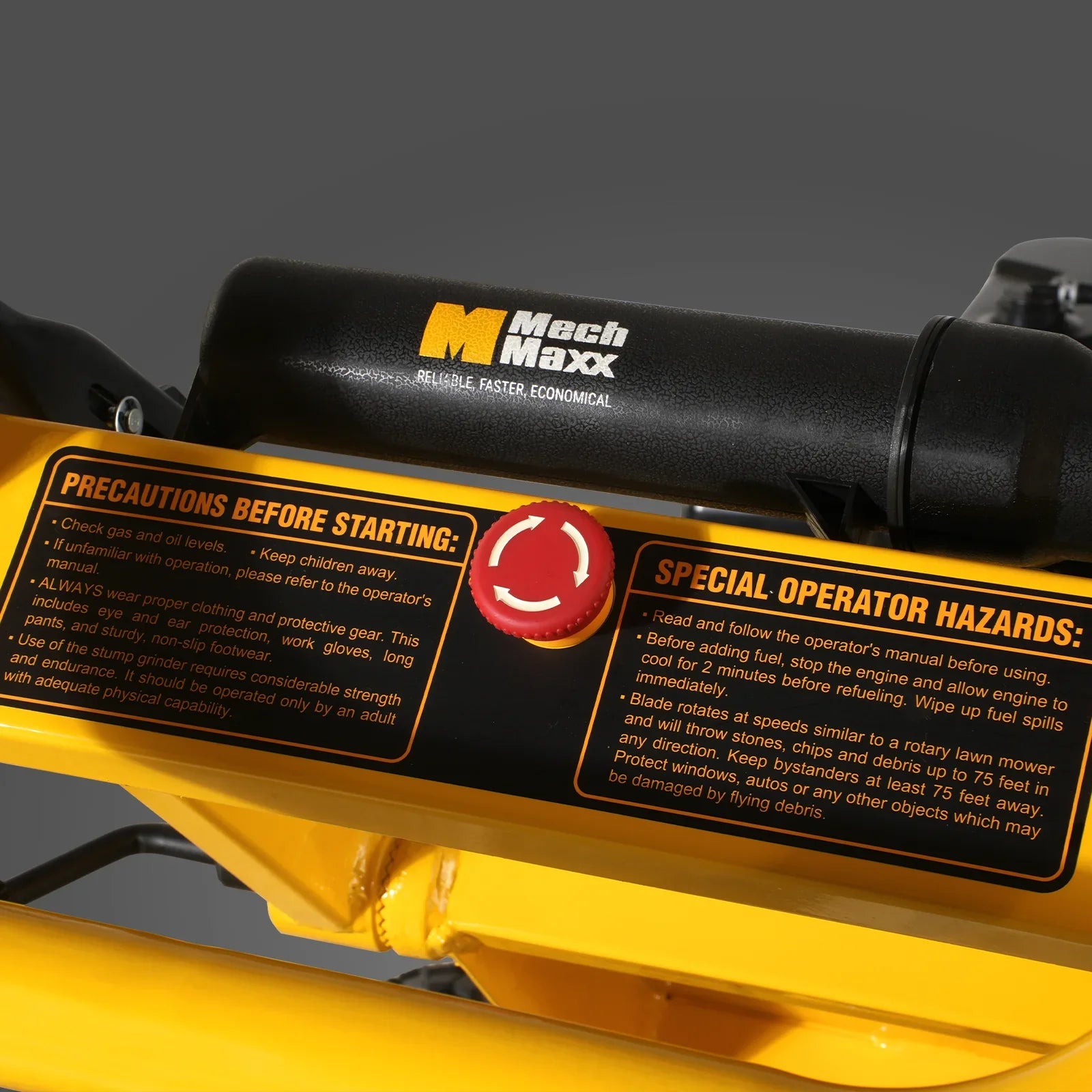

  • Adjustable Rotation Handle: This lever controls the locking and releasing of the chassis. When the chassis needs to rotate during work, lift the lever. To move the machine to the next work area, return the lever to its original position, and simultaneously release the tire brake handle to enable movement.

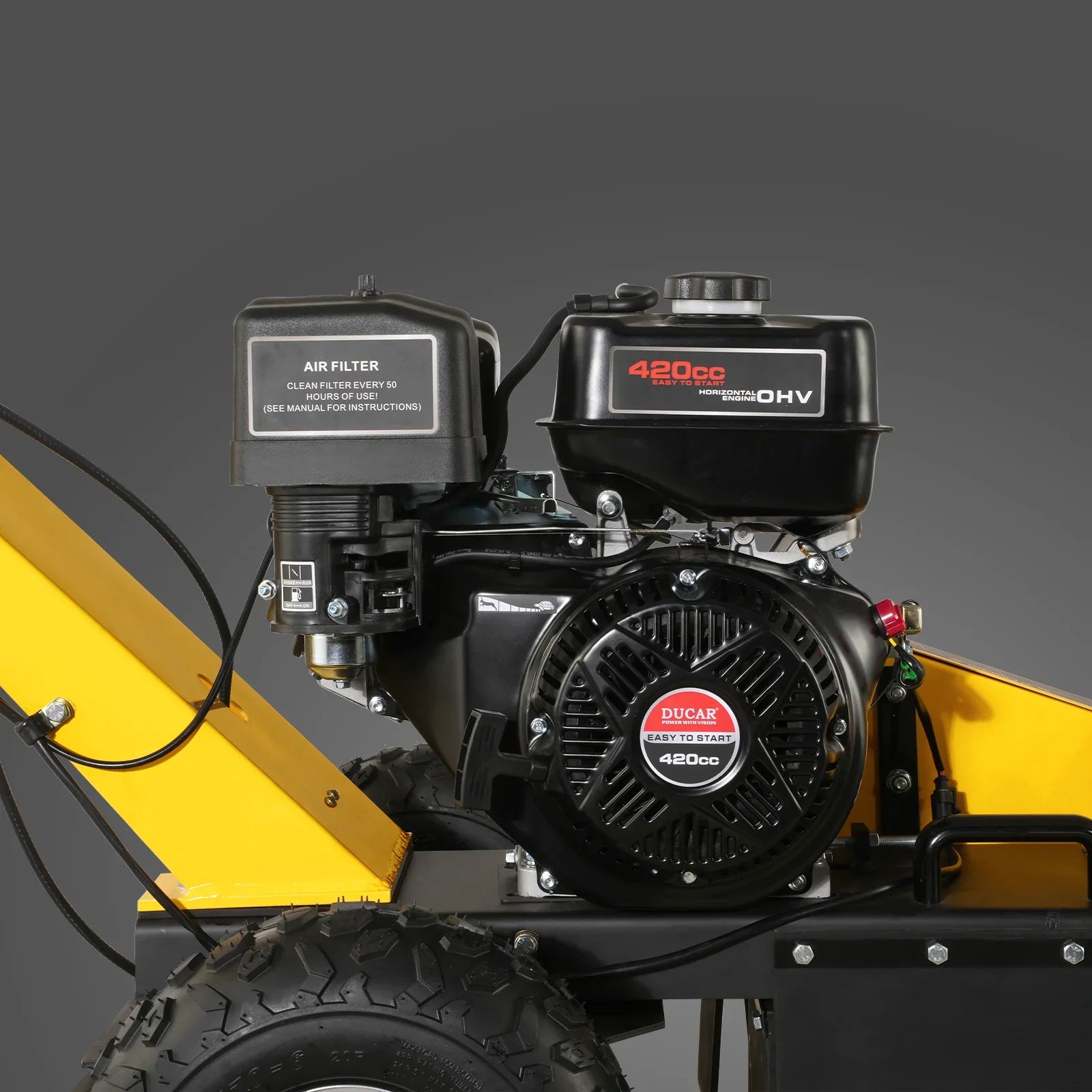

Engine: DUCAR

Carbide Tip Qty.: 8 Pcs

Certification(S): EPA Phase III, CARB Phase III

Tip Holder Material: 42CrMo

Engine Type: Single Cylinder, 4 Stroke, Air-Cooled, OHV

Carbid Tip Material: YG11C Alloy

Displacement/ HP: 420 cc; 15 HP

Cutting Height: 12 in Above Ground

Start: Recoil

Cutting Depth: 10 in Below Ground

Brake: Drum Brake

Max. Speed: Off-Road Only and Max. Speed 15mph

Belt: 2 x V-Belts

Front Wheel: 10 in

Belts Material: Kevlar

Tire: 145 / 70-6 Tubeless Tyre

Clutch: Centrifugal Clutch

Assembled Weight: 265 lbs

Cutting Wheel Dia.: 12 in

Gross Weight: 320 lbs

Cutting Wheel Thickness: 0.47 in

Packing Size: 41 x 28 x 26 in

This item comes with a 1 year factory warranty.
PDF SGR1500 Product manual 1.0 PDF Ducar DH420 Manual
