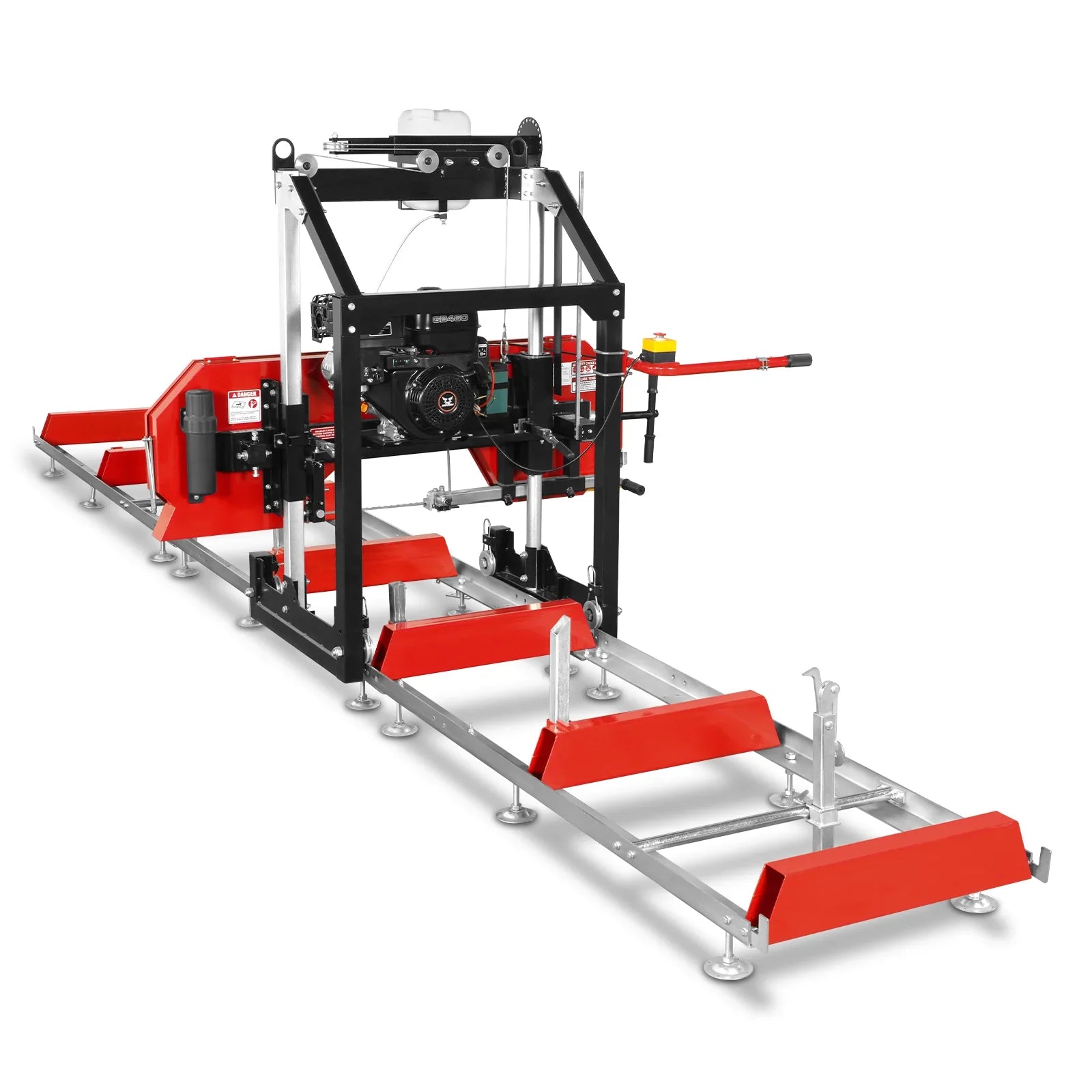

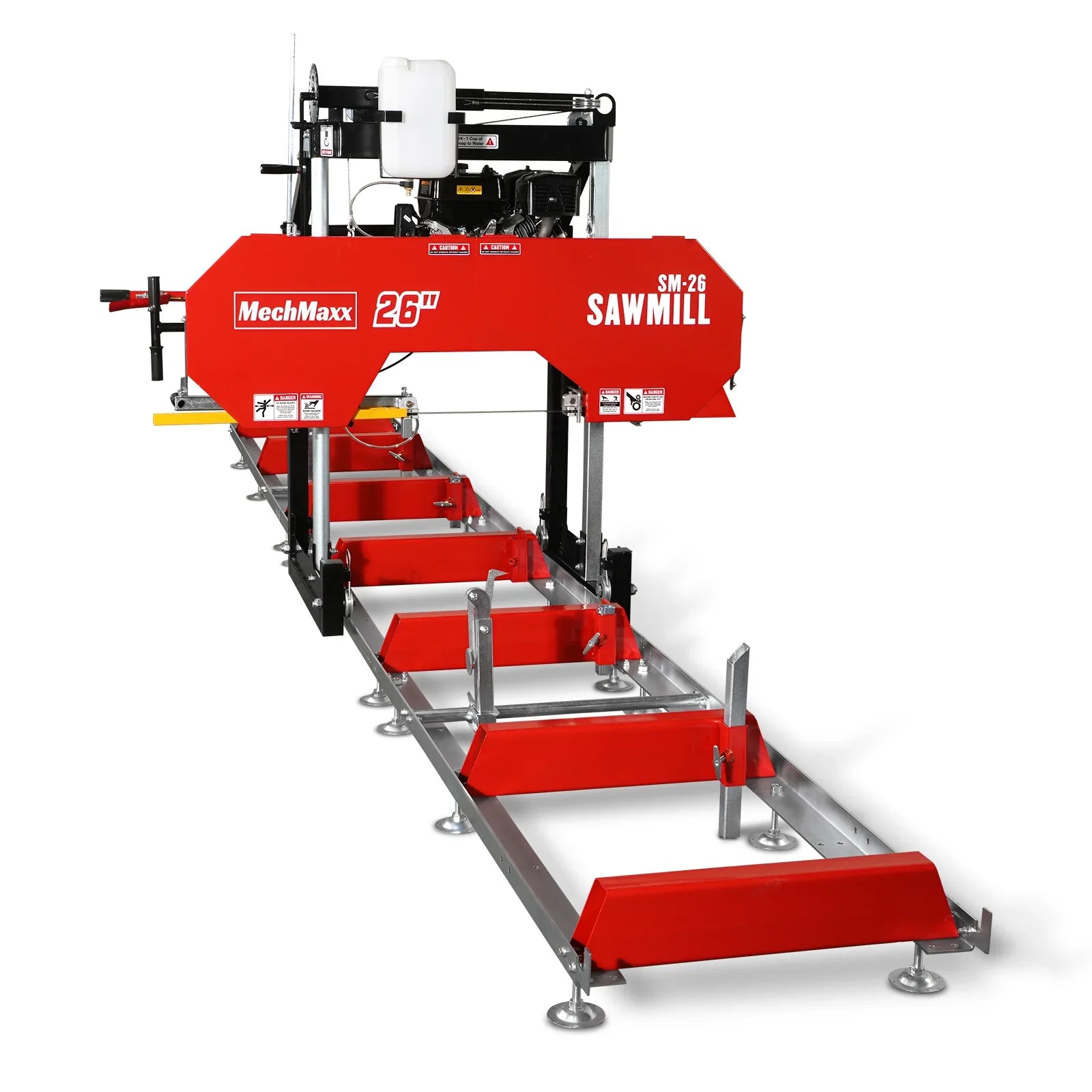

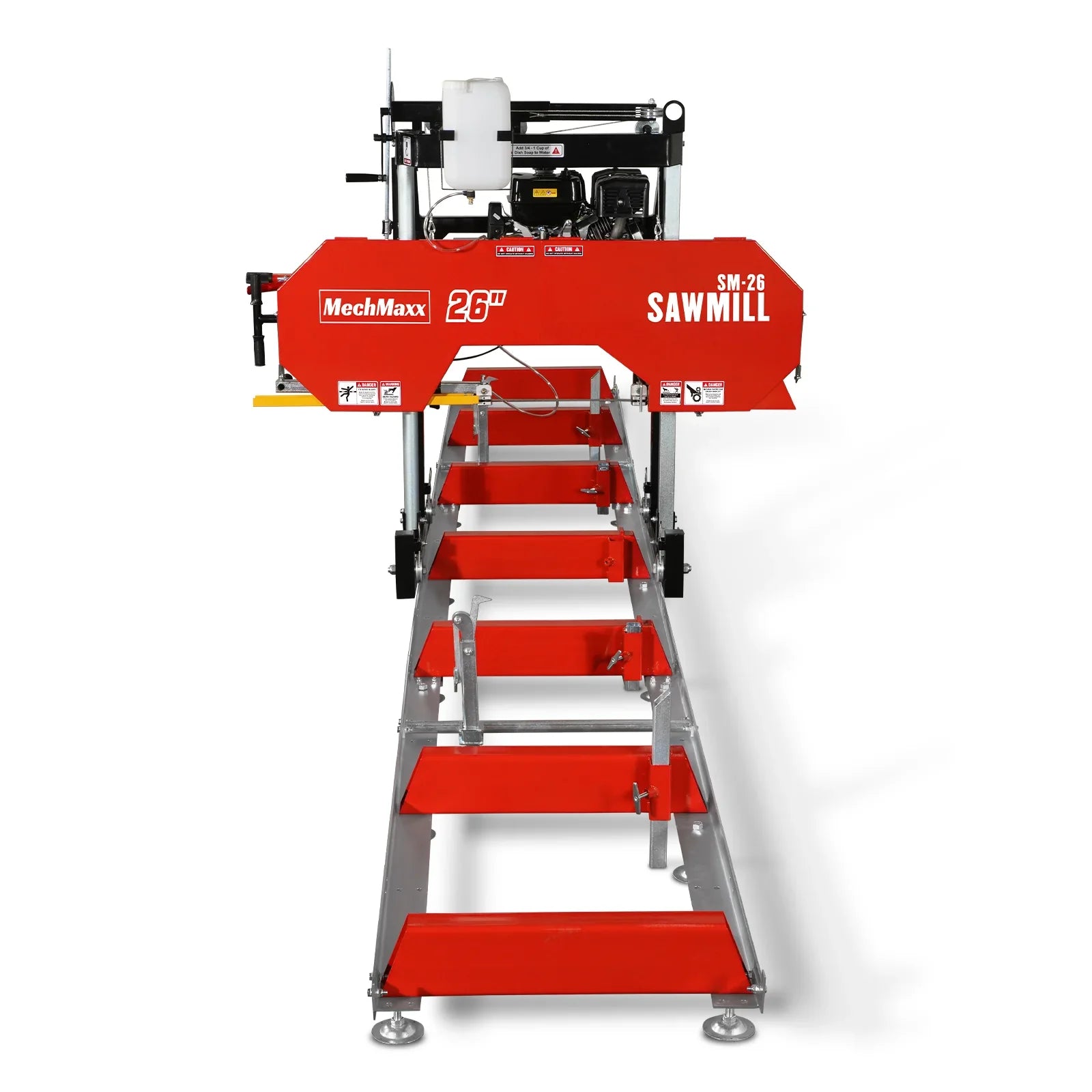

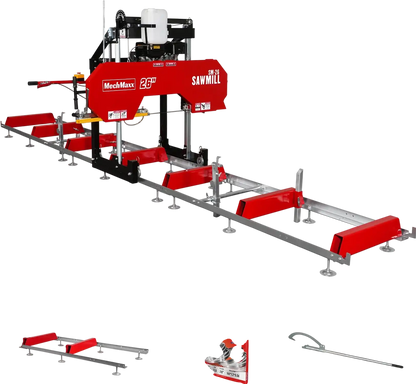

MechMaxx SM26 Sawmill Portable 26" 15 HP Electric Start Gasoline Engine 20" Board Width 20' Track Length New

MechMaxx

$2,599.00
$2,599.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Fully capable of cutting large 26" logs and planks up to 7" wide in half the time compared to a regular chainsaw.
  • Comes fully equipped with a reliable, high-performing engine that can be used for an extended period of time.

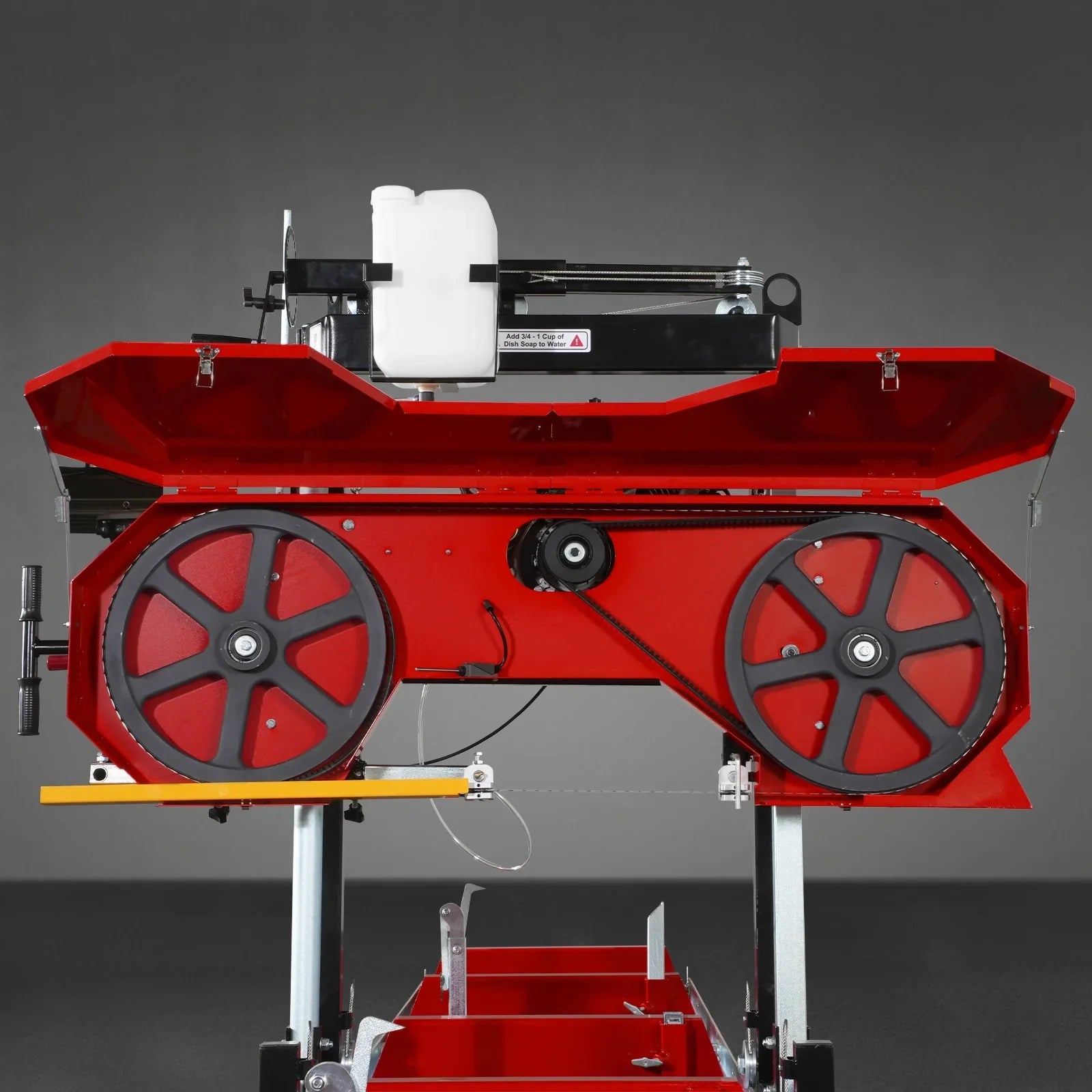

  • The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
  • Can withstand heavy workloads for long hours, even in remote areas.
  • The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
  • You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Electric Start: This sawmill is equipped with an electric-start Zonsen engine and a 12V20AH lead-acid battery, which has excellent performance, reliable quality, and can be used for a long time.

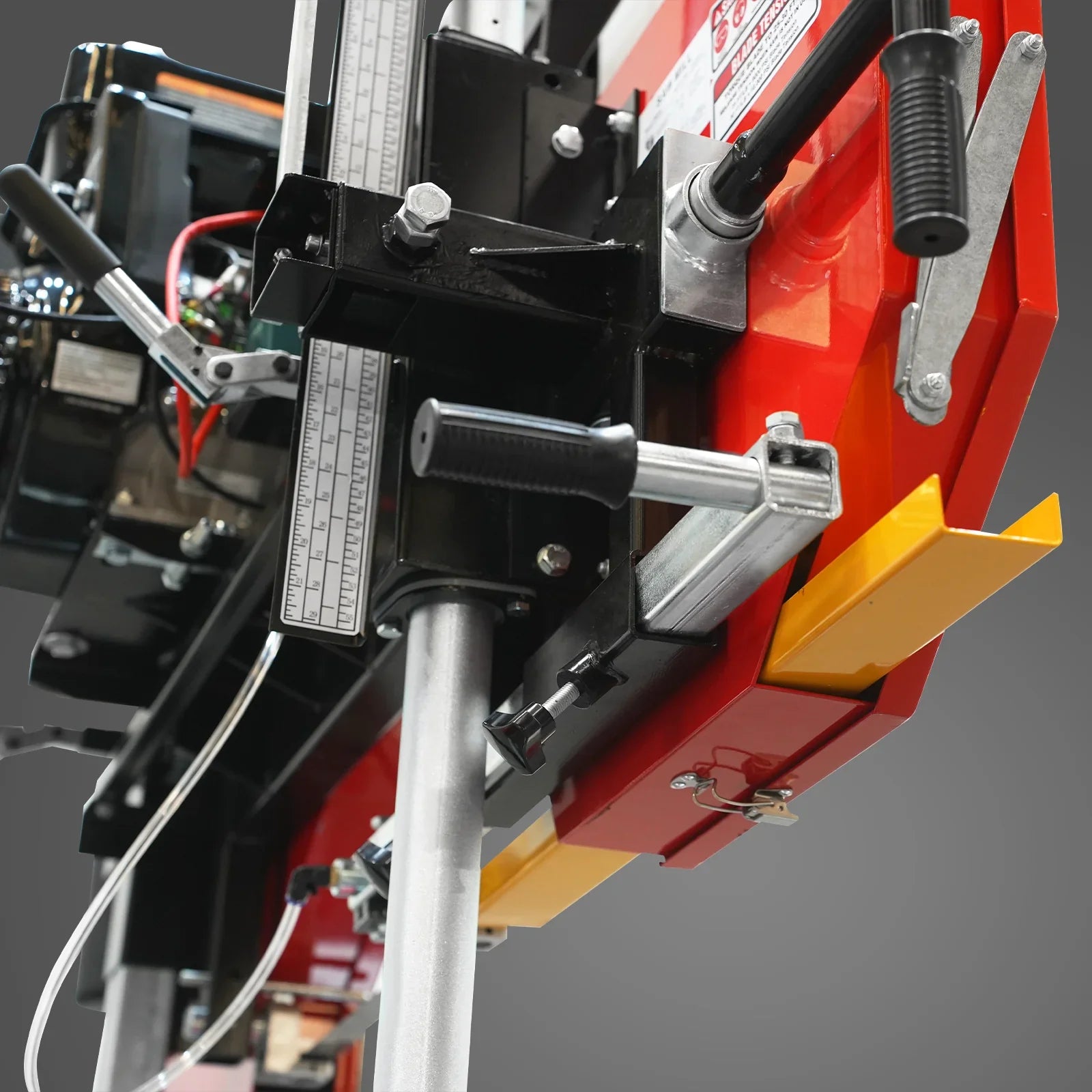

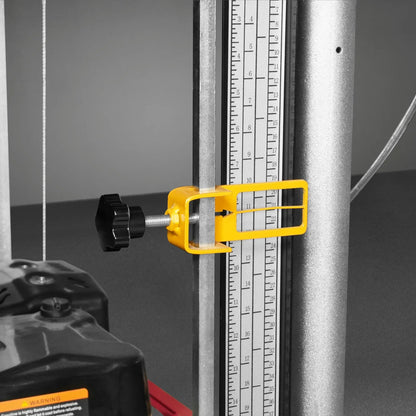

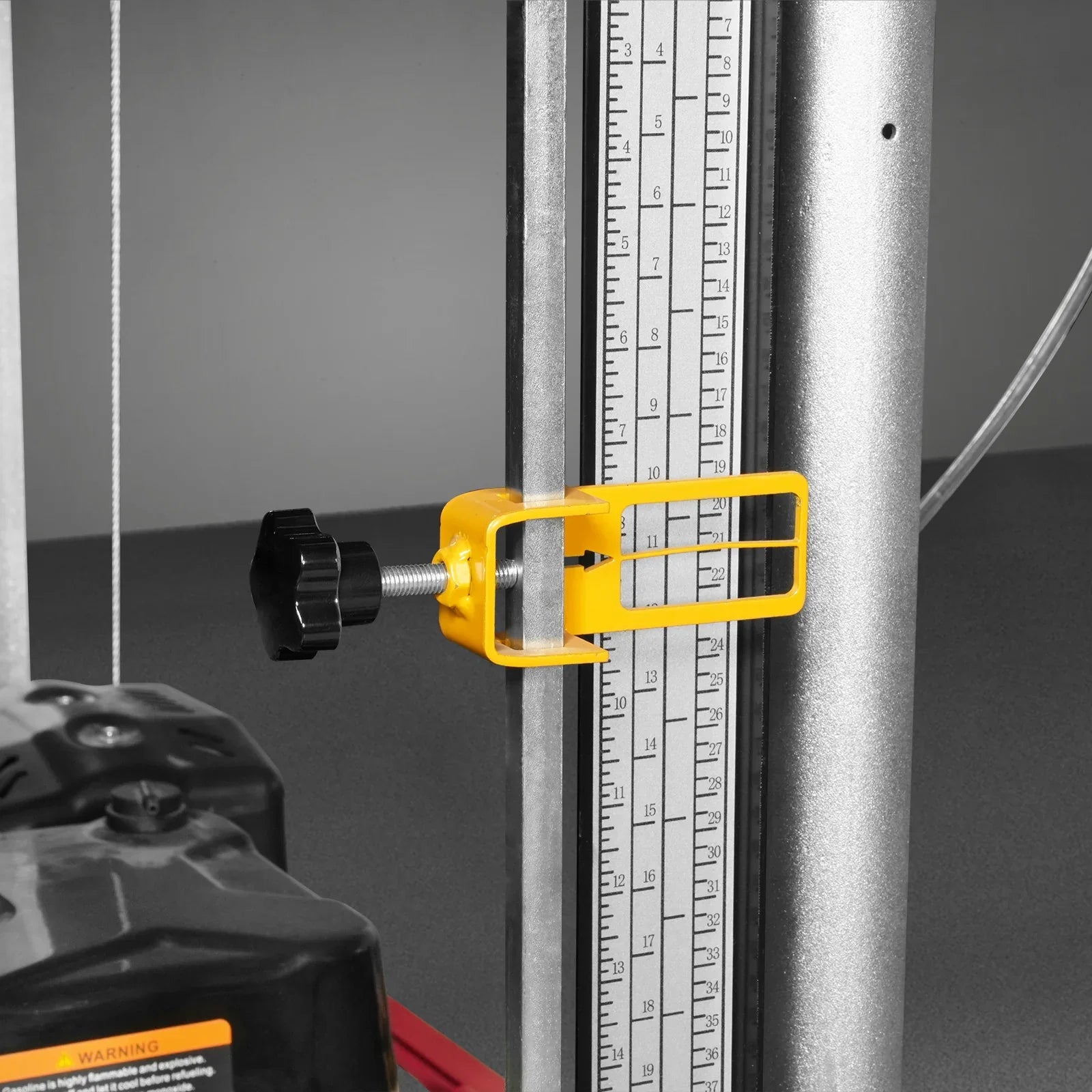

  • Adjustable Cutting Thickness: The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7’’.
  • Maximum Log Diameter: This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 26”.

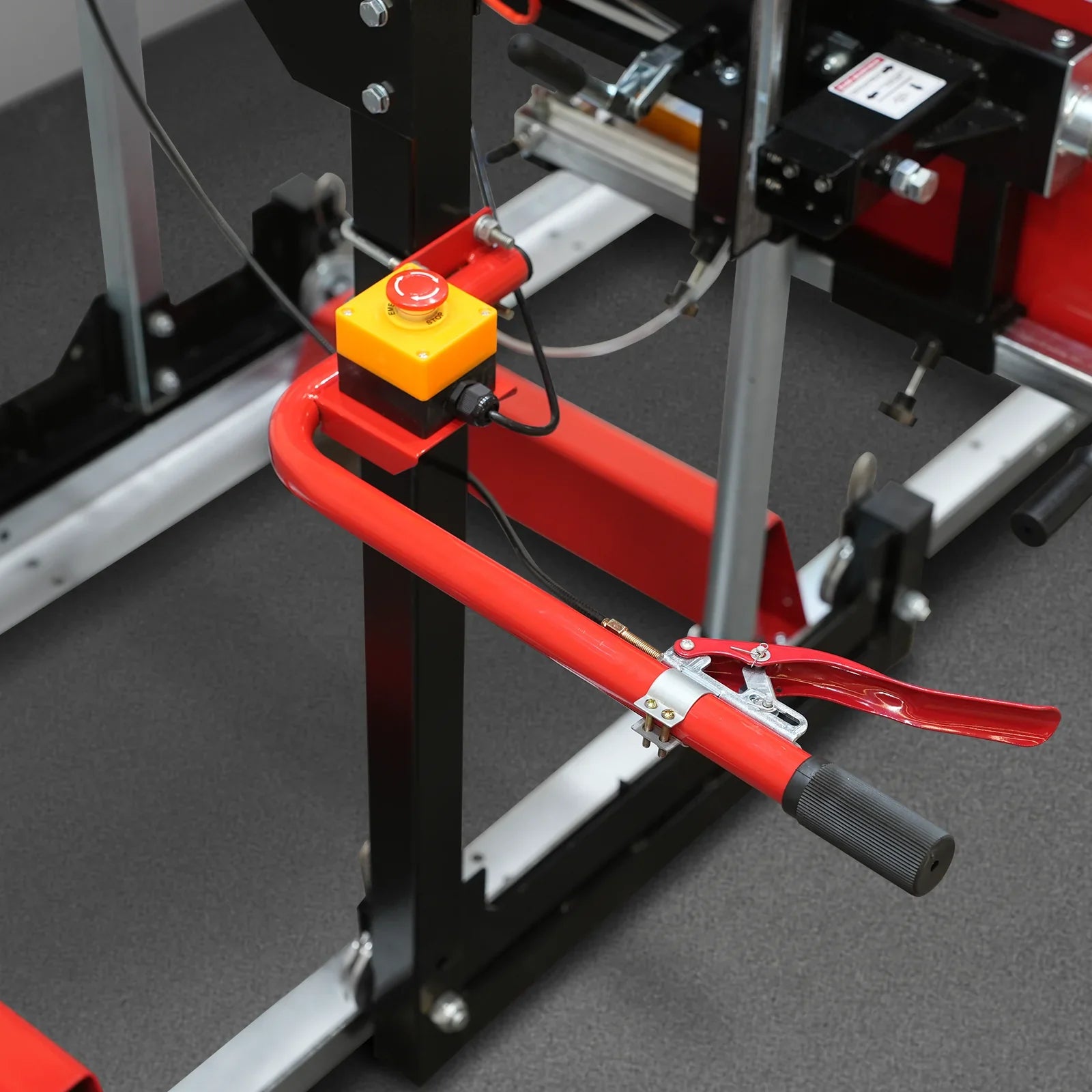

  • Emergency Stop Button: There is an emergency stop button on the top of the handle, which can stop the machine at any time in an emergency.
  • Maximum Cutting Width: According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 20’’.
  • Throttle Handle: You can control the cutting speed by pushing this handle, which reduces the number of required steps and speeds up your woodcutting process; making it more efficient.

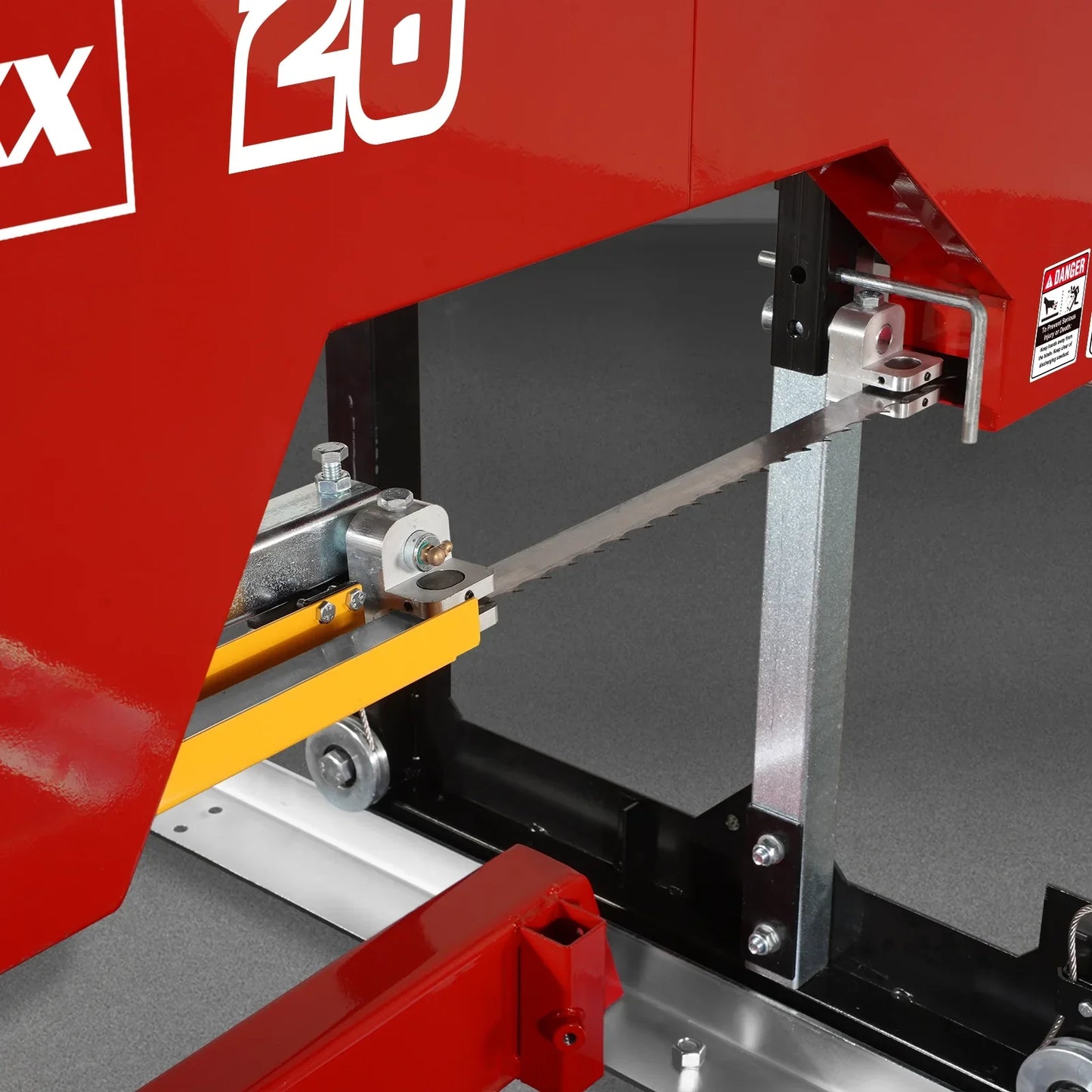

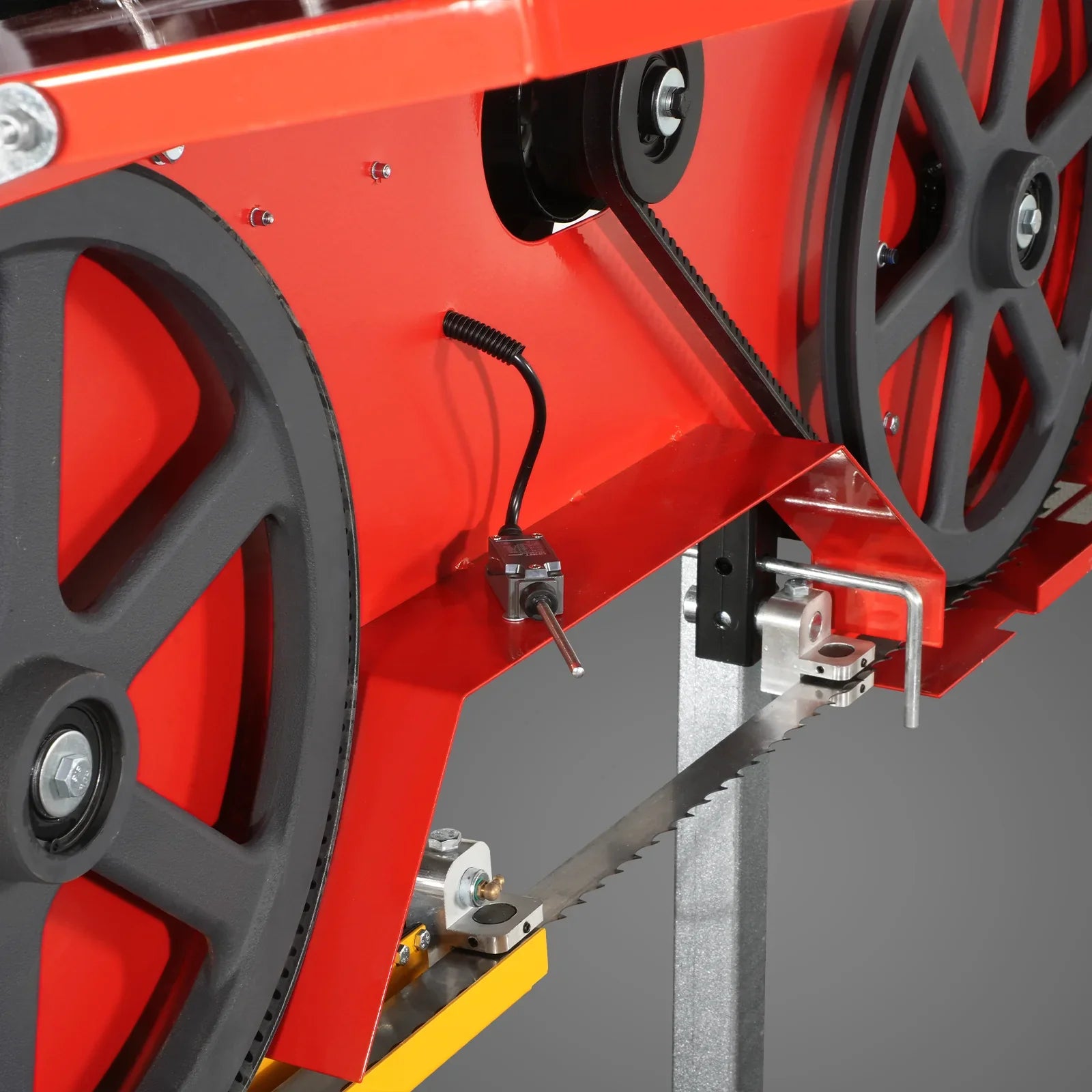

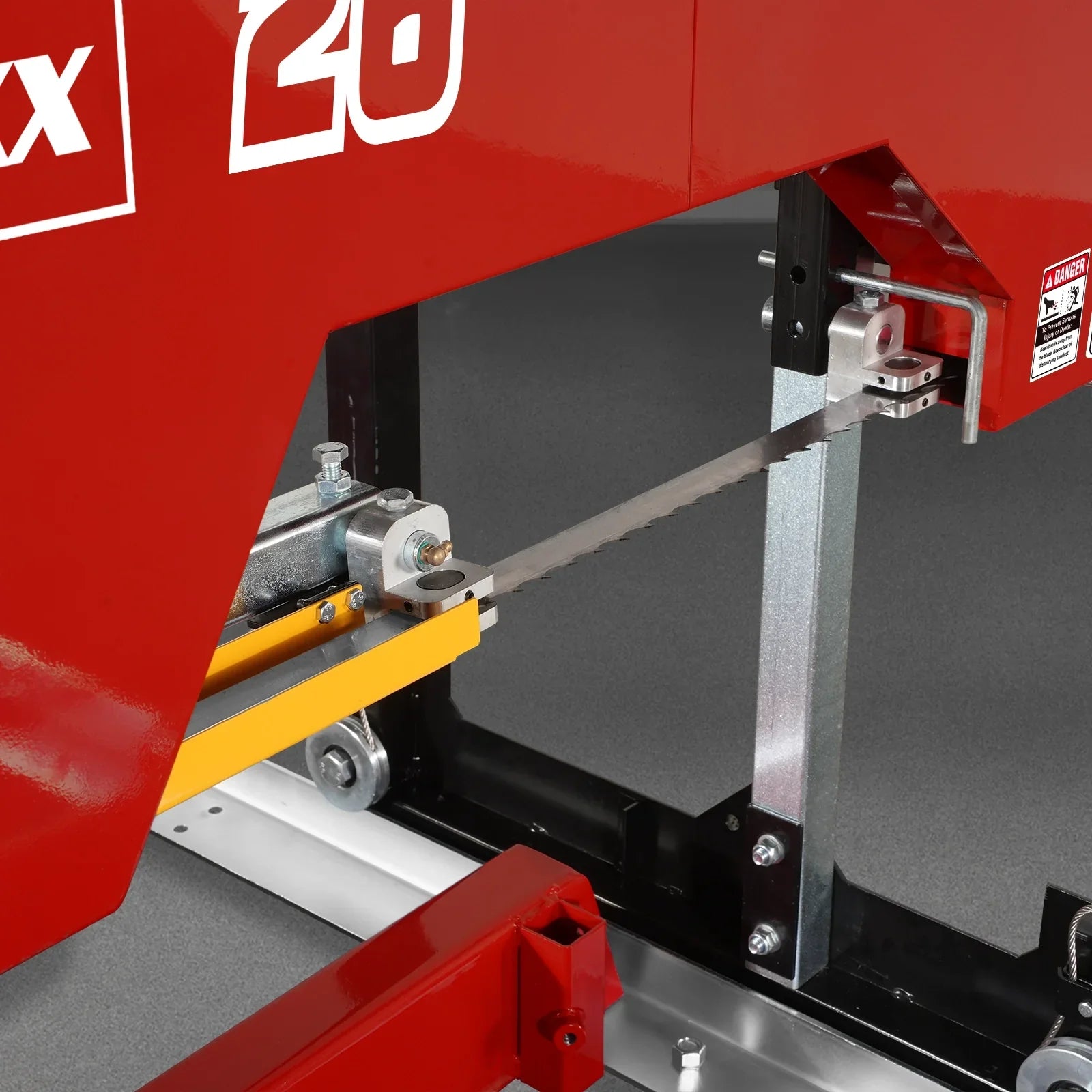

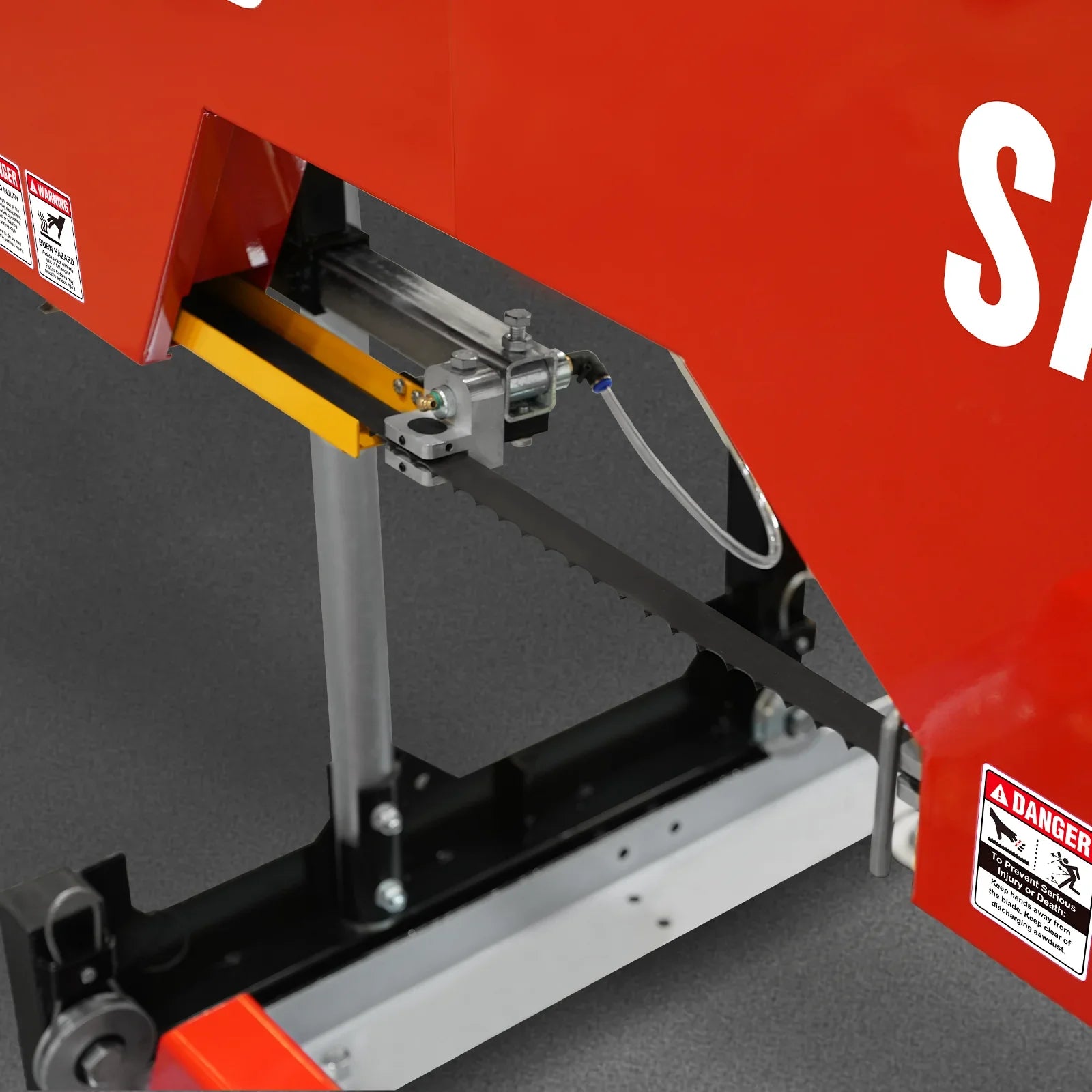

  • Saw Blade: The saw blade is made out of carbonized steel, with dimensions of 144*1.3*0.04’’, and a rotational speed reaching as high as 787’’ per second. This will ensure a smooth and stable cutting process while also reducing the amount of wood ships.
  • Spiral Log Clamp: The track features easy-to-use spiral log clamps to hold logs securely while milling.
  • Cutting Length: The logs are equipped with a 197” standard log track, and you can purchase a 78” extension track at MechMaxx according to your needs.

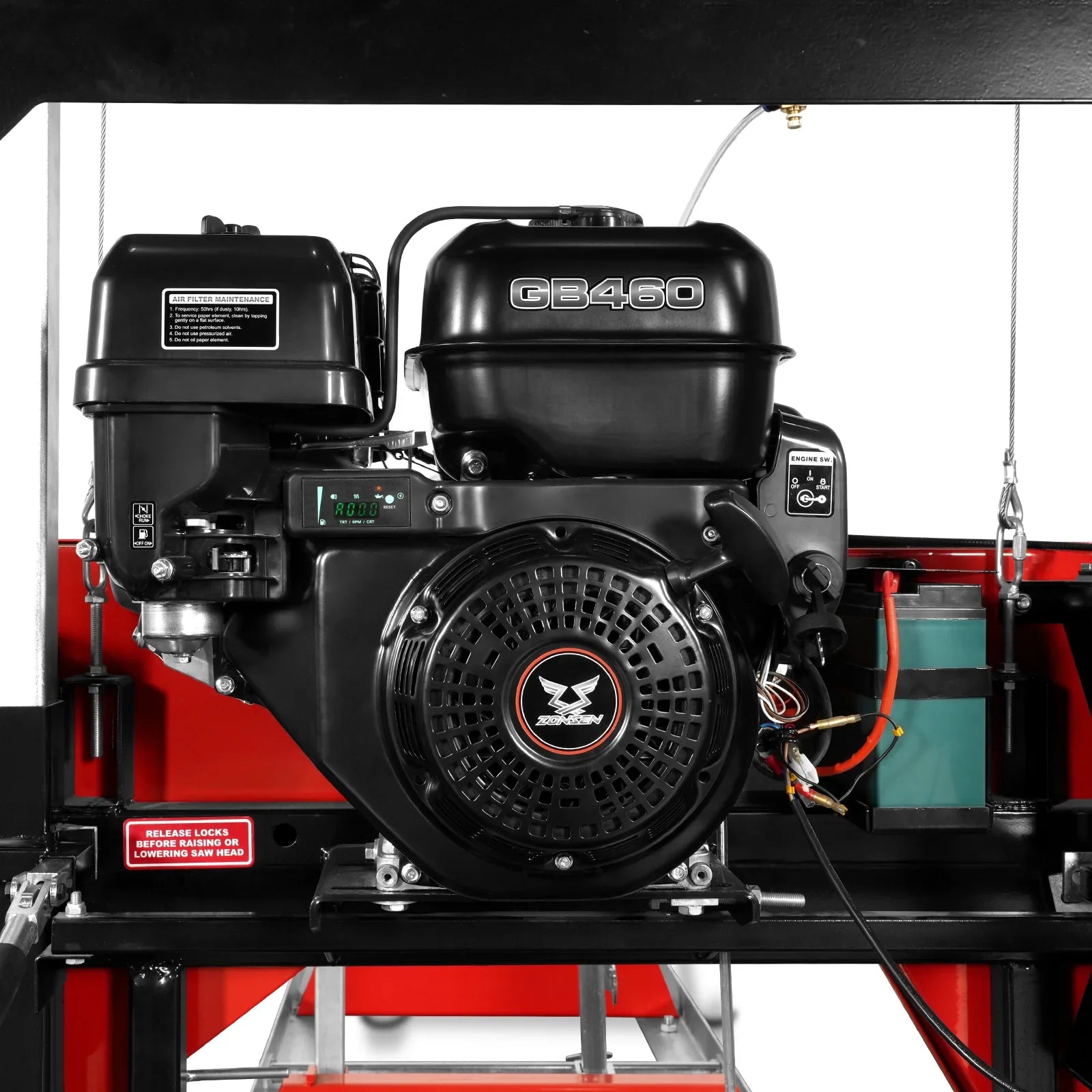

Engine: ZONSEN GB460

Lubricant Tank Size: 2.6 gal

Engine Type: Single Cylinder, 4 Stroke, Air-Cooled, OHV

Track Load-Bearing: 5 ton

Engine Displacement: 459 cc

Track Width: 2 ft 7 in

Horsepower: 15 HP

Track Length: 20 ft

Start: E-Start

Track Extension Length: 6.4 ft

Log Diameter: 26 in

Height (Max Head Position): 79 in

Max Live Edge Width: 20 in

Leveling Feet: 18

Standard Cutting Length: 16.4 ft

Log Rests: 2 Long and 2 Short Rests

Max Board Thickness: 7 in

Log Clamps: 2 x Quick Lock

Blade Engagement System: Centrifugal Clutch

Track Bunks: 3 x 6 in

Cast Iron Bandwheel Diameter: 19 in

4 Post Head Design: Yes

Blade Wheel Engagement: Belt Drive

Finish: Powder Coat Paint Galvanized Steel

Blade Guide: By Block

Sawmill Warranty: 2 Years

Blade Tension: By Adjustable Lever

Blade Size: 144 x 1.3 in

Package Method: Wood

Blade Pitch: 7/8 in

Packing Size: 89 x 25 x 34 in

Blade Lubrication: Water Lube - Manual Valve

Weight (N.W./G.W.): 864/944 lbs

This item comes with a 1 year factory warranty.
PDF SM-26 Product manual 1.0 PDF ZONSEN GB460 Manual PDF Sawmill Quick Installation Guide
