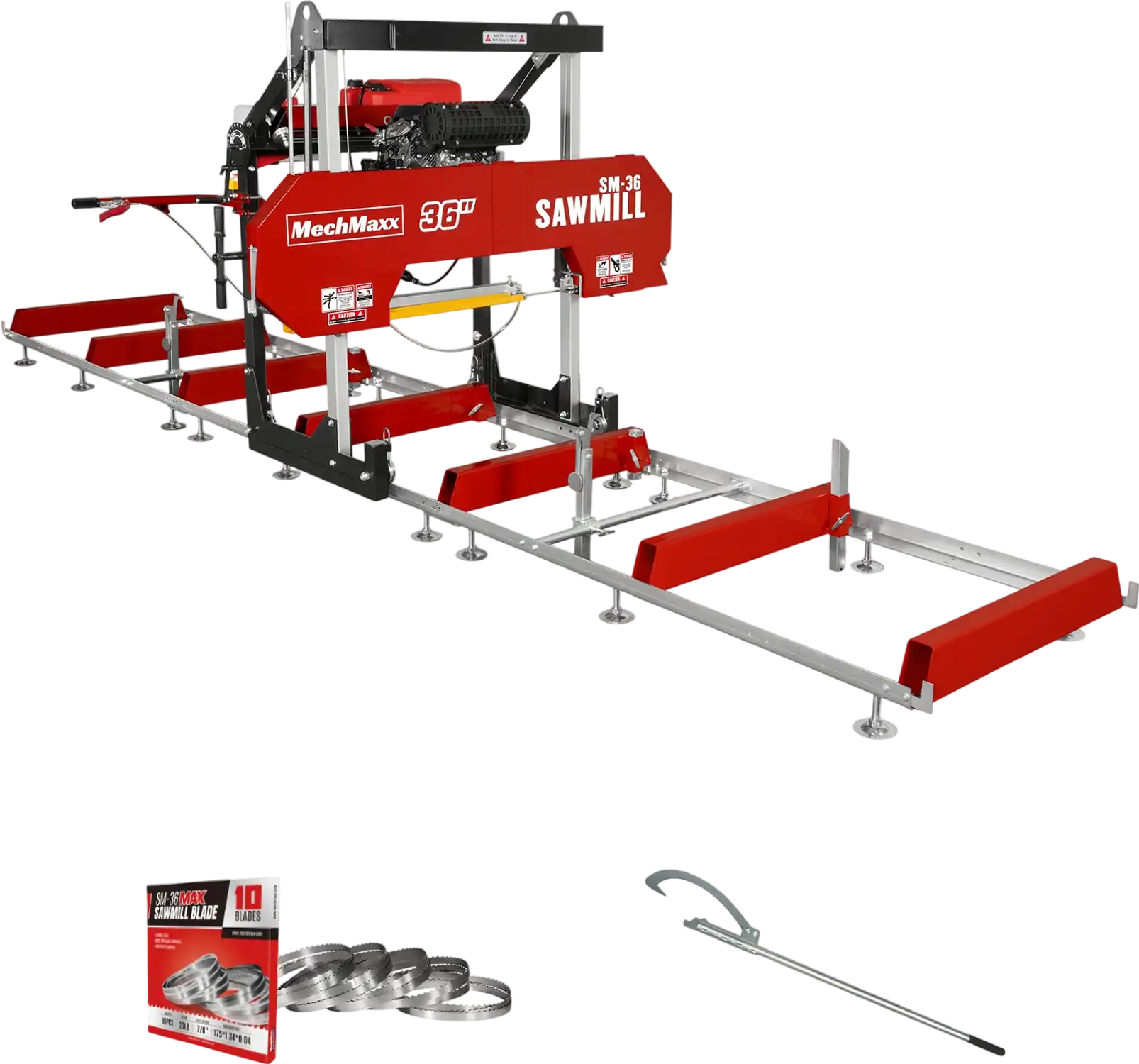

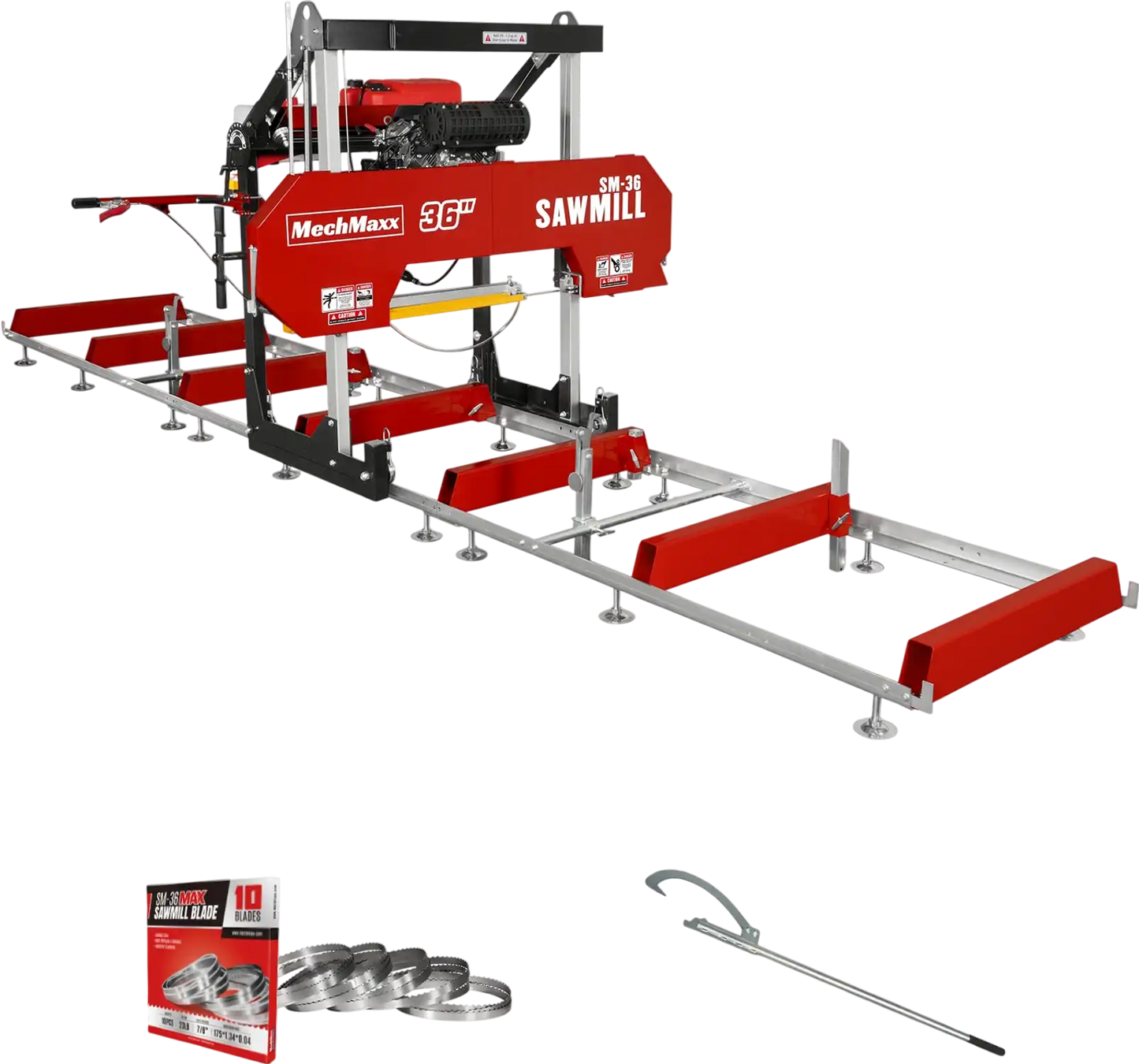

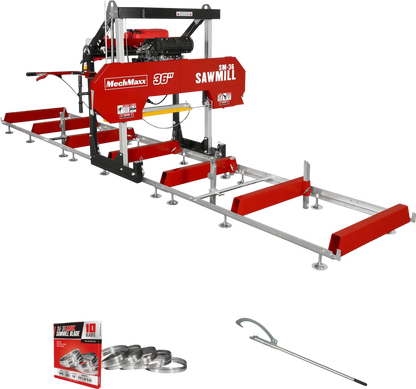

MechMaxx SM36 Sawmill 36" MAX Portable 25HP 750cc ZONSEN V-Twin Engine 20' Track Length 10 Blades Included New

MechMaxx

$3,899.00
$3,899.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Fully capable of cutting large 36" logs and planks up to 7" wide in 1/2 the time compared to a regular chainsaw.
  • It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.

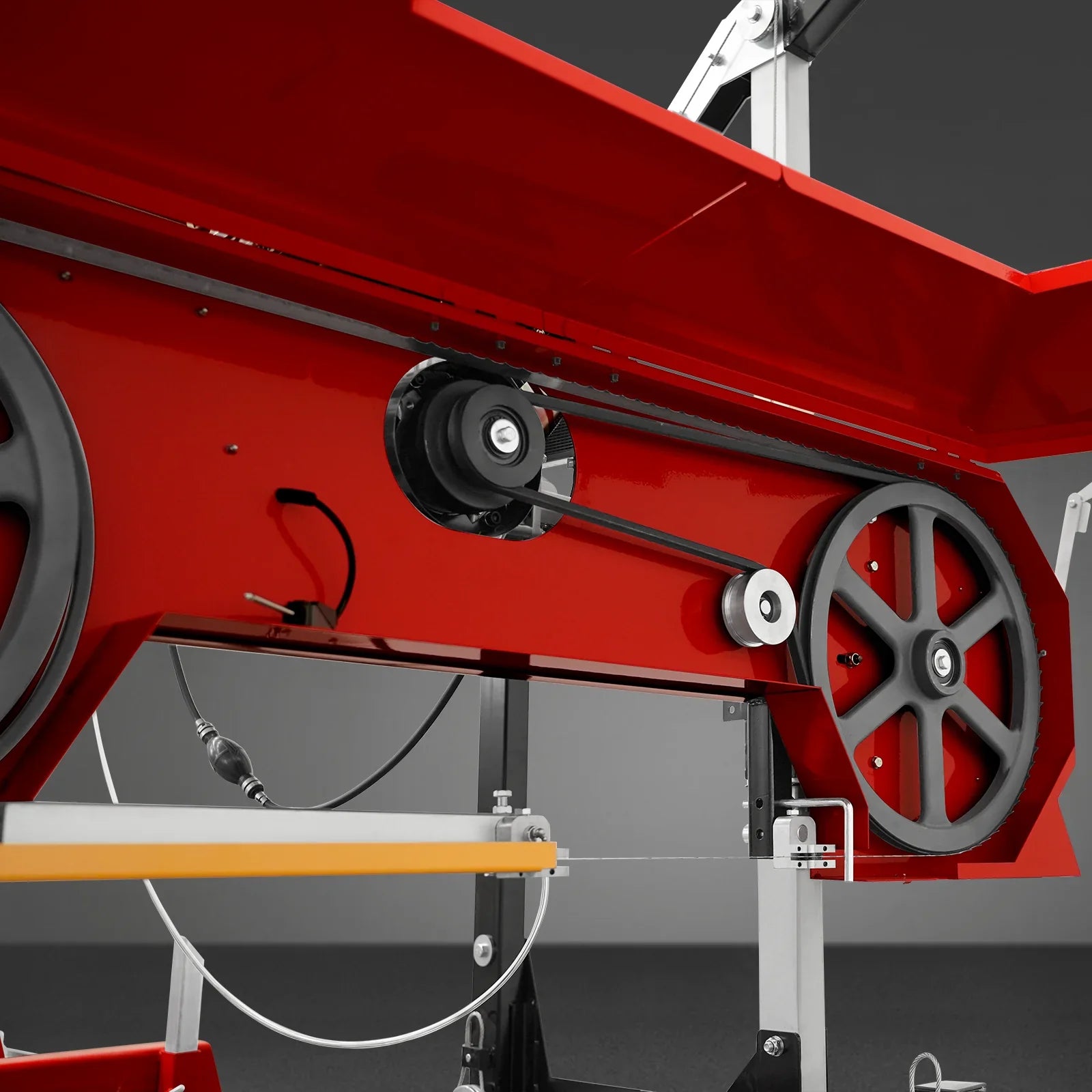

  • The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
  • Can withstand heavy workloads for long hours, even in remote areas.
  • The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
  • You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Electric Start: This sawmill is equipped with an electric-start engine, which has excellent performance, reliable quality and can be used for a long time.

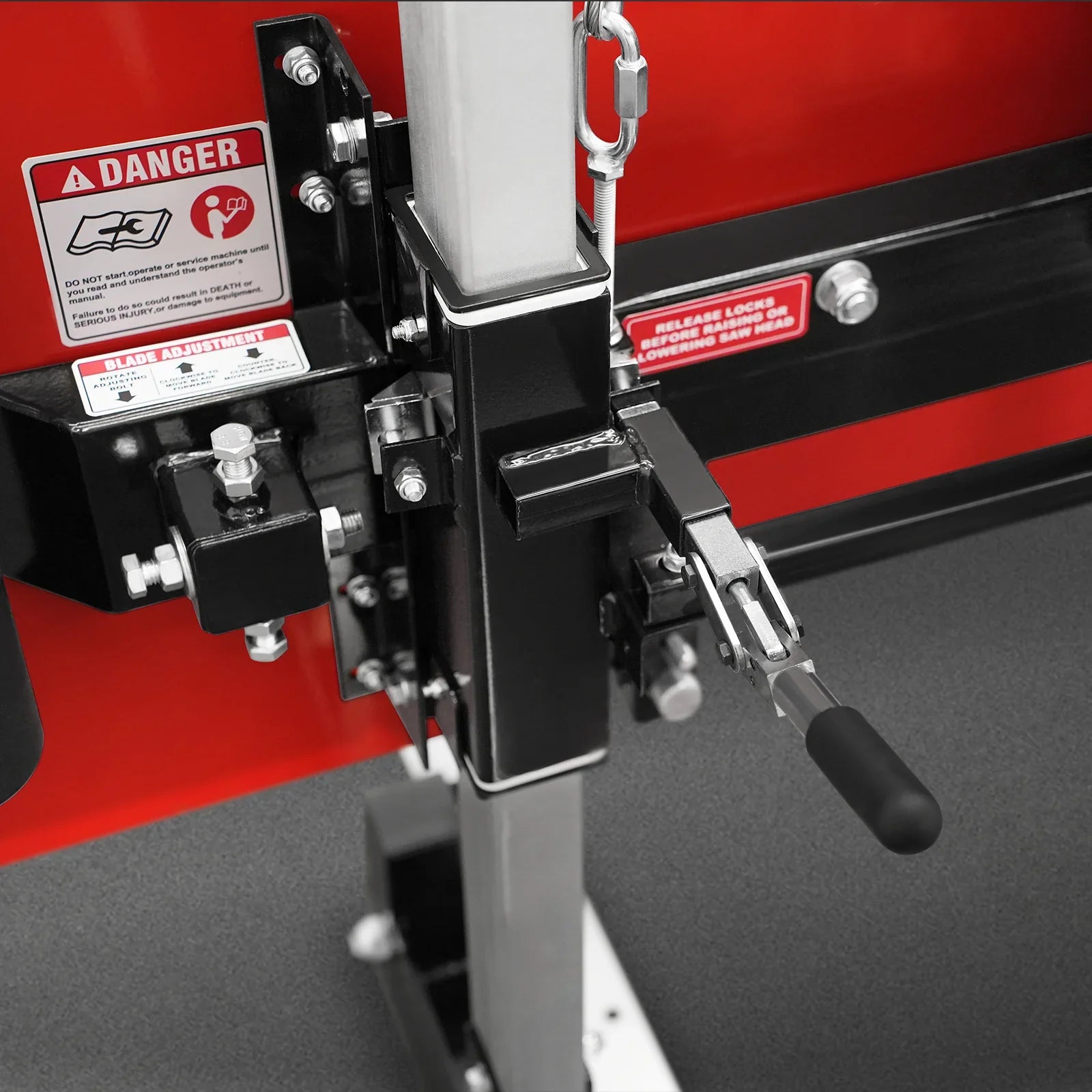

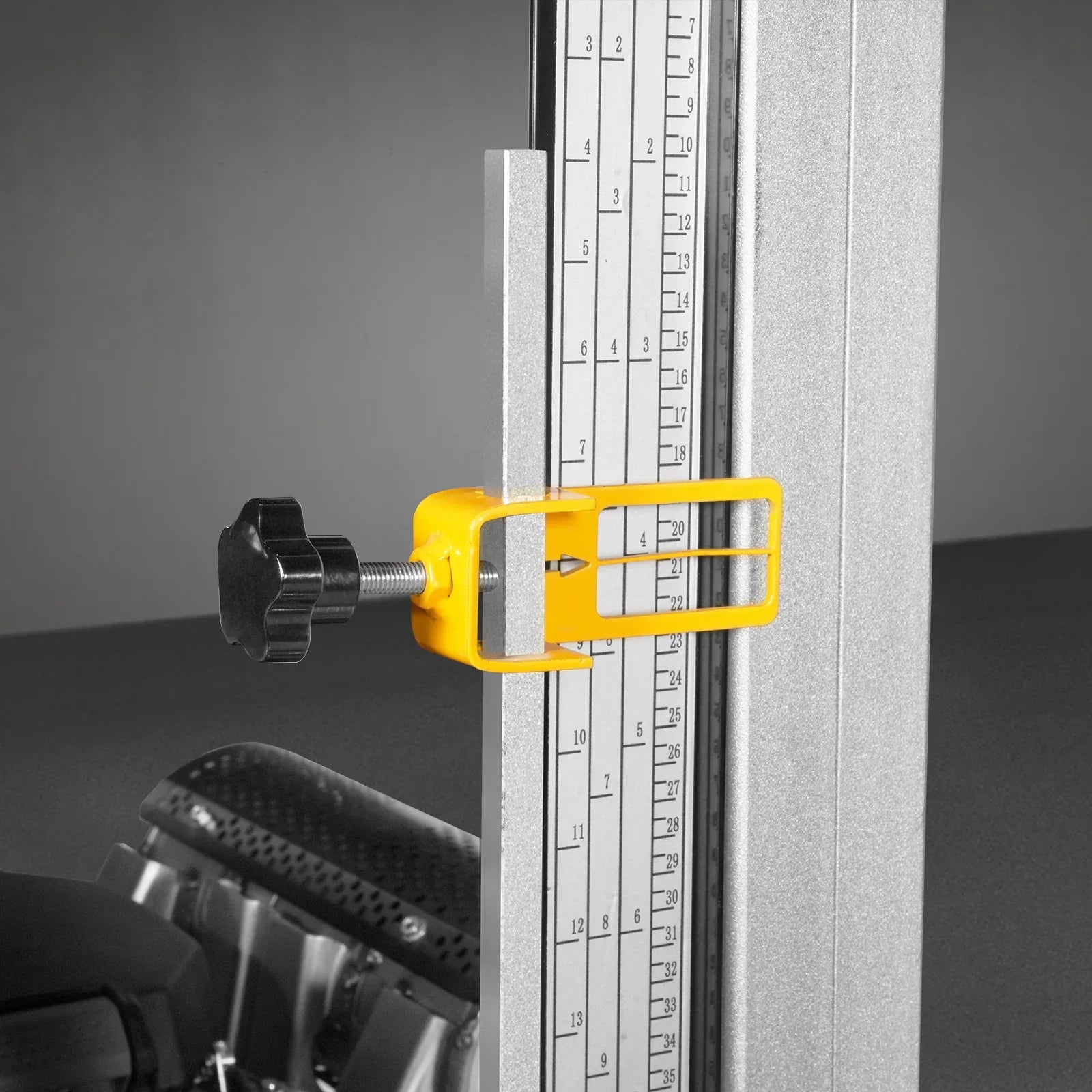

  • Adjustable Cutting Thickness: The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7’’.

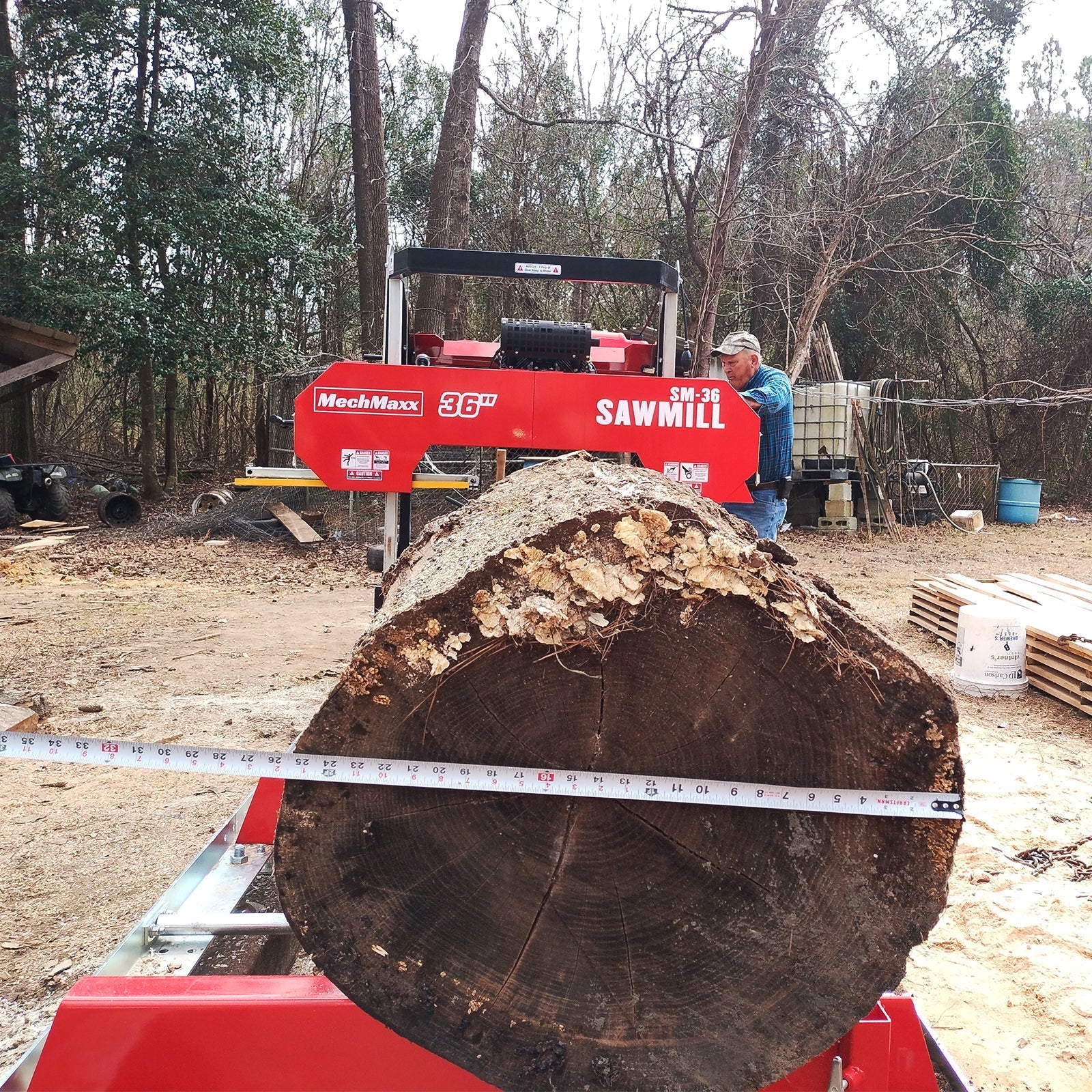

  • Maximum Log Diameter: This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 36”.
  • Emergency Stop Button: There is an emergency stop button on the top of the log, which can stop the machine at any time in an emergency.
  • Maximum Cutting Width: According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 35’’.
  • Throttle Handle: You can control the cutting speed by pushing this handle, and you can speed up or slow down at any time, making the wood cutting process fast and efficient, and reducing the number of steps required to meet your cutting requirements for wood boards.
  • Saw Blade: The saw blade made of carbonized steel is very strong, with dimensions of 175*1.3*0.04’’, and the rotation speed can be as high as 787’’ per second, which can ensure smooth and stable cutting while reducing wood chips and increasing the amount of wood.
  • Spiral Log Clamp: The track features easy-to-use spiral log clamps to hold logs securely while milling.
  • Cutting Length: The logs are equipped with a 194” standard log track, and you can purchase a 78” extension track at MechMaxx according to your needs.

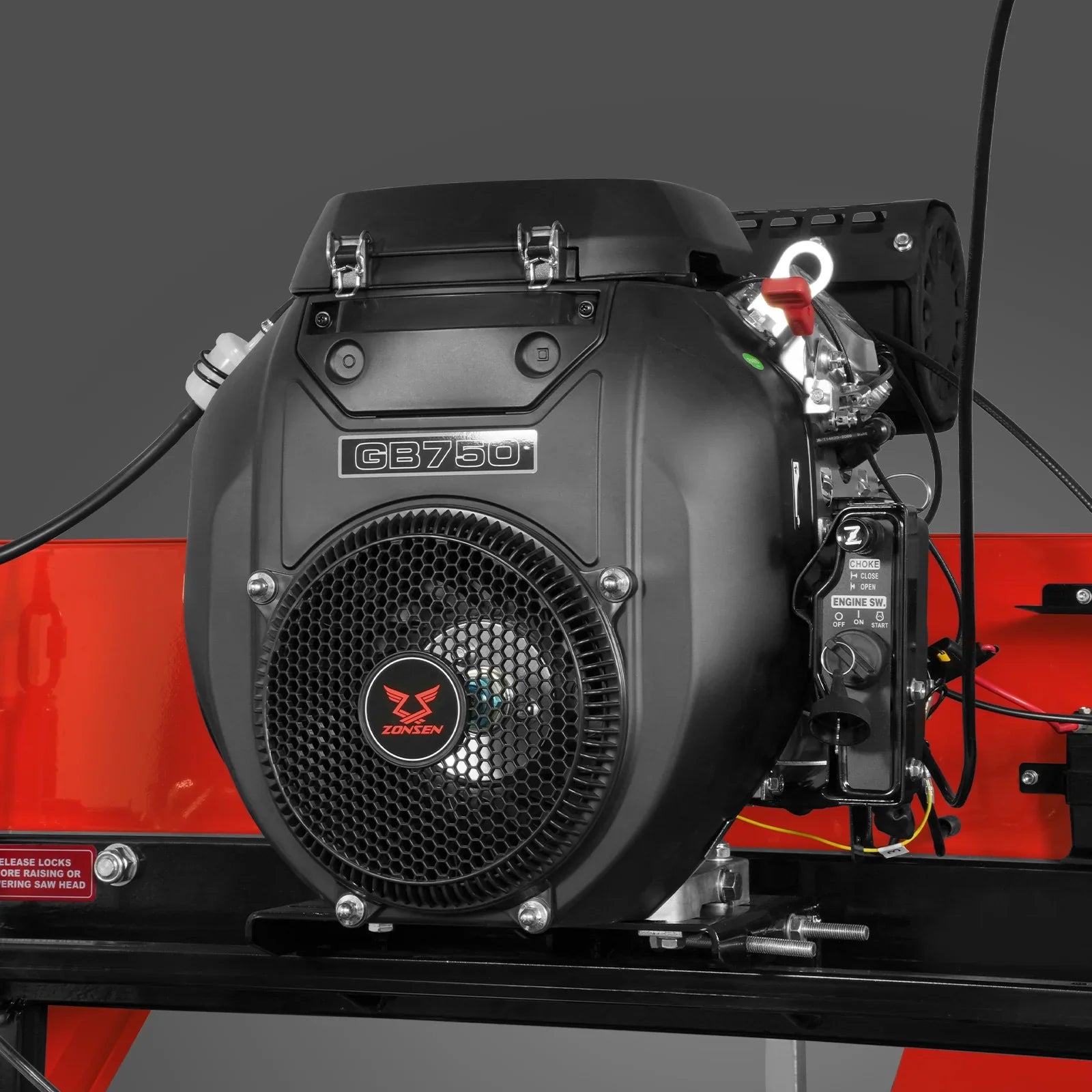

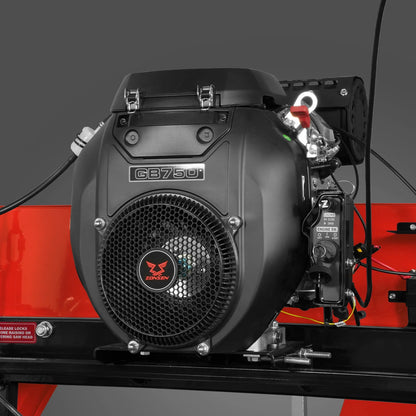

Engine: ZONSEN GB750

Lubricant Tank Size: 4 gal

Engine Type: Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling

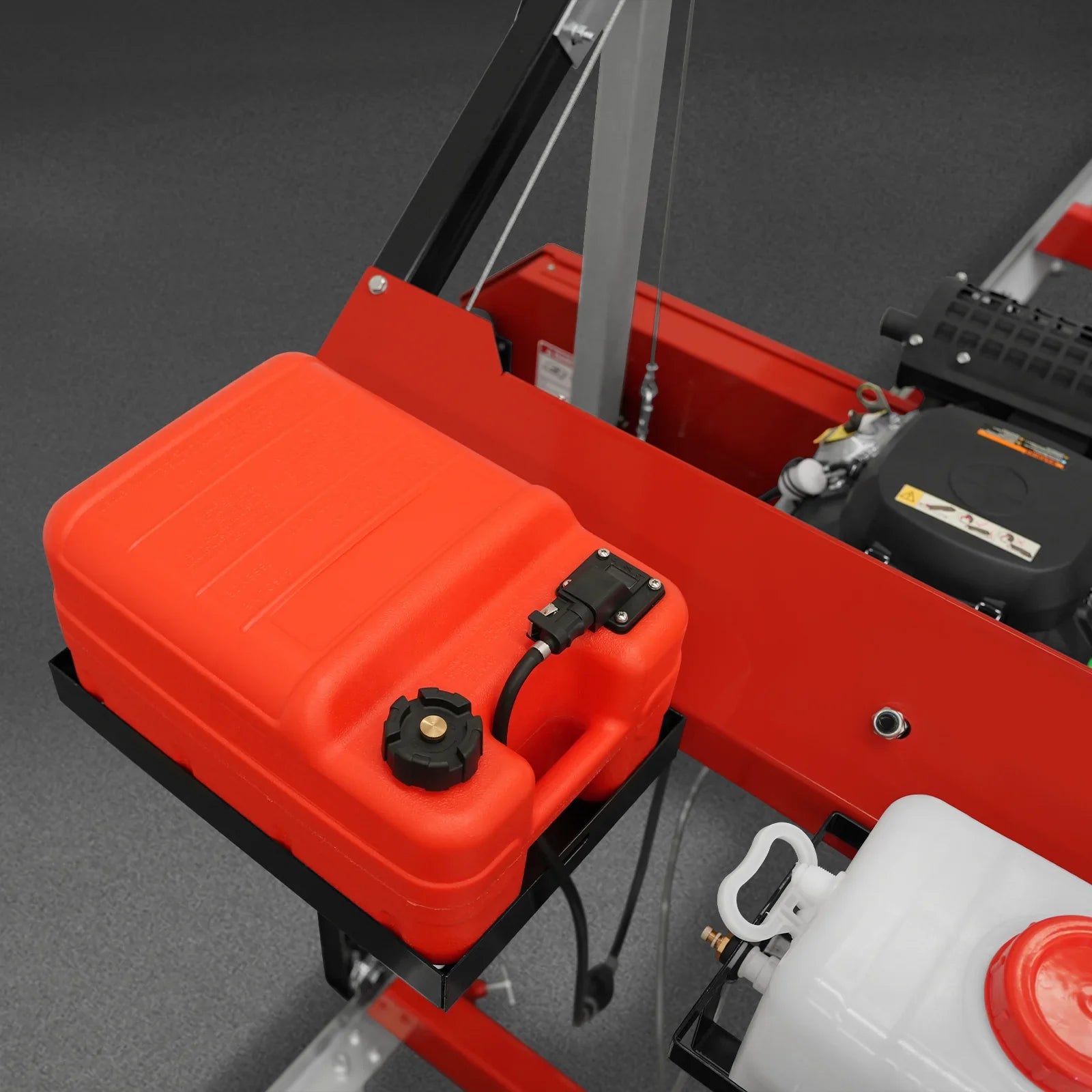

Fuel Tank Size: 6.3 gal

Engine Displacement: 750 cc

Track Load-Bearing: 5 ton

Horsepower: 25 HP

Track Width: 3 ft 10 in

Start: E-Start

Track Length: 20 ft

Log Diameter: 36 in

Track Extension Length: 6.4 ft

Max Live Edge Width: 36 in

Leveling Feet: 18

Standard Cutting Length: 16.2 ft

Log Rests: 2 Long and 2 Short Rests

Max Board Thickness: 7 in

Log Clamps: 2 x Quick Lock

Blade Engagement System: Centrifugal Clutch

Track Bunks: 3 X 6 in

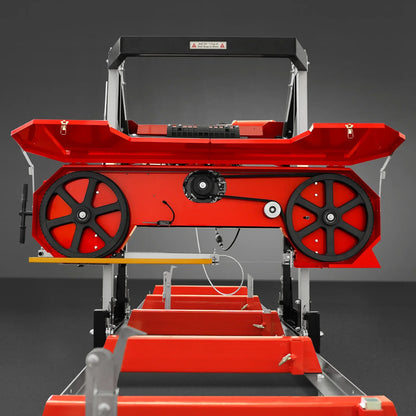

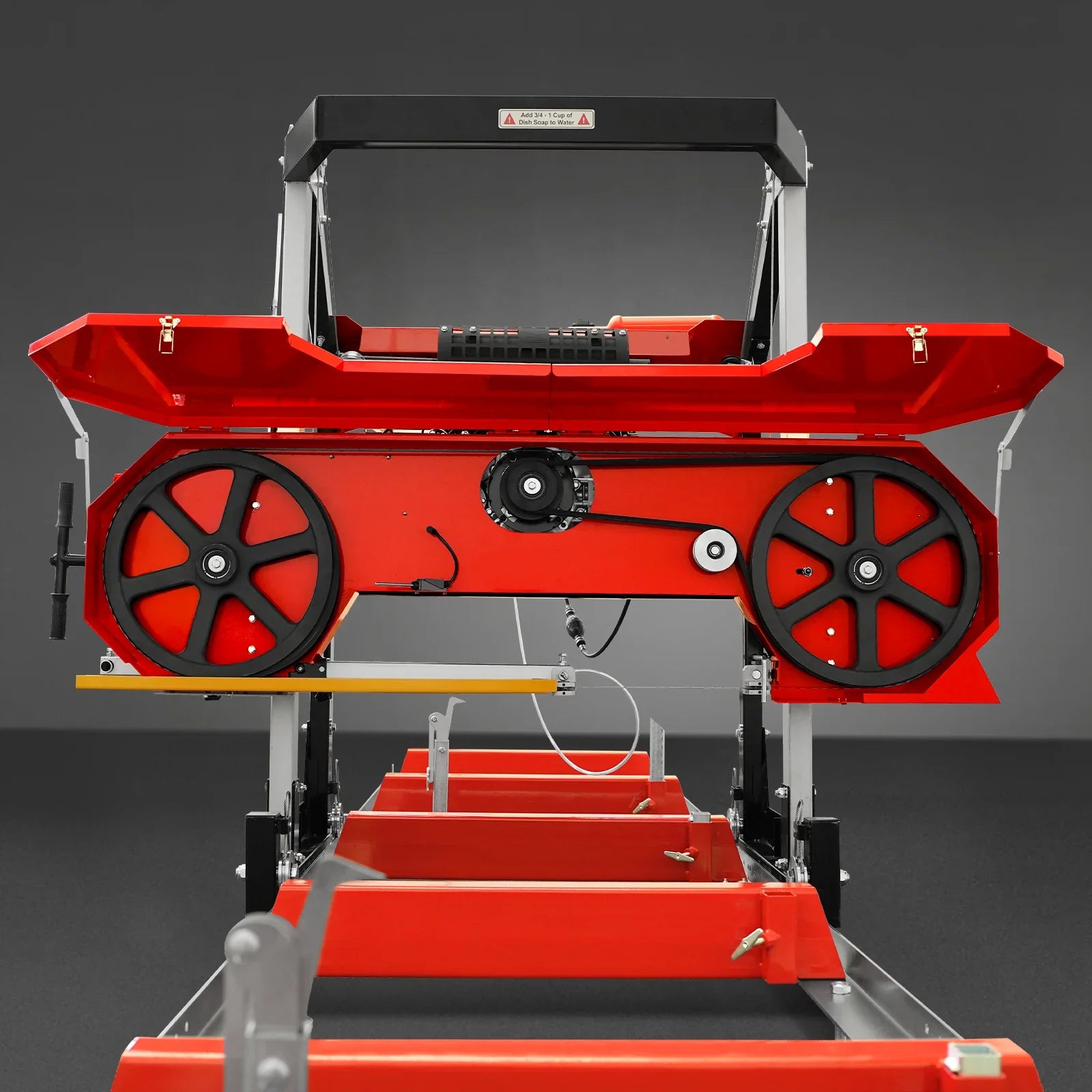

Cast Iron Bandwheel Diameter: 19 in

4 Post Head Design: Yes

Blade Wheel Engagement: Belt Drive

Finish: Powder Coat Paint Galvanized Steel

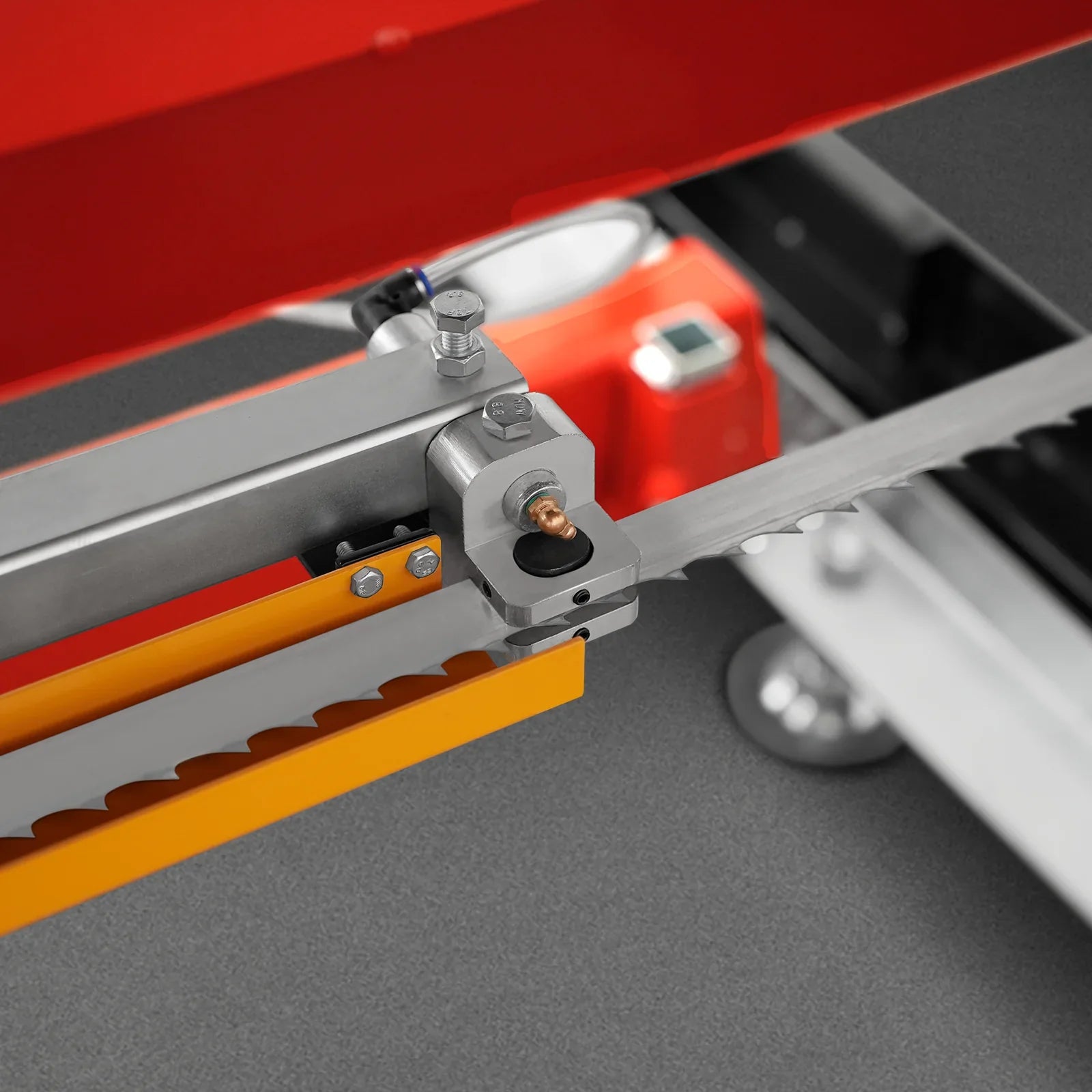

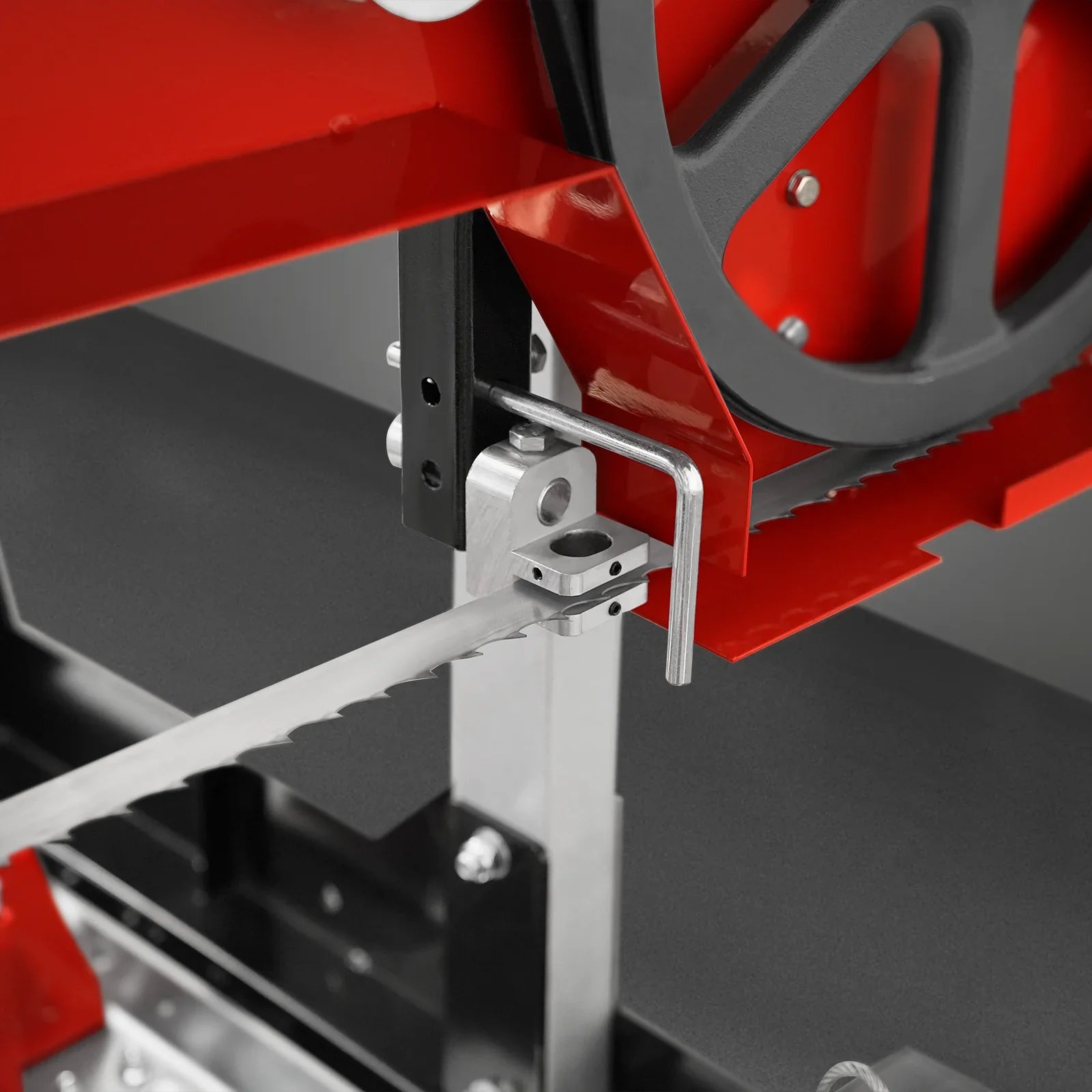

Blade Guide: By Block

Sawmill Warranty: 2 Years

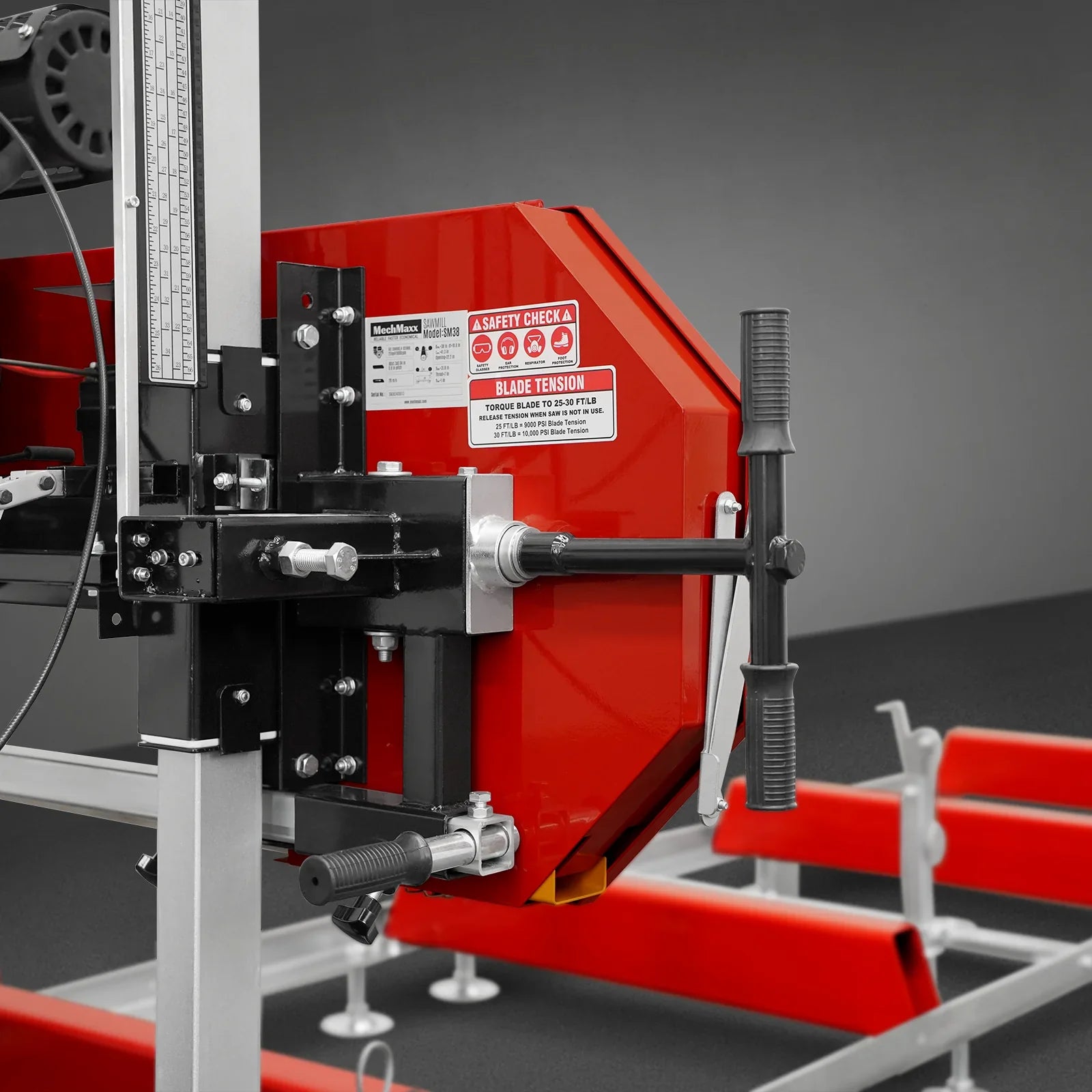

Blade Tension: By Adjustable Lever

Blade Size: 175 x 1.3 in

Package Method: Wood

Blade Pitch: 7/8 in

Packing Size: 90 x 28.5 x 34 in

Blade Lubrication: Water Lube - Manual Valve

Weight(N.W./G.W.): 1115/1239 lbs

This item comes with a 1 year factory warranty.
PDF 150168MAX Product manual 1.0 PDF Zonsen GB750 Manual PDF Sawmill Quick Installation Guide
