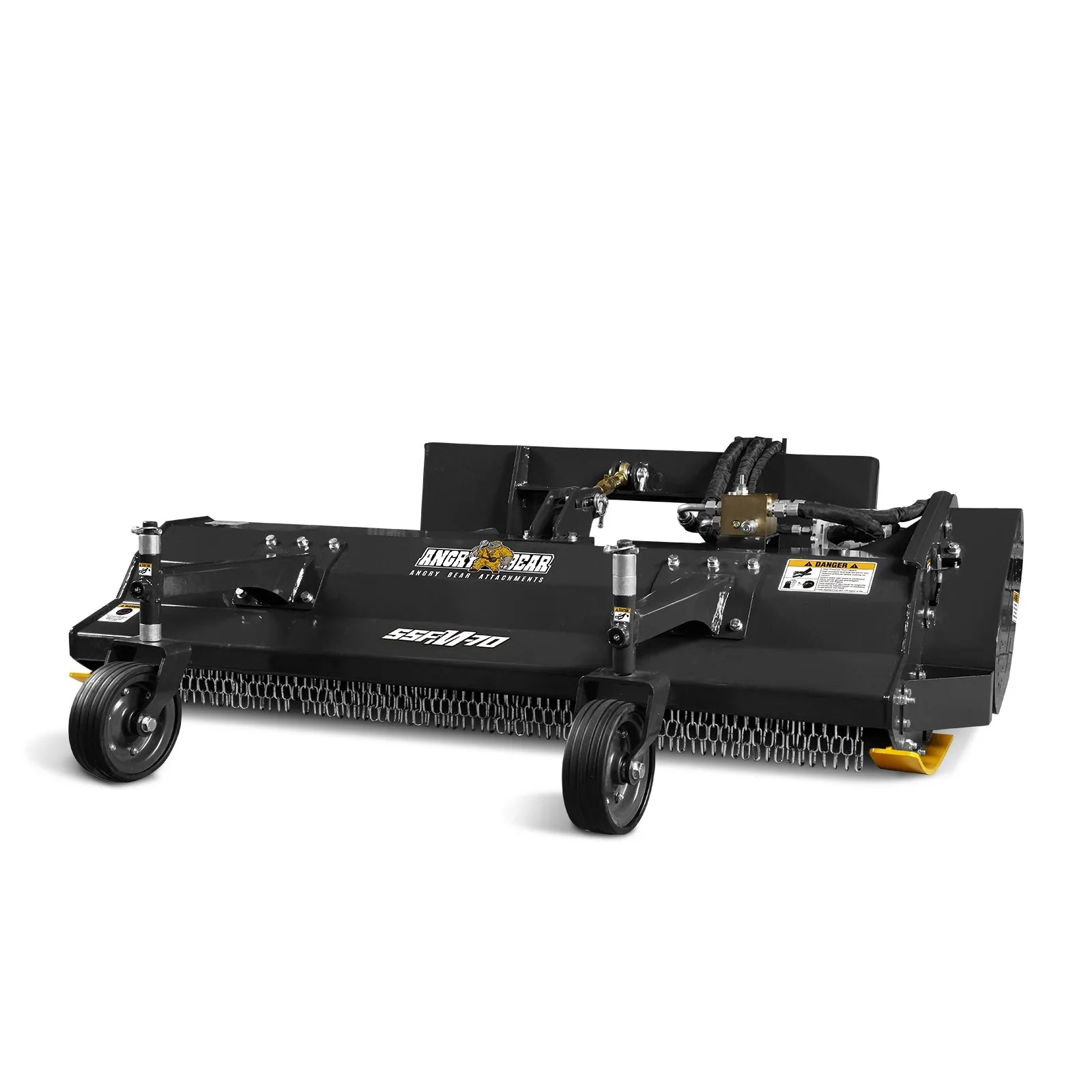

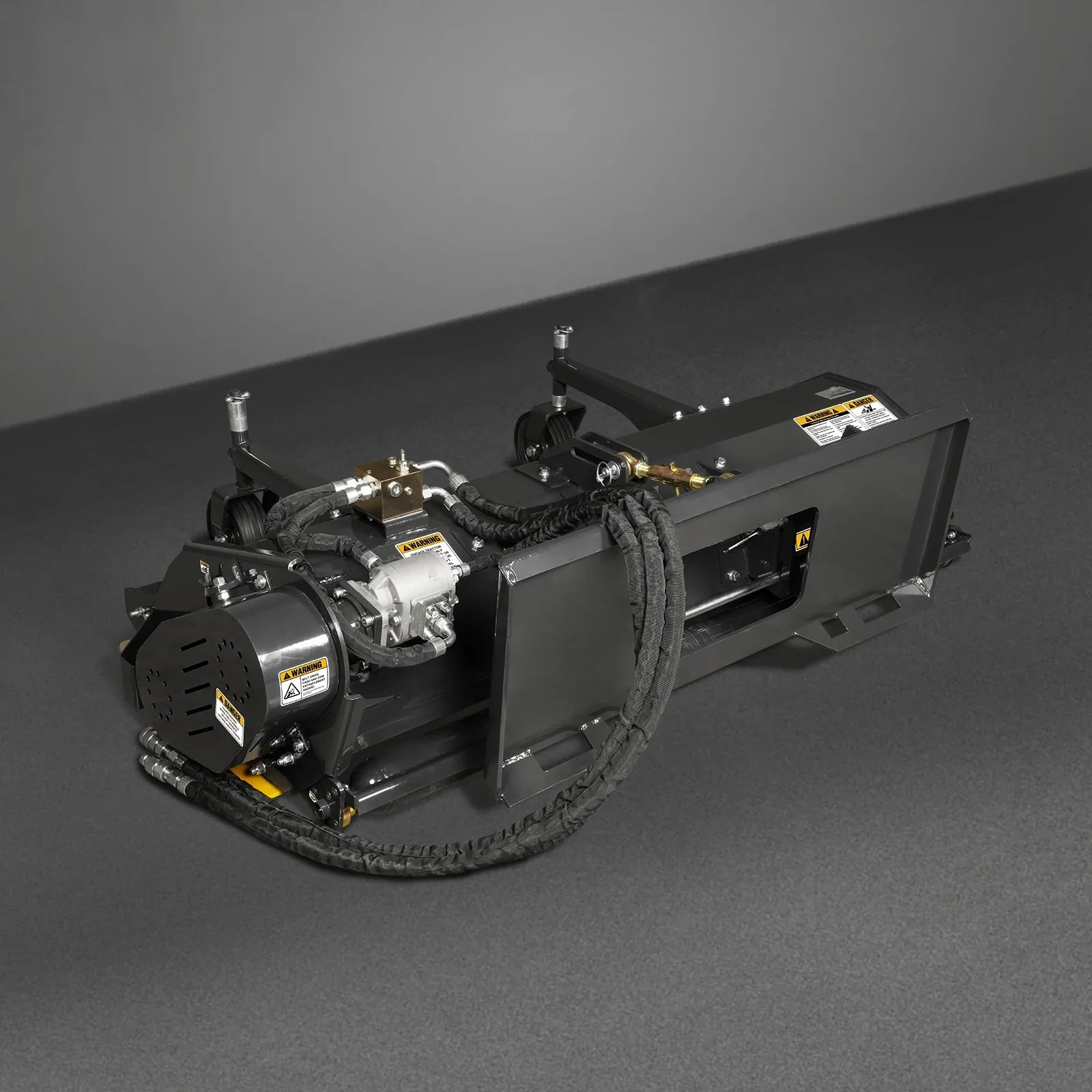

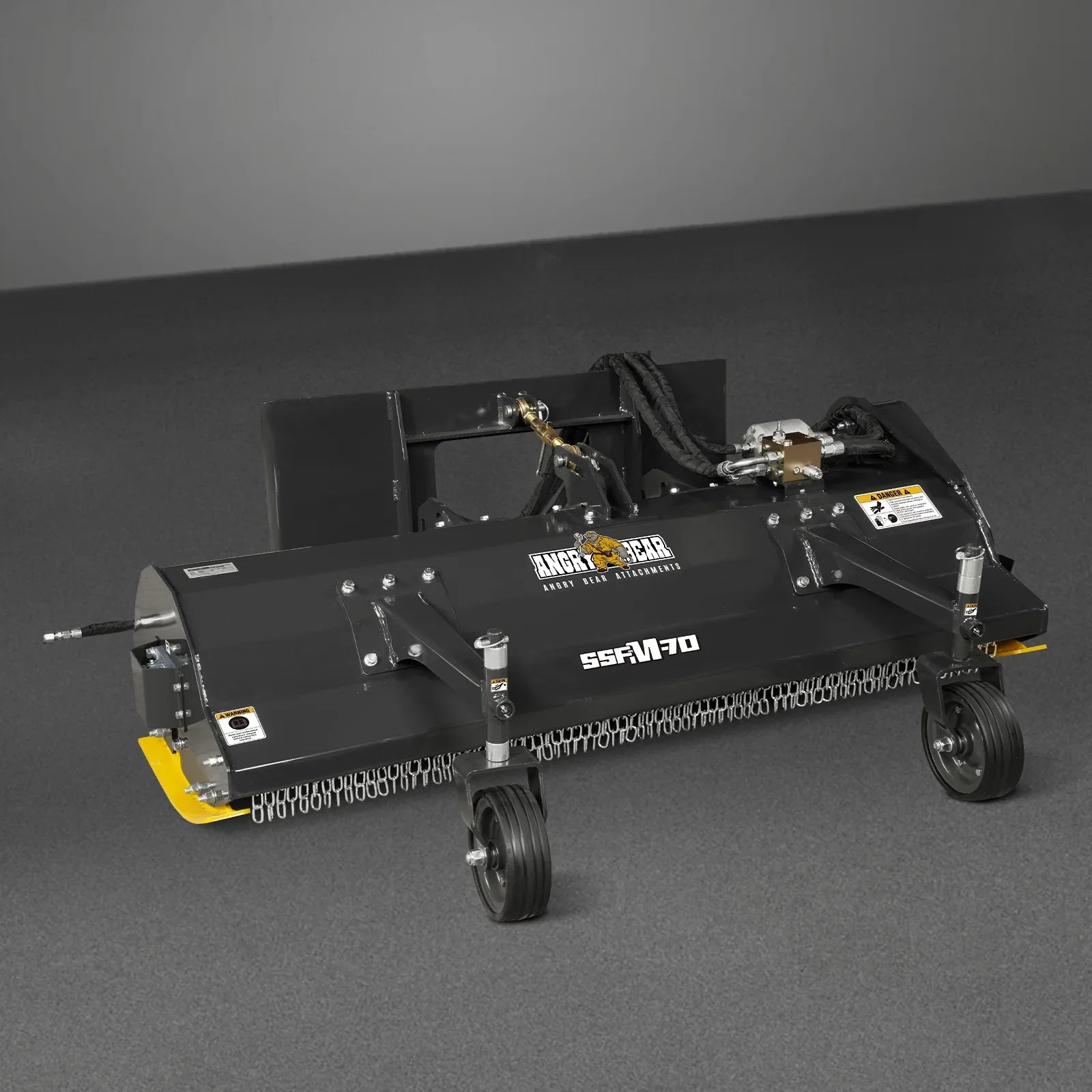

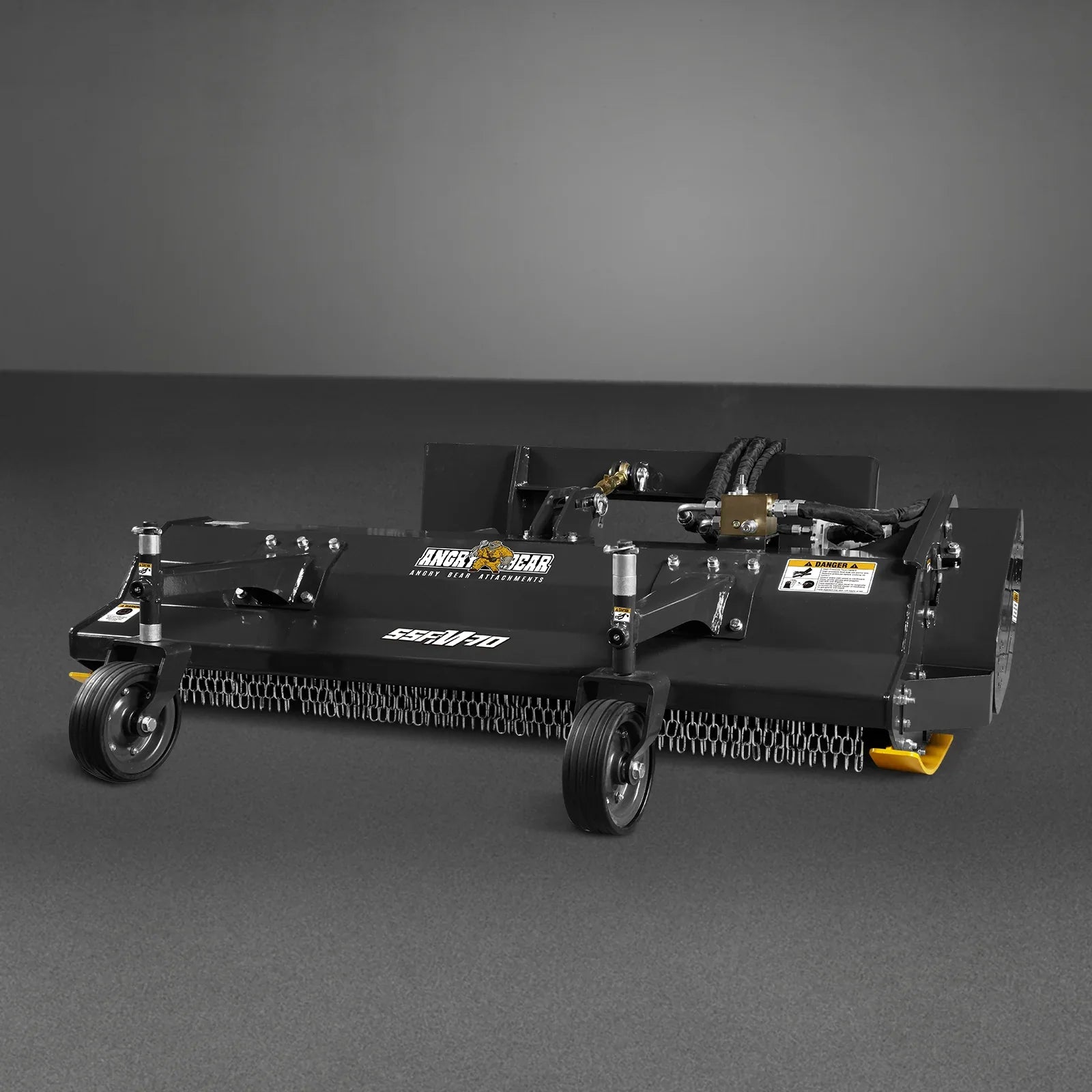

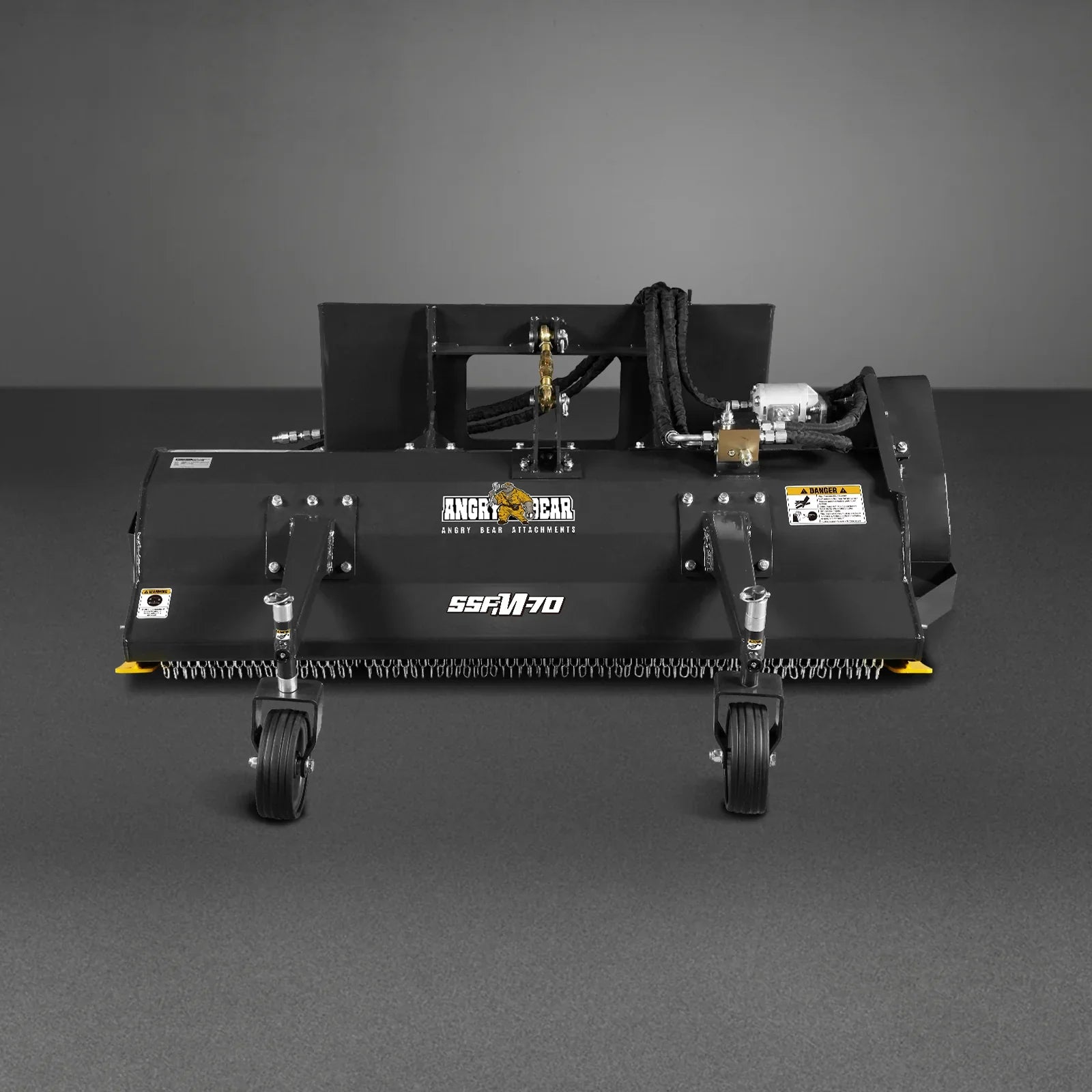

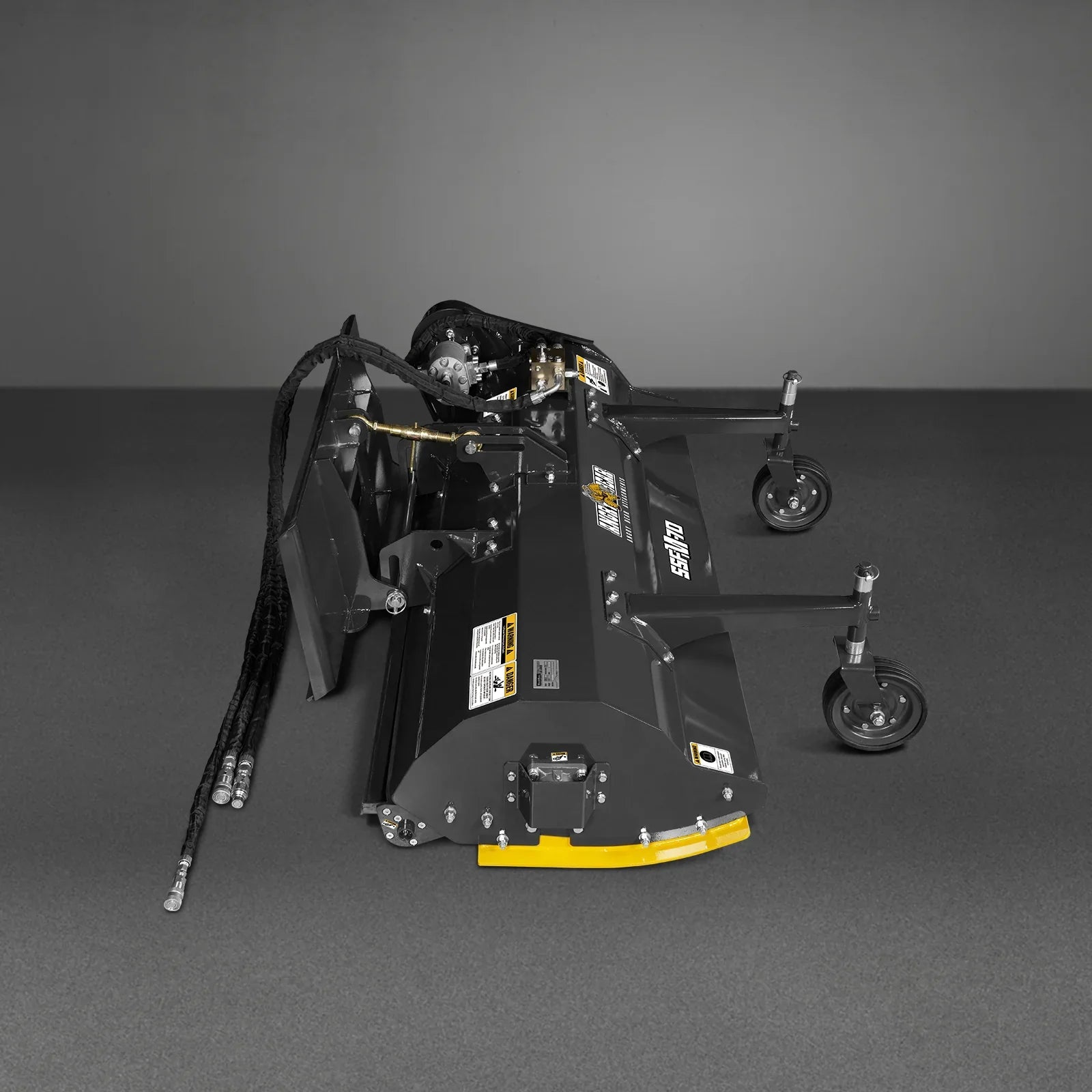

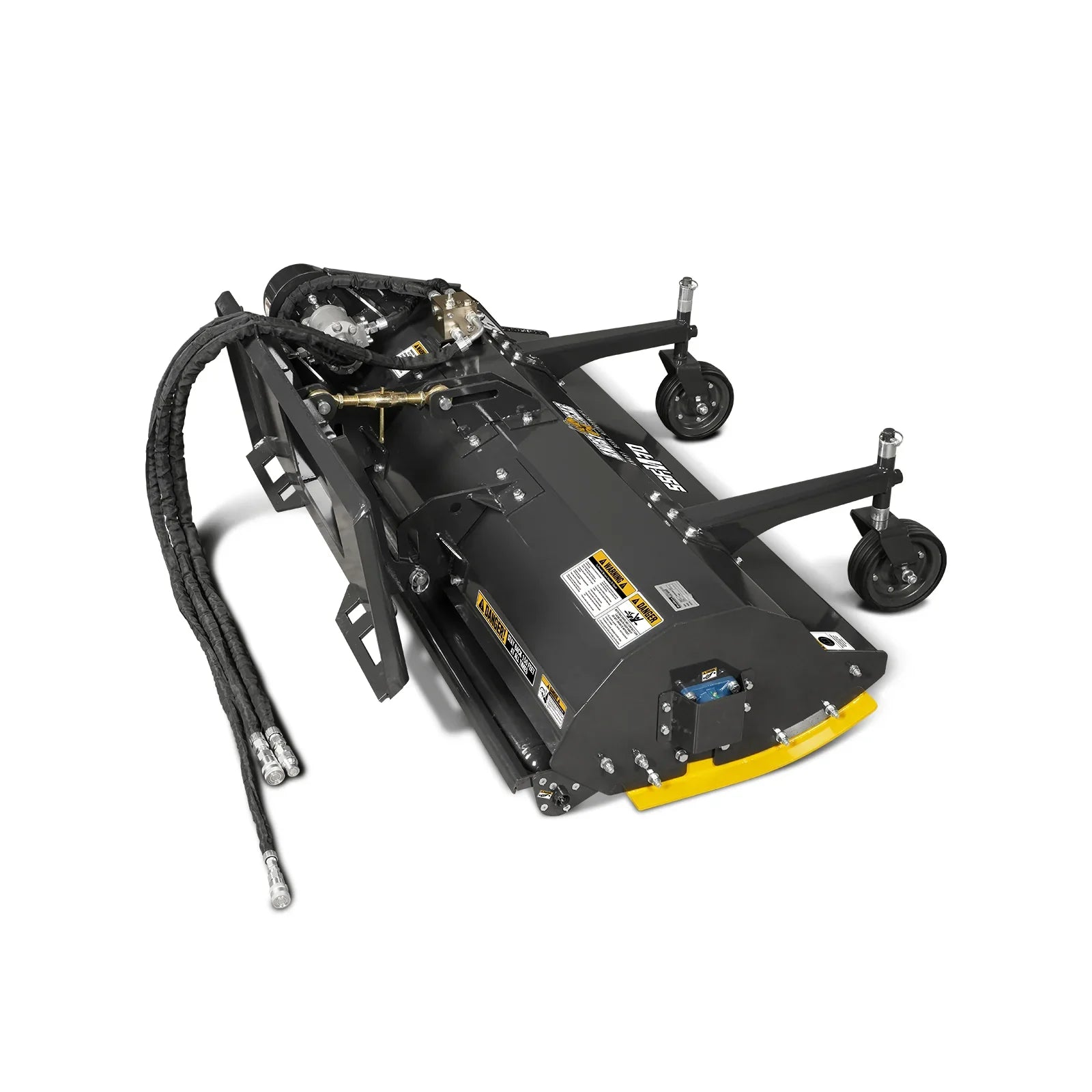

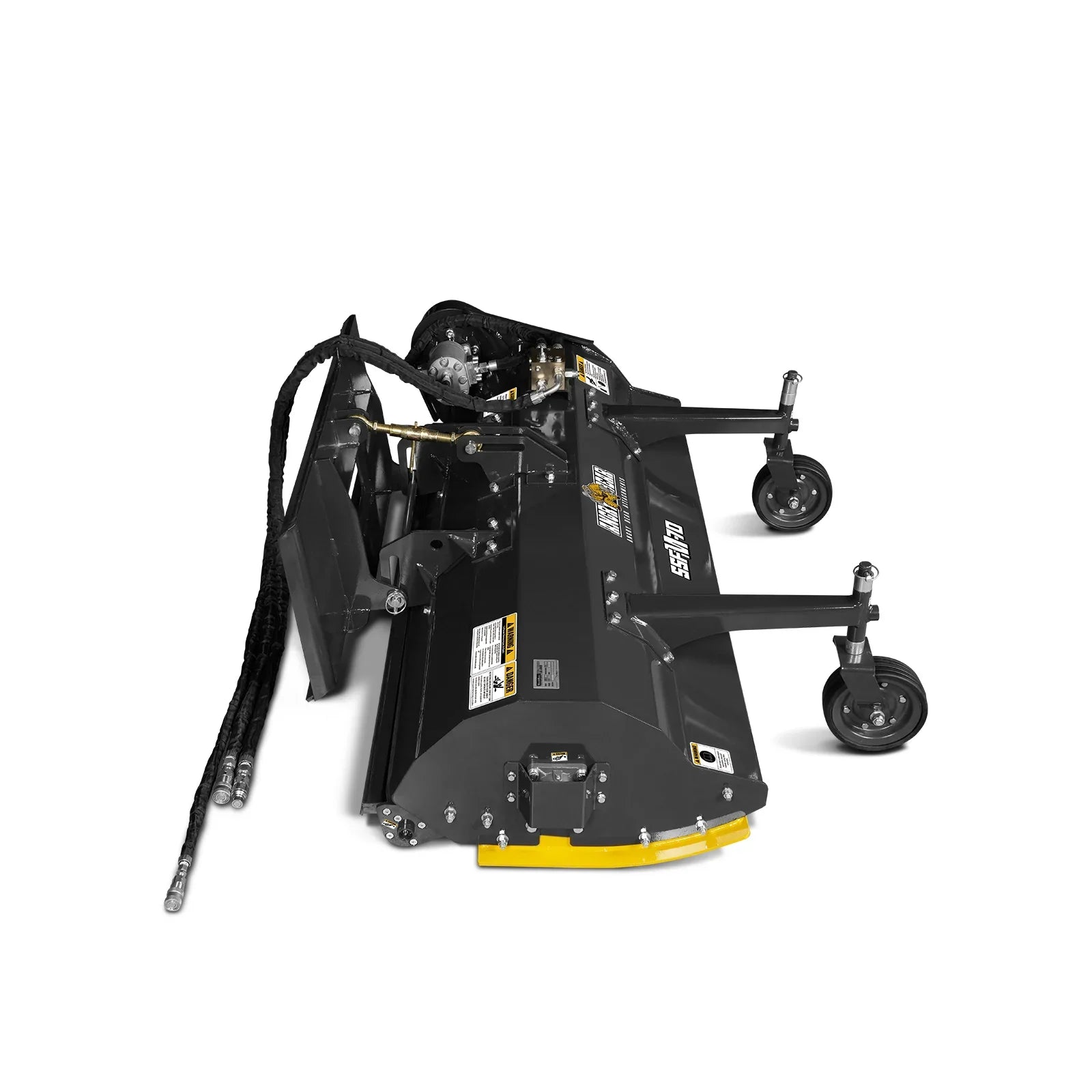

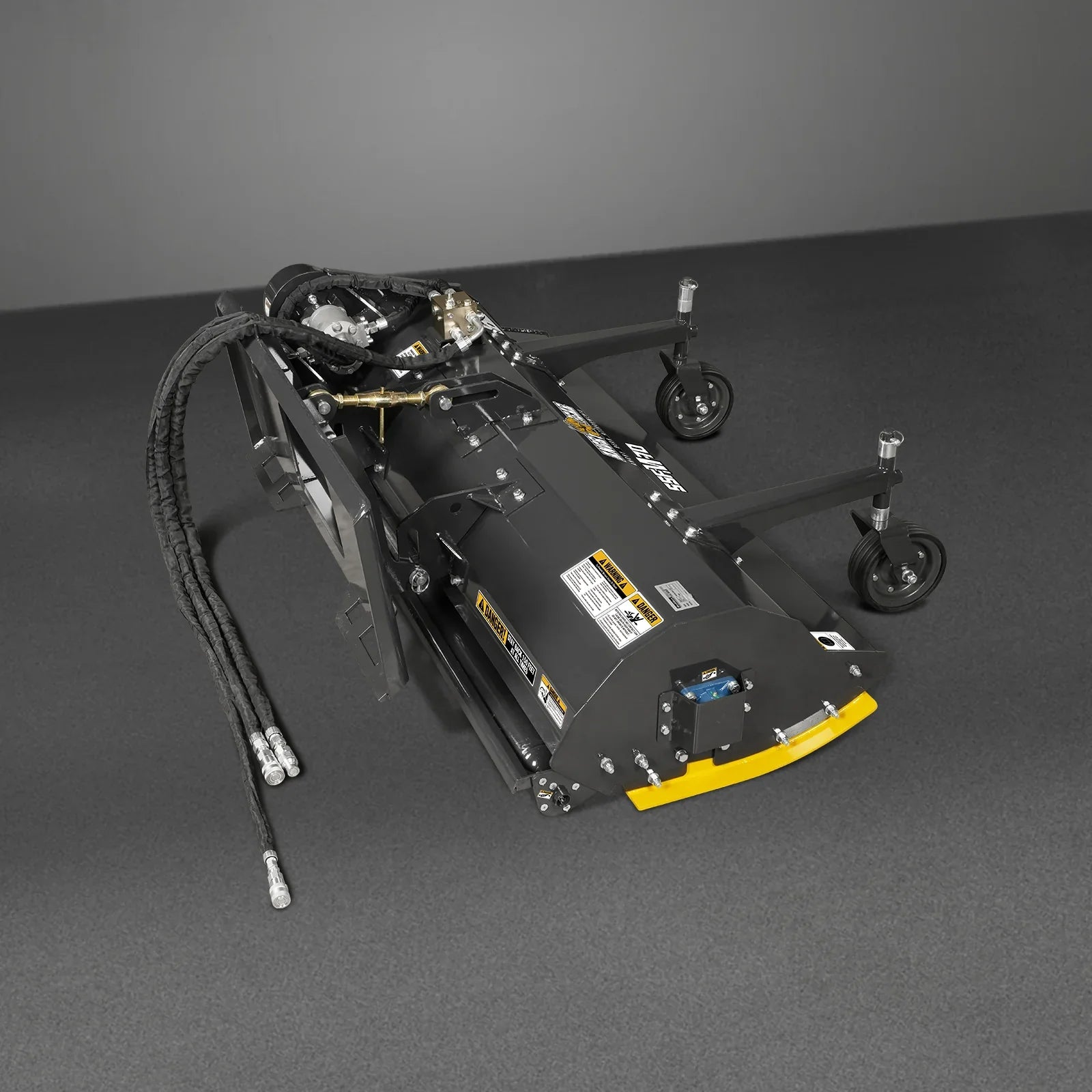

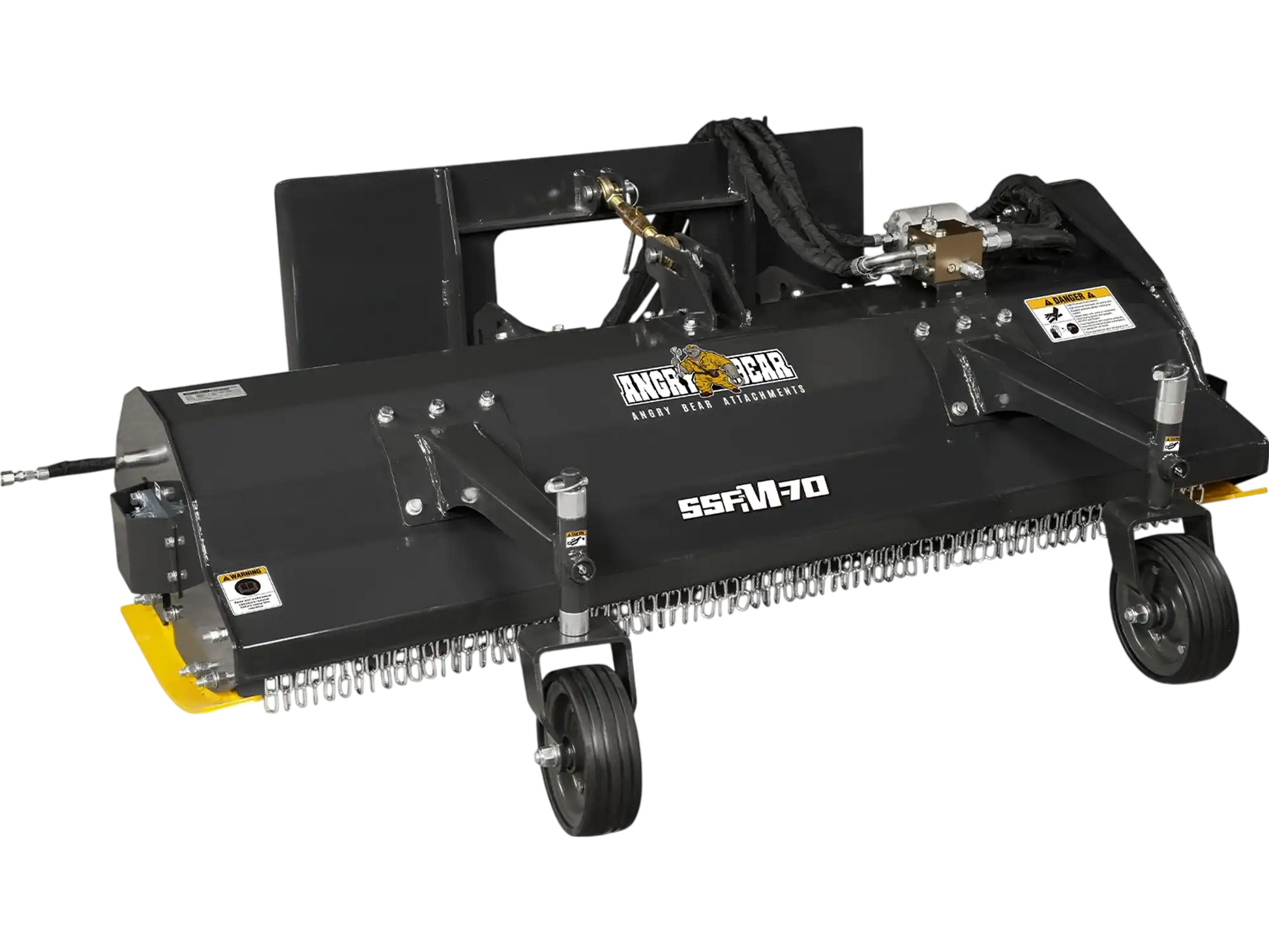

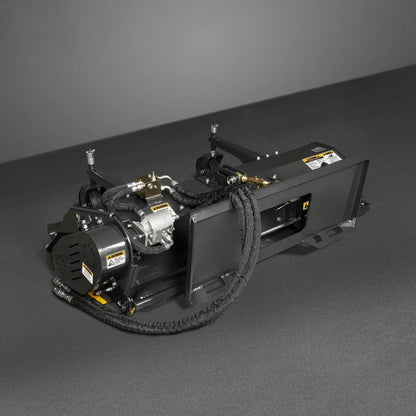

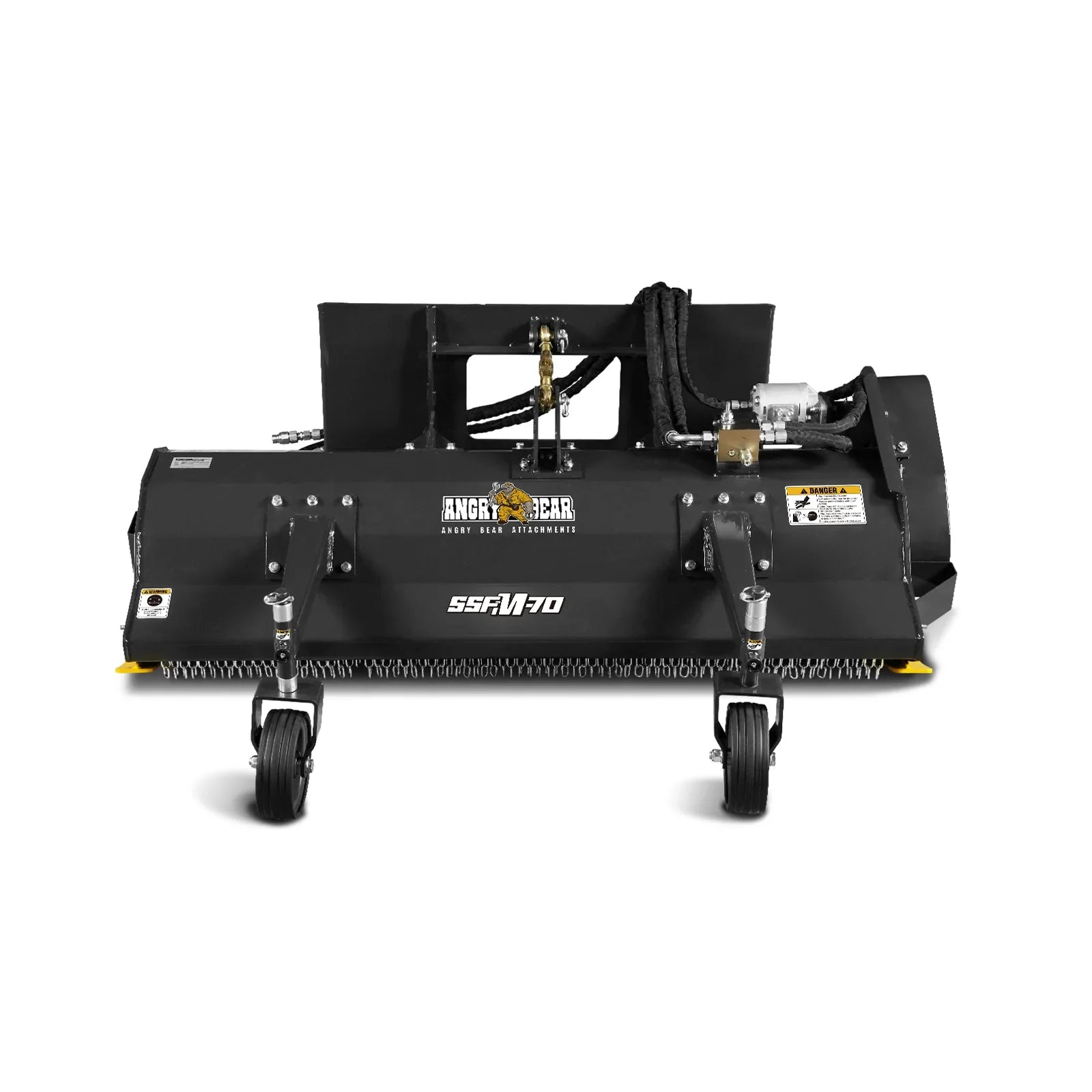

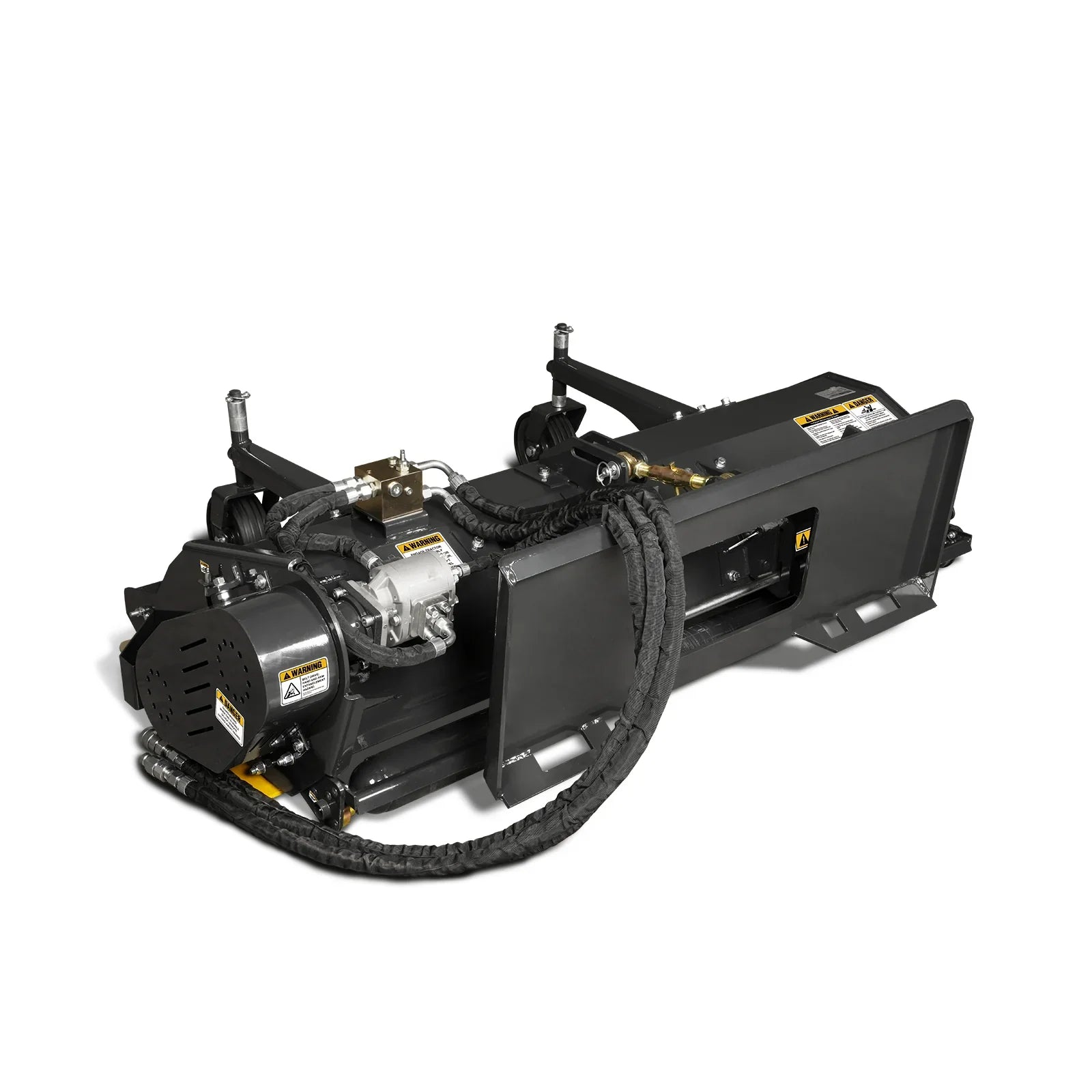

MechMaxx SSFM-70 Flail Mower 68" Hydraulic Skid Steer Attachment New

MechMaxx

$3,399.00
$3,399.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • The 68-inch working width can economically mow larger areas, meeting the weed and branch crushing needs in scenes such as orchards, woodlands, and vegetable fields. It can also mow fields, long ditches, around buildings, and large yards, saving time for users.
  • Can quickly cut, shred and mulch weeds and bushes in place, leaving a smooth and beautiful stubble.
  • The hydraulic motor system is belt-driven to the double helical flail shaft, providing powerful and efficient energy transmission for high-performance mowing.
  • Adjustable skid shoes mounted on the sides that absorb most of the shock and protect the mower from damage.
  • The attachment has a flail hammer to help the mower push through dense debris.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Max Cutting Diameter: This SSFM-70 mower has its 68’’ working width and auxiliary pressure is 2900 psi.
  • Clutch: The bearings are made of SKF from Sweden, which have long service life, little or no maintenance, and are easy to replace. They can reduce operating temperature and noise levels, improve performance and reliability, and reduce lubricant consumption.
  • Connection: The SSFM-72 is compatible with most skid steer loader makes and models and includes flat-faced NPT thread couplers, hydraulic hoses and universal mount
  • Gearbox Motor: The hydraulic motor system is belt-driven to the double helical flail shaft, providing powerful and efficient energy transmission for high-performance mowing.
  • Wheel: Height-adjustable rear wheels with bracket support for fine and even surface treatment.It has an adjustable height of 2.6 inches.
  • Adjustable Shoe and Roller Bar: Adjustable skid shoe mounted on the sides that absorb most of the shock and protect the mower from damage. The height-adjustable roller bar can be adjusted to raise or lower the mowing height according to needs, and the height can be adjusted by 2.6 inches.

Cutting Width: 68in

Hammer Weight: 0.8lbs

Total Width: 72in

Hammer Material: Cast Steel

Cutting Height: 2in

Deck Thickness: 0.25in

Flow Range Low: 18 gal/min

Finish: Durable Powder Coated Finish

Flow Range High: 23 gal/min

Product Weight: 778lbs

Auxiliary Pressure: 2900psi

Shipping Weight: 882lbs

Roller Diameter: 2in

Package Method: Iron Frame With Film

Rotor Bearing: SKF Bearing

Packing Size: 77 x 33.5 x 32in

Number of Hammer: 28

Weight (N.W./G.W.): 778/882lbs

Blade Type: Hammer Blade

Size of Hammer: 4 X 2.6in

This item comes with a 1 year factory warranty.
