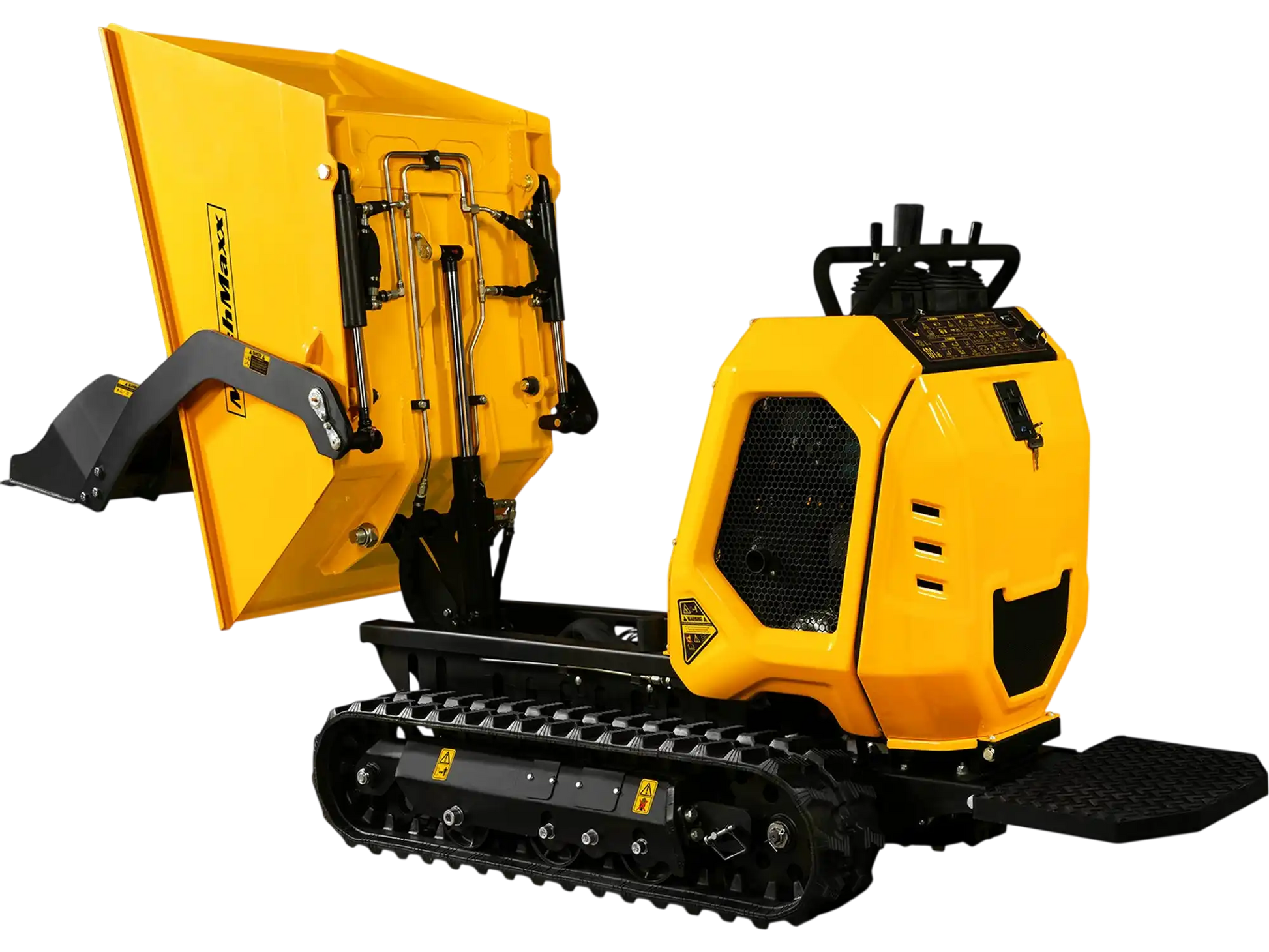

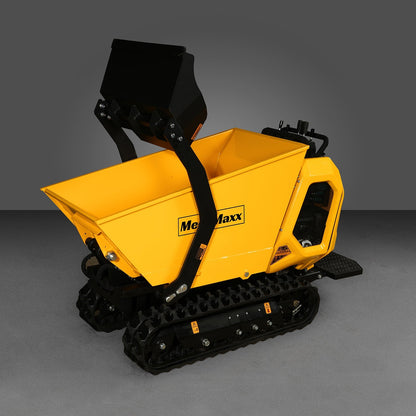

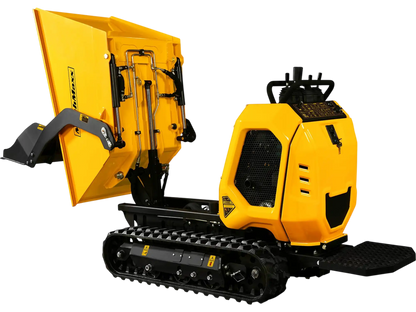

MechMaxx T80FL Mini Dumper 1800 lbs 420cc Electric Start Gas Engine Stand-On Hydraulic Track Self-Loading New

MechMaxx

$6,299.00
$6,299.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Two speed travelling speed: low speed to make sure the precision in operation and high speed at 4.4km/h allows for quicker travel around site.
  • 15hp gasoline engine provides more power for the machine and enhance the work performance in dumping and tracking.
  • Machine width at 29in allows you to fit through any standard doorway or gate.
  • 1800lbs loading capacity, fully Hydraulic system, Exclusive BONDIOLI&PAVESI hydraulic control valve for T80.
  • Triple gear pump, 30% max gradeability, 26.5Nm/2500rpm max torque
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Adjustable High and Low Speed: T80 can travel at high and low speeds, Max. Travel Speed is 0-2.73 mph, and Min. Travel Speed is 0-1.37 mph.
  • Control Valve Imported From Italy: High-quality control valves imported from Italy can extend the service life and effectively improve work efficiency.
  • Load 1800lbs: The safe load capacity of the dump truck is 1800lb. The compact design can be used flexibly in small construction sites/farms/and yards.

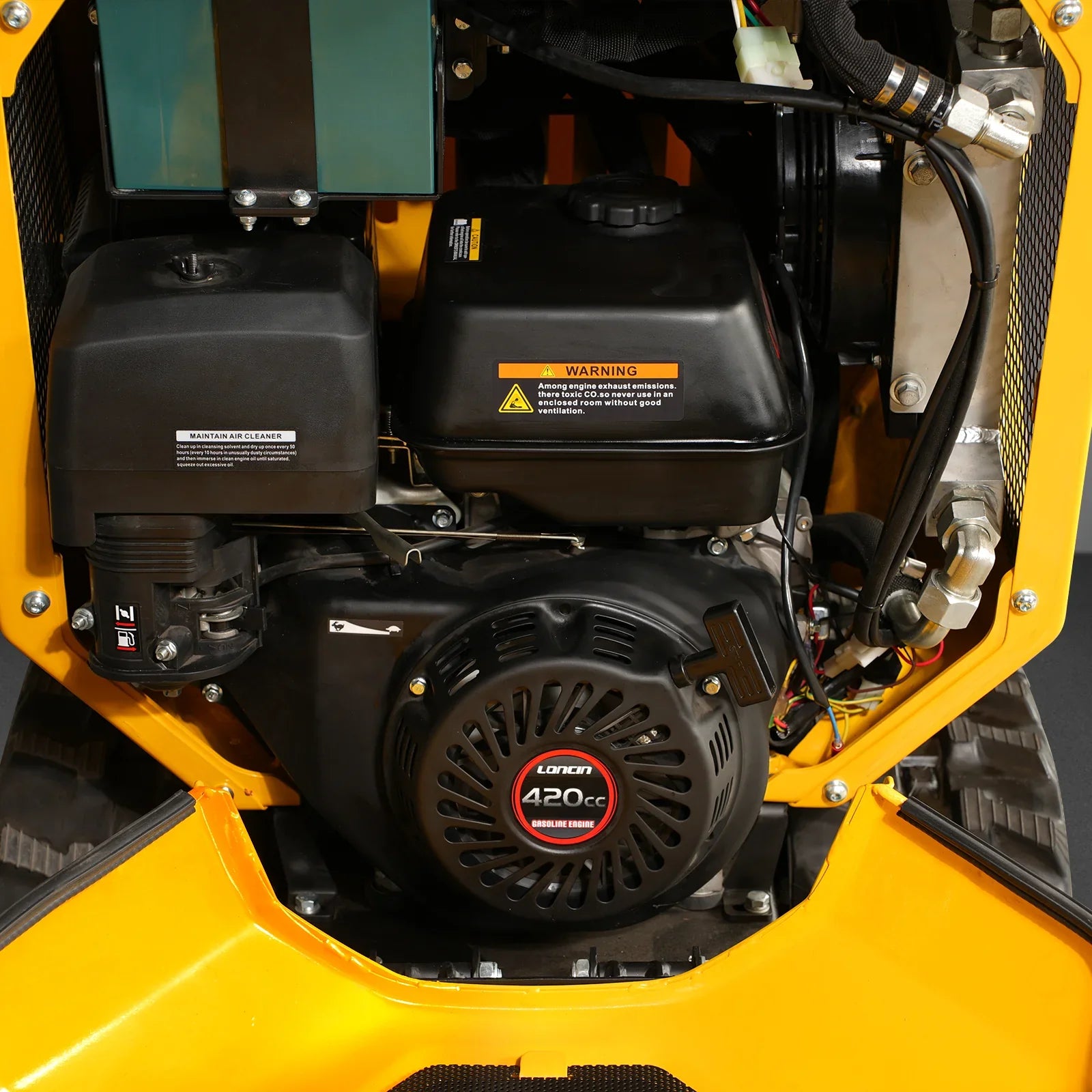

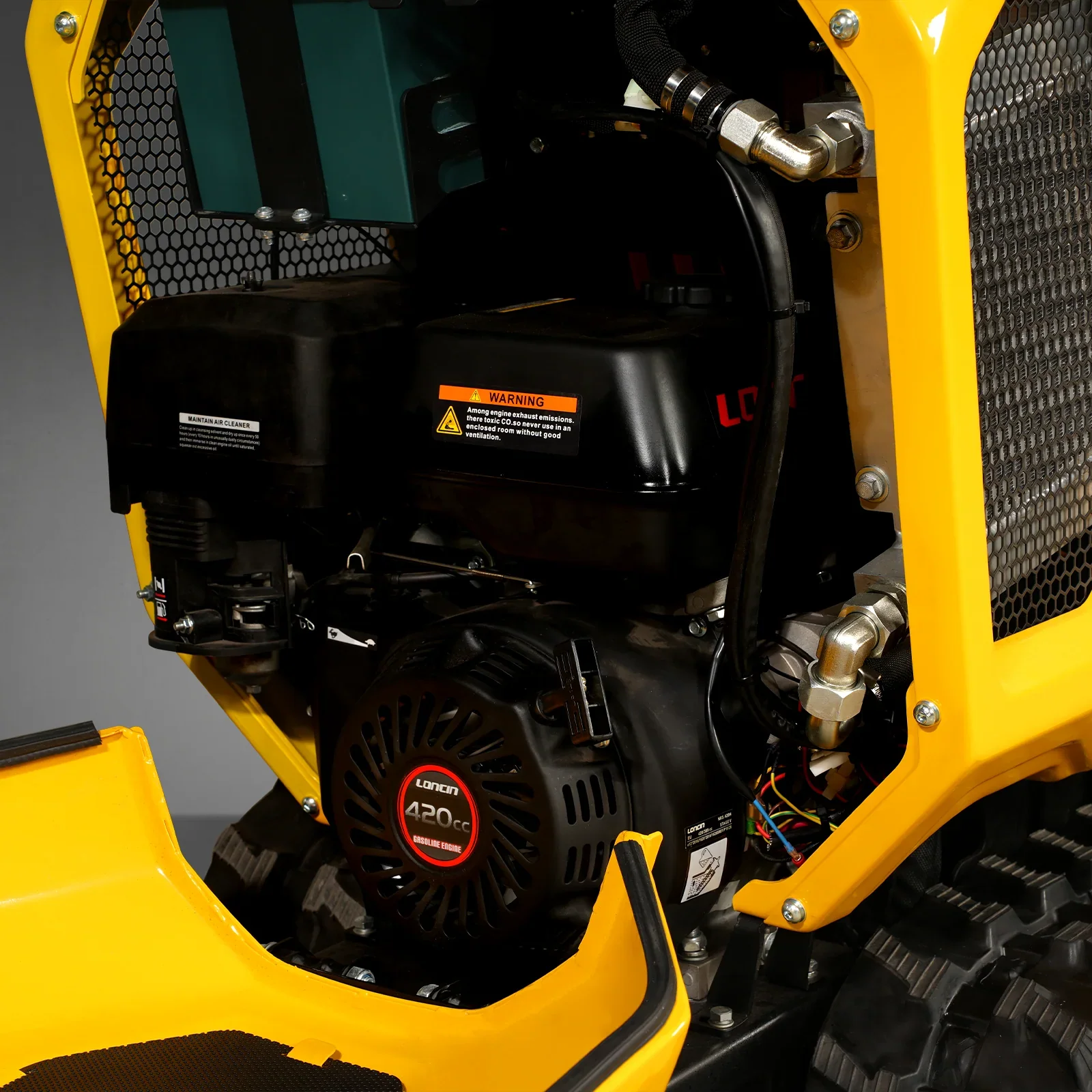

  • Engine: The T80 is equipped with a 15hp 420cc electric start gasoline engine.

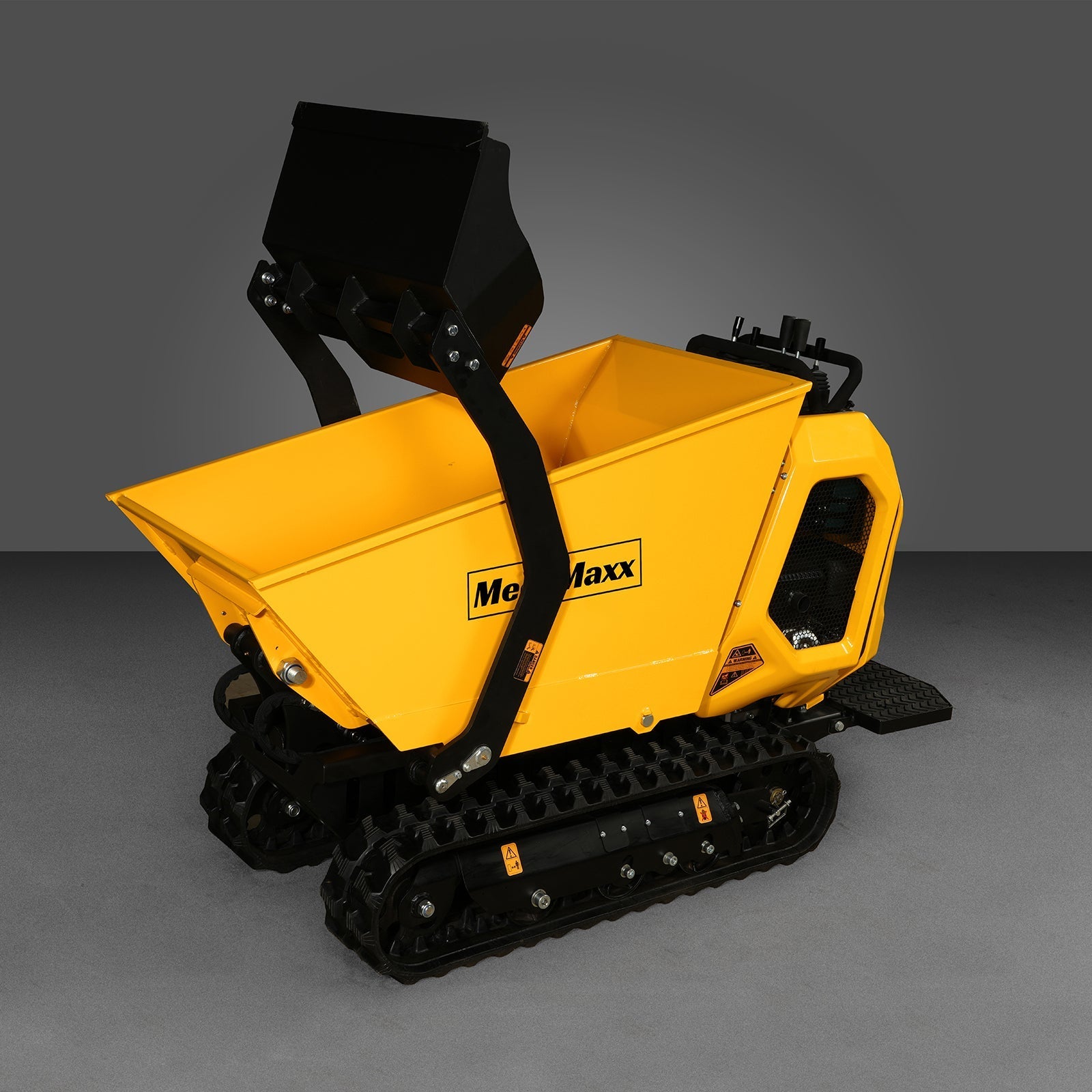

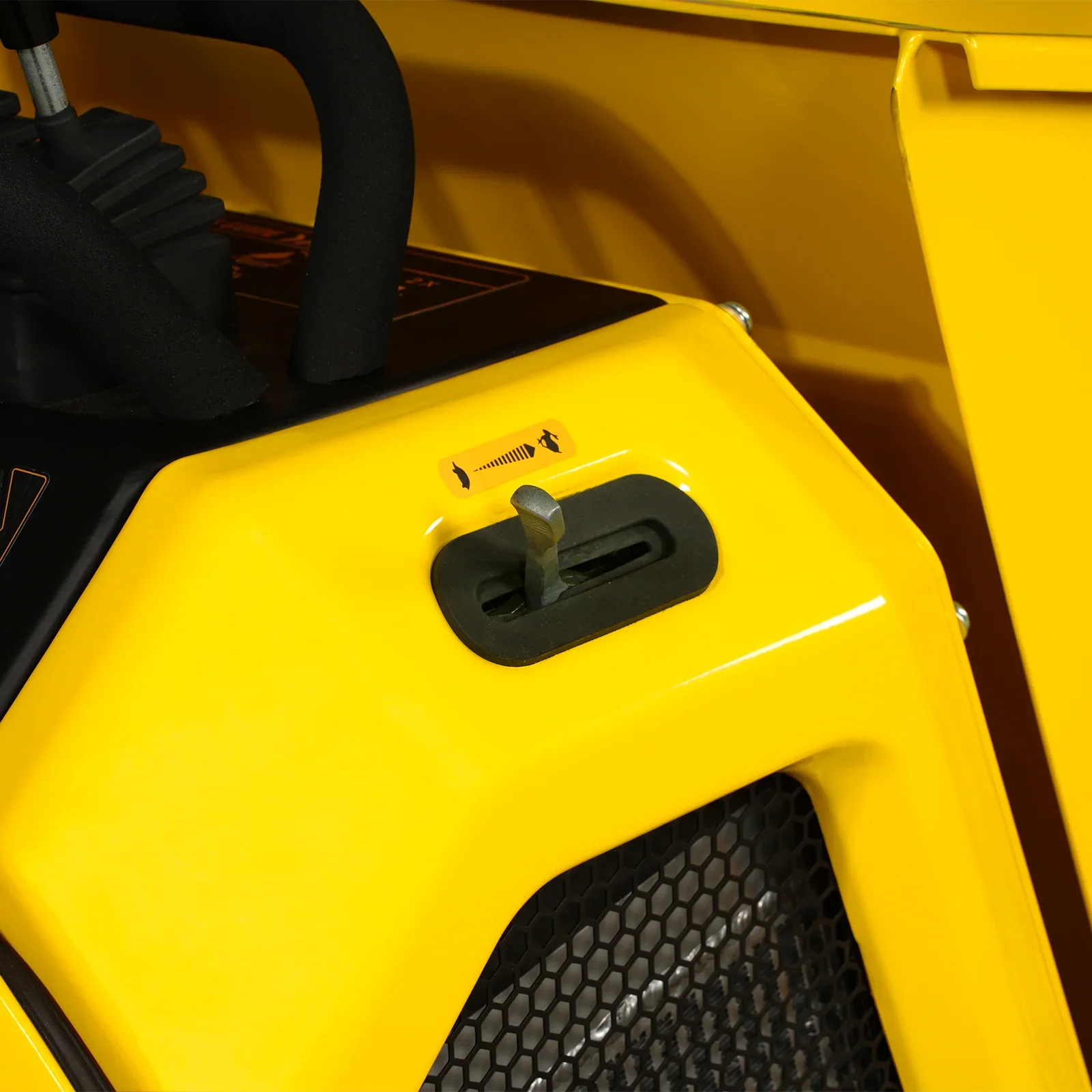

  • Handle: There is an adjustable front shovel handle to save manpower. Adjustable dump handles help speed up handling.

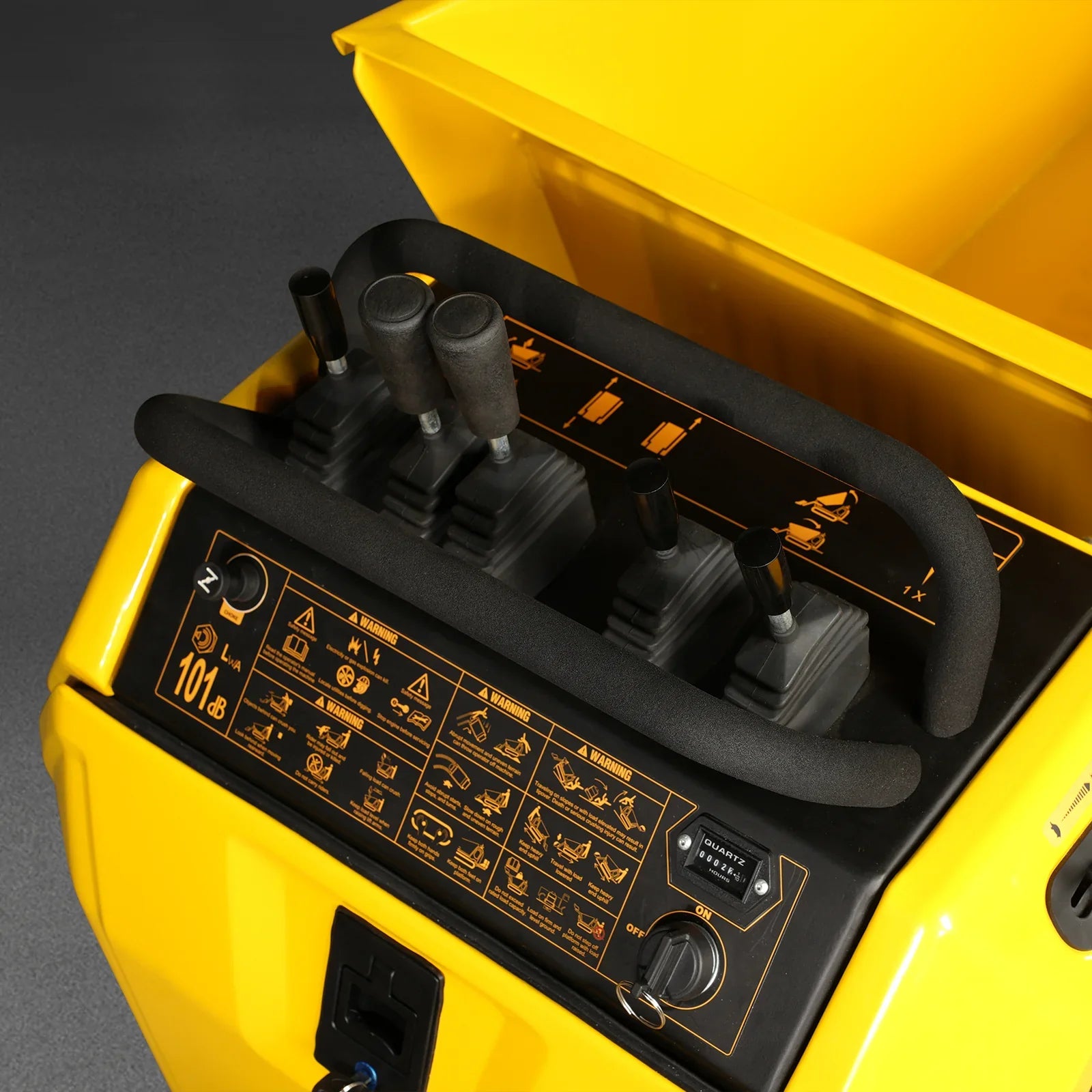

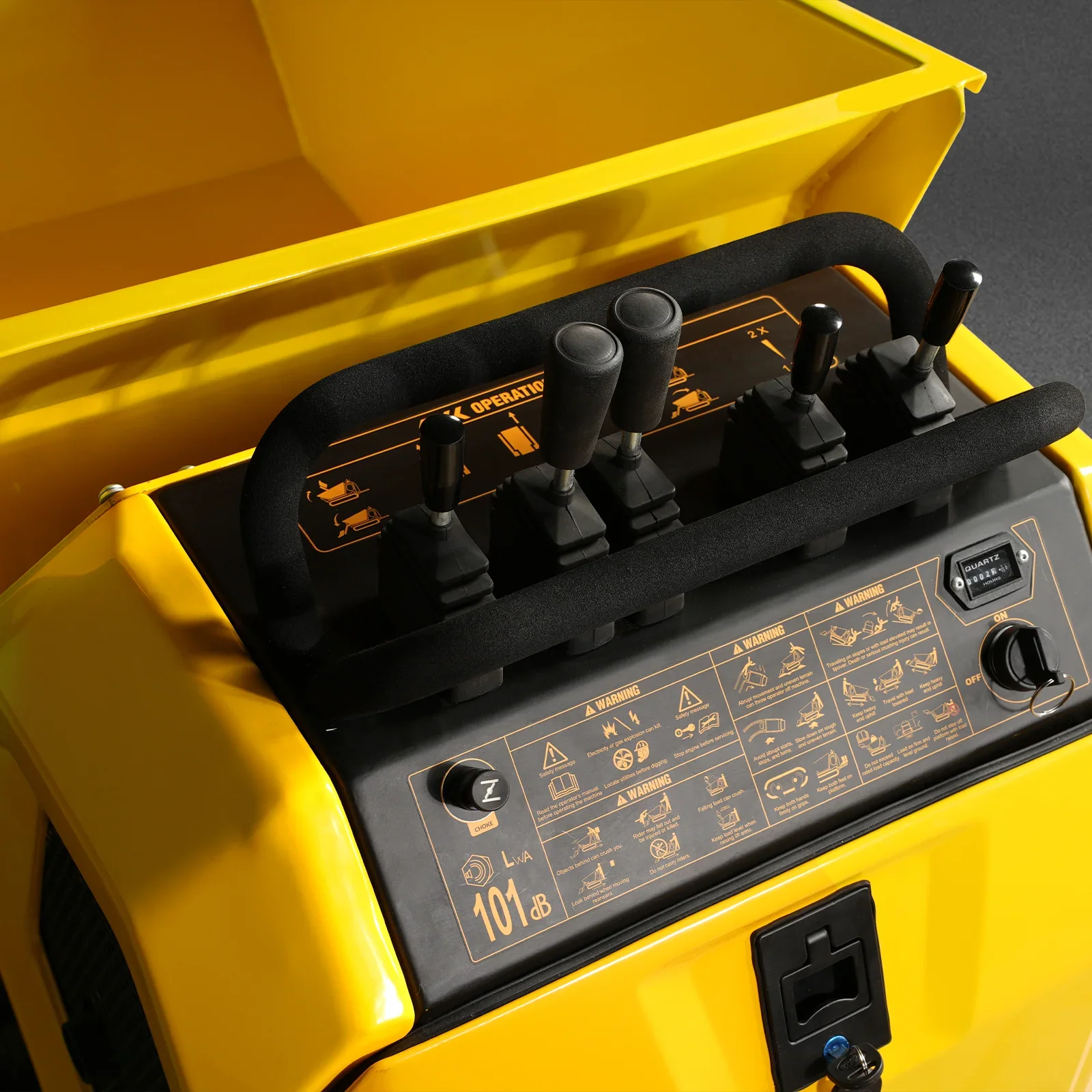

  • Timer: There is a timer at the control panel to meet customer needs to record the running time of the machine.
  • Electric Start: The electric start key and damper switch of the gasoline engine are designed on the control panel, allowing for more intuitive operation.

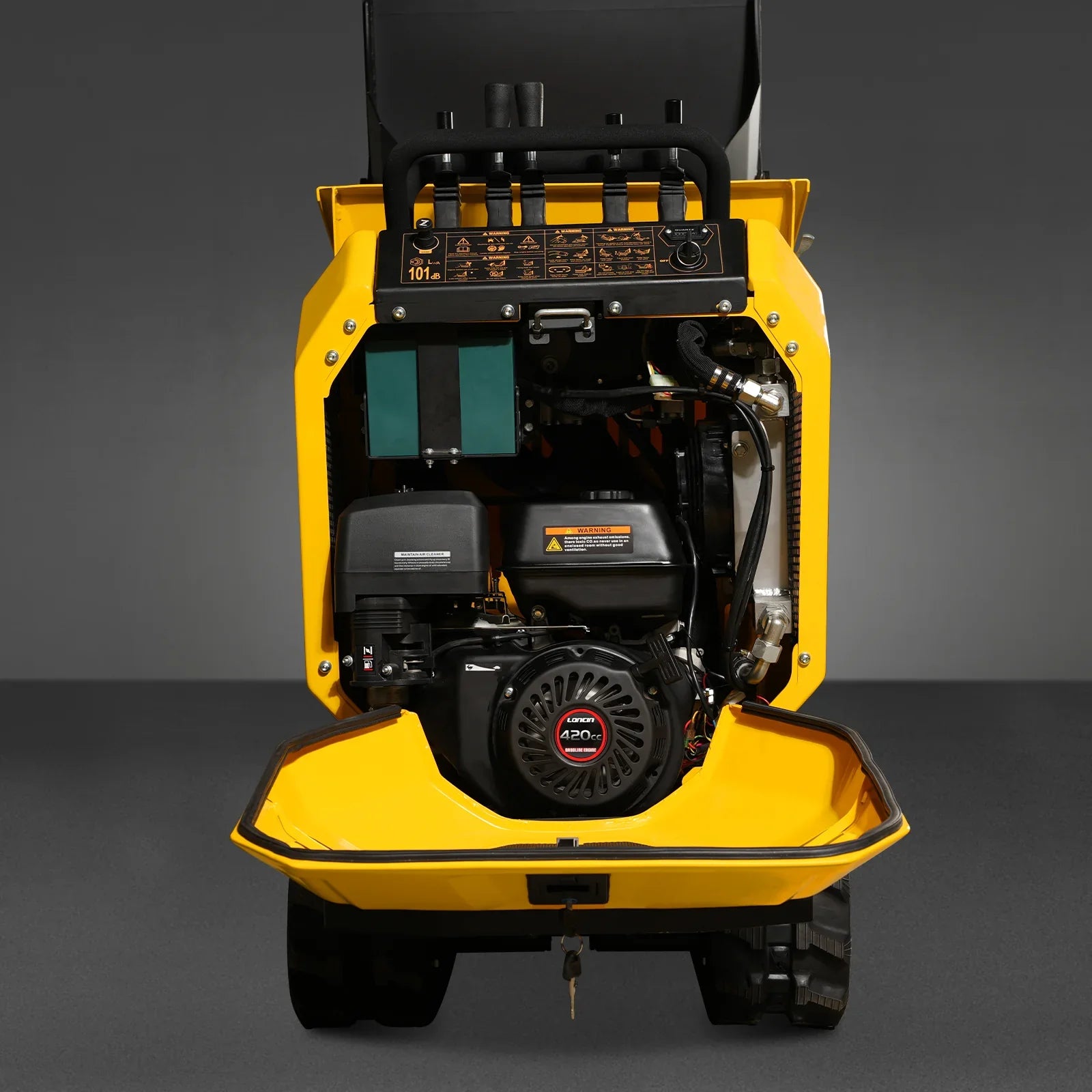

  • The Hydraulic Oil Radiator: The fully enclosed cabin design allows the operator to avoid noise during work. The hydraulic oil radiator and engine shaft end fan inside the cabin perfectly reduce the temperature of the console to within 104.0 °F.

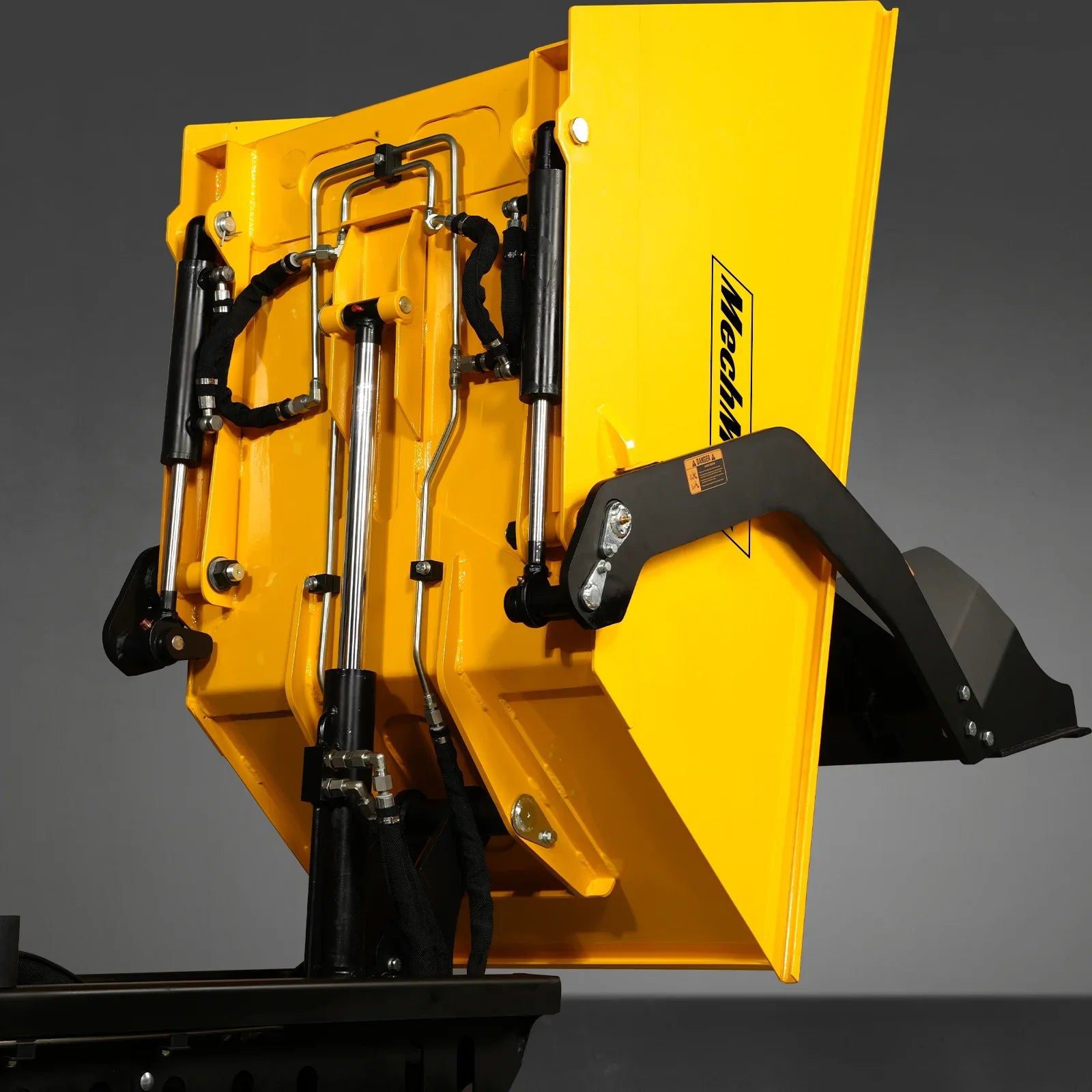

  • Triple Gear Pump: The hydraulic system design of the triple gear pump can make the vehicle more stable when the hydraulic system is working.

Engine: LONCIN G420F(D)

Working Type: Self Loading and Unloading

Engine Type: Single Cylinder, 4 Stroke, Air Cooled, OHV

Transmission: Hydrostatic Track Drive System

Engine Displacement: 420 cc

Parking Brake: Yes

Horsepower: 15 HP

Operator Platform: Stand-On

Engine Power: 9.0 kw / 3600 RPM

Max.Travel Speed: 0-2.73 mph

Start: E-Start

Min. Travel Speed: 0-1.37 mph

Maximum Torque: 26.5 N·m / 2500 RPM

Max. Gradeability: 0.3

Loading Capacity: 1800 lbs

Ground Pressure (with Operator): 2.9 Psi (20 Kpa)

Wheelbase: 39 in

Hydraulic Pressure: 2900 Psi (20 Mpa)

Bucket Capacity: 10.6 cu.ft.

Hydraulic Tank Capacity: 6 gal

Track Width: 7.09 in

Fuel Tank Capacity: 1.72 gal

Track Length: 51.2 in

Battery Capacity: 12 V 20 Ah

Track Height: 11.8 in

Pump Type: Triple Gear Pump

Shovel Height: 63.8 in

Overall Length (W/O Shovel): 80 in

Dump Front End Height: 33.3 in

Overall Length with Shovel: 108 in

Dump Back End Height: 43.3 in

Overall Height: 48 in

Dump Width: 24.3 in

Overall Width: 29 in

Console Height: 40.2 in

Weight (N.W / G.W): 1253 / 1385 lbs

Platform Ground Clearance: 10.4 in

This item comes with a 1 year factory warranty.
PDF T80 Product manual 1.0 PDF Loncin G420F Manual
