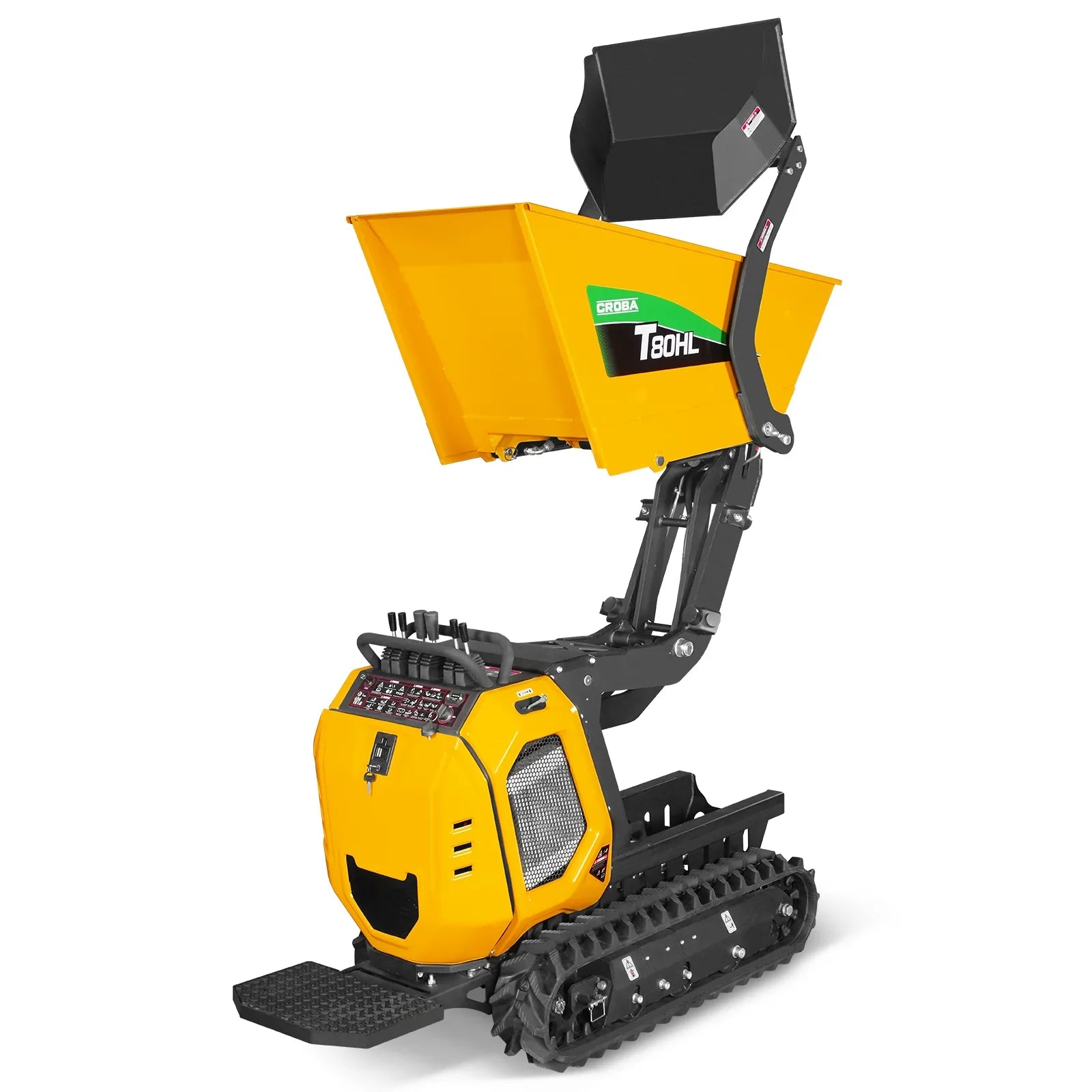

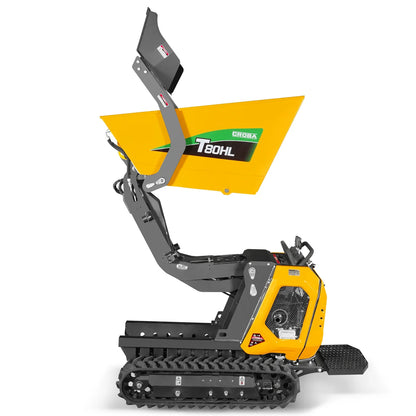

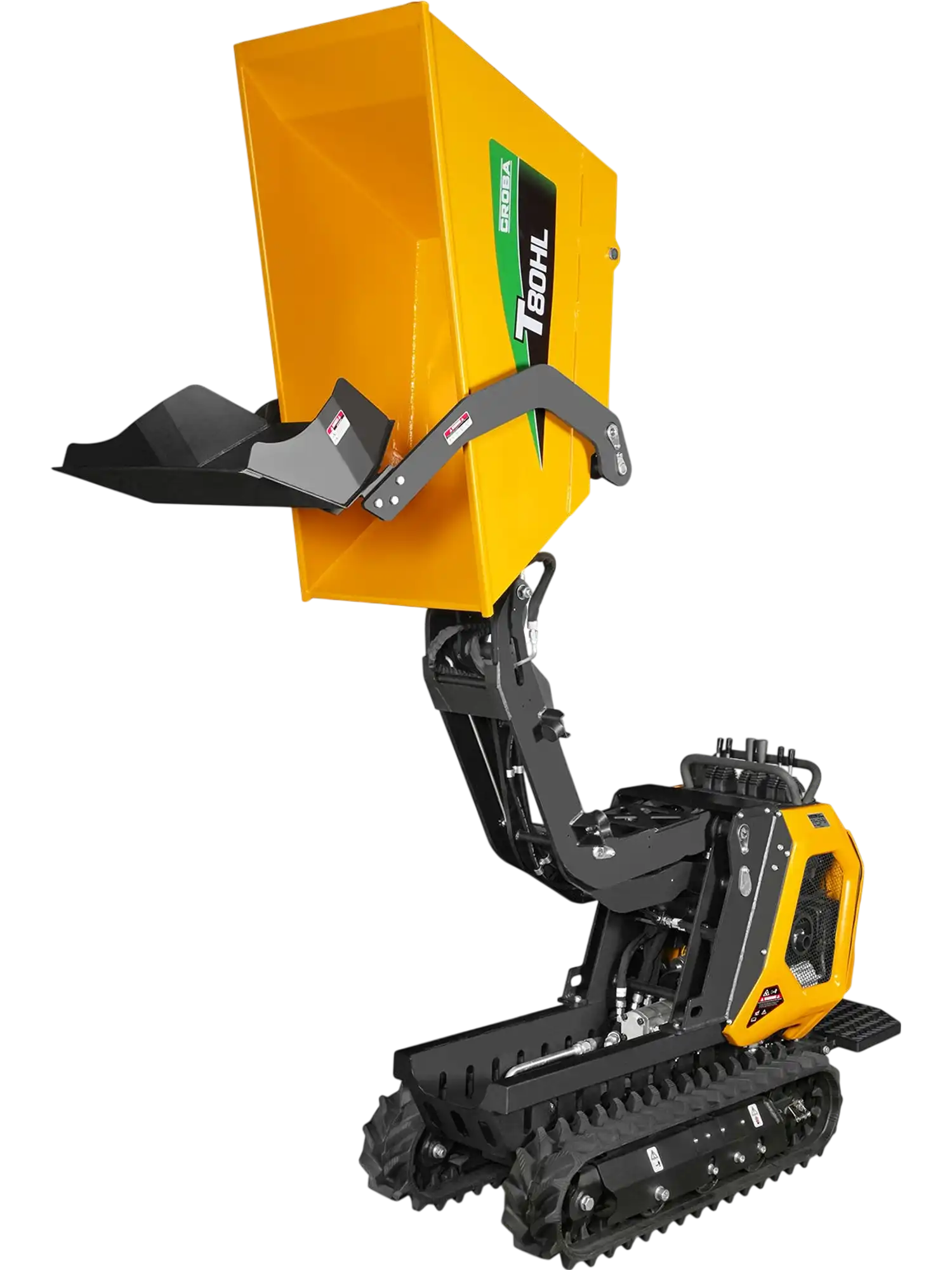

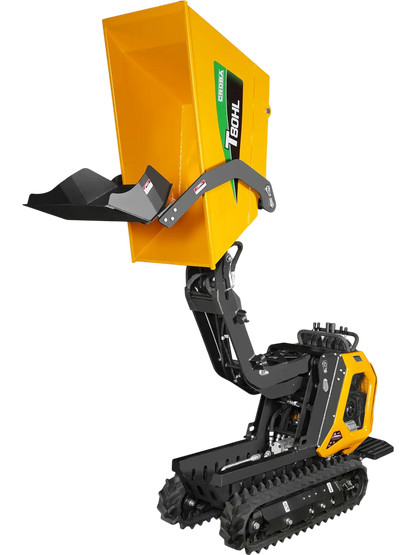

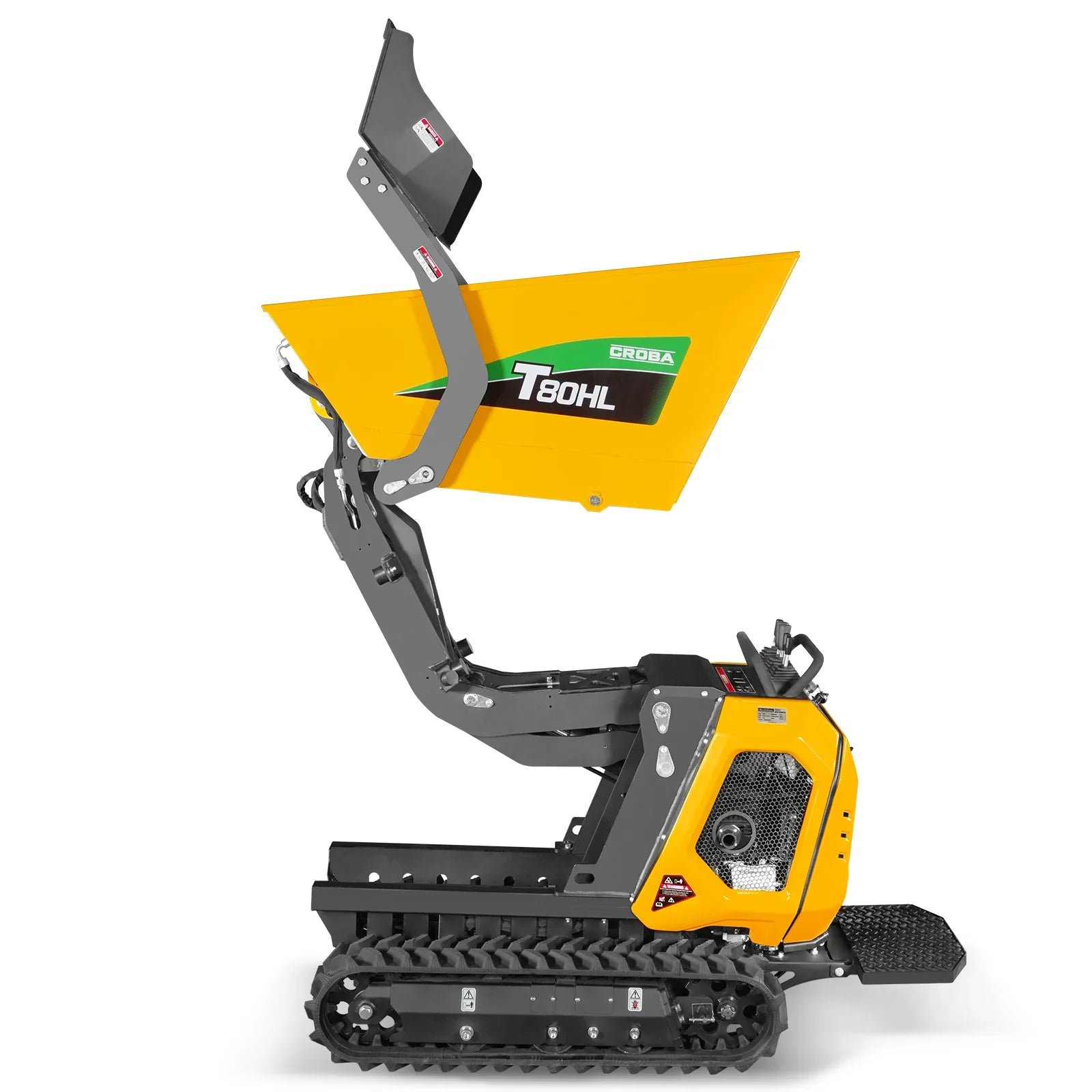

MechMaxx T80HL Mini Dumper 1100lbs 420cc Electric Start Gas Engine Stand-On Hydraulic Track Self-Loading Tipping Lifting New

MechMaxx

$6,999.00
$6,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Two speed travelling speed: low speed to make sure the precision in operation and high speed at 2.7 mph allows for quicker travel around site.

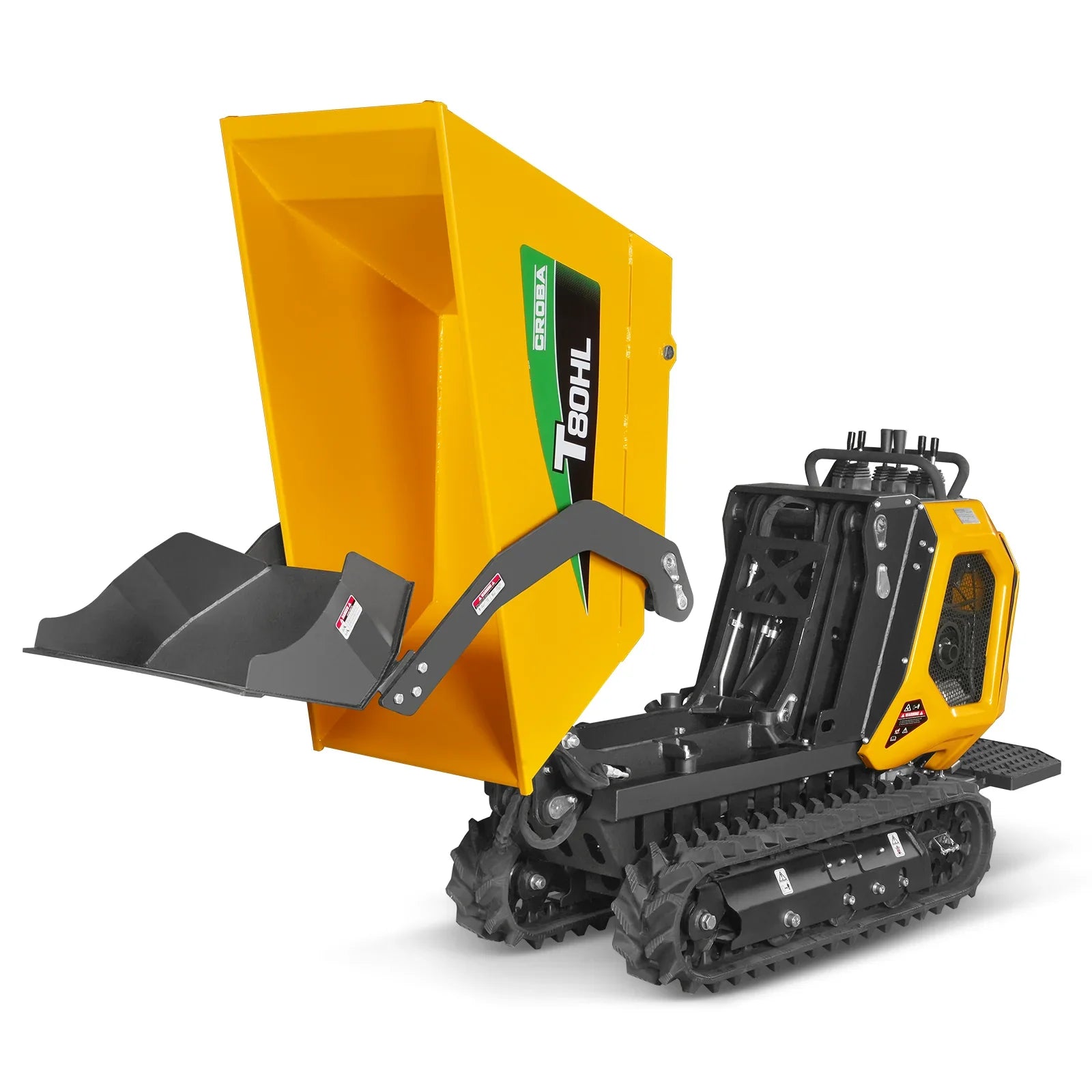

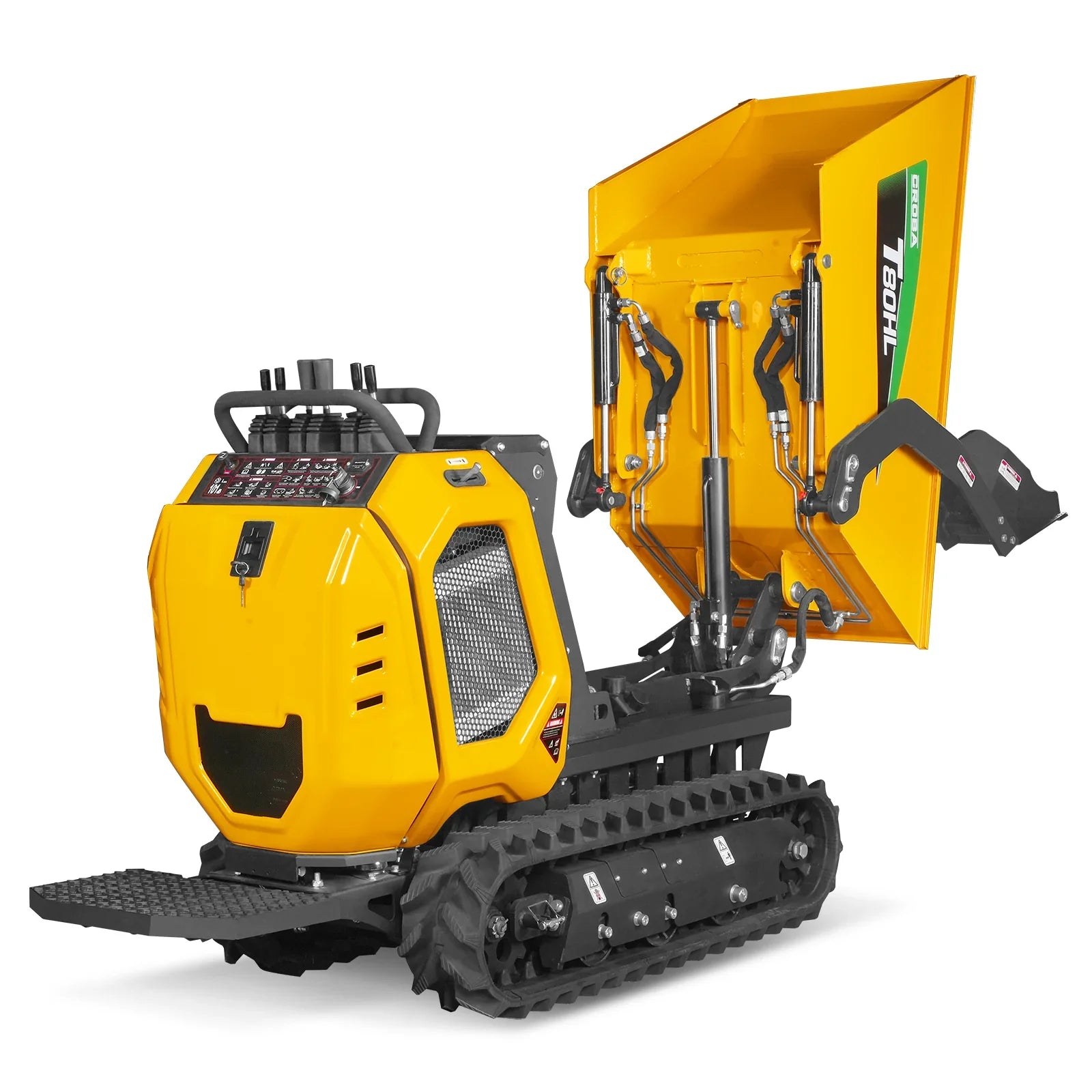

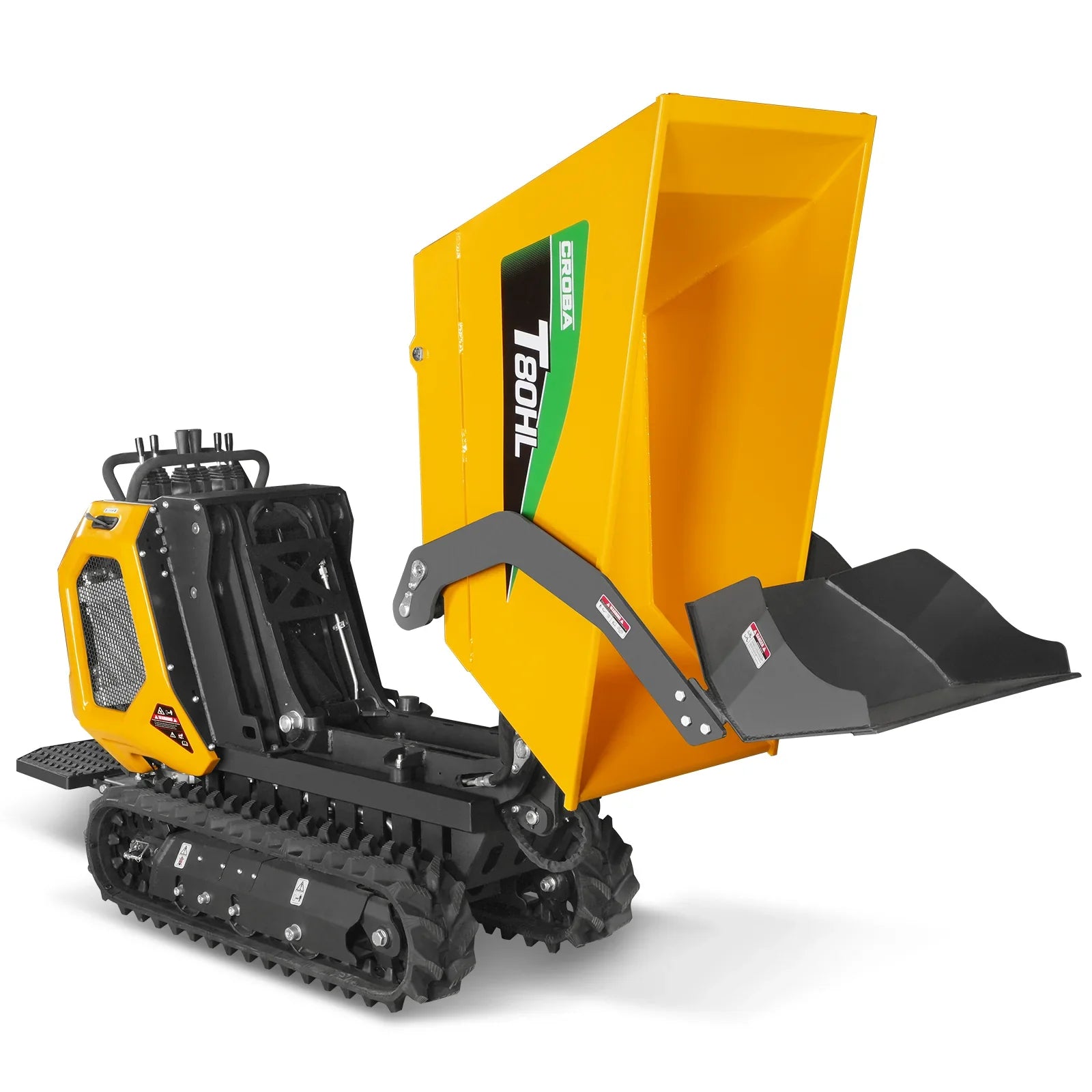

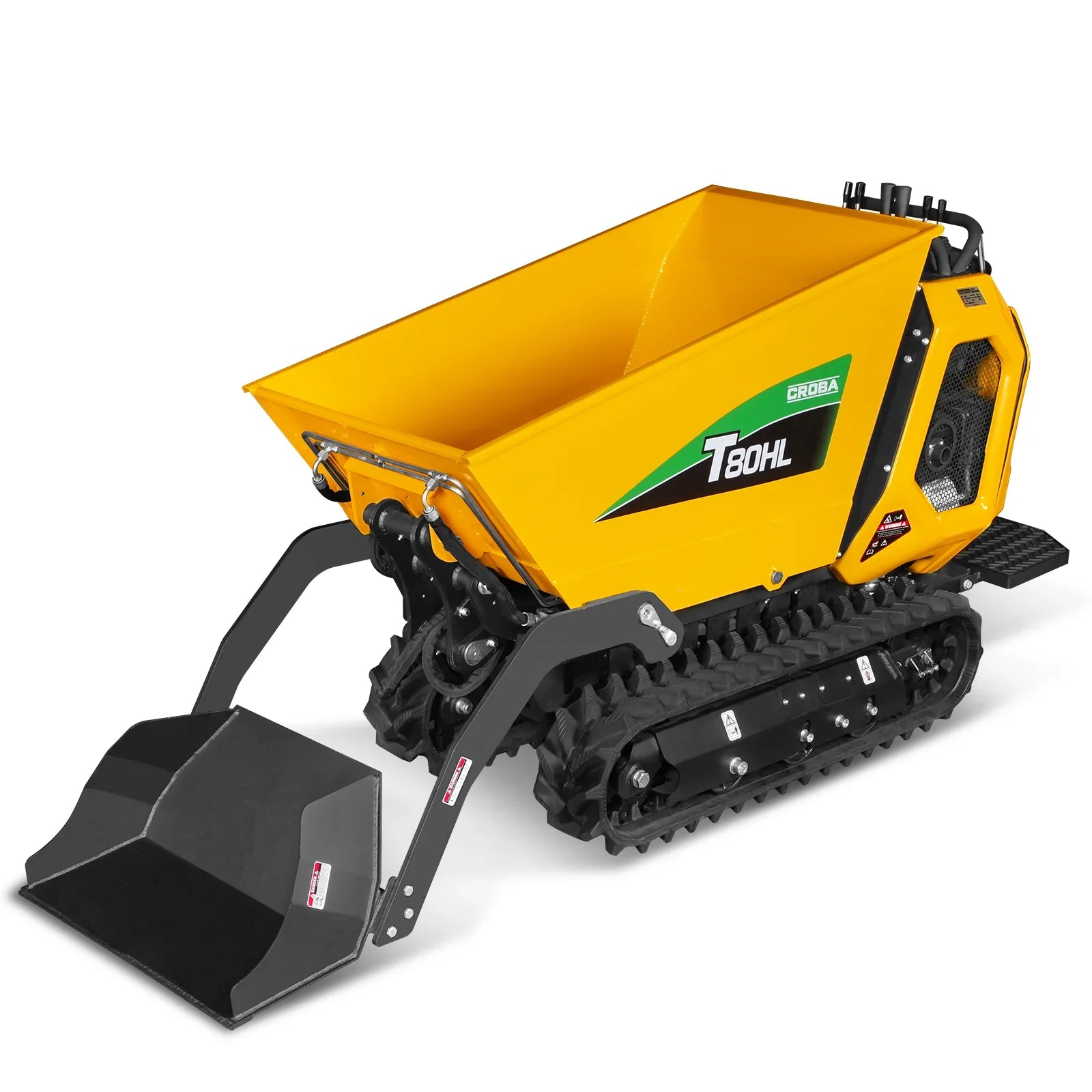

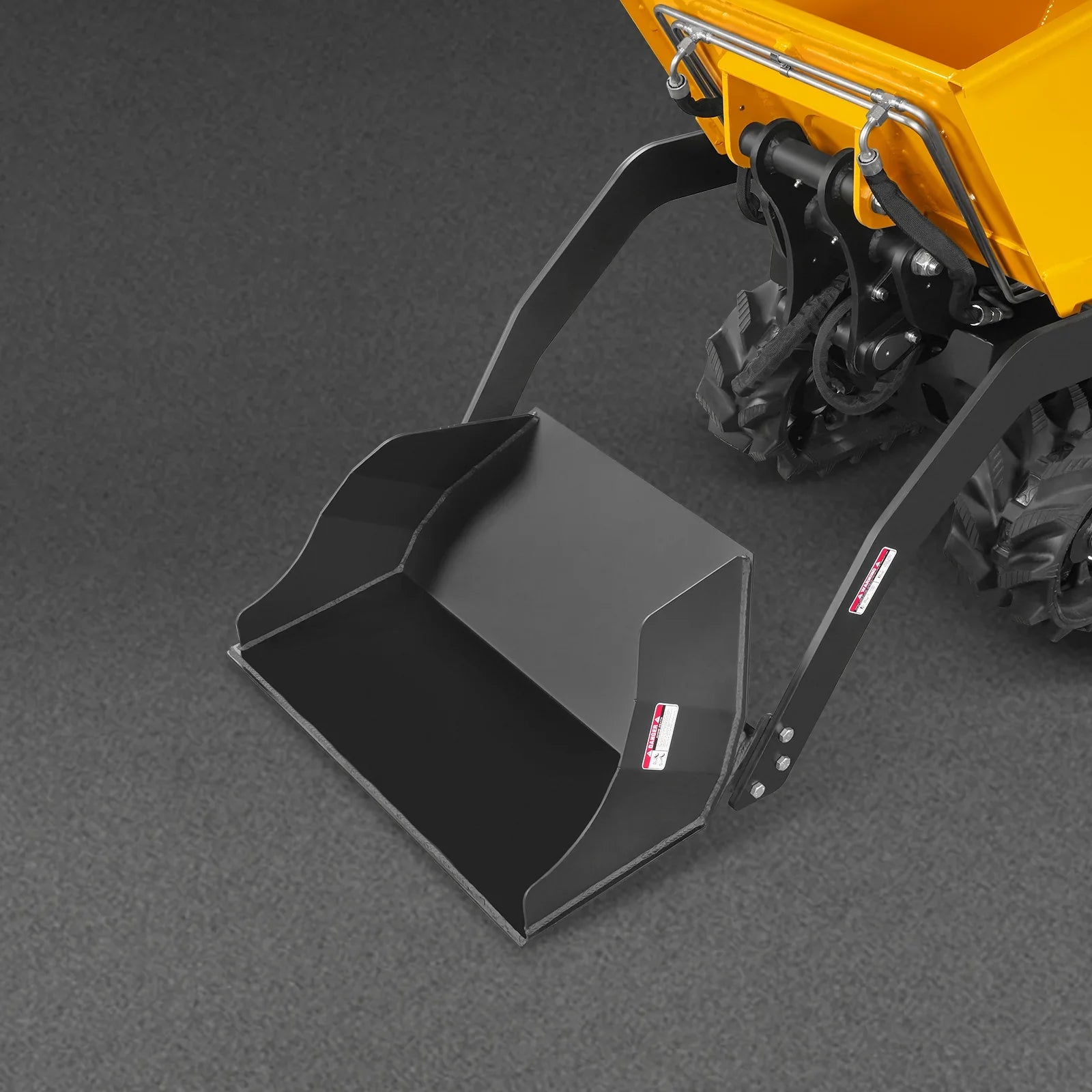

  • 15hp gasoline engine provides more power for the machine and enhance the work performance in dumping and tracking. Its integrated self-loading shovel reduces manual labor, while the hydraulic lifting and tipping system ensures fast, controlled dumping.
  • Machine width at 29in allows you to fit through any standard doorway or gate.
  • 1100lbs loading capacity, fully Hydraulic system, Exclusive BONDIOLI&PAVESI hydraulic control valve for T80HL.
  • Triple gear pump, 30% max gradeability, 26.5Nm/2500rpm max torque
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

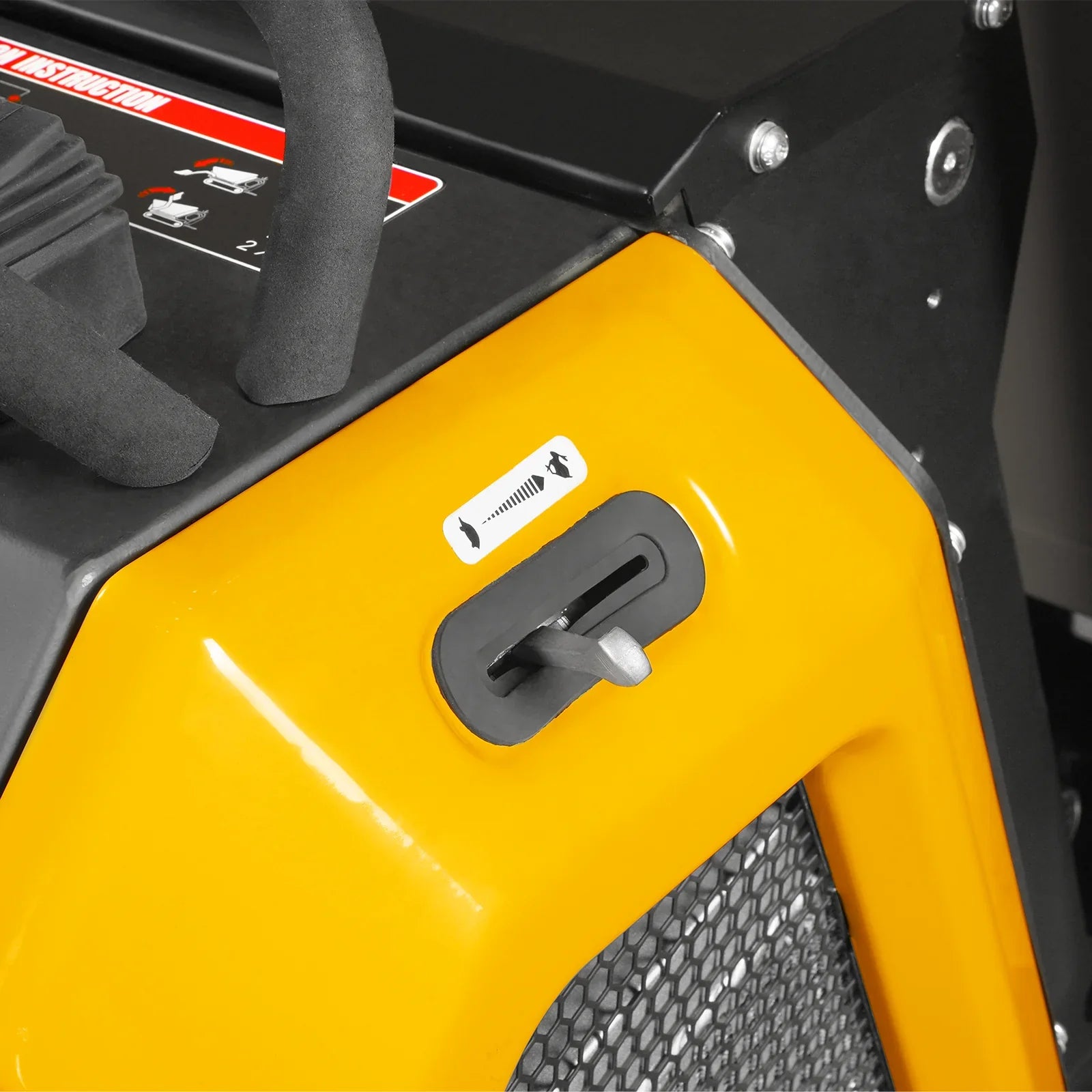

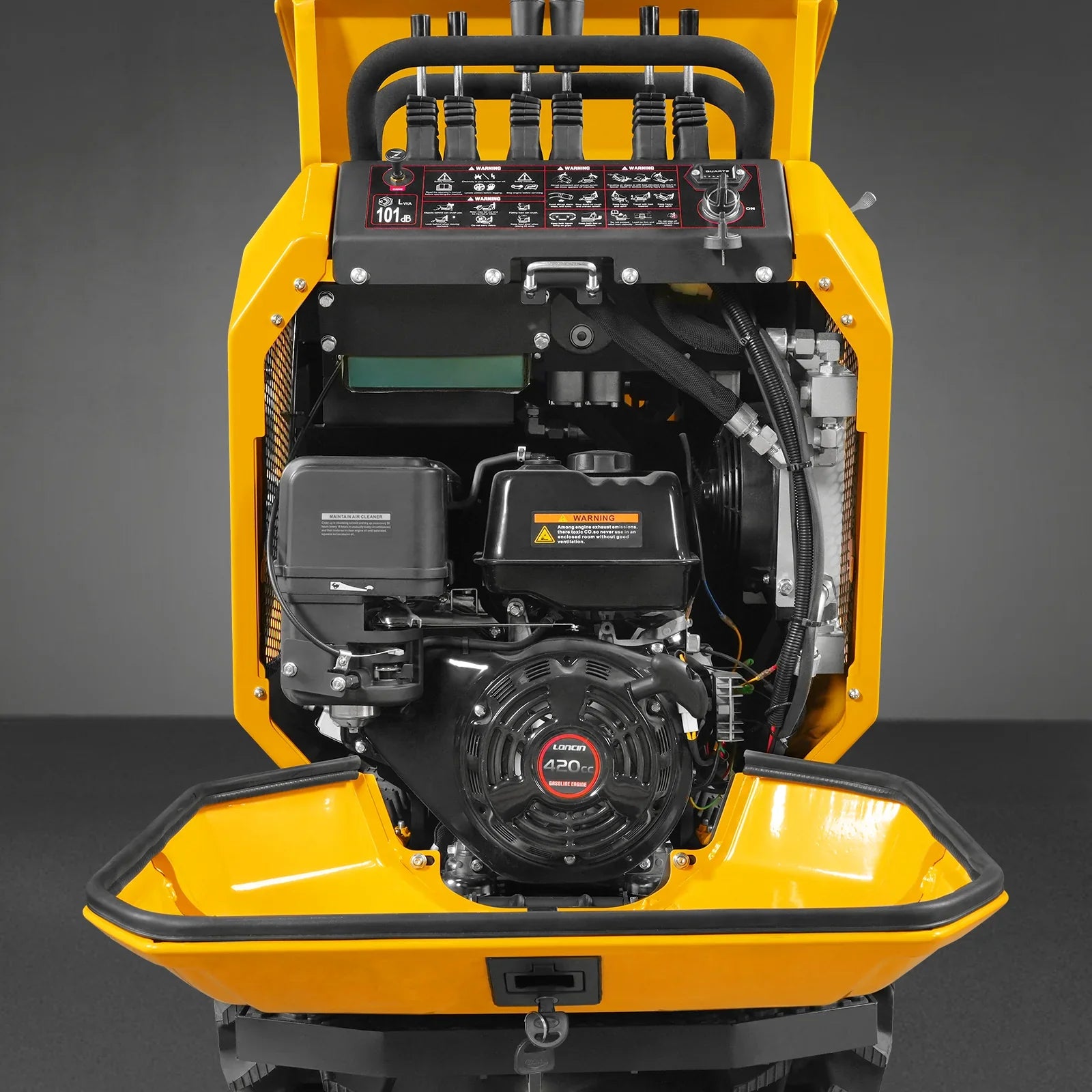

  • Electric-Start Engine: The T80HL is equipped with a 15HP 420cc electric-start gasoline engine, with the start key and damper switch conveniently integrated into the control panel for intuitive operation.
  • Control Valve Imported From Italy: High-quality control valves imported from Italy can extend the service life and effectively improve work efficiency.
  • Load 1100lbs: With a safe load capacity of 1,100 lb and a 9.5 cu.ft. bucket capacity, the dump truck features a compact design for flexible use on small construction sites, farms, and yards.

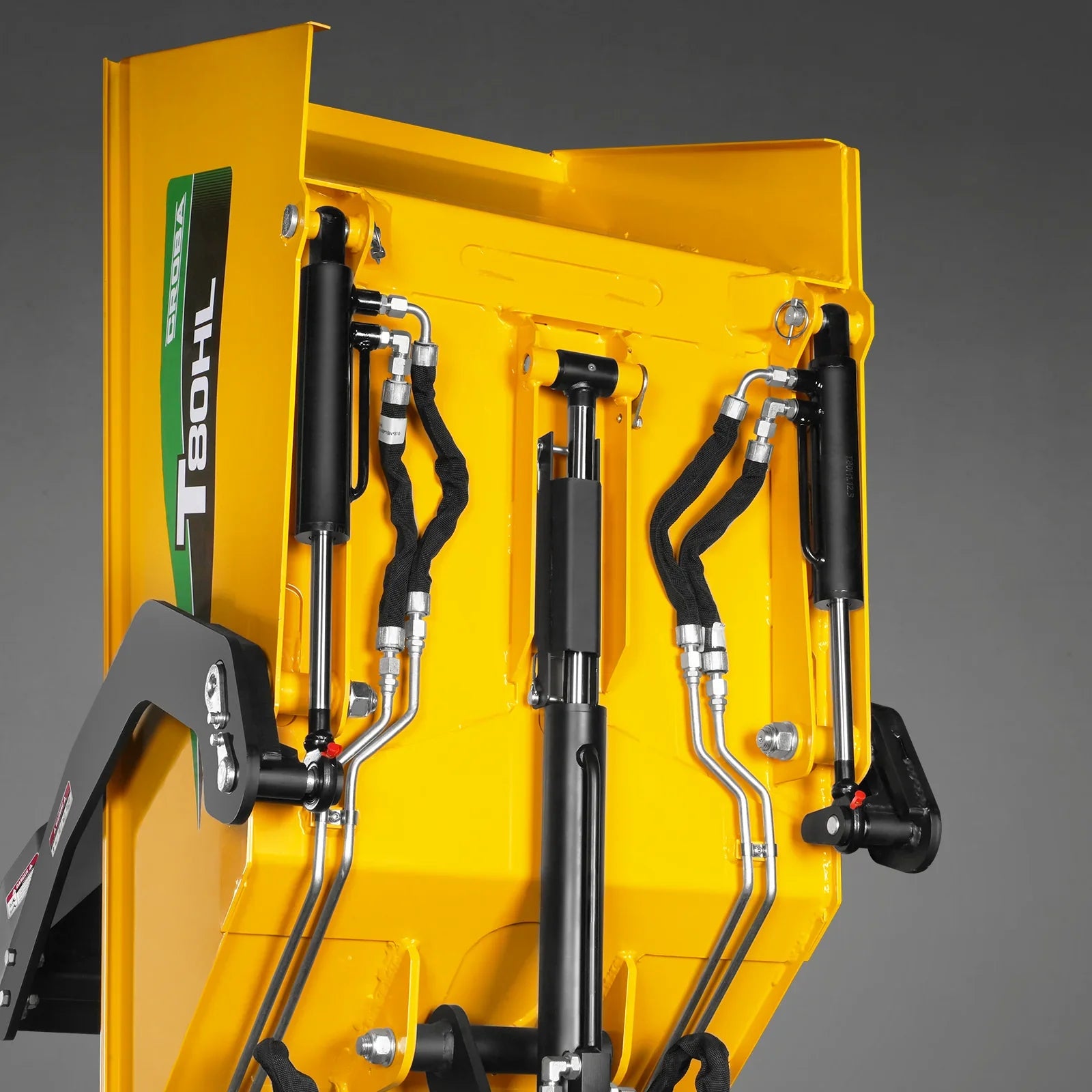

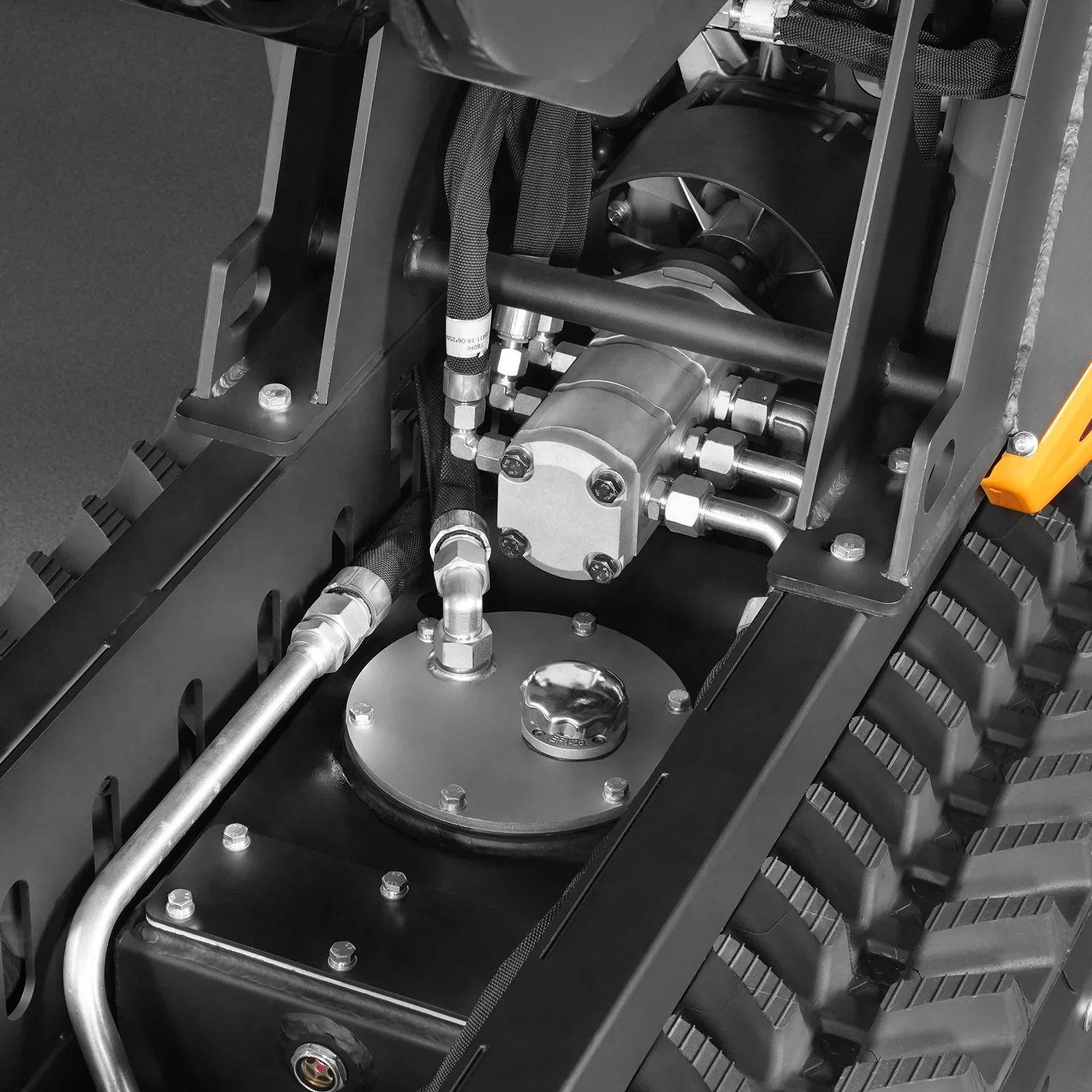

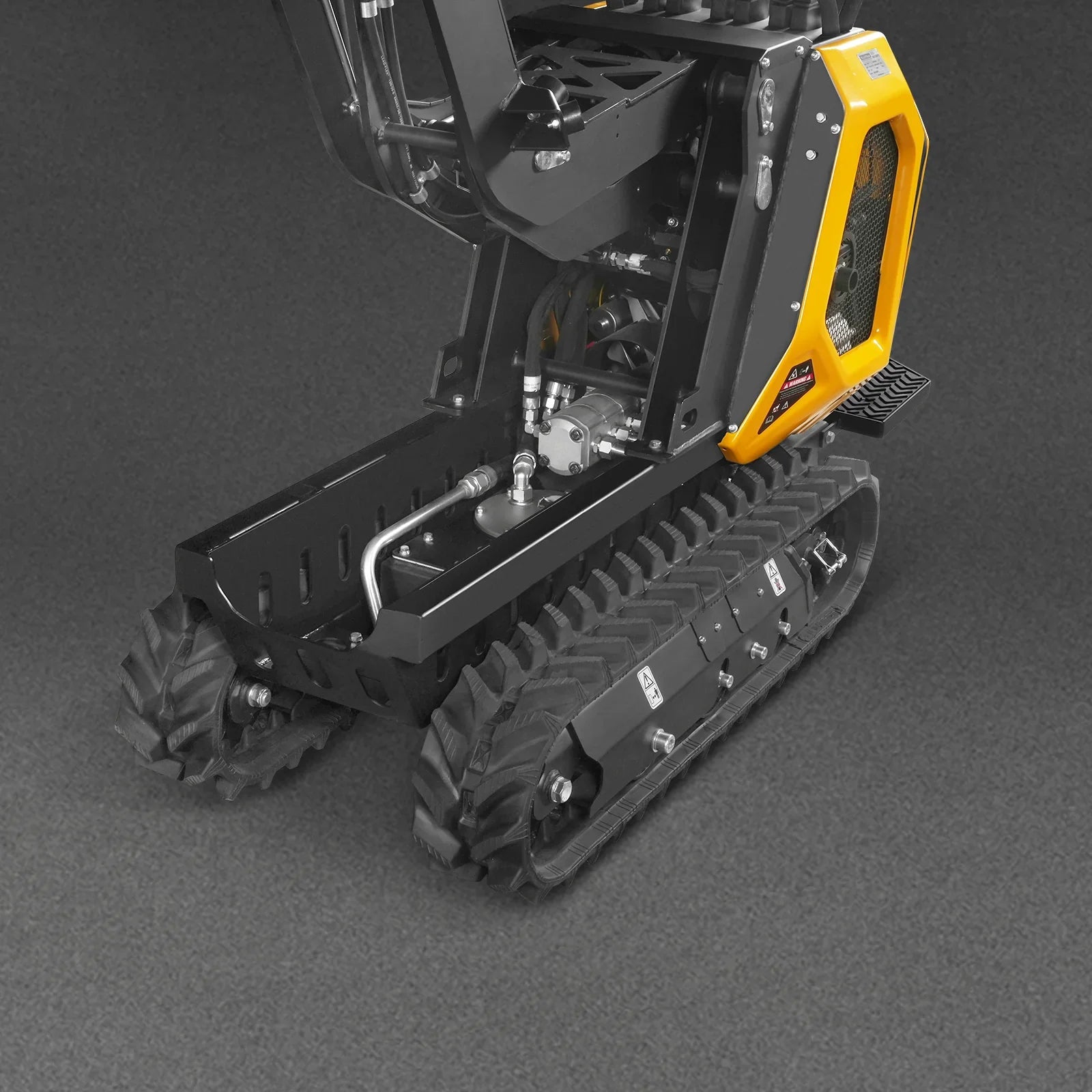

  • Triple Gear Pump: The hydraulic system design of the triple gear pump can make the vehicle more stable when the hydraulic system is working.

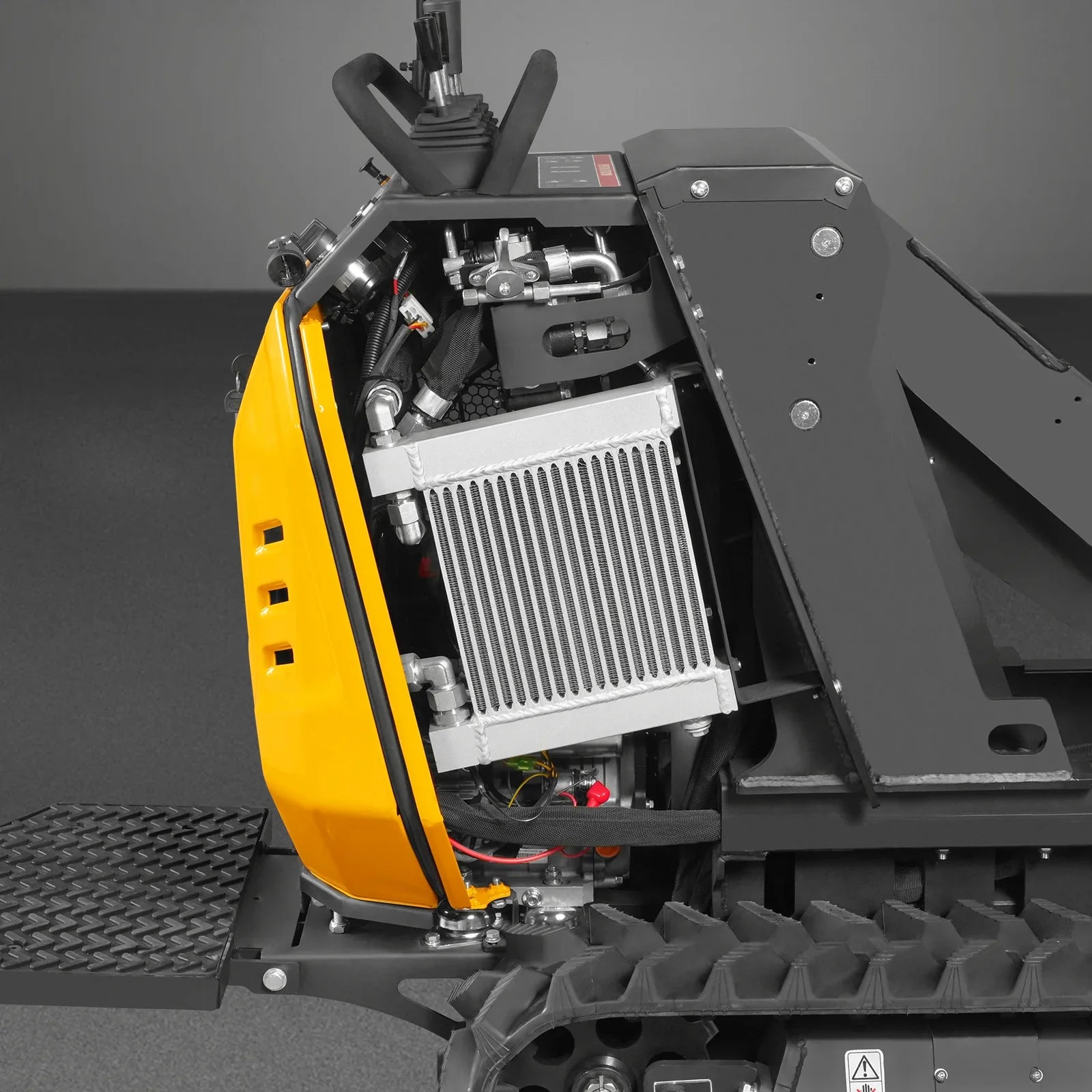

  • Hydraulic Oil Radiator: The fully enclosed cabin design allows the operator to avoid noise during work. The hydraulic oil radiator and engine shaft end fan inside the cabin perfectly reduce the temperature of the console to within 104.0 °F.

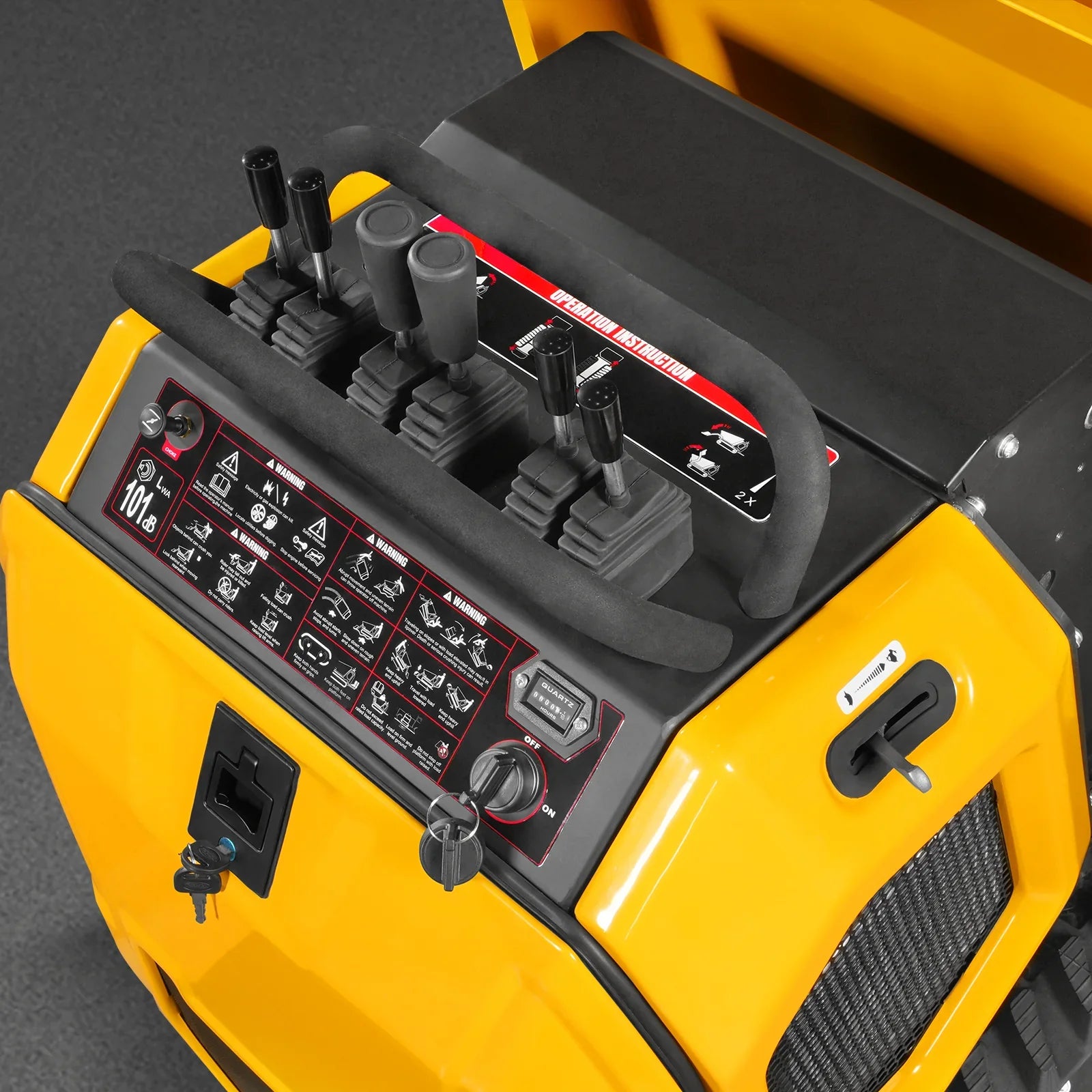

  • Timer: There is a timer at the control panel to meet customer needs to record the running time of the machine.

Engine Type: Single cylinder; 4 stroke; air cooled; OHV

Model Name: Loncin G420F(D)

Displacement/Horsepower: 420cc; 15HP

Engine Power: 9.0 kW / 3600 rpm

Start: E-start

Maximum Torque: 26.5 Nm/2500 rpm

Overall Length (w/o Shovel): 85.5 in

Overall Length with Shovel: 112 in

Overall Height: 47 in

Lifting Overall Height: 98.5 in

Overall Width: 29 in

Max. Overall Height: 120 in

Max. dumping height: 65.4 in

Loading Capacity: 1102 lbs

Weight: 1631 lbs

Operating Weight: 1786 lbs

Wheelbase: 38.8 in

Bucket Capacity: 9.5 cu ft

Track Width: 7.09 in

Track Length: 51.2 in

Track Height: 11.8 in

Dump Front End Height: 33.3 in

Dump Back End Height: 43.3 in

Dump Width: 24.3 in

Console Height: 40.2 in

Platform Ground Clearance: 10.4 in

Working Type: Self Loading and Unloading

Transmission: Hydrostatic Track Drive System

Parking Brake: Yes

Operator Platform: Stand-on

Max.Travel Speed: 0-2.73 mph

Min. Travel Speed: 0-1.37 mph

Max. Gradeability: 30%

Ground Pressure (with Operator): 2.9 psi

Battery Capacity: 12V 20Ah

Pump Type: Triple Gear Pump

Hydraulic pressure: 2900 psi

Fuel Tank Capacity: 1.72 gal

Hydraulic System: 6.13 gal

This item comes with a 1 year factory warranty.
