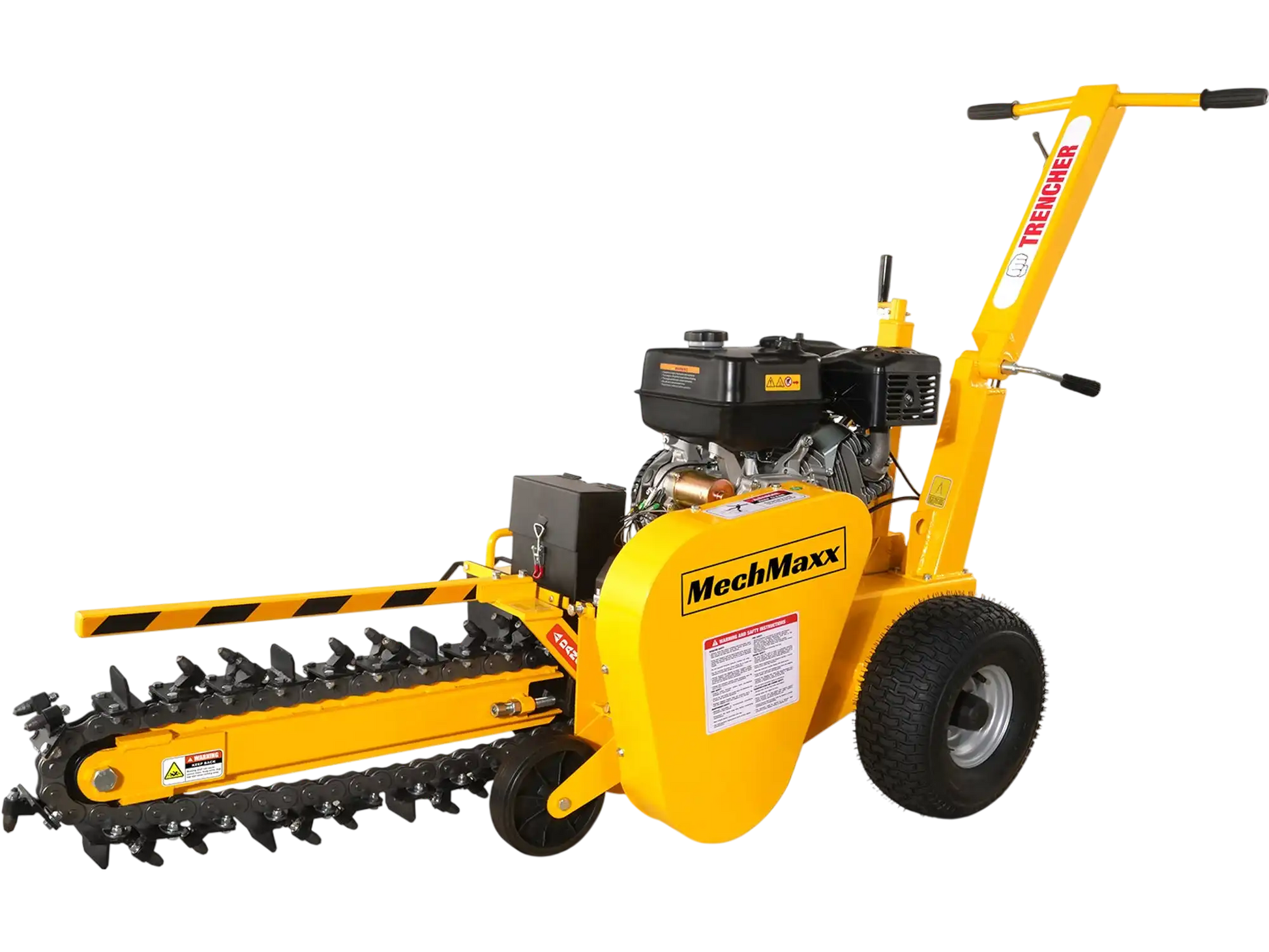

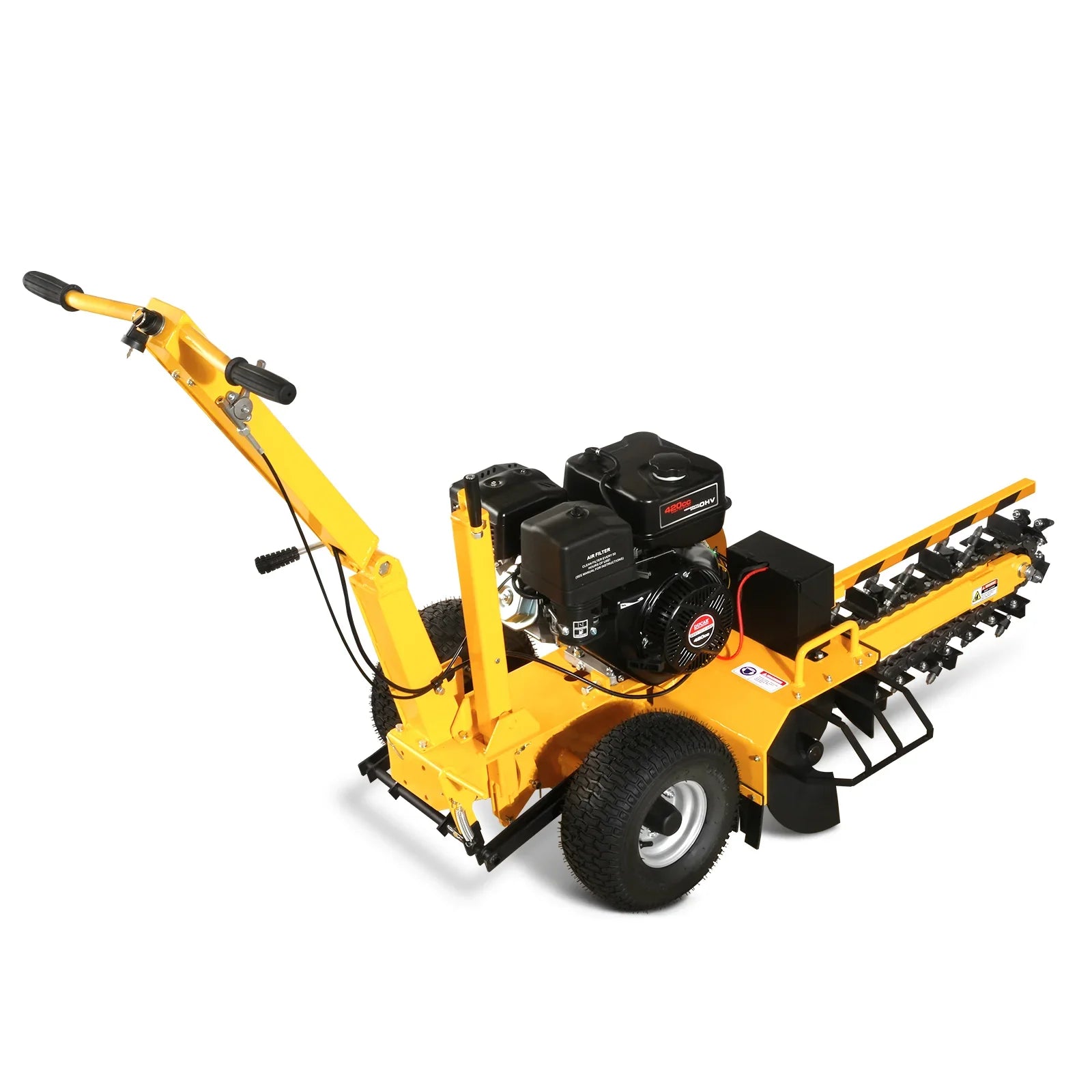

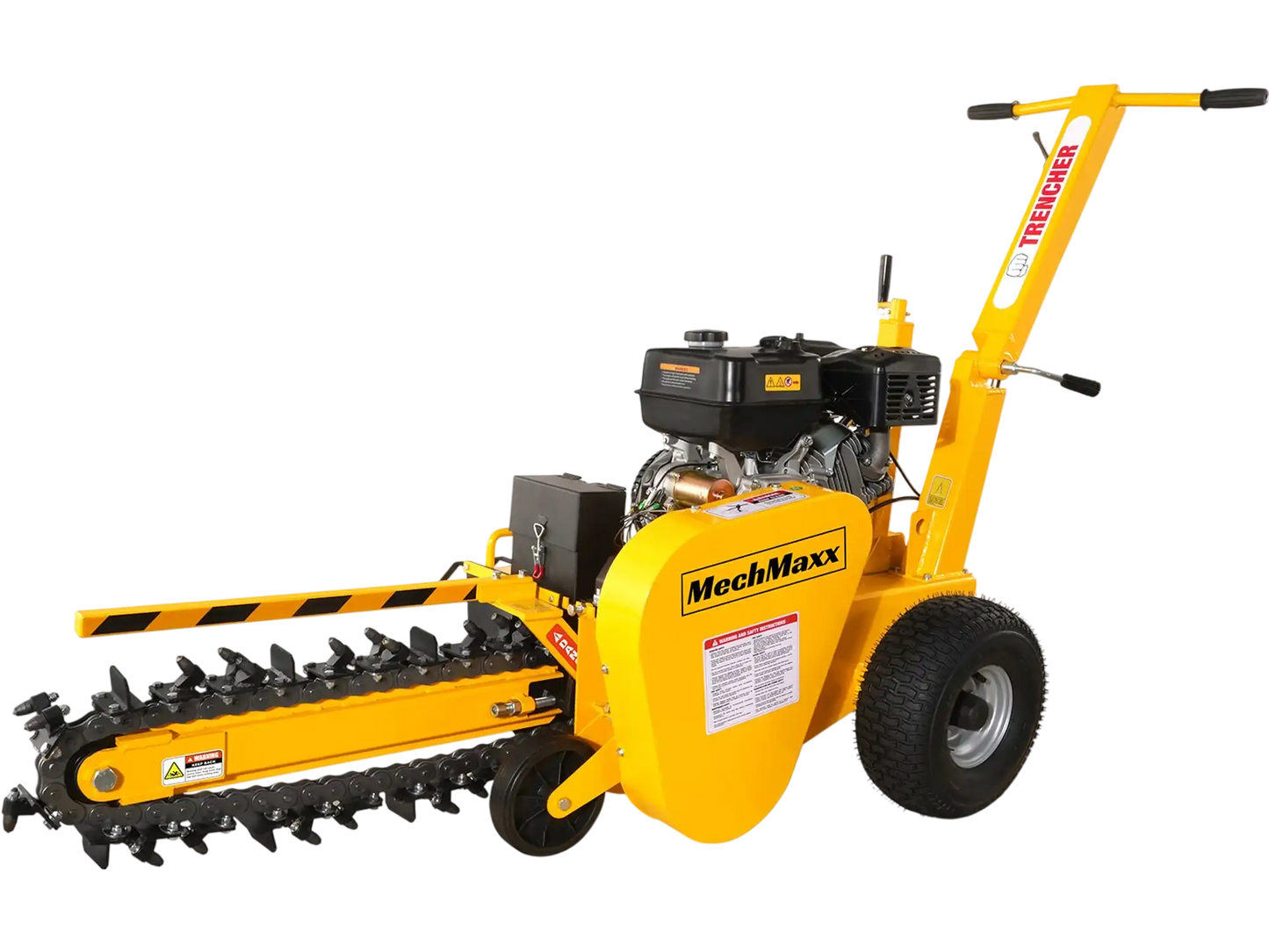

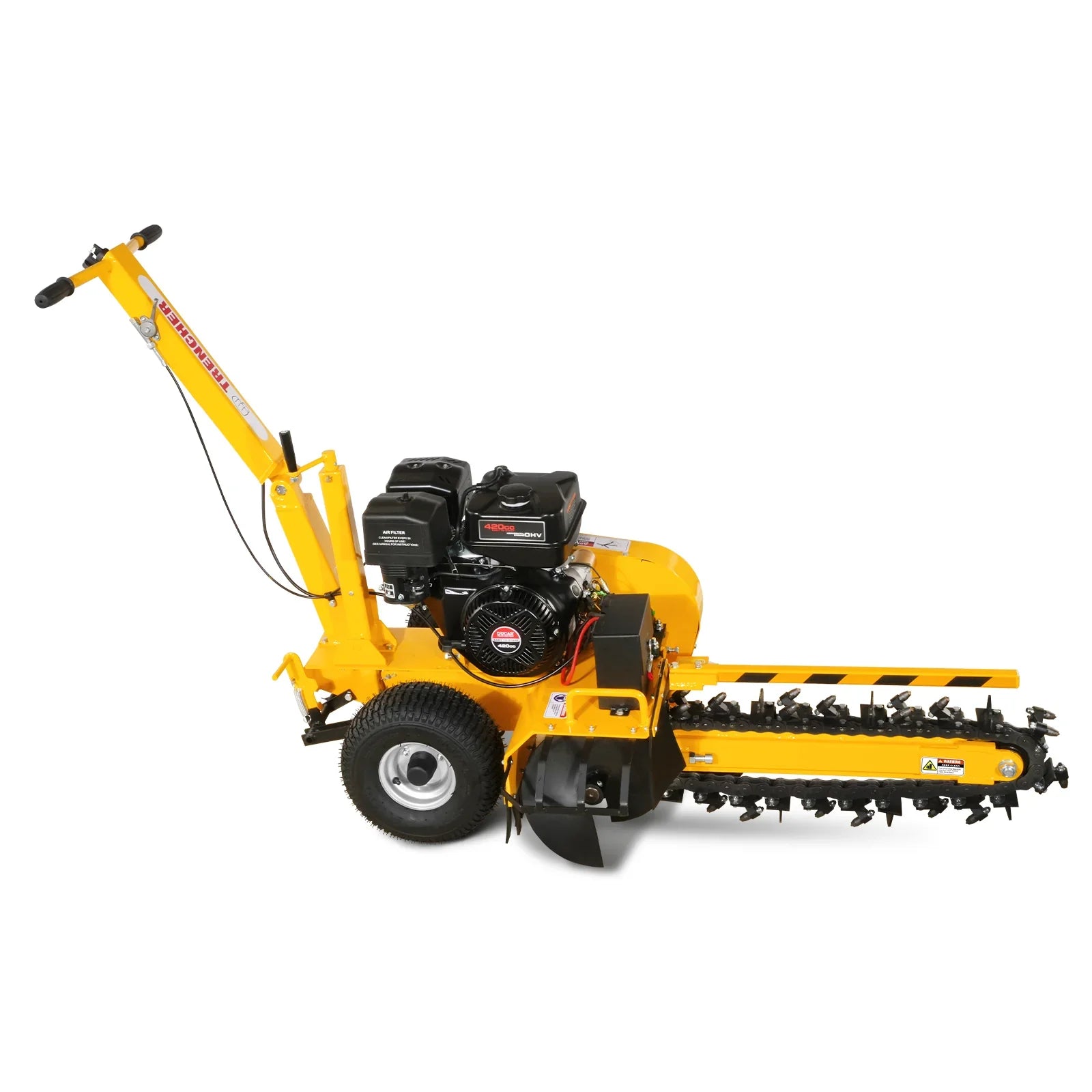

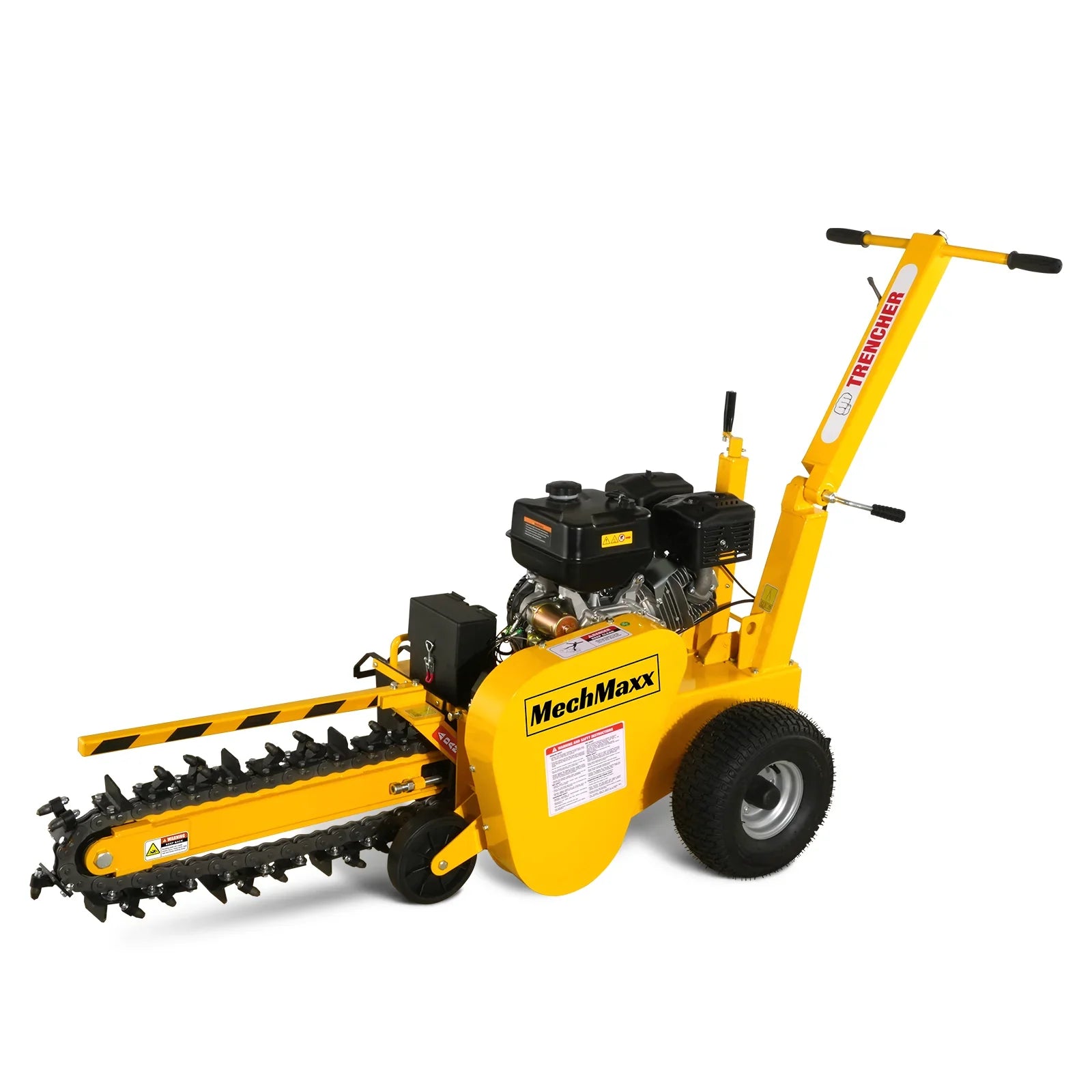

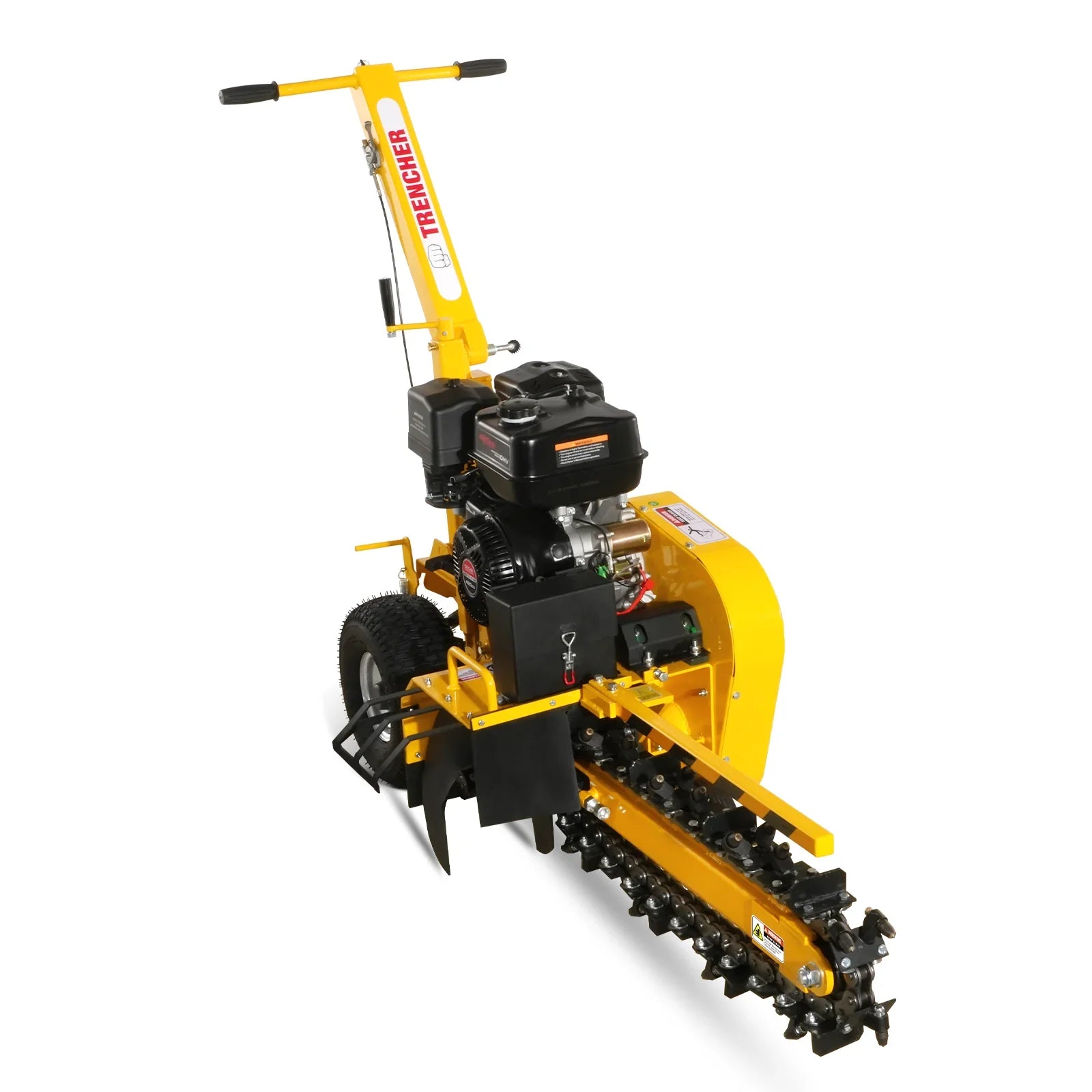

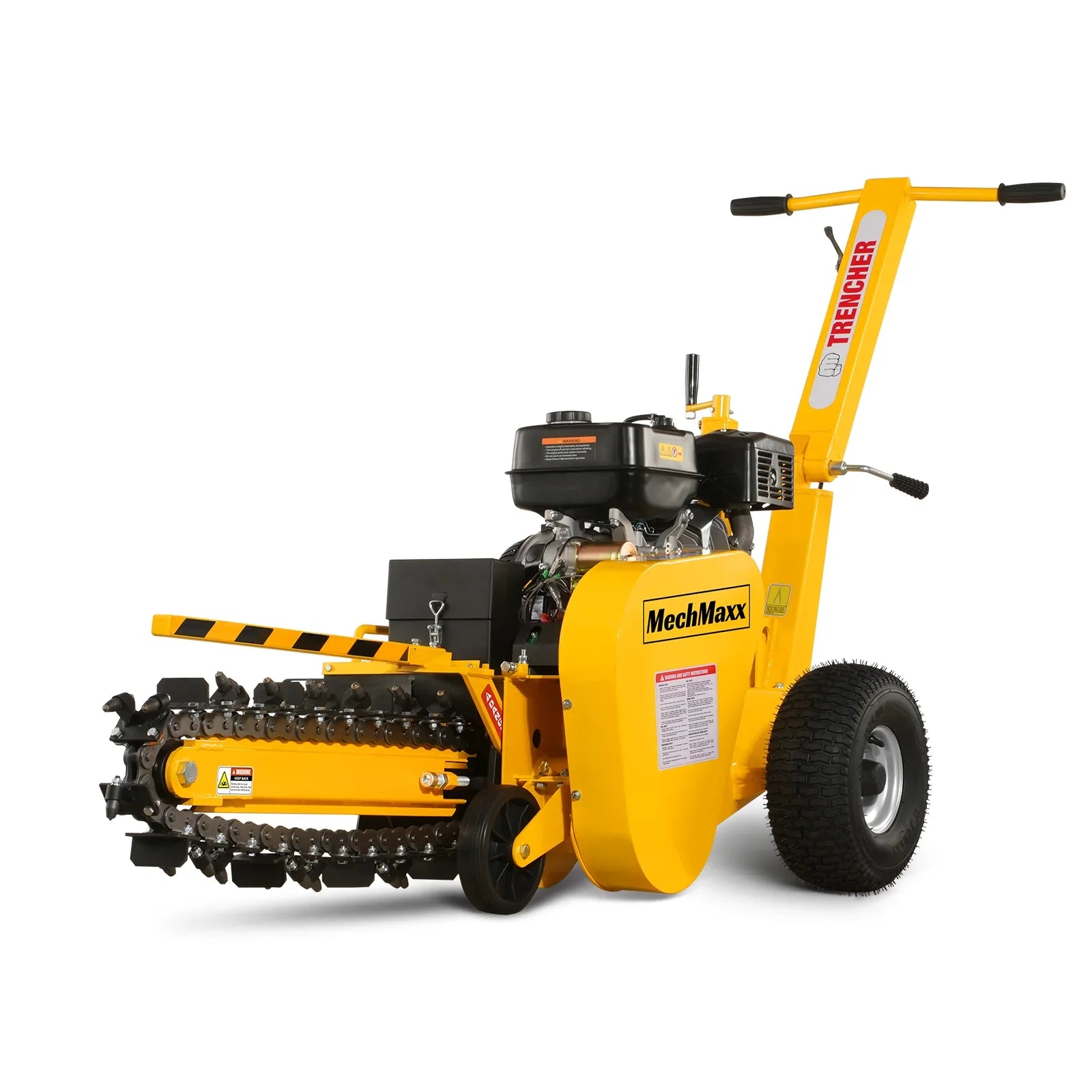

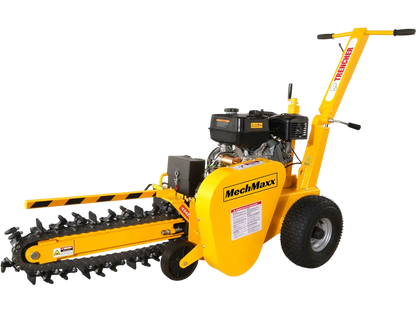

MechMaxx TCR1500 Mini Trencher 15HP 420cc Electric Start Powered 24" Ditching Trencher New

MechMaxx

$2,699.00
$2,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Mini Trencher TCR1500 is powered by 420cc gasoline engine, the trenching width is a practical 4 inch and the trenching depth can go anywhere up to 24 inch deep.
  • This powerful engine is capable of ripping through even the most clay ridden ground.

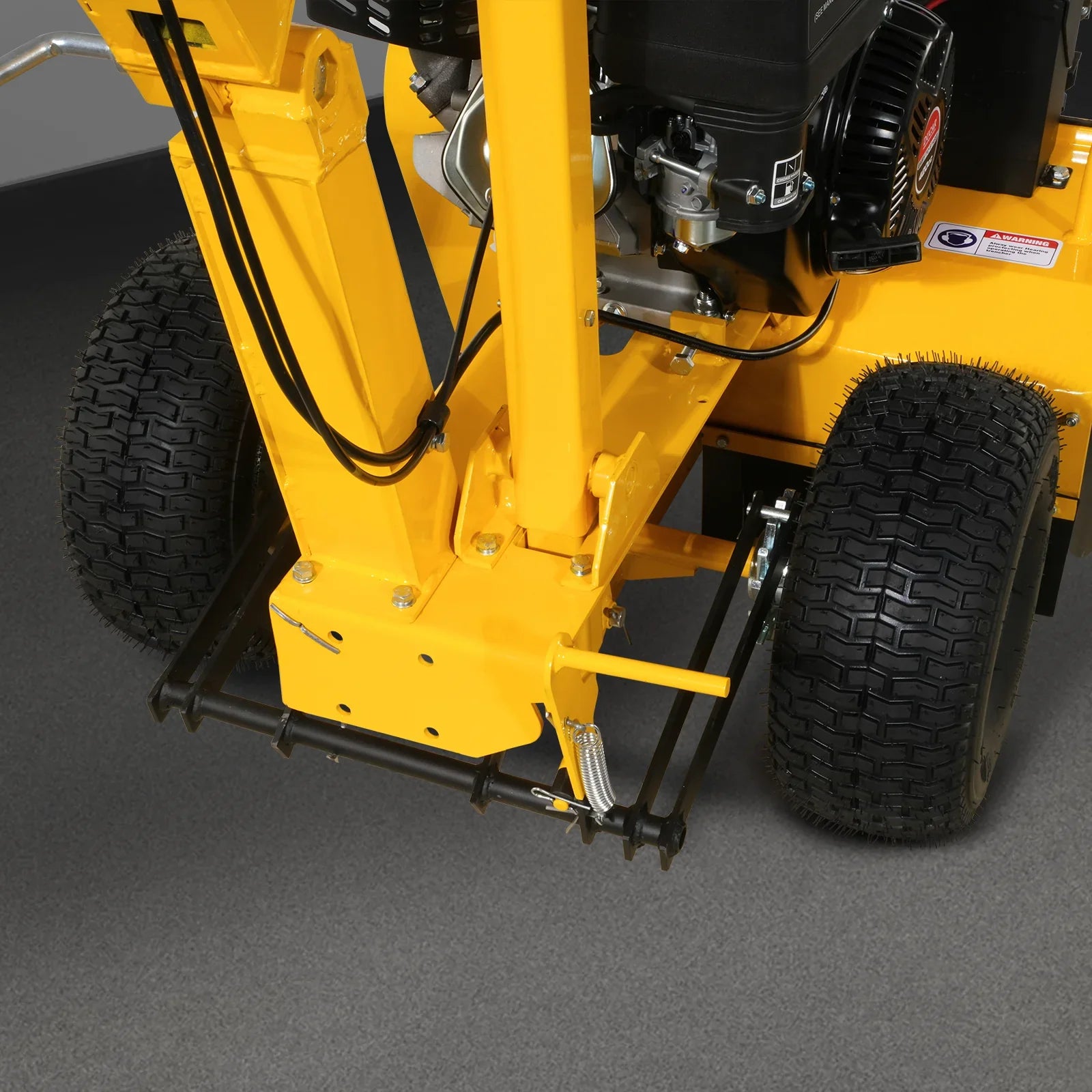

  • We upgraded it with a thread lifting lever, which can easily adjust the trench depth to anywhere. There's also a small wheel in front, so you can push the trencher to worksite easily.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

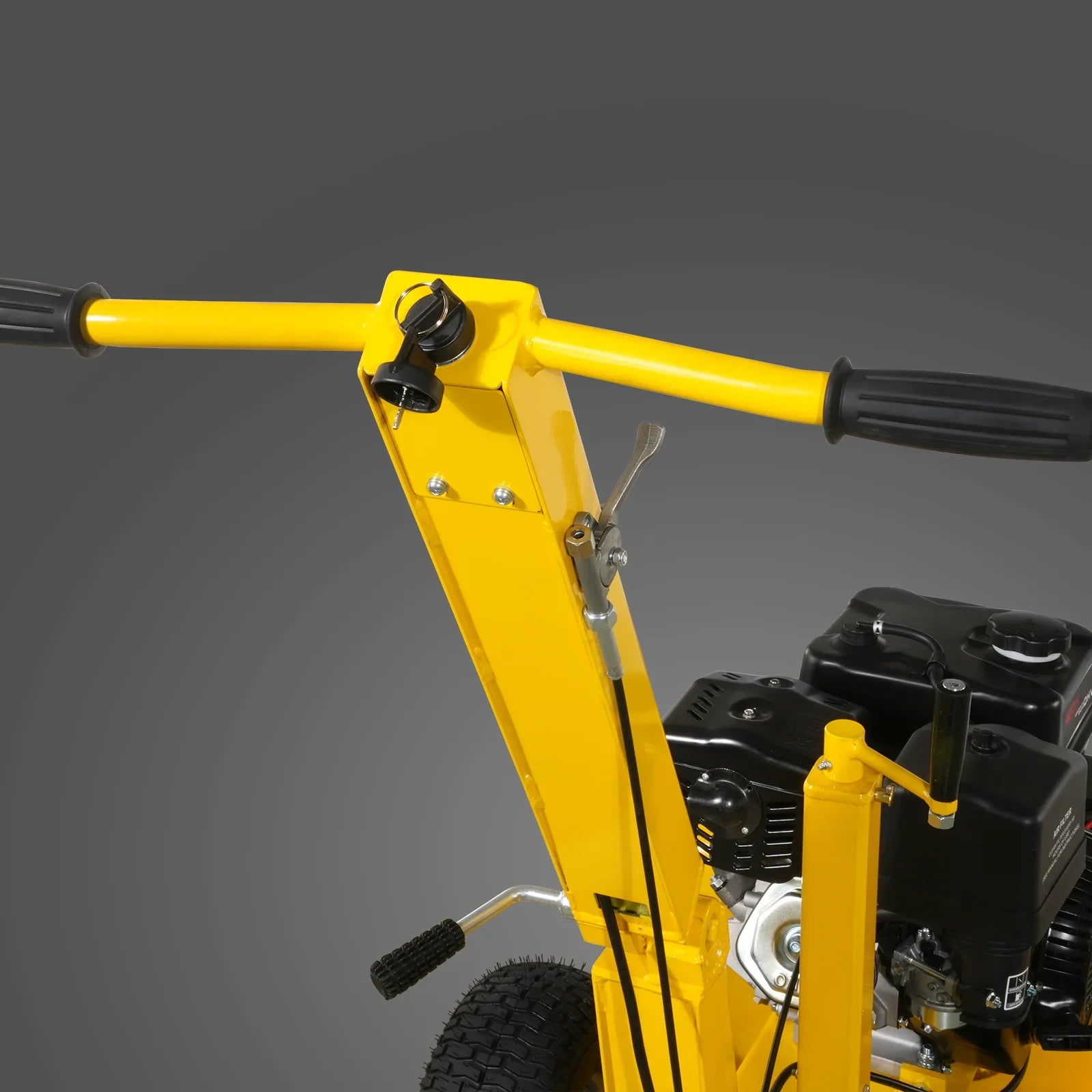

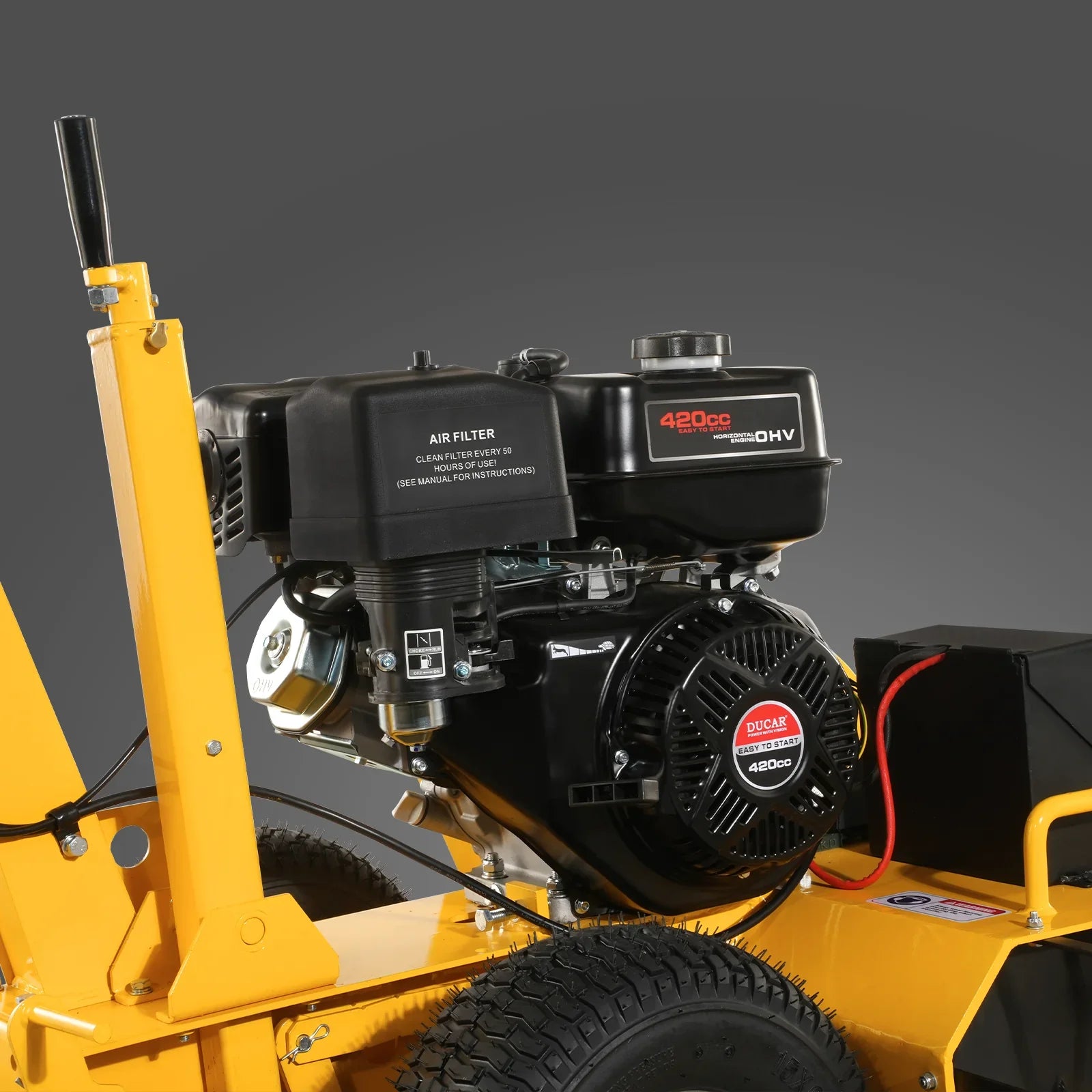

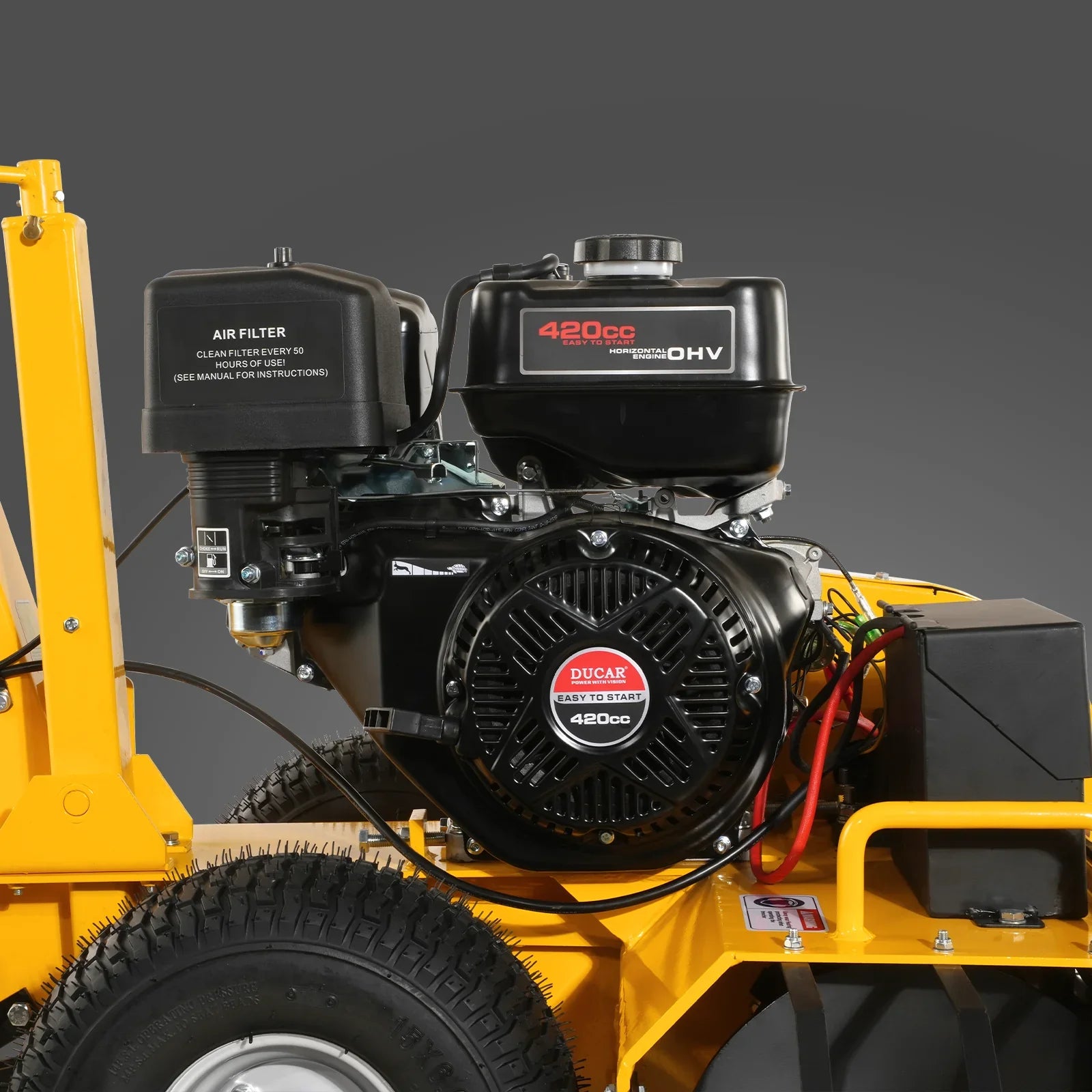

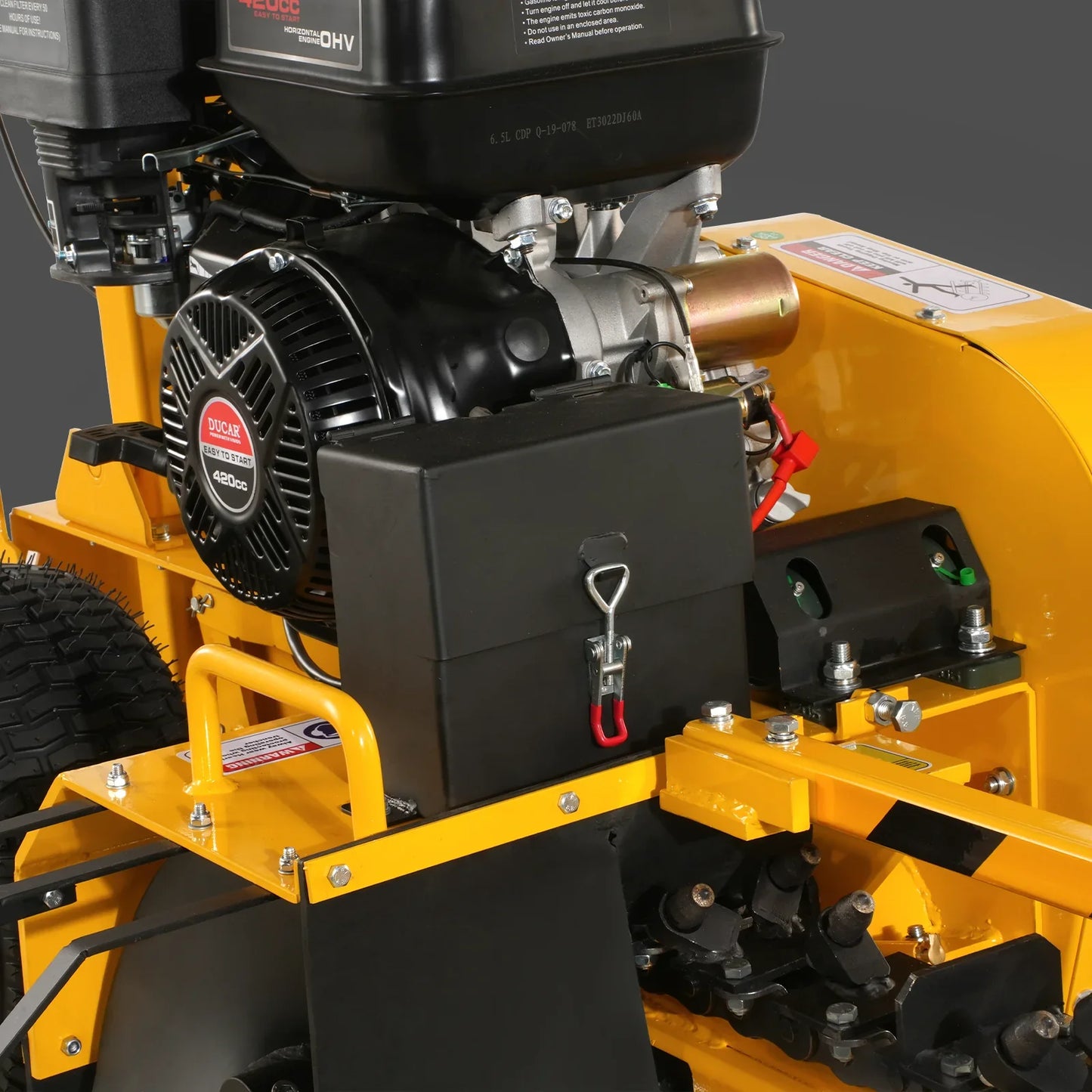

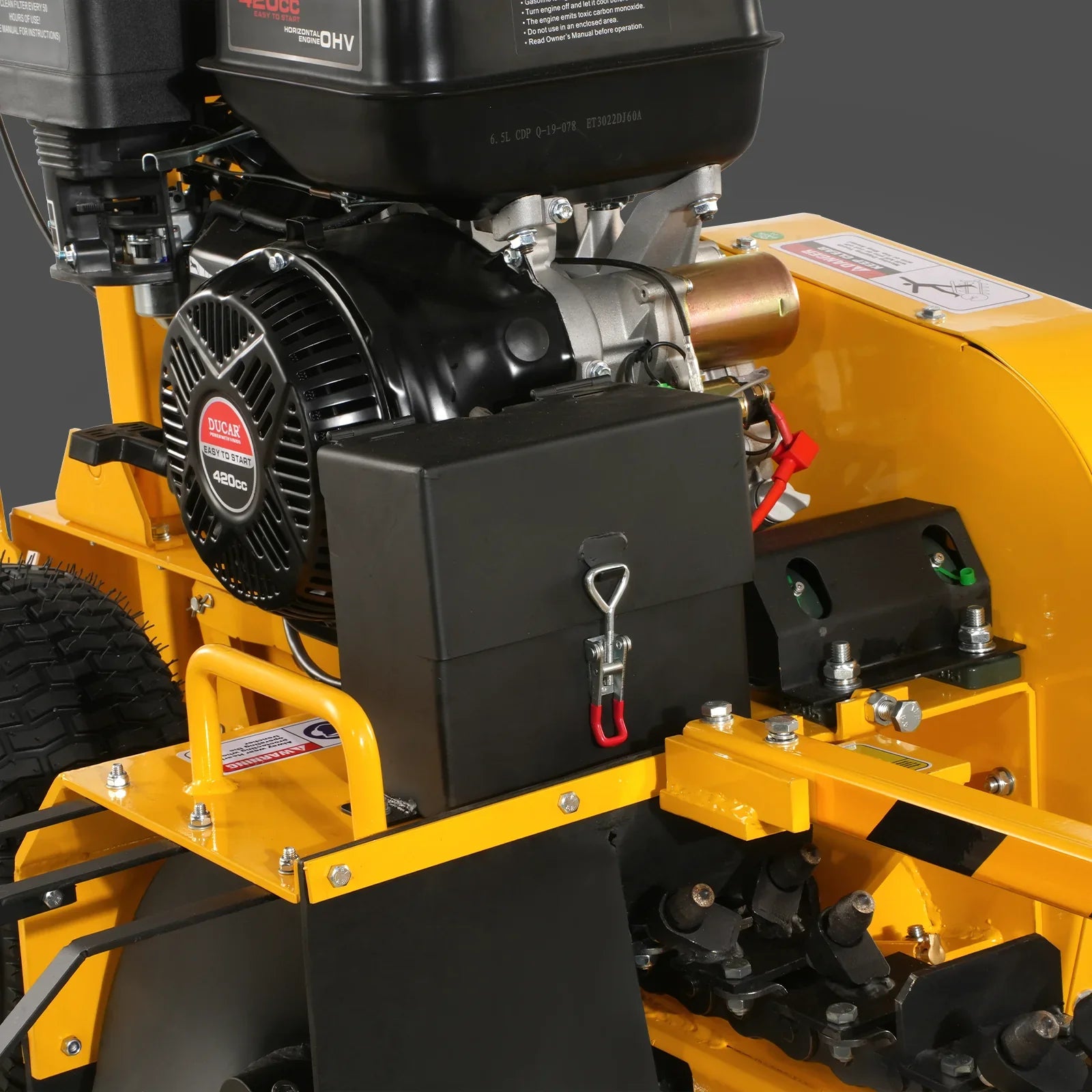

  • Electric Start and Battery: The TCR1500 is powered by a 14hp 429cc electric start Kohler gasoline engine, and equipped with a 12V20Ah lead-acid battery. The starting key is located between the two handles.
  • Chain and Teeth: Chain length 81.5’’, chain plate is 4mm thick.27 tungsten carbide cutters and 9 moldboards are installed on the thickened chain.
  • Chain lifting: The design of the screw spiral lifting structure can fix the trenching depth at any depth within 24’’

Engine: DUCAR DH420E

Carbide Tip Material: YG11C Alloy

Certification(S): EPA Phase III, CARB Phase III

Chain Length: 81.5 in

Engine Type: Single Cylinder, 4 Stroke, Air-Cooled, OHV

Chain Speed: 574 ft / min

Displacement/ HP: 420cc; 15 HP

Max. Trench Depth: 24 in

Start: E-Start

Max. Trench Width: 4 in

Belt: 2 x V-Belts

Wheelbase: 29 in

Belts Material: Kevlar

Tire: 15 x 6-6 Tubeless Tire

Clutch: Centrifugal Clutch

Assembled Weight: 402 lbs

Carbide Tip: 27 x Carbide Alloy High-Pressure Teeth

Gross Weight: 450 lbs

Scraper: 9 Pcs

Packing Size: 46 x 31 x 34 in

Tip Holder Material: 42CrMo

This item comes with a 1 year factory warranty.
PDF TCR1500 Product manual 1.2 PDF Ducar DH420E Manual
