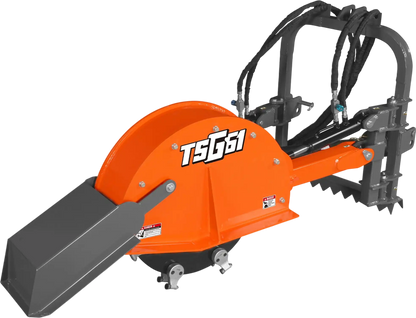

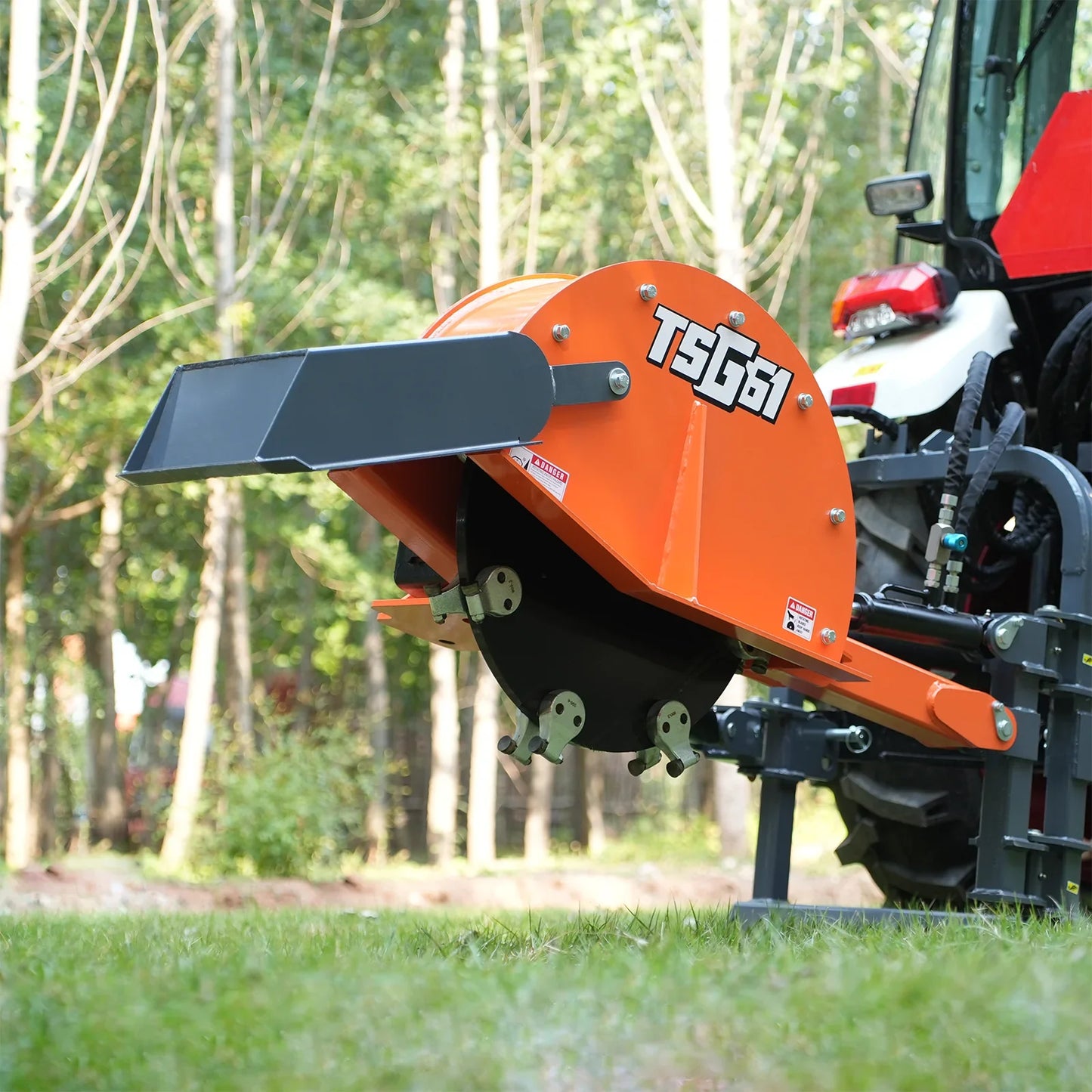

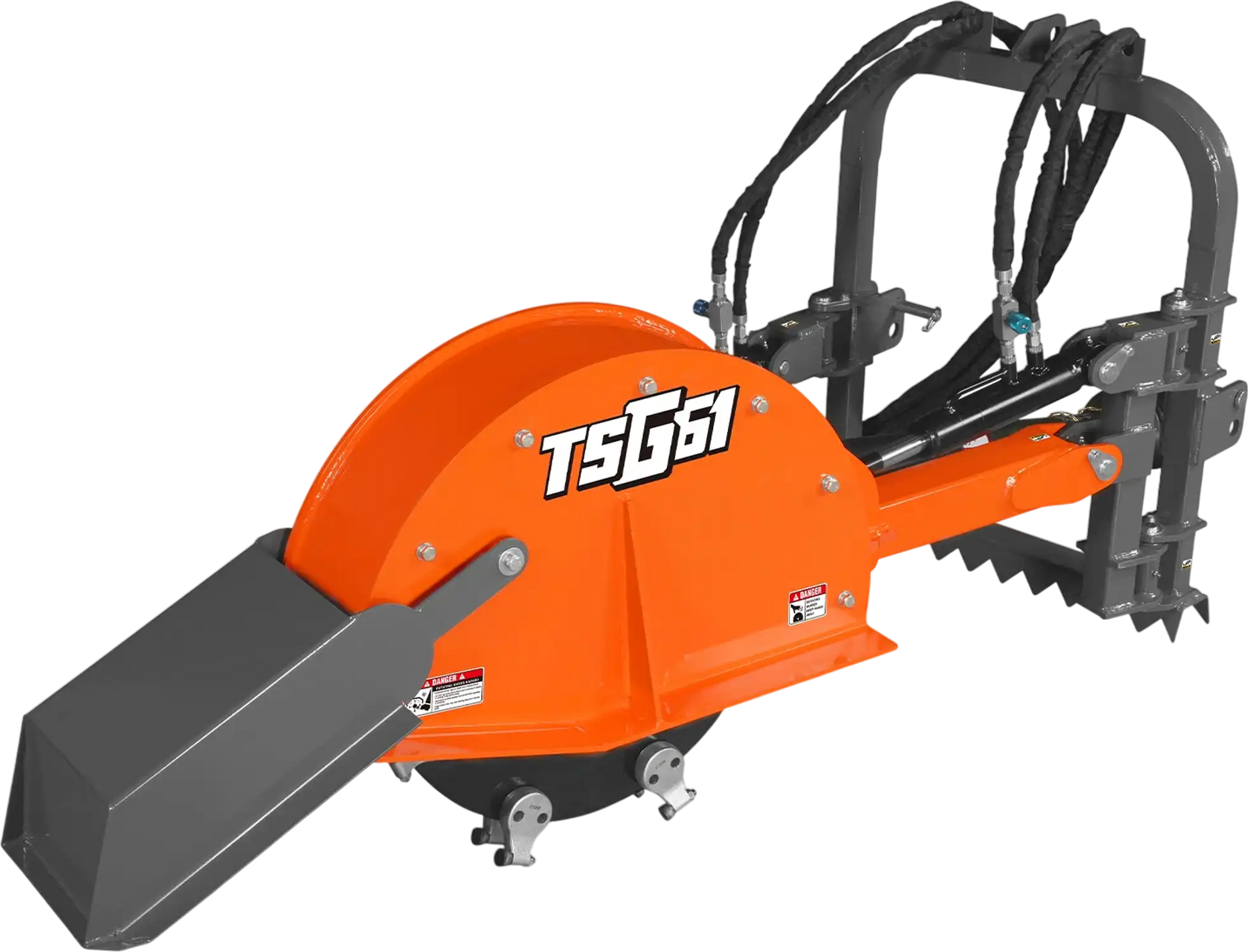

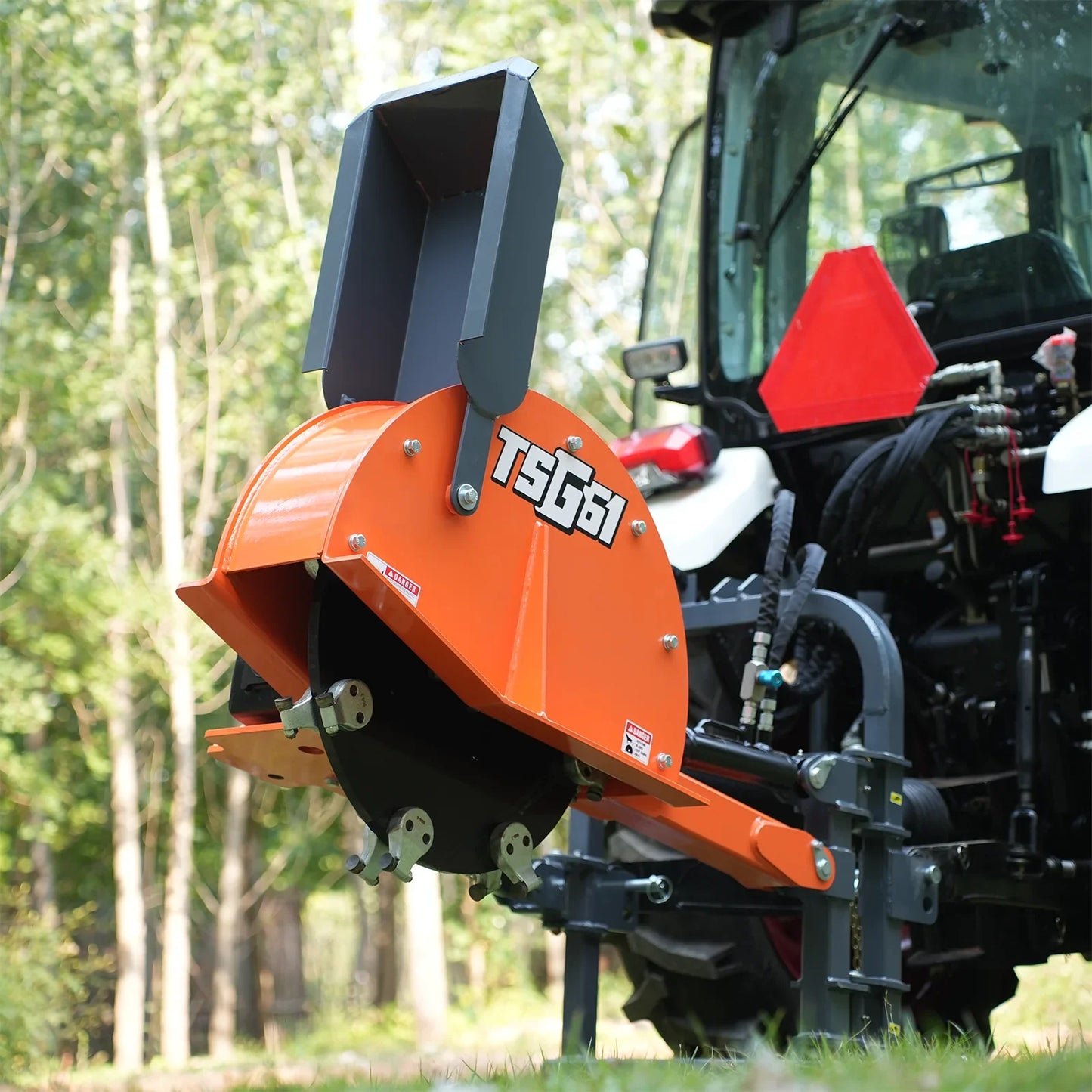

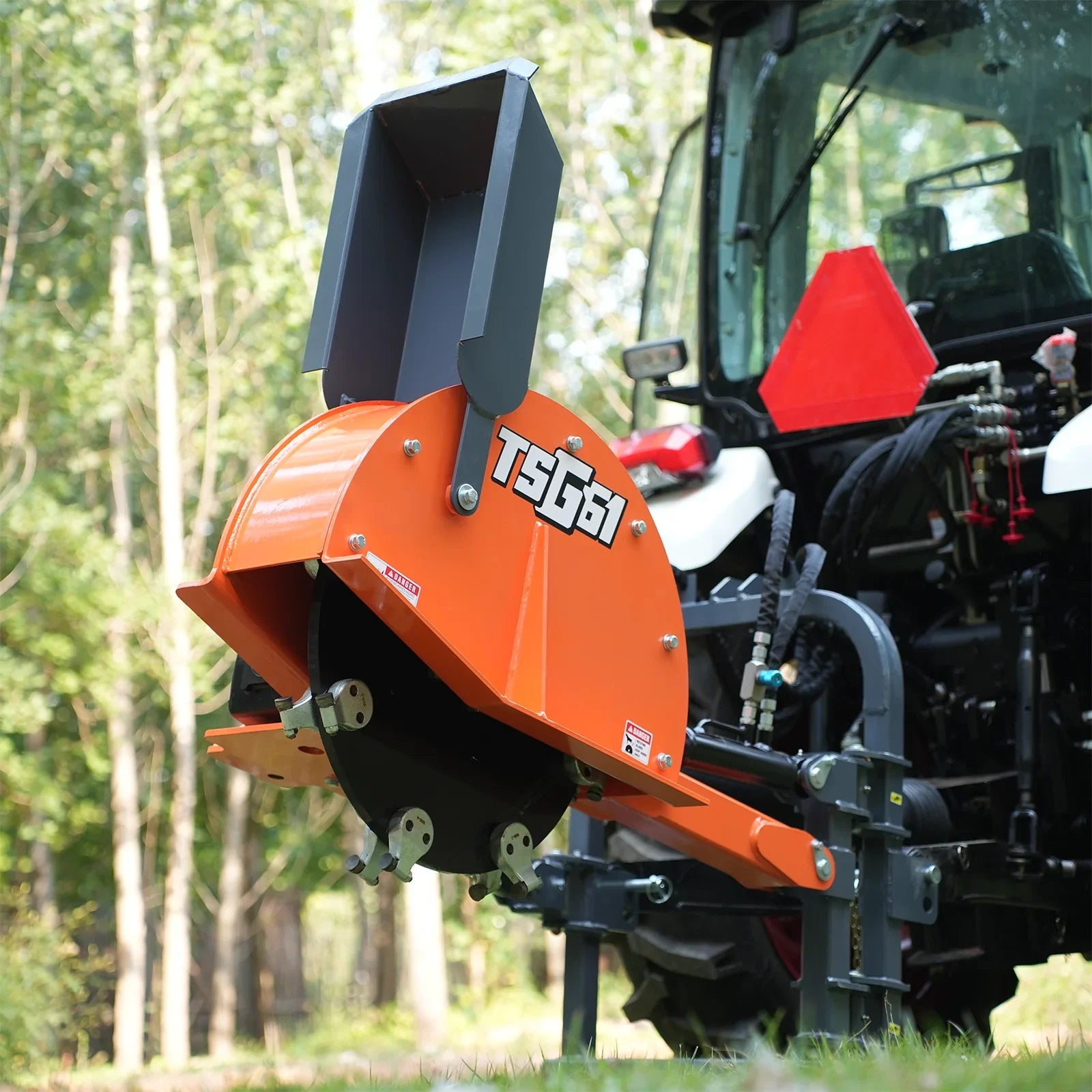

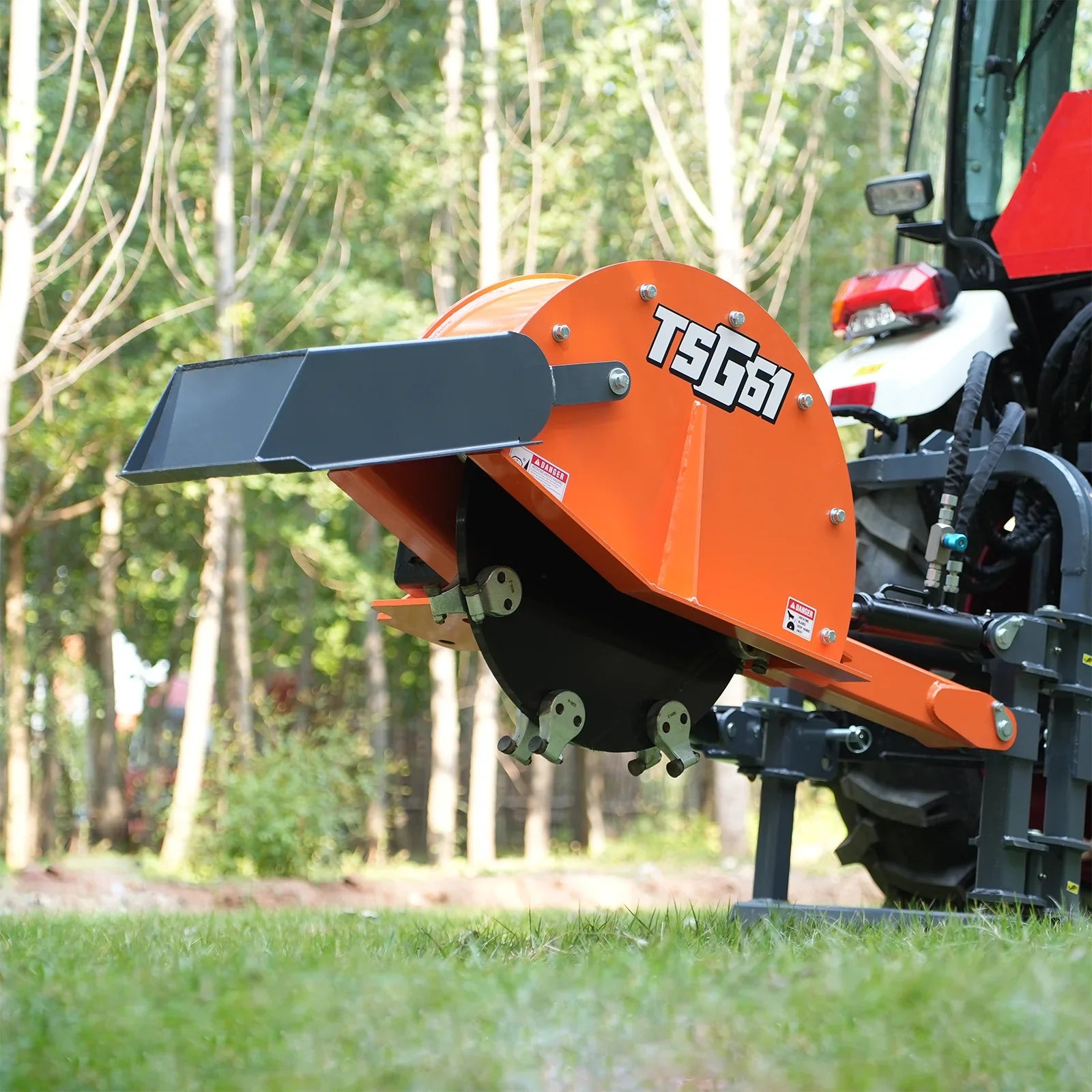

MechMaxx TSG61 Stump Grinder 24" Cutting Wheel Hydraulic Cylinders PTO Shaft Included Slip Clutch 35-60HP New

MechMaxx

$2,999.00
$2,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Two hydraulic cylinders position the milling head with different cutting capabilities, which can be easily operated through the tractor cab.
  • 16 carbide steel teeth housed in a 24-inch milling wheel designed to work under heavy working conditions while maintaining sharpness.
  • It has a cutting depth of 18 inches above the ground and 12 inches below the ground to attack the toughest roots and different stump sizes.

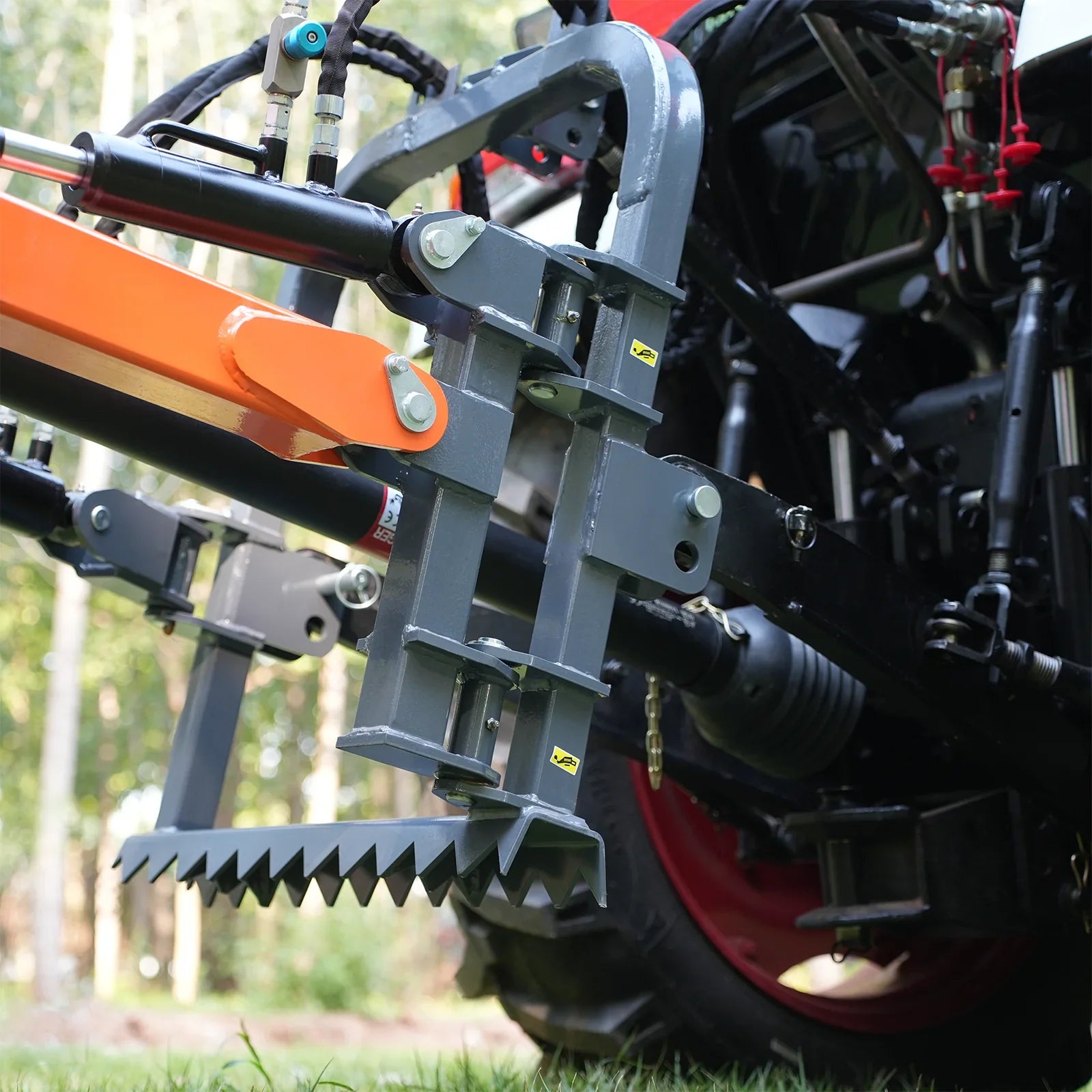

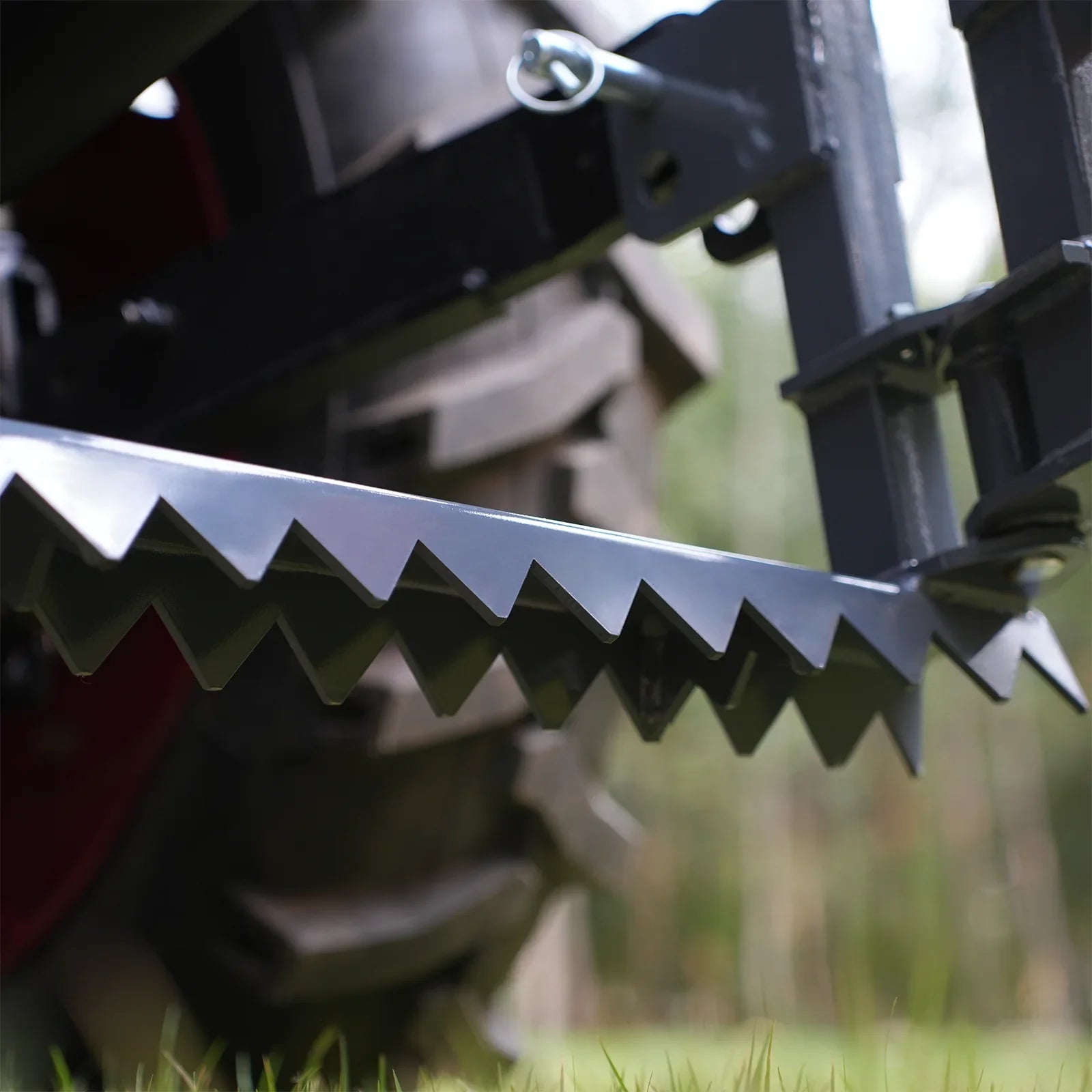

  • Biting, stable support feet ensure you keep the platform safe and stable while sanding to reduce tractor vibration wear.

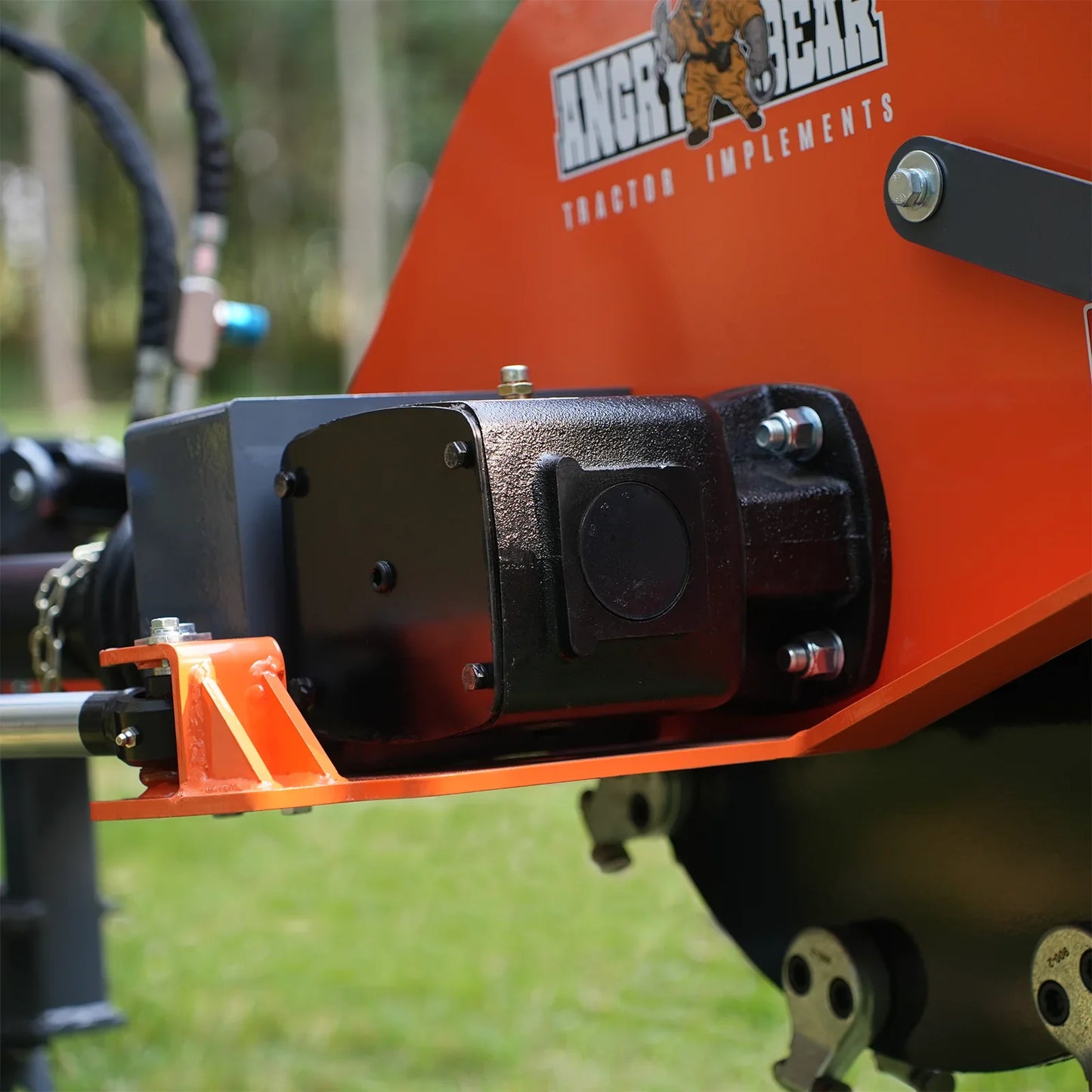

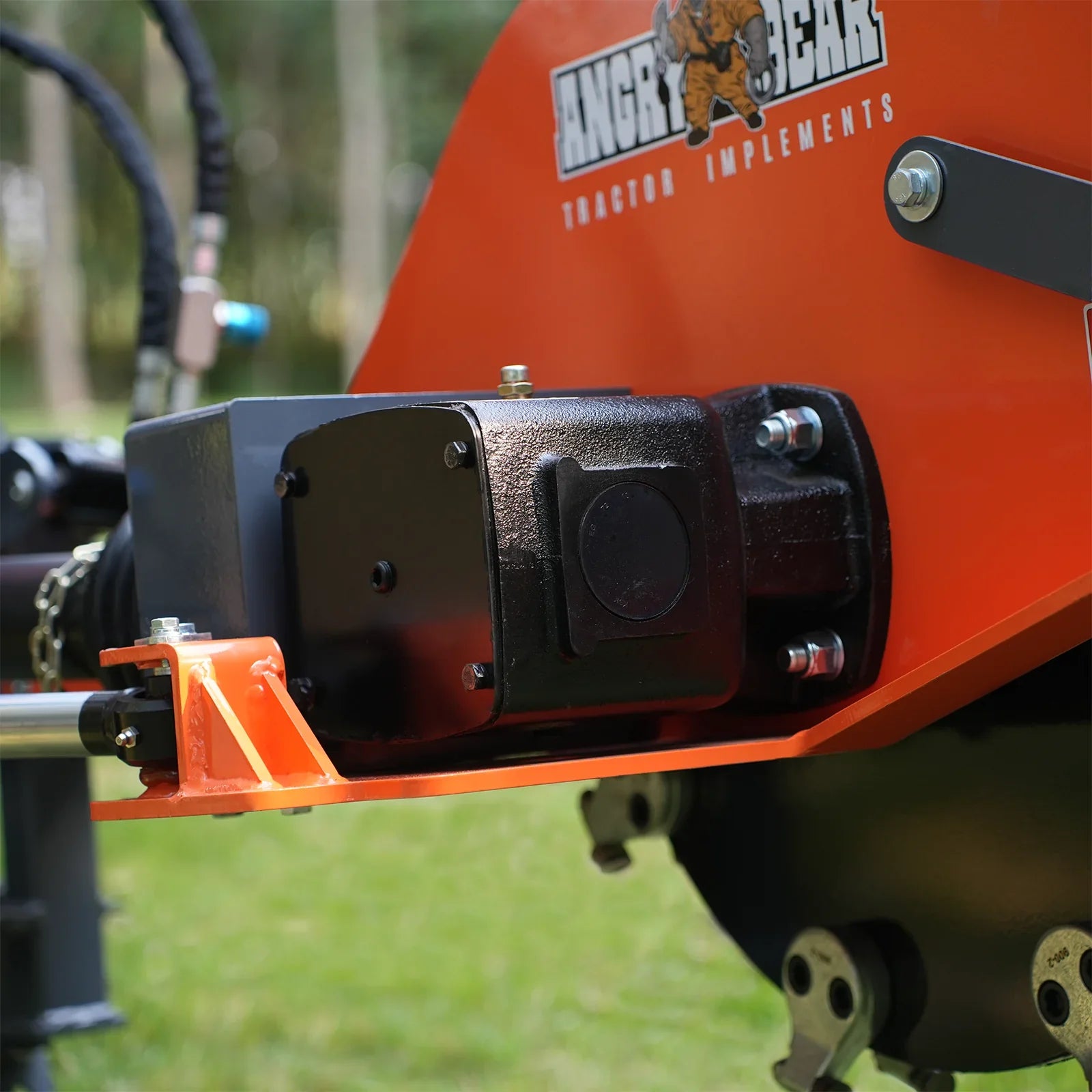

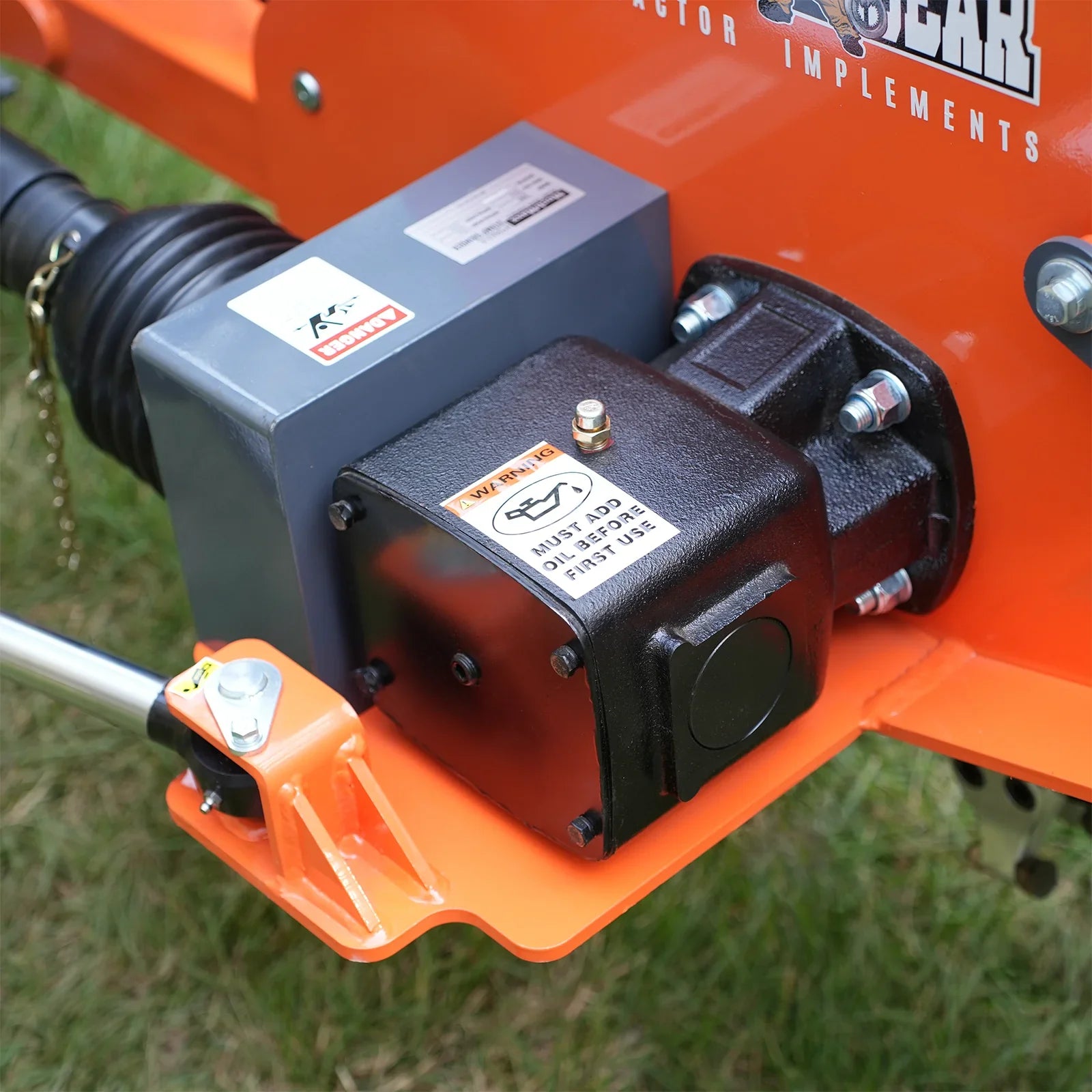

  • PTO is driven by the included telescoping drive shaft for economical power transfer between tractor and grinder.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • 24’’ Flywheel Diameter: a large 24’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 24-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.

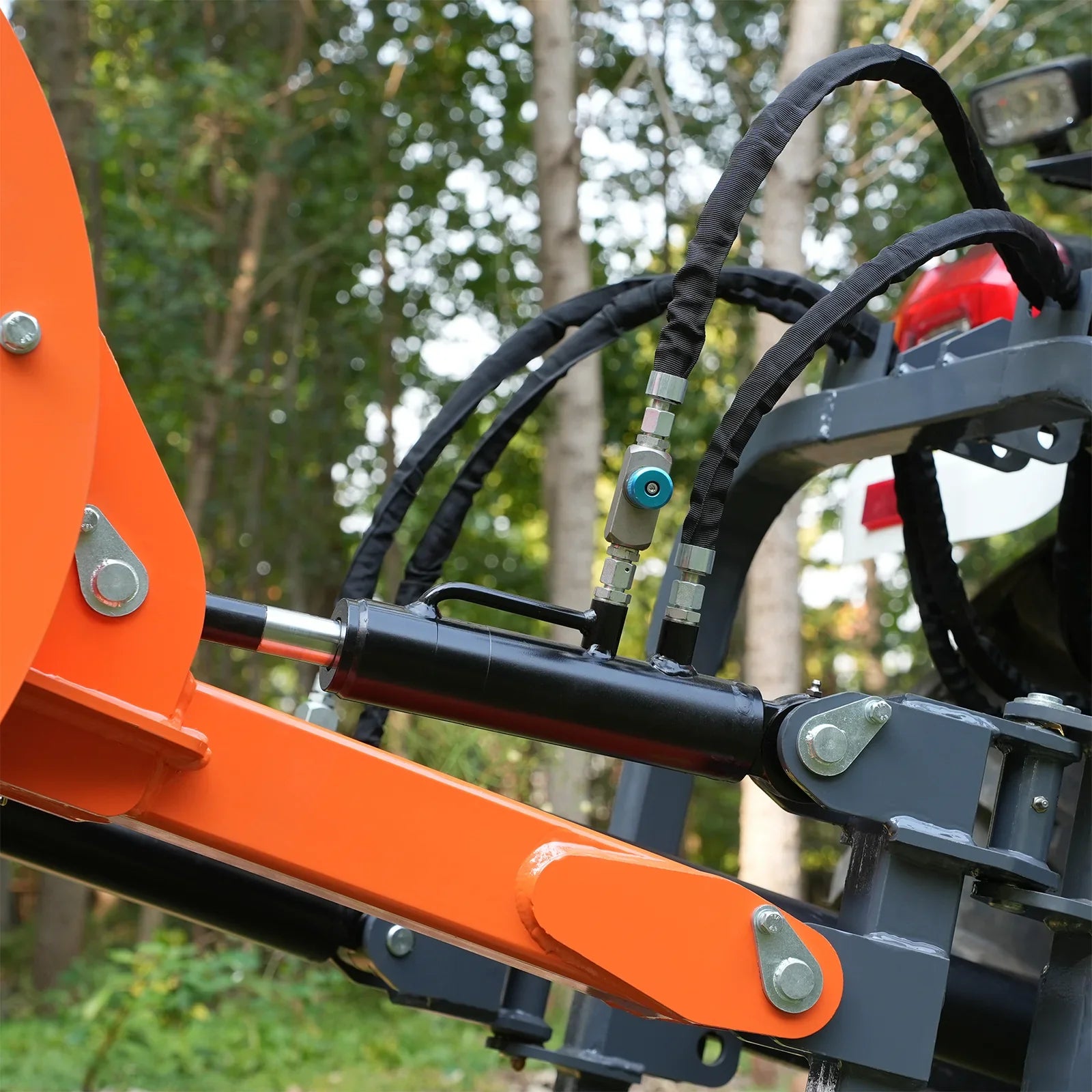

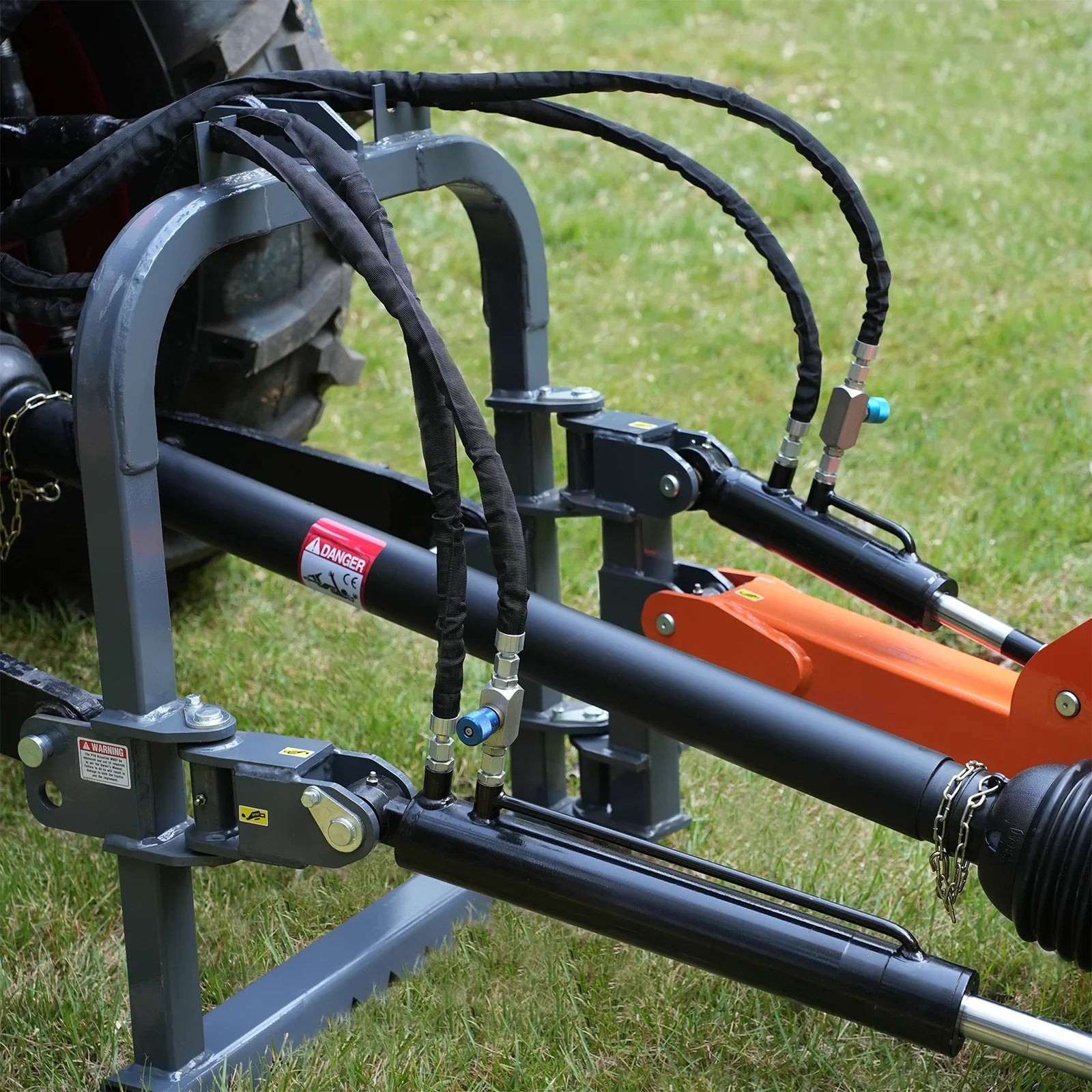

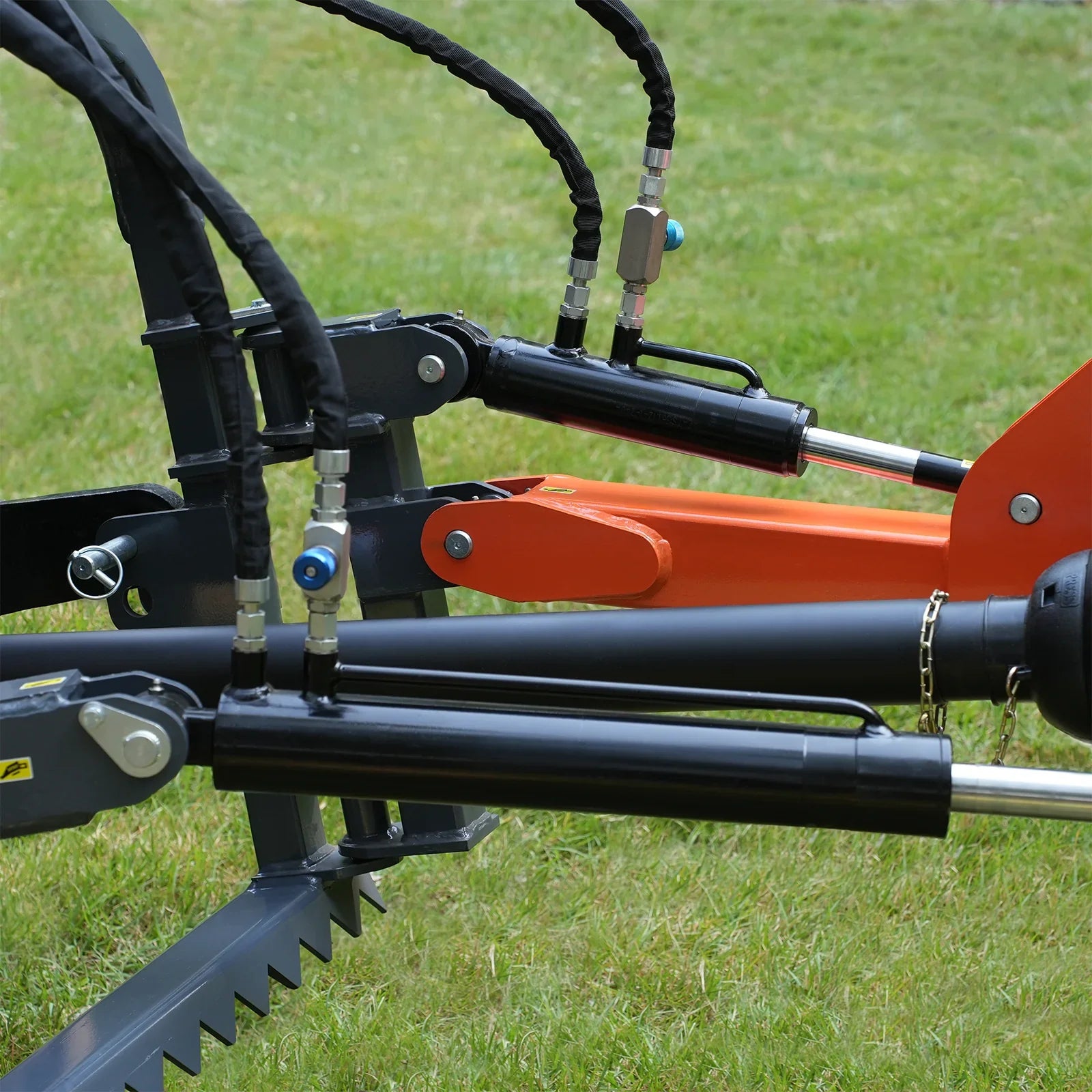

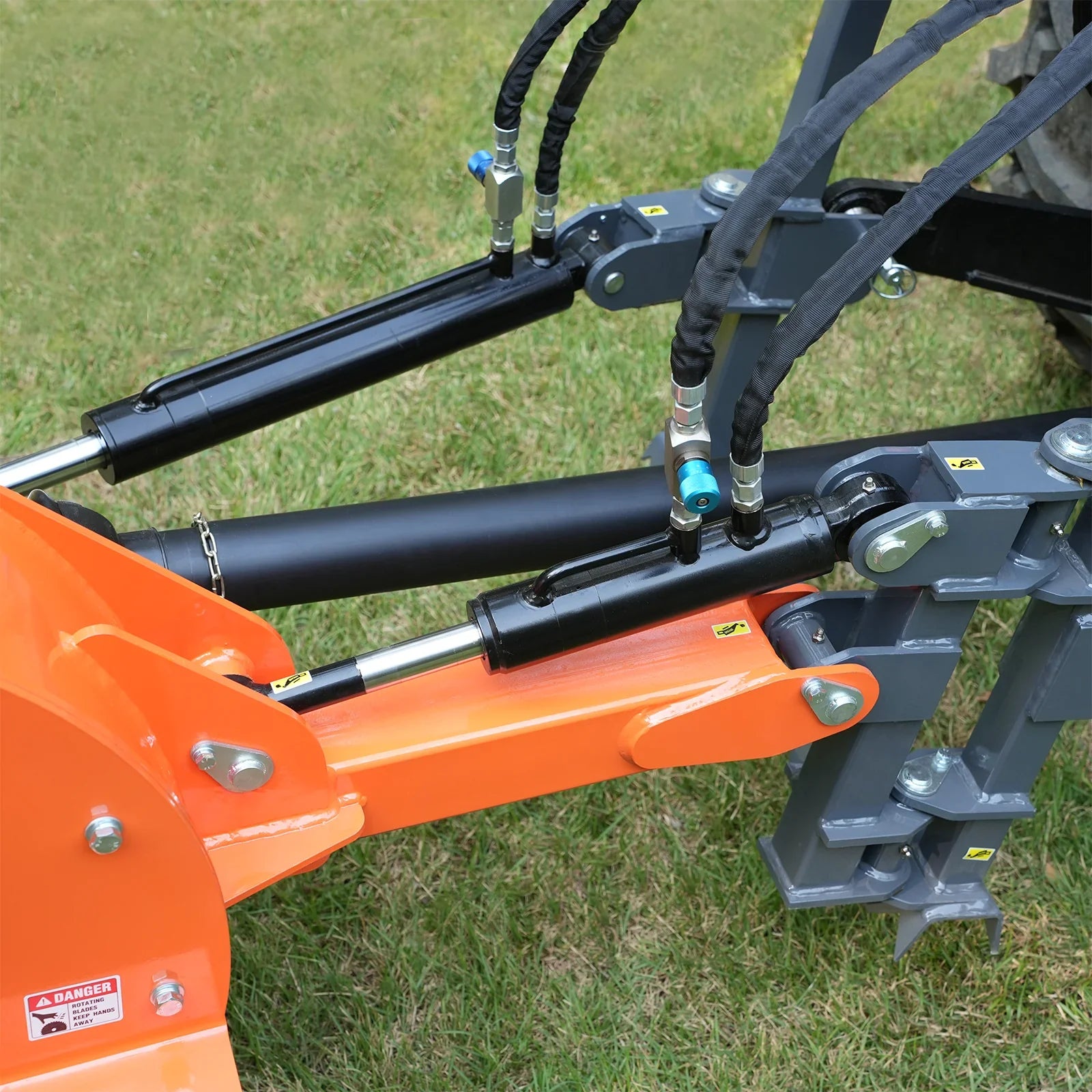

  • Hydraulic Cylinder: Two hydraulic cylinders position the milling head with different cutting capabilities, which can be easily operated through the tractor cab.
  • PTO Shaft: 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch. Compatible with reliable 540 rpm dedicated PTO drive power supply, ensuring efficiency and stable performance.
  • PTO Required: Extremely sturdy stump grinder engineered to provide optimal performance when used with tractors with PTO power of 35-60HP.
  • Cutting Height and Depth: Easily grinds above ground to a depth of 18 inches and underground to a depth of 12 inches to remove tree roots and prepare for grading or lawn.

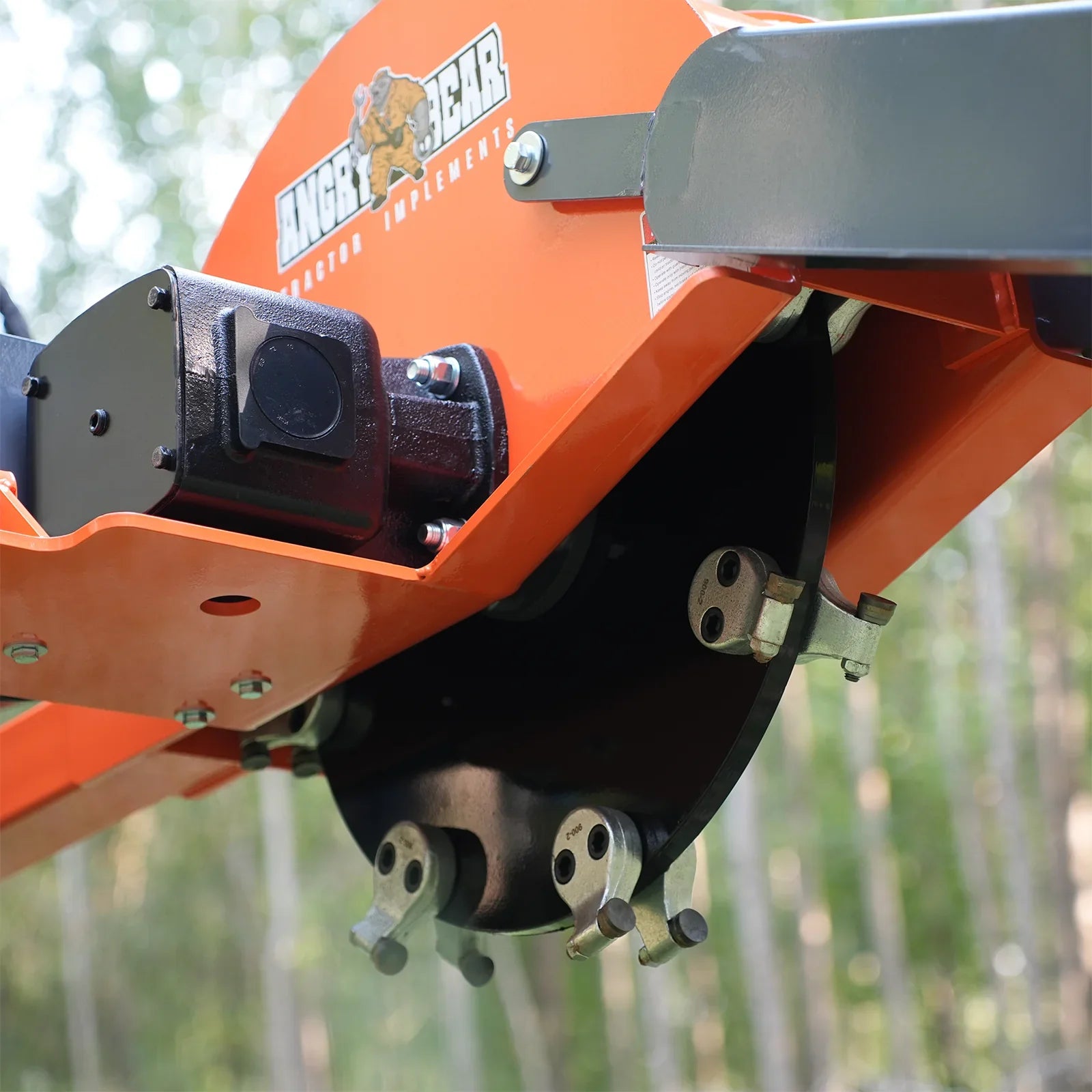

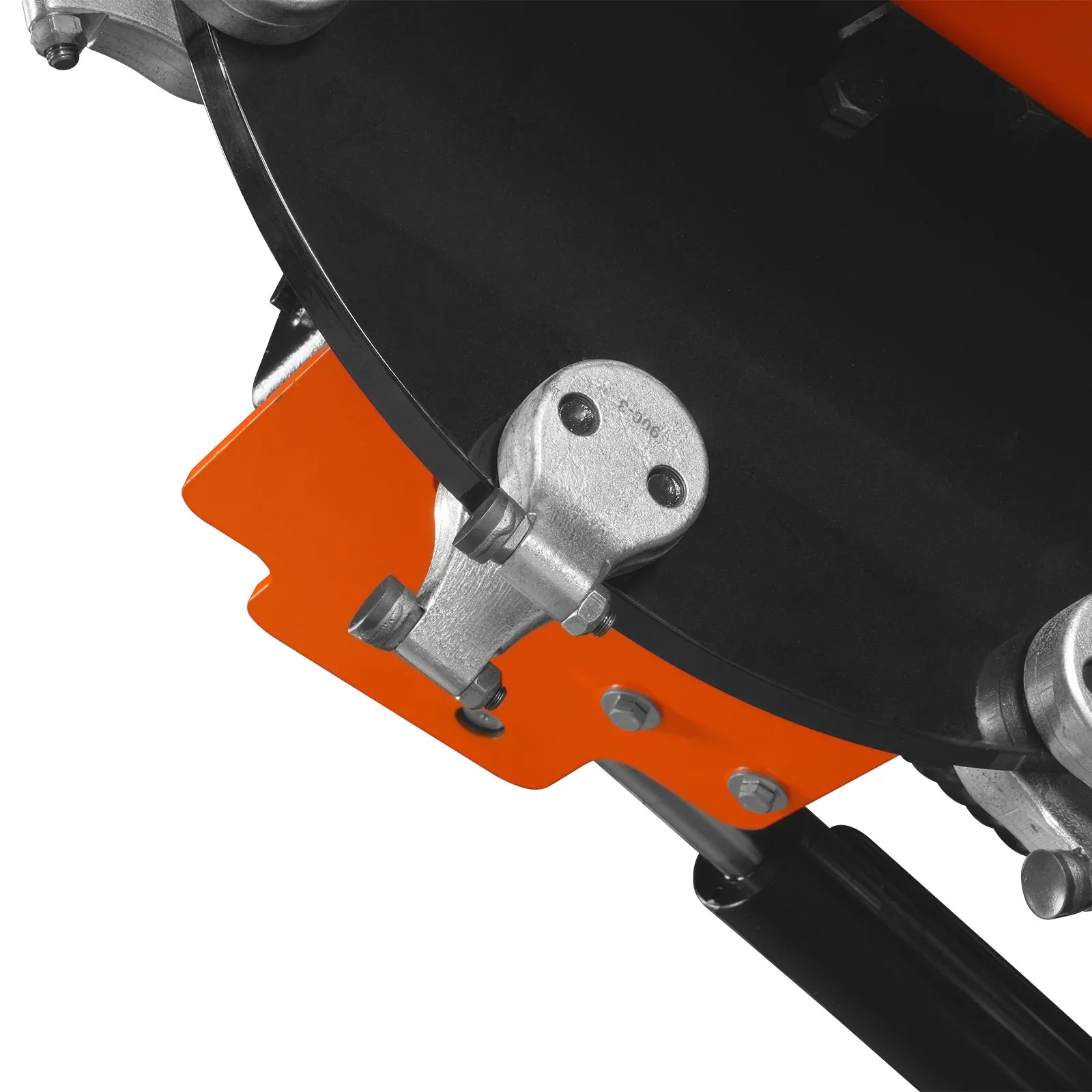

  • 16 Carbide Steel Teeth: 16 carbide steel teeth housed in a 24-inch milling wheel designed to work under heavy working conditions while maintaining sharpness.

Engine Power Required: 35-60 HP

Cutting Depth Per Pass: 6 in

Hydraulic Flow Rate: 5-13 GPM

Swing Arc: 40°

Rotor Size: 24 in

Cutting Direction: Horizontal and vertical

Carbide Steel Bolt-On Teeth: 16 (Replaceable)

3-Point Hitch: Category 1& 2

Required PTO Speed: 540 RPM

PTO Shaft: 05B-LF-1600 With Slip Clutch 63-77 in

Hydraulic Hose Length: 6.6 ft

Dimensions (L x W x H): 67 x 40 x 41in

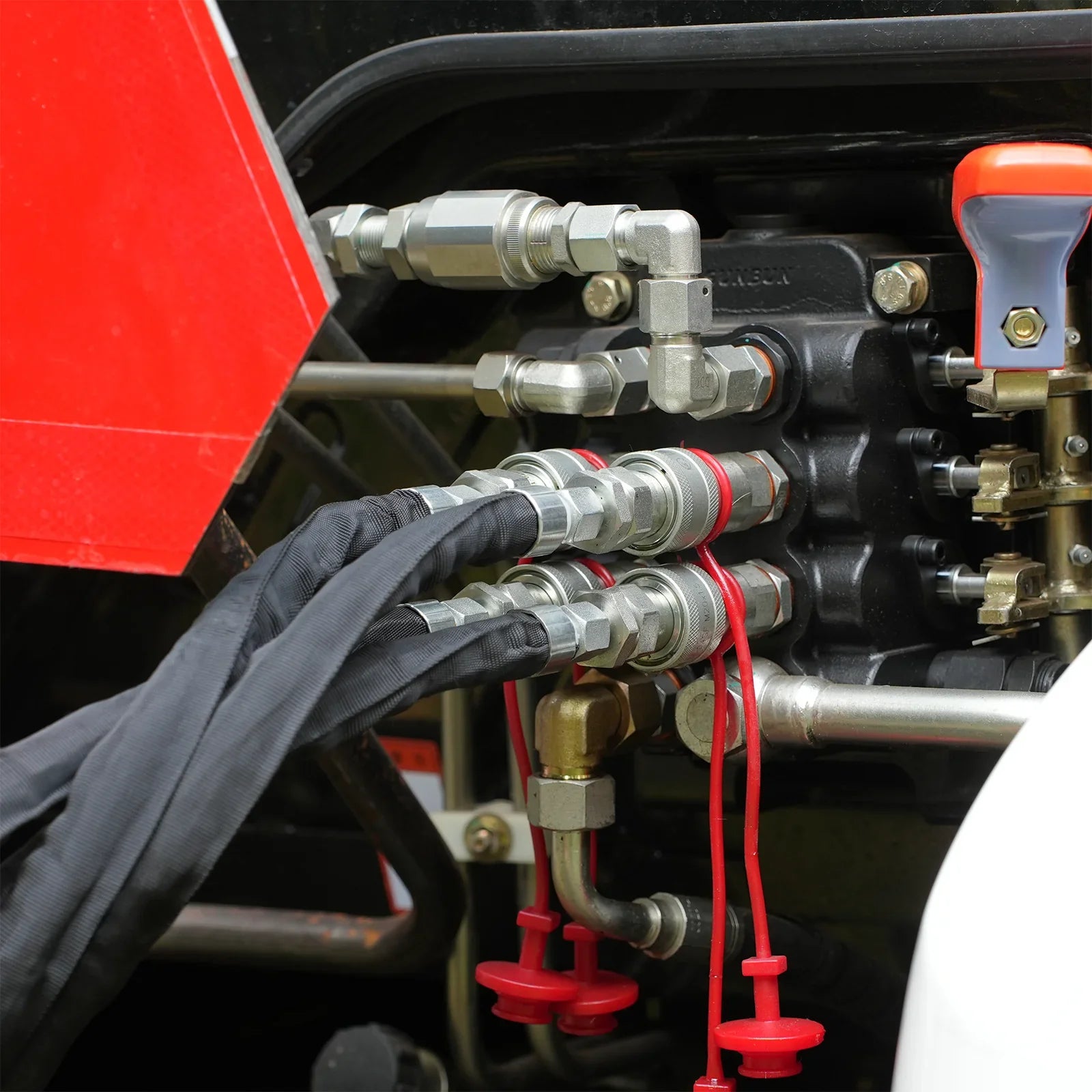

Hydraulic Fittings Size: G1/2 in

Finish: Powder Coat Paint Galvanized Steel

Cutting Height Above: 18 in

Cutting Depth Below: 12 in

Weight (N.W./G.W.): 635/778 lbs

This item comes with a 1 year factory warranty.
PDF TSG61 Product manual 1.0
