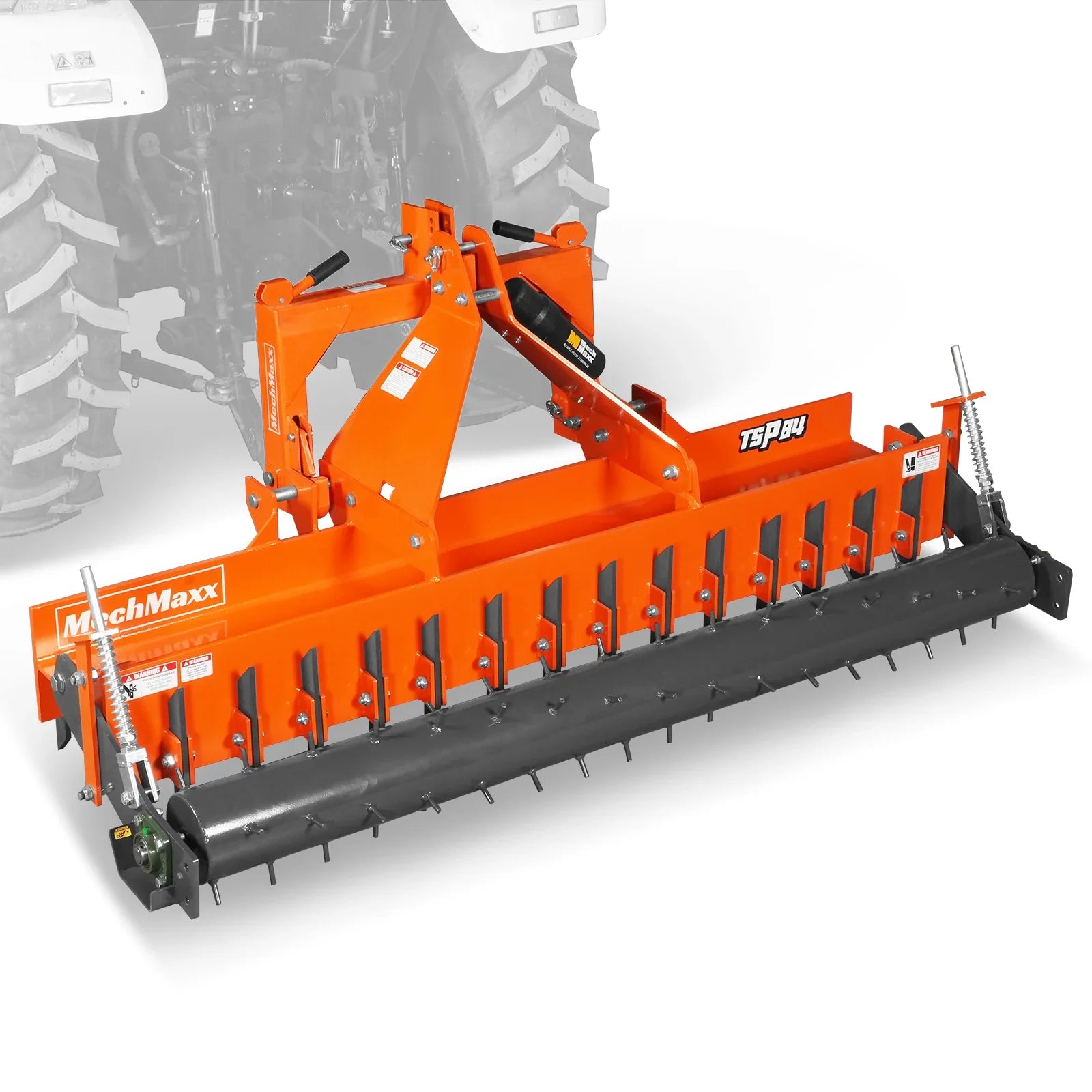

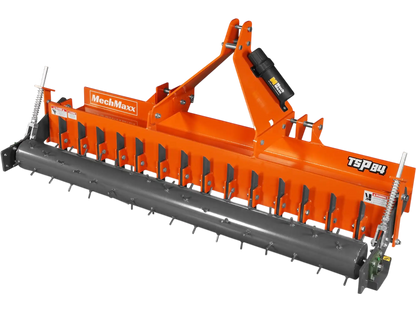

MechMaxx TSP84 Soil Pulverizer 84" Heavy Duty Single Spiked Roller 29 Shanks Category 1 and 2 3 Point Hitch Tractor Attachment New

MechMaxx

$2,499.00
$2,499.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

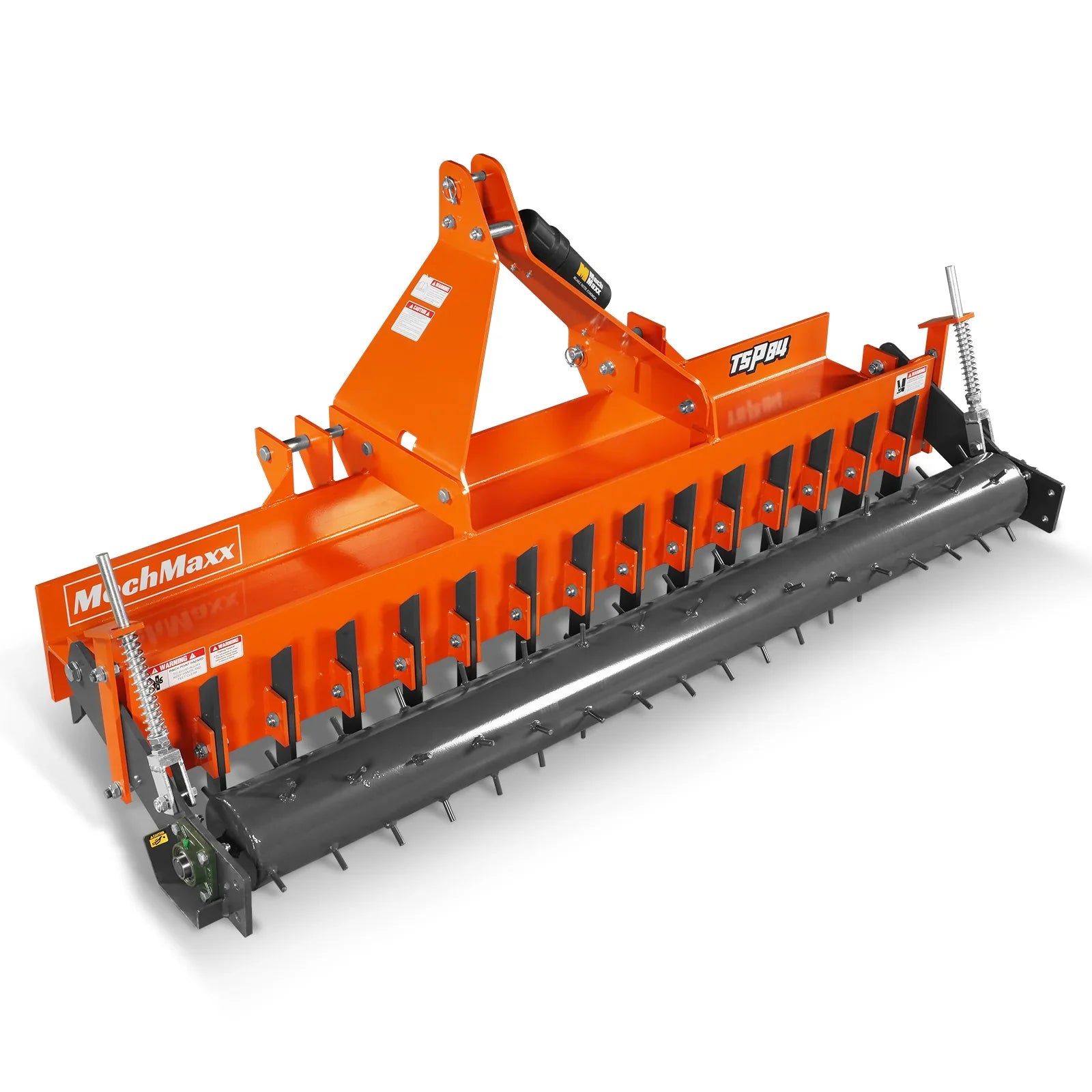

The Mechmaxx Soil Pulverizer is designed to loosen, pulverize, and level compacted or crusted soil, creating the ideal foundation for seeding or laying new sod. Engineered for durability and efficient ground preparation, it breaks up tough soil clods while smoothing and leveling the surface for consistent results. Equipped with multiple steel shanks and a heavy-duty spiked roller, this implement effectively conditions soil while improving aeration and drainage. The rear roller crushes clods and firms the soil surface, leaving a smooth, uniform finish ready for planting.

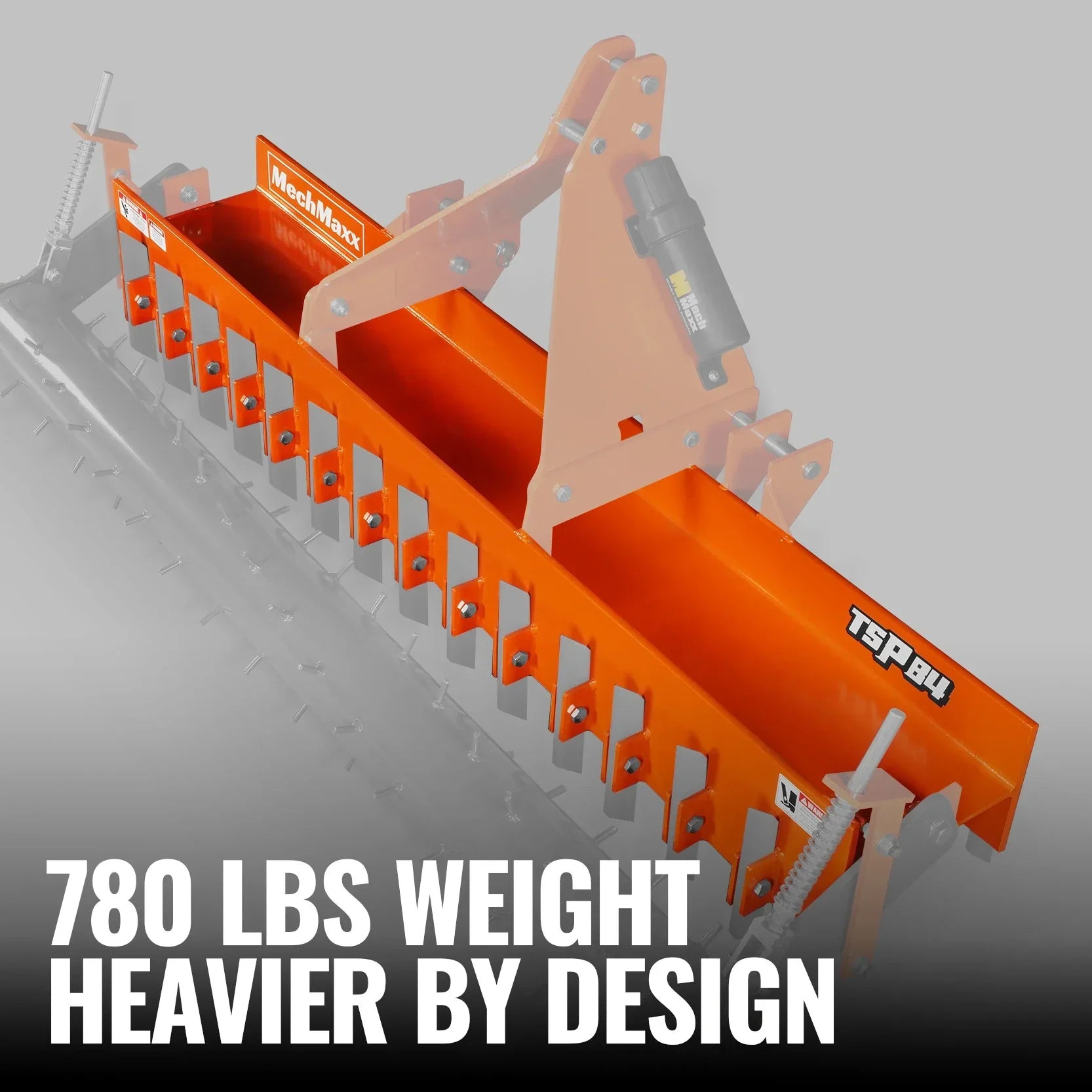

  • Heavy-Duty H-Beam Frame: Constructed with a high-strength 13.4 x 10 in (W x H) steel H-beam, providing excellent structural rigidity and resistance to deformation.

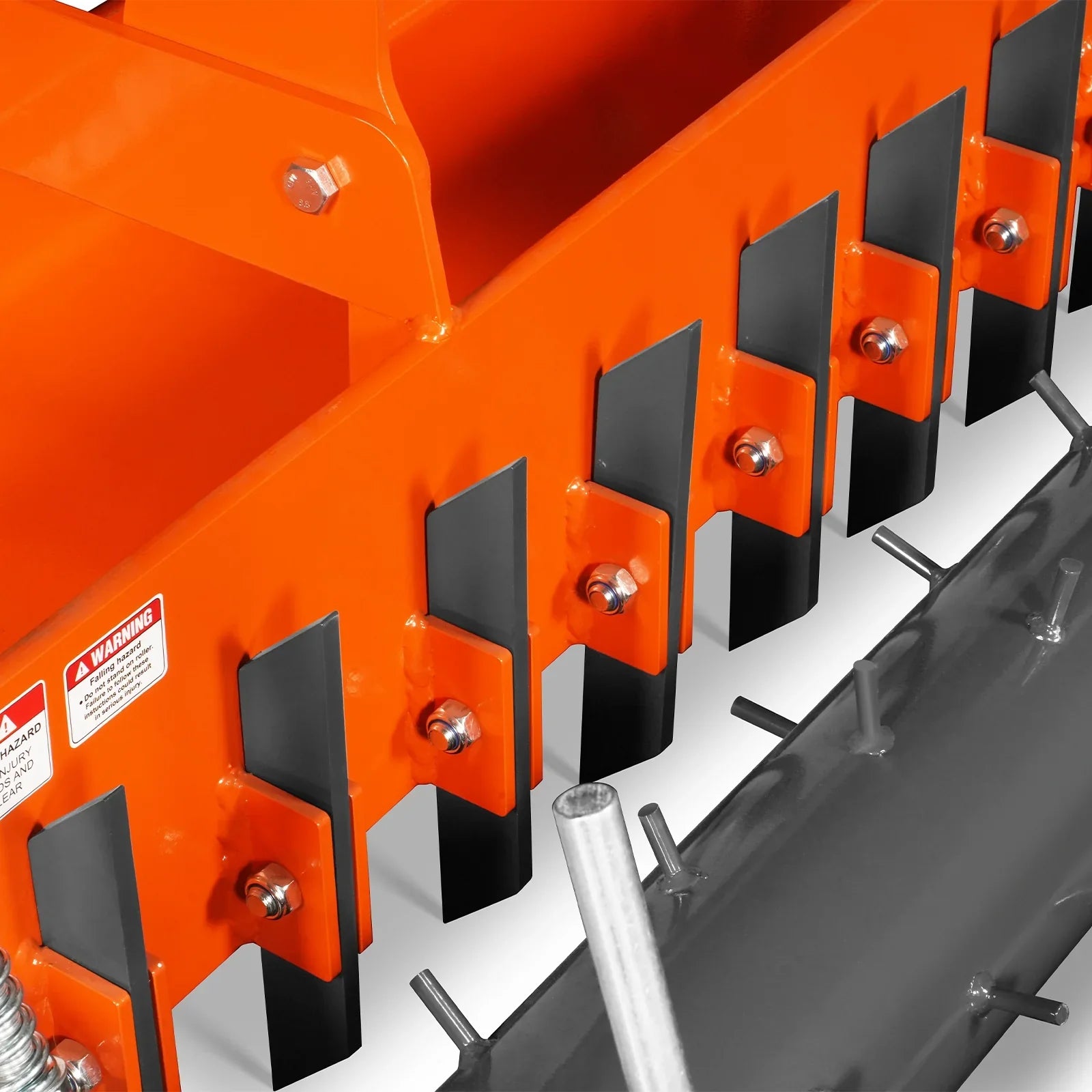

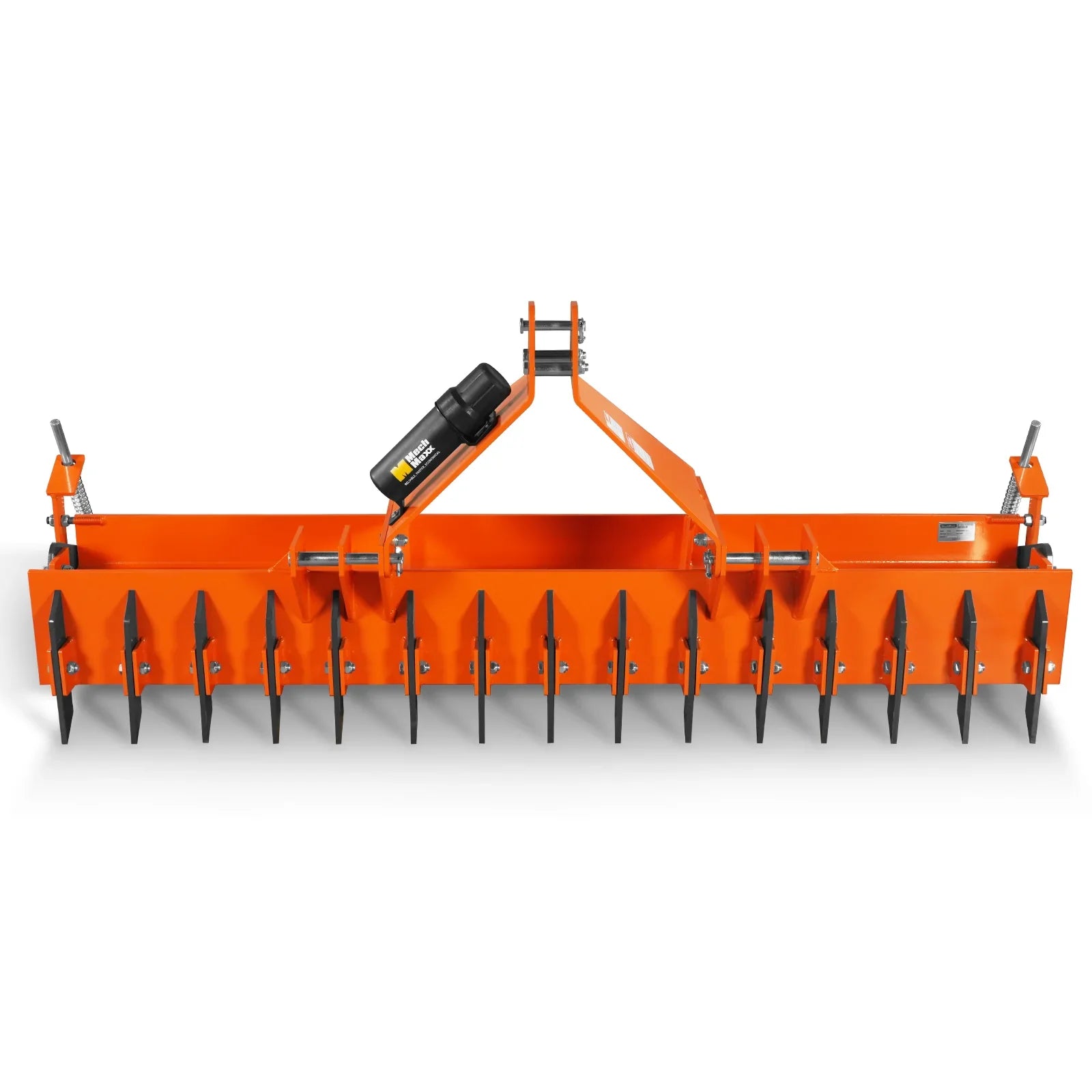

  • Reversible Shanks: Equipped with 12.6 x 2 x 0.5 in reversible high-strength steel shanks in a staggered two-row configuration (15 front, 14 rear), allowing better soil flow and improved soil breaking performance.

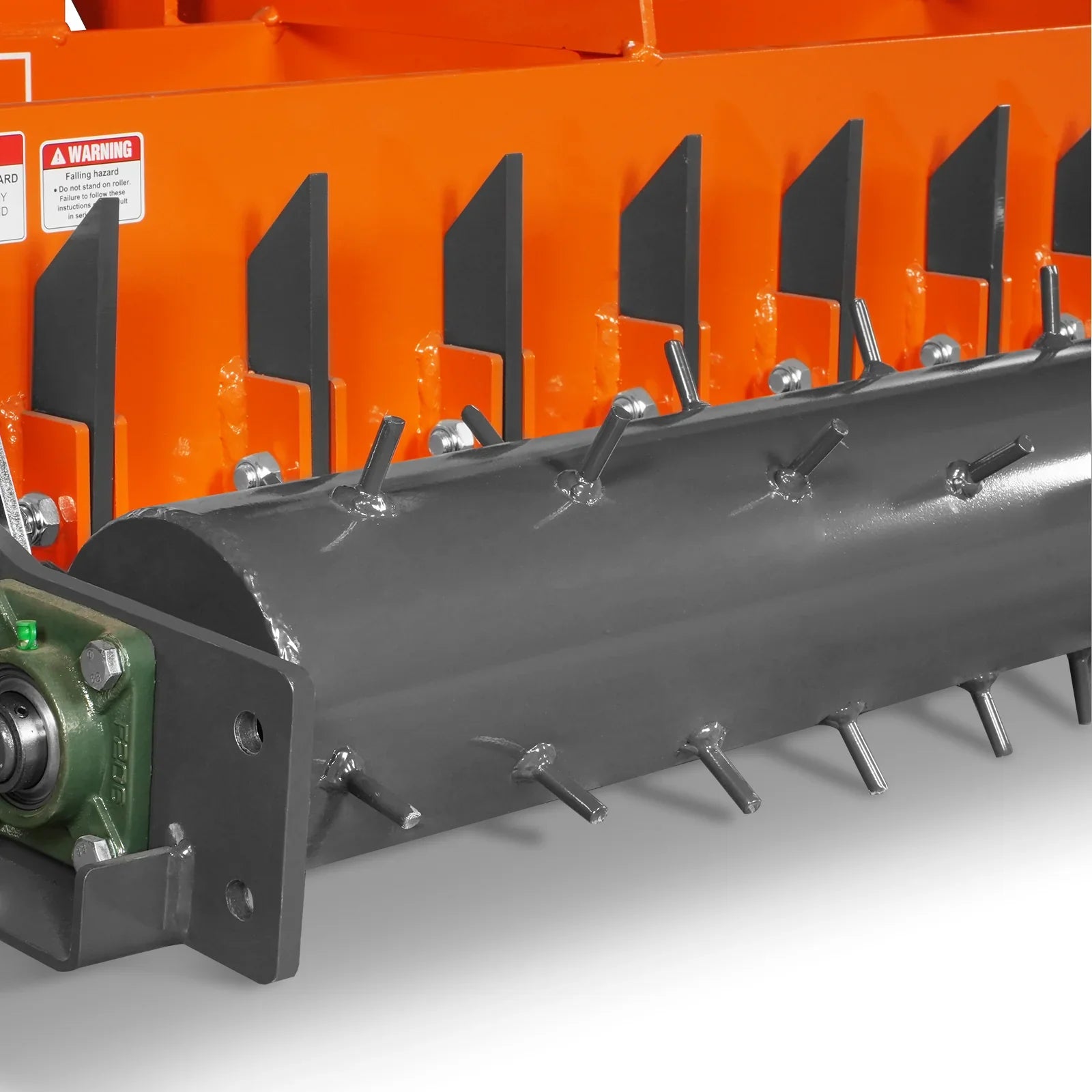

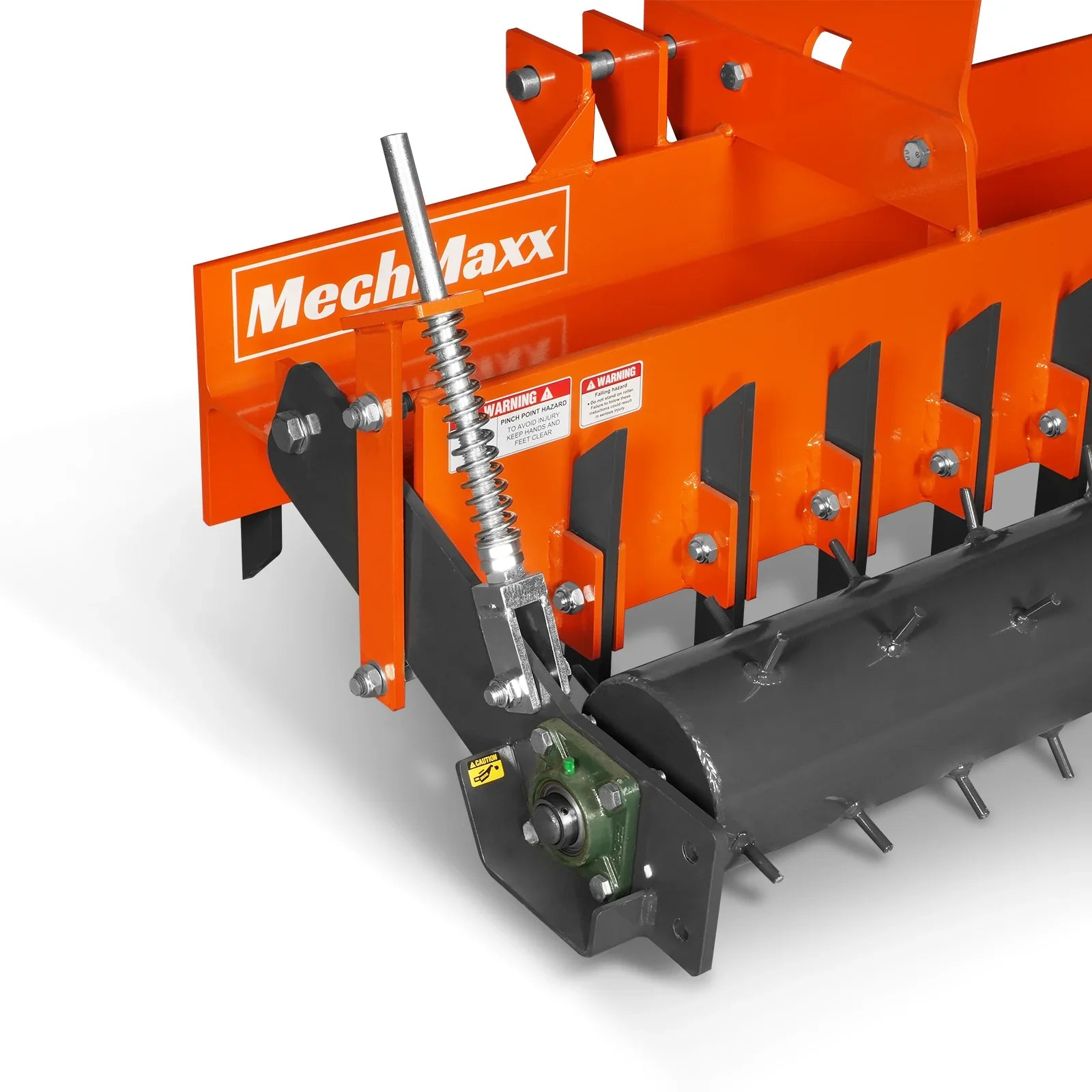

  • Spiked Roller for Effective Soil Pulverizing: The rear roller features 3/8 in steel spikes fully welded to a 6.6 in diameter tube, delivering strong clod-crushing performance. Spring-adjustable down pressure allows precise ground contact for consistent soil pulverizing and a smooth seedbed finish.

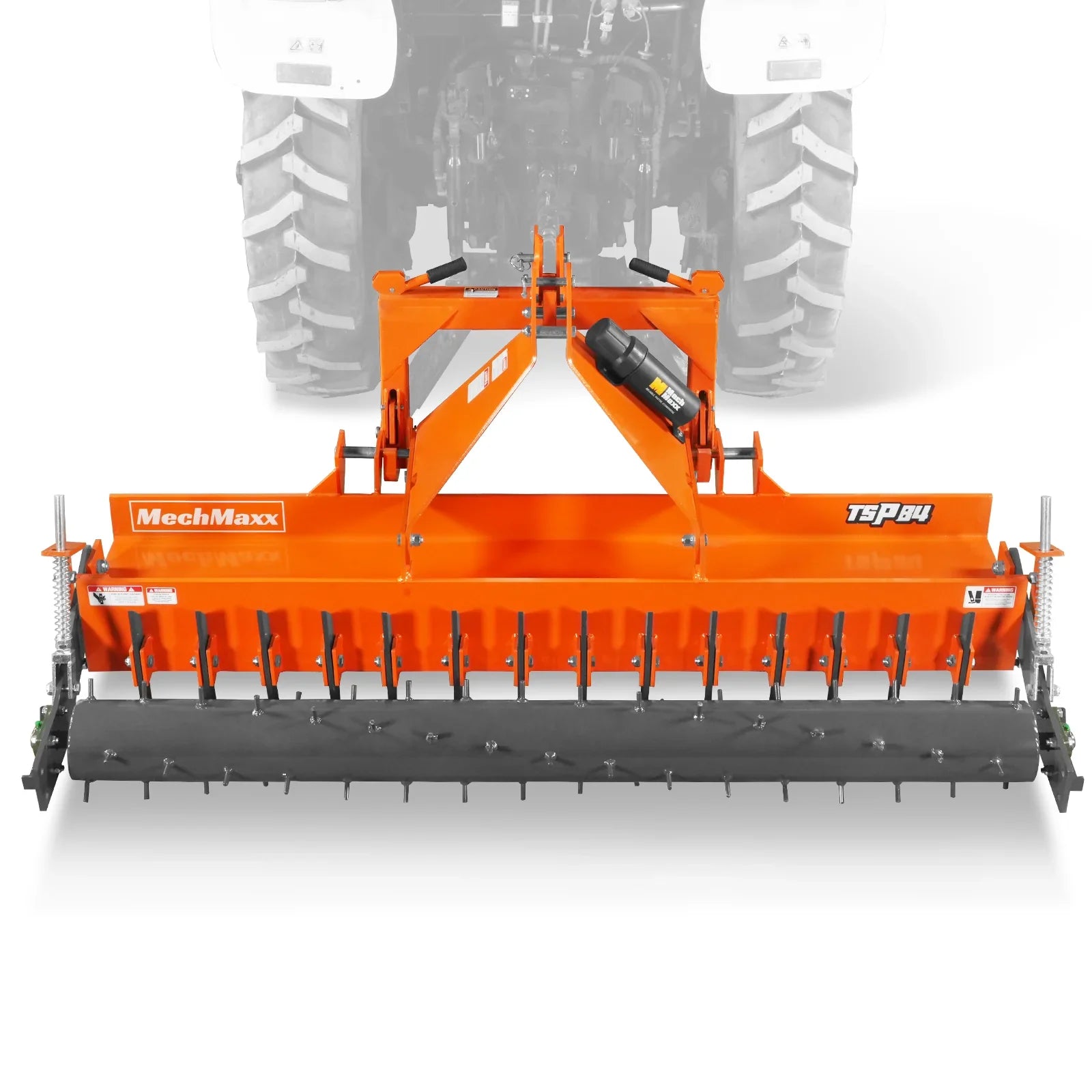

  • Quick-Hitch Compatible: Fits Cat. 1 & 2 Quick Hitches for fast, hassle-free tractor attachment.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • 84 in Working Width: The 84 in working width provides efficient ground coverage while remaining easy to maneuver, making it ideal for compact tractors and smaller landscaping or soil preparation jobs.
  • Heavy-Duty H-Beam Frame: Constructed with a 13.4 x 10 in (W x H) high-strength steel H-beam, providing excellent rigidity and resistance to bending in tough soil conditions.
  • Reversible Shanks: Durable 12.6 × 2 × 0.5 in steel shanks penetrate compacted soil efficiently and feature a reversible design for extended service life.
  • Spiked Pulverizing Roller: A heavy-duty rear roller with 6.6 in tube diameter and 10 in spike diameter breaks up soil clods and levels the surface.
  • Multiple Spike Configuration: Features 66 spikes per roller depending on model, ensuring consistent soil pulverizing and smooth ground finishing.
  • Cat.1, 2 Quick-Attach Compatibility: Designed to fit standard cat.1, 2 3 point hitch systems for hassle-free attachment and operation.

Overall Height: 36 in

Overall Width: 87 in

Overall Depth: 33 in

Working Width: 84 in

Max Working Depth: 4 in

Number of Rollers: 1 pc

Roller Diameter: 6.6 in

Roller Diameter With Spike: 10 in

Number of Roller Spikes: 66 pcs per roller

Number of Shanks: 15 front, 14 rear

Shank Size: 12.6 × 2 × 0.5 inGrade 50 Steel, Heat Treated

Shank Spacing: 5.5 in

H-beam (W x H): 10 x 13.4 inGrade 50 Steel

Recommended Tractor HP: 35-65 HP

3 Point Hitch: Cat.1, 2

Quick Hitch Compatibility: Cat.1, 2 (Quick Hitch Compatible)

Packing Size (LxWxH): 89 × 34 × 22 in

Weight (N.W/G.W.): 780/862 lbs

This item comes with a 1 year factory warranty.
PDF 3 Point Soil Pulverizer Product Manual
