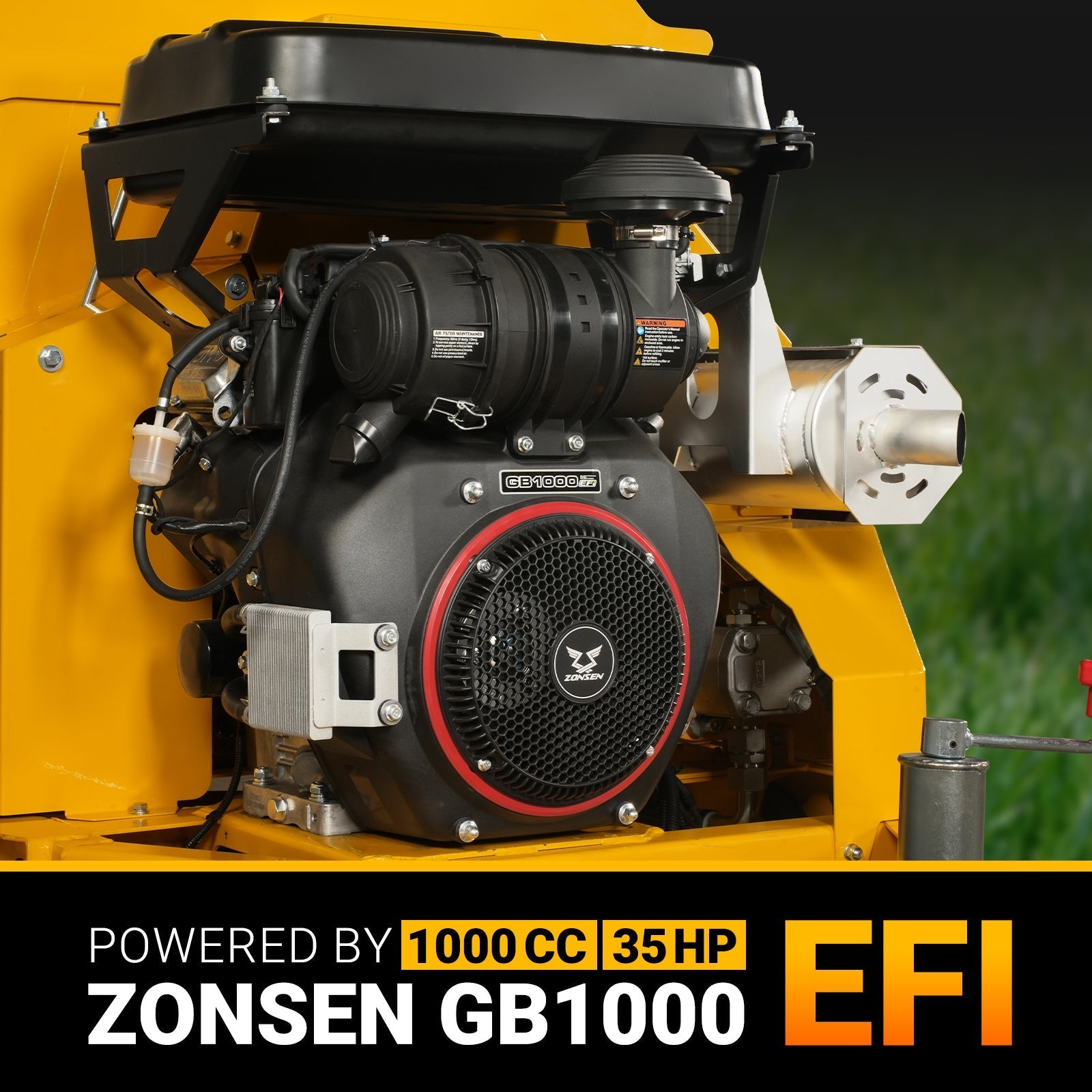

Engine Brand Model: Zonsen GB1000EI
Engine Power: 35HP
Torque: 74Nm
Fuel Tank Capacity: 18L
Max Fuel Consumption: 2.38gal/h
Fuel Type: Gasoline 92#
Air Cleaner: Double Filtration
Oil Filter: Screw Mountiing
Recommended Oil: SAE 10W-30
Oil Volume with Filter: 2.5L
Maximum Continuous Working Angle: 20°
Cooling Medium: Forced Cooling
Alternator: 25A/300W
Clutch Type: Manual Clutch
Engine Shaft Diameter: 1.125 in
Tensioner: Spring Automatic Tensioning
Belt: 2SB1505LE

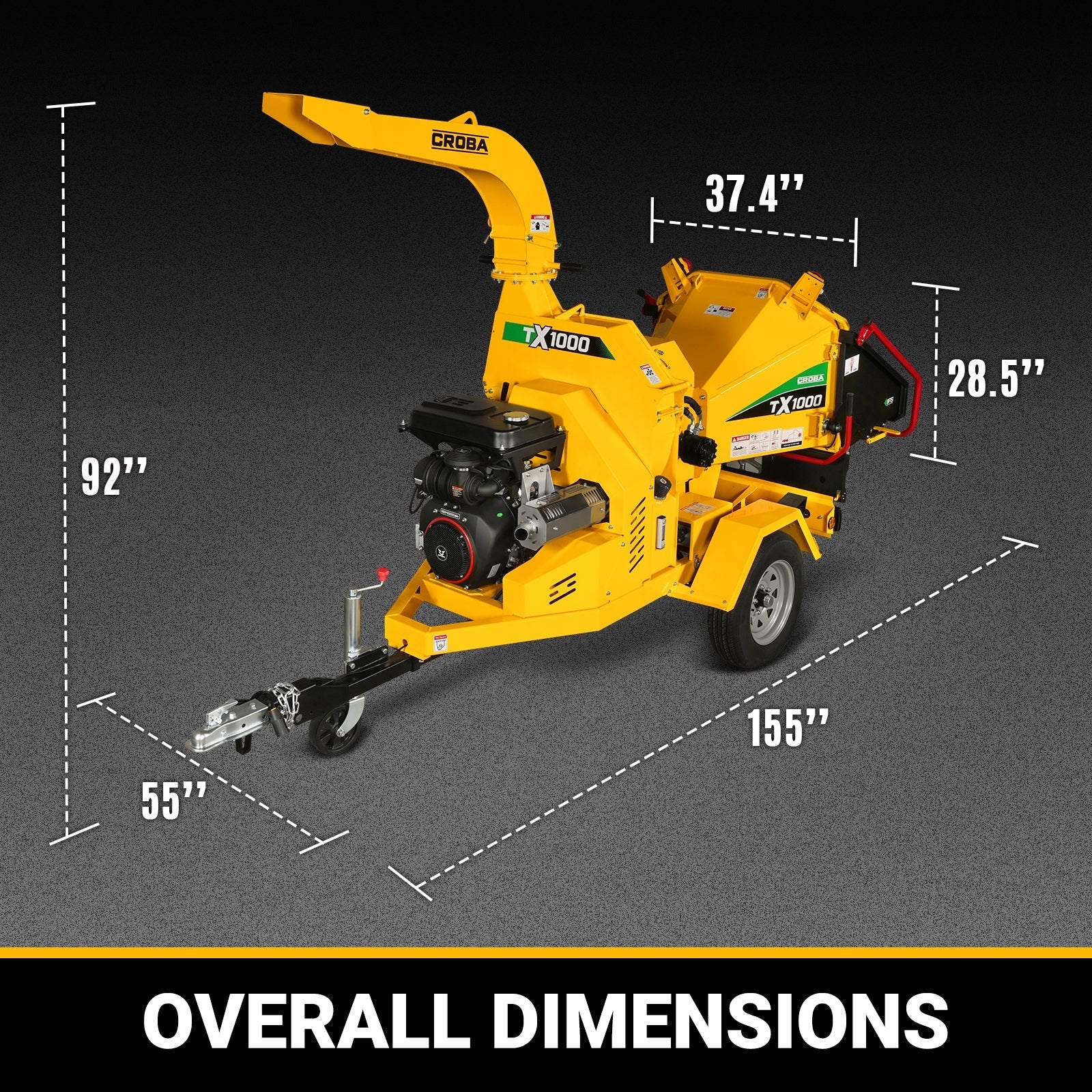

Overall Length-Feed Table Up: 135 in
Overall Length-Feed Table Down: 155 in
Overall Width: 55 in
Overall Height-Discharge Chute Up: 79 in
Overall Height-Discharge Chute Down: 92 in
Overall Weight: 1874 lbs
Tongue Weight: 198 lbs

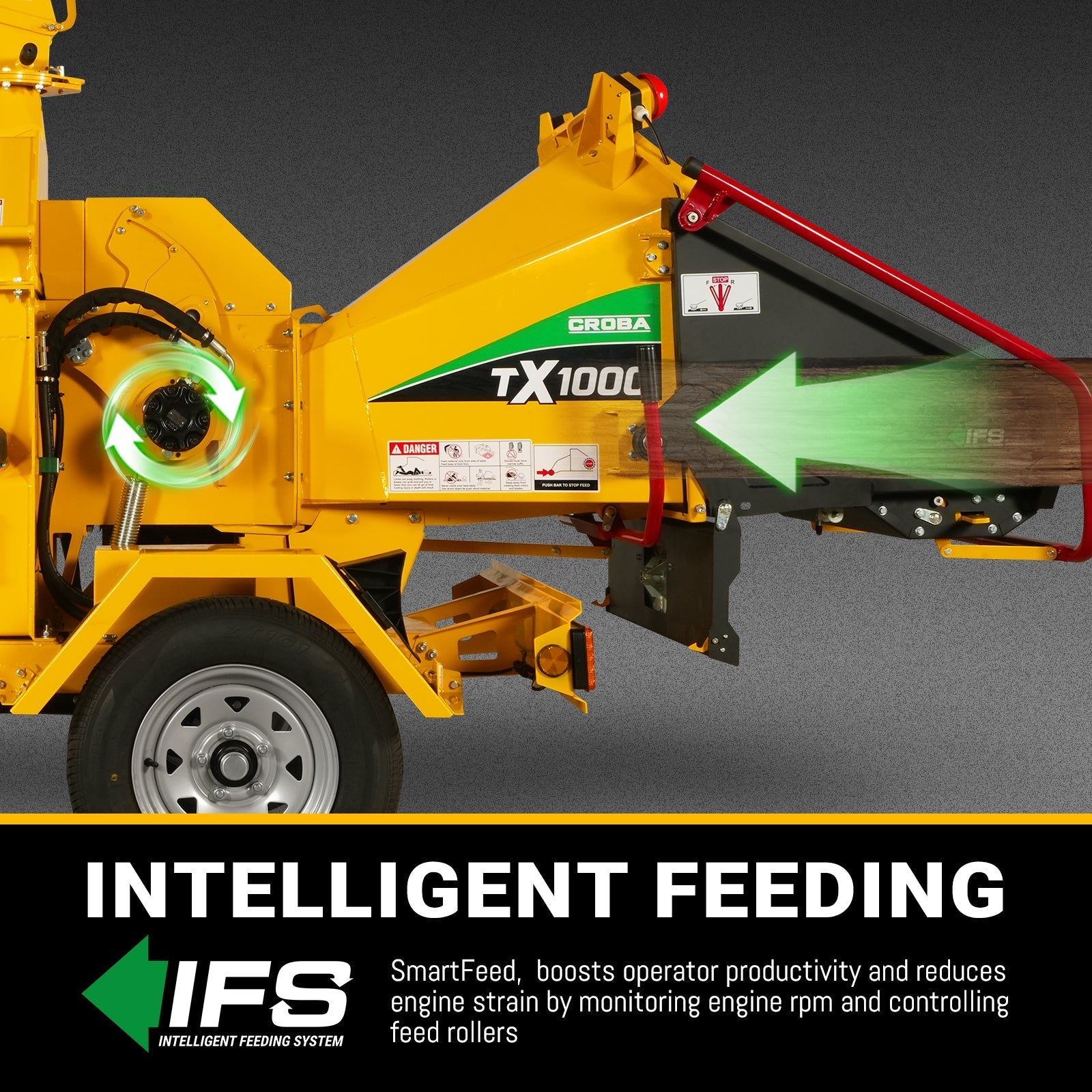

Feed Roller Orientation: Horizontal
Feed Roller Nos.: 1
Feed Roller Clamp Load: 344 lbs
Knife Nos.: 4
Number Of Feed Roller Motors: 1
Feed Roller Clamping Mechanism Type: Spring + Feeding Roller Weight
Feed Roller Dimension: φ12*11 in
Minimum Distance From Feed Roller To Blade Housing: 5 in
Weight Of Feed Roller Assembly: 123 lbs
Feed Speed: 54ft/min
Infeed Table Height: 22 in

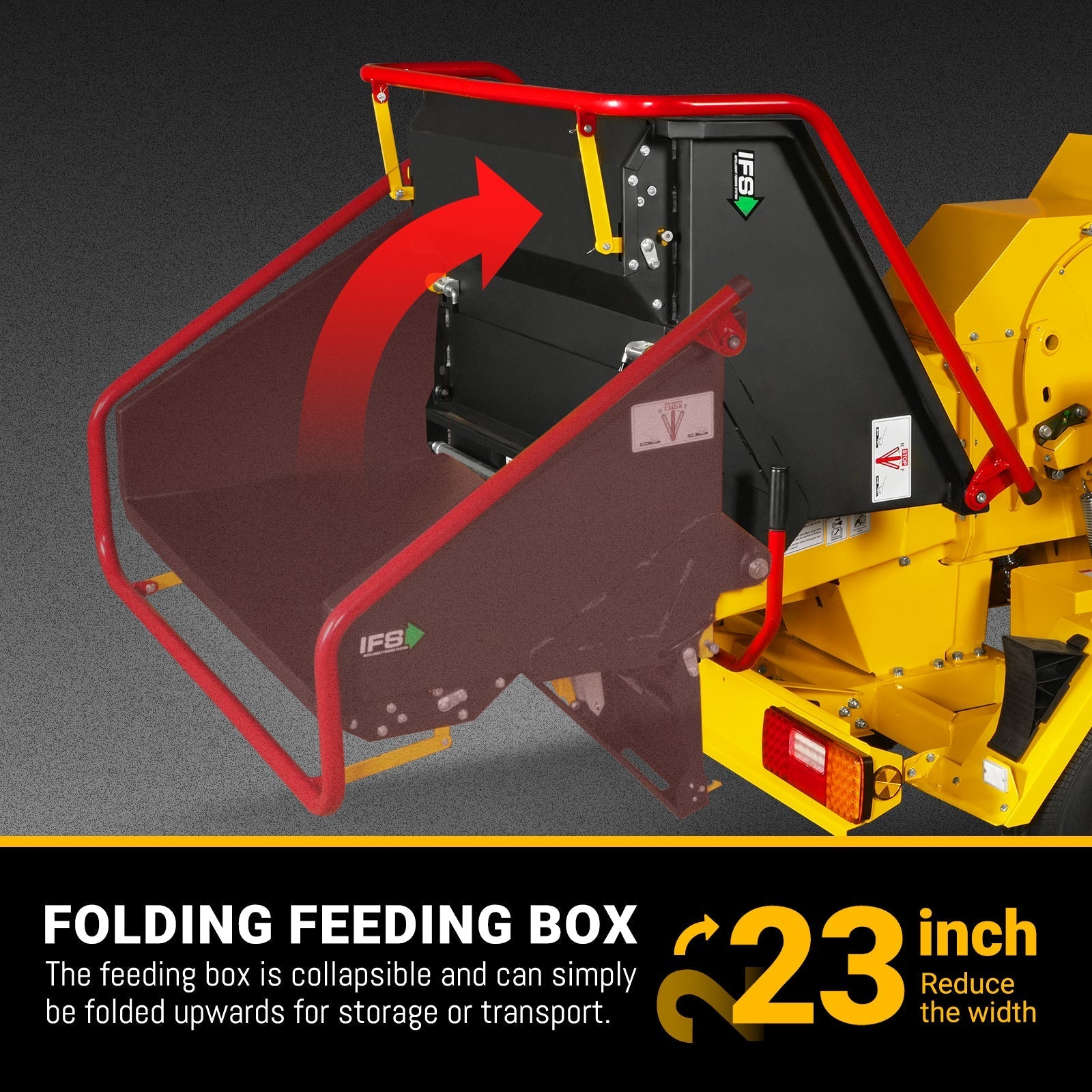

Infeed Table Length: 24 in
Infeed Table Width: 41 in
Infeed Throat Size: 12*8 in
Distance From Feed Roller To End Of Feed Table: 61 in
Distance From Feed Table To Ground: 30 in
Bottom Feed Stop Bar Function: Feed Roller Stopped - Reset
Bottom Feed Stop Bar: Standard
Bottom Feed Stop Bar Diameter: 1.2 in
Bottom Feed Stop Bar Material Thickness: 0.07 in
Stop Bar Resetting Method: Manual Reset

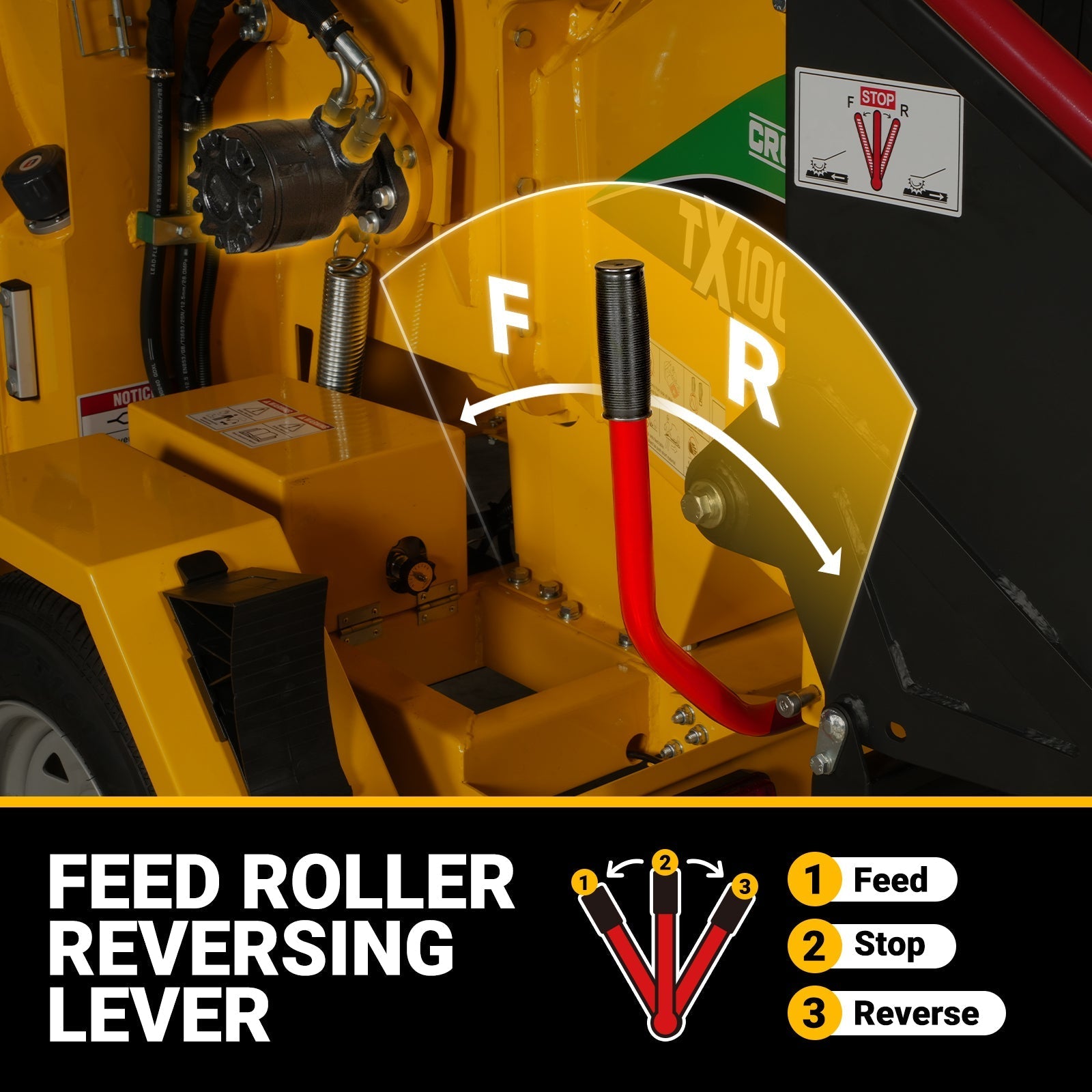

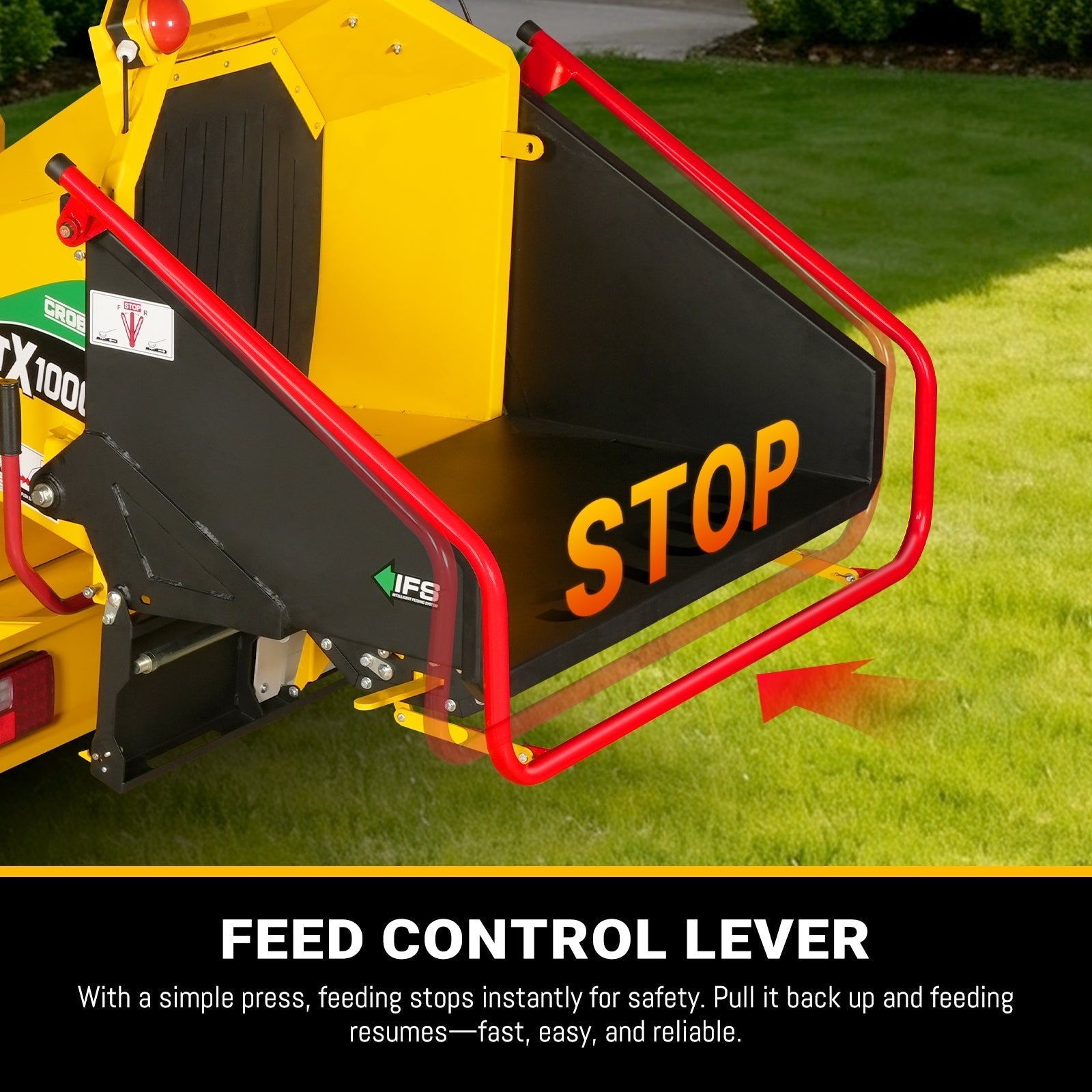

Three-Position Feed Control Bar: Standard
Control Bar Diameter: 1 in
Control Bar Material Thickness: 0.07 in
Control Bar Position Function: Forward/Stop/Reverse

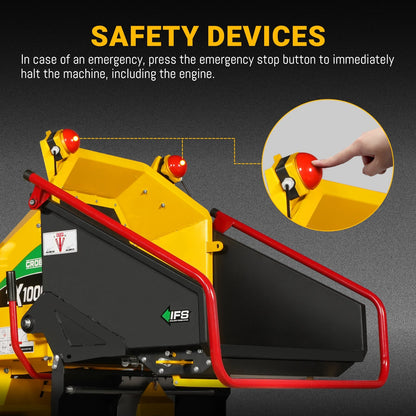

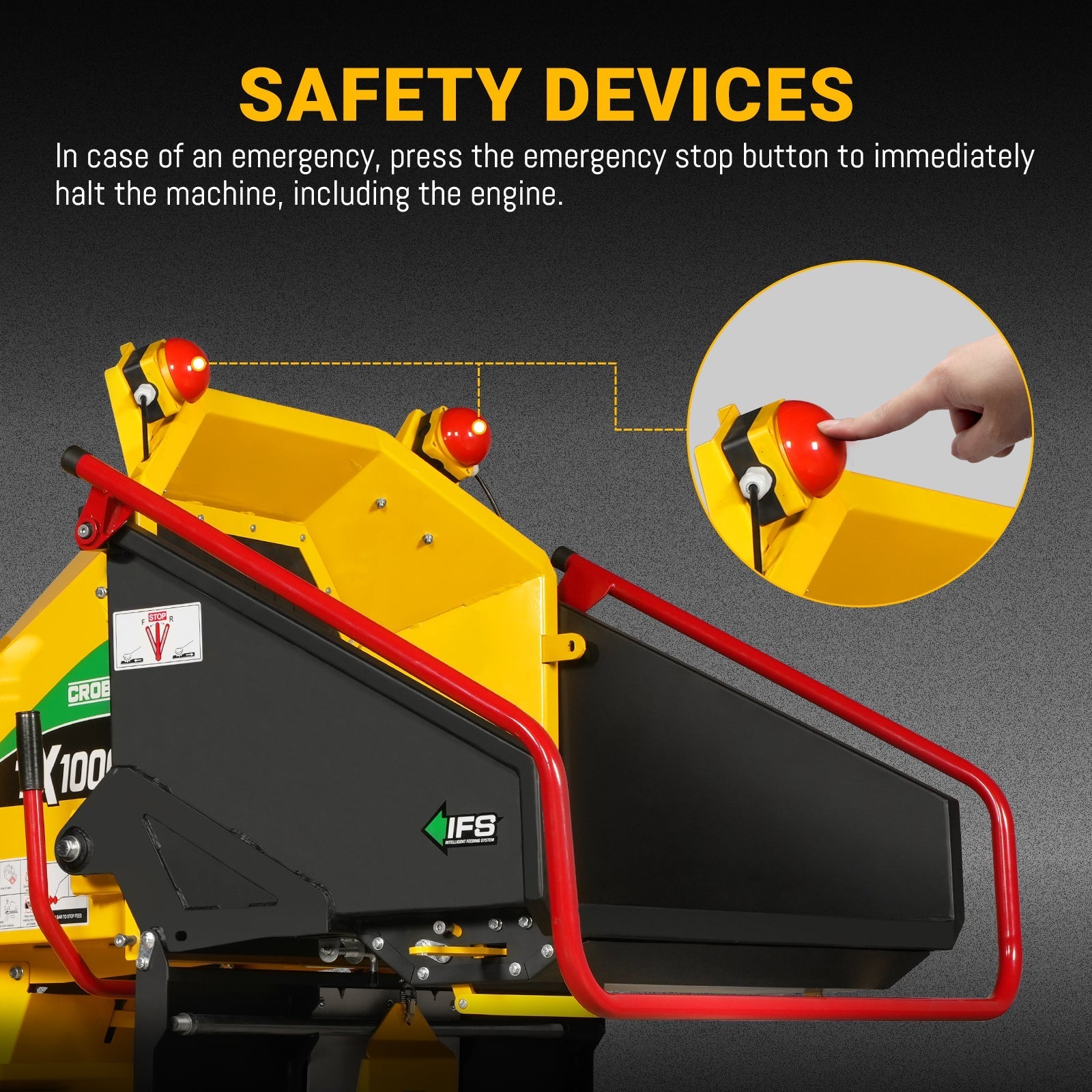

Red Emergency Stop Button: Stop The Engine
Red Emergency Stop Button Reset Method: Manual Reset

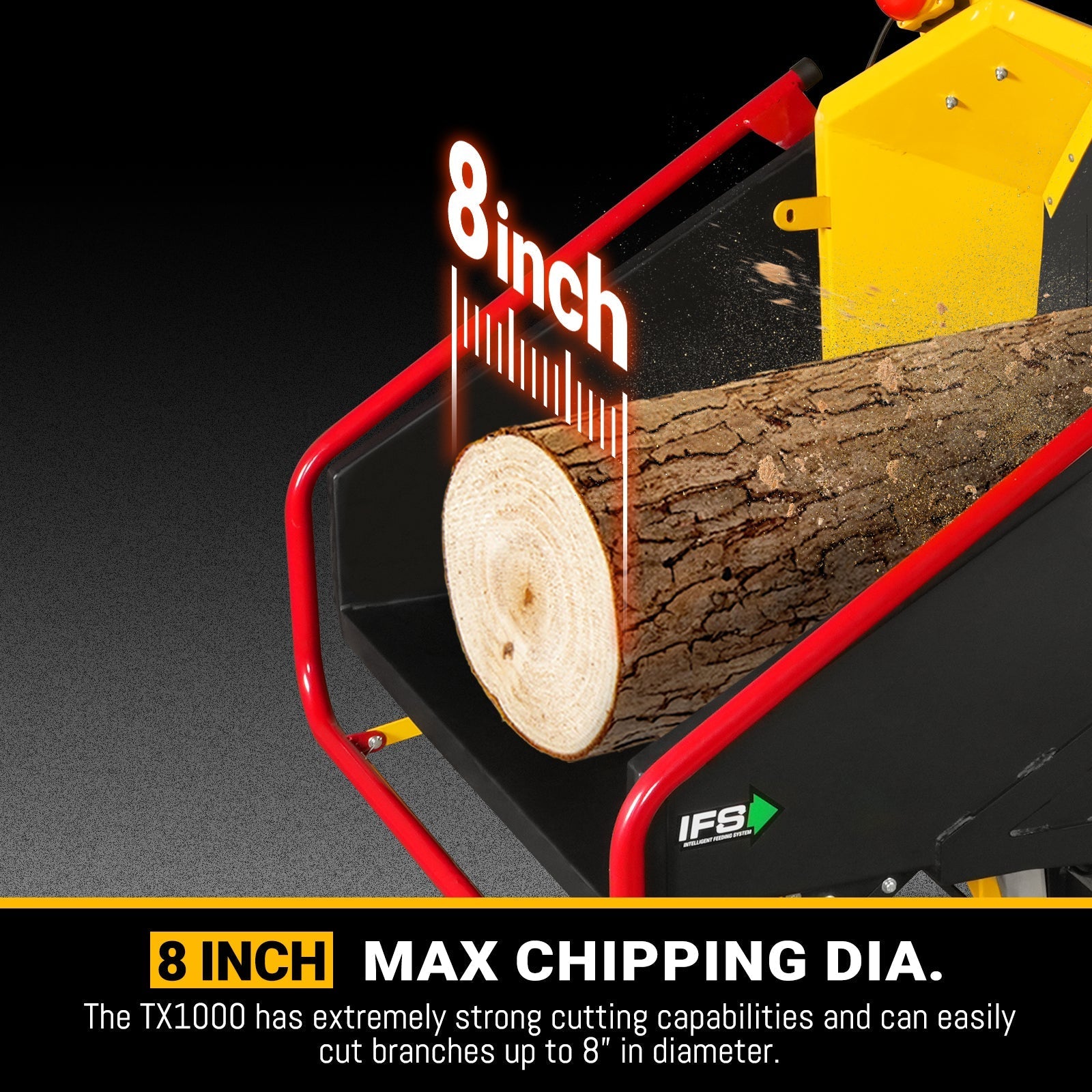

Chipping Capacity: 8 in
Blade Housing Width: 7 in
Cutting Disc Size: 30*0.7 in
Cutting Disc Rotating Speed: 1800
Weight With Shaft: 225 lbs
Safety Lock - Number Of Positions: 1
Blade Size: 4*1*0.5 in
Blade Cutting Edge Nos.: 2
Blade Bolt Nos.: 3
Vertical Anvil Size: 3.5*7.8*0.5 in
Vertical Anvil Cutting Edge Nos.: 2
Horizontal Anvil Size: 3.7*11.6*0.4 in
Horizontal Anvil Cutting Edge Nos.: 2
Blade Material: A8 Steel
Anvil Material: Cr12
Blade Holder Replaceable: No
Fan Blades Nos.: 4
Fan Blade Fixation Method: Bolt Fixing
Fan Blade Air Flow: 3249CFM
Bearing Nos.: 2
Bearing Hole Diameter: 2 in
Bearing Type: Spherical Bearing
Bearing Brand: SKF
Dynamic Capacity: 23.2KN
Static Capacity: 27KN
Tensioner: Automatic Tensioning
Belt Type: Combined Belt
Chute Height: 97 in
Flange Thickness: 0.2 in
Side Wall Thickness: 0.07 in
Chute Rotation Angle: 360°
Rotation Type: Manual
Rotatation Lock: Included
Rotational Lock Type: Tighten The Dual Handle Bolts
Tank Capacity: 7.4 gal
Recommended Oil Type: hm46
System Type: Open Center
Filtration Method: Return Oil Filtration - 10um
Pump flow at the maximum RPM: 4.2 gal
Maximum Pressure: 2102psi

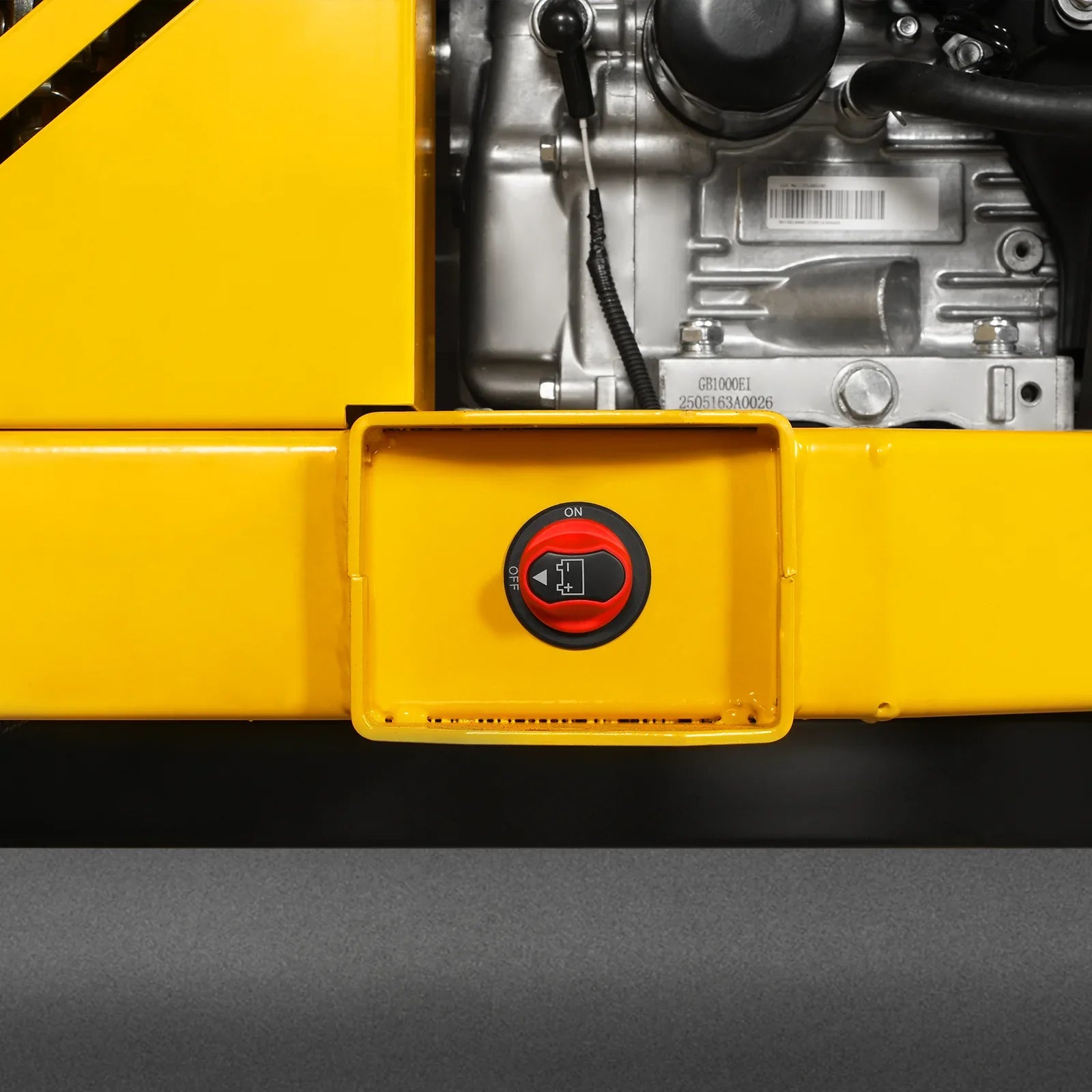

System Voltage: 12V
Battery: 12V 48AH

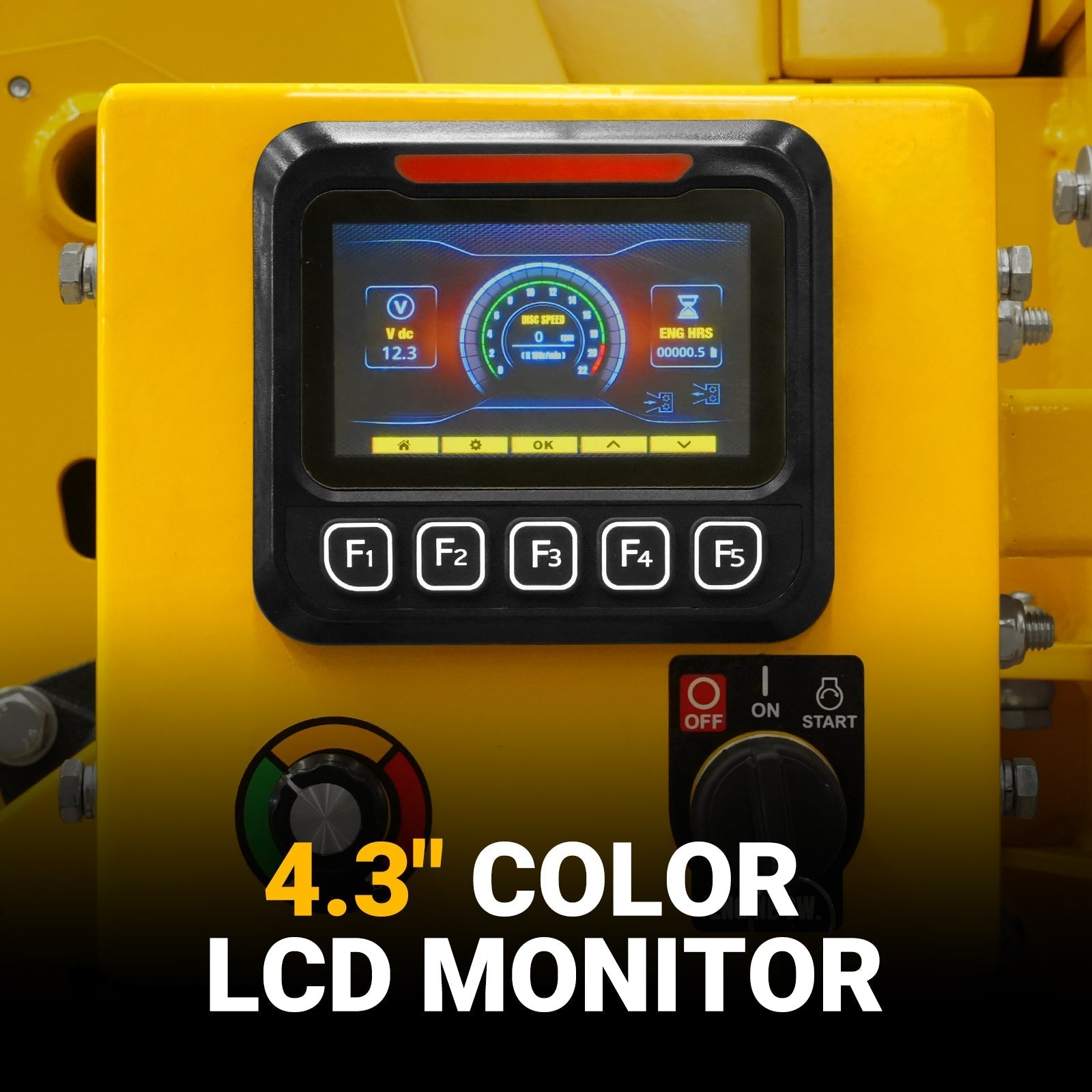

Display Screen Size: 4.3 in.
Controller Function: Timer, Automatic Control, Status Display, Speed Display, Etc.
Shutdown System: Engine

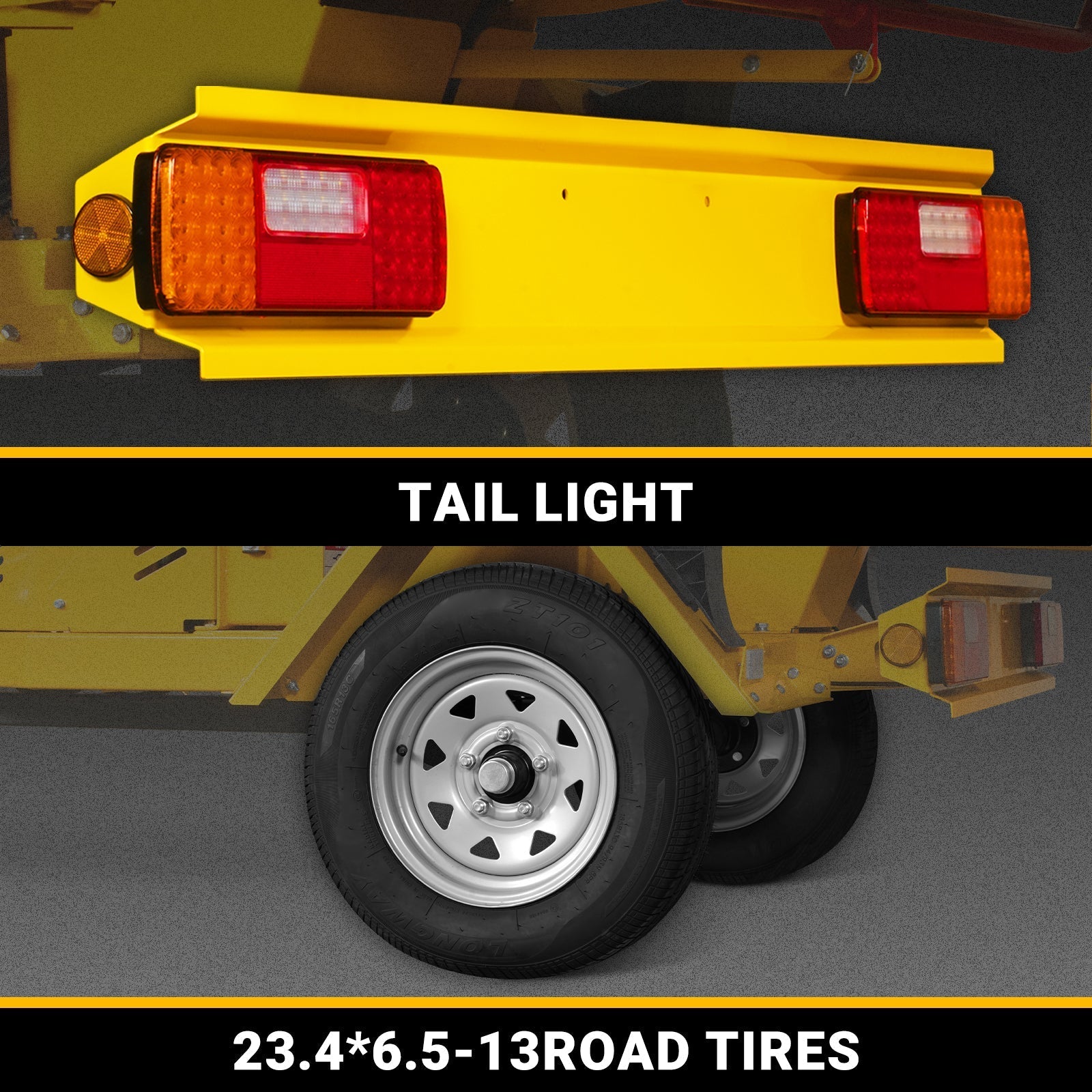

Trailer Lights: Vehicle Power Supply
Tow Ball Size: 2" Coupler Hitch / 2" Ball Coupler
Hook Type: Ball Coupler

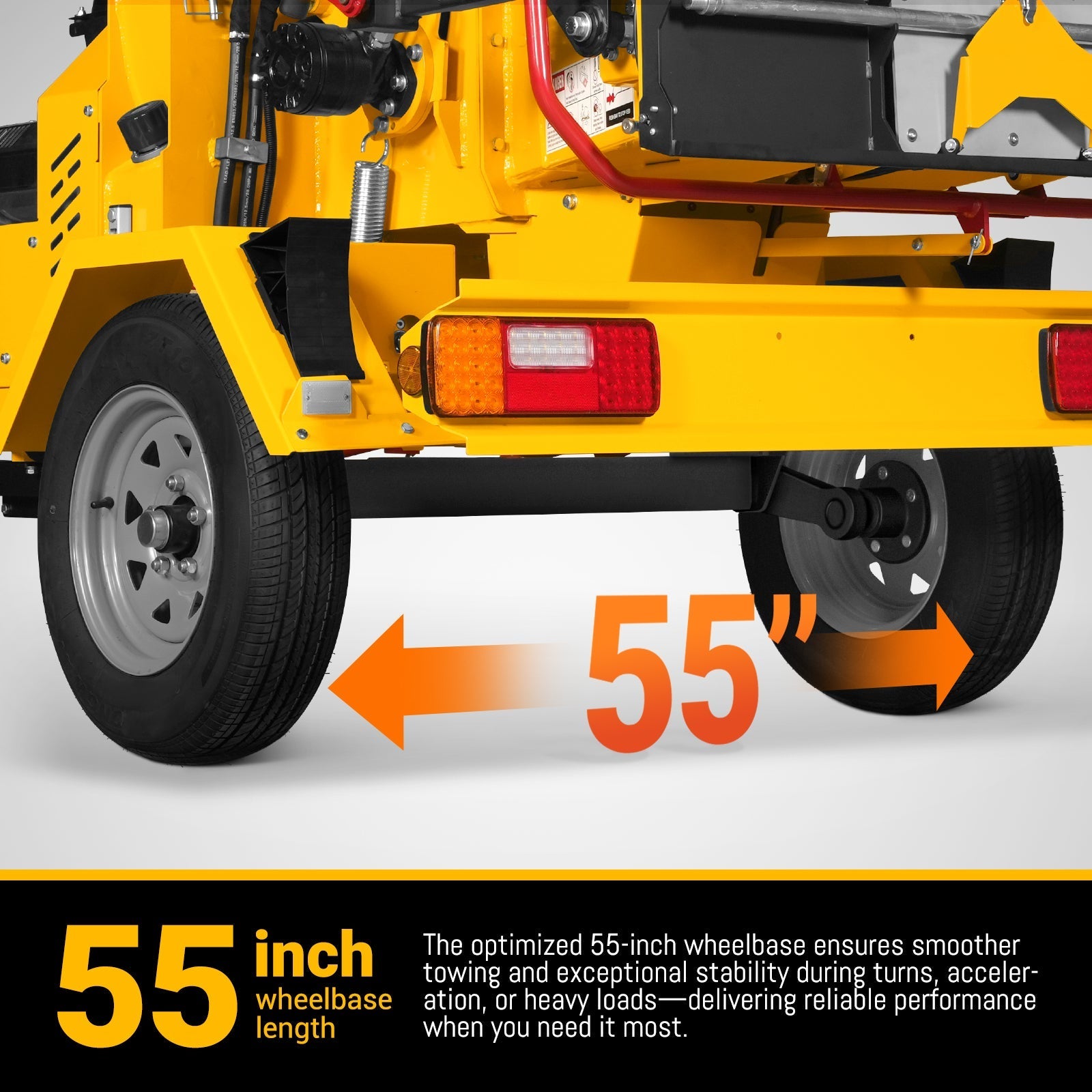

Axle Load-Bearing Capacity: 2756 lbs Torsion Shaft
Mud Guard: Bolt Fixing
Torque Shaft Type: Solid Torque Shaft
Tyre: φ594x165R13
