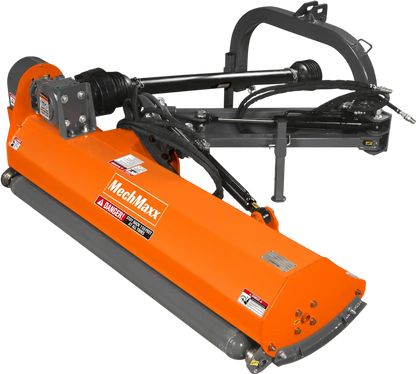

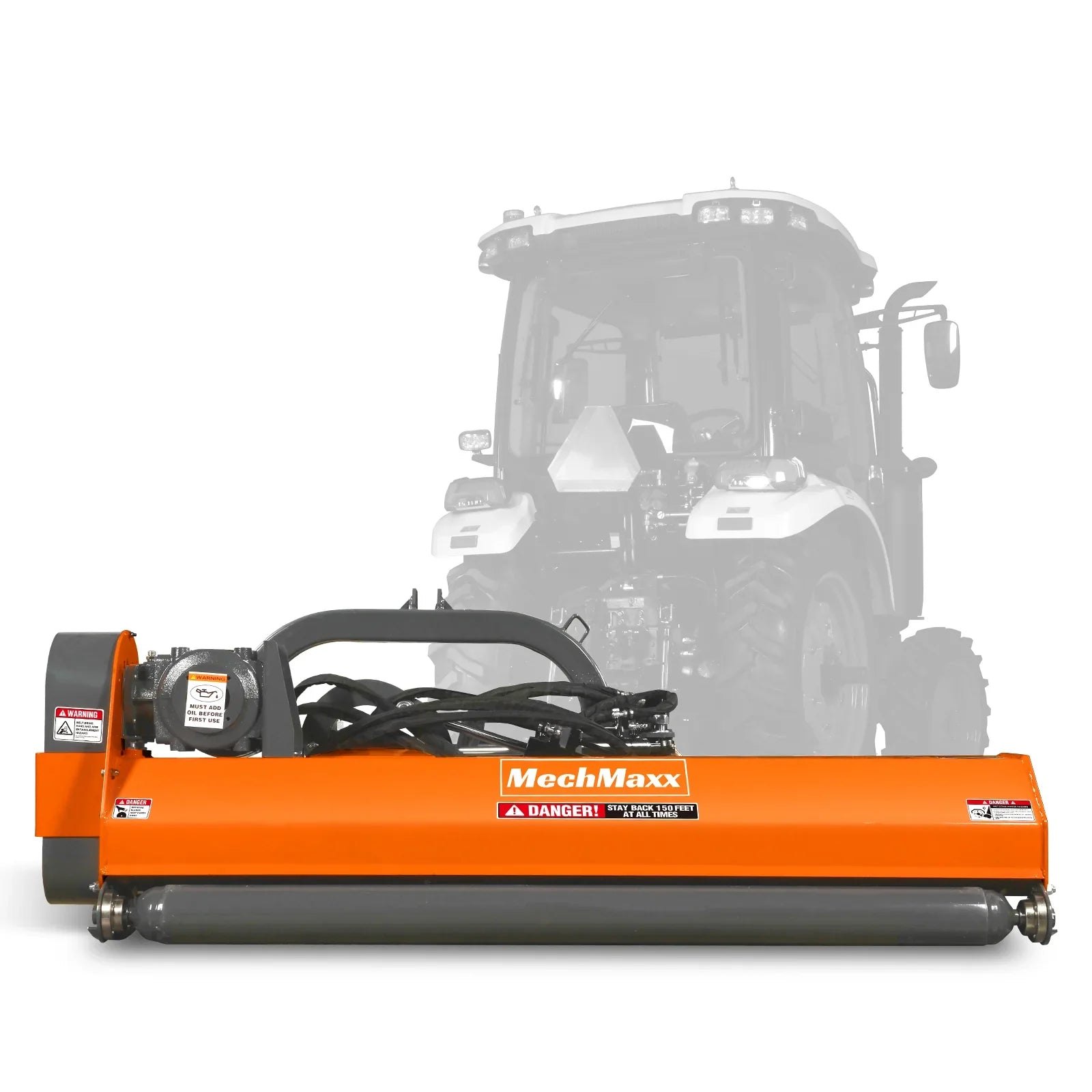

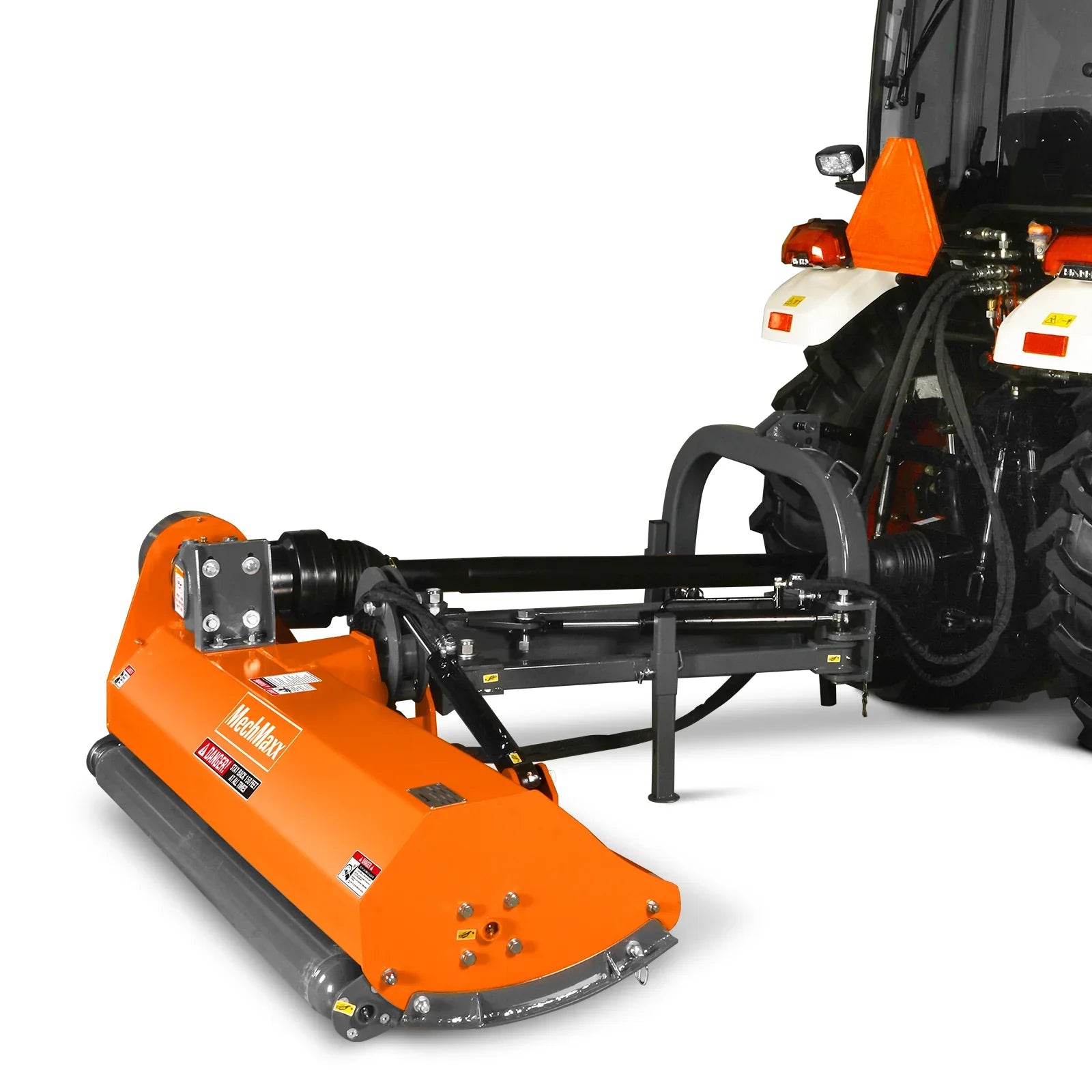

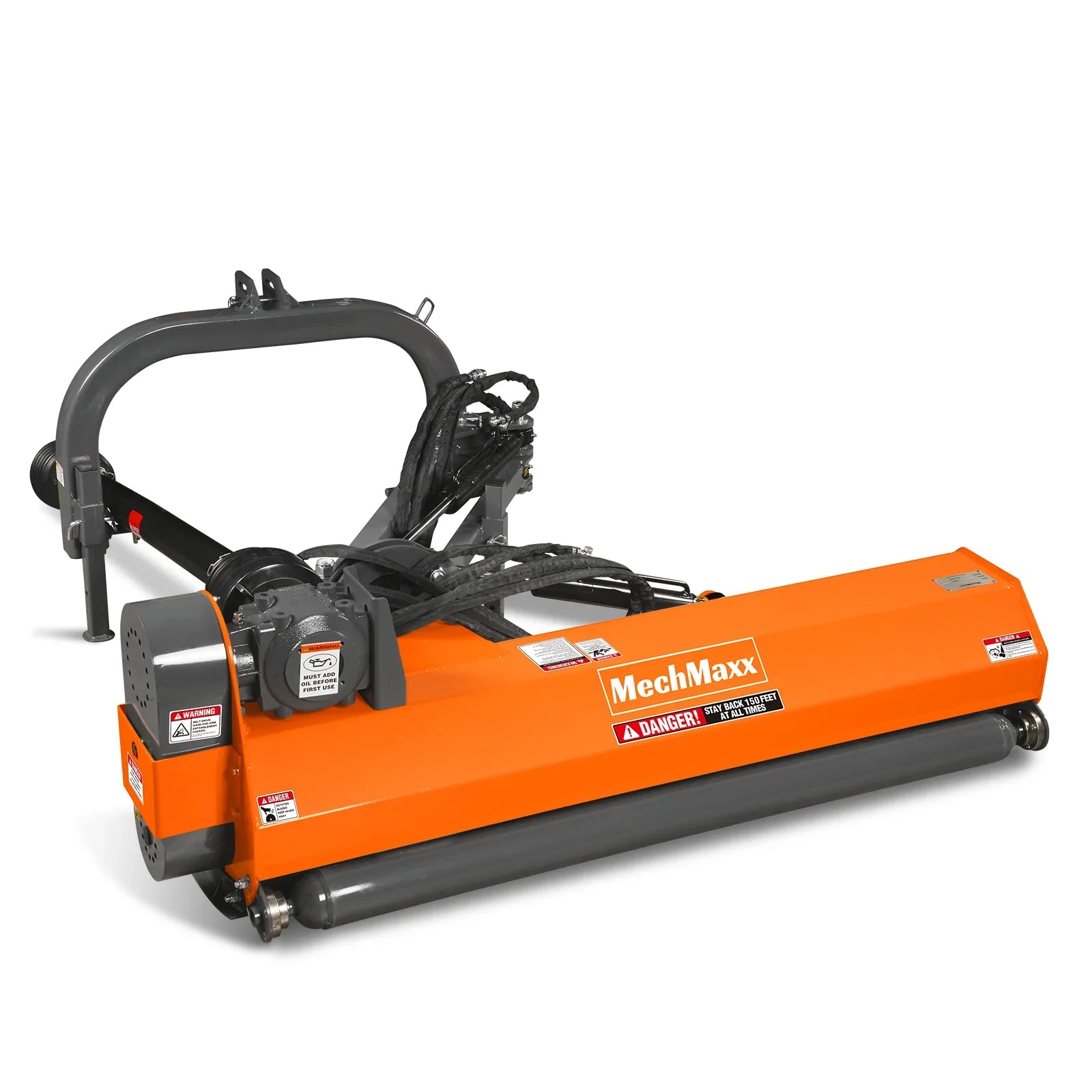

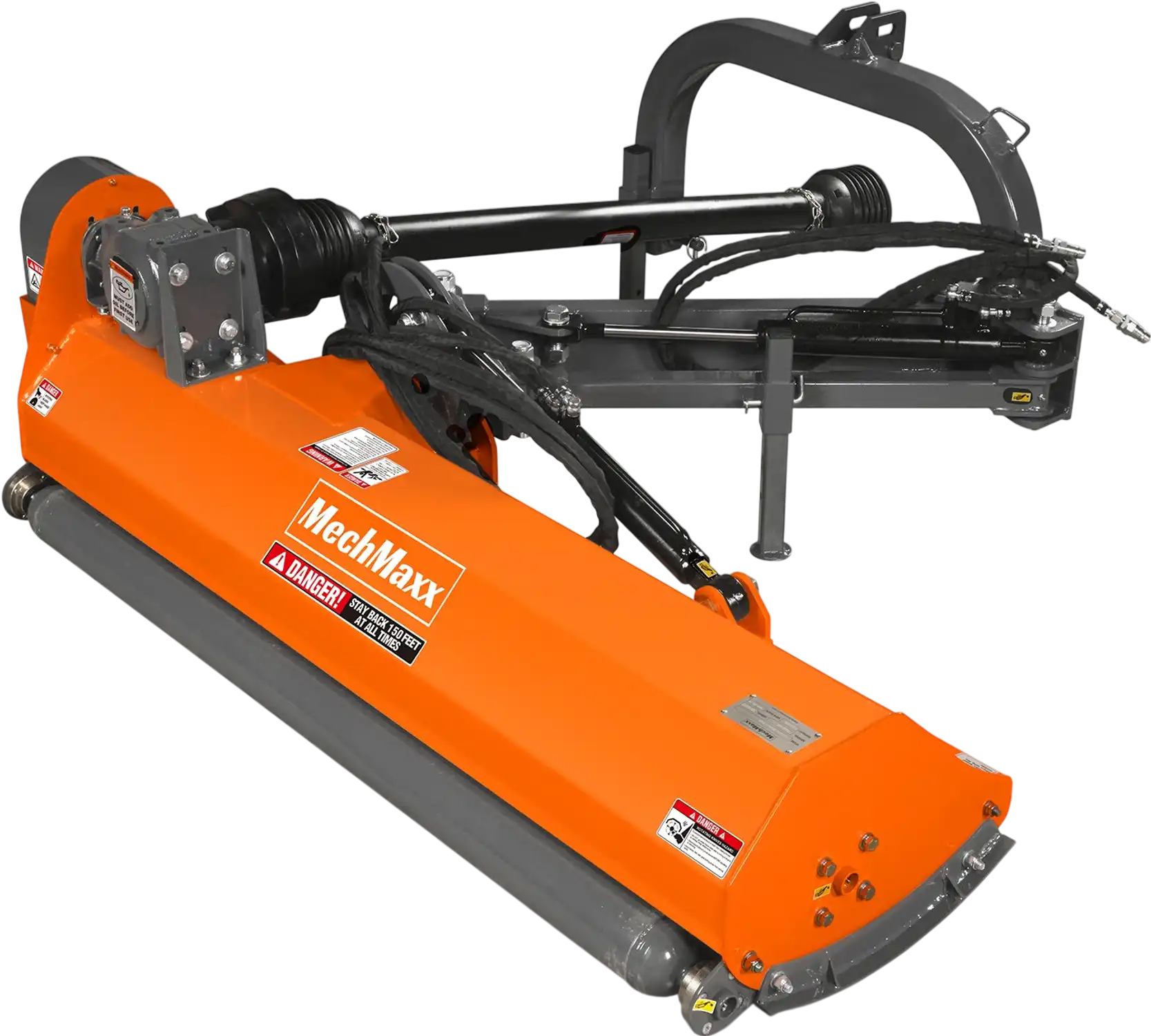

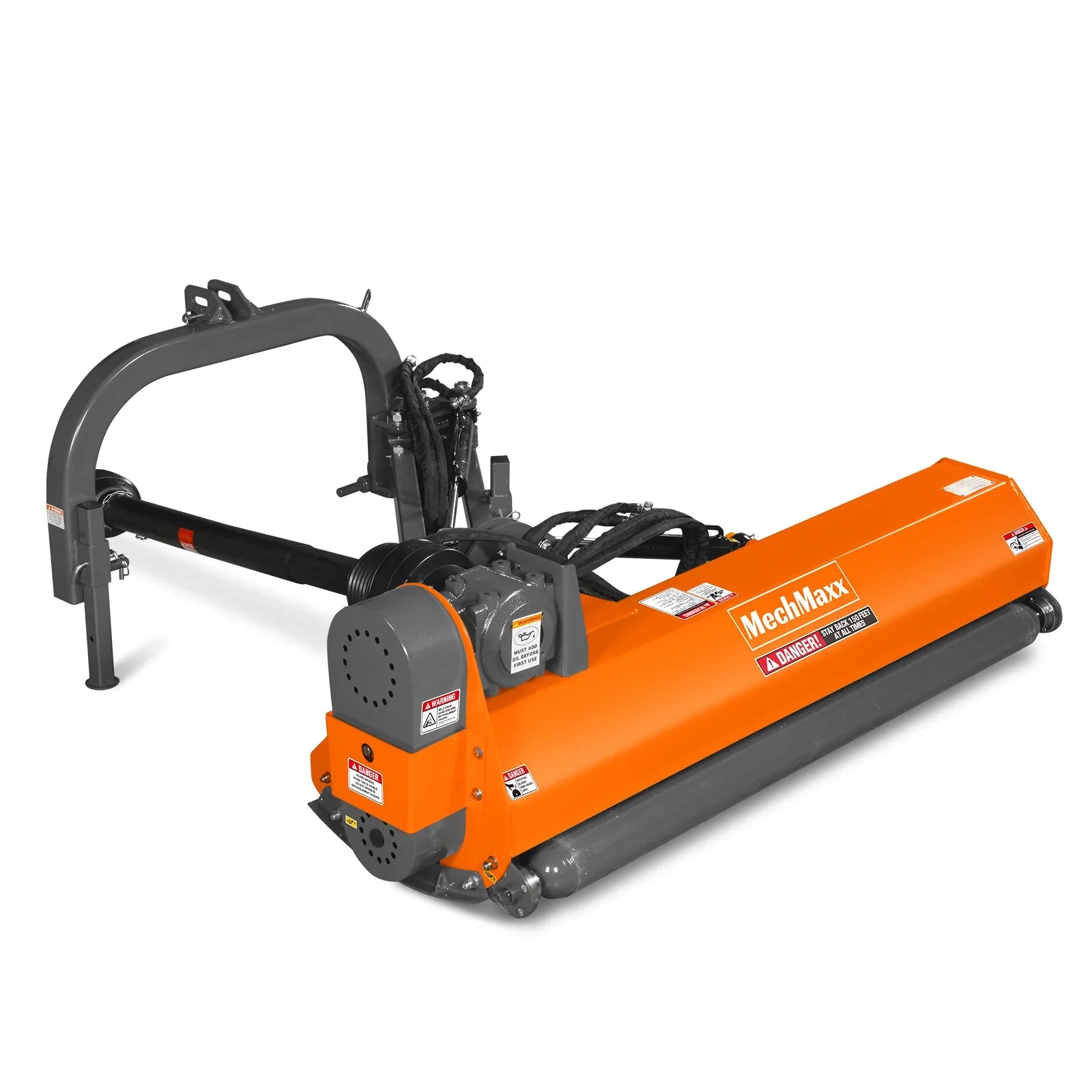

MechMaxx VAM 65 Flail Mower 65" Standard 3 Point Offset Ditch Bank 30-60HP New

MechMaxx

$2,999.00
$2,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • It can save time and economically cut plants in larger areas.
  • The attachment has a flail hammer to help the mower push through dense debris.

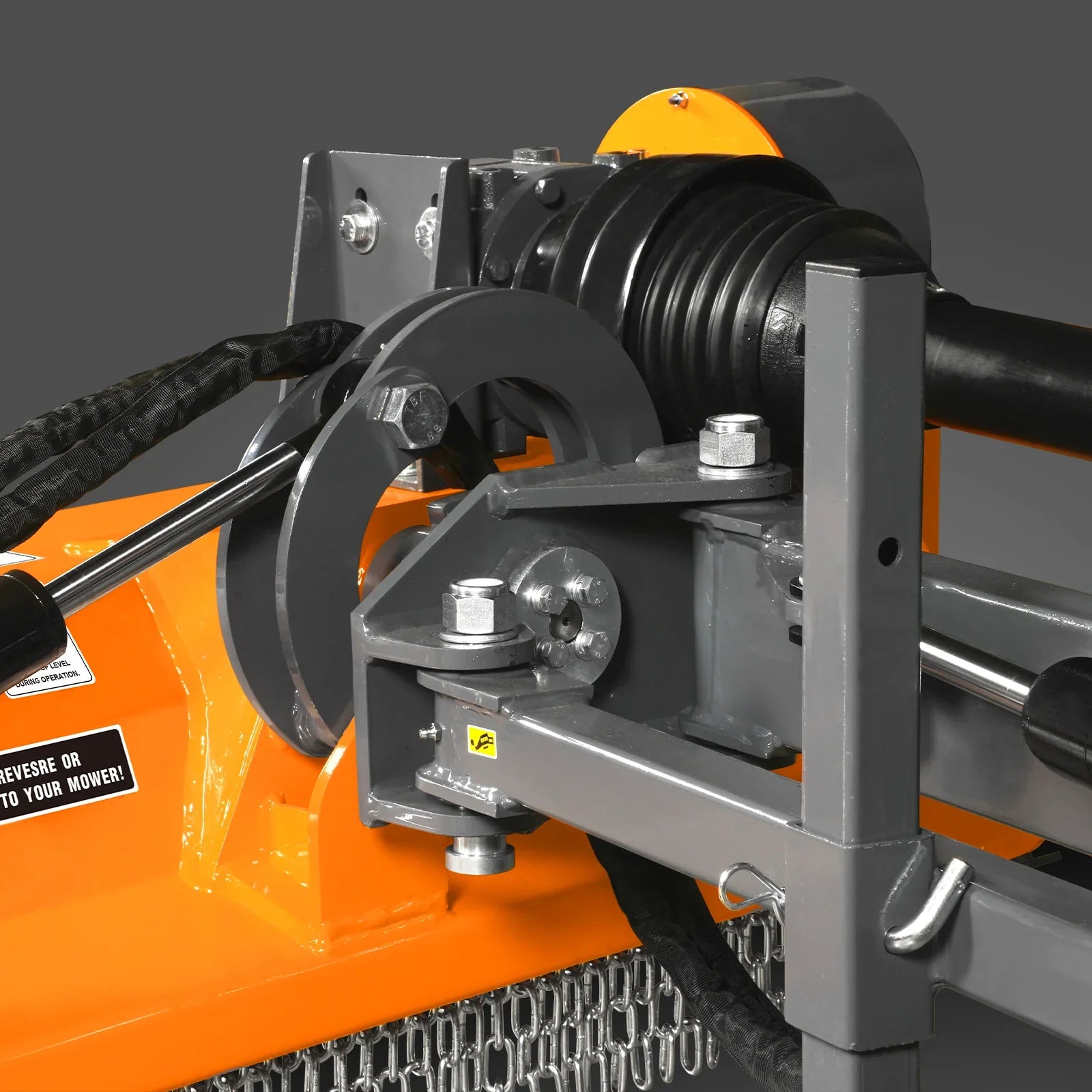

  • The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
  • Offset category 1, 3 point knot
  • It is recommended for 30-60 HP tractors.

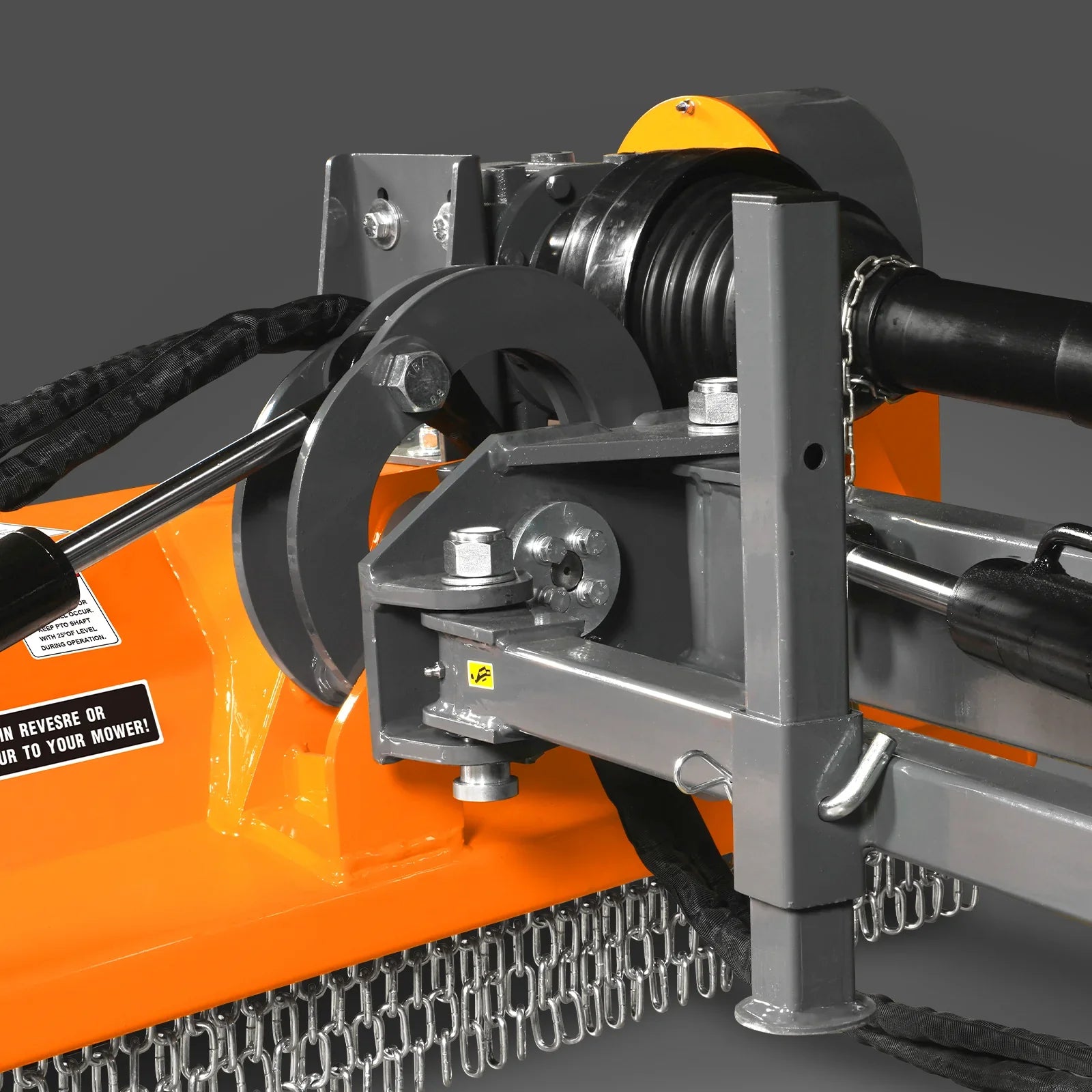

  • Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.
  • The VAM can only cut green or tender grass; it cannot cut tall grass, shrubs, vines, or thorny brambles.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer
  • Rotation Angle: Hydraulically controlled with 60°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities
  • PTO shaft(1- 3/8’’ Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-63'' with shear bolt ; 63''-77''

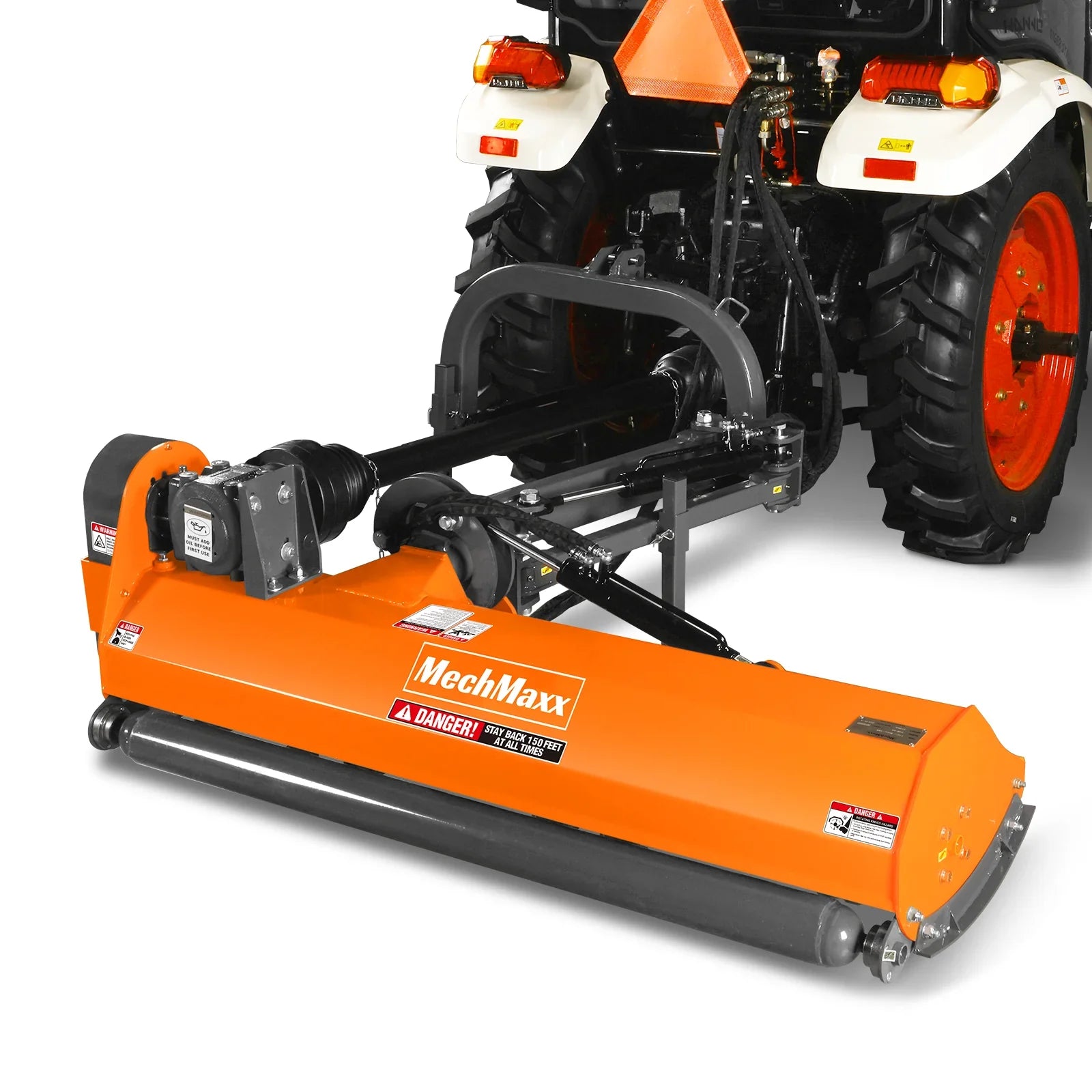

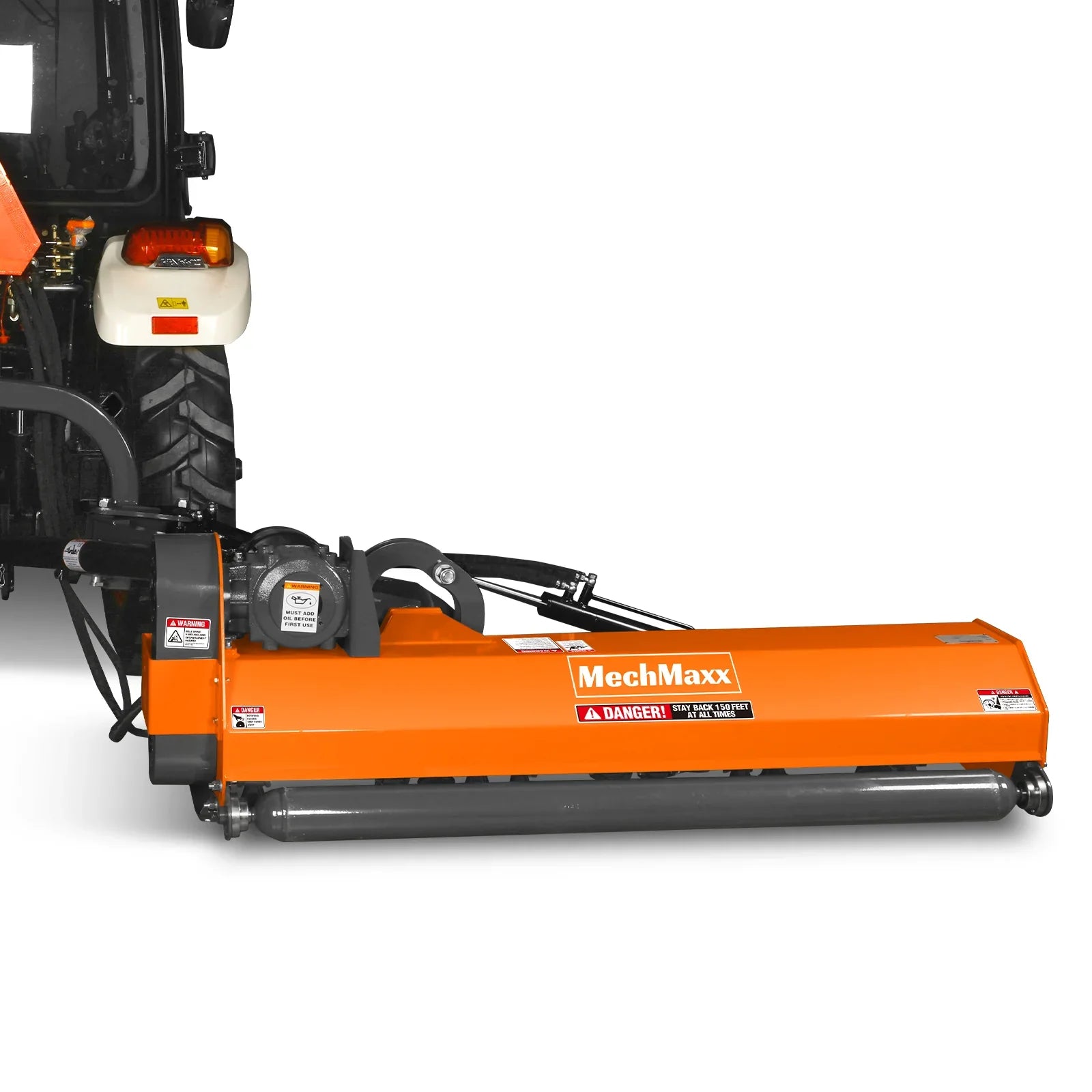

  • Side Movement: Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.

Engine Power Required: 30-60 HP

Rotor Shaft Speed: 2356 rpm

Working Width: 65in

Hydraulic Fittings Size: G1/2 in

Overall Width: 72in

Hydraulic Hoses Quantity: 4

Ground Clearance (Two Gears): 0.5-0.6in

Drive Type: Belt Drive

Max. Cutting Diameter: Depends On The Type Of Grass

Spline End: 1.375in Z6

Offset Distance From The Center (Maximum): 85in

Driveline Shaft Length: T6-LF-63 With Shear Bolt ;63-77 in [05B-1600]

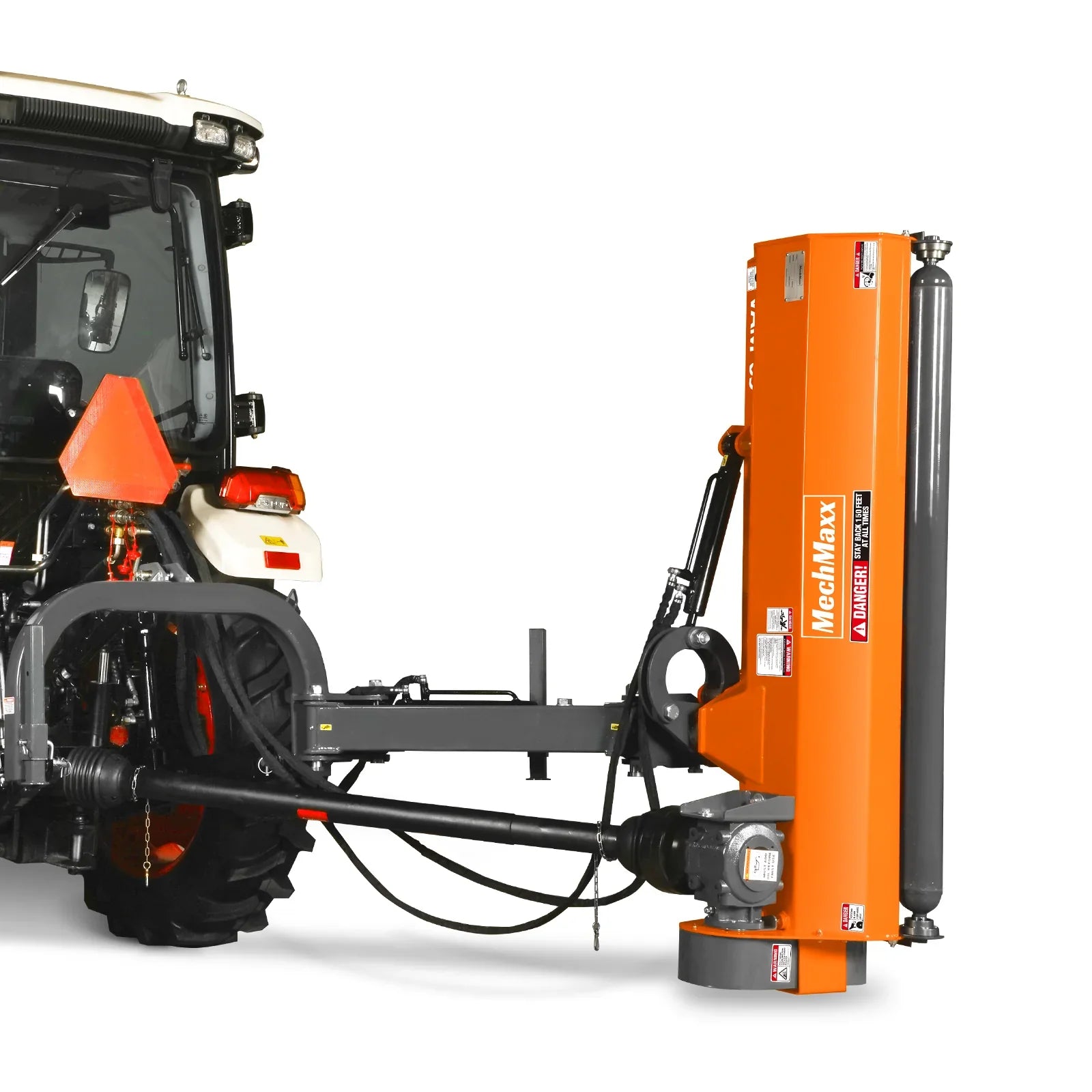

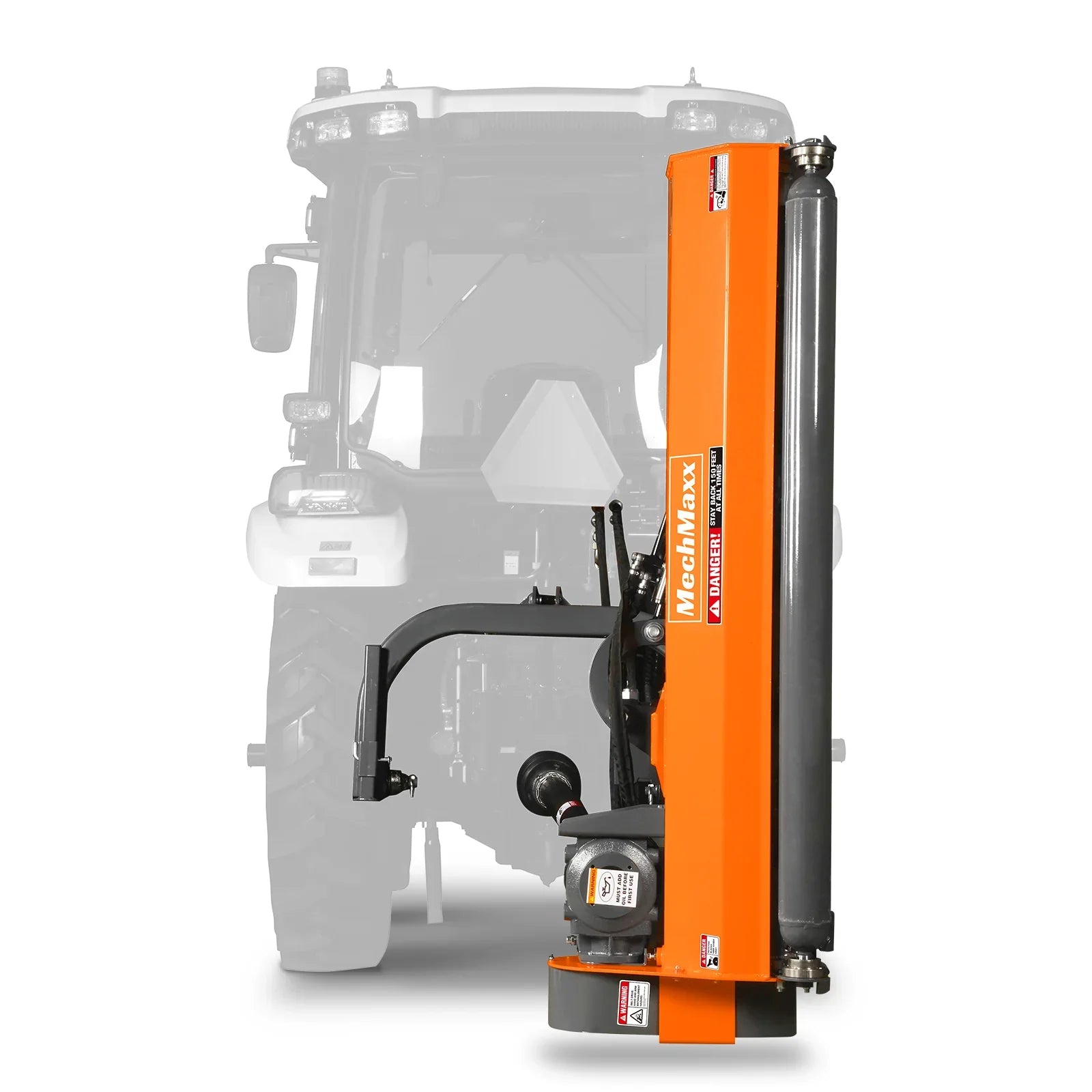

Tilt-Up Angle: 90°

PTO Shaft Speed: 540 rpm

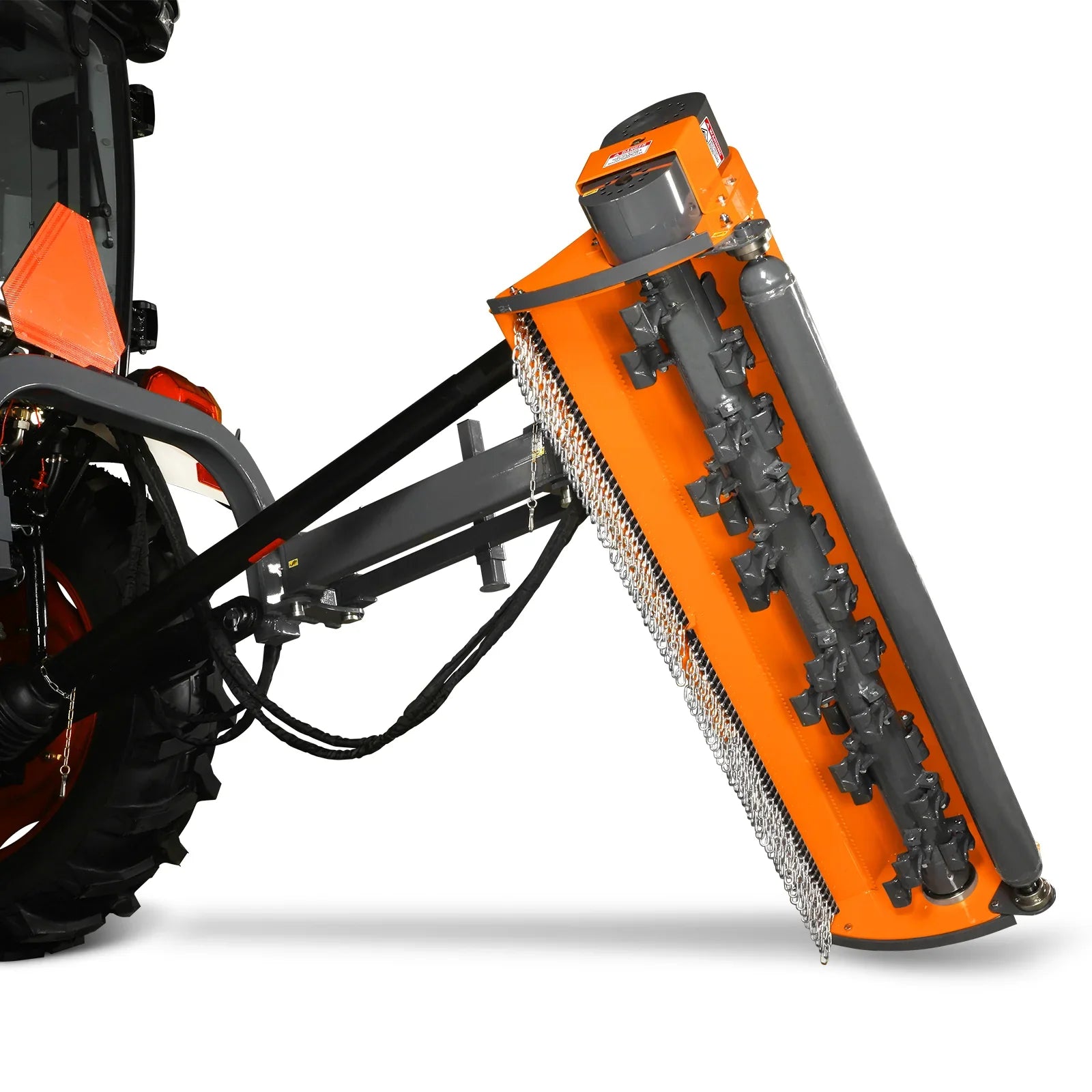

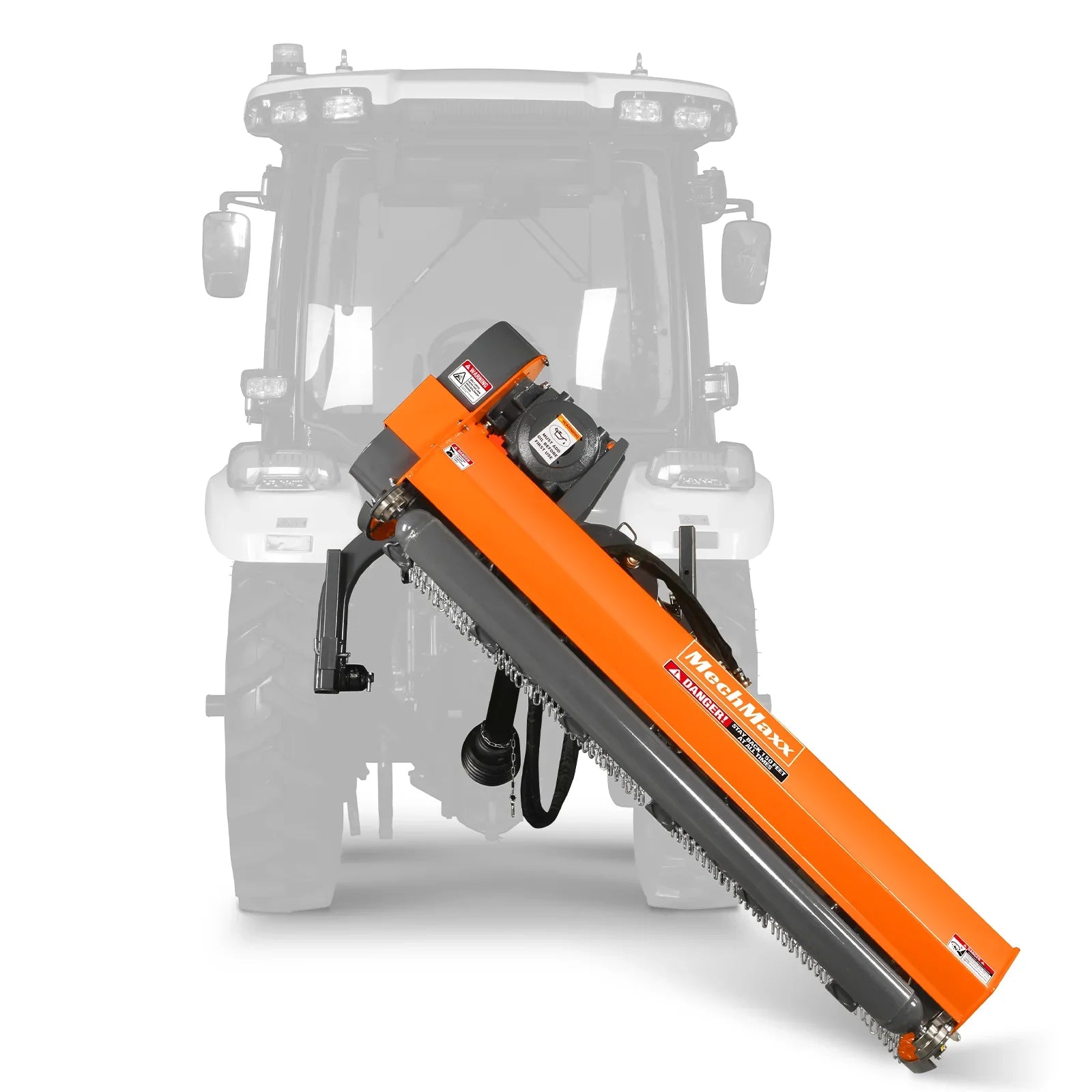

Tilt-Down Angle: 60°

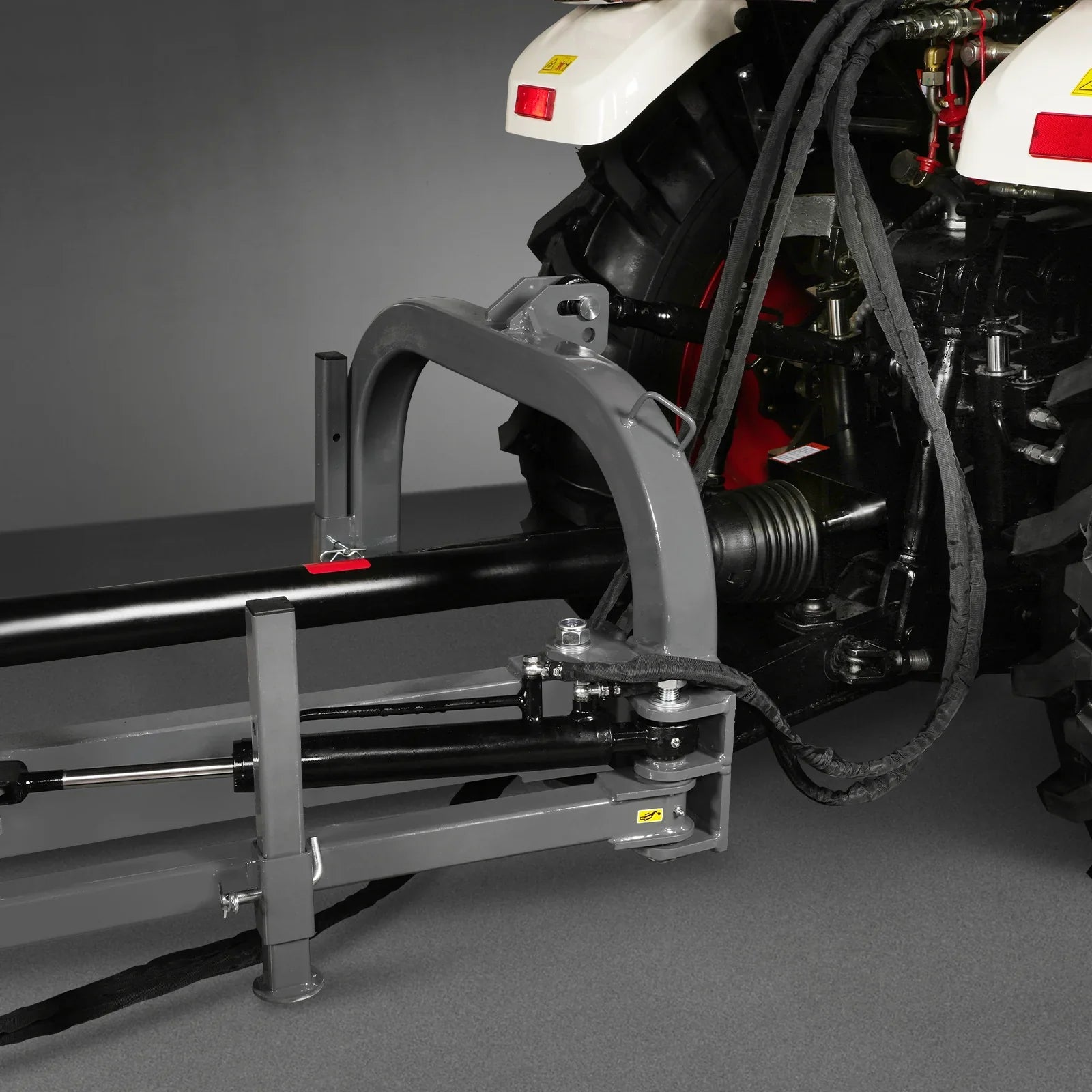

3-Point Hitch: CAT 1

Number Of Blades: 28

Deck Thickness: 0.16in

Blade Type: Hammer

Side Plate Thickness: 0.25in

Size of Blades: 3.5 x 3.2 x 1.6in

Number of Belts: 3

Blade Weight: 0.9 lbs

Belt Size: V Belt 17 x 991

Blade Material: Cast Steel

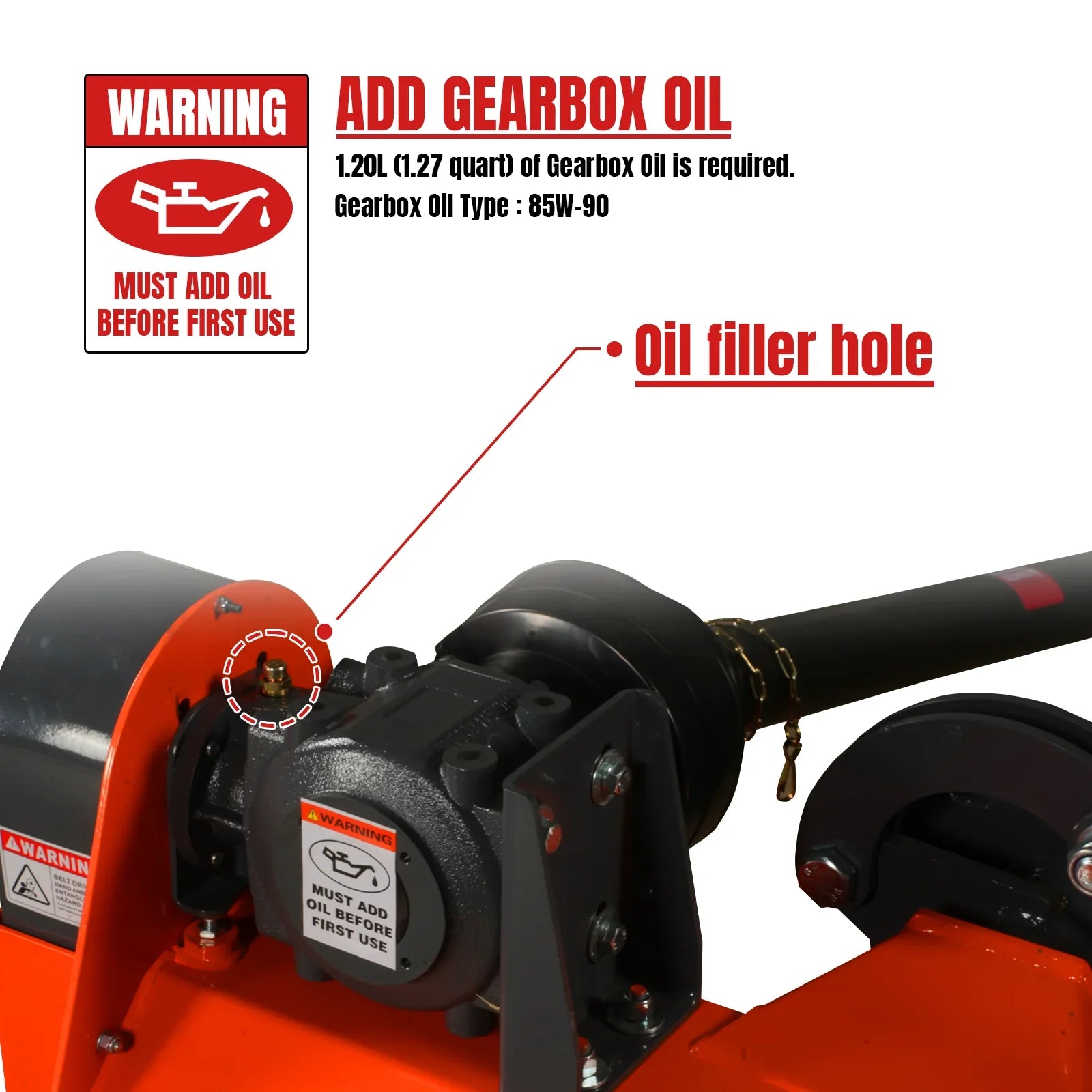

Gearbox 0il Type: 85W-90

Rotor Bearing: SKF Bearing

Dimensions (L x W x H): 72 x 27.5 x 28 in

Rotor Diameter: 4.3in

Finsh: Powder Coating

Blade Swing Diameter: 14in

Rotor Thickness: 0.3in

Weight (N.W./G.W.): 701/820 lbs

This item comes with a 1 year factory warranty.
PDF VAM Mower Product manual 1.0
