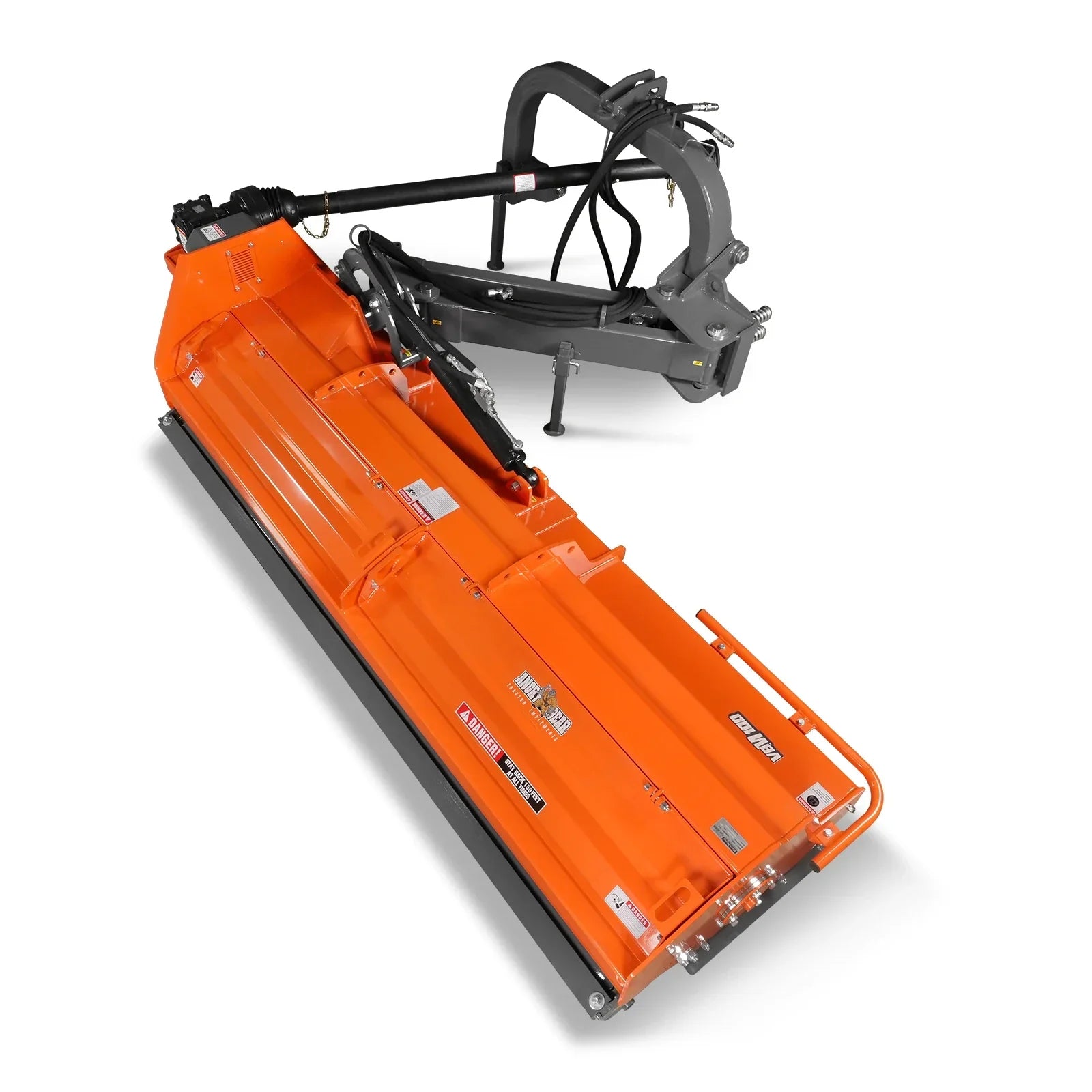

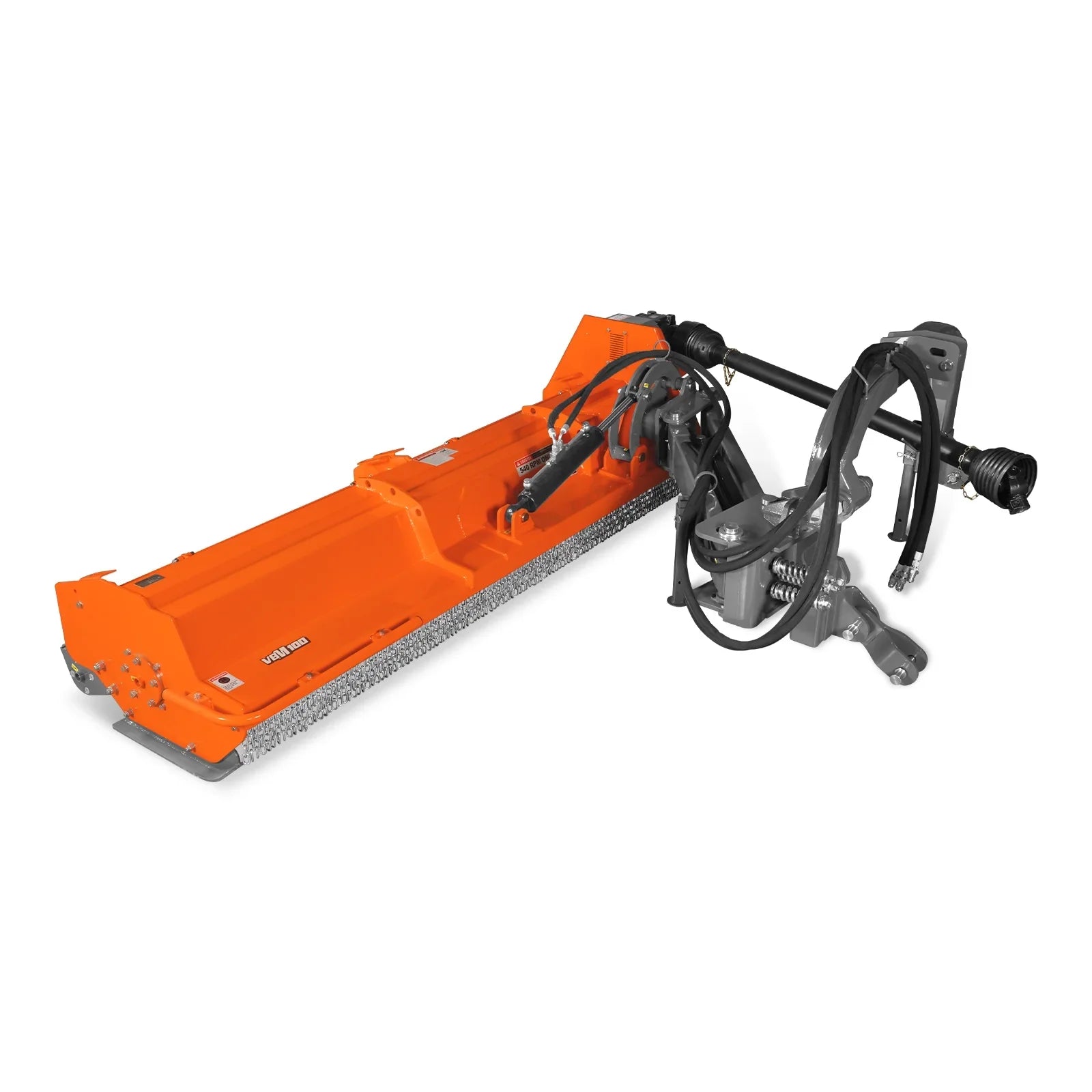

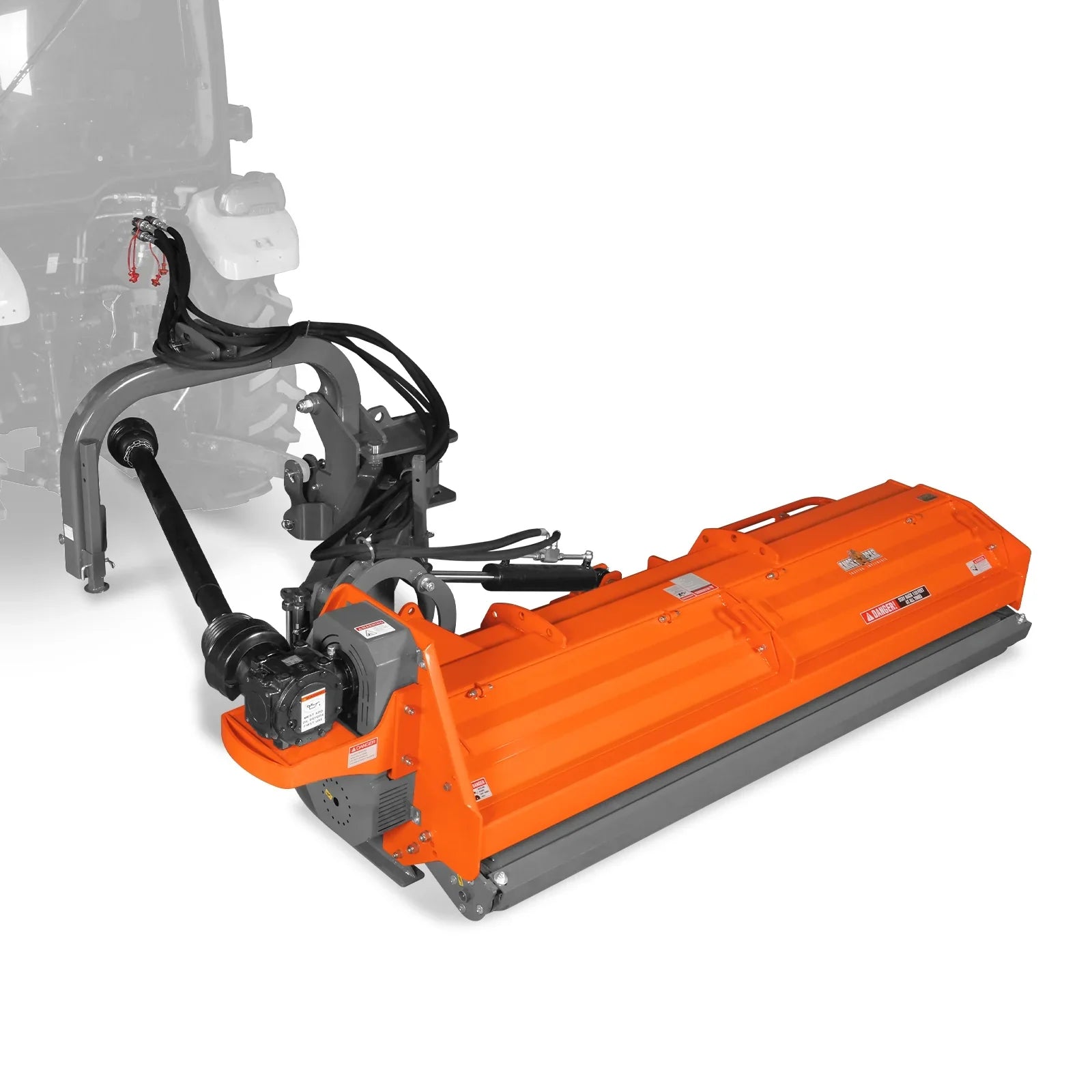

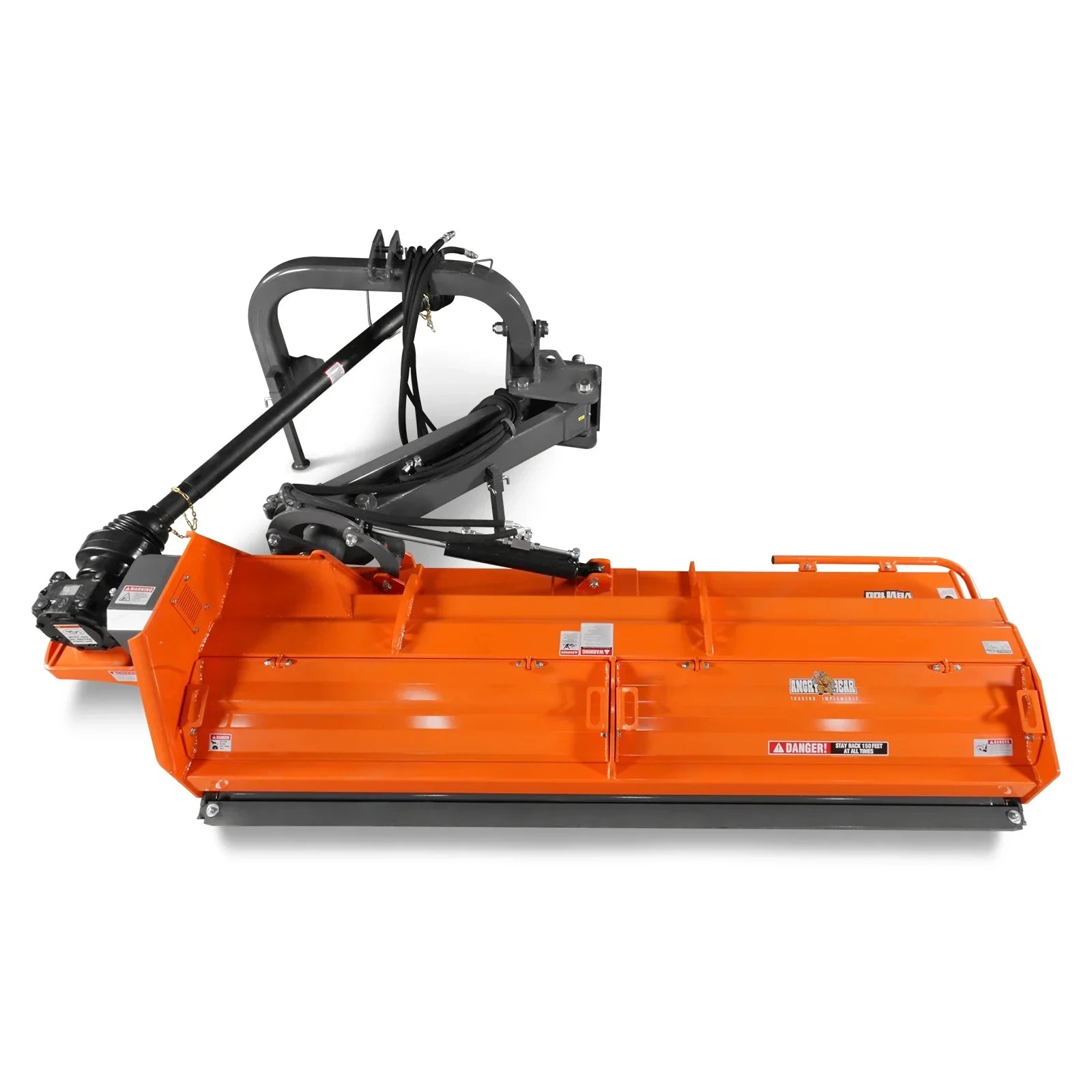

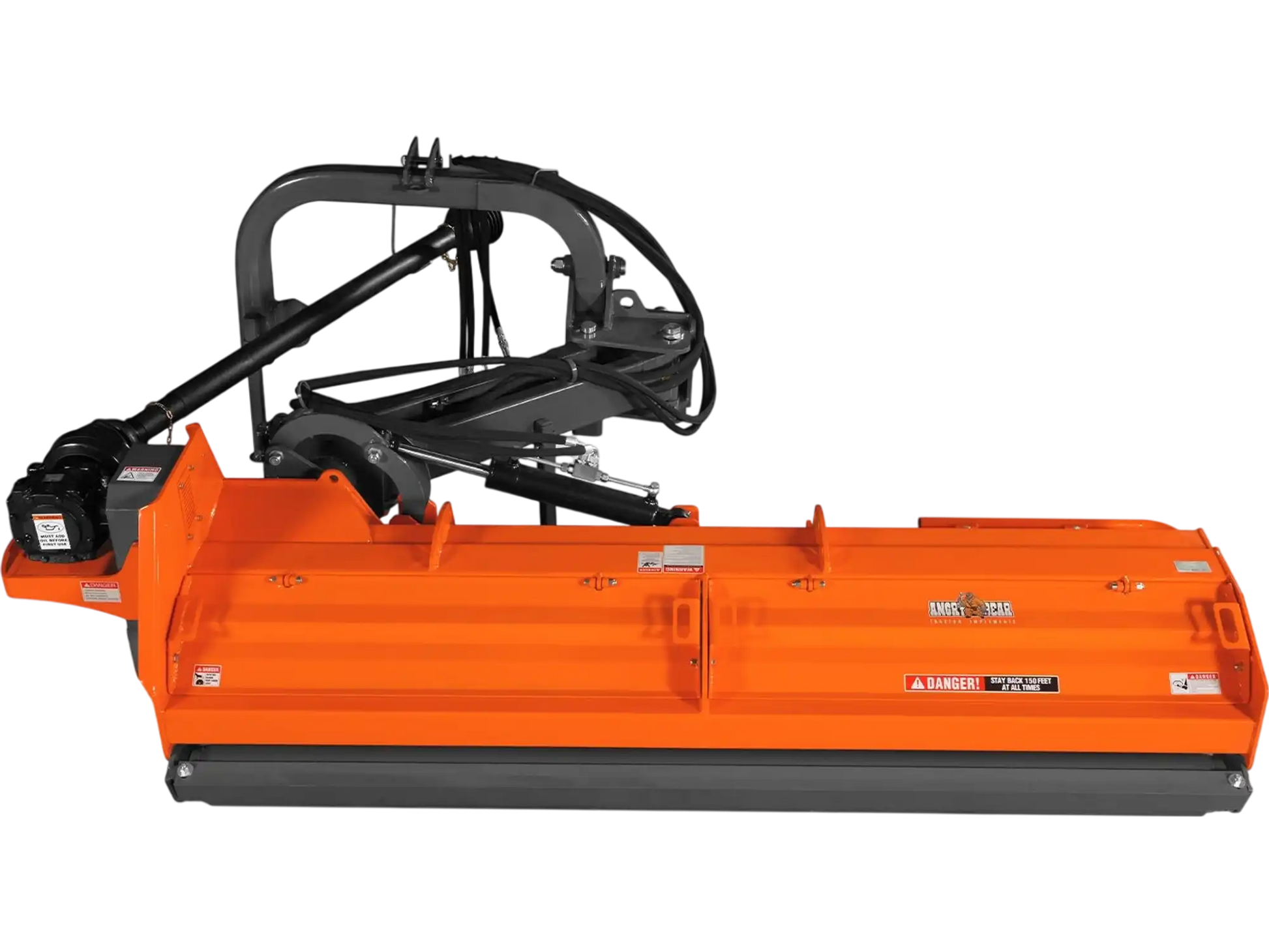

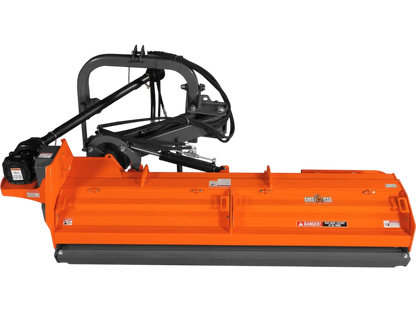

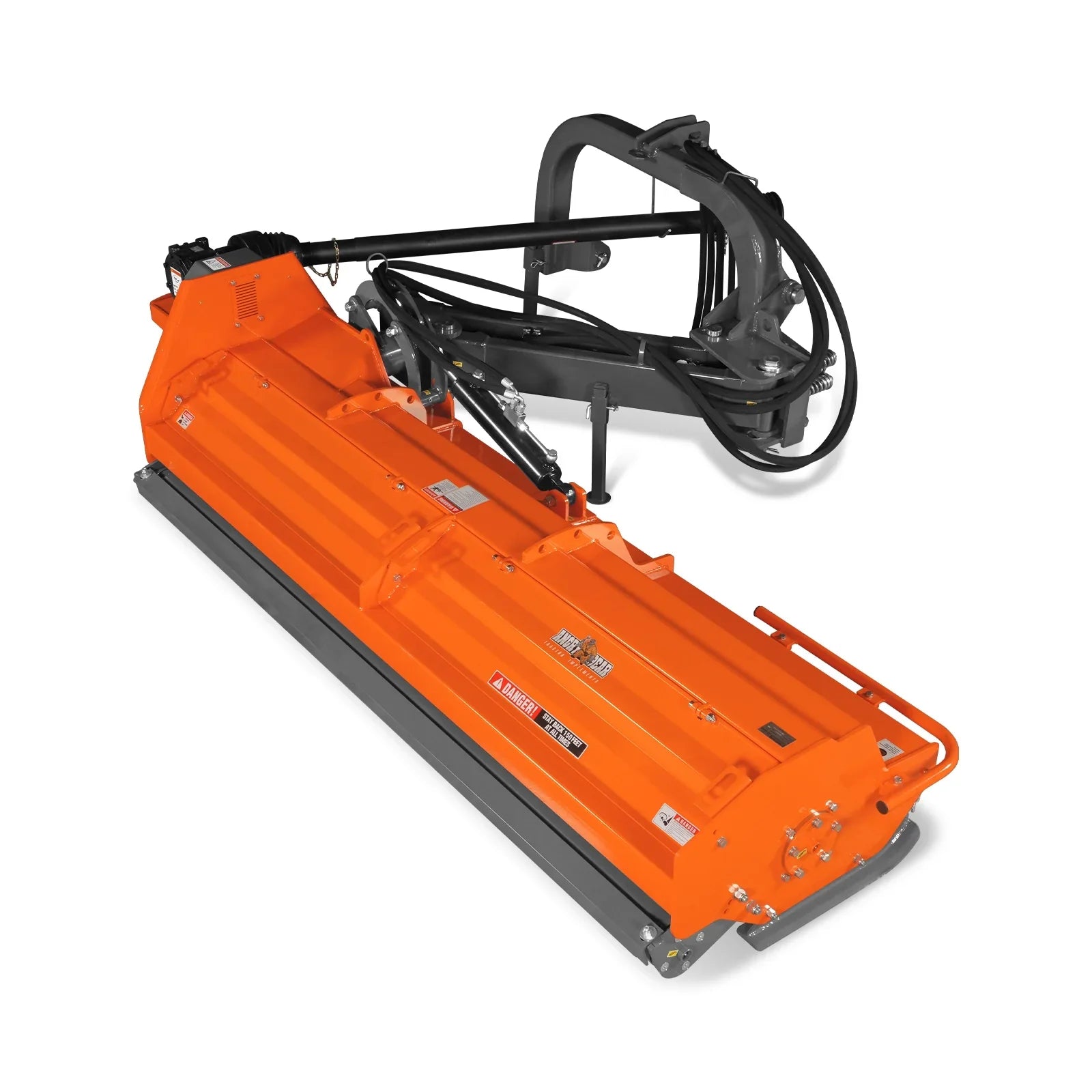

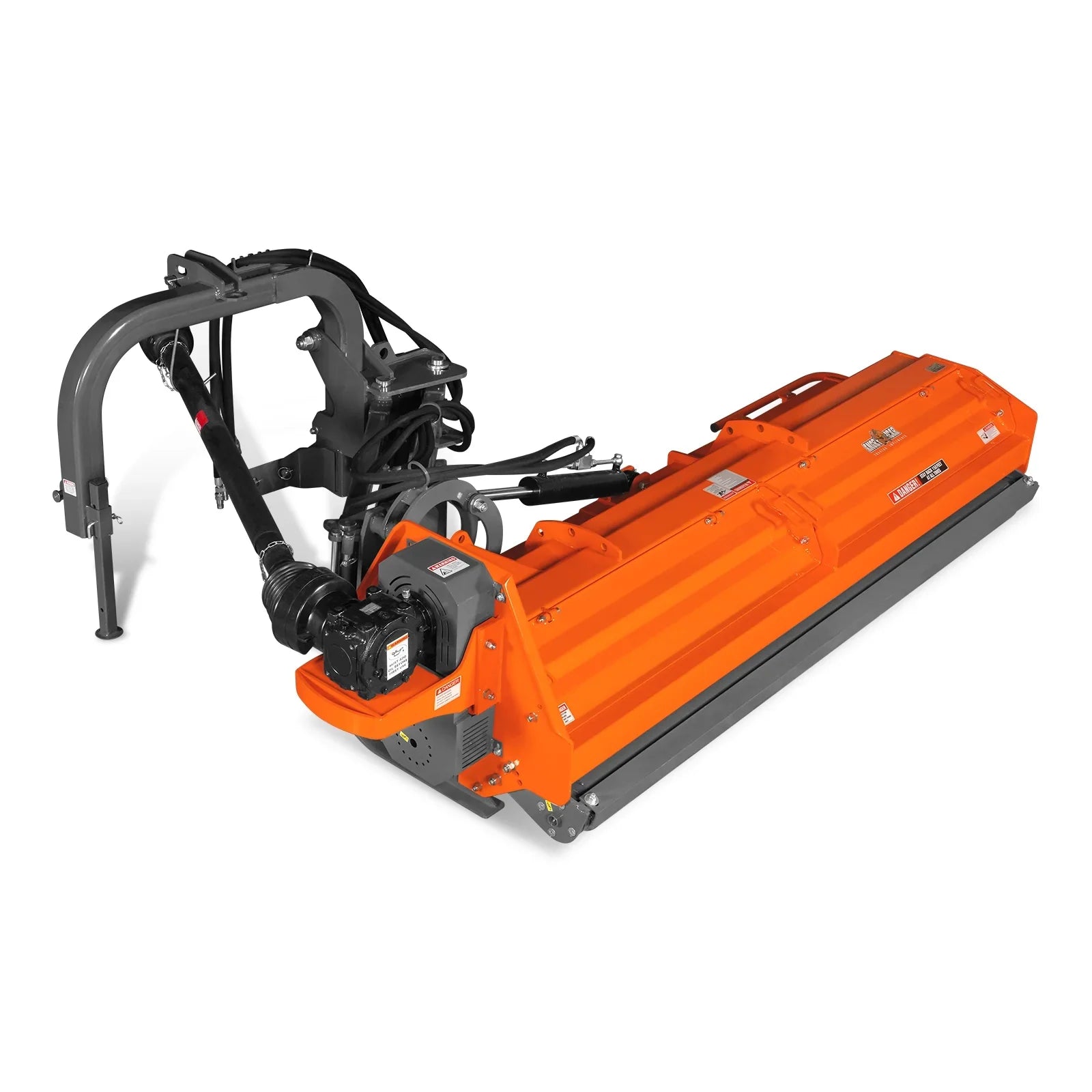

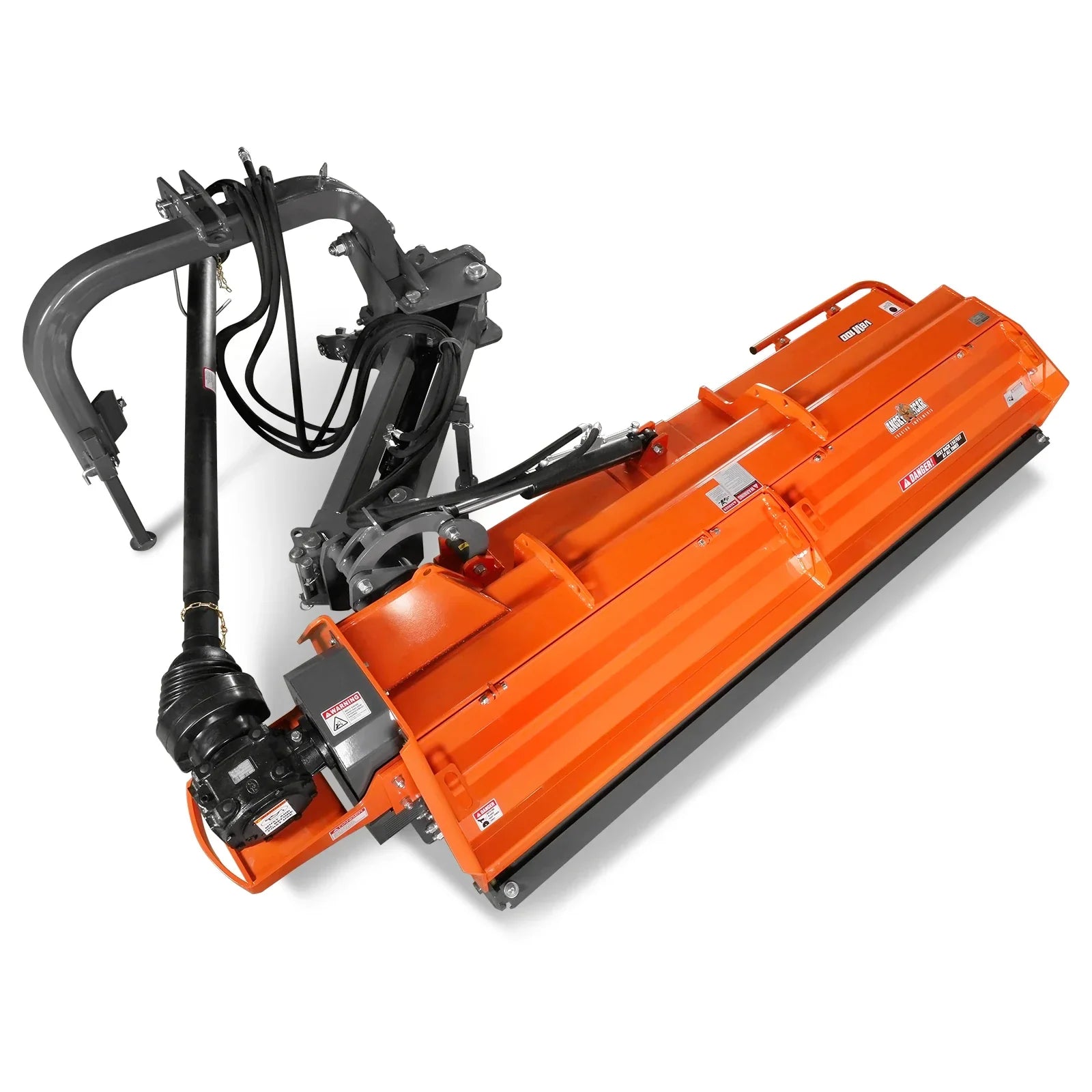

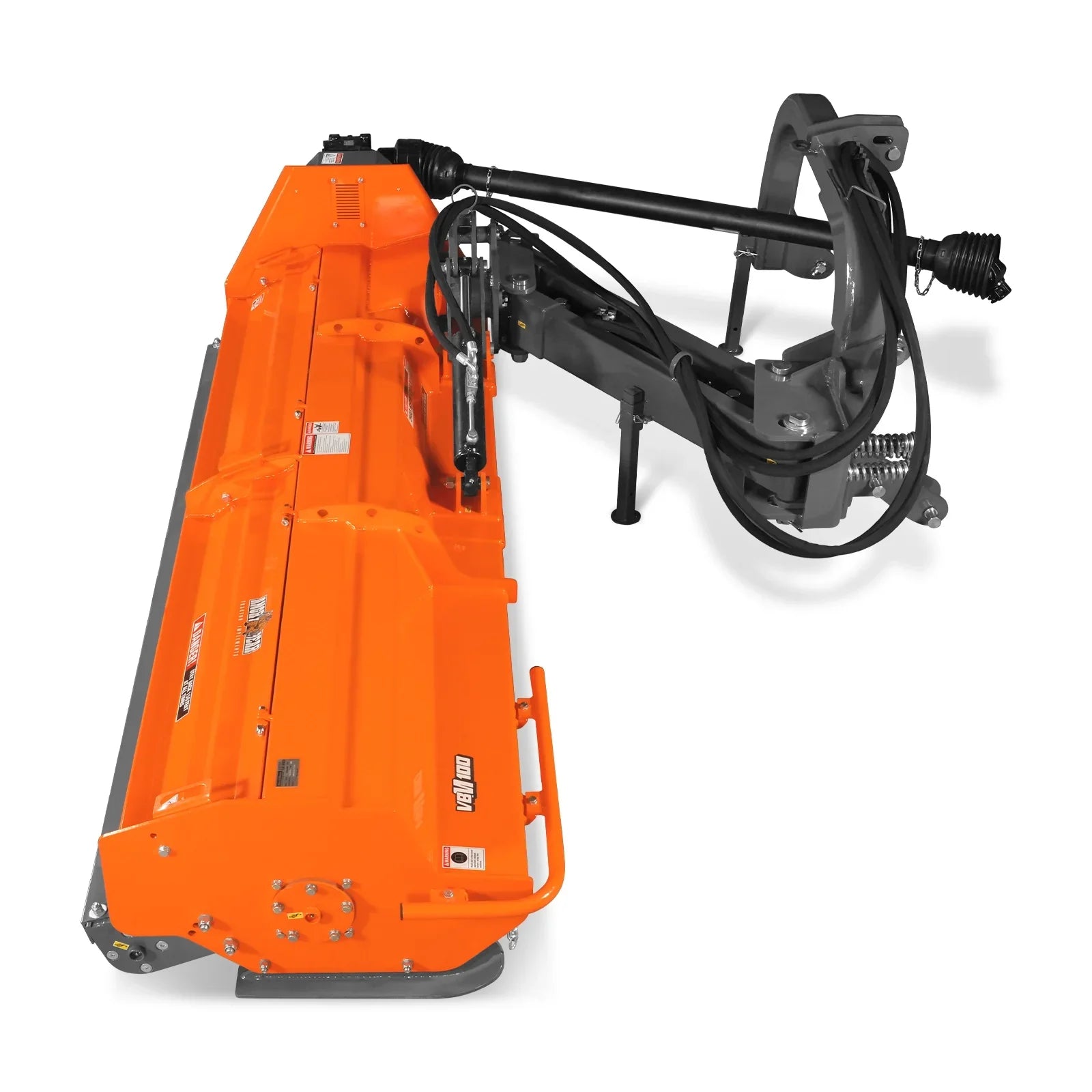

MechMaxx VBM100 Flail Mower 100" Heavy Duty 3 Point Offset Ditch Bank Verge PTO Driven 80-120 HP New

MechMaxx

$6,699.00
$6,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

Trimming and maintaining banks, roadsides, ditches, and shorelines can be challenging. Thankfully, our bank mowers are built to efficiently handle overgrown grass on ditches and embankments.

Powered by a 65HP CMR gearbox from Italy for consistent performance, Equipped with forged hammer flail blades, Includes an adjustable rear opening panel for convenient maintenance accessthese mowers can cut and mulch material up to 6" in diameter in one pass. The finely shredded cuttings act as a fast-decomposing, micronutrient-rich fertilizer, nourishing your land. The trimmings drop directly to the ground, reducing debris. Plus, an adjustable rear roller provides precise cutting height control, ensuring a clean, even cut on uneven terrain.

The 100" model, built for Category 2 tractors, pivots 90 degrees up and 55 degrees down, delivering a precise, clean cut every time. PTO shaft w/safety pin; dynamically balance tested for safe and reliable operation

  • Note: The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

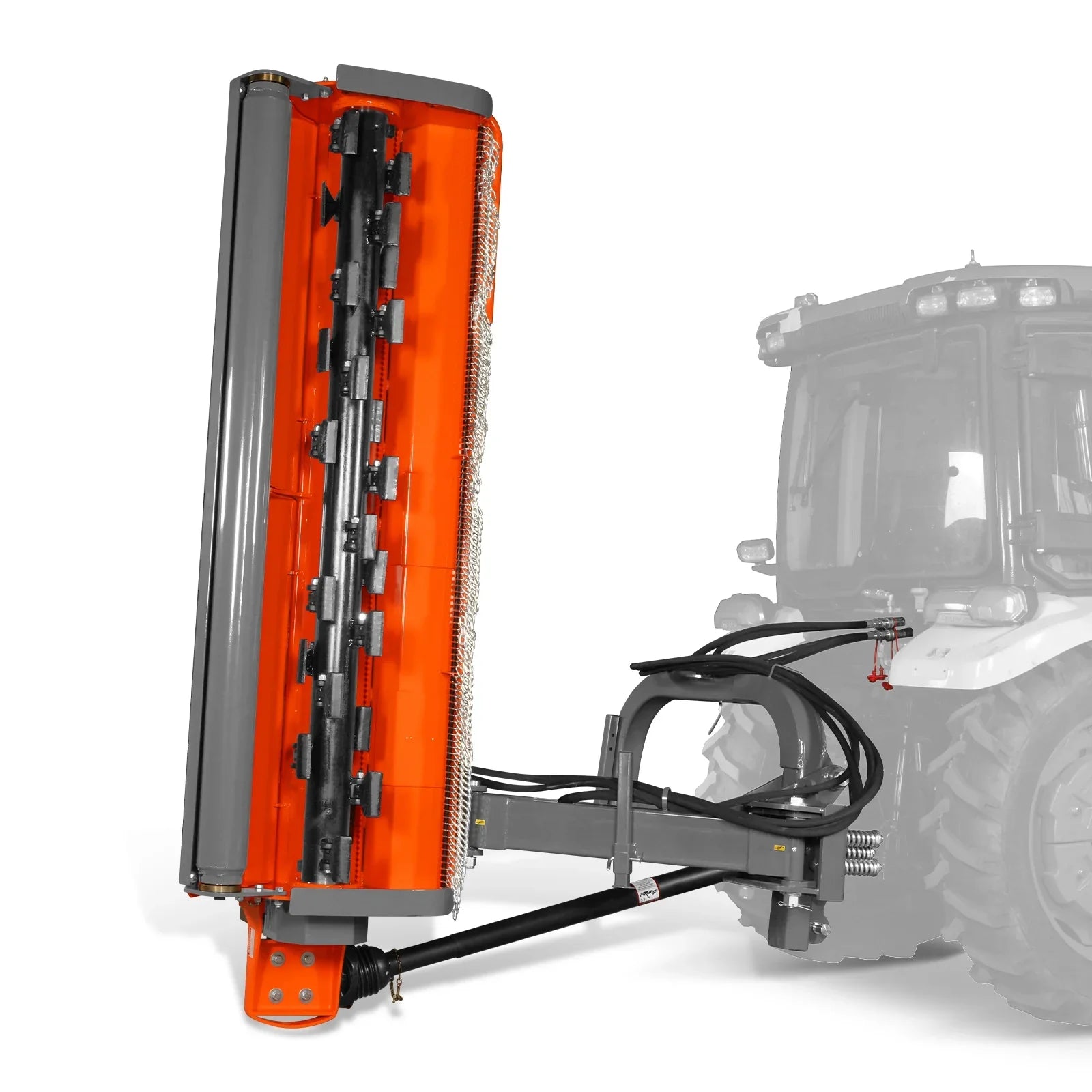

  • Rotation Angle: Hydraulically controlled with 55°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities.
  • Side Movement: Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.
  • PTO shaft(1- 3/8’’ Z6): Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. 06B-73SBWith Shear Bolt; 73in-126in
  • CMR Gearbox: High-quality CMR bearings from Italy transmits motive power to the various other components of the machine.
  • SKF Shaft Bearing: We use Swedish brand SKF shaft bearings. The high-quality bearings of this type are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly.
  • Outside Rotor Bearing: The bearings of the VBM mower are external, which is convenient for user maintenance and later repairs.

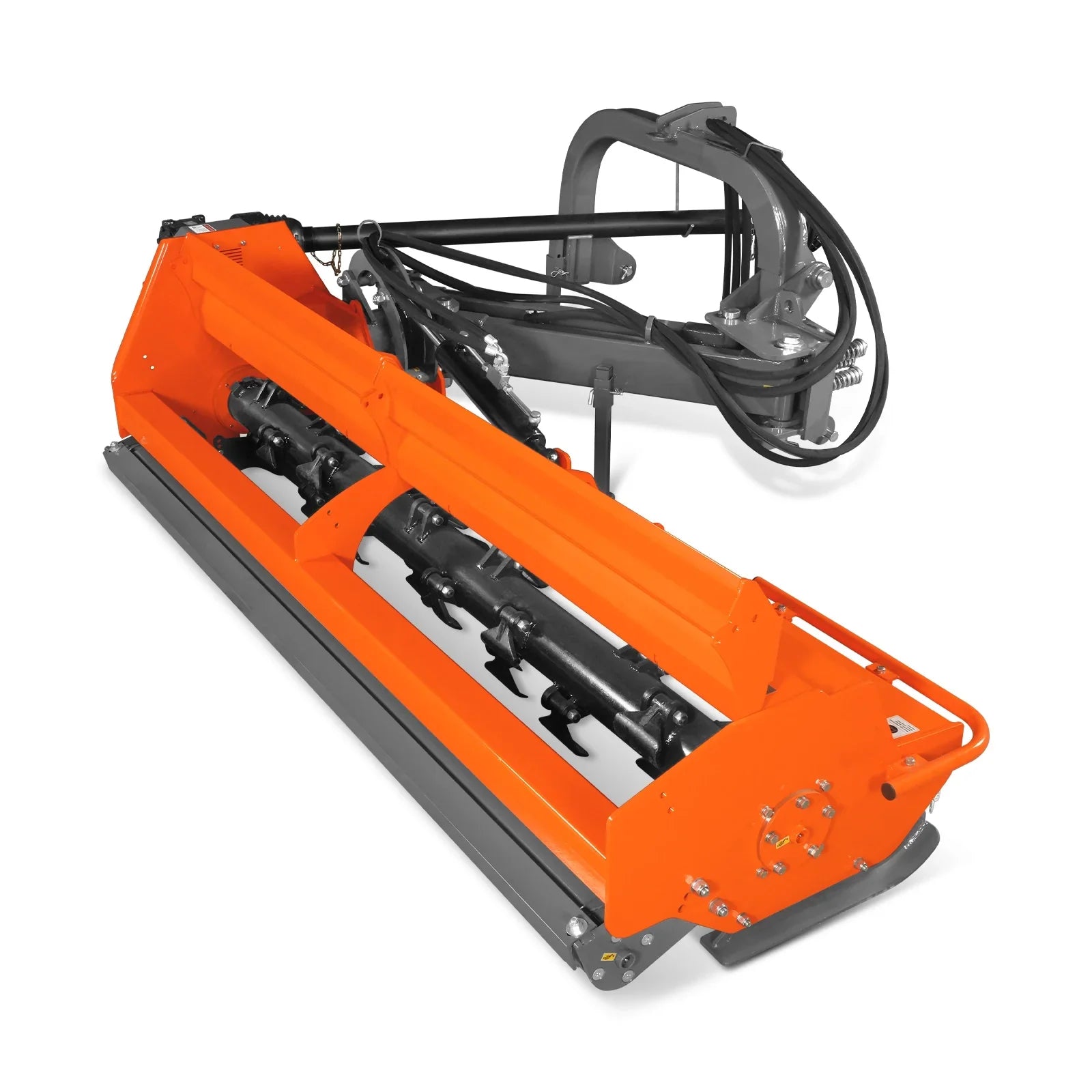

  • Openable Back Cover: The VBM mower has an openable rear cover for easy replacement of the blade and clearing of blockages. The thickened shaft can improve mowing efficiency.
  • Anti-collision Bar: The anti-collision bar can protect the machine and prevent the mower from hitting hard objects such as stones and tree stumps.
  • Anti-shock With Spring: Anti-shock With Spring can act as a buffer to protect the machine from damage when it collides with hard objects.

Power Required: 80-120 Hp

Working Width: 100 in

Overall Width: 106 in

Blade Ground Clearance (Four Gears): 0.2-0.9-1.7-2.4 in

Max. Cutting Diameter: Depends On The Type Of Grass

Offset Distance from The Center (Maximum): 130 in

Tilt-Up Angle: 90°

Tilt-Down Angle: 55°

Number Of Blades: 24

Number of Belts: 4

Blade Type: Hammer

Blade Weight: 2.6 lbs

Blade Material: Cast Steel

Belt Adjustment: Bolt Tightening

Rotor Diameter: 5.5 in

Rotor Thickness: 0.5 in

Rear Roller Diameter: 6 in

Rear Roller Thickness: 0.25 in

PTO Shaft Speed: 540 rpm

Deck Thickness: 2 in

Side Plate Thickness: 0.25 in

Gearbox (RPM 540): 65 HP CMR Italian gearbox

Driveline Shaft Length: 06B-73SBWith Shear Bolt; 73in-126in

Spline End: 1.375in Z6

3-Point Hitch: CAT 2

Gearbox 0il Type: 85W-90

Finish: Powder Coating

Shipping Box: 121 X 43 X 37in

Weight (N.W./G.W.): 2100 /2344 lbs

This item comes with a 1 year factory warranty.
