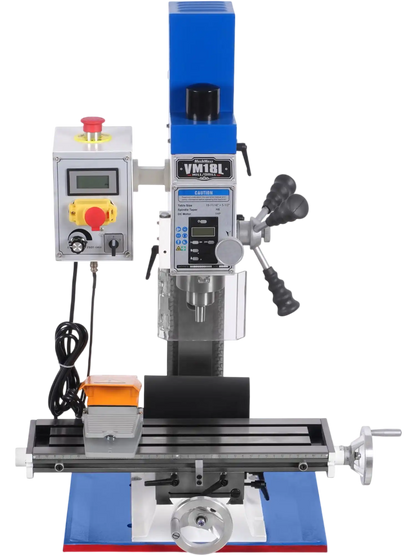

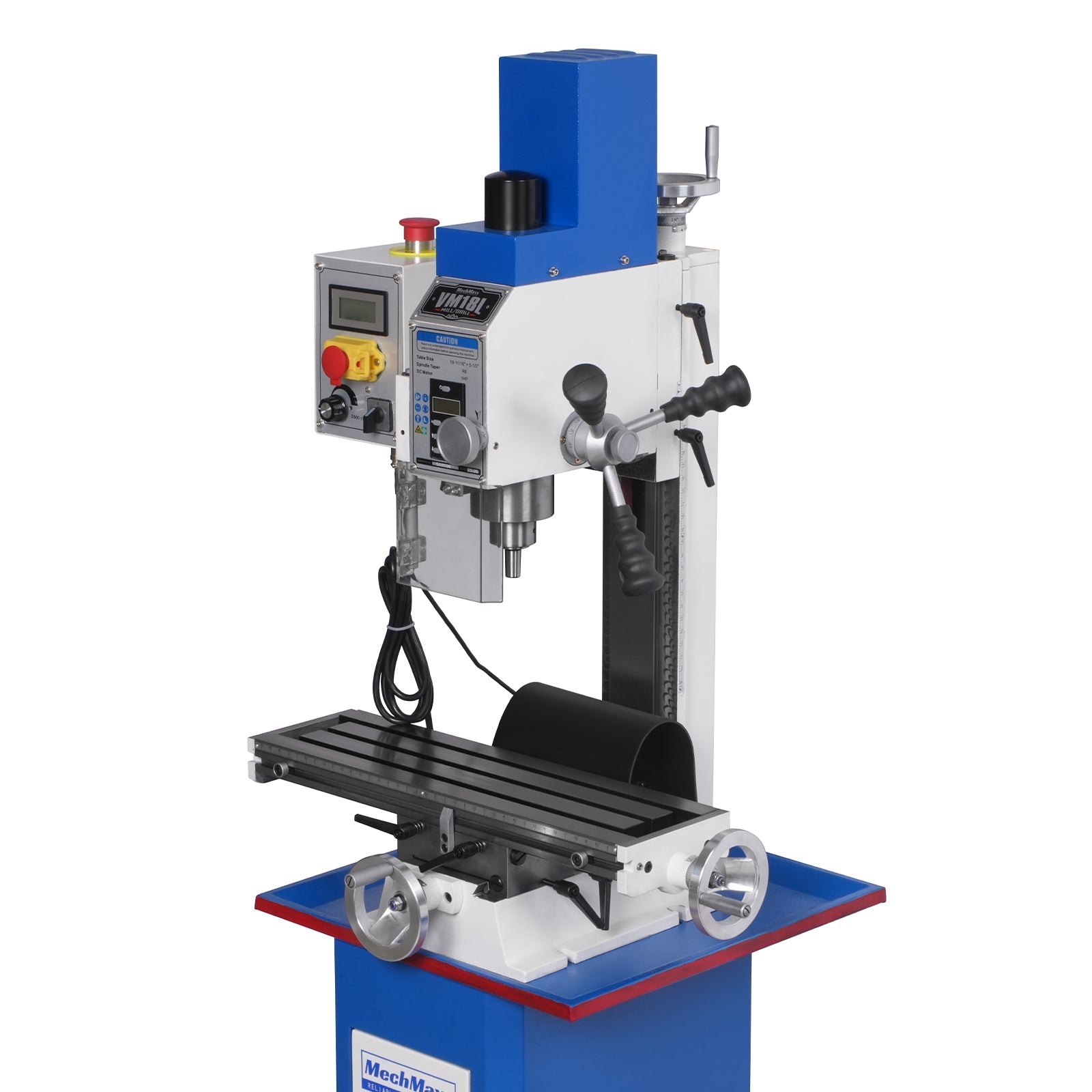

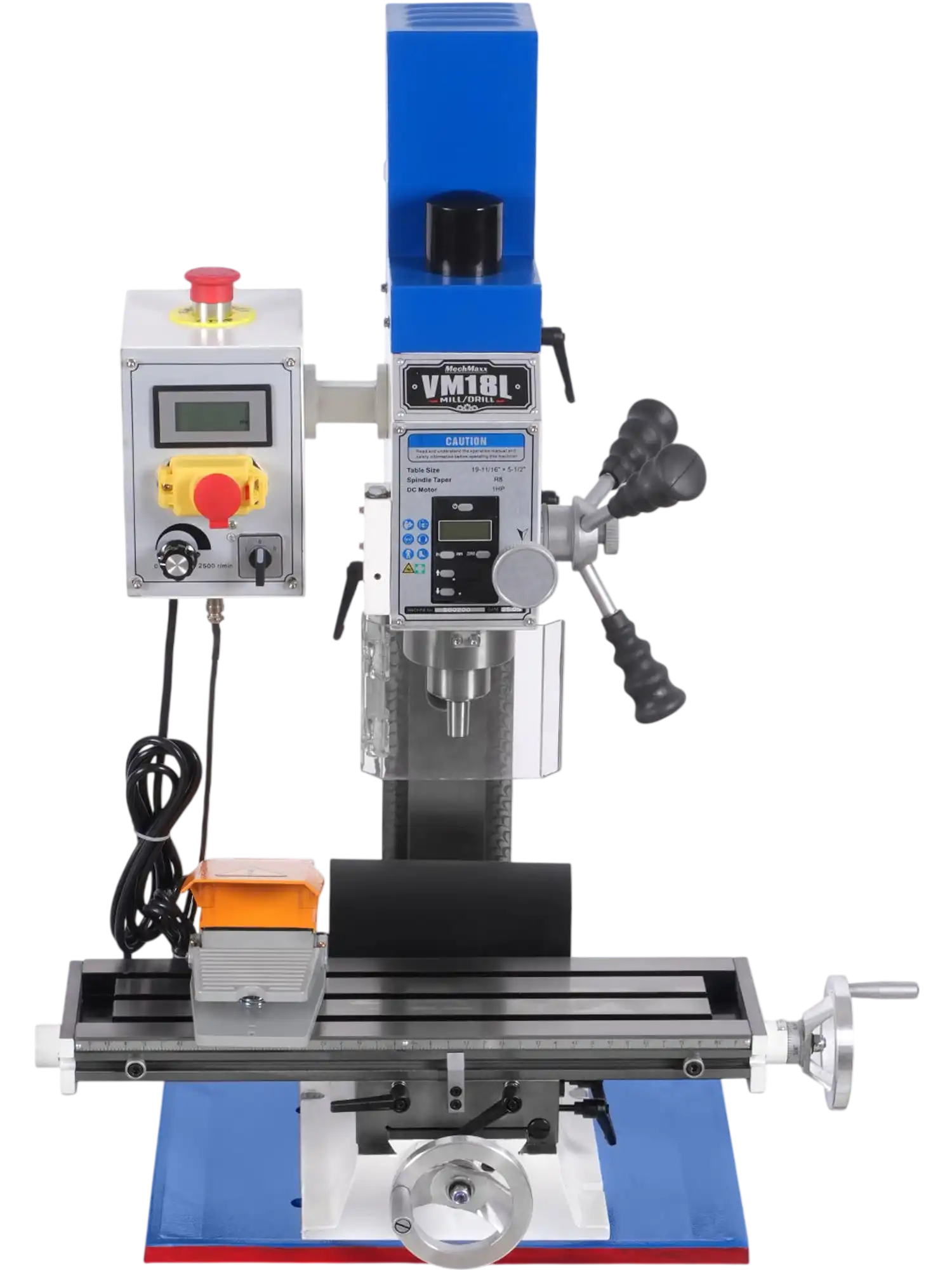

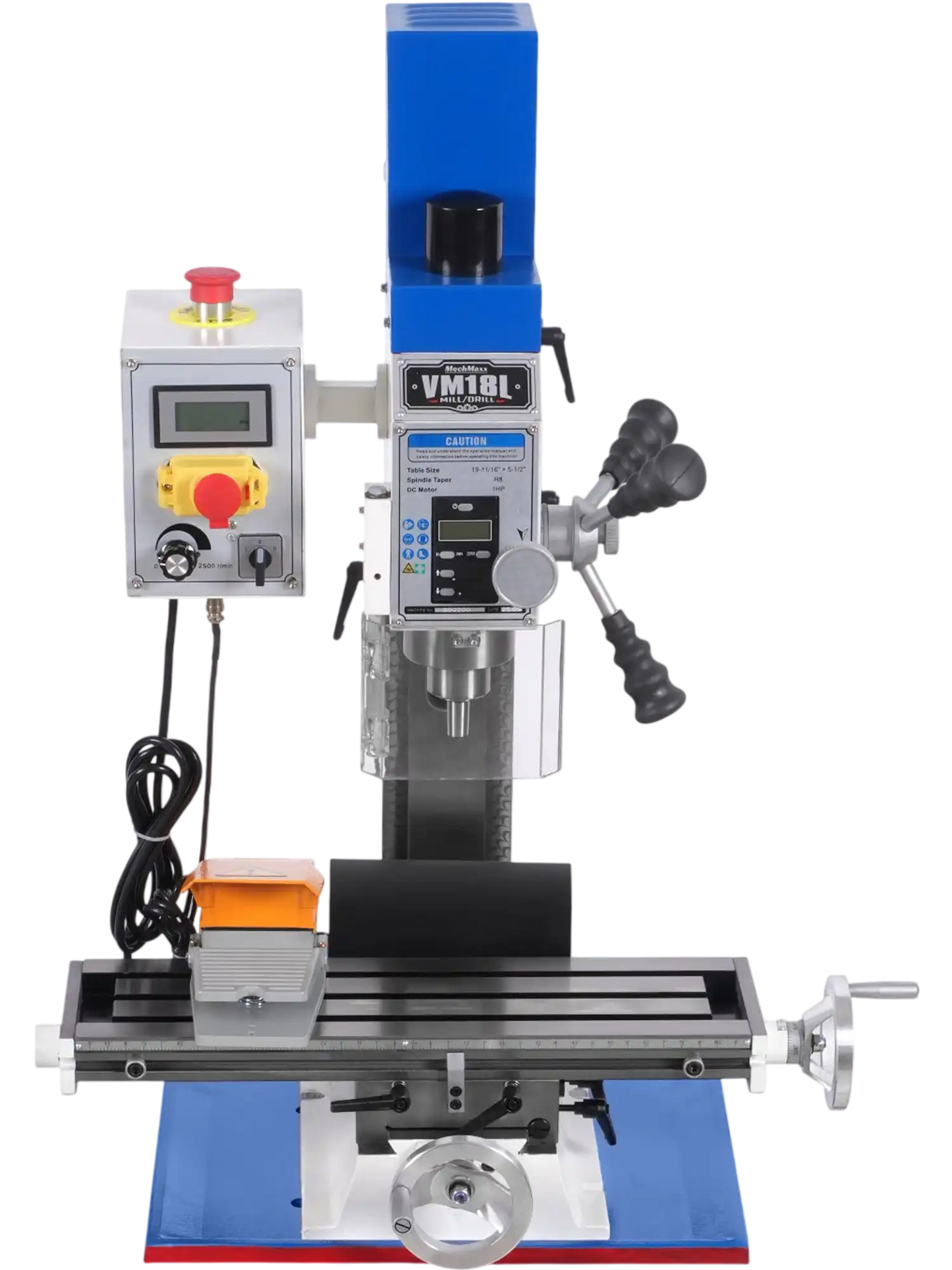

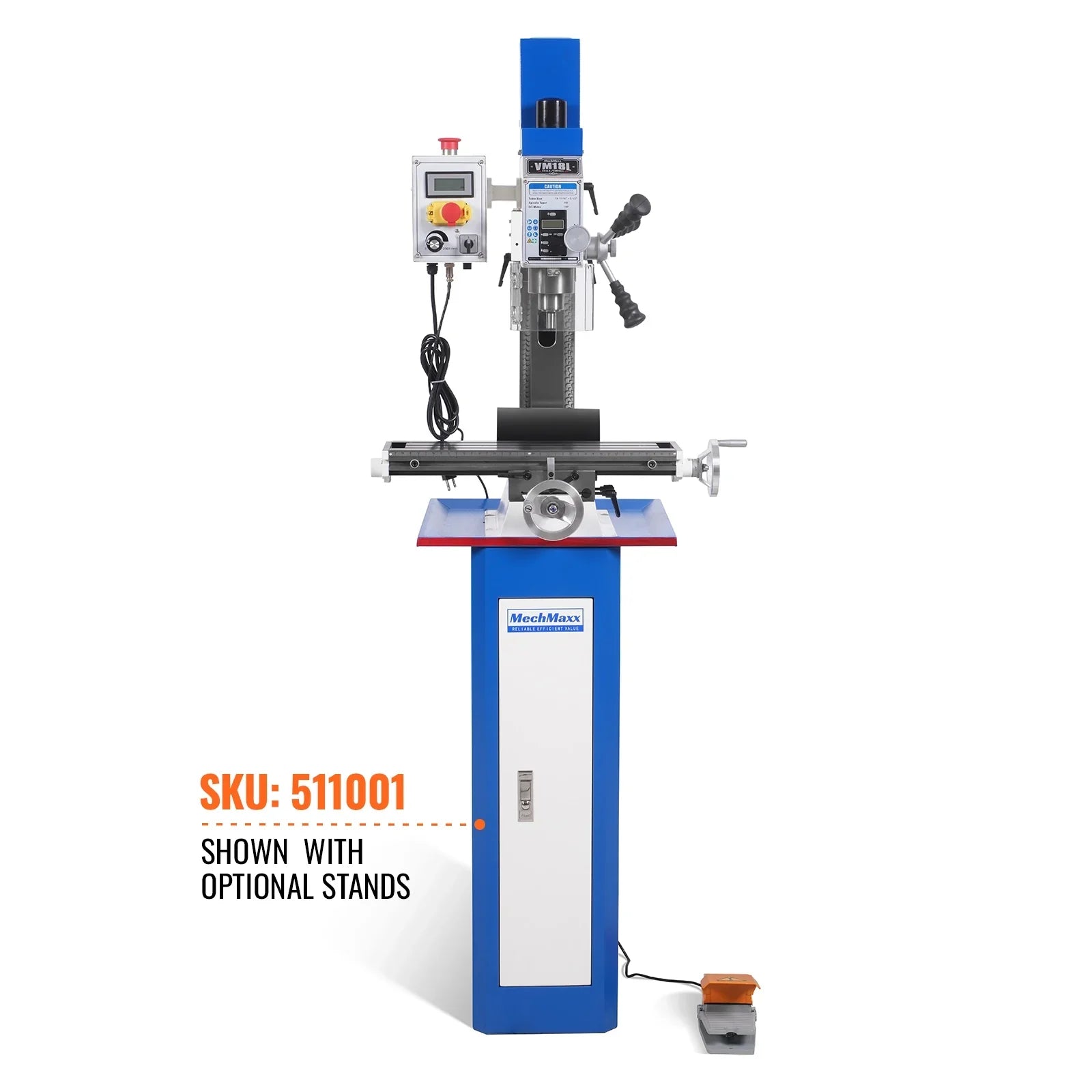

MechMaxx VM18L Mill Drill Machine 6x20" Benchtop Variable Speed R8 Spindle 1 HP 110V Brushless Motor New

MechMaxx

$1,599.00
$1,599.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Variable Spindle Speed for Flexibility: VM18L offers a variable spindle speed ranging from 0 to 2500 RPM, allowing users to easily adjust the speed according to different materials and cutting conditions. This feature provides enhanced versatility for a wide variety of machining tasks.
  • Enhanced Precision with R8 Spindle Taper: R8 spindle taper, the VM18L ensures high compatibility with a range of toolings, offering better precision and ease of use during various milling and drilling operations.
  • Wide Cutting Capacity: outstanding cutting capabilities, including a 3/4" (18mm) drilling capacity and 2" (50mm) face milling capacity, making it ideal for both light and medium-duty machining tasks.
  • Flexible Head Tilt for Multi-Angle Operations: ±60° head tilt allows for greater flexibility, enabling users to perform a variety of operations, including angled drilling, milling, and cutting, without needing to reposition the workpiecePrecise Table and Travel Movements:

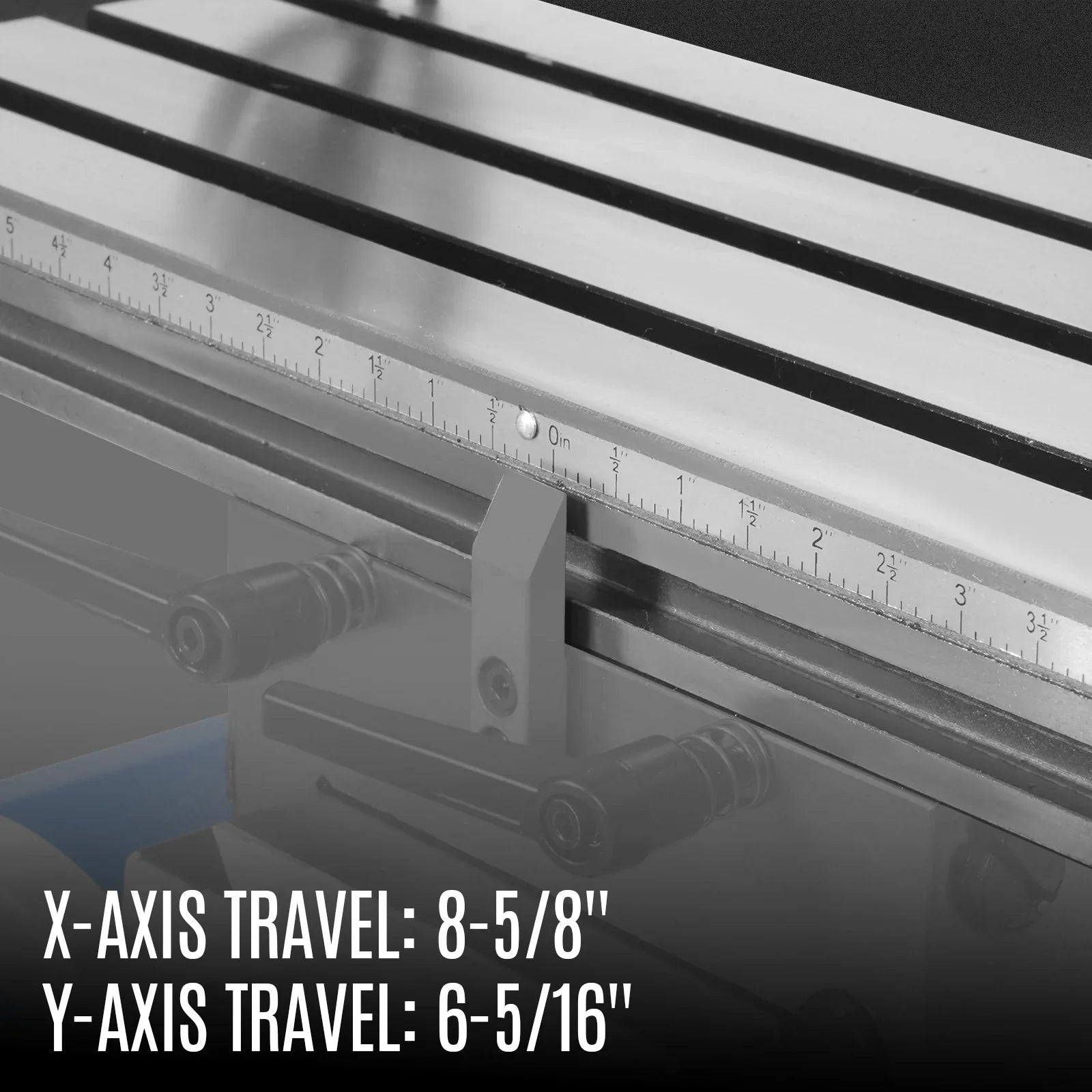

  • VM18L provides precise X, Y, and Z-axis travels (X: 8-5/8" (220mm), Y: 6-5/16" (160mm), Z: 10-27/32" (275mm)), allowing for smooth and accurate adjustments to meet the needs of detailed workpieces.
  • DC Brushless Motor for Reliable Performance: 1 HP DC brushless motor, the machine provides a smooth, efficient, and low-maintenance operation, contributing to long-lasting, reliable performance and energy savings.
  • Compact Design with Heavy-Duty Stability: compact size, the VM18L boasts excellent stability with a square column and dovetail slide design, ensuring rigidity and minimizing vibration during operations for more precise cuts.
  • User-Friendly Setup and Easy Operation: simple controls and accessible adjustments, the VM18L is designed for ease of use. Its compact size also allows for efficient space management, ideal for small workshops or professional environments.
  • Convenient Shipping and Setup: VM18L comes with a manageable weight of 180 lbs (82 kg) and compact shipping dimensions, making it easy to transport and set up in various workspaces.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

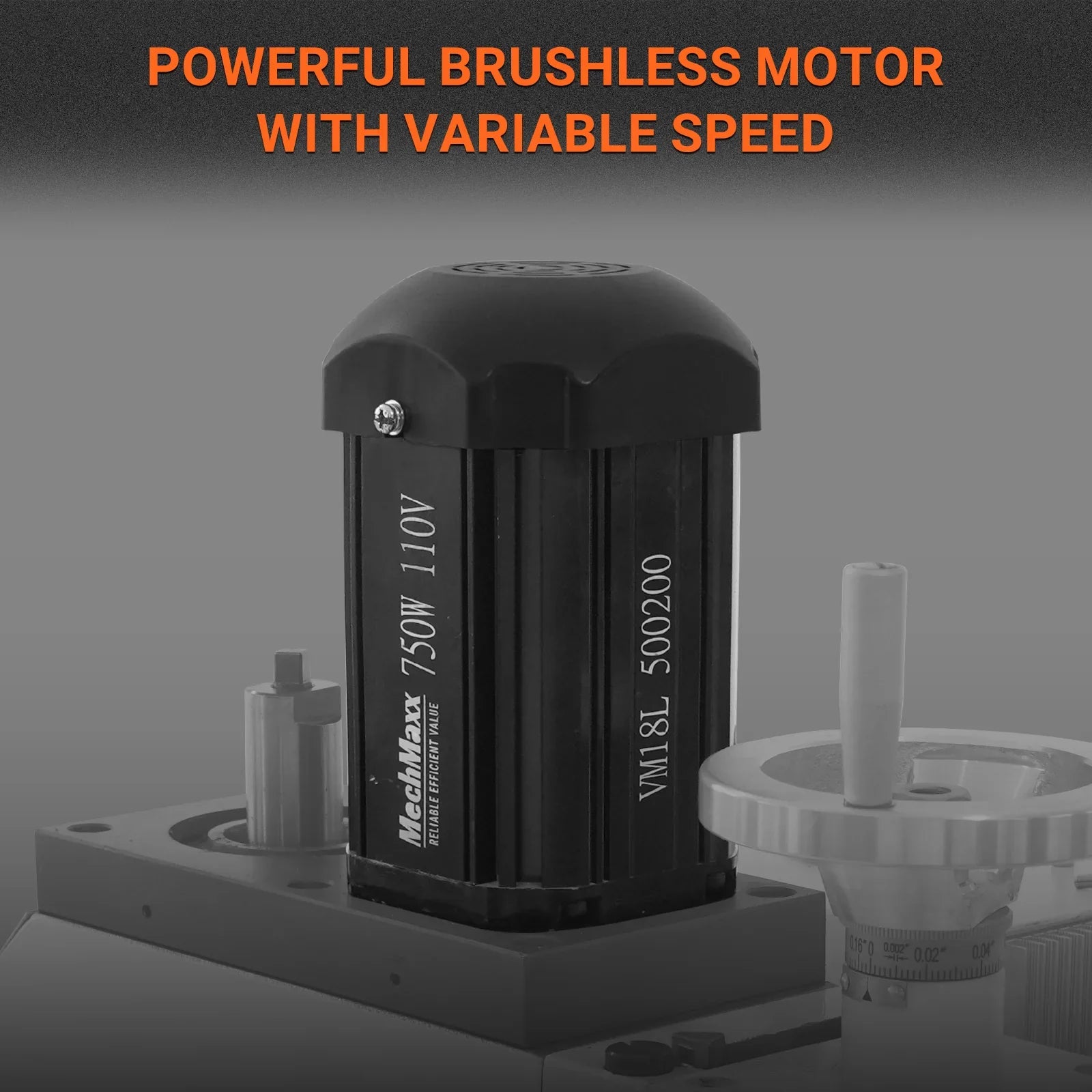

  • Powerful Brushless Motor with Variable Speed: Powered by a 1HP brushless DC motor, the VM18L delivers quiet, vibration-free operation. Seamlessly adjustable speed from 0 to 2500 RPM gives you full control for drilling, milling, or tapping.

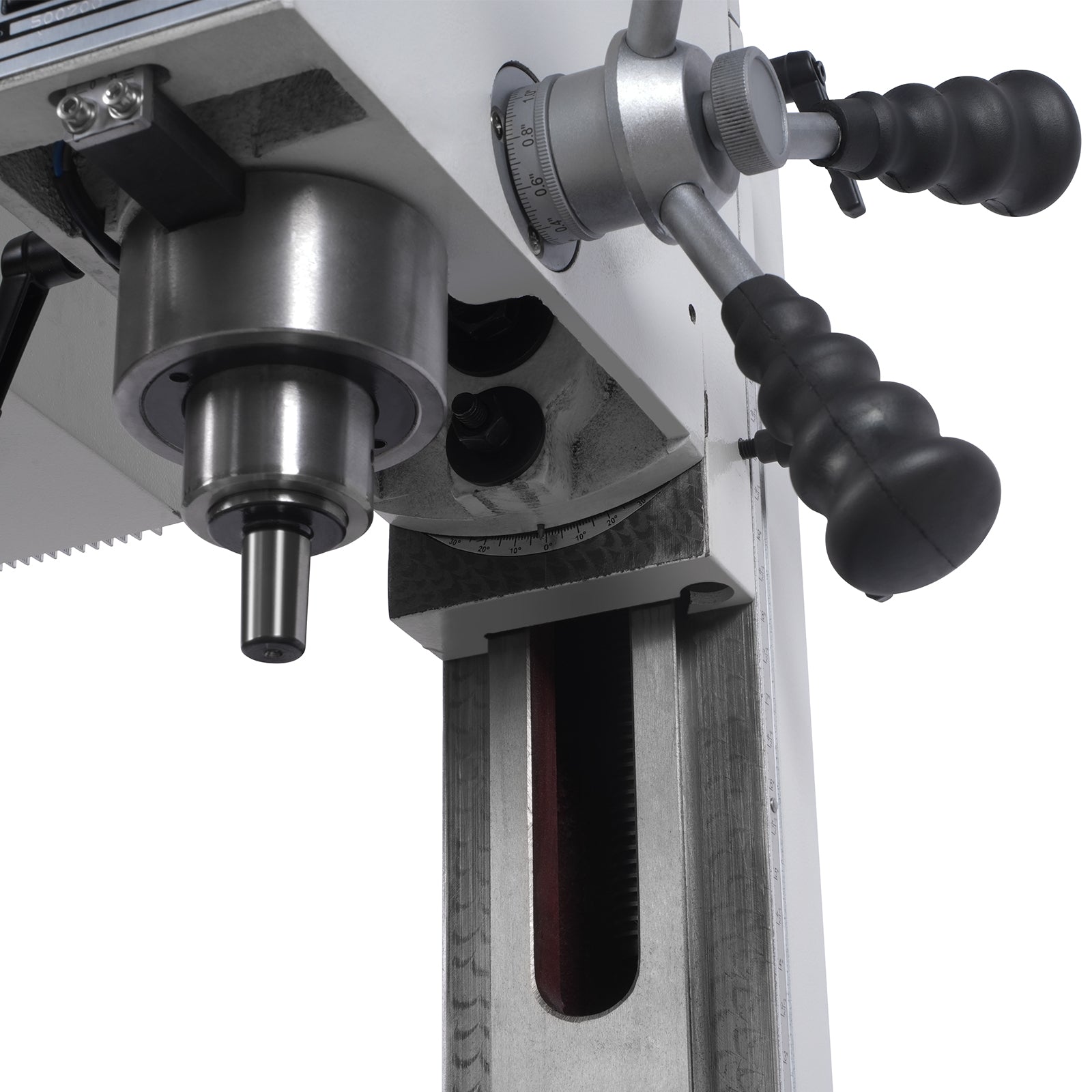

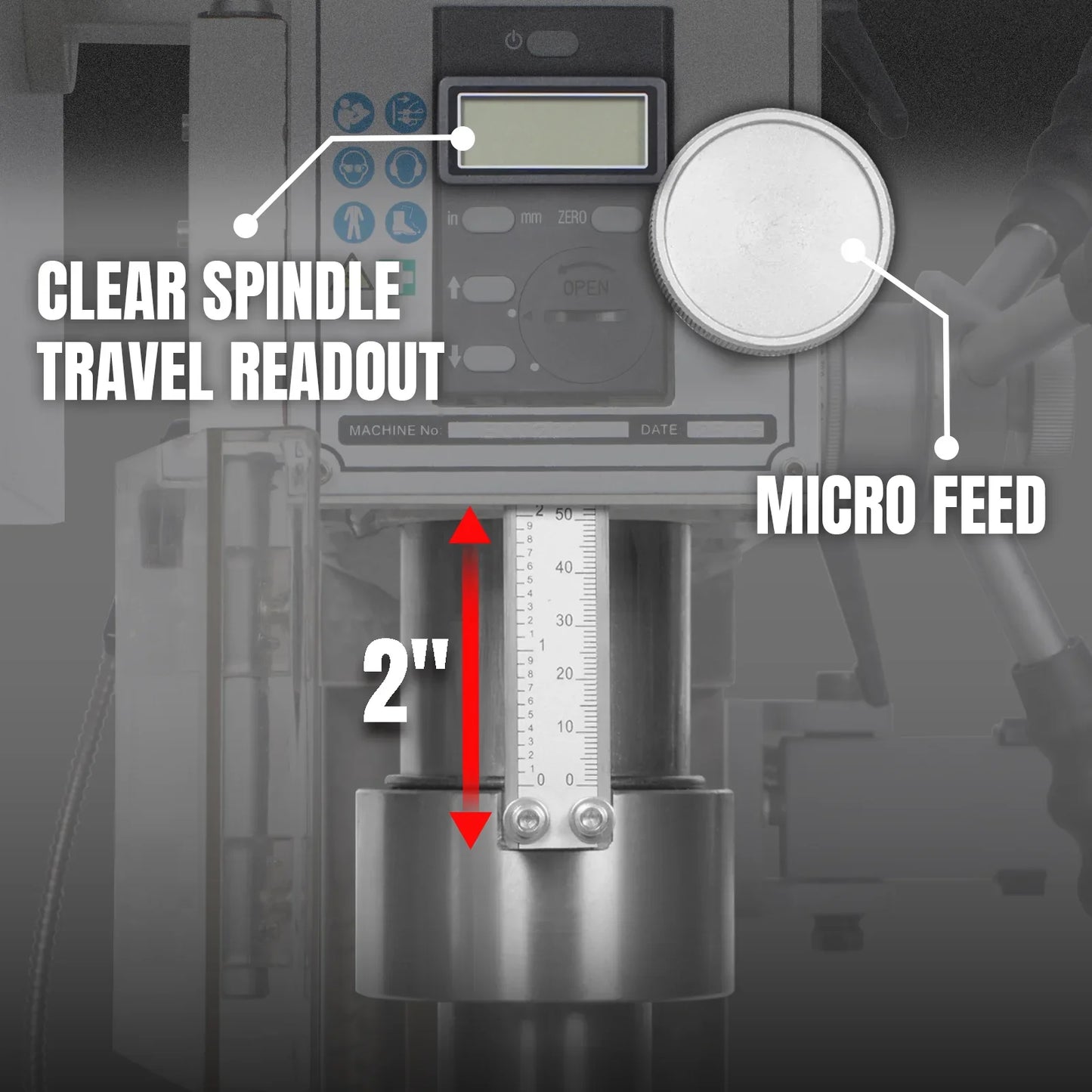

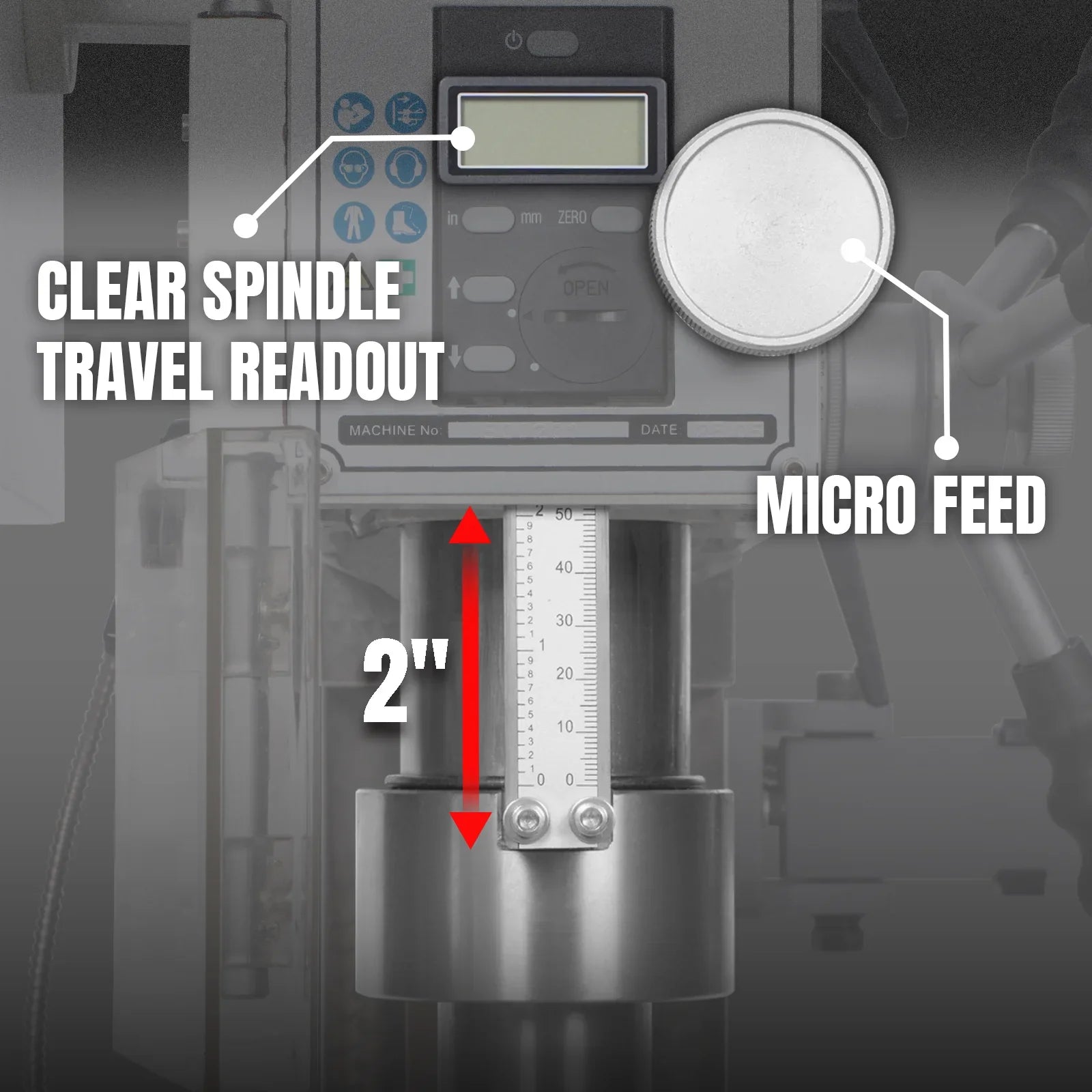

  • Engineered for Precision Drilling: Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.
  • Precision-Ground, One-Piece Table: Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

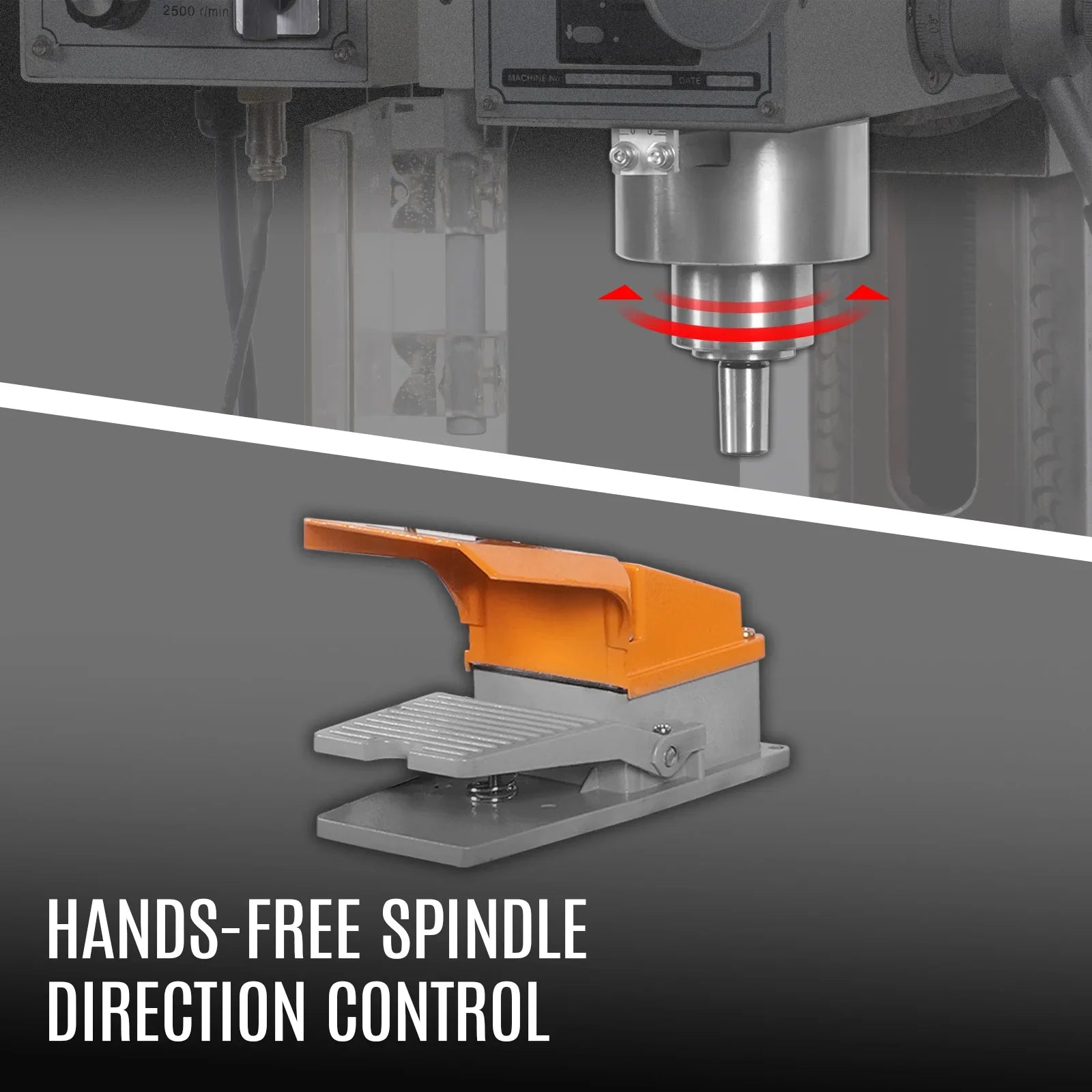

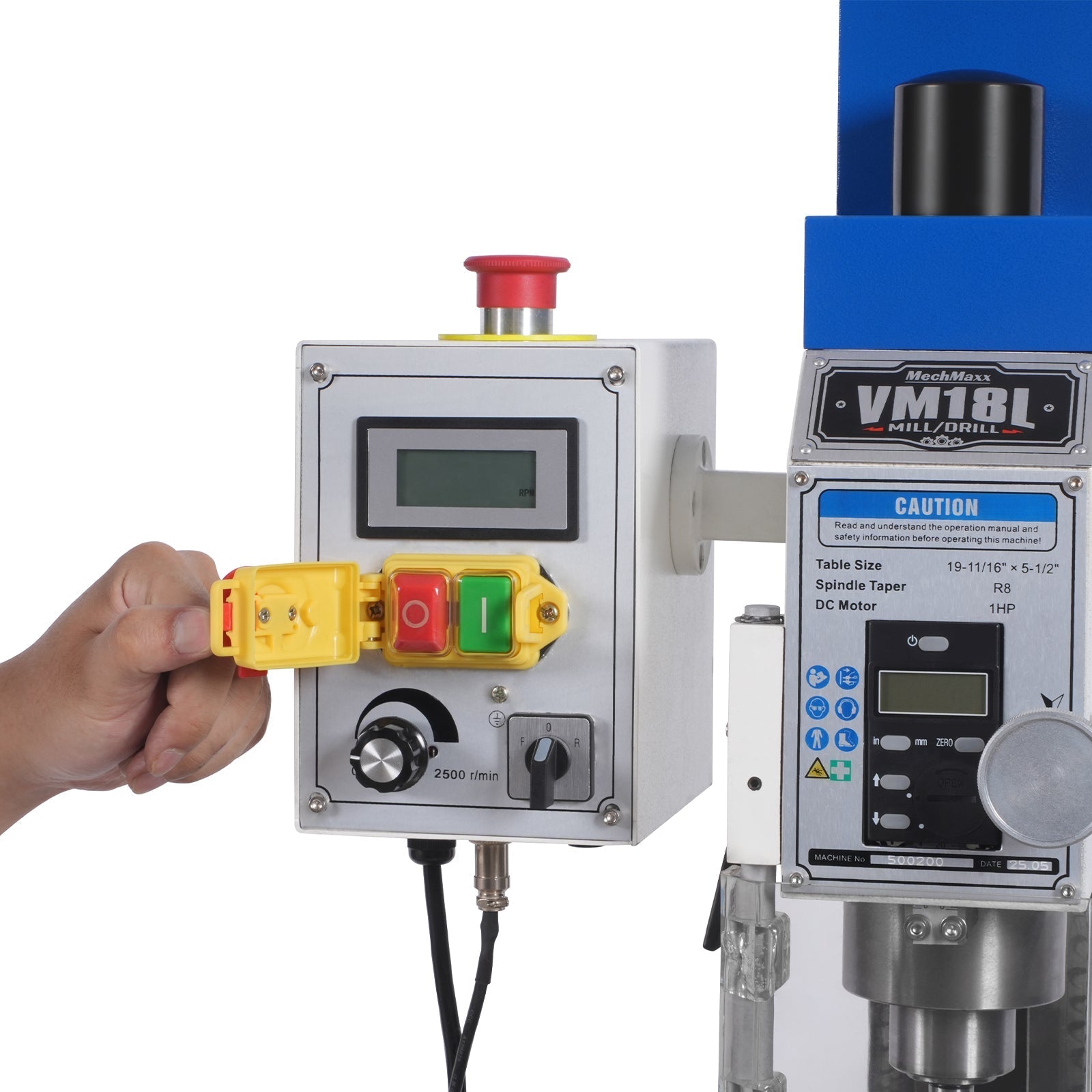

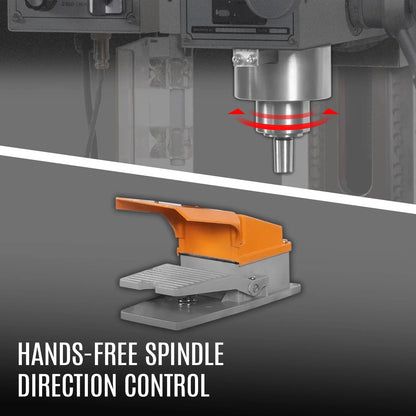

  • Dual Control for Spindle Rotation: Switch spindle direction by foot or hand — perfect for tapping operations. The foot pedal leaves your hands free, while manual control ensures quick direction changes when needed.

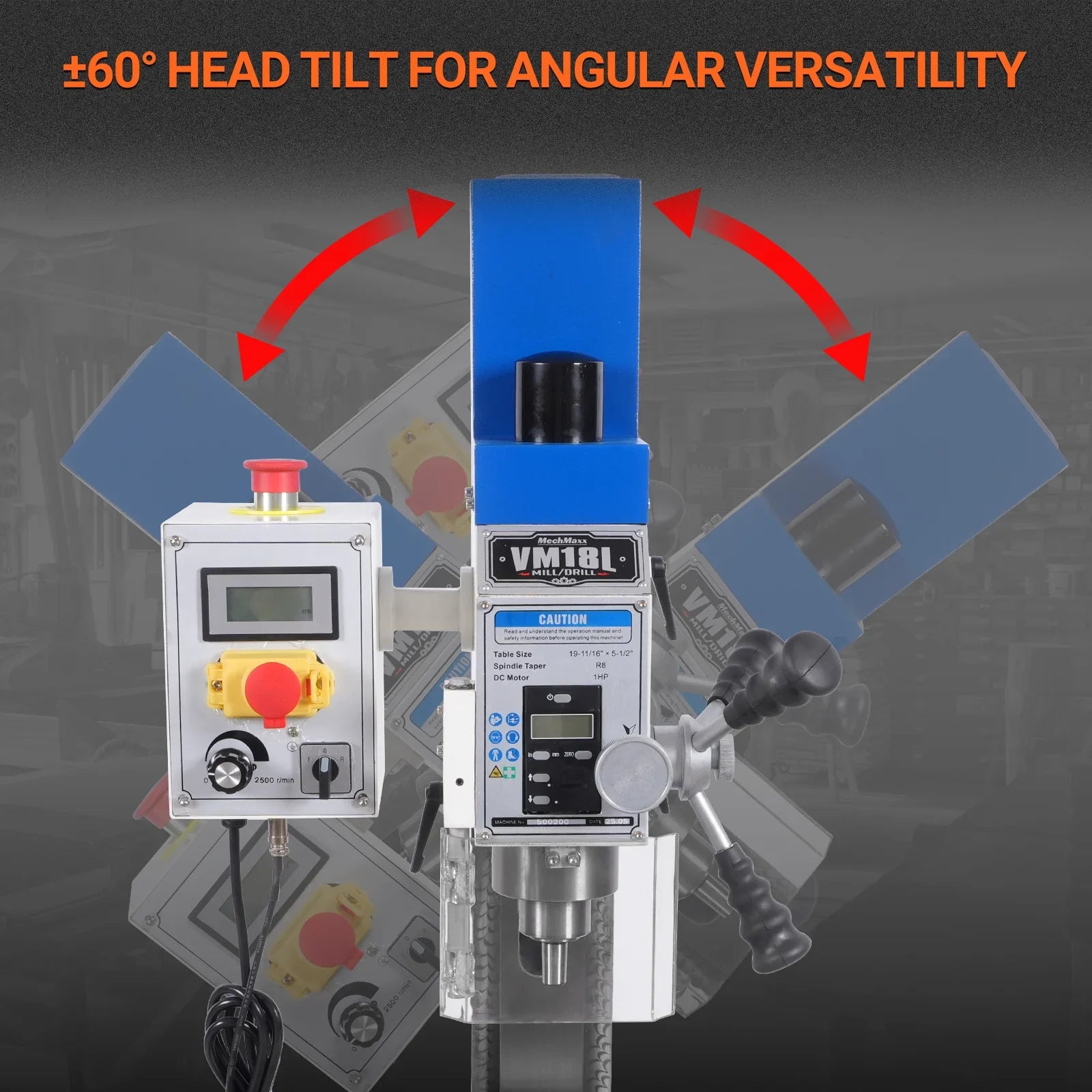

  • ±60° Head Tilt for Angular Versatility: Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

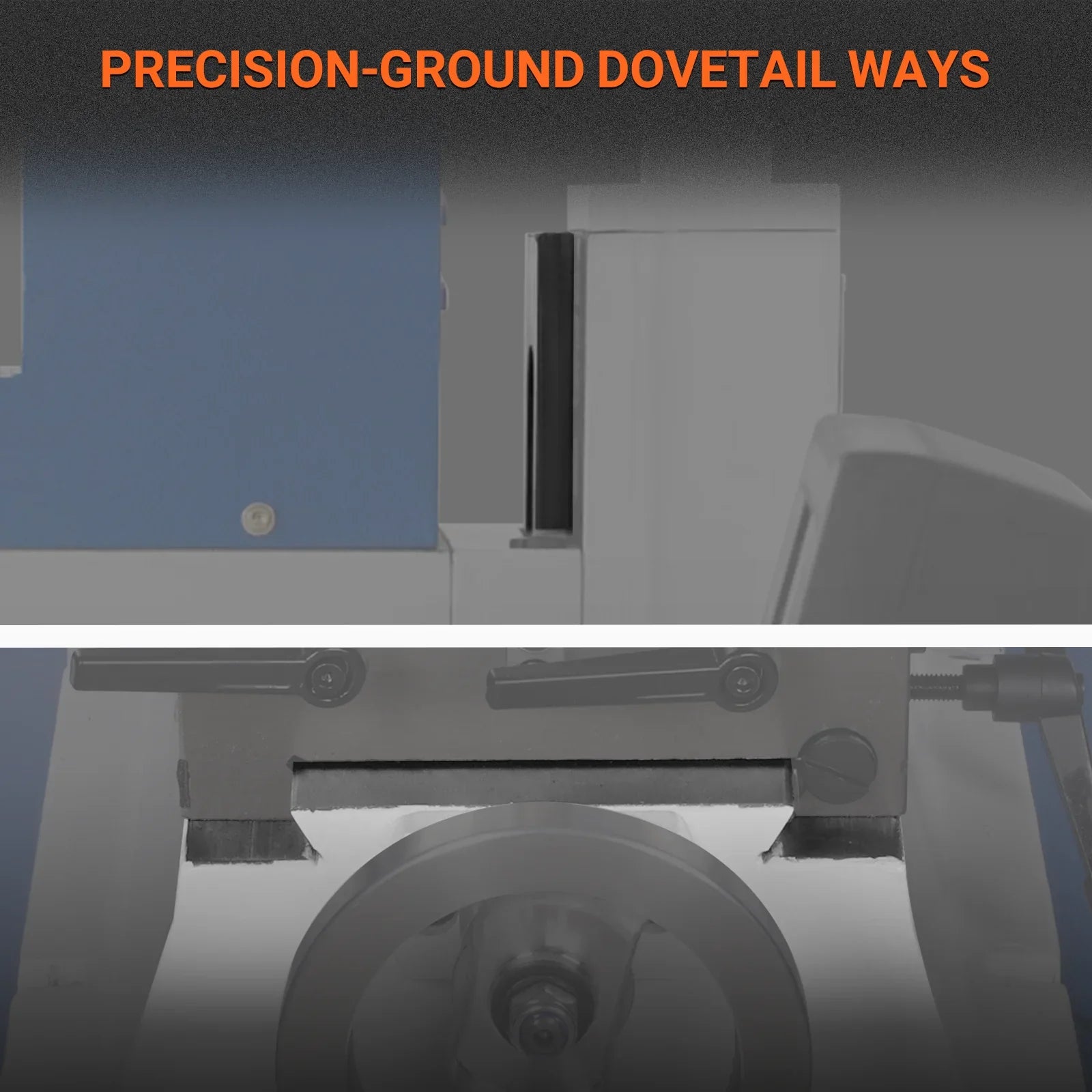

  • Precision-Ground Dovetail Ways: Built with hand-scraped dovetail ways and adjustable tapered gibs, this machine delivers outstanding rigidity, surface contact, and wear resistance. Perfect for heavy loads and precise milling operations.

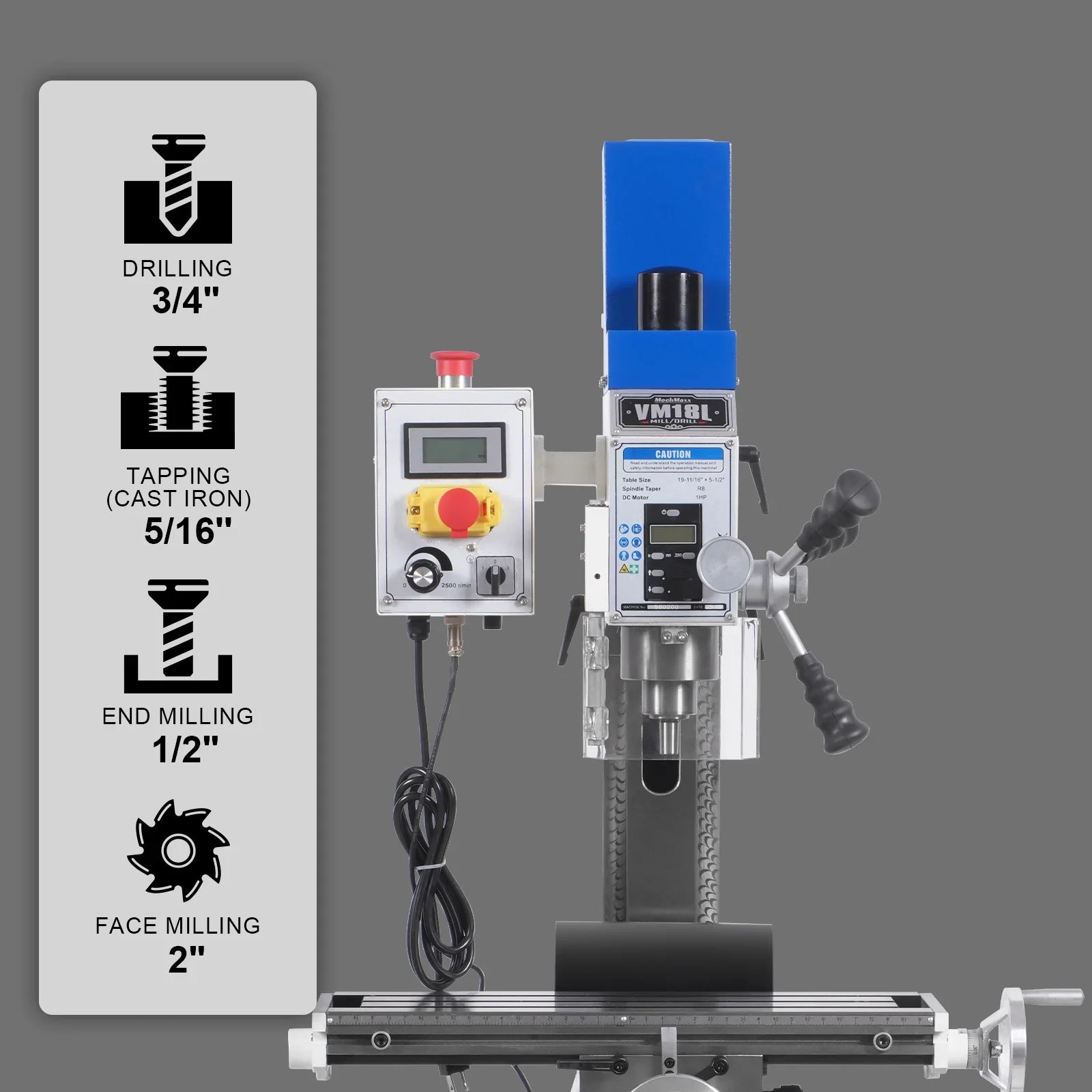

  • Cutting Capacities You Can Count On: Handle a wide range of tasks with the VM18L: Drilling up to 3/4", Tapping (Cast Iron) up to 5/16", End Milling up to 1/2", and Face Milling up to 2". Compact yet capable — this machine gets real work done.

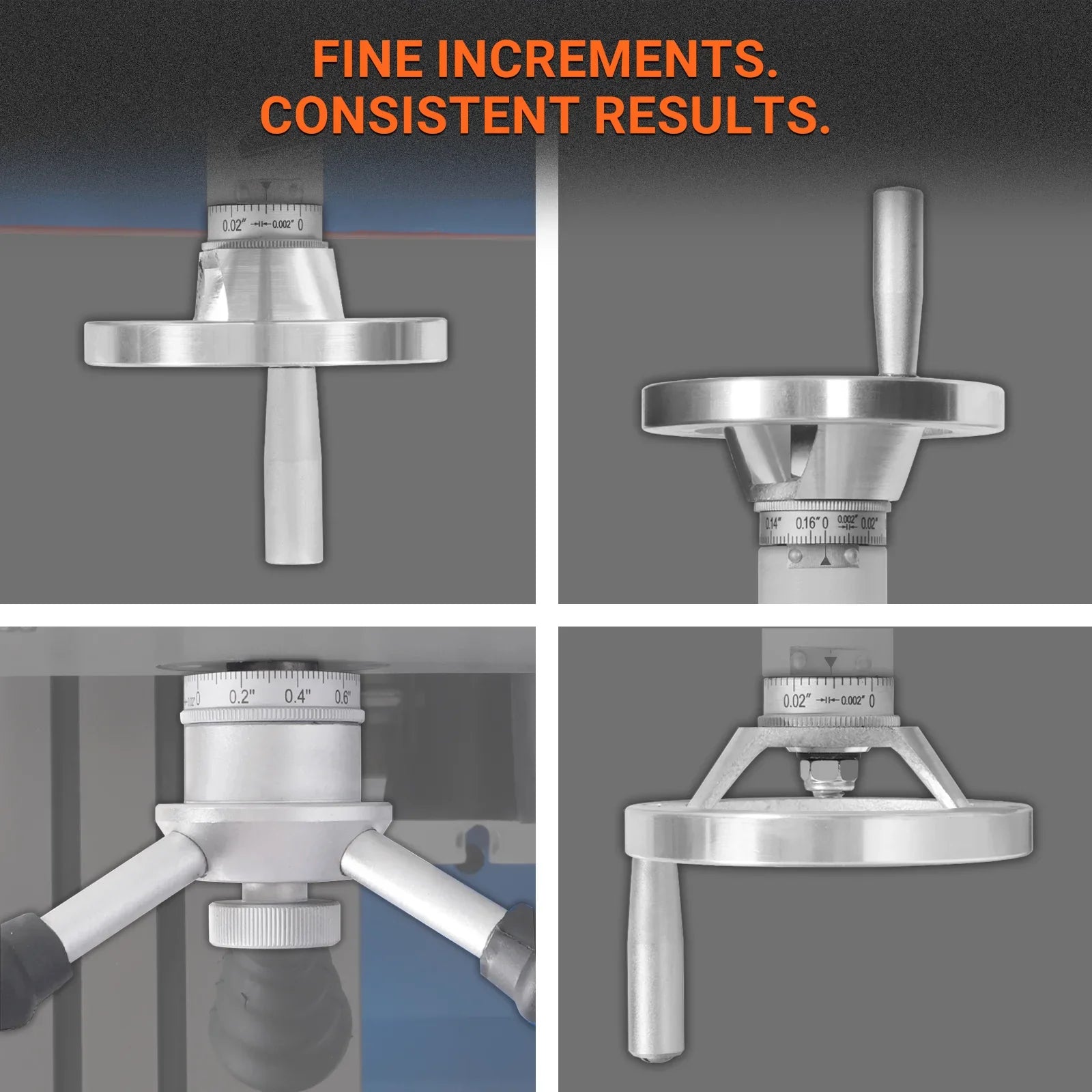

  • Fine Increments. Consistent Results.: Graduated handwheels with precise scale markings help you make accurate, repeatable adjustments. Essential for fine milling operations and careful depth control.

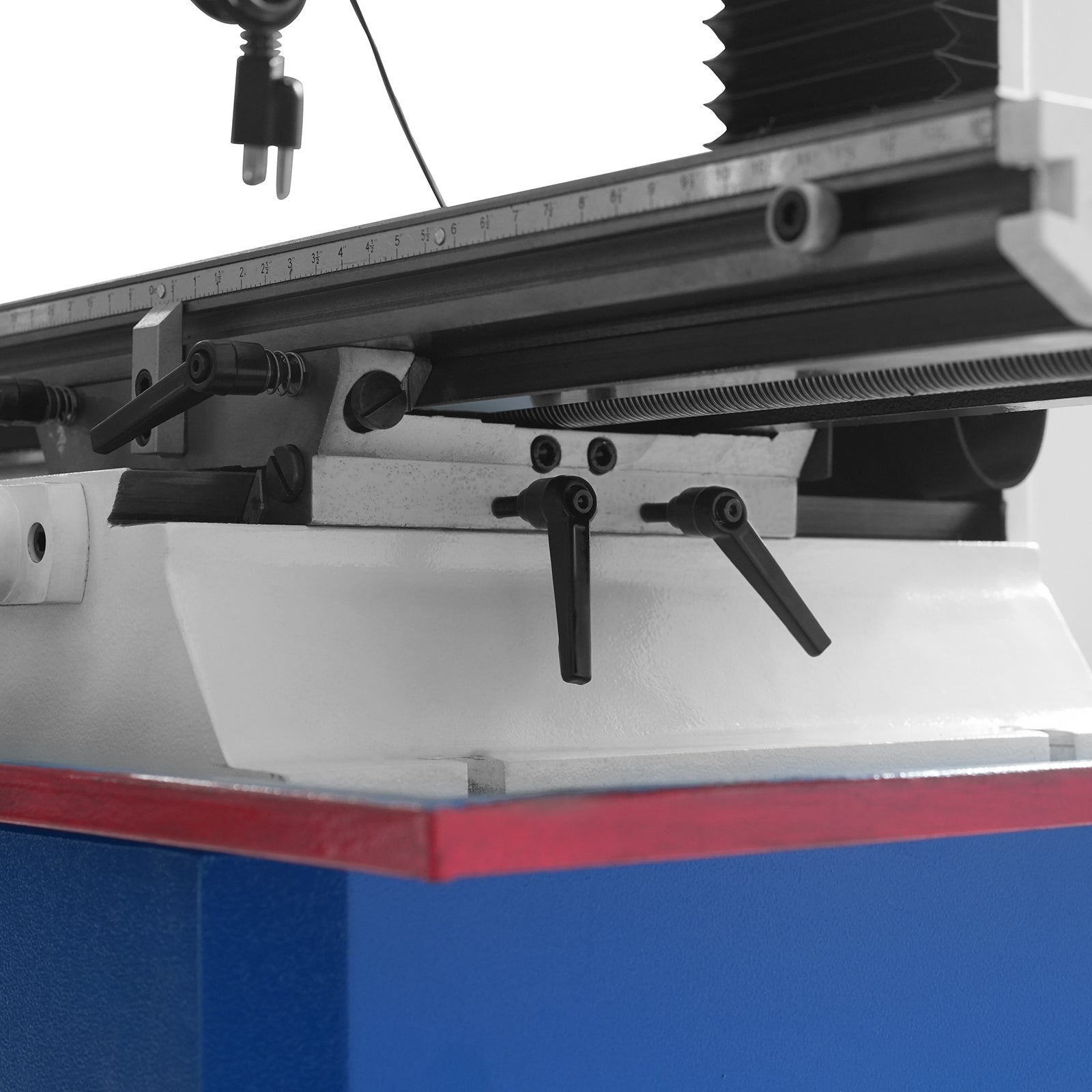

  • Depth Stop & Feed Locks: • Adjustable depth stop ensures consistent hole depth. • X-axis limiters prevent overtravel for safe and precise milling. • Feed locks stabilize the axis during cutting — no drift, better finish.

Spindle Taper: R8

Spindle Travel: 2"(50mm)

Quill Diameter: Ø2-3/8''(60mm)

Spindle Speed Range: 0-2500RPM

Number of Speed Steps: Variable

Drawbar Thread Size: 7/16"-20''

Head Tilt Angle: ±90°

Spindle to Table Distance: 10-7/8"(275mm)

Spindle to Column Distance: 6-5/8"(170mm)

Drilling Capacity: 3/4"(18 mm)

End Milling Capacity: 1/2"(12mm)

Face Milling Capacity: 2"(50mm)

Table Size: 5-1/2"x19-5/8"(140x500mm)

T-Slot Size / No. / Centers: 3 X 3/8''(10mm)

X-Axis Travel: 8-5/8''(220mm)

Y-Axis Travel: 6-5/16''(160mm)

Z-Axis Travel: 10-27/32''(275mm)

Column Type: Square Column，Dovetail Slide

Drive Type: Belt

Motor Power: 1HP 110V 1PH Brushless

Motor Type: DC Brushless

Net / Gross Weight: 180/203lbs(82/92.5KG)

Overall Dimensions: 20''x19''x31''(506X476X788mm)

Base Size: 11''x9'' (280x220mm)

Shipping Dimensions: 24''x22''x34''(610X560X860mm)

This item comes with a 1 year factory warranty.
PDF VM18L Metal Milling And Drilling Machine
