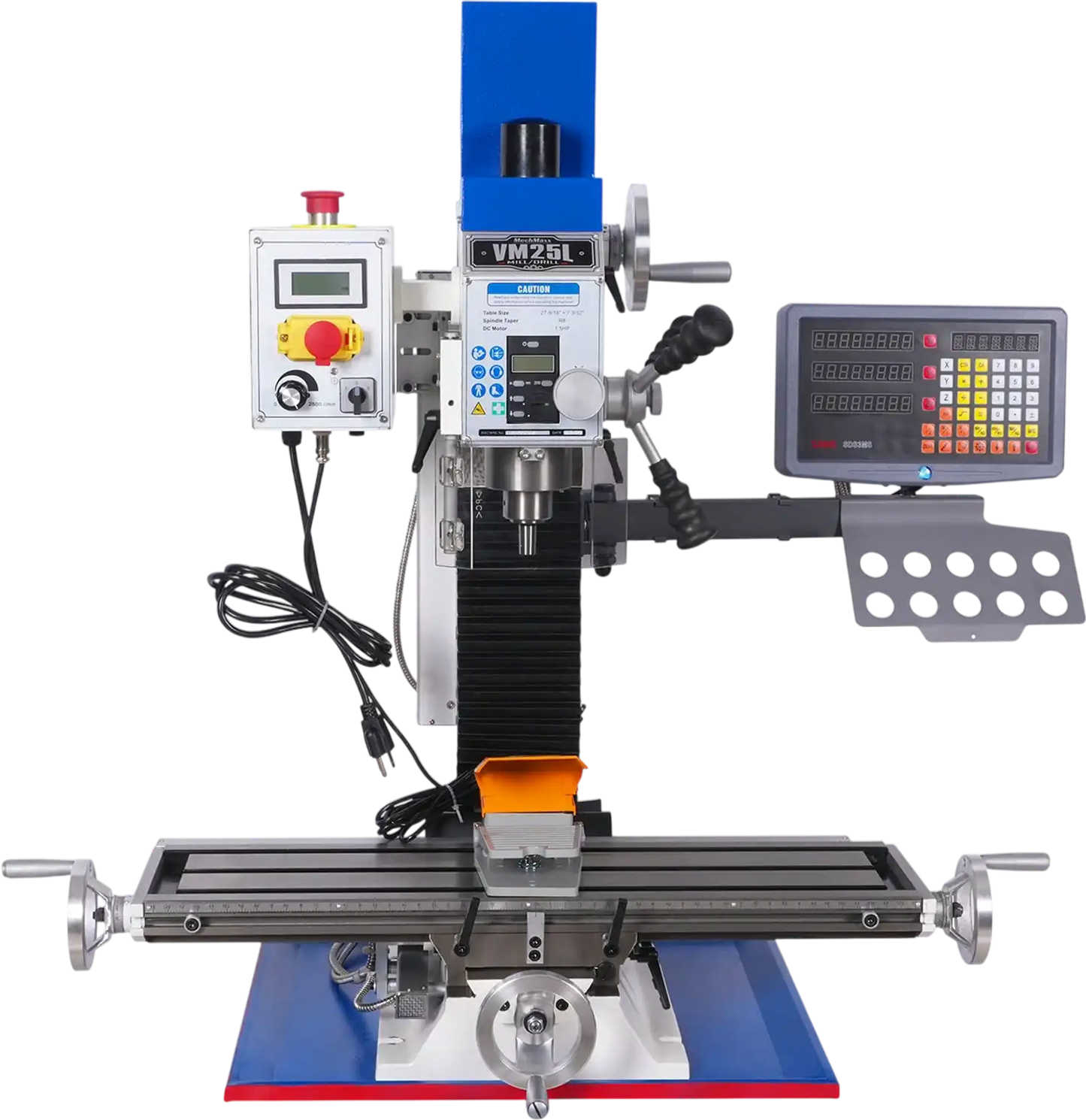

MechMaxx VM25LD Mill Drill Machine 1.5HP 7" x 27-1/2" Benchtop Mini Variable Speed R8 Spindle Brushless Motor 110V New

MechMaxx

$2,699.00
$2,699.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • 1.5 HP DC Brushless Motor: Low maintenance, smooth, and powerful motor for consistent operation.
  • R8 Spindle Taper: Offers compatibility with a wide range of accessories, providing flexibility for various cutting tasks.
  • ±90° Head Tilt: Allows for versatile angled cutting and precise milling operations.
  • Large Table Size: 7" x 27-1/2" for handling larger workpieces and providing ample space for more complex tasks.
  • Variable Speed Range: 0-2500 RPM, ensuring optimal performance across a wide variety of materials.

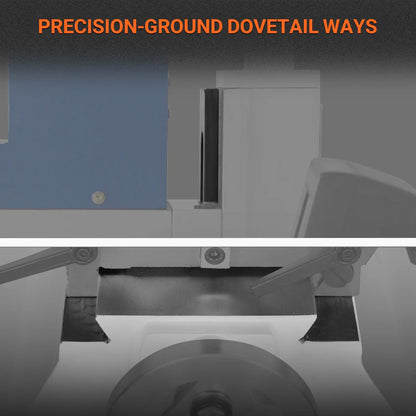

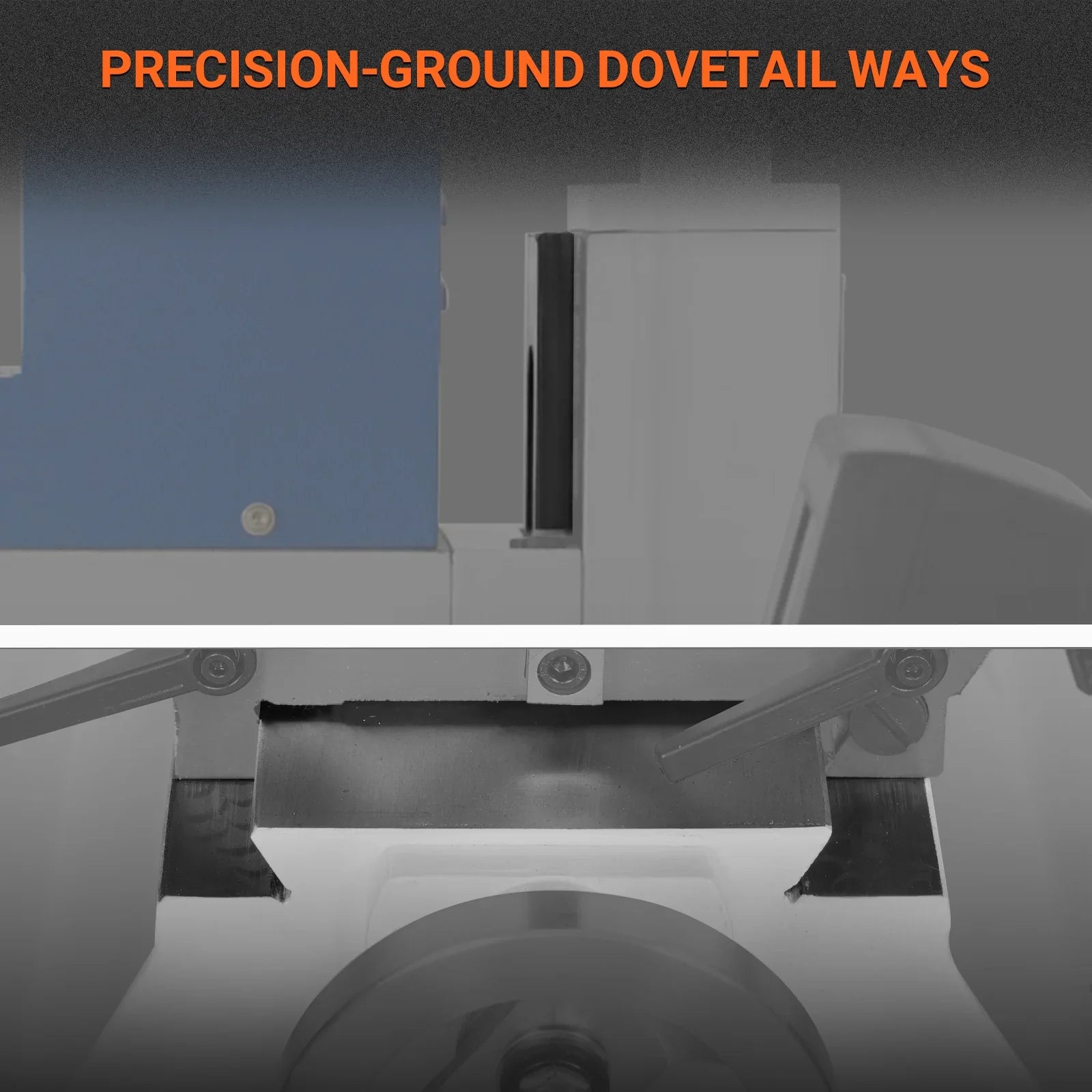

  • Precision Ground Ways: For smooth and accurate movement, ensuring a more reliable machining process.
  • Enhanced Safety Features: Chip guard, rubber chip guards, and built-in safety switch to ensure user safety during operation.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

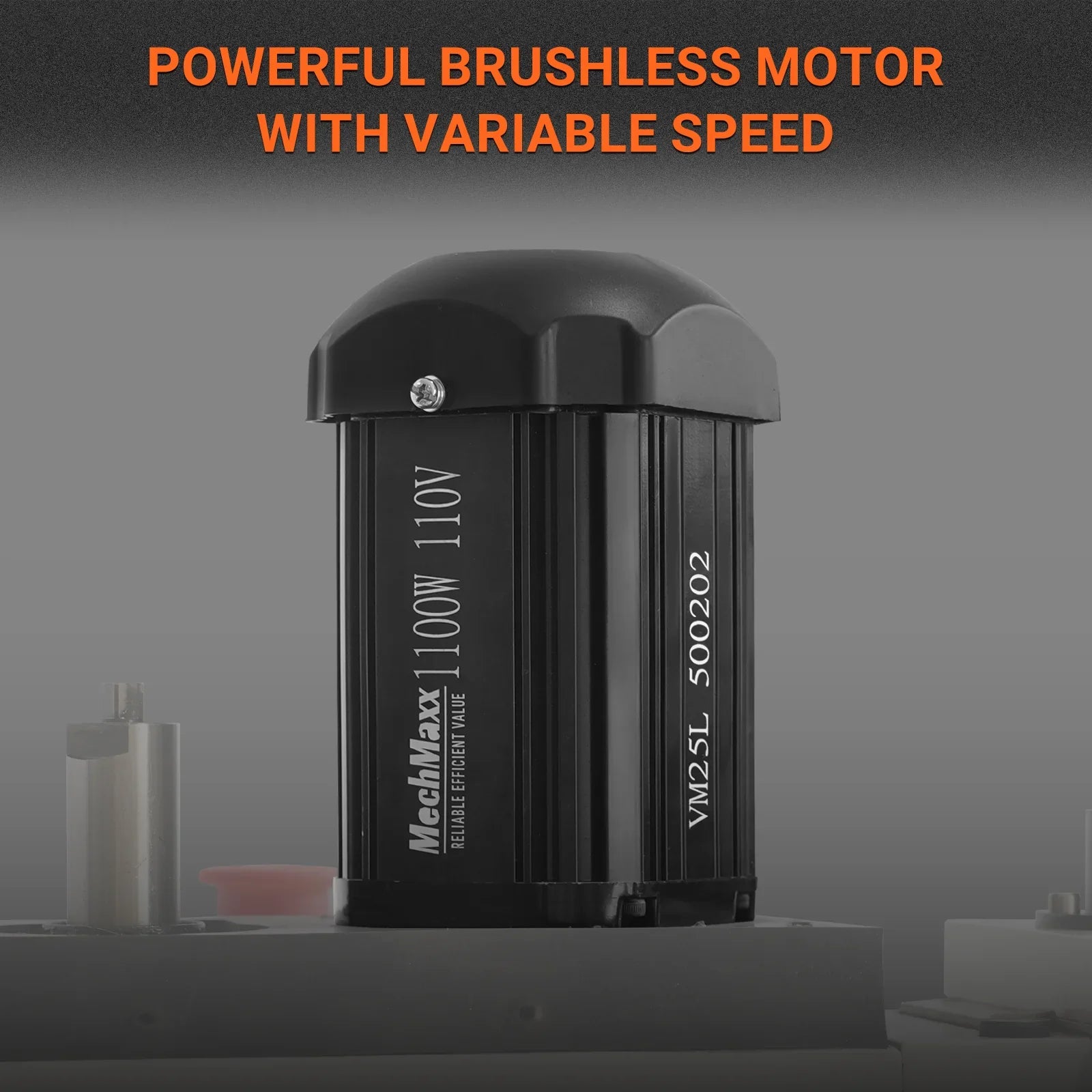

  • Powerful Brushless Motor with Variable Speed: Powered by a 1.5HP brushless DC motor, the VM25LD delivers quiet, vibration-free operation. Seamlessly adjustable speed from 0 to 2500 RPM gives you full control for drilling, milling, or tapping.

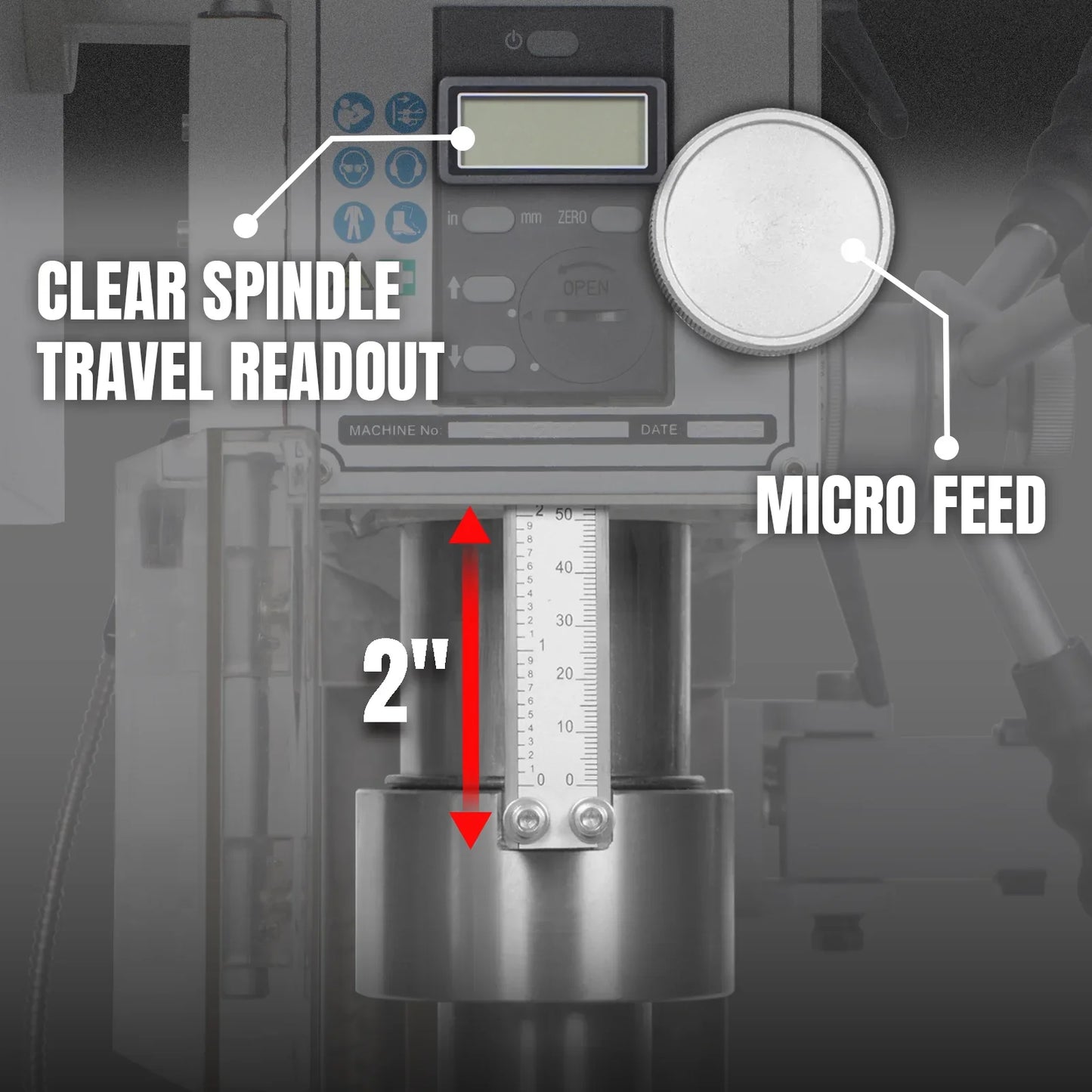

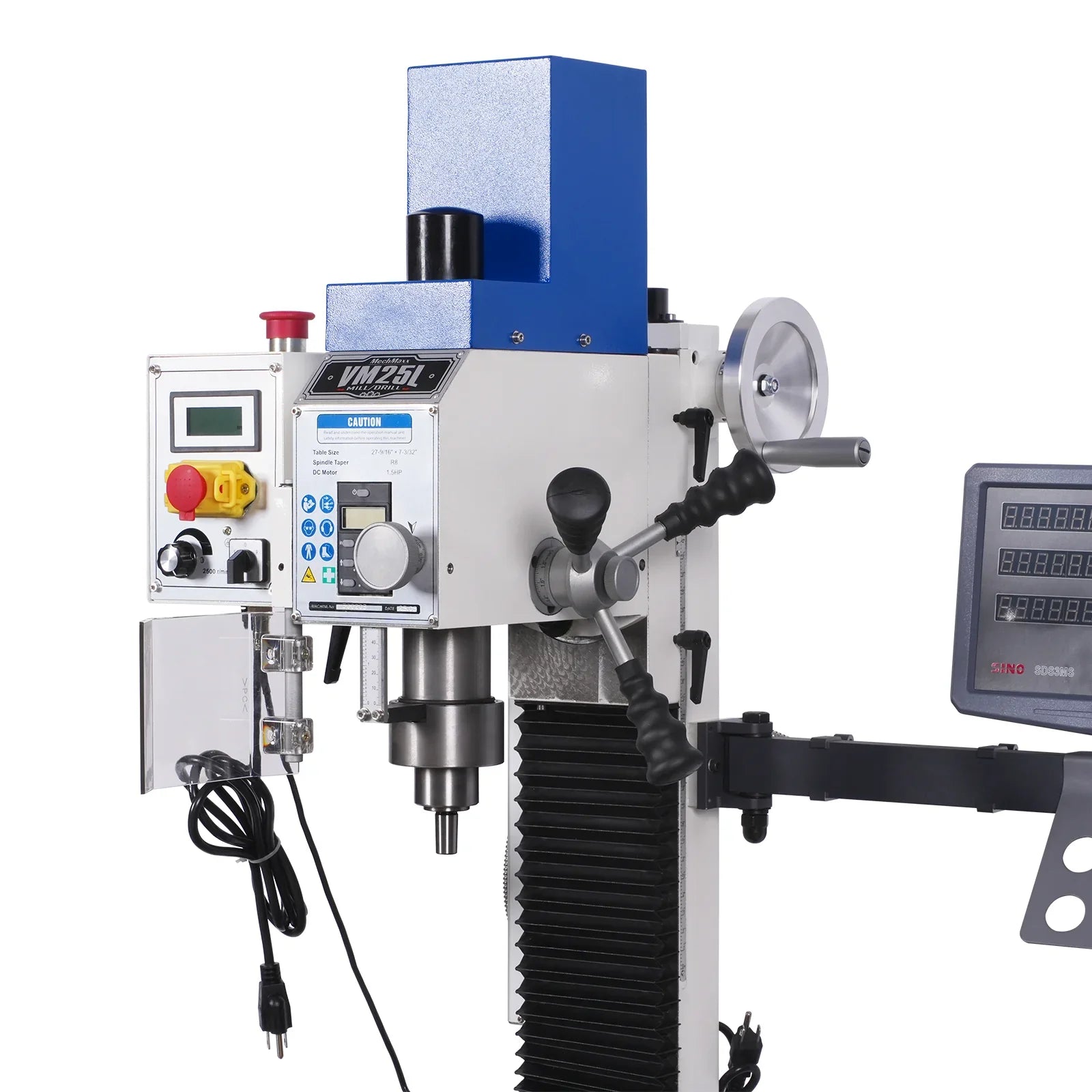

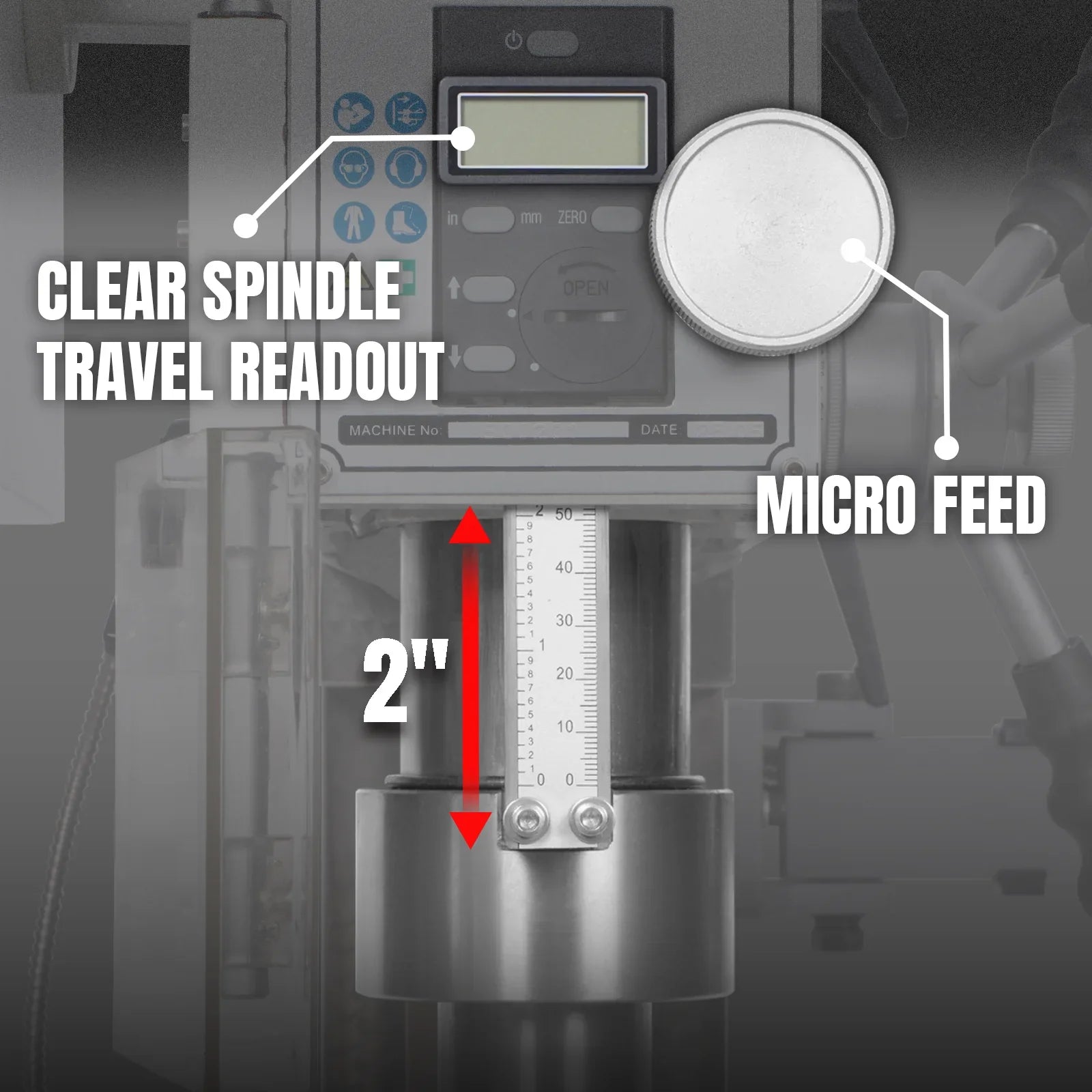

  • Engineered for Precision Drilling: Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

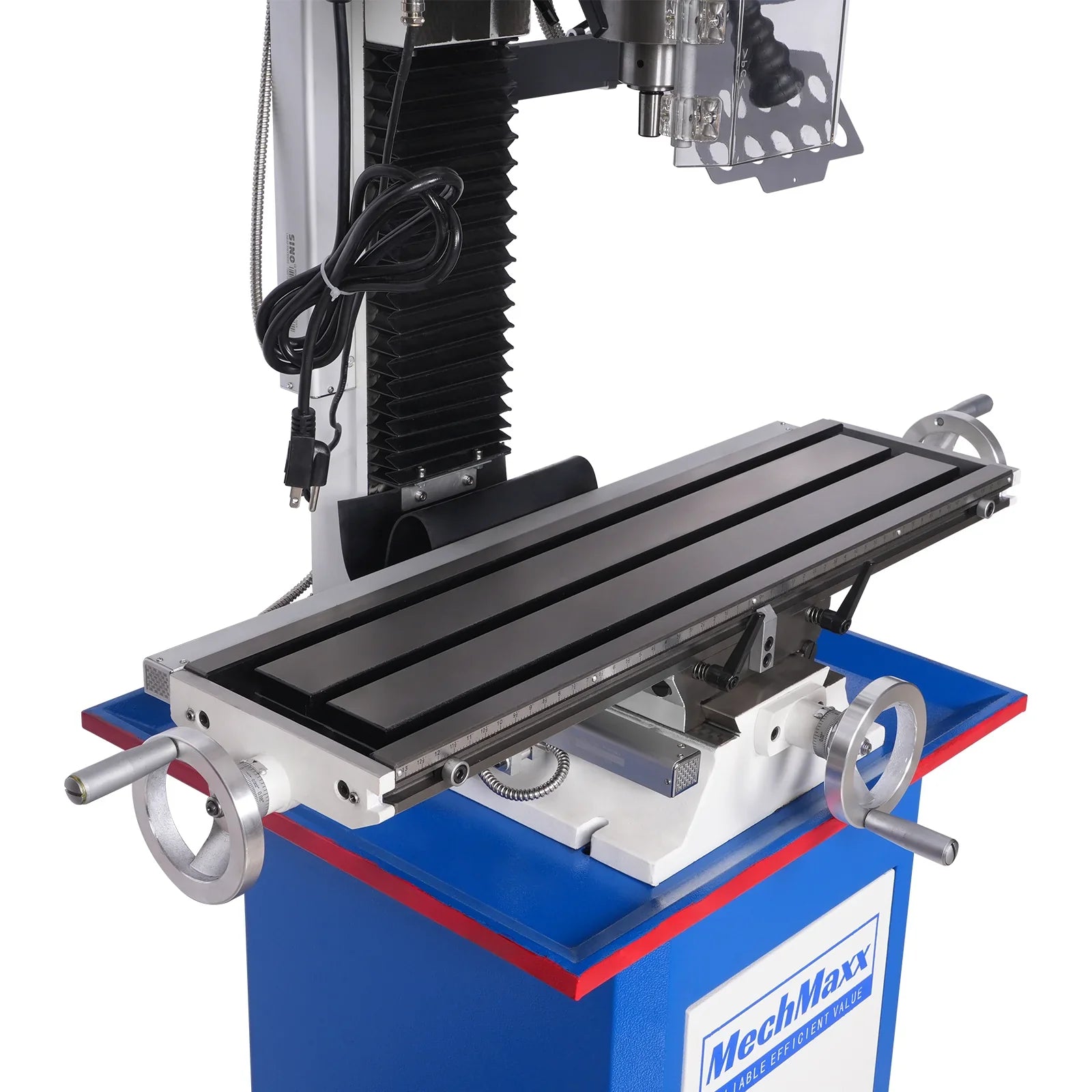

  • Precision-Ground, One-Piece Table: Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

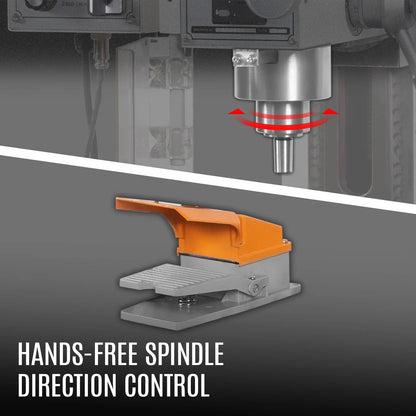

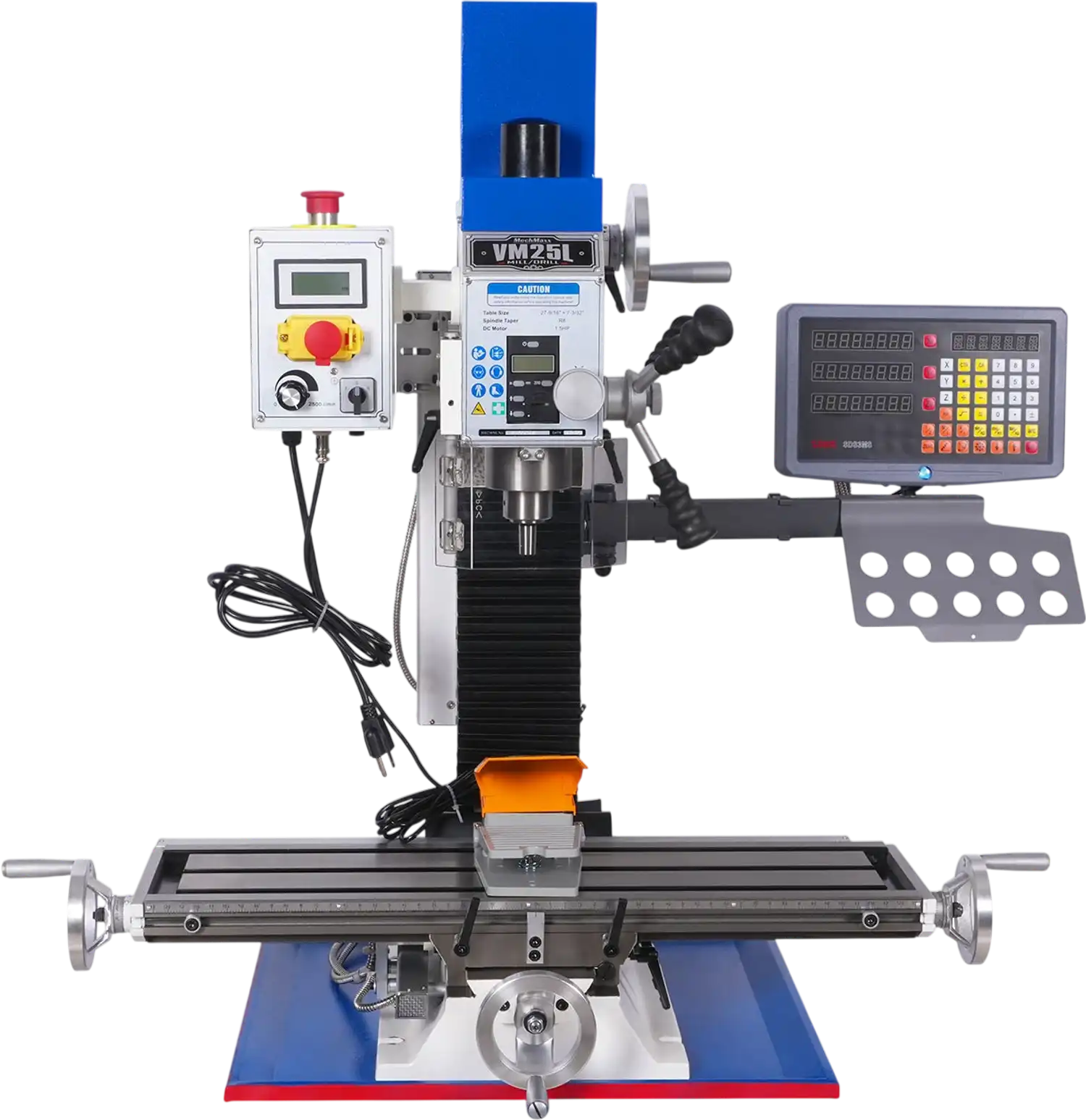

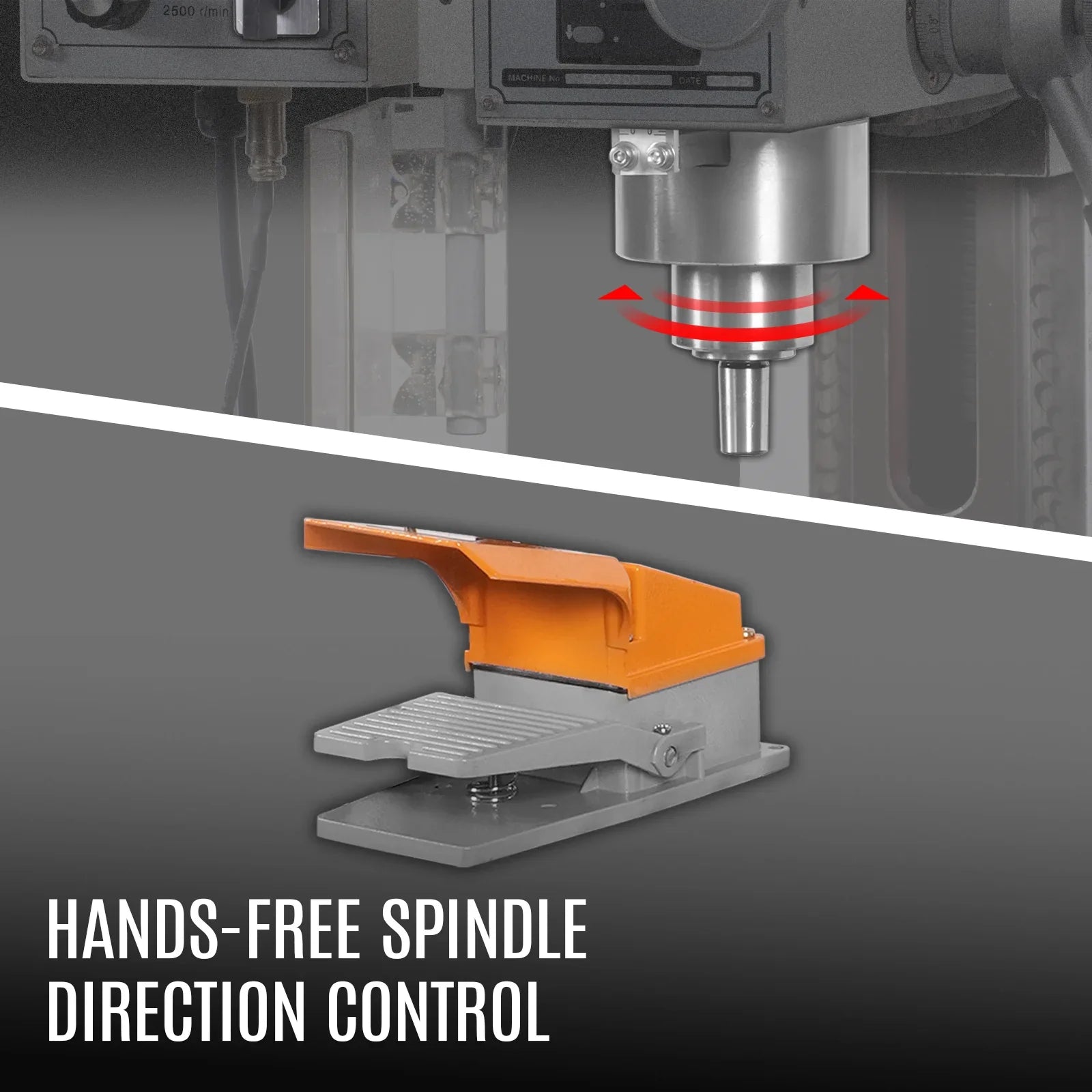

  • Dual Control for Spindle Rotation: Switch spindle direction by foot or hand — perfect for tapping operations. The foot pedal leaves your hands free, while manual control ensures quick direction changes when needed.

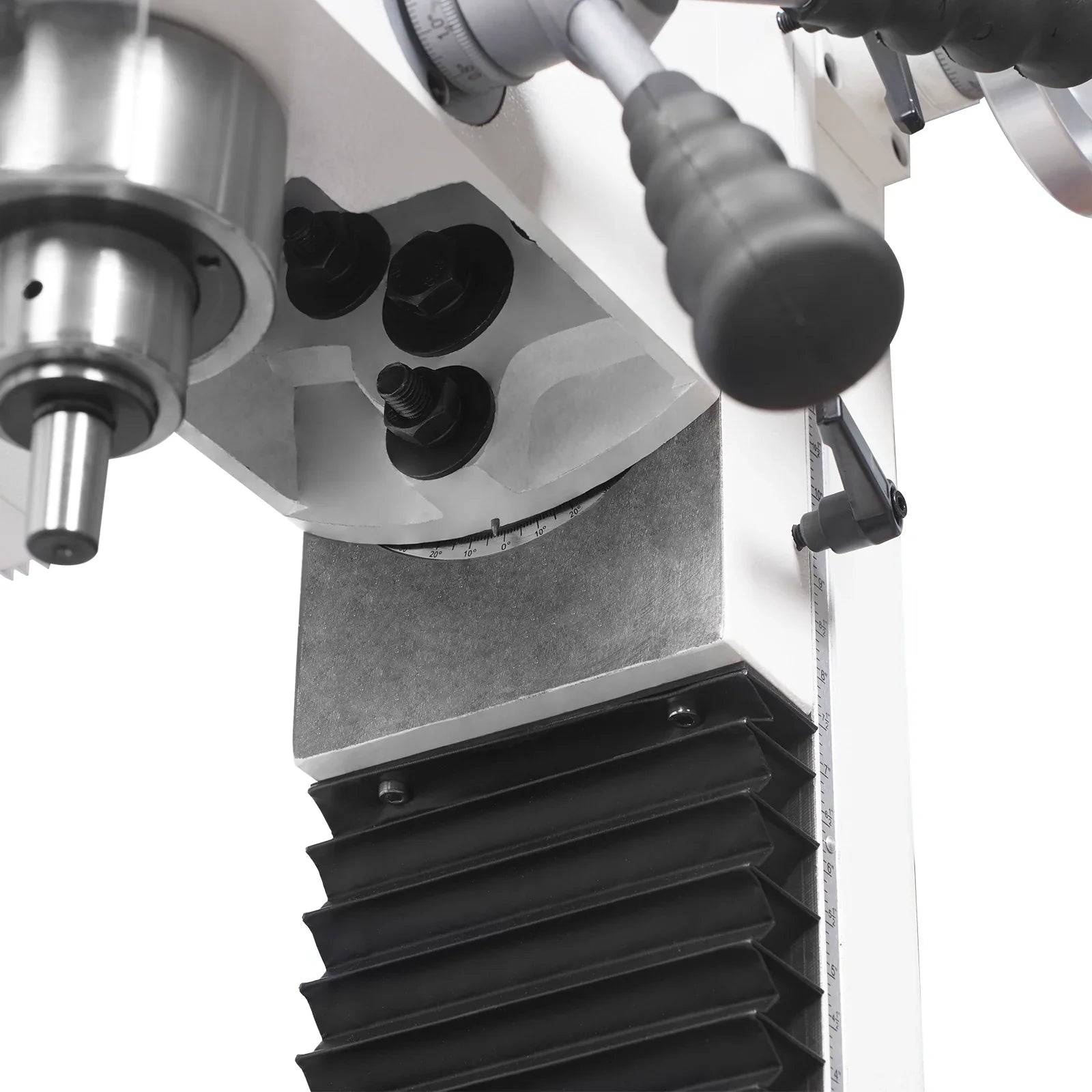

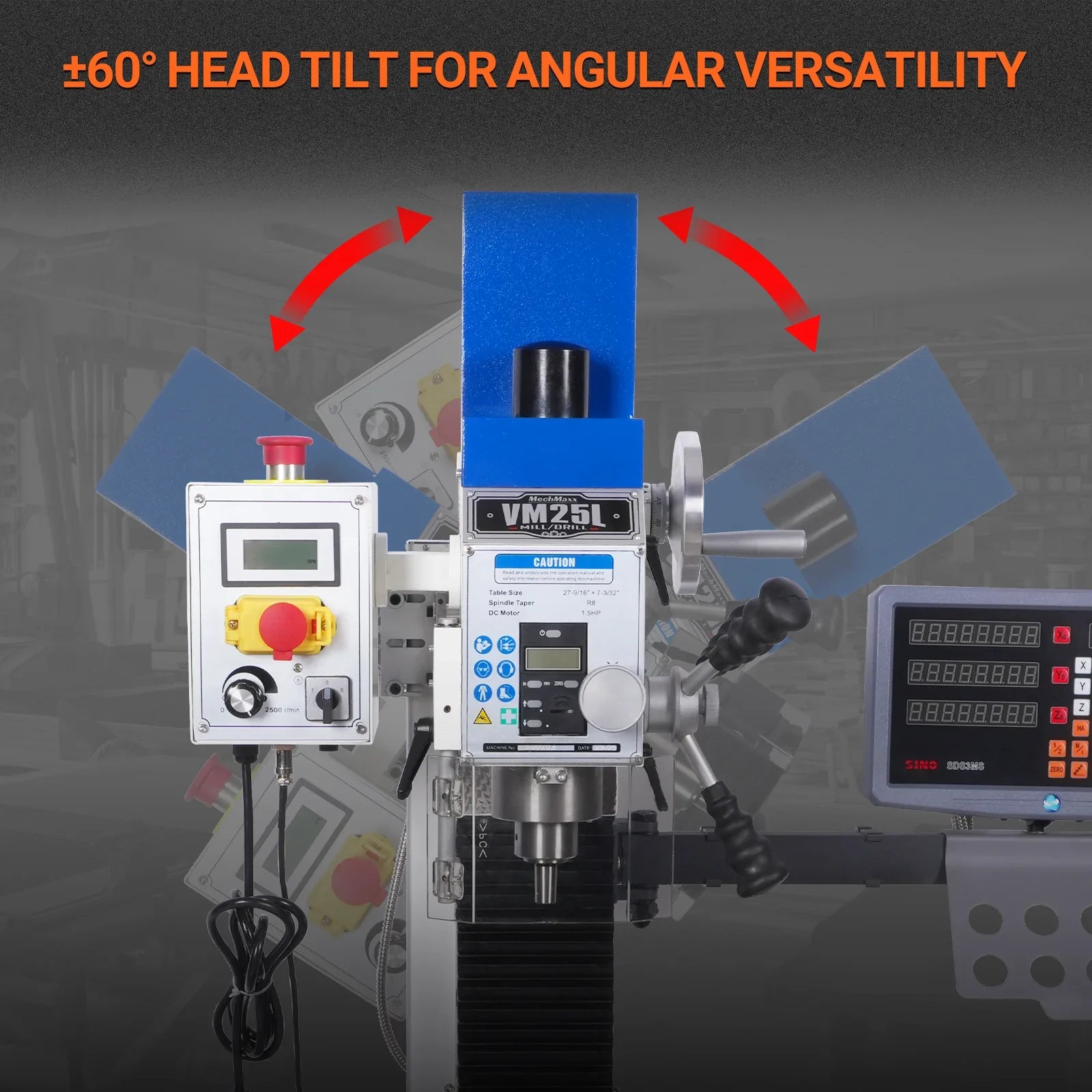

  • ±60° Head Tilt for Angular Versatility: Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

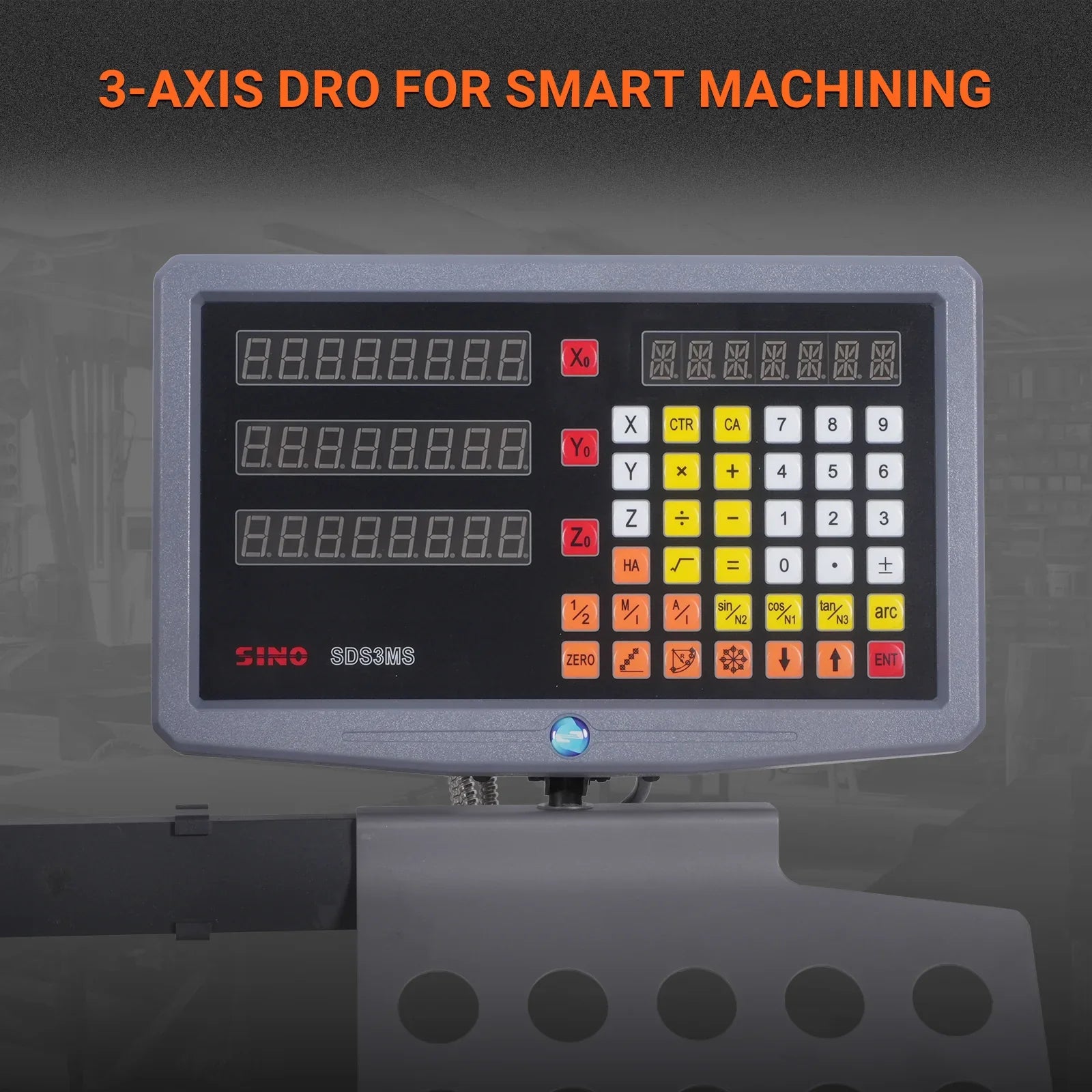

  • 3-Axis DRO for Smart Machining: See exactly where you are — every time. The built-in digital readout provides accurate location tracking on all three axes, helping you reduce errors and speed up complex operations.

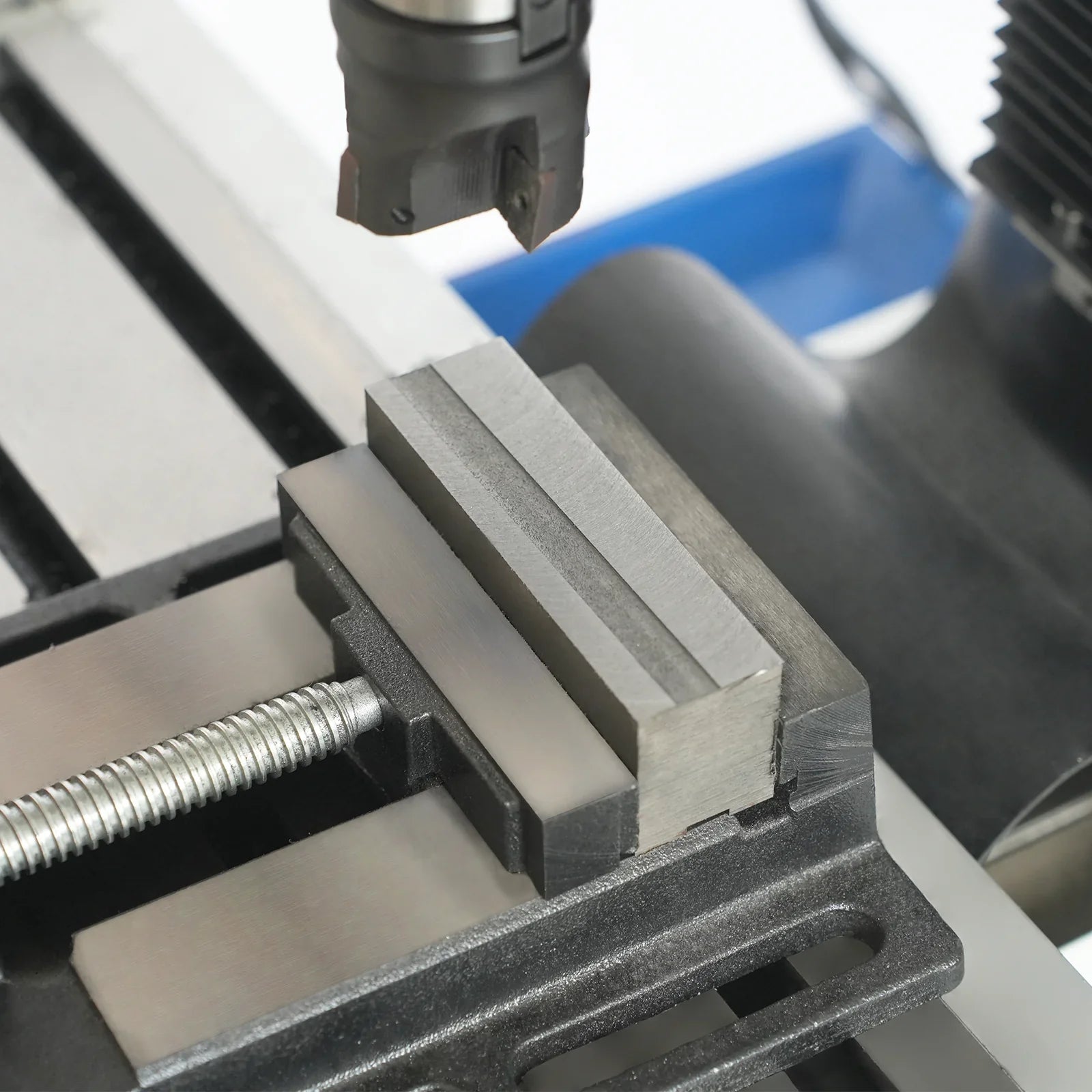

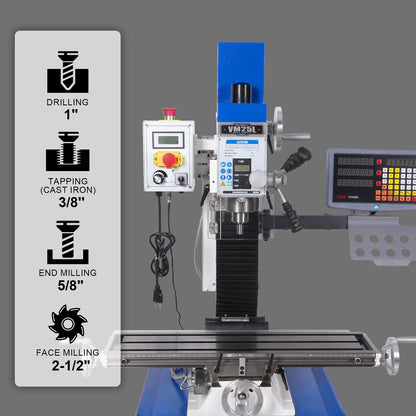

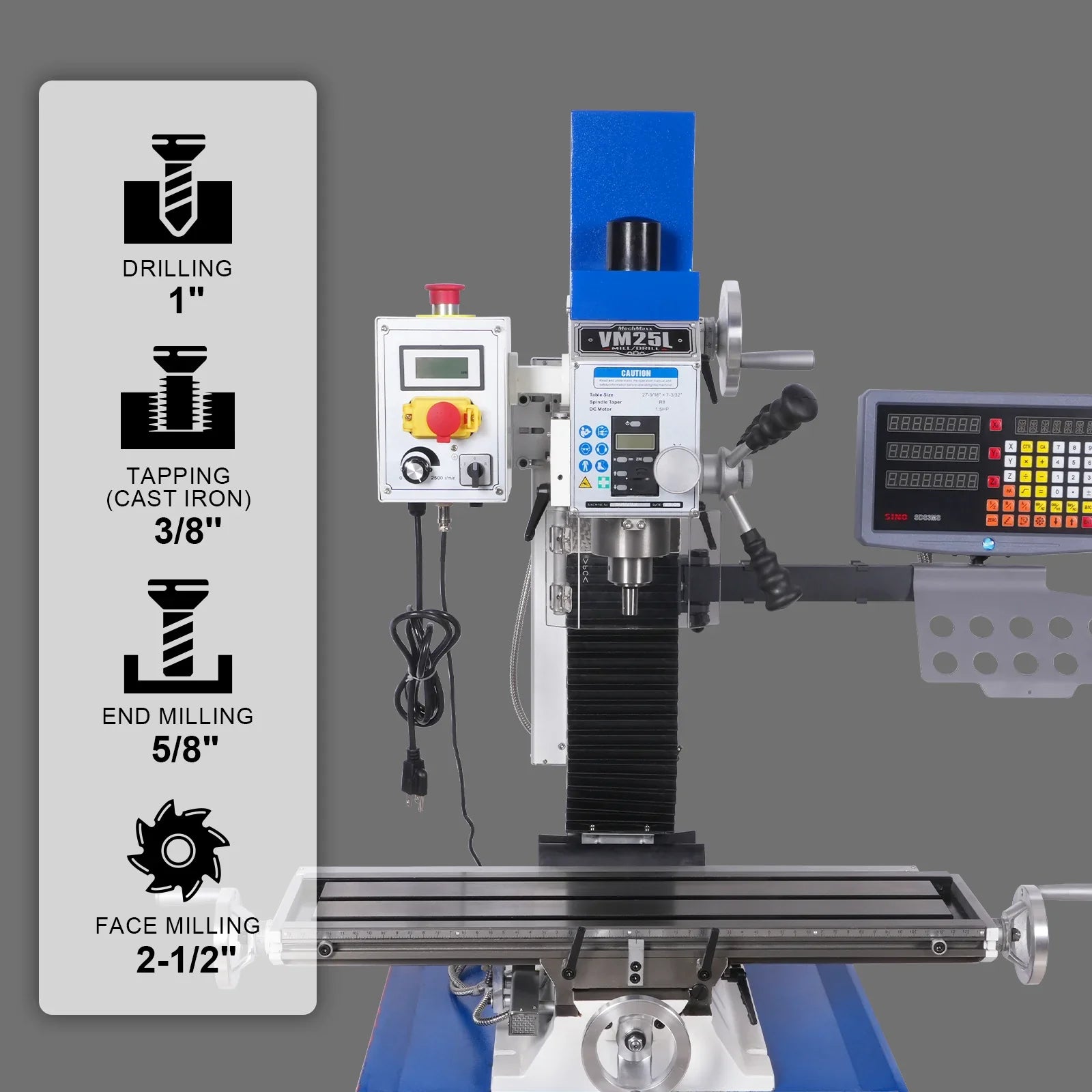

  • Cutting Capacities You Can Count On: Handle a wide range of tasks with the VM25L: Drilling up to 1", Tapping (Cast Iron) up to 3/8", End Milling up to 5/8", and Face Milling up to 2-1/2". Compact yet capable — this machine gets real work done.

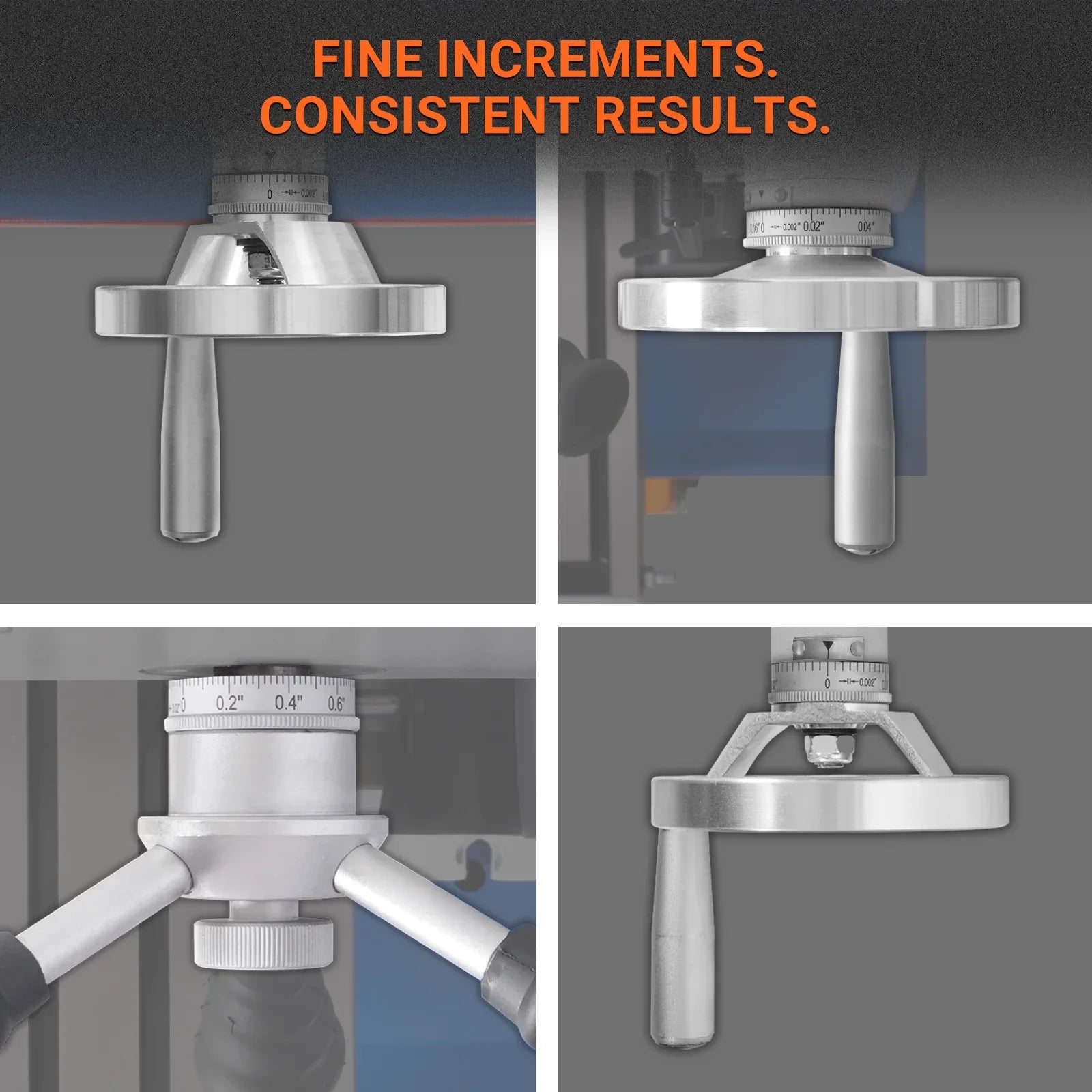

  • Fine Increments. Consistent Results.: Graduated handwheels with precise scale markings help you make accurate, repeatable adjustments. Essential for fine milling operations and careful depth control.
  • Depth Stop & Feed Locks: Adjustable depth stop ensures consistent hole depth, X-axis limiters prevent overtravel for safe and precise milling, and feed locks stabilize the axis during cutting — no drift, better finish.

Spindle Taper: R8

Spindle Travel: 2"(50mm)

Quill Diameter: Ø2-3/8''(60mm)

Spindle Speed Range: 0-2500RPM

Number of Speed Steps: Variable

Drawbar Thread Size: 7/16"-20''

Head Tilt Angle: ±90°

Spindle to Table Distance: 14-1/2"(370mm)

Spindle to Column Distance: 7-1/2"(190mm)

Drilling Capacity: 1''(25mm)

End Milling Capacity: 5/8"(16mm)

Face Milling Capacity: 2-1/2"(63mm)

Table Size: 7''x27-1/2"(180x700mm)

T-Slot Size / No. / Centers: 3 X 1/2''(12mm)

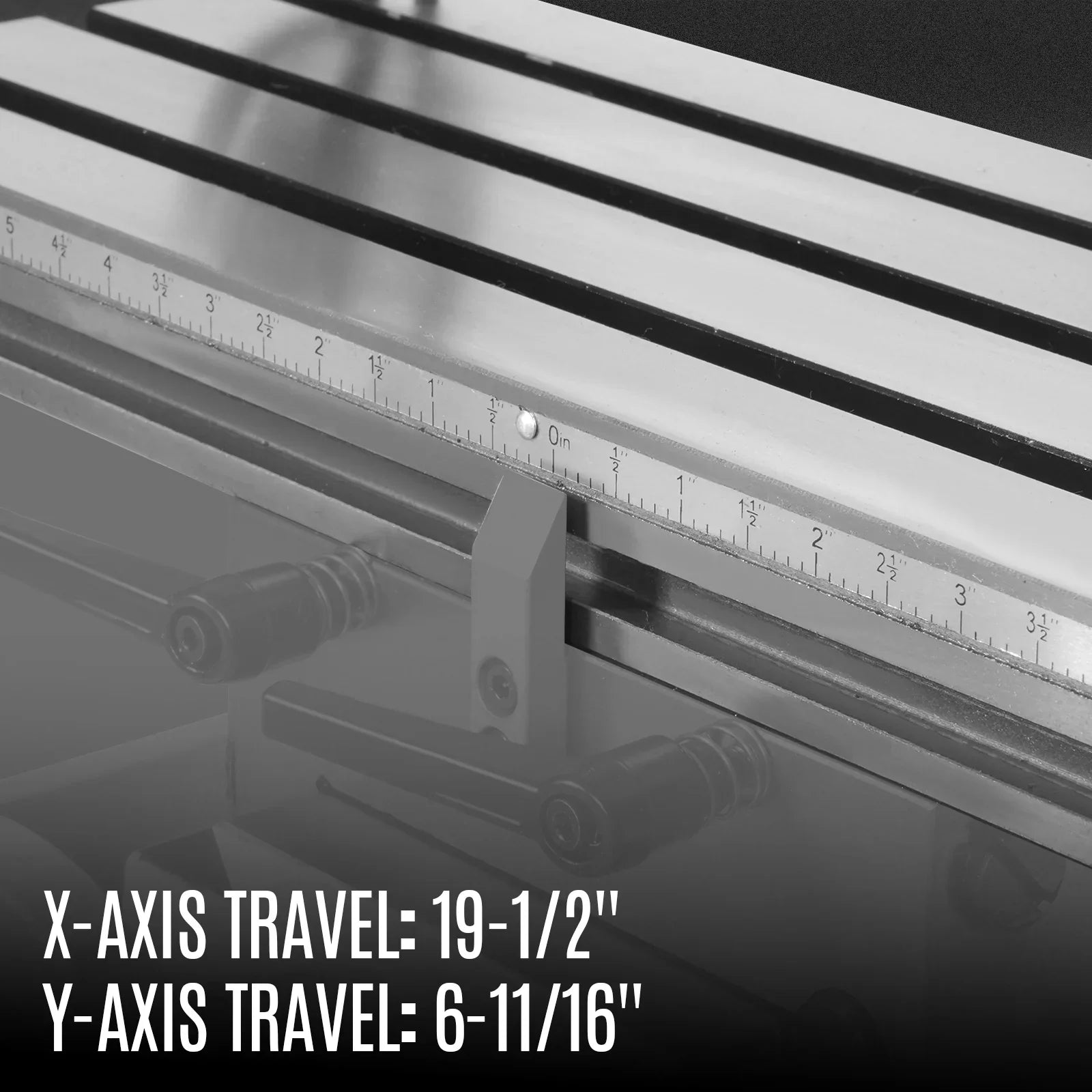

X-Axis Travel: 19-1/2''(495mm)

Y-Axis Travel: 6-11/16''(170mm)

Z-Axis Travel: 12-5/8''(320mm)

Column Type: Square Column，Dovetail Slide

Drive Type: Belt

Motor Power: 1.5HP 110V Single-Phase Brushless

Motor Type: DC Brushless

Net / Gross Weight: 260/286lbs(118/130KG)

Overall Dimensions: 36''x22''x37''(922X549X935mm)

Base Size: 14''x11''(340X275mm)

Shipping Dimensions: 28''x29''x37''(710X730X920mm)

This item comes with a 1 year factory warranty.
PDF VM25L Metal Milling And Drilling Machine
