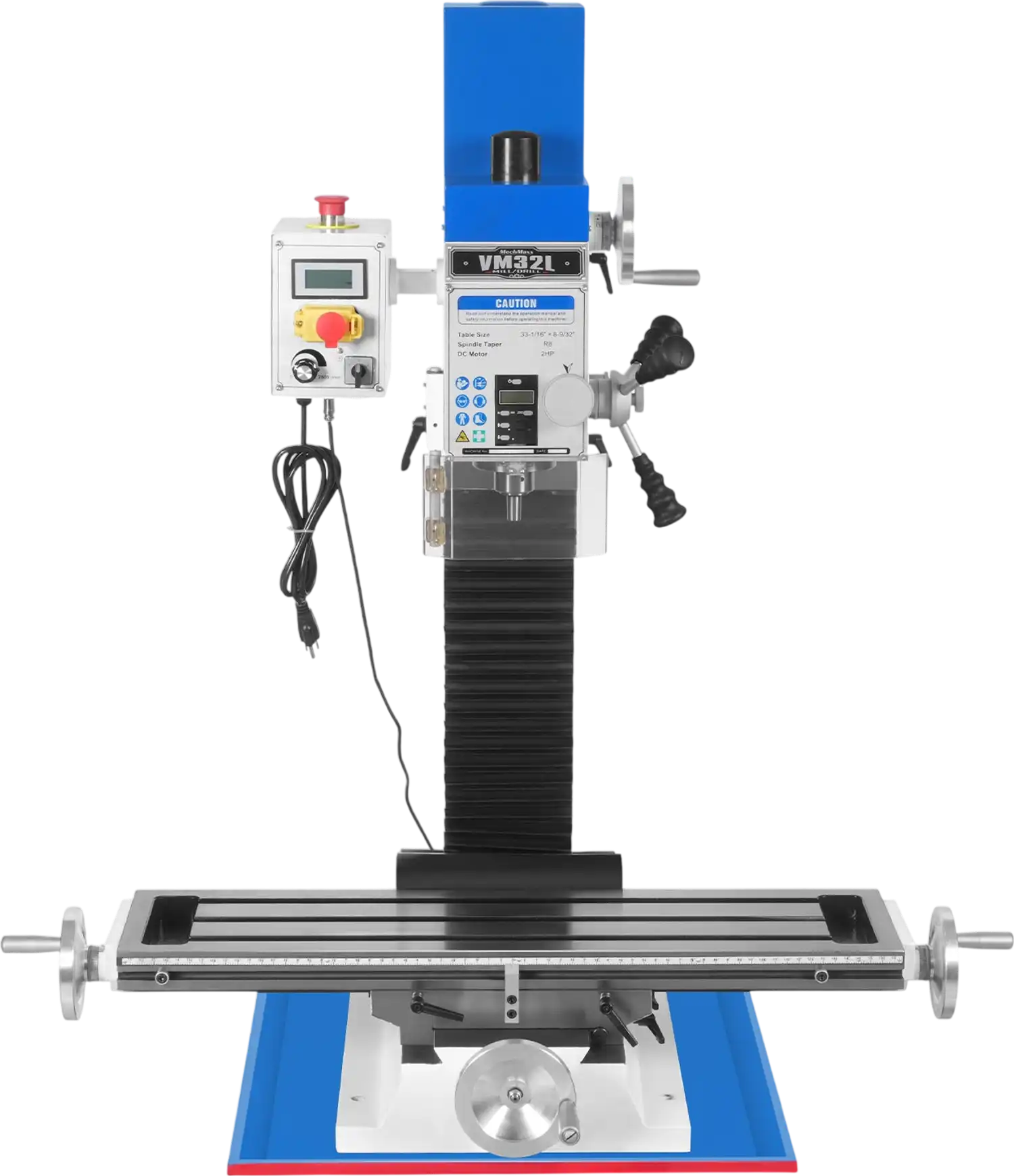

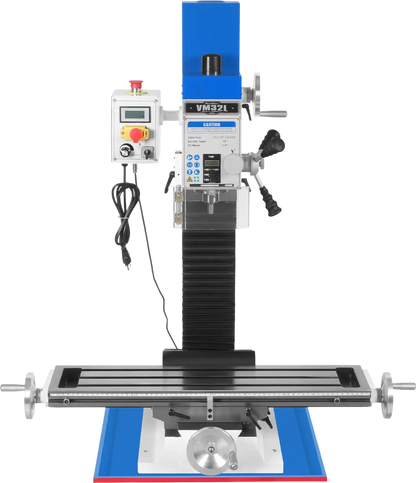

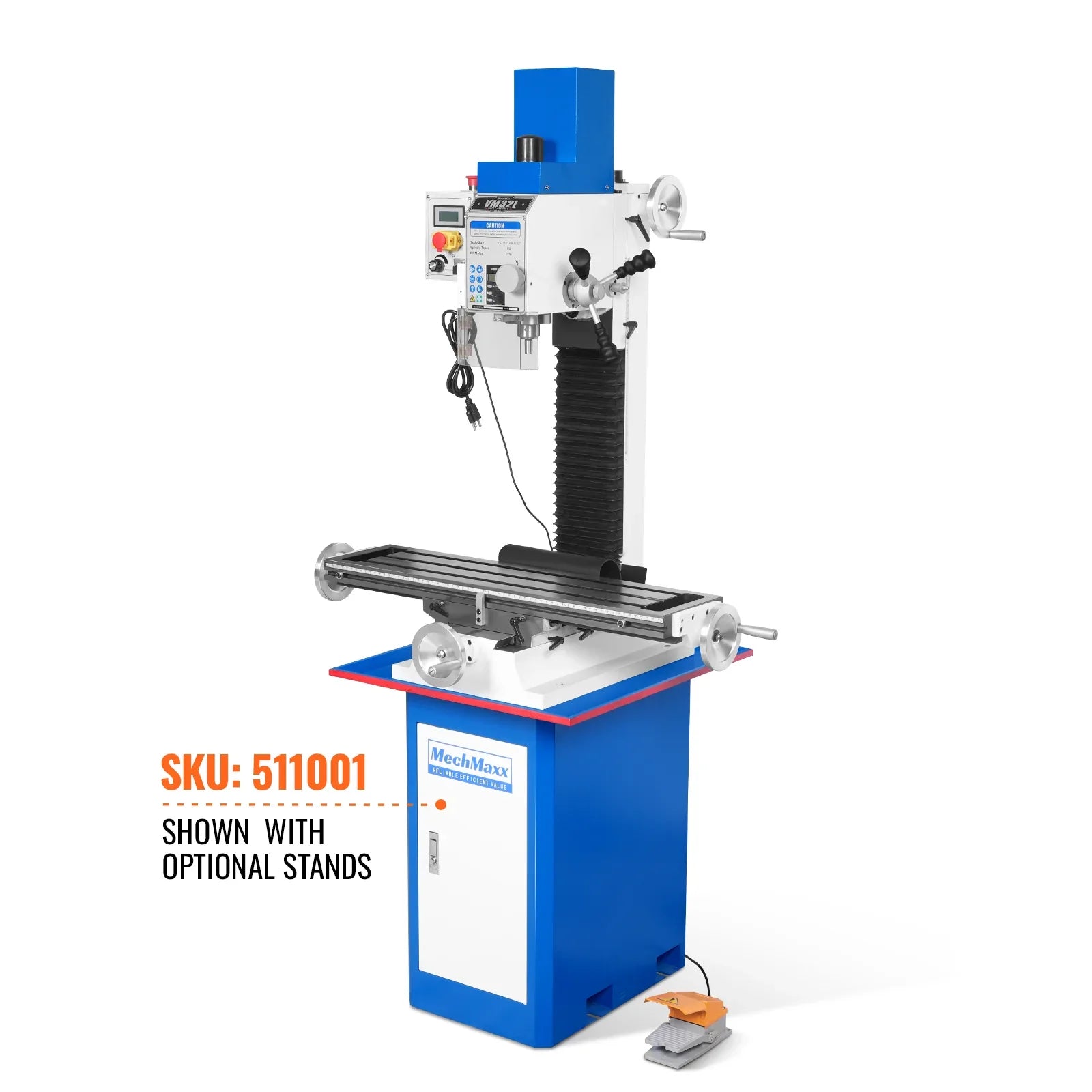

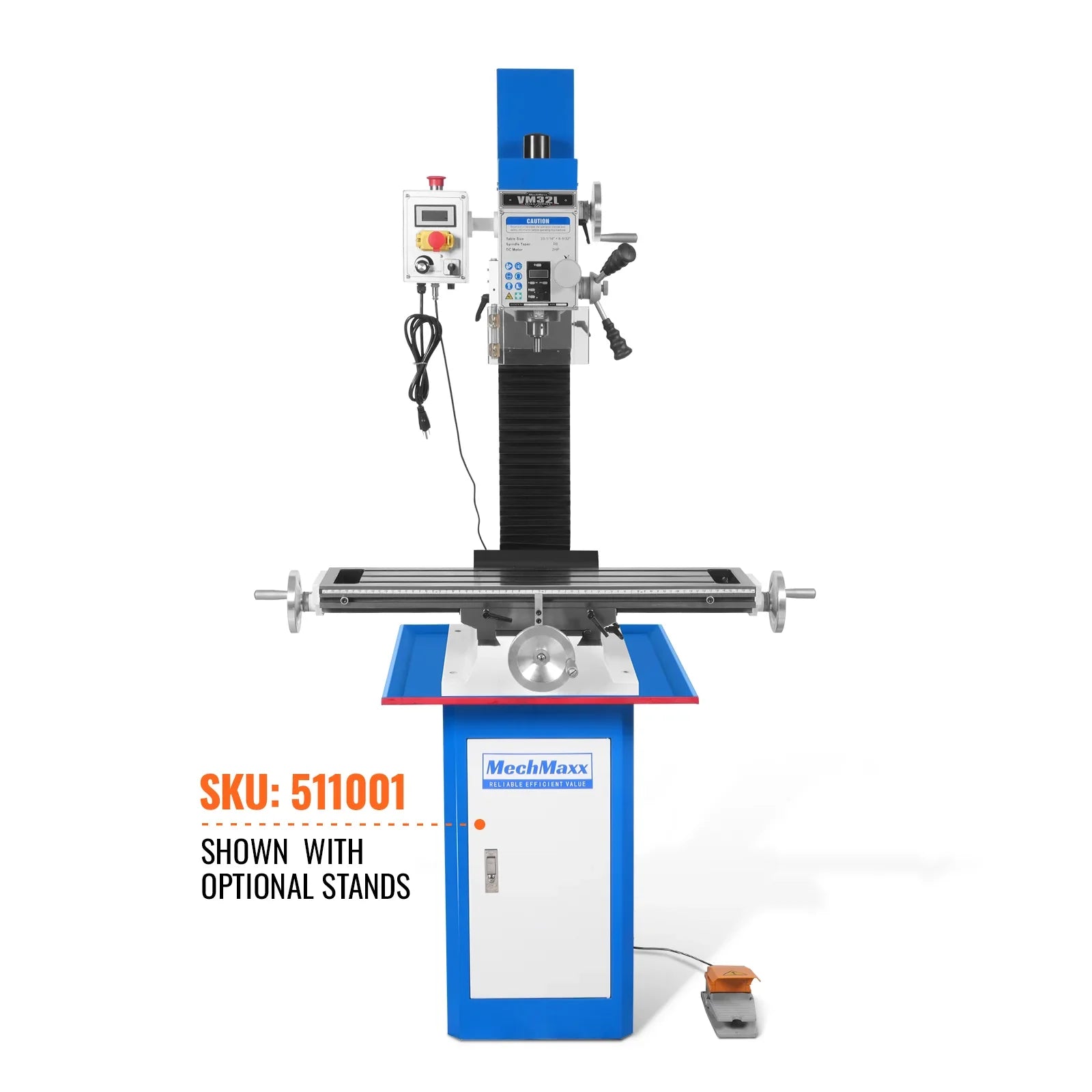

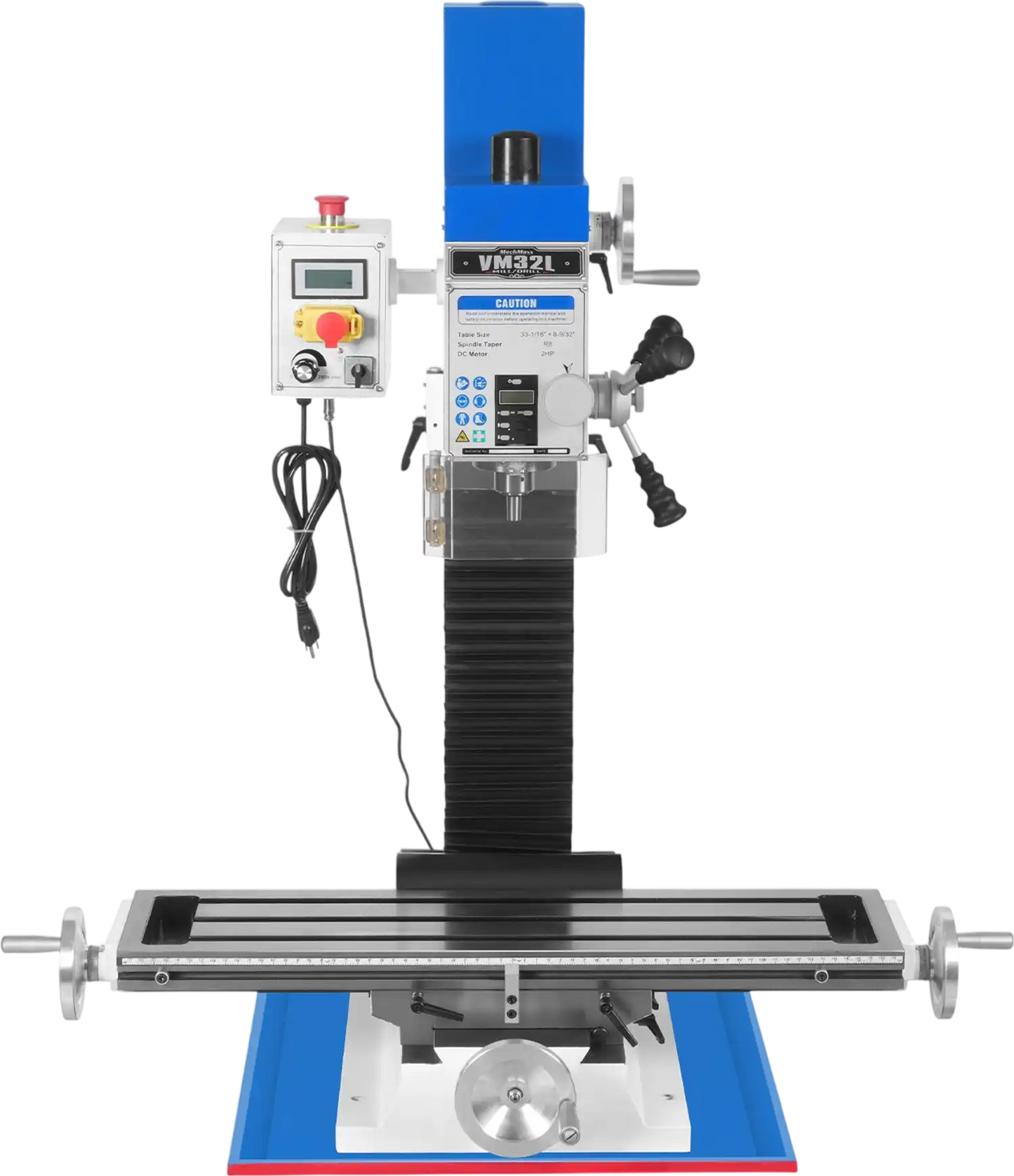

MechMaxx VM32L Mill Drill Machine 8-1/4x33" Industrial Benchtop Brushless Motor Variable Speed R8 Spindle 2 HP 110V New

MechMaxx

$2,999.00
$2,999.00
In Stock — Ready to Ship
Free Shipping
Mfr. Warranty
Authorized Dealer
Easy Returns
View full details

Product Details

  • Powerful 2 HP Brushless Motor: Delivers smooth, reliable power for heavy-duty tasks, with low maintenance and quiet operation.
  • 3-Axis DRO System for Enhanced Precision: Provides real-time digital measurements on X, Y, and Z axes, ensuring accurate adjustments and consistent results.
  • R8 Spindle with Versatile Cutting Capacity: Offers wide tool compatibility, capable of drilling up to 1-1/4" (32mm), end milling up to 3/4" (20mm), and face milling up to 3" (76mm).
  • ±60° Tilting Head for Flexible Operations: Allows for angled cuts and complex milling with a precise head tilt for versatility in machining.
  • Generous Travel and Large Table Size: Features a 7-1/4" x 33" (180 x 700mm) table and large axis travel, enabling easy handling of larger workpieces and complex machining tasks.
  • Durable and Stable Construction: Built with a square column and dovetail slide, ensuring increased rigidity and long-lasting precision during operation.
1 year factory warranty

1 year factory warranty

Manufacturer direct shipping from CA, NJ, IL, & TX

Manufacturer direct shipping from CA, NJ, IL, & TX

Authorized MechMaxx dealer

Authorized MechMaxx dealer

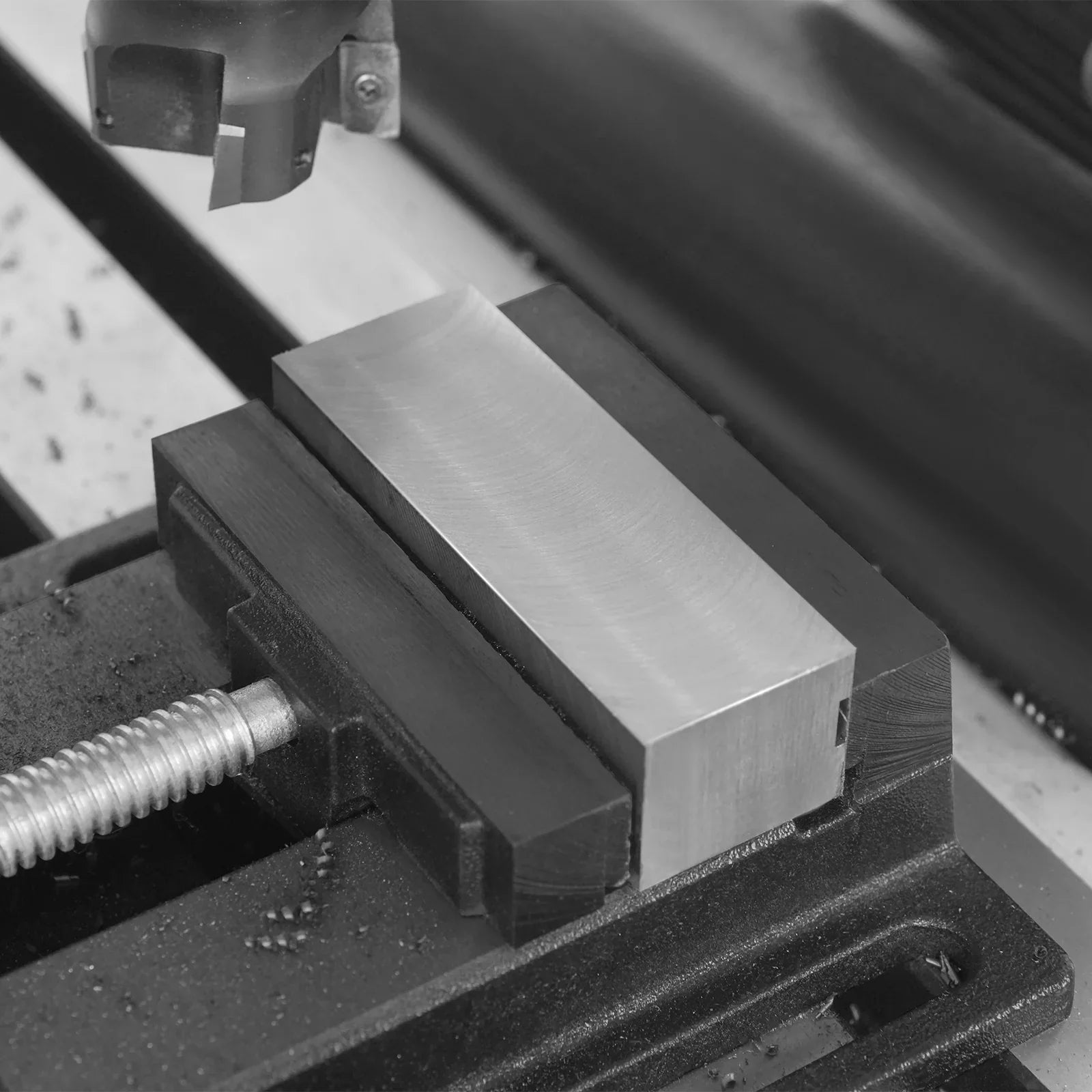

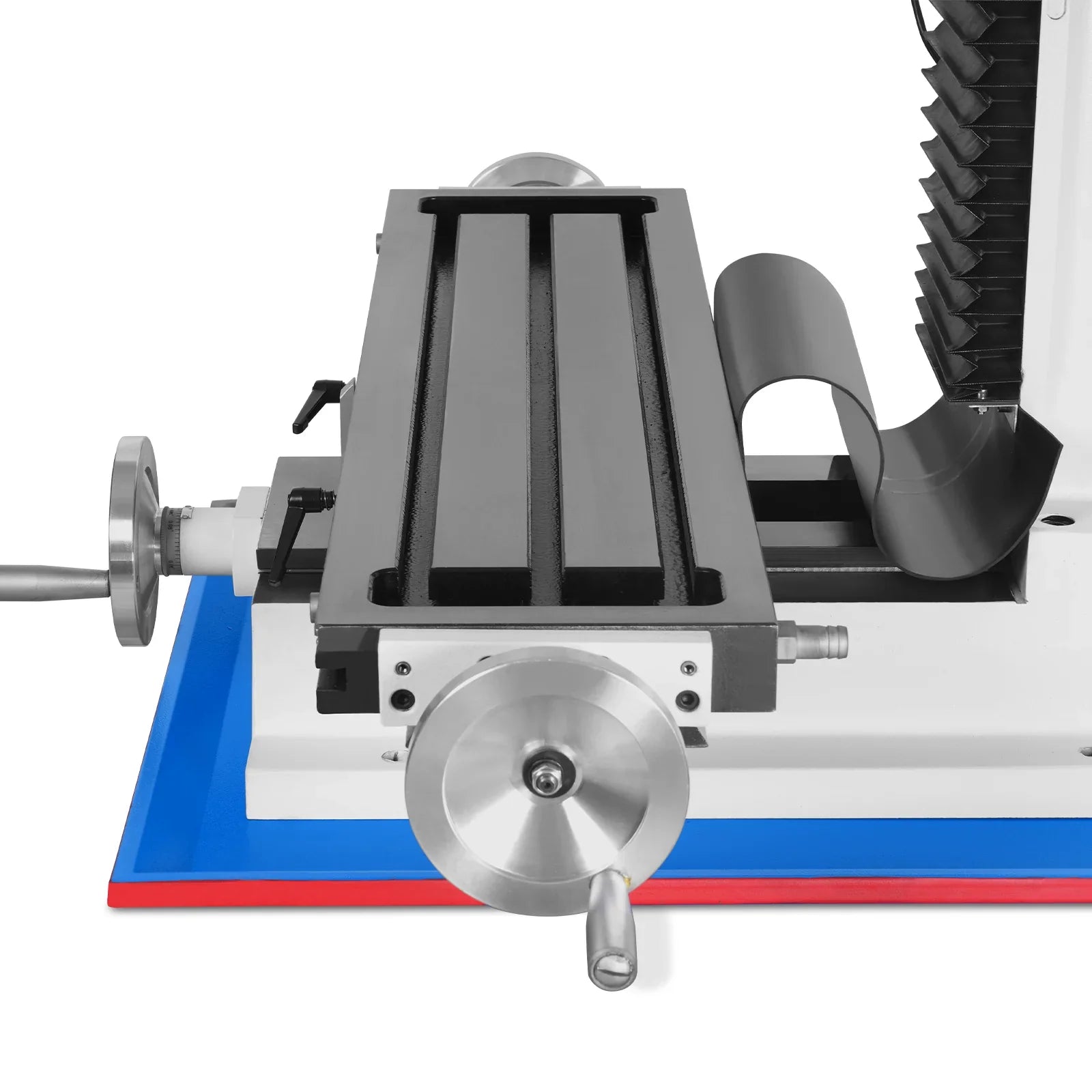

  • Precision-Ground, One-Piece Table: Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

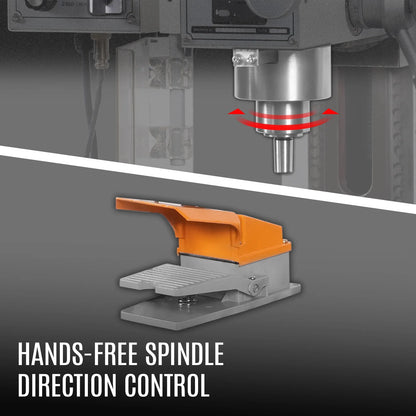

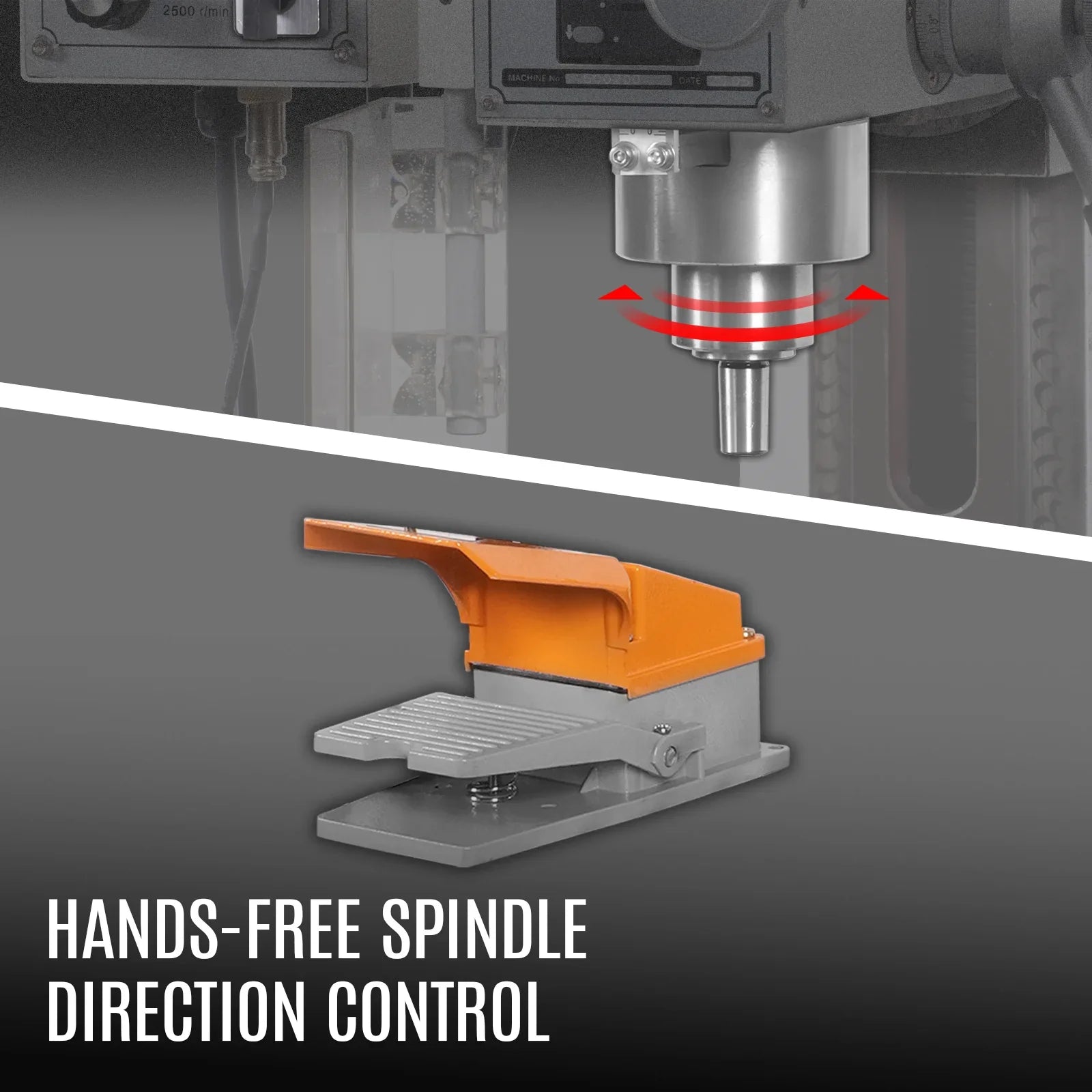

  • Dual Control for Spindle Rotation: Switch spindle direction by foot or hand — perfect for tapping operations. The foot pedal leaves your hands free, while manual control ensures quick direction changes when needed.

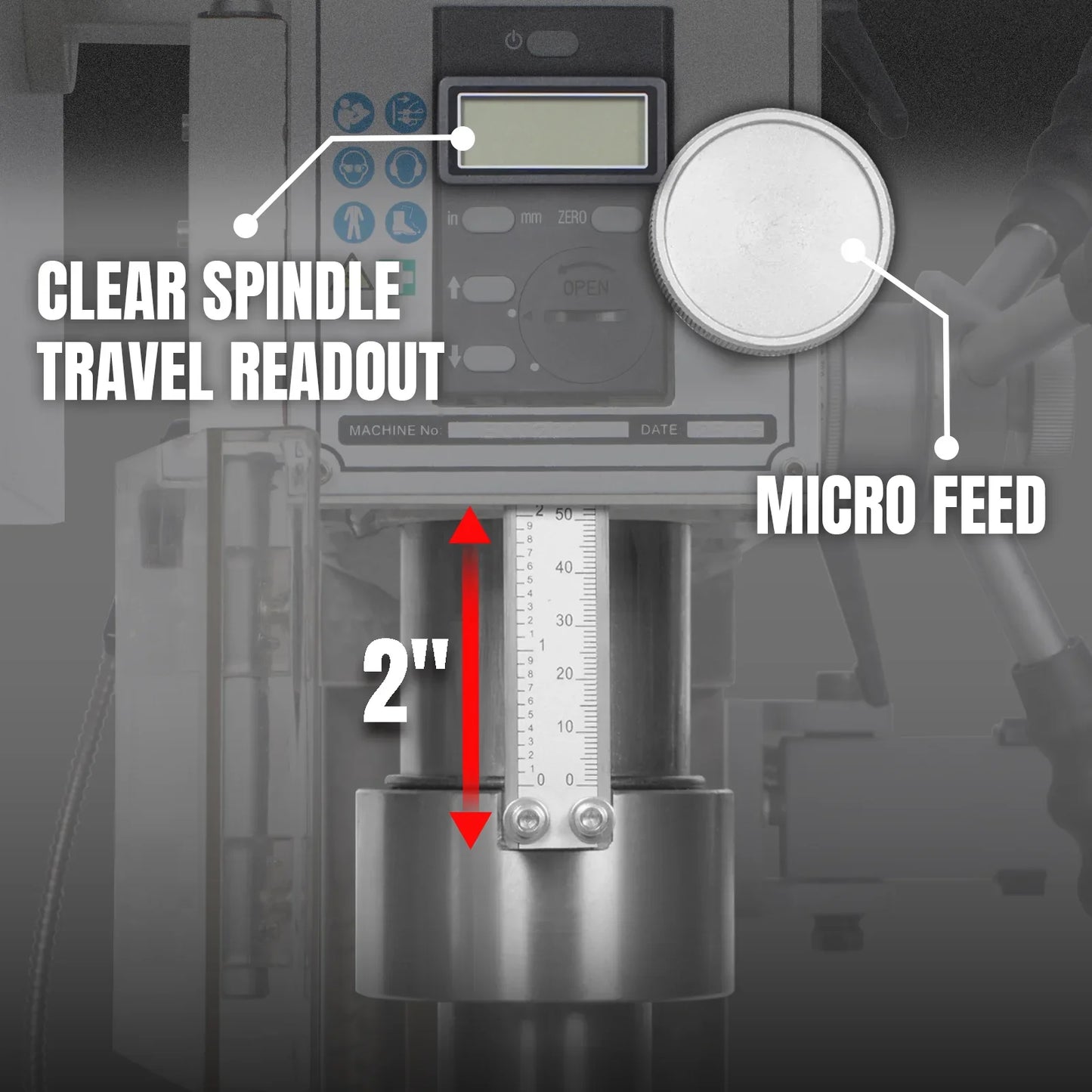

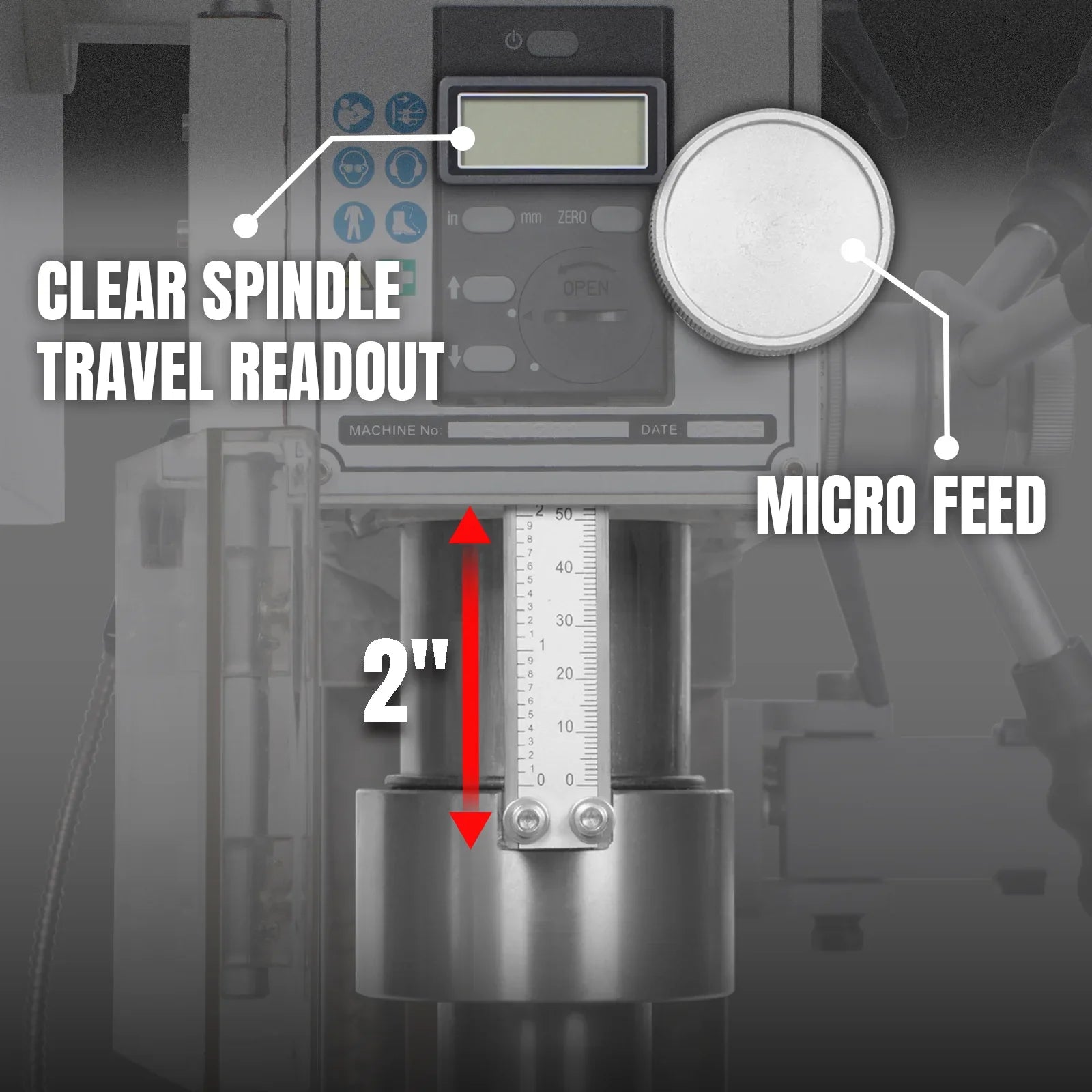

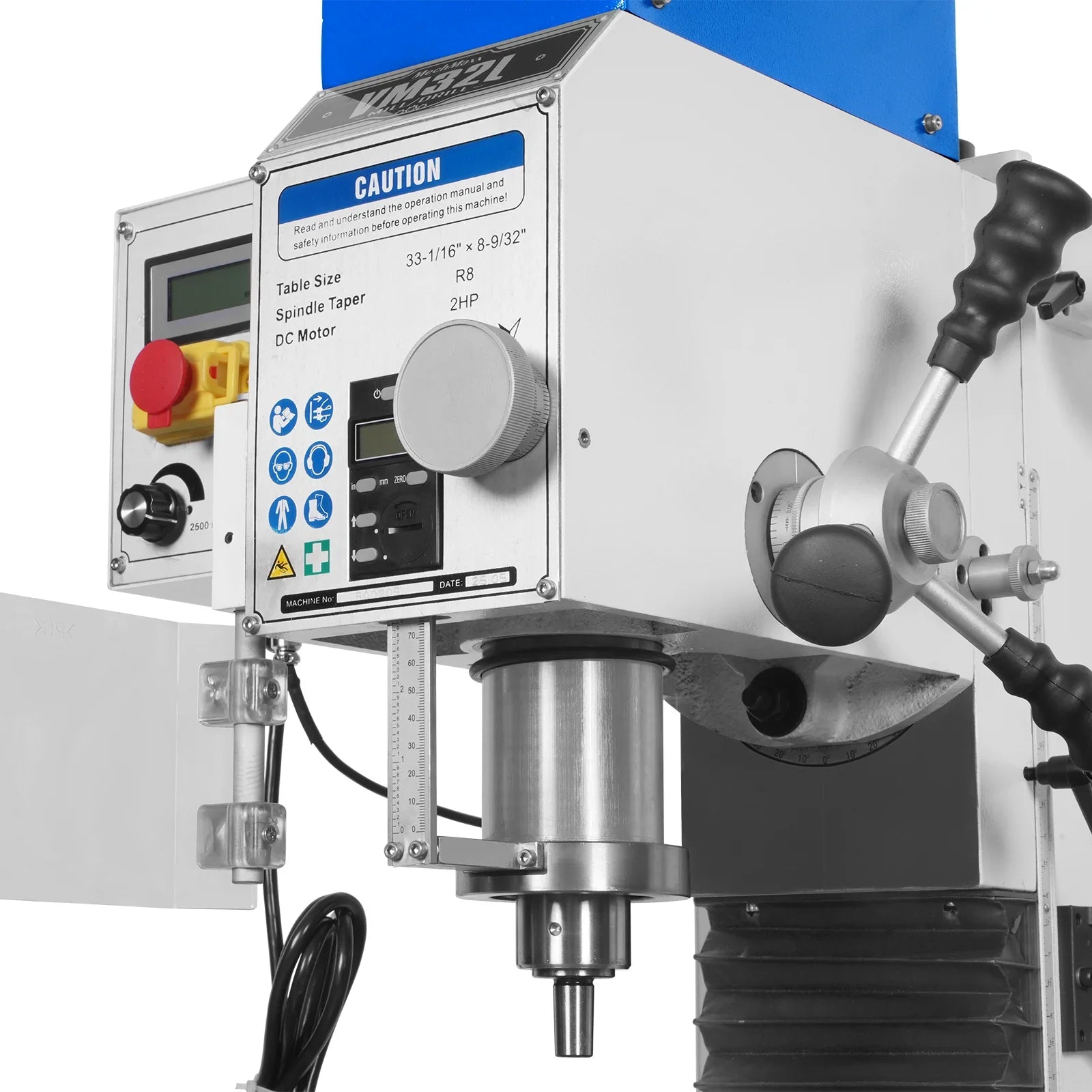

  • Engineered for Precision Drilling: Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

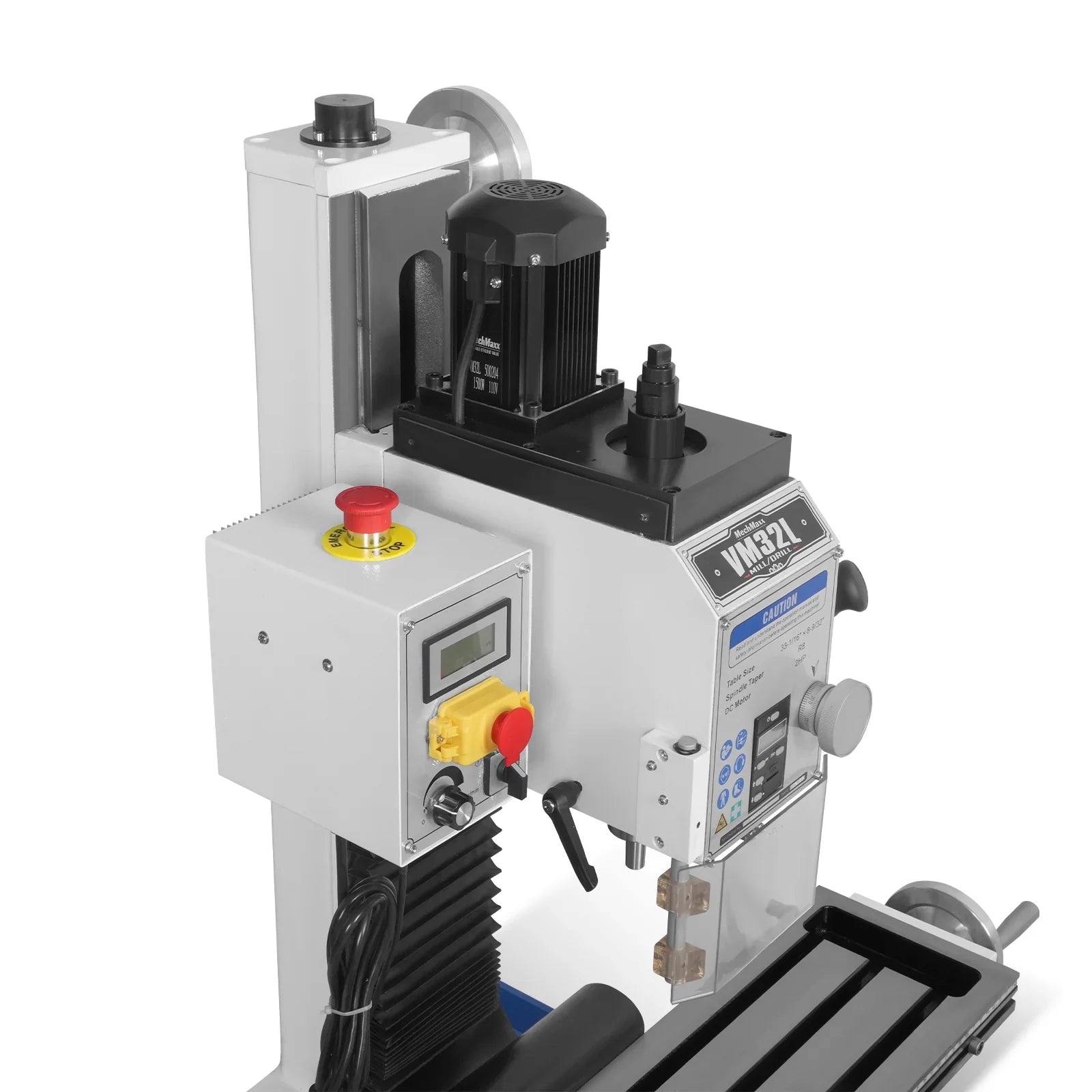

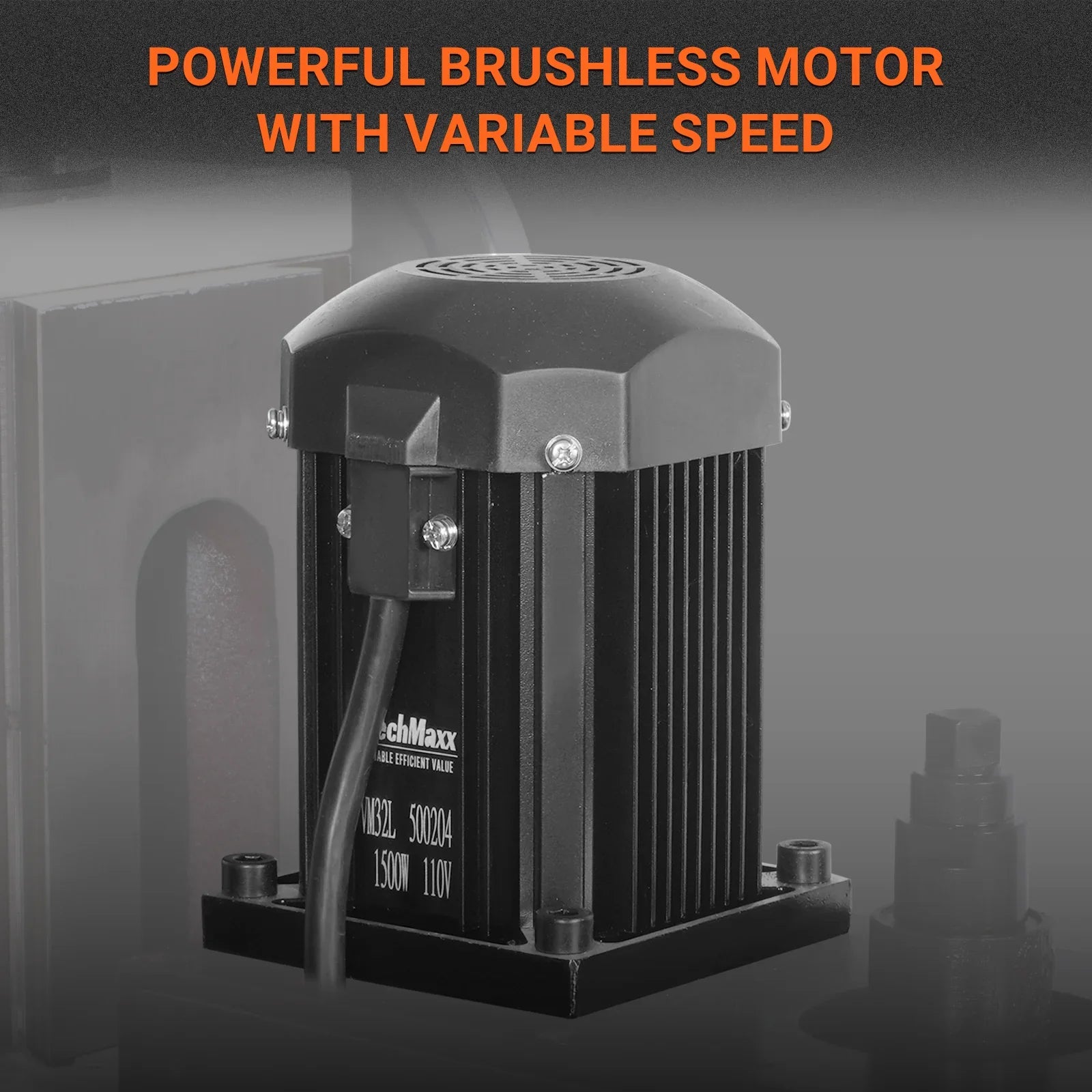

  • Powerful Brushless Motor with Variable Speed: Powered by a 2HP brushless DC motor, the VM32L delivers quiet, vibration-free operation. Seamlessly adjustable speed from 0 to 2500 RPM gives you full control for drilling, milling, or tapping.
  • Depth Stop & Feed Locks: Adjustable depth stop ensures consistent hole depth, X-axis limiters prevent overtravel for safe and precise milling, and feed locks stabilize the axis during cutting — no drift, better finish.

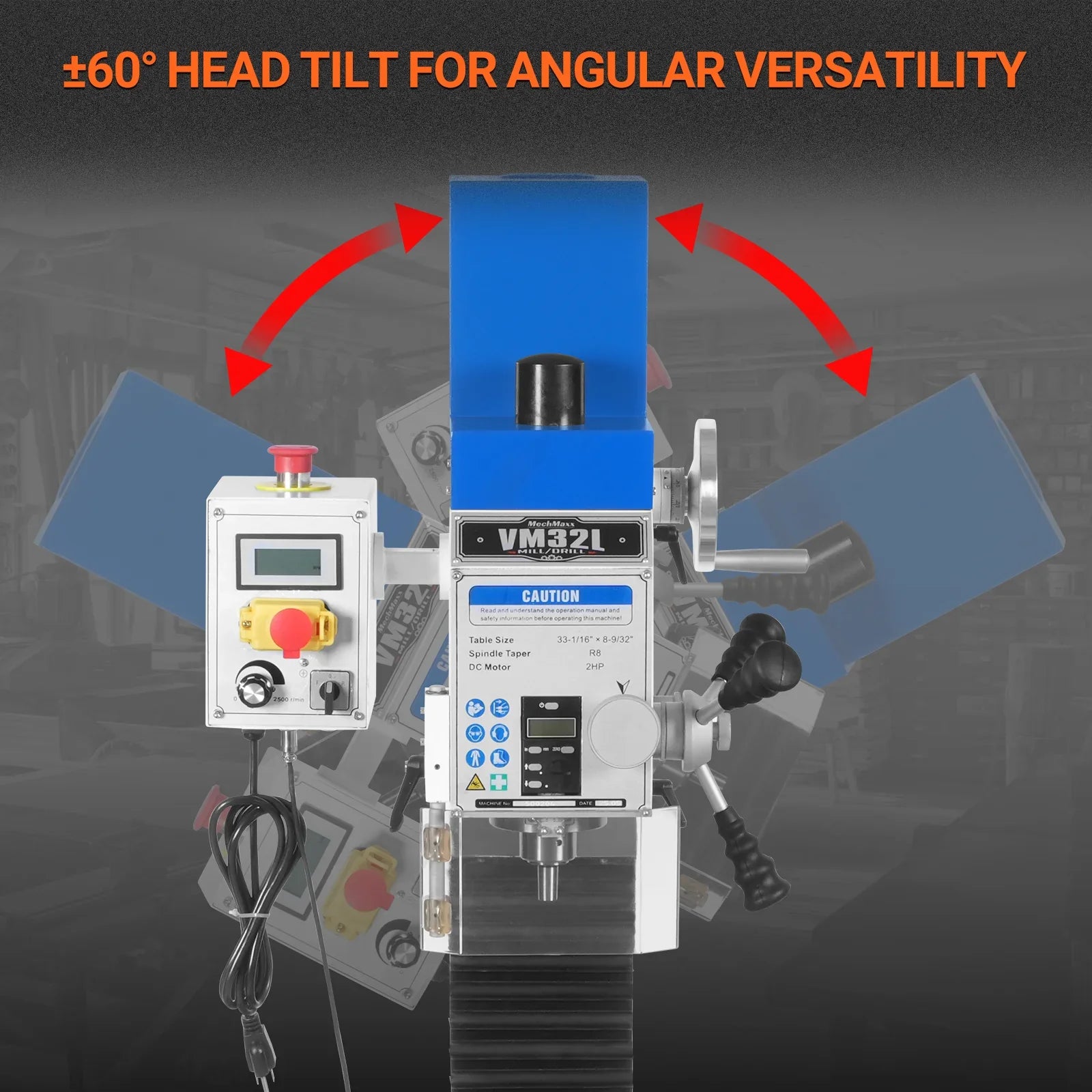

  • 60° Rotation for Versatile Machining: Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

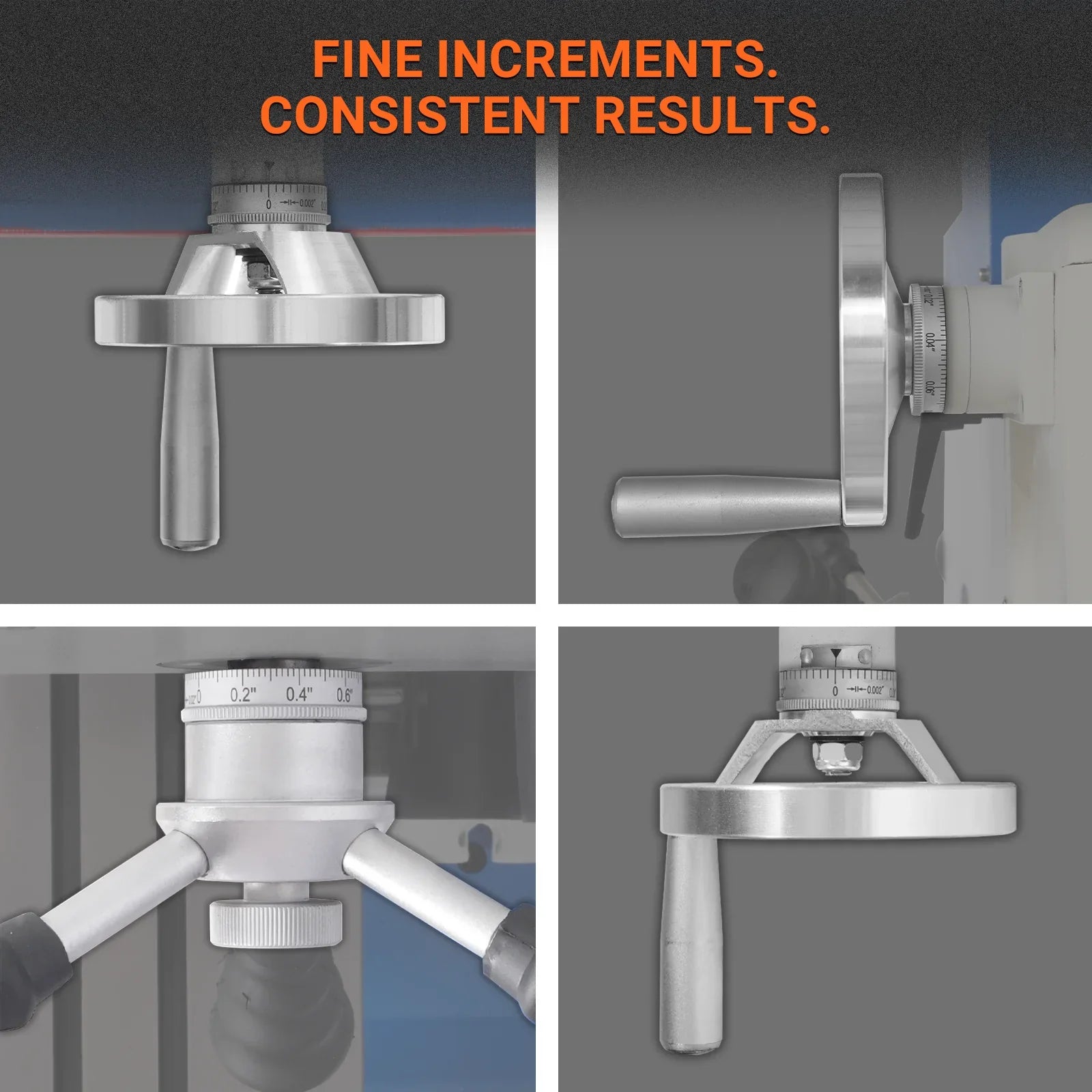

  • Graduated Handwheels for Precise Control: Graduated handwheels with precise scale markings help you make accurate, repeatable adjustments. Essential for fine milling operations and careful depth control.

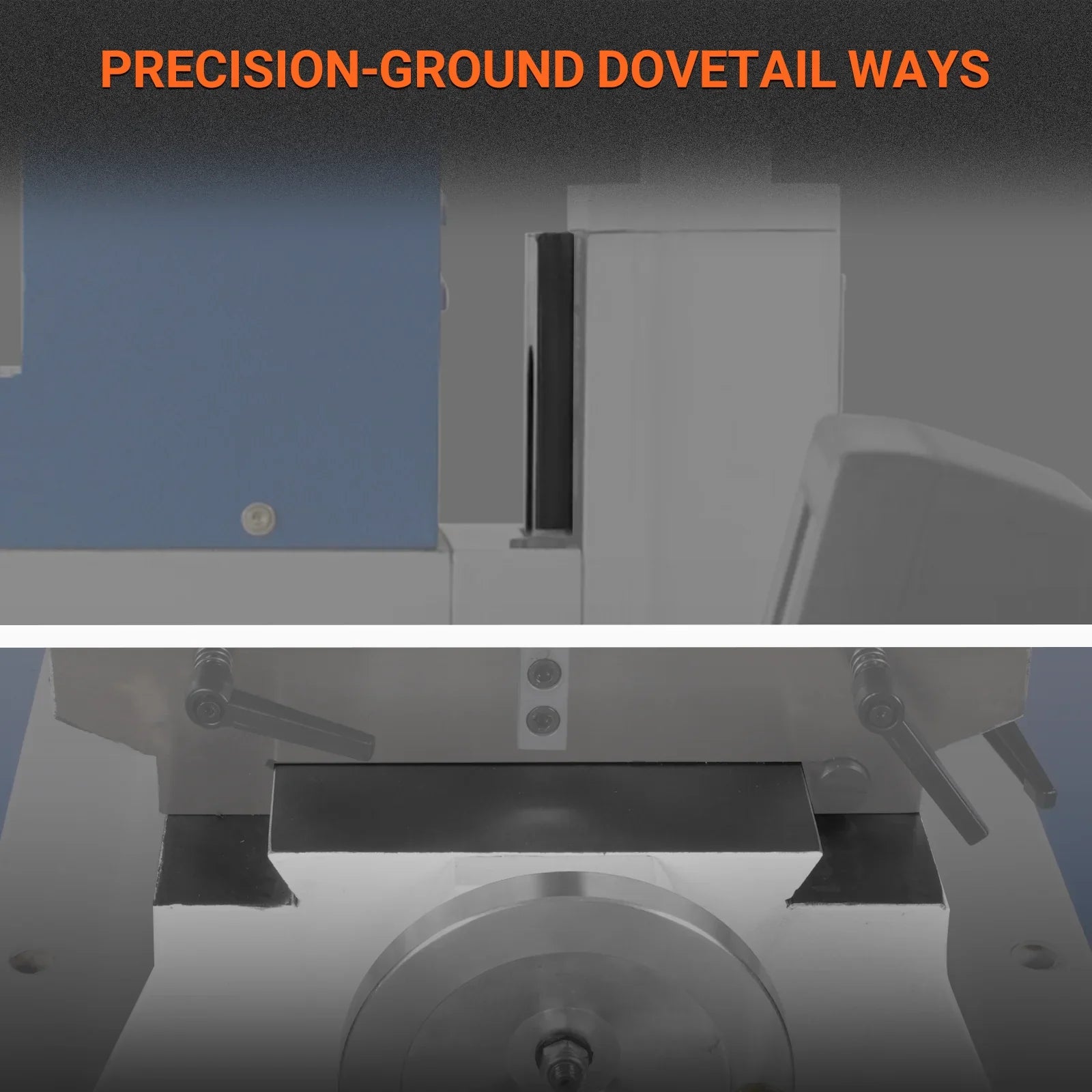

  • Precision-Ground Dovetail Ways: Built with hand-scraped dovetail ways and adjustable tapered gibs, this machine delivers outstanding rigidity, surface contact, and wear resistance. Perfect for heavy loads and precise milling operations.
  • Cutting Capacities You Can Count On: Handle a wide range of tasks with the VM32L: Drilling up to 1", Tapping (Cast Iron) up to 3/8", End Milling up to 5/8", and Face Milling up to 2-1/2". Compact yet capable — this machine gets real work done.

Spindle Taper: R8

Spindle Travel: 2"(50mm)

Quill Diameter: Ø2-3/4''(70mm)

Spindle Speed Range: 0-2500RPM

Number of Speed Steps: Variable

Drawbar Thread Size: 7/16"-20''

Head Tilt Angle: ±90°

Spindle to Table Distance: 18-1/2"(470mm)

Spindle to Column Distance: 8-1/4"(210mm)

Drilling Capacity: 1-1/4"(32mm)

End Milling Capacity: 3/4"(20mm)

Face Milling Capacity: 3''(76mm)

Table Size: 8-1/4"x33''(210x840mm)

T-Slot Size / No. / Centers: 3 X 9/16''(14mm)

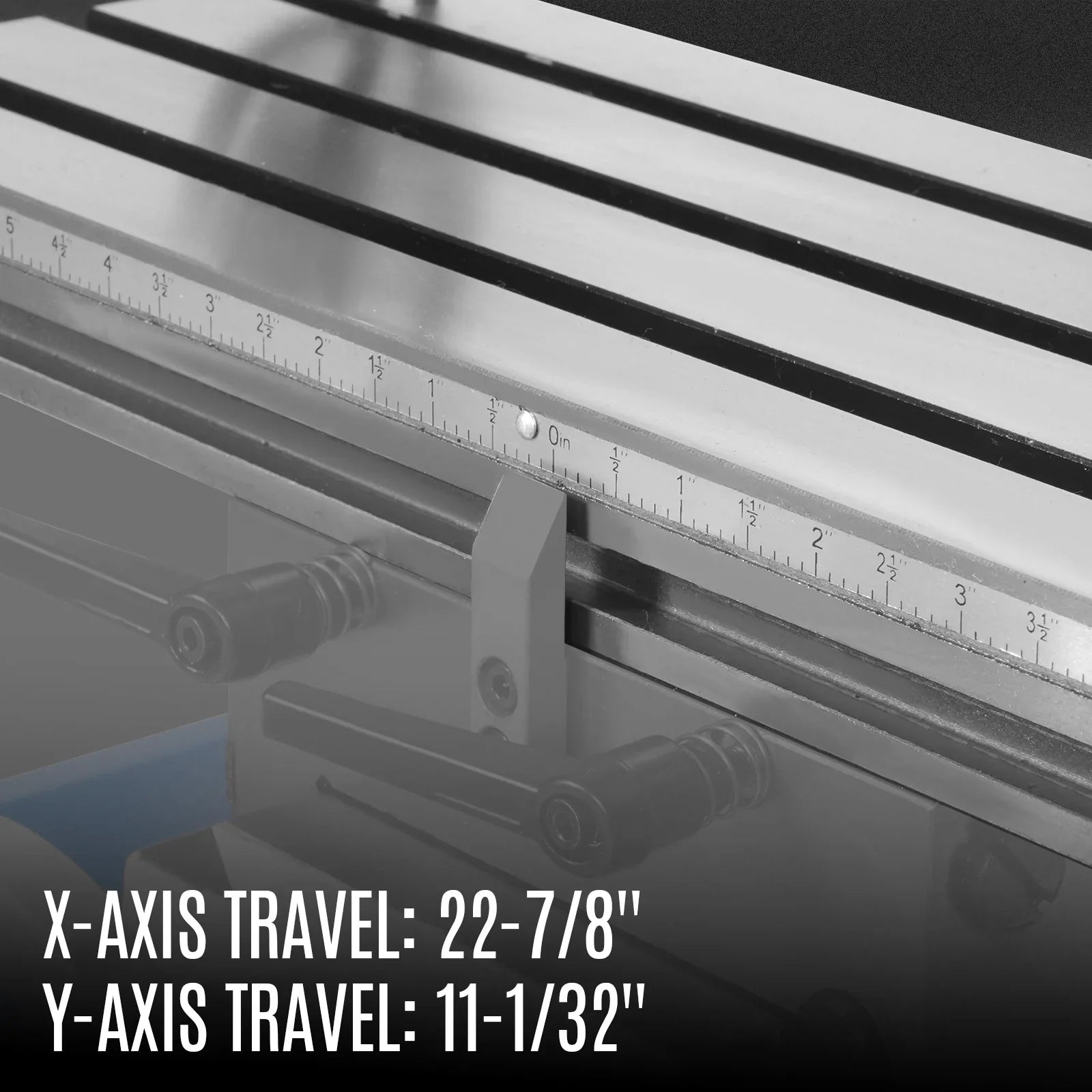

X-Axis Travel: 22-7/8''(580mm)

Y-Axis Travel: 11-1/32''(280mm)

Z-Axis Travel: 18-1/2''(470mm)

Column Type: Square Column，Dovetail Slide

Drive Type: Belt

Motor Power: 2HP 110V Single-Phase Brushless

Motor Type: DC Brushless

Net / Gross Weight: 462/528lbs(210/240KG)

Overall Dimensions: 45''x28''x47''(1130X710X1190mm)

Base Size: 21''x15''(535X380mm)

Shipping Dimensions: 44''x29''x46''(1100X730X1160mm)

This item comes with a 1 year factory warranty.
